2008. 05. 16
NO Q'TY
A0 T13A-0010 MAIN BODY ASSEMBLY 1
B0 T13A-0020 BACK HEAD ASSEMBLY 1
B1 015A-0021 GAS CHARGING VALVE ASSEMBLY 1
B2 150A-0022 IN/OUT 30° FLANGE ASSEMBLY 2
B3 150A-0023 IN/OUT FLANGE ASSEMBLY 2
C0 T13A-0030 CYLINDER ASSEMBLY 1
C1 T13A-0031 SEAL RETAINER ASSEMBLY 1
DO T13A-0040 FRONT HEAD ASSEMBLY 1
E0 T13A-0050 VALVE HOUSING ASSEMBLY 1
E1 T13A-0051 VALVE COVER ASSEMBLY 1
E2 150A-0052 VALVE PLUG ASSEMBLY 1
E3 T13A-0053 VALVE ASSEMBLY 1
E4 150A-0054 VALVE ADJUSTER ASSEMBLY 1
E5 N.A
F0 T13A-0060 ACCUMULATOR ASSEMBLY 1
F1 150A-0061 GAS CHARGING ADJUSTER ASS'Y 1
F2 150A-0062 GAS PLUG BOLT ASSEMBLY 1
G0 150A-0070 HOSE ASSEMBLY 2
H0 T13A-0080 THROUGH BOLT ASSEMBLY 4
1 T13B-0010 BACK HEAD 1
2 T13B-0020 CYLINDER 1
3 T13B-0030 FRONT HEAD 1
4 T13B-0040 SEAL RETAINER 1
5 T13B-0050 PISTON 1

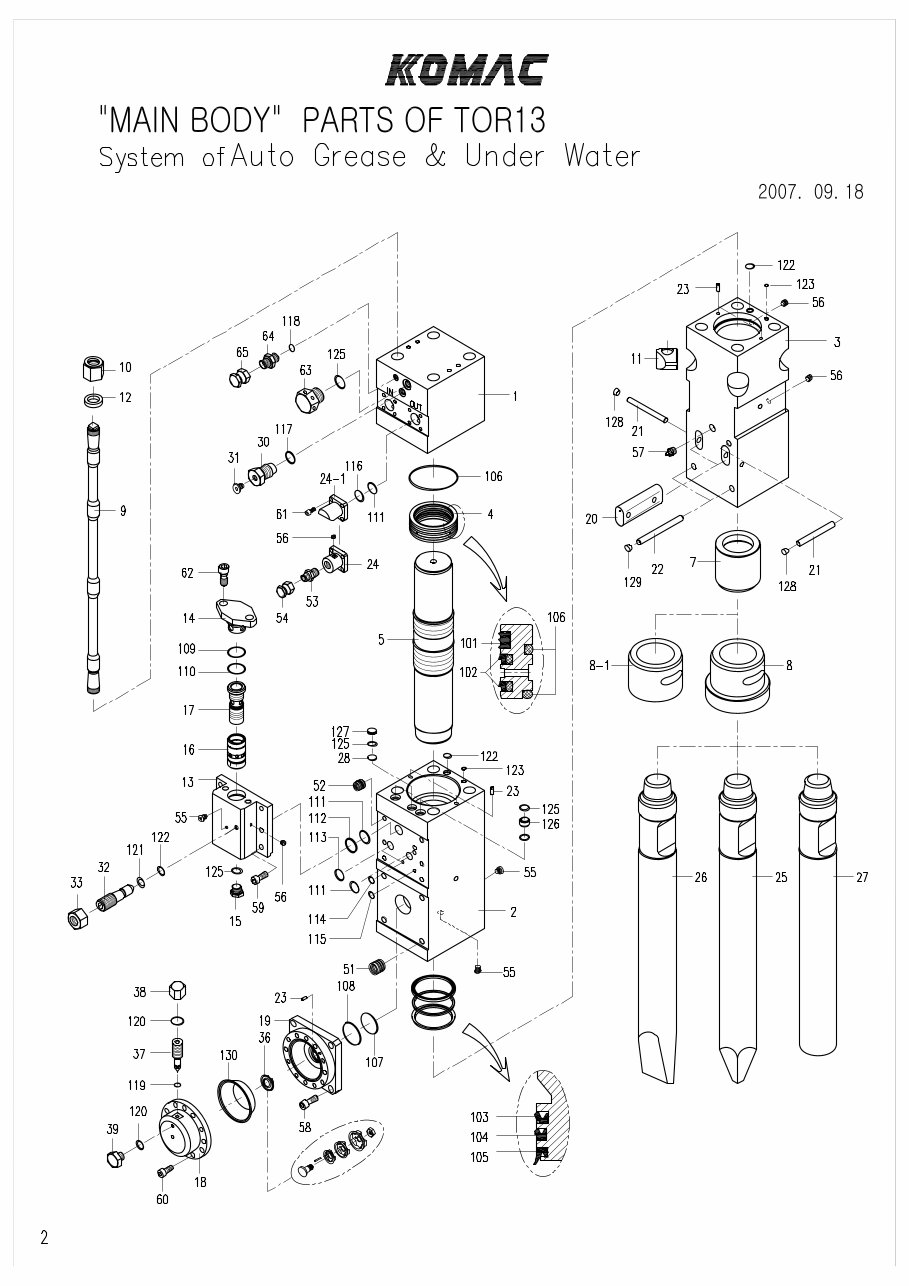

" MAIN BODY" PARTS LIST OF TOR13
REMARKS PARTS NO PARTS NAME
1,B1,B2(B3),63,64,65,106,
111,118
30,31,117
V, H- TYPE
24,53,54,61,113,116
AUTO GREASE TYPE
24-2,56,53,54,61,113,116
2,23,28,51,52,55,103,104,105,
123,124,125,127
4,101,102,106
3,7,20,21,22,23,56,57,
123,124,128,129
E1,E2,E3,E4,13,55,56,59,111,112,
113,114,115
14,62,109,110
15,125
16,17
9,10,11,12
32,33,121,122
F1,F2,18,19,23,36,58,60,107,
108,130
37,38,119,120
39,120
3
NO Q'TY REMARKS PARTS NO PARTS NAME
6 N.A
7 T13B-0070 THRUST BUSH 1
8 T13B-0080 TOOL BUSH 1
T13B-0081 TOOL BUSH 1 S-TYPE
9 T13B-0090 THROUGH BOLT 4
10 T13B-0100 THROUGH BOLT UPPER NUT 4
11 T13B-0110 THROUGH BOLT LOWER NUT 4
12 T13B-0120 THROUGH BOLT WASHER 4
13 T13B-0130 VALVE HOUSING 1
14 T13B-0140 VALVE COVER 1
15 150B-0150 VALVE PLUG 1 PF3/4"
16 T13B-0160 VALVE 1
17 T13B-0170 VALVE SLEEVE 1
18 T13B-0180 ACCUMULATOR COVER 1
19 T13B-0190 ACCUMULATOR BODY 1
20 T13B-0200 TOOL PIN 2
21 T13B-0210 STOP PIN 2
22 T13B-0T13 TOOL BUSH PIN 2
23 015B-0150 GUIDE PIN 5
24 150B-0240 IN/OUT 45° FLANGE (PF3/4) 2 V, H- TYPE
150B-0242 IN/OUT FLANGE (PF3/4) 2 AUTO GREASE TYPE
25 T13B-0250 MOIL POINT 1
26 T13B-0260 CHISEL (WEDGE POINT) 1
27 T13B-0270 BLUNT TOOL 1
28 150B-0280 COVER PLATE 1
29 N.A
30 015B-0180 GAS CHARGING VALVE 1
31 015B-0190 GAS CHARGING VALVE PLUG 1
32 150B-0320 VALVE ADJUSTER 1 M20x1.5p-70
33 150B-0330 ADJUST NUT 1 M20x1.5p-16
4
NO Q'TY REMARKS PARTS NO PARTS NAME
34 N.A
35 N.A
36 T13B-0360 INNER VALVE ASS'Y 1
37 150B-0370 GAS CHARGING ADJUSTER 1 M12x1.25p-41
38 150B-0380 GAS CHARGING CAP 1 M12x1.25p-18
39 150B-0390 GAS PLUG BOLT 1 M12x1.25p-10
51 T13C-0010 HELI-COIL 4 M22x2.5p-1.5D
52 200C-0020 HELI-COIL 6 M20x2.5p-1.5D
53 150C-0660 IN, OUT ADAPTER 2 PT3/4xPF3/4
54 040C-0040 IN, OUT UNION CAP 2 PF 3/4
55 150C-0060 SOCKET PLUG 3 PF1/4 (ED-RING)
56 015C-0020 SET SCREW 4 PT 1/4
57 015C-0050 GREASE NIPPLE 1 PT 1/4
58 T13C-0080 HEX. SOCKET BOLT 4 M22x2.5p-60
59 150C-0090 HEX. SOCKET BOLT 6 M20x2.5p-60
60 T13C-0100 HEX. SOCKET BOLT 12 M14x1.5p-45
61 150C-0110 HEX. SOCKET BOLT 8 M14x1.5p-35
62 150C-0120 HEX. SOCKET BOLT 2 M24x2.0p-55
63 100C-0070 AIR VENT 1 PF 3/4
64 100C-0080 GREASE ADAPTER 1 PF1/4xPF1/4
65 100C-0090 GREASE UNION CAP 2 PF 1/4
100 T13D-0000 SEAL KIT 1SET
101 100D-0010 GAS SEAL 1 H98
102 T13D-0020 STEP SEAL 2 SPNS98
103 100D-0030 BUFFER RING 1 HBY100*115.5*6
104 100D-0040 U-PACKING 1 ISI100*115*9
105 100D-0050 DUST SEAL 1 DSI100*110*6*8
106 100D-0060 O-RING 3 1BG135
5
NO Q'TY REMARKS PARTS NO PARTS NAME
107 020D-0060 O-RING 1 1BG70
108 T13D-0080 BACKUP RING 1 4BG70
109 420D-0150 O-RING 1 1BG50
110 420D-0190 BACKUP RING 1 T3G50
111 150D-0180 O-RING 4 1BG40
112 T13D-0120 BACKUP RING 1
4BG45 (Φ45xΦ
47.5x2.4)
113 100D-0070 O-RING 2 1BG35
114 015D-0090 O-RING 1 1BP20
115 015D-0070 O-RING 1 1BG25
116 150D-0190 BACKUP RING 2 T3G40
117 015D-0100 O-RING 1 1BP18
118 015D-0110 O-RING 1 1BP11
119 150D-0270 O-RING 1 1BP5
120 150D-0220 O-RING 2 1BP14
121 150D-0210 BACKUP RING 1 T3P12
122 100D-0150 O-RING 3 1BP12
123 150D-0340 O-RING 2 1BP8
124 N.A
125 040D-0090 O-RING 8 1BP24
126 T13D-0260 TEFLON BUSH 2 Φ30x26
127 T13D-0300 TEFLON PLUG 1 Φ30x23
128 040D-0110 RUBBER PLUG 2 Φ21xΦ17-14
129 040D-0120 RUBBER PLUG 2 Φ23xΦ20-14
130 T13D-0330 DIAPHRAGM 1 Φ139x38
6
2006. 12. 13
NO Q'TY
490 T13BA-0000 IN/OUT OPTION SWIVEL BLOCK ASS'Y 2
500 T13B-0500 SWIVEL VALVE ADAPTER ASSEMBLY 2
501 T22B-0510 MAIN BLOCK 2
502 T13B-0521 HOLLOW SCREW 2
503 T13B-0531 SWIVEL CONNECT 2
504 T22B-0541 CONNECT COVER 2
505 T22B-0551 NC SPACER 4 MC901
506 100C-0100 SOCKET PLUG 2 PF1/4 (ED-RING)
507 040C-0300 IN, OUT ADAPTER 2 PF3/4 x PF3/4 #14
508 040C-0040 IN, OUT UNION CAP 2 PF 3/4 #14
509 040D-0090 O-RING 4 1BP24
511 T22B-0580 QUAD-RING 4
5.33 x 40.64
(QBARO4326)
512 420D-0280 O-RING 2 1BP38
513 150D-0180 O-RING 2 1BG40
514 150D-0190 BACK UP RING 2 T2G40
515 T22B-0590 BACK UP RING 2 BU49R 0400
516 T22B-0560 HEX. SOCKET BOLT 8 M14X1.5P-85
517 T22B-0660 PTFE SPACER 4
REMARKS

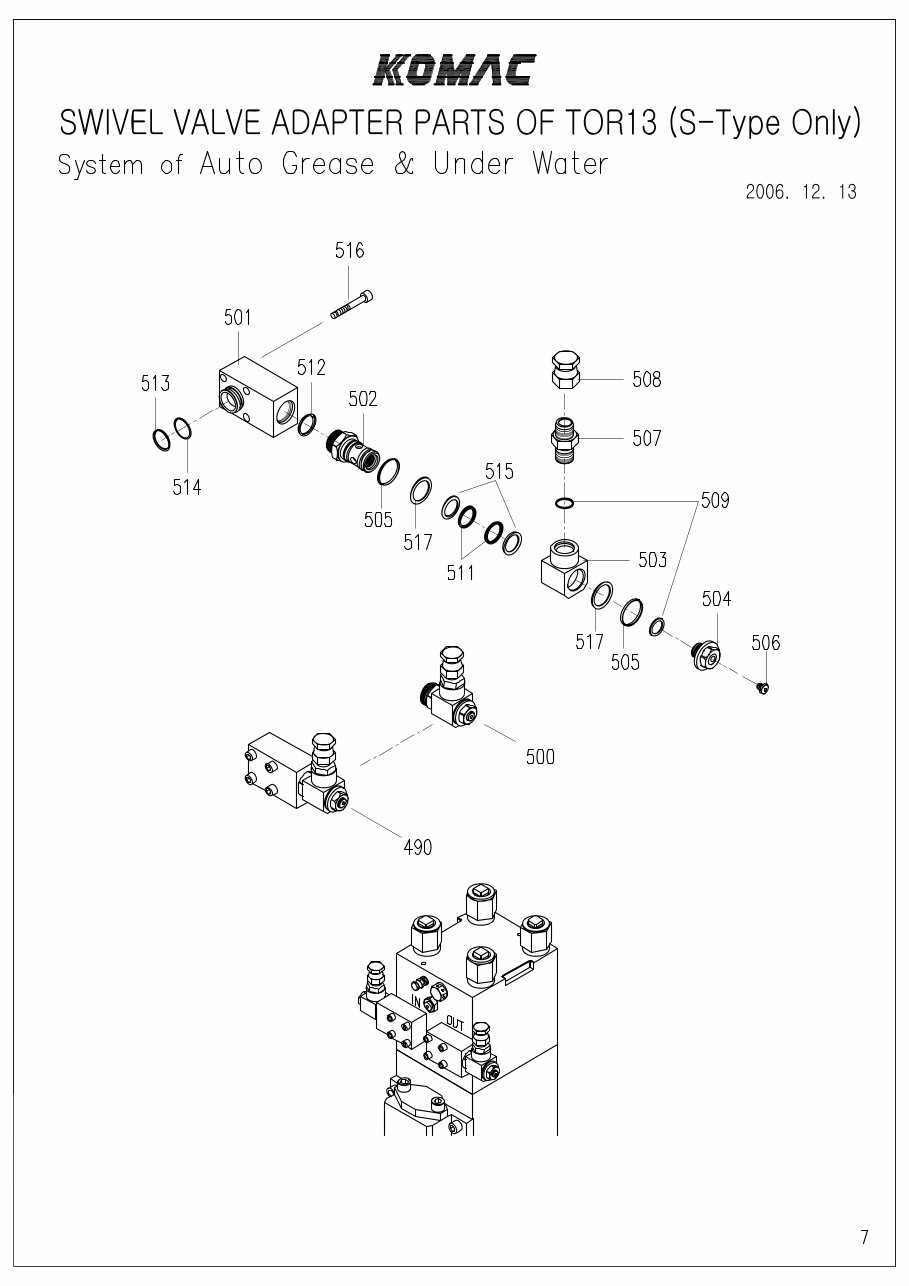

SWIVEL VALVE ADAPTER PARTS LIST OF TOR13 (S-Type Only)
PARTS NO PARTS NAME
8
2006. 12. 13
NO Q'TY
J0 150A-0170 MOUNTING PIN ASSEMBLY 2
J1 150A-0171 MOUNTING CAP HEX. BOLT ASSEMBLY 12
J2 T13A-0172 SIDE JOINT BOLT ASSEMBLY 8
200 T13V1-0010 MAIN BODY ASSEMBLY 1
T13V1-0000 BRACKET ASSEMBLY 1
201 T13V1-0100 BRACKET SUB ASSEMBLY (RH) 1
202 T13V1-0200 BRACKET SUB ASSEMBLY (LH) 1
203 T13S5-0200 MOUNTING PLATE 1 620x540x30t
204 T13V1-0400 SIDE JOINT BOLT 8 Rd39-382
205 T13V1-0500 SIDE JOINT NUT 16 Rd39(HEX.60)
206 T13V1-0600 SIDE JOINT WASHER 16
207 150V3-0710 MOUNTING CAP HEX. BOLT 12 M24x3.0p-130
208 150V3-0810 MOUNTING CAP HEX. NUT 24 M24x3.0p
209 150V1-0900 SPRING WASHER 12 M24
210 150V1-1000 PLAIN WASHER 12 M24
250 T13V5-5000 MOUNTING CAP ASSEMBLY 1
251 T13V5-5100 MOUNTING WELDING ASS'Y 1
252 150V1-5200 MOUNTING PIN 2
253 150V1-5300 MOUNTING PIN BUSH 4
254 150V1-5400 MOUNTING PIN STOPPER 2
255 150V1-5500 STOPPER HEX. BOLT 2 M16x2.0p-130
256 150V1-5600 STOPPER HEX. NUT 4 M16x2.0p
207, 208, 209, 210
204, 205, 206
REMARKS

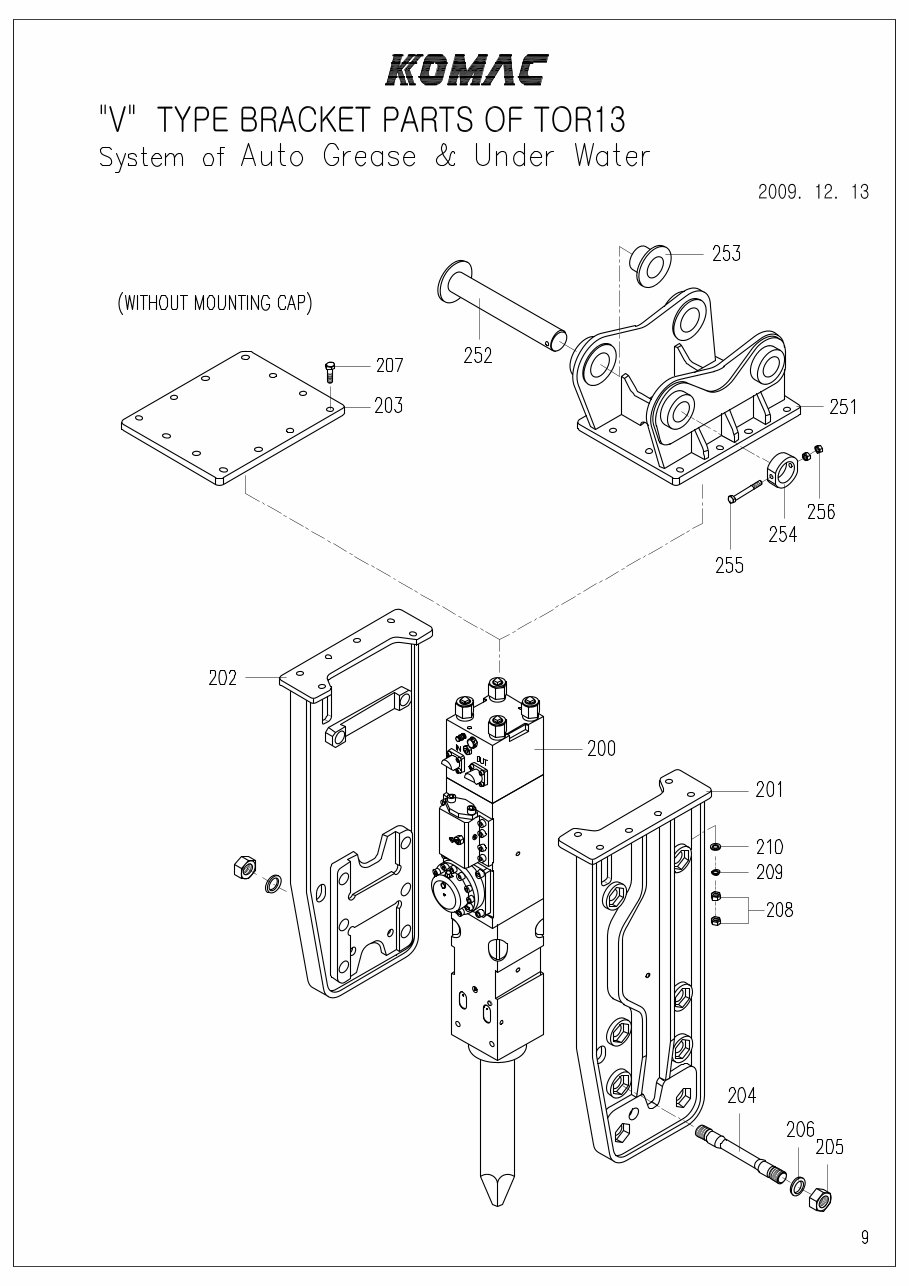

"V" TYPE BRACKET PARTS LIST OF TOR13
PARTS NO PARTS NAME
252, 253, 254, 255, 256
10
