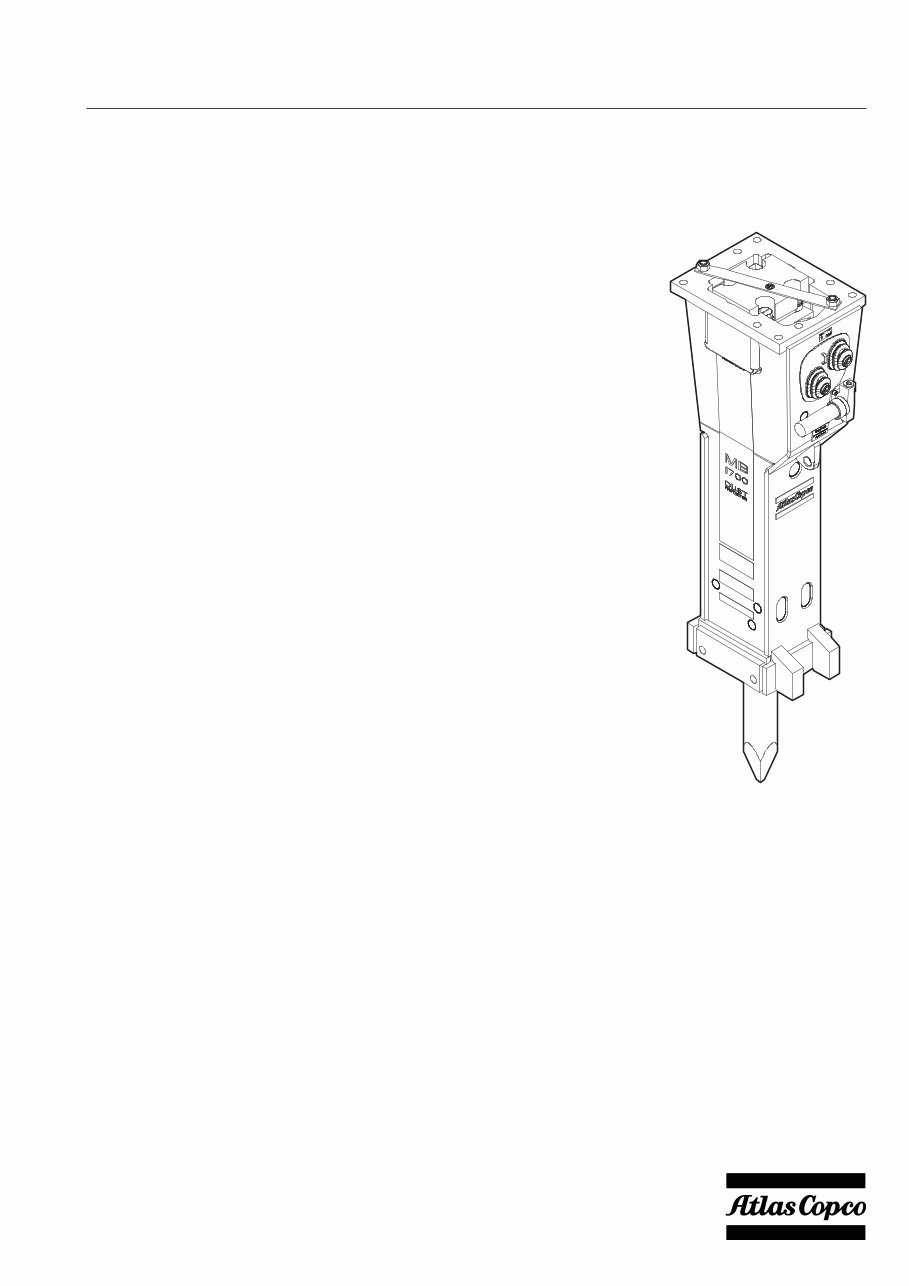

Atlas copco MB1700 manuals. 3 x manuals

Contents General note....................................................................... 5 Spare parts list..................................................................... 6 Hydraulic breaker MB 1700 ...................................................... 6 Hydraulic breaker MB 1700 DustProtector......................................... 8 Percussion unit part 1: cylinder cover............................................ 10 Percussion unit part 2: cylinder.................................................. 12 Percussion unit part 3: lower breaker part........................................ 14 Connecting kit for ConitLube ® II ................................................. 16 StartSelect - AutoStart or AutoStop.............................................. 18 Optional parts.................................................................. 20 Working tools..................................................................... 21 MB 1700....................................................................... 21 MB 1700 DustProtector......................................................... 22 Accessories....................................................................... 23 Hydraulic hoses................................................................ 23 Optional equipment............................................................. 23 Kits............................................................................... 24 Label kit MB 1700............................................................... 24 Label kit MB 1700 DustProtector................................................. 25 Seal kit........................................................................ 26 Seal kit for swivel joint (ContiLube ® II)............................................ 26 Plastic parts kit................................................................. 26 Tensioning bolt kit.............................................................. 27 DustProtector kit............................................................... 27 Noise protection kit............................................................. 27 Lower breaker part kit (steel).................................................... 27 Lower breaker part kit DustProtector (steel)...................................... 28 Expansion bolt kit.............................................................. 28 Accumulator repair kit.......................................................... 28 Dimensions....................................................................... 29 Dimensions MB 1700........................................................... 29 Dimensions MB 1700 DustProtector.............................................. 30 3 © 2009 Atlas Copco Construction Tools GmbH | No. 3390 7037 01 | 2009-03-12 Contents MB 1700, 1700 DP

General note This spare parts list applies to the following hydraulic tools: Description Part number Hydraulic breaker MB 1700 3363 0904 49 Hydraulic breaker MB 1700 DustProtector 3363 0904 51 Use only authorized parts. Any damage or malfunction caused by the use of unauthorized parts is not covered by Warranty or Product Liability. Any unauthorized use or copying of the contents or any part thereof is prohibited. This applies in particular to trademarks, model denominations, part numbers and drawings. Instructions for use This spare parts list contains no safety regulations and is merely intended to assist in the ordering of spare parts. For information on operating, servicing or repairing the hydraulic tool, the relevant operating manual must be consulted at all costs. Please observe the safety regulations listed in the relevant operating manual! Instructions of ordering It is essential to indicate the serial number of the hydraulic tool when ordering spare parts! Please note the full identification number of your hydraulic tool. This code can be found on the cylinder. Determine the quantity of individual parts which are required and need to be ordered. The order must indicate the following details: ● full identification code of the hydraulic tool ● required quantity ● part number ● description A C B A. Cylinder number B. Type C. Serial number 5 © 2009 Atlas Copco Construction Tools GmbH | No. 3390 7037 01 | 2009-03-12 Spare parts list MB 1700, 1700 DP
