Date:
2013/12/29
Image id:
EB264
Catalogue:
20002
Model:
BL71
Brand:
Volvo
Serial:
10021-16826
Group/Section:
210/50
Title:
Repair kits for engine
Section option Kit Option description
VOE11883246 Engine 70 KW
VOE11885148 Engine
VOE11887322 Engine
Pos Part Q1 Q2 Q3 Q4 Q5 PS Kit Description Option(s) Remark
VOE11712335 SS Overhaul kit
VOE20405888 1 •Gasket (VOE11700391)
VOE11700397 4 •Shim
VOE20405907 12 •Sealing ring (VOE11701764)
VOE13947281 4 •Gasket
VOE13947282 2 •Gasket
VOE13947621 2 •Plane gasket
VOE13947622 2 •Plane gasket
VOE20405536 2 •Sealing ring
VOE20405543 8 •Shim
VOE20405590 1 •Gasket
VOE20405627 1 •Gasket
VOE20405728 1 •Sealing ring
VOE20405825 1 •Gasket
VOE20405938 1 •Connector
VOE20412318 4 •Stud
VOE20412359 1 •Sealing ring
VOE20450736 2 •Thermostat
VOE20459115 1 •Crankshaft seal
VOE20459140 5 •Main bearing
VOE20459149 2 •Thrust washer
VOE20459168 1 •Crankshaft seal
VOE20459171 1 •Nipple
VOE20459172 1 •Sealing ring
VOE20459203 1 •Gasket
VOE20459222 4 •Gasket
VOE20459236 1 •Gasket
VOE20459833 1 •Gasket
VOE20459839 2 •Bushing
VOE20882841 1 •Cylinder head
gasket
VOE20882839 1 •Cylinder head
gasket
VOE20459855 8 •Valve seal
VOE20459904 1 •Sealing ring
VOE20459953 1 •Sealing ring
VOE20459954 1 •Sealing ring
VOE20459955 1 •Sealing ring
VOE20459961 2 •Sealing ring
VOE20459998 1 •Camshaft bushing
VOE20459999 4 •Camshaft bushing
VOE20460009 4 •Gudgeon pin
VOE21159226 8 •Retaining ring (VOE20460010)
VOE21305007 4 •Piston (VOE20460013)
VOE20460021 1 •Gasket
VOE20460095 4 •Fuel pipe
VOE21252233 4 •Piston ring kit (VOE20482739)
VOE20517048 4 •Hexagon nut
VOE20531832 2 •Gasket
VOE20537029 1 •Gasket
VOE20555403 4 •Bearing
VOE20557208 4 •Gasket
VOE20882838 1 •Cylinder head
gasket
VOE11700303 1 SS •Seal (VOE7011998)
VOE976929 12 •Gasket
VOE11712336 Cylinder head kit
VOE13947281 2 •Gasket
VOE13947282 2 •Gasket
VOE13947621 1 •Plane gasket
VOE13947622 1 •Plane gasket
VOE20405536 2 •Sealing ring
VOE20405590 1 •Gasket
VOE20405627 1 •Gasket
VOE20405728 1 •Sealing ring
VOE20405938 1 •Connector
VOE20412318 4 •Stud
VOE20459171 1 •Nipple
VOE20459172 1 •Sealing ring
VOE20459222 4 •Gasket
VOE20459236 1 •Gasket
VOE20459833 1 •Gasket
VOE20459839 2 •Bushing
VOE20882841 1 •Cylinder head
gasket
VOE20882839 1 •Cylinder head
gasket
VOE20459855 8 •Valve seal
VOE20459953 1 •Sealing ring
VOE20459955 1 •Sealing ring
VOE20460095 4 •Fuel pipe
VOE20517048 4 •Hexagon nut
VOE20531832 2 •Gasket
VOE20557208 4 •Gasket
VOE20882838 1 •Cylinder head
gasket
Date:
2013/12/29
Image id:
1004517
Catalogue:
20002
Model:
BL71
Brand:
Volvo
Serial:
10021-16826
Group/Section:
210/100
Title:

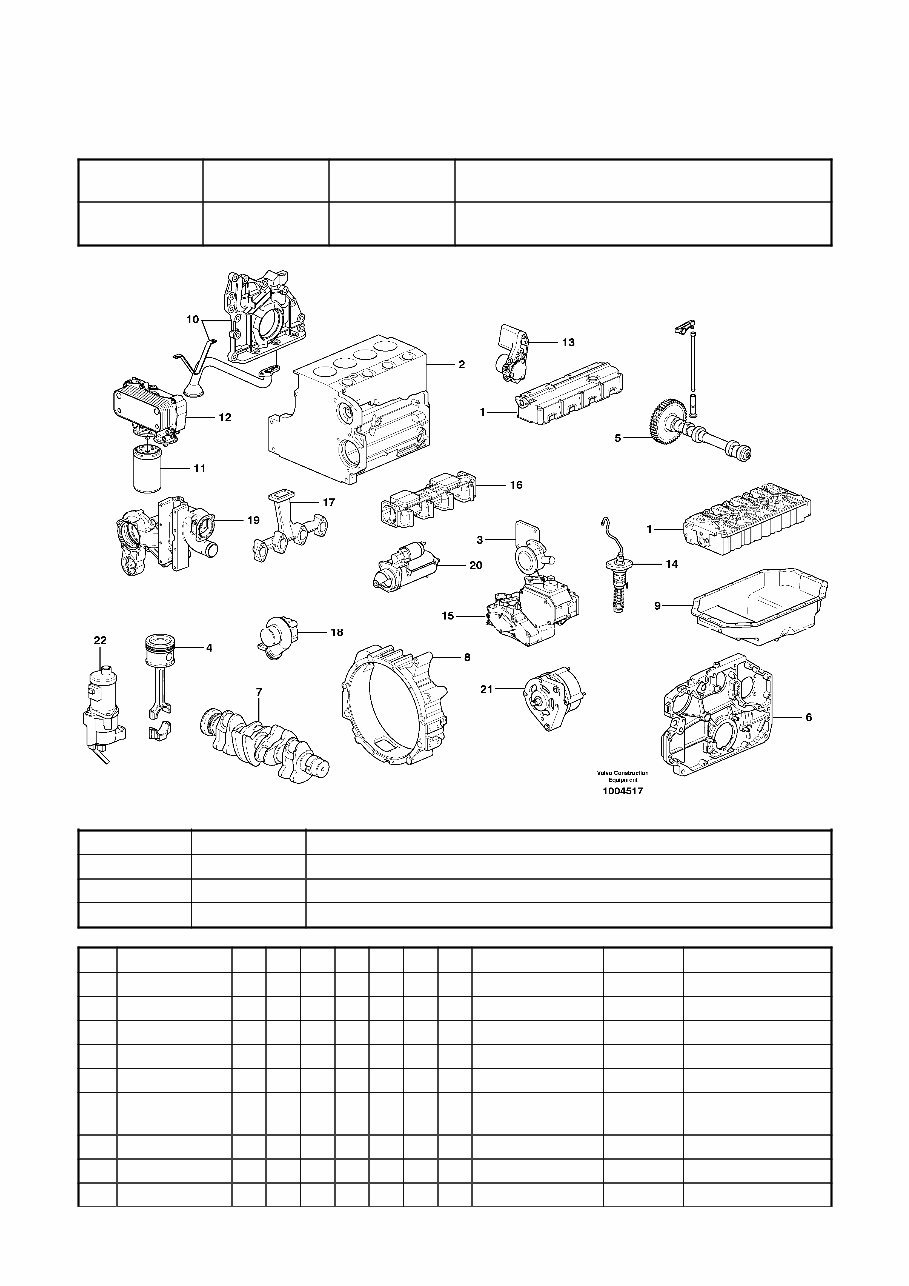

Engine
Section option Kit Option description
VOE11883246 Engine 70 KW
VOE11885148 Engine
VOE11887322 Engine
Pos Part Q1 Q2 Q3 Q4 Q5 PS Kit Description Option(s) Remark
VOE11883246 Engine See footnote 2111)
VOE11885148 SS Engine See footnote 2112)
VOE11887322 Engine S/N 12827 -
1 1 •Cylinder head See ref 211/100
2 1 •Cylinder block See ref 212/100
3 1 •Crankcase
ventilation
See ref 212/150
4 4 •Piston See ref 213/100
5 1 •Valve mechanism See ref 214/100
6 1 •Timing gear casing See ref 215/100
7 1 •Crankshaft See ref 216/100
8 1 •Flywheel Hsg See ref 216/150
9 1 •Oil sump See ref 217/100
10 1 •Lubricating system See ref 221/100
11 1 •Oil filter See ref 222/100
12 1 •Oil cooler See ref 223/100
13 1 •Fuel pump See ref 233/100
14 4 •Injcection pump See ref 236/100
15 1 •Regulator See ref 236/150
16 1 •Inlet pipe See ref 251/100
17 1 •Exhaust pipe See ref 251/100
18 1 •Turbocharger See ref 255/100
19 1 •Water pump and
thermo
See ref 262/100
20 1 •Starter motor See ref 331/100
21 1 •Alternator with fitti See ref 321/100
22 1 •Stop solenoid See ref 273/100
2111) S/n 10021 - 10817, 10822 - 10833, 10838 - 10847, 10850 - 10861, 10864 - 10867, 10869 - 10874, 10906,10907.
2112) S/n 10818 - 10821, 10834 - 10837, 10848, 10849, 10862, 10863, 10868, 10875 - 10905, 10908 -
