Date:
2013/12/29
Image id:
1000126
Catalogue:
20604
Model:
BL70B
Brand:
Volvo
Serial:
2326011-
Group/Section:
210/50
Title:

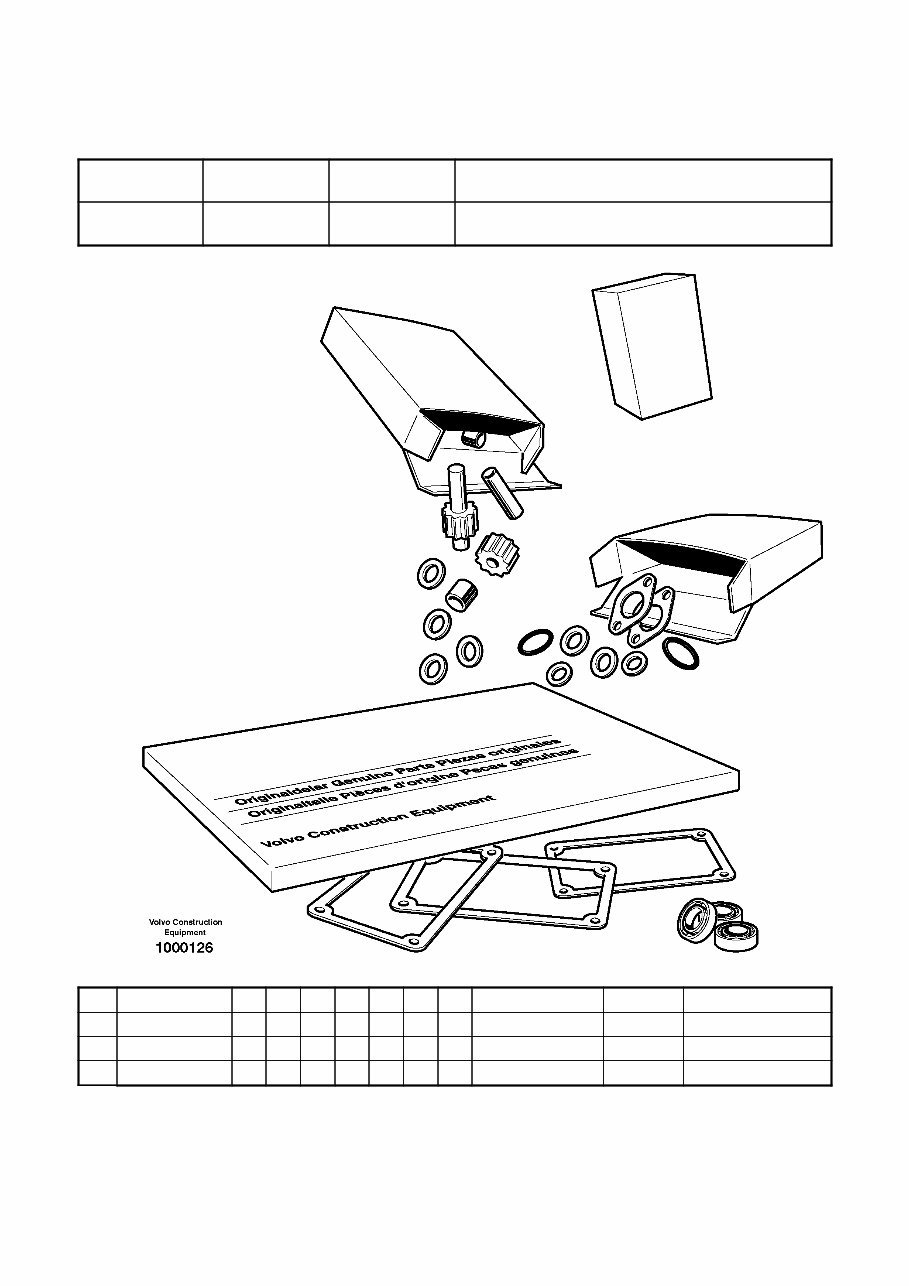

Repair kits for engine
Pos Part Q1 Q2 Q3 Q4 Q5 PS Kit Description Option(s) Remark
VOE15038635 1 Overhaul kit
VOE15038630 1 •Cylinder head kit
VOE20865990 4 •Cyl Liner Kit
Date:
2013/12/29
Image id:
1033615
Catalogue:
20604
Model:
BL70B
Brand:
Volvo
Serial:
2326011-
Group/Section:
210/100
Title:

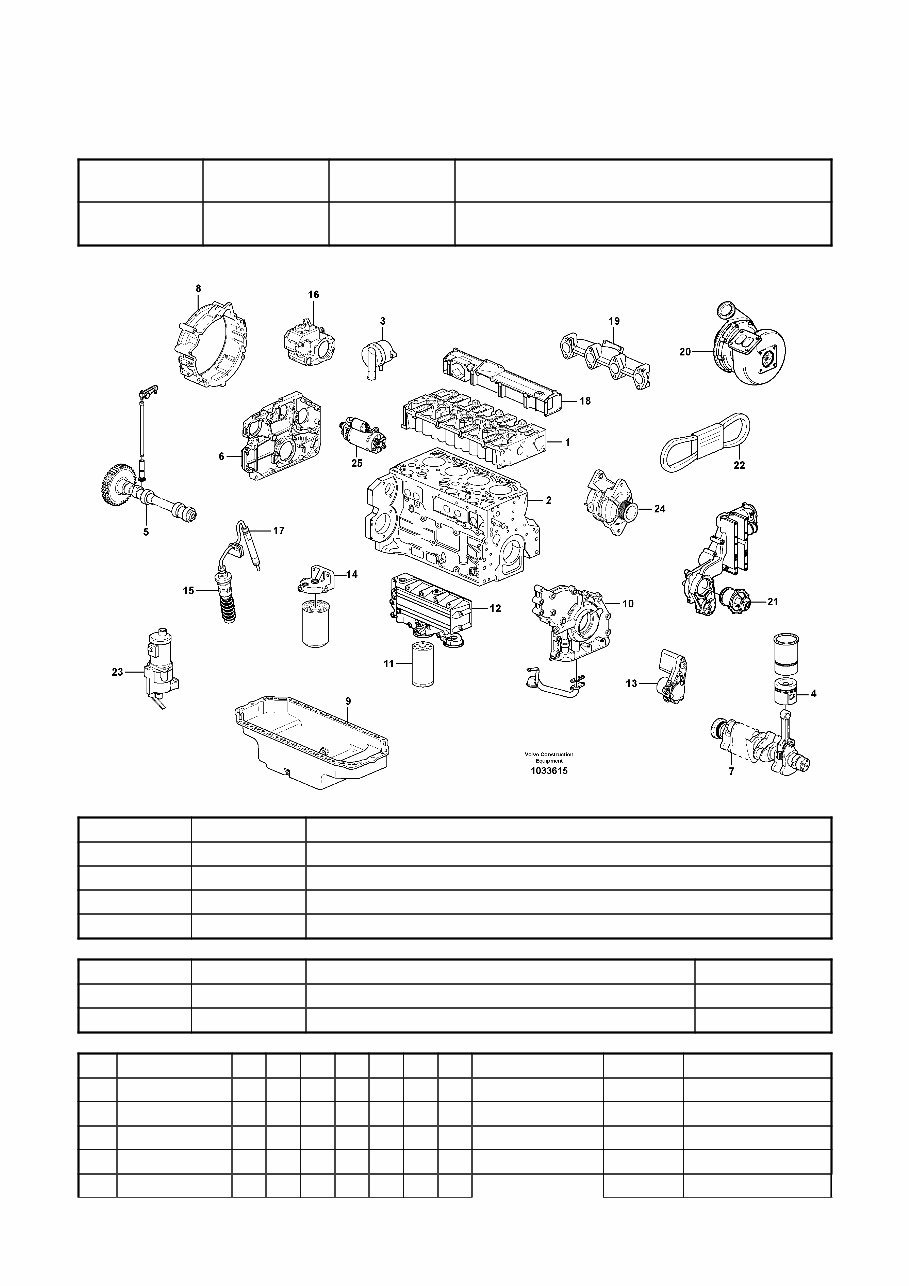

Engine 11895378, 11895379
Section option Kit Option description
VOE11895378 Engine D5D CDE3, 68KW/91HP
VOE11895379 Engine D5D CEE3, 73KW/97HP
VOE16212924 Engine D5DCDE3
VOE16212927 Engine D5DCEE3
Q1-Q5 Option Option description
Q1 11895378 VOE11895378 Engine D5D CDE3, 68KW/91HP
Q2 11895379 VOE11895379 Engine D5D CEE3, 73KW/97HP
Pos Part Q1 Q2 Q3 Q4 Q5 PS Kit Description Option(s) Remark
VOE16212924 1 Engine D5D CDE3
VOE16212927 1 Engine D5D CEE3
1 1 1 •Cylinder head See ref 211/100
2 1 1 •Crankcase See ref 212/100
3 1 1 •Crankcase See ref 257/100
ventilation
4 1 1 •Piston See ref 213/100
5 1 1 •Valve mechanism See ref 214/100
6 1 1 •Timing gear casing See ref 215/100
7 1 1 •Crankshaft See ref 216/100
8 1 1 •Flywheel Hsg See ref 216/150
9 1 1 •Oil sump See ref 217/100
10 1 1 •Lubricating system See ref 221/100
11 1 1 •Oil filter See ref 222/100
12 1 1 •Oil cooler See ref 223/100
13 1 1 •Fuel pump See ref 233/100
14 1 1 •Fuel Filter See ref 233/150
15 1 1 •Injcection pump See ref 236/100
16 1 1 •Regulator See ref 236/150
17 1 1 •Injector See ref 237/100
18 1 1 •Inlet Manifold See ref 251/100
19 1 1 •Exhaust pipe See ref 251/100
20 1 1 •Turbocharger See ref 255/100
21 1 1 •Coolant Pump See ref 262/100
22 1 1 •Belt Xmsn See ref 263/300
23 1 1 •Stop solenoid See ref 273/100
24 1 1 •Alternator See ref 321/100
25 1 1 •Starter motor See ref 331/100
Date:
2013/12/29
Image id:
1033478
Catalogue:
20604
Model:
BL70B
Brand:
Volvo
Serial:
2326011-
Group/Section:
211/100
Title:

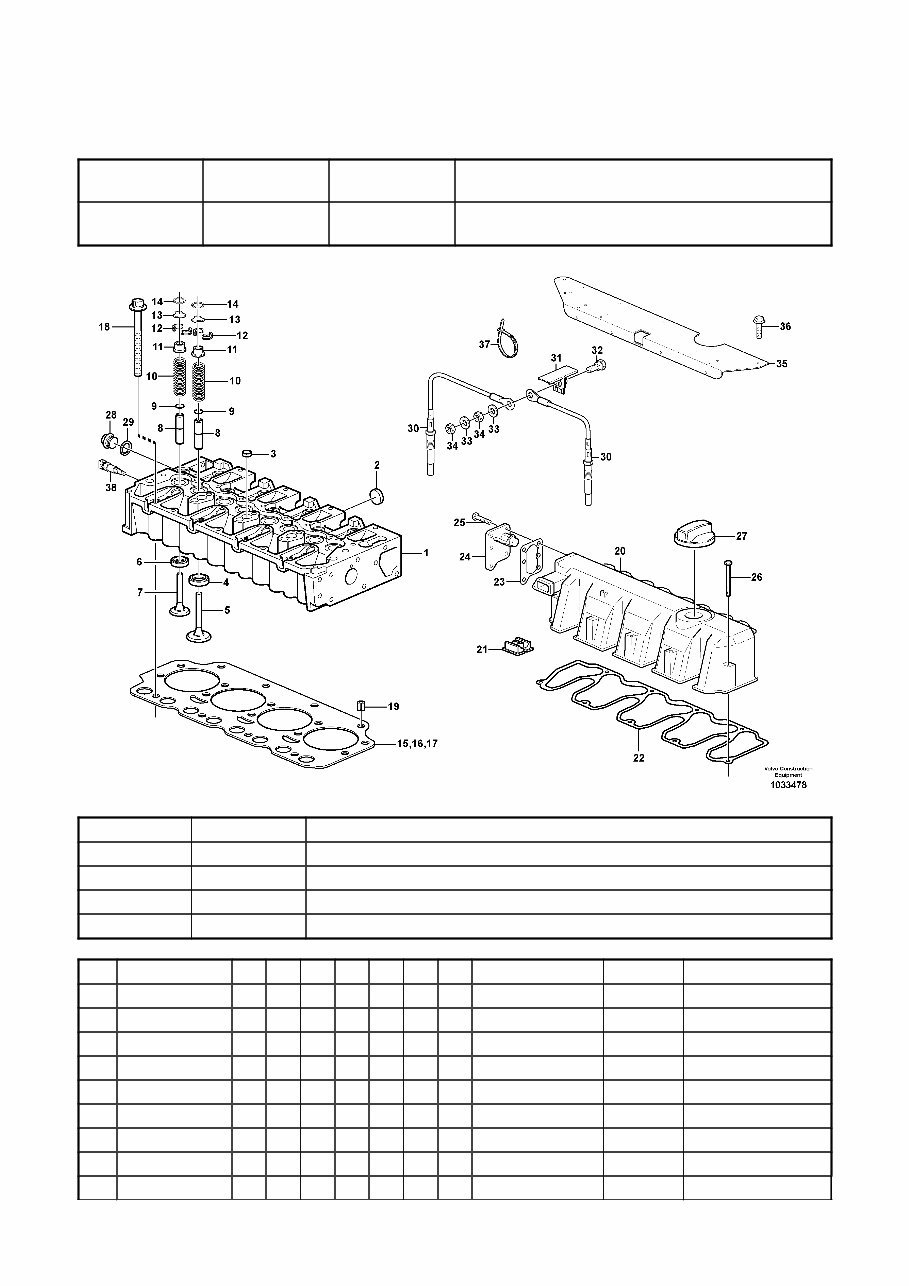

Cylinder head 11895378, 11895379
Section option Kit Option description
VOE11895378 Engine D5D CDE3, 68KW/91HP
VOE11895379 Engine D5D CEE3, 73KW/97HP
VOE16212924 Engine D5DCDE3
VOE16212927 Engine D5DCEE3
Pos Part Q1 Q2 Q3 Q4 Q5 PS Kit Description Option(s) Remark
1 VOE21147059 1 Cylinder head
2 VOE20799722 3 •Plug
3 VOE20412733 3 •Core plug
4 VOE20459962 4 •Valve seat
5 VOE20758481 4 •Inlet valve
6 VOE20845144 4 •Valve seat
7 VOE20755883 4 •Exhaust Valve
8 VOE20405897 8 •Valve guide
9 VOE11700348 8 •O-ring
10 VOE11700347 8 •Valve spring
11 VOE20847155 8 •Retainer
12 VOE11700345 16 •Valve sleeve
13 VOE20840807 8 •Thrust Washer
14 VOE20840772 8 •Snap Ring
15 1 NS Cyl Head Gasket 1 BORE THICK = 1,4
MM
16 VOE20970720 1 Cylinder head
gasket
2 BORES THICK = 1,5
MM
17 VOE20970725 1 Cylinder head
gasket
3 BORES THICK = 1,6
MM
18 VOE11700334 18 Screw
19 VOE20405521 2 Guide pin
20 VOE21455723 1 Valve cover
21 VOE20412600 1 •Cap
22 VOE20972267 1 •Valve gasket
23 VOE20840801 1 •Gasket
24 VOE20933359 1 •Oil Separator
25 VOE20797542 6 •Screw
26 VOE21145471 9 Flange screw
27 VOE20412589 1 Filler cap
28 VOE960628 1 Plug
29 VOE993358 1 Gasket
30 VOE21291286 1 Glow plug
31 VOE20711847 1 Cable Clamp
32 VOE20580716 1 Terminal Screw
33 VOE973494 2 Washer
34 VOE20460344 2 Hexagon Nut
35 VOE21088654 1 Cover plate
36 VOE20460055 2 Screw
37 VOE4881440 6 Cable tie
38 VOE16614192 1 Sensor SE2706
