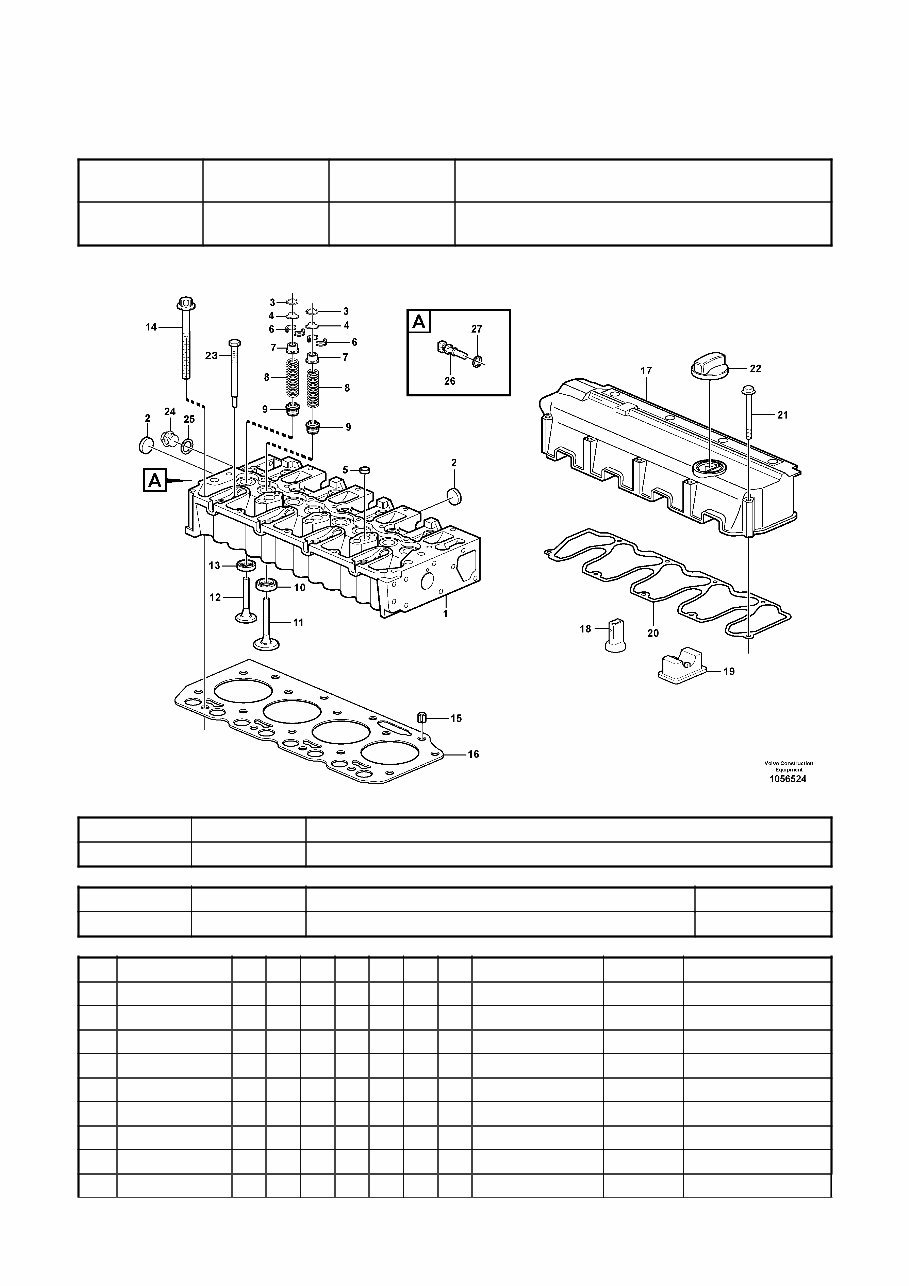

Date:
2013/12/22
Image id:
1004517
Catalogue:
20004
Model:
BL70
Brand:
Volvo
Serial:
10001-11488
Group/Section:
210/100
Title:
Engine
Section option Kit Option description
VOE11883246 Engine 70 KW
VOE11885148 Engine
VOE11887320 Engine
Pos Part Q1 Q2 Q3 Q4 Q5 PS Kit Description Option(s) Remark
VOE11883246 Engine S/N - 10602
VOE11885148 SS Engine S/N 10603 - 10863
VOE11887320 Engine S/N 10864 -
1 1 •Cylinder head See ref 211/100
2 1 •Cylinder block See ref 212/100
3 1 •Crankcase
ventilation
See ref 212/150
4 4 •Piston See ref 213/100
5 1 •Valve mechanism See ref 214/100
6 1 •Timing gear casing See ref 215/100
7 1 •Crankshaft See ref 216/100
8 1 •Flywheel Hsg See ref 216/150
9 1 •Oil sump See ref 217/100
10 1 •Lubricating system See ref 221/100
11 1 •Oil filter See ref 222/100
12 1 •Oil cooler See ref 223/100
13 1 •Fuel pump See ref 233/100
14 4 •Injcection pump See ref 236/100
15 1 •Regulator See ref 236/150
16 1 •Inlet pipe See ref 251/100
17 1 •Exhaust pipe See ref 251/100
18 1 •Turbocharger See ref 255/100
19 1 •Water pump and
thermo
See ref 262/100
20 1 •Starter motor See ref 331/100
21 1 •Alternator with fitti See ref 321/100
22 1 •Stop solenoid See ref 273/100
Date:
2013/12/22
Image id:
1021429
Catalogue:
20004
Model:
BL70
Brand:
Volvo
Serial:
10001-11488
Group/Section:
211/100
Title:
Cylinder head E PROD - 01/2006
Section option Kit Option description
VOE11883246 Engine 70 KW
VOE11885148 Engine
VOE11887320 Engine
Q1-Q5 Option Option description
Q1 11883246
11885148
VOE11883246 Engine 70 KW
Q2 11887320 VOE11887320 Engine
Pos Part Q1 Q2 Q3 Q4 Q5 PS Kit Description Option(s) Remark
VOE20590598 1 1 Cylinder head
1 VOE20412745 3 3 •Core plug
2 VOE20412733 3 3 •Core plug
3 VOE20459857 16 16 •Valve sleeve
4 VOE20535037 8 8 •Washer
5 VOE20459851 8 8 •Valve spring
6 VOE20459855 8 8 •Valve seal
7 VOE20459852 4 4 •Valve seat
8 VOE20482741 4 4 •Inlet valve (VOE20791517)
9 VOE20459854 4 4 •Valve seat
10 VOE20482742 4 4 •Exhaust valve (VOE20791405)
11 VOE20459838 13 13 Bolt
12 VOE20459839 2 2 Bushing
13 VOE20882841 1 1 Cylinder head
gasket
1,2 MM
13 VOE20882839 1 1 Cylinder head
gasket
1,3 MM
13 VOE20882838 1 1 Cylinder head
gasket
1,4 MM
14 VOE20558934 1 1 Valve Cover
15 VOE20459836 1 1 •Nozzle
16 VOE20459835 1 1 •Cover
17 VOE20459830 9 9 Screw
18 VOE20412589 1 1 Filler cap (VOE11700341)
19 VOE20459833 1 1 Gasket ENG - 09/2003
19 VOE20558924 1 1 Gasket ENG 10/2003 -
20 VOE20924084 1 1 Sensor
21 VOE13947621 1 1 •Plane gasket
22 VOE20464451 1 1 Plug
23 VOE13947628 1 1 Plane gasket (VOE20450898)
24 VOE20405895 1 Plug
VOE20924080 1 Glow plug (VOE20460459)
Date:
2013/12/22
Image id:
1056524
Catalogue:
20004
Model:
BL70
Brand:
Volvo
Serial:
10001-11488
Group/Section:
211/110
Title:
Cylinder head L PROD 02/2006 -
Section option Kit Option description
VOE11887320 Engine
Q1-Q5 Option Option description
Q1 11887320 VOE11887320 Engine
Pos Part Q1 Q2 Q3 Q4 Q5 PS Kit Description Option(s) Remark
1 VOE21026496 1 Cylinder head
2 VOE20412745 3 •Core plug
3 VOE20840772 8 •Snap Ring
4 VOE20840807 8 •Thrust Washer
5 VOE20412733 3 •Core plug
6 VOE20459857 16 •Valve sleeve
7 VOE20840747 8 •Spring Disc
8 VOE20459851 8 •Valve spring
9 VOE20459855 8 •Valve seal
