New Holland CE LB620 Parts Catalog

TABLE OF CONTENTS 001 FRONT FRAME GROUP 002 ARTICULATION 003 REAR FRAME 004 SEAT GROUP 005 FRONT AXLE & DRIVE SHAFT GROUP 006 FRONT AXLE ASSEMBLY, LIMITED SLIP DIFFERENTIAL 007 TRANSMISSION, REAR AXLE & WHEEL 008 REAR AXLE ASSEMBLY, STANDARD DIFFERENTIAL 009 FOOT BRAKE GROUP 010 PUMP DRIVE & NEUTRAL START GROUP 011 FORWARD & REVERSE PEDAL CONTROL GROUP 012 RESERVOIR & FILTER GROUP 013 HYDRAULICS GROUP, LOADER VALVE, OIL COOLER & GEARPUMP HYDRAULICS 014 HYDRAULICS GROUP, PROPULSION HYDRAULICS 015 HYDRAULICS, STEERING CYLINDER HYDRAULICS 016 STEERING CYLINDER (792443) ASSEMBLY 017 HYDRAULICS, STEERING MOTOR HYDRAULICS 018 LOADER GROUP 019 HYDRAULICS, LOADER BUCKET CYLINDER HYDRAULICS 020 HYDRAULICS, LOADER BOOM LIFT HYDRAULICS 021 HYDRAULIC SYSTEM, DUAL AXIS CONTROL GROUP 022 BACKHOE MAINFRAME & STABILIZER GROUP 023 KINGPOST GROUP 024 BACKHOE BOOM 025 DIPPER & BUCKET 026 EXTENDABLE DIPPER 027 EXTENDABLE DIPPER PEDAL CONTROL LINKAGE 028 BACKHOE CONTROLS GROUP 029 11 FT. BACKHOE VALVE & COVER GROUP 030 13 FT. BACKHOE VALVE & COVER GROUP 031 BACKHOE CONTROL VALVE ASSEMBLY, CONTROL VALVE, RESTRICTORS, 032 BACKHOE CONTROL VALVE ASSEMBLY, R.H., END COVER ASSEMBLY, 033 BACKHOE CONTROL VALVE ASSEMBLY, STABILIZER SECTION GROUP, 034 BACKHOE CONTROL VALVE ASSEMBLY, SWING SECTION GROUP, 035 BACKHOE CONTROL VALVE ASSEMBLY, BUCKET & EXTENDABLE 036 BACKHOE CONTROL VALVE ASSEMBLY, CROWD SECTION GROUP, 037 BACKHOE CONTROL VALVE ASSEMBLY, BOOM SECTION GROUP, 038 BACKHOE CONTROL VALVE ASSEMBLY, L.H., END COVER ASSEMBLY, 039 HYDRAULICSP, STABILIZER CYLINDER HYDRAULICS, 11 FT & 13 FT BACKHOES 040 HYDRAULICS, BACKHOE VALVE SUPPLY & SWING CYLINDER, 11 FT & 13 FT BACKHOES 041 HYDRAULICS, KINGPOST BULKHEAD-TO-BACKHOE VALVE HYDRAULICS, 11 FT & 13 FT BACKHOES 042 HYDRAULICS GROUP, BUCKET HYDRAULICS, 11 FT. BACKHOE 043 HYDRAULICS, EXTENDABLE DIPPER & BUCKET HYDRAULICS, 13 FT BACKHOE 044 HYDRAULICS, BOOM & DIPPER HYDRAULICS, 11 FT & 13 FT BACKHOES 045 STABILIZER CYLINDER ASSEMBLY 046 SWING CYLINDER ASSEMBLY 047 BUCKET CYLINDER ASSEMBLY 048 BOOM CYLINDER ASSEMBLY, USED ON ASN 049 CROWD CYLINDER ASSEMBLY 050 CROWD CYLINDER ASSEMBLY, USED ON & ASN 735284

TABLE OF CONTENTS 051 EXTENDABLE DIPPER CYLINDER ASSEMBLY 052 BUCKET & LIFT, LOADER CYLINDER ASSEMBLY 053 HYDRAULIC GROUP, CONTROL VALVE ASSEMBLY 054 STEERING & LOADER GEAR PUMP ASSEMBLY 055 PROPULSION MOTOR ASSEMBLY 056 PROPULSION PUMP ASSEMBLY 057 STEERING MOTOR 058 GEARBOX 059 ELECTRICAL SYSTEM, CONSOLE GROUP 060 ELECTRICAL SYSTEM, ENGINE 061 ELECTRICAL SYSTEM, COLD START GROUP 062 ENGINE RELATED PARTS GROUP 063 AIR CLEANER ASSEMBLY 064 FUEL SYSTEM 065 ATTACHMENTS & OPTIONAL EQUIPMENT, LIGHT KIT 066 AUXILIARY BATTERY KIT 067 ATTACHMENTS & OPTIONAL EQUIPMENT, WINDSHIELD WIPER BUNDLE 068 ATTACHMENTS & OPTIONAL EQUIPMENT, CAB BUNDLE & WINDSHIELD KIT 069 ATTACHMENTS & OPTIONAL EQUIPMENT, HEATER BUNDLE 070 ATTACHMENTS & OPTIONAL EQUIPMENT, AUXILIARY HYDRAULICS BUNDLE 071 ATTACHMENTS & OPTIONAL EQUIPMENT, AUXILIARY BOOM HYDRAULICS KIT, 072 ATTACHMENTS & OPTIONAL EQUIPMENT, AUXILIARY BOOM HYDRAULIC KIT, 073 ATTACHMENTS & OPTIONAL EQUIPMENT, AUXILIARY BOOM HYDRAULICS KIT, 074 ATTACHMENTS & OPTIONAL EQUIPMENT, QUICK ATTACHMENT KIT 075 ATTACHMENTS & OPTIONAL EQUIPMENT, PALLET FORK BUNDLES 076 ATTACHMENTS & OPTIONAL EQUIPMENT, EXTENDABLE TRAVEL LINK KIT 077 ATTACHMENTS & OPTIONAL EQUIPMENT, STREET PADS KIT 078 L423D ONAN ENGINE, SHORT BLOCK CYLINDER GROUP 079 L423D ONAN ENGINE, CYLINDER HEAD ASSEMBLY GROUP 080 L423D ONAN ENGINE, BEARING KIT, CRANKSHAFT & GEAR GROUP 081 L423D ONAN ENGINE, PISTON GROUP 082 L423D ONAN ENGINE, ROCKER COVER GROUP 083 L423D ONAN ENGINE, FUEL SYSTEM GROUP 084 L423D ONAN ENGINE, FLYWHEEL & FLYWHEEL HOUSING GROUP 085 L423D ONAN ENGINE, OIL PAN & FILTER GROUP 086 L423D ONAN ENGINE, FUEL INJECTION GROUP 087 L423D ONAN ENGINE, INTAKE & EXHAUST MANIFOLD GROUP 088 L423D ONAN ENGINE, ALTERNATOR GROUP 089 L423D ONAN ENGINE, GEARCASE GROUP 090 1 L423D ONAN ENGINE, ALTERNATOR ASSEMBLY, 9609165 090 2 L423D ONAN ENGINE, ALTERNATOR ASSEMBLY, 86520116 091 L423D ONAN ENGINE, STARTER GROUP 092 L423D ONAN ENGINE, GLOW PLUG & FRONT ENGINE MOUNT GROUP 093 L423D ONAN ENGINE, COOLANT PUMP GROUP 094 L423D ONAN ENGINE, LOW FAN DRIVE

SECTION INDEX 001 FRONT FRAME GROUP 002 ARTICULATION 003 REAR FRAME 004 SEAT GROUP 005 FRONT AXLE & DRIVE SHAFT GROUP 006 FRONT AXLE ASSEMBLY, LIMITED SLIP DIFFERENTIAL 007 TRANSMISSION, REAR AXLE & WHEEL 008 REAR AXLE ASSEMBLY, STANDARD DIFFERENTIAL 009 FOOT BRAKE GROUP 010 PUMP DRIVE & NEUTRAL START GROUP 011 FORWARD & REVERSE PEDAL CONTROL GROUP 012 RESERVOIR & FILTER GROUP 013 HYDRAULICS GROUP, LOADER VALVE, OIL COOLER & GEARPUMP HYDRAULICS 014 HYDRAULICS GROUP, PROPULSION HYDRAULICS 015 HYDRAULICS, STEERING CYLINDER HYDRAULICS 016 STEERING CYLINDER (792443) ASSEMBLY 017 HYDRAULICS, STEERING MOTOR HYDRAULICS 018 LOADER GROUP 019 HYDRAULICS, LOADER BUCKET CYLINDER HYDRAULICS 020 HYDRAULICS, LOADER BOOM LIFT HYDRAULICS 021 HYDRAULIC SYSTEM, DUAL AXIS CONTROL GROUP 022 BACKHOE MAINFRAME & STABILIZER GROUP 023 KINGPOST GROUP 024 BACKHOE BOOM 025 DIPPER & BUCKET 026 EXTENDABLE DIPPER 027 EXTENDABLE DIPPER PEDAL CONTROL LINKAGE 028 BACKHOE CONTROLS GROUP 029 11 FT. BACKHOE VALVE & COVER GROUP 030 13 FT. BACKHOE VALVE & COVER GROUP 031 BACKHOE CONTROL VALVE ASSEMBLY, CONTROL VALVE, RESTRICTORS, 032 BACKHOE CONTROL VALVE ASSEMBLY, R.H., END COVER ASSEMBLY, 033 BACKHOE CONTROL VALVE ASSEMBLY, STABILIZER SECTION GROUP, 034 BACKHOE CONTROL VALVE ASSEMBLY, SWING SECTION GROUP, 035 BACKHOE CONTROL VALVE ASSEMBLY, BUCKET & EXTENDABLE 036 BACKHOE CONTROL VALVE ASSEMBLY, CROWD SECTION GROUP, 037 BACKHOE CONTROL VALVE ASSEMBLY, BOOM SECTION GROUP, 038 BACKHOE CONTROL VALVE ASSEMBLY, L.H., END COVER ASSEMBLY, 039 HYDRAULICSP, STABILIZER CYLINDER HYDRAULICS, 11 FT & 13 FT BACKHOES 040 HYDRAULICS, BACKHOE VALVE SUPPLY & SWING CYLINDER, 11 FT & 13 FT BACKHOES 041 HYDRAULICS, KINGPOST BULKHEAD-TO-BACKHOE VALVE HYDRAULICS, 11 FT & 13 FT BACKHOES 042 HYDRAULICS GROUP, BUCKET HYDRAULICS, 11 FT. BACKHOE 043 HYDRAULICS, EXTENDABLE DIPPER & BUCKET HYDRAULICS, 13 FT BACKHOE 044 HYDRAULICS, BOOM & DIPPER HYDRAULICS, 11 FT & 13 FT BACKHOES 045 STABILIZER CYLINDER ASSEMBLY 046 SWING CYLINDER ASSEMBLY 047 BUCKET CYLINDER ASSEMBLY 048 BOOM CYLINDER ASSEMBLY, USED ON ASN 049 CROWD CYLINDER ASSEMBLY 050 CROWD CYLINDER ASSEMBLY, USED ON & ASN 735284

SECTION INDEX 051 EXTENDABLE DIPPER CYLINDER ASSEMBLY 052 BUCKET & LIFT, LOADER CYLINDER ASSEMBLY 053 HYDRAULIC GROUP, CONTROL VALVE ASSEMBLY 054 STEERING & LOADER GEAR PUMP ASSEMBLY 055 PROPULSION MOTOR ASSEMBLY 056 PROPULSION PUMP ASSEMBLY 057 STEERING MOTOR 058 GEARBOX 059 ELECTRICAL SYSTEM, CONSOLE GROUP 060 ELECTRICAL SYSTEM, ENGINE 061 ELECTRICAL SYSTEM, COLD START GROUP 062 ENGINE RELATED PARTS GROUP 063 AIR CLEANER ASSEMBLY 064 FUEL SYSTEM 065 ATTACHMENTS & OPTIONAL EQUIPMENT, LIGHT KIT 066 AUXILIARY BATTERY KIT 067 ATTACHMENTS & OPTIONAL EQUIPMENT, WINDSHIELD WIPER BUNDLE 068 ATTACHMENTS & OPTIONAL EQUIPMENT, CAB BUNDLE & WINDSHIELD KIT 069 ATTACHMENTS & OPTIONAL EQUIPMENT, HEATER BUNDLE 070 ATTACHMENTS & OPTIONAL EQUIPMENT, AUXILIARY HYDRAULICS BUNDLE 071 ATTACHMENTS & OPTIONAL EQUIPMENT, AUXILIARY BOOM HYDRAULICS KIT, 072 ATTACHMENTS & OPTIONAL EQUIPMENT, AUXILIARY BOOM HYDRAULIC KIT, 073 ATTACHMENTS & OPTIONAL EQUIPMENT, AUXILIARY BOOM HYDRAULICS KIT, 074 ATTACHMENTS & OPTIONAL EQUIPMENT, QUICK ATTACHMENT KIT 075 ATTACHMENTS & OPTIONAL EQUIPMENT, PALLET FORK BUNDLES 076 ATTACHMENTS & OPTIONAL EQUIPMENT, EXTENDABLE TRAVEL LINK KIT 077 ATTACHMENTS & OPTIONAL EQUIPMENT, STREET PADS KIT 078 L423D ONAN ENGINE, SHORT BLOCK CYLINDER GROUP 079 L423D ONAN ENGINE, CYLINDER HEAD ASSEMBLY GROUP 080 L423D ONAN ENGINE, BEARING KIT, CRANKSHAFT & GEAR GROUP 081 L423D ONAN ENGINE, PISTON GROUP 082 L423D ONAN ENGINE, ROCKER COVER GROUP 083 L423D ONAN ENGINE, FUEL SYSTEM GROUP 084 L423D ONAN ENGINE, FLYWHEEL & FLYWHEEL HOUSING GROUP 085 L423D ONAN ENGINE, OIL PAN & FILTER GROUP 086 L423D ONAN ENGINE, FUEL INJECTION GROUP 087 L423D ONAN ENGINE, INTAKE & EXHAUST MANIFOLD GROUP 088 L423D ONAN ENGINE, ALTERNATOR GROUP 089 L423D ONAN ENGINE, GEARCASE GROUP 090 1 L423D ONAN ENGINE, ALTERNATOR ASSEMBLY, 9609165 090 2 L423D ONAN ENGINE, ALTERNATOR ASSEMBLY, 86520116 091 L423D ONAN ENGINE, STARTER GROUP 092 L423D ONAN ENGINE, GLOW PLUG & FRONT ENGINE MOUNT GROUP 093 L423D ONAN ENGINE, COOLANT PUMP GROUP 094 L423D ONAN ENGINE, LOW FAN DRIVE

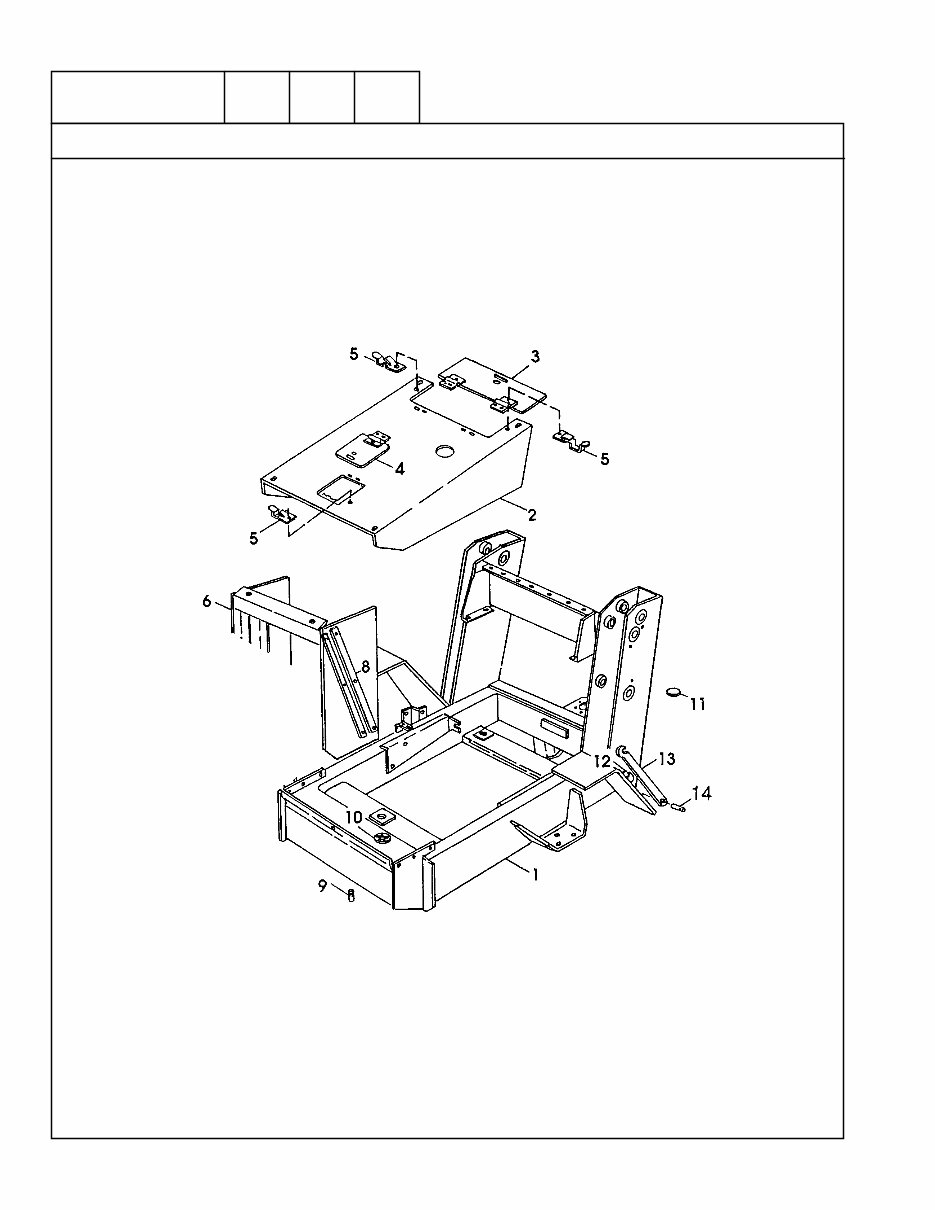

001 p1 09/02 FRONT FRAME GROUP

REF FN PART NUMBER YR/SN QTY DESCRIPTION 001 p1 09/02 FRONT FRAME GROUP LB620 1 9603929 1 Frame Weld Assy., Front 2 9603934 1 Hood Weld Assy. 145913 4 Screw, Cap, Flg Hd, USR, 5/16"-18 x 3/4" 145458 4 Nut, Flg, USR, 5/16"-18 3 9603936 1 Cover Weld Assy. 523291 4 Screw, Cap, Flg, USR, 1/4"-20 x 1/2" 523282 4 Nut, Flg, USR, 1/4"-20 4 794777 1 Cover Weld Assy. 523291 2 Screw, Cap, Flg, USR, 1/4"-20 x 1/2" 523282 2 Nut, Flg, USR, 1/4"-20 5 47325 2 Clip, Snap 84461 3 Screw, Truss Hd, G2, #10-24 x 5/8" 80684 3 Washer, Lock, #10 87304 3 Nut, #10-24 6 9603932 1 Grill Weld Assy. 87670 6 Screw, Cap, HH, G5, 1/2"-13 x 1-1/4" 86512371 6 Nut, Flg, USR, 1/2"-13 8 851966 2 Strip, Wear 280707 6 Screw, Cap, HSH, G5, 1/4" x 1/2" 9 678966 1 Plug, Pipe, 1-1/2" NPTF, Fuel Drain 10 46311 1 Sender, Fuel Includes: Gasket 48751 AR Gasket 86837553 5 Screw, Fillister Hd, G2, #10-32" x 5/8" 80684 5 Washer, Lock, #10 11 790627 1 Cap, Fuel 12 849590 1 Clip 88146 1 Screw, Cap, HH, G5, 1/4"-20 x 1" 280129 1 Nut, Lock, Prevailing Torque, G8, 1/4"-20 13 796042 1 Latch, Safety, Articulation 14 26405 1 Pin, 1" x 2-3/4" 87404 1 Screw, Cap, HH, G5, 1/4"-20 x 2" 280129 1 Nut, Lock, Prevailing Torque, G8, 1/4"-20 790018 1 AR Decal Sign Set

002 p1 06/05 ARTICULATION

REF FN PART NUMBER YR/SN QTY DESCRIPTION 002 p1 06/05 ARTICULATION LB620 1 852031 1 Top Link Weld Assy. Includes: (1) Ref. 2 & 3 2 87414 1 Nipple, Lube, Straight, 1/4"-28 3 87415 1 1/4"-28 x 90° 4 1 46810 2 Ring, Snap, Ext, M35 1 9601270 2 Ring, Snap, Ext, 1.437" 5 1 790218 2 Pin, Top Link 1 9601269 2 Pin, Top Link 6 87367 2 Washer, SAE, 1" 7 V84199 4 Nut, Jam, 1"-14 UNF 8 856784 1 Retainer, Bearing 9 88011 3 Screw, Cap, HH, G5, 3/8"-16 x 1-1/4" 10 285072 3 Washer, Hardened, 3/8" 11 790216 1 Gasket 12 280986 1 Screw, Cap, HH, G8, 5/8"-18 x 5-1/2" 13 86979179 1 Washer 14 570950 1 Washer 15 790212 1 Bearing 16 790213 1 Pin, Pivot 17 790214 1 Seal, Felt, 1-1/2" ID x 3" OD 18 574245 1 Washer, Hardened, Special, M16 19 9602227 1 Nut, Lock, G8, 5/8"-18 20 1 88276 1 Pin, Grooved, 5/16" x 2", Type E (1) Check your machine before ordering. If your application uses Drive Pin, P/N 88276, Ref. 20 to secure the Top Link Pin, then you require Retaining Ring, P/N 46810, Ref. 4, & Top Link Pin, P/N 790218, Ref. 5. If your application DOES

003 p1 05/02 REAR FRAME
