KUBOTA BX24 Tractor LA240 Loader BT601 BACKHOE RCK MOWER SRM

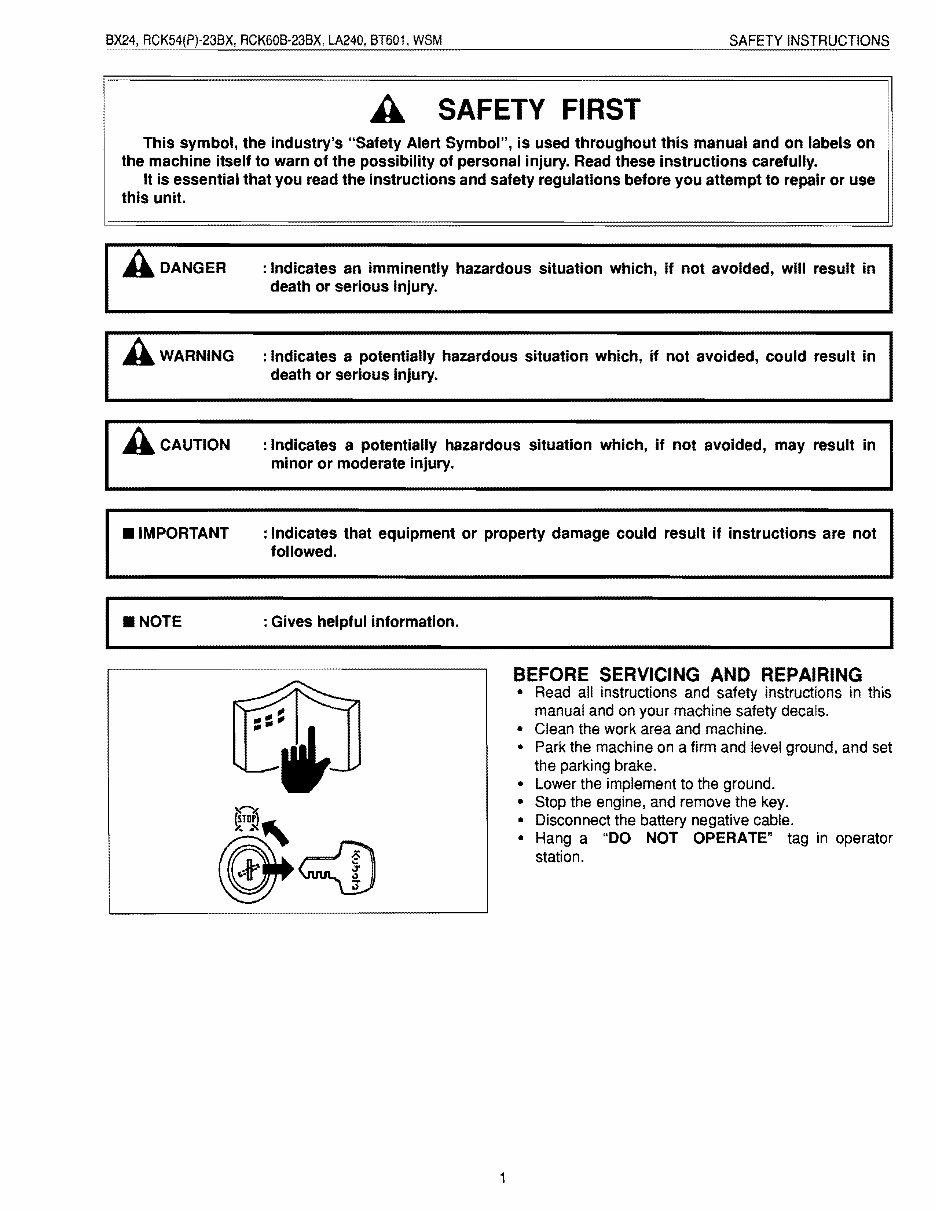

BX24, RCK54(P)-23BX, RCK60B-23BX. LA240, BT601, WSM SAFETY INSTRUCTIONS it. SAFETY FIRST This symbol, the industry's "Safety Alert Symbol", is used throughout this manual and on labels on the machine itself to warn of the possibility of personal injury. Read these instructions carefully. It is essential that you read the instructions and safety regulations before you attempt to repair or use this unit. A DANGER : Indicates an imminently hazardous situation which, if not avoided, will result in death or serious injury. A WARNING : Indicates a potentially hazardous situation which, if not avoided, could result in death or serious injury. A CAUTION : Indicates a potentially hazardous situation which, if not avoided, may result in minor or moderate injury. • IMPORTANT : Indicates that equipment or property damage could result if instructions are not followed. • NOTE : Gives helpful information . BEFORE SERVICING AND REPAIRING • Read all instructions and safety instructions in this manual and on your machine safety decals. • Clean the work area and machine. • Park the machine on a firm and level ground, and set the parking brake. • Lower the implement to the ground. • Stop the engine, and remove the key. • Disconnect the battery negative cable. • Hang a "DO NOT OPERATE" tag in operator station. 1

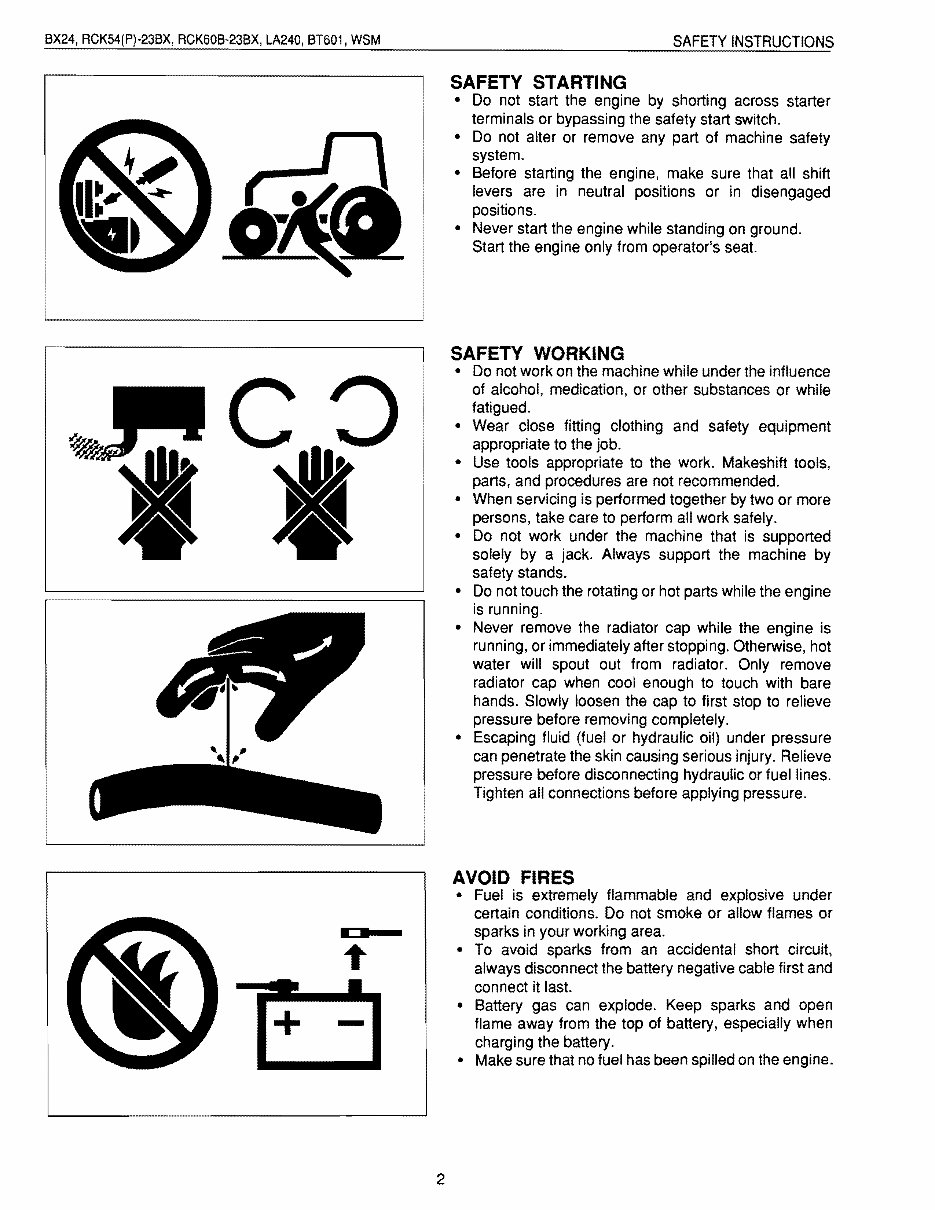

BX24, RCK54(P)-23BX, RCK60B-23BX, LA240, BT601 , WSM SAFETY INSTRUCTIONS • + - I SAFETY STARTING • Do not start the engine by shorting across starter terminals or bypassing the safety start switch. • Do not alter or remove any part of machine safety system. • Before starting the engine, make sure that all shift levers are in neutral positions or in disengaged positions. • Never start the engine while standing on ground. Start the engine only from operator's seat. SAFETY WORKING • Do not work on the machine while under the influence of alcohol, medication, or other substances or while fatigued. • Wear close fitting clothing and safety equipment appropriate to the job. • Use tools appropriate to the work. Makeshift tools, parts, and procedures are not recommended. • When servicing is performed together by two or more persons, take care to perform all work safely. • Do not work under the machine that is supported solely by a jack. Always support the machine by safety stands. • Do not touch the rotating or hot parts while the engine is running. • Never remove the radiator cap while the engine is running, or immediately after stopping. Otherwise, hot water will spout out from radiator. Only remove radiator cap when cool enough to touch with bare hands. Slowly loosen the cap to first stop to relieve pressure before removing completely. • Escaping fluid (fuel or hydraulic oil) under pressure can penetrate the skin causing serious injury. Relieve pressure before disconnecting hydraulic or fuel lines. Tighten all connections before applying pressure. AVOID FIRES • Fuel is extremely flammable and explosive under certain conditions. Do not smoke or allow flames or sparks in your working area. • To avoid sparks from an accidental short circuit, always disconnect the battery negative cable first and connect it last. • Battery gas can explode. Keep sparks and open flame away from the top of battery, especially when charging the battery. • Make sure that no fuel has been spilled on the engine. 2

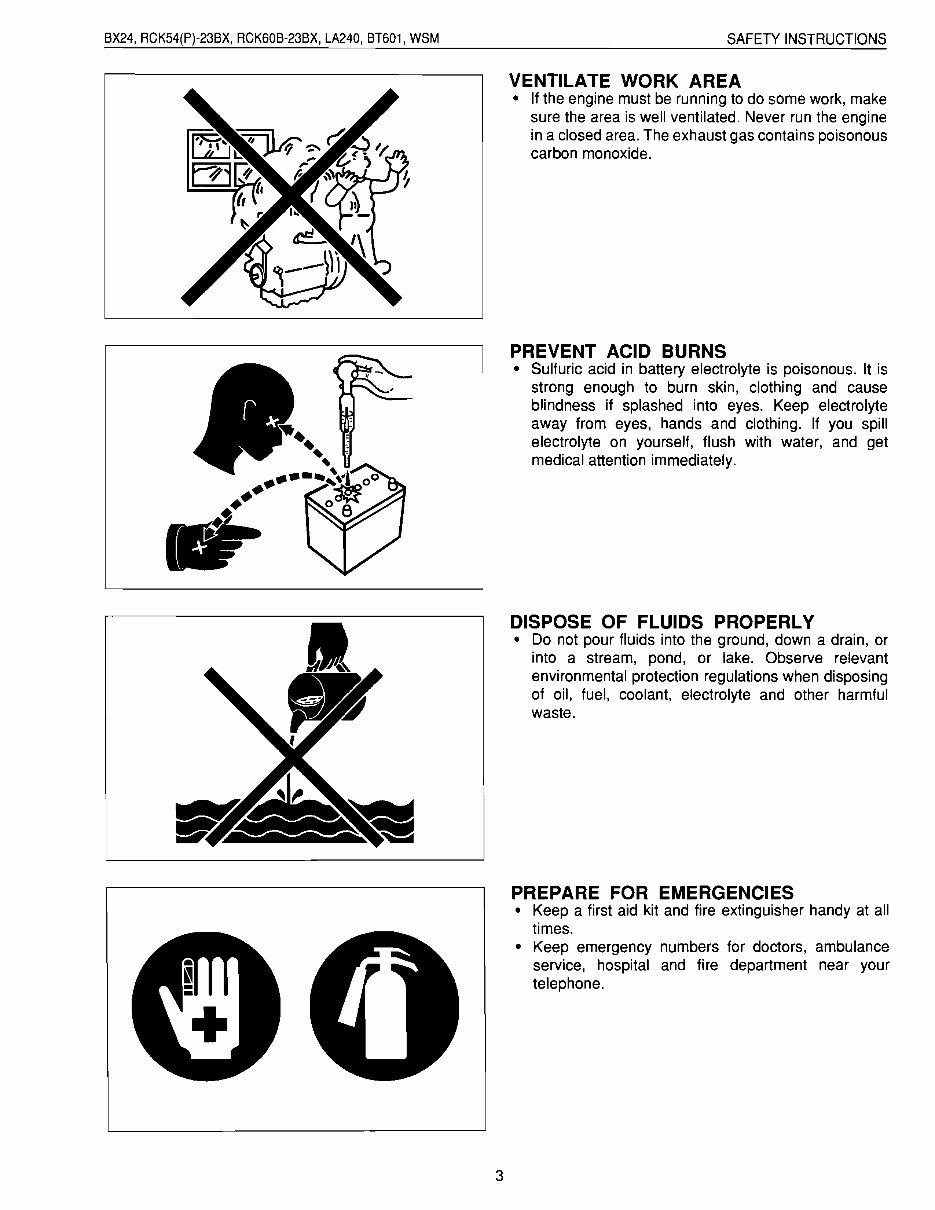

BX24, RCK54(P)-23BX, RCK60B-23BX, LA240, BT601, WSM SAFETY INSTRUCTIONS VEN1"ILATE WORK AREA • If the engine must be running to do some work, make sure the area is well ventilated. Never run the engine in a closed area. The exhaust gas contains poisonous carbon monoxide. PREVENT ACID BURNS • Sulfuric acid in battery electrolyte is poisonous. It is strong enough to burn skin, clothing and cause blindness if splashed into eyes. Keep electrolyte away from eyes, hands and clothing. If you spill electrolyte on yourself, flush with water, and get medical attention immediately. DISPOSE OF FLUIDS PROPERLY • Do not pour fluids into the ground, down a drain, or into a stream, pond, or lake. Observe relevant environmental protection regulations when disposing of oil, fuel, coolant, electrolyte and other harmful waste. PREPARE FOR EMERGENCIES • Keep a first aid kit and fire extinguisher handy at all times. • Keep emergency numbers for doctors, ambulance service, hospital and fire department near your telephone. 3

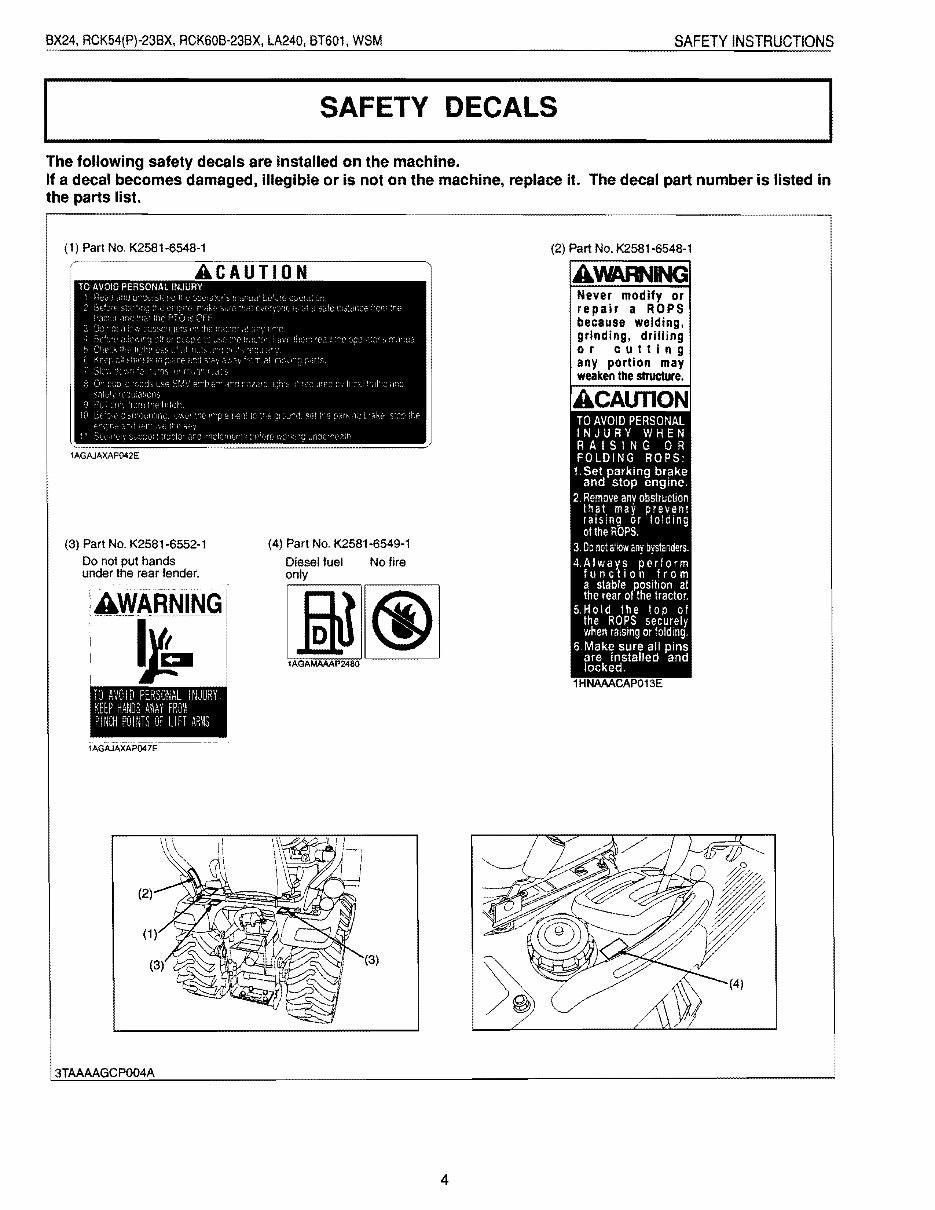

BX24, RCK54(P}-23BX, RCK60B-23BX, LA240, BT601, WSM SAFETY INSTRUCTIONS SAFETY DECALS The following safety decals are installed on the machine. If a decal becomes damaged, illegible or is not on the machine, replace it. The decal part number is listed in the parts list. (1) Part No. K2581-6548-1 (3) Part No. K2581-6552-1 Do not put hands under the rear fender. :AWAR~ING ~ -0 AVOID P~RSOML INJURY \tEp HANDS AMY FRJ\t PINCH POI\TS 0= LIFT Aq\tS (4) Part No. K2581-6549-1 Diesel fuel No fire only [i~ 1AGAMAAAP2480 (3) (2) Part No. K2581-6548-1 Never modify or repair a ROPS because welding, grinding, drilling or cutting any portion may weaken the structure. ~ TO AVOID PERSONAL INJURY WHEN RAISING OR FOLDING RQPS: 1. Set parking brake and stop engine. 2. Remove any obstruction that may prevent raising or folding oflhe ROPS. 3. Do not allow any bystanders. 4.Always perform function from a stable position at the rear of the tractor. S.Hold the top of the ROPS securely when raising or folding. 6. Make sure all pins are installed and locked. , .. . -. 3TAAAAGCPOO4A 4

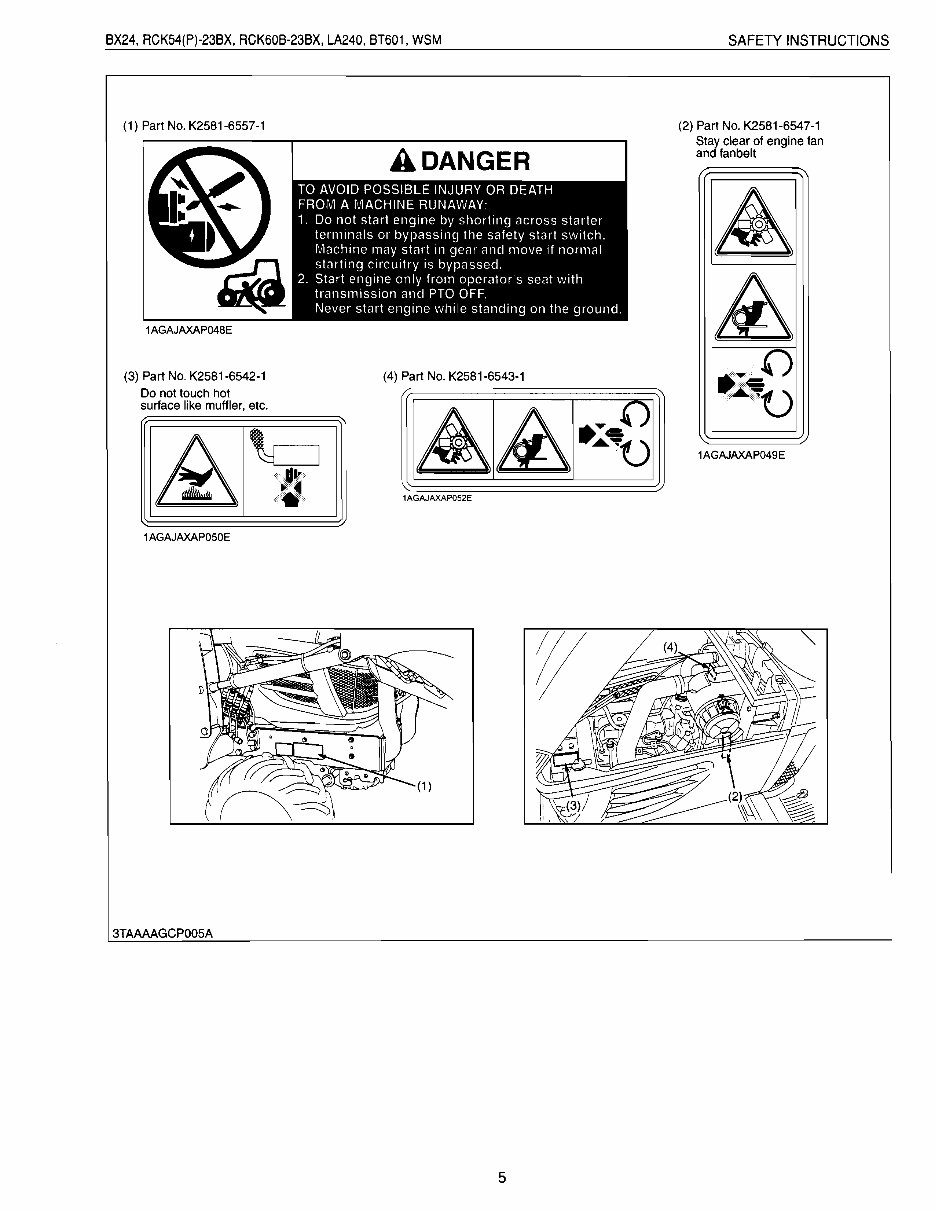

BX24, RCK54(P)-23BX, RCK60B-23BX , LA240 ,BT601, WSM SAFETY INSTRUCTIONS (1) Part No. K2581-6557-1 (2) Part No. K2581-6547-1 A DANGER 1 AGAJAXAP048E (3) Part No. K2581-6542-1 (4) Part No. K2581-6543-1 Do not touch hot surface like muffler, etc. 1AGAJAXAP050E Stay clear of engine fan and fanbelt ~ I ~ ~ .~ 0 ~'O ~ 1AGAJAXAP049E 3TAAAAGCP005A 5

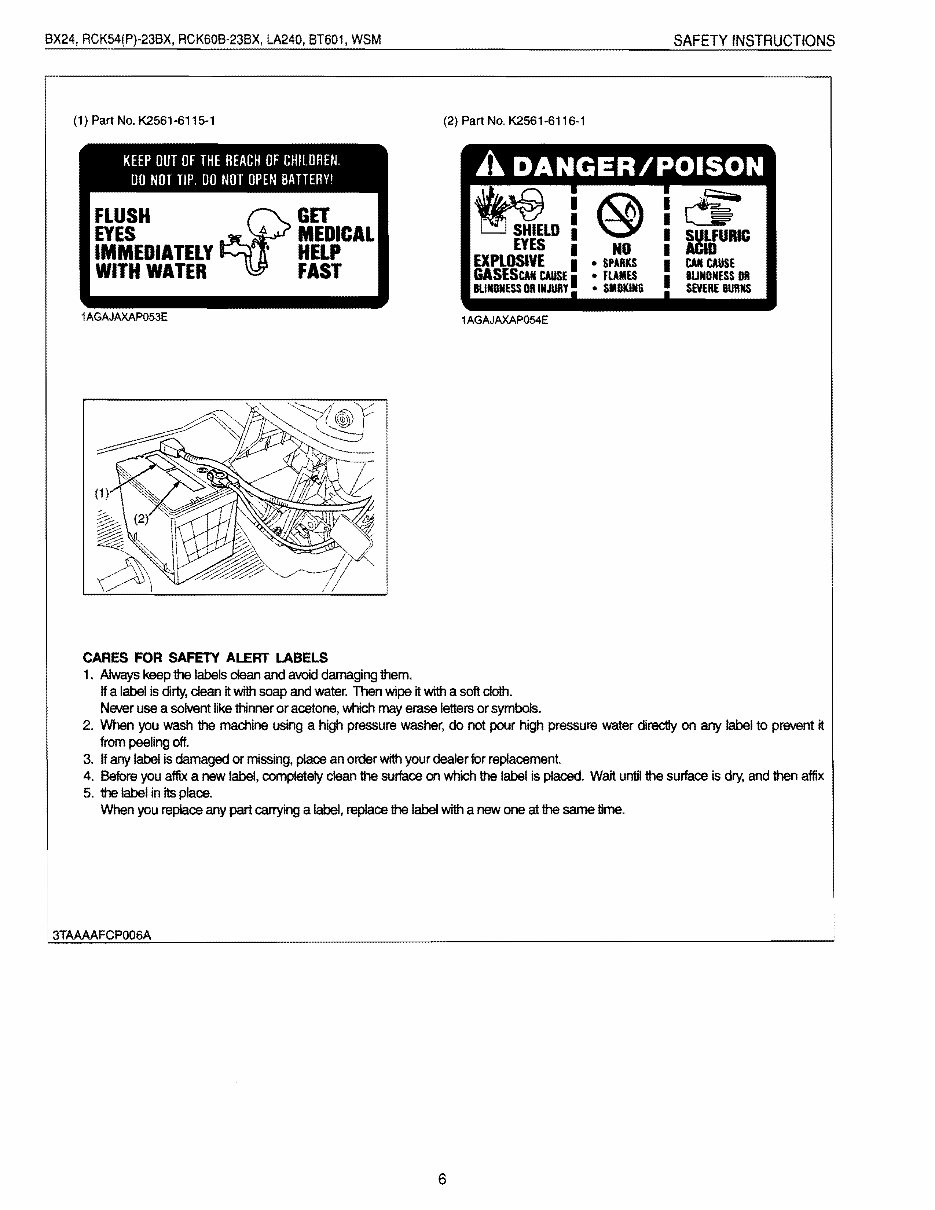

BX24, RCK54(P)-23BX, RCK60B-23BX, LA240, BT601, WSM SAFETY INSTRUCTIONS (1) Part No. K2561-6115-1 (2) Part No. K2561-6116-1 KEEP OUT OF THE REACH OF CHILDREN. DO NOT TIP. DO NOT OPEN BATTERY! FLUSH ~GET EYES ~ MEDICAL IMMEDIATELY ~if. HELP WITH WATER • - \W FAST I I r!i; SHIELD SULFURIC EYES I NO ACID EXPLOSIVE I • SPARKS CAN CAUSE GASEScu CAUSE I -fLAMES 8UNDNESS DR BUNONESS DR INJURY • SMOKING SEVERE BURNS 1 AGAJAXAP053E 1 AGAJAXAP054E CARES FOR SAFETY ALERT LABELS 1. Always keep the labels clean and avoid damaging them. H a label is dirty, clean it with soap and water. Then wipe it with a soft cloth. Never use a solvent like thinner or acetone, which may erase letters or symbols. 2. When you wash the machine using a high pressure washer, do not pour high pressure water directly on arrt label to prevent it from peeling off. 3. If arrt label is damaged or missing, place an order with your dealer for replacement. 4. Before you affix a new label, completely clean the surface on which the label is placed. Wait until the surface is dry, and then affix 5. the label in its place. When you replace any part carrying a label, replace the label with a new one at the same time. 6

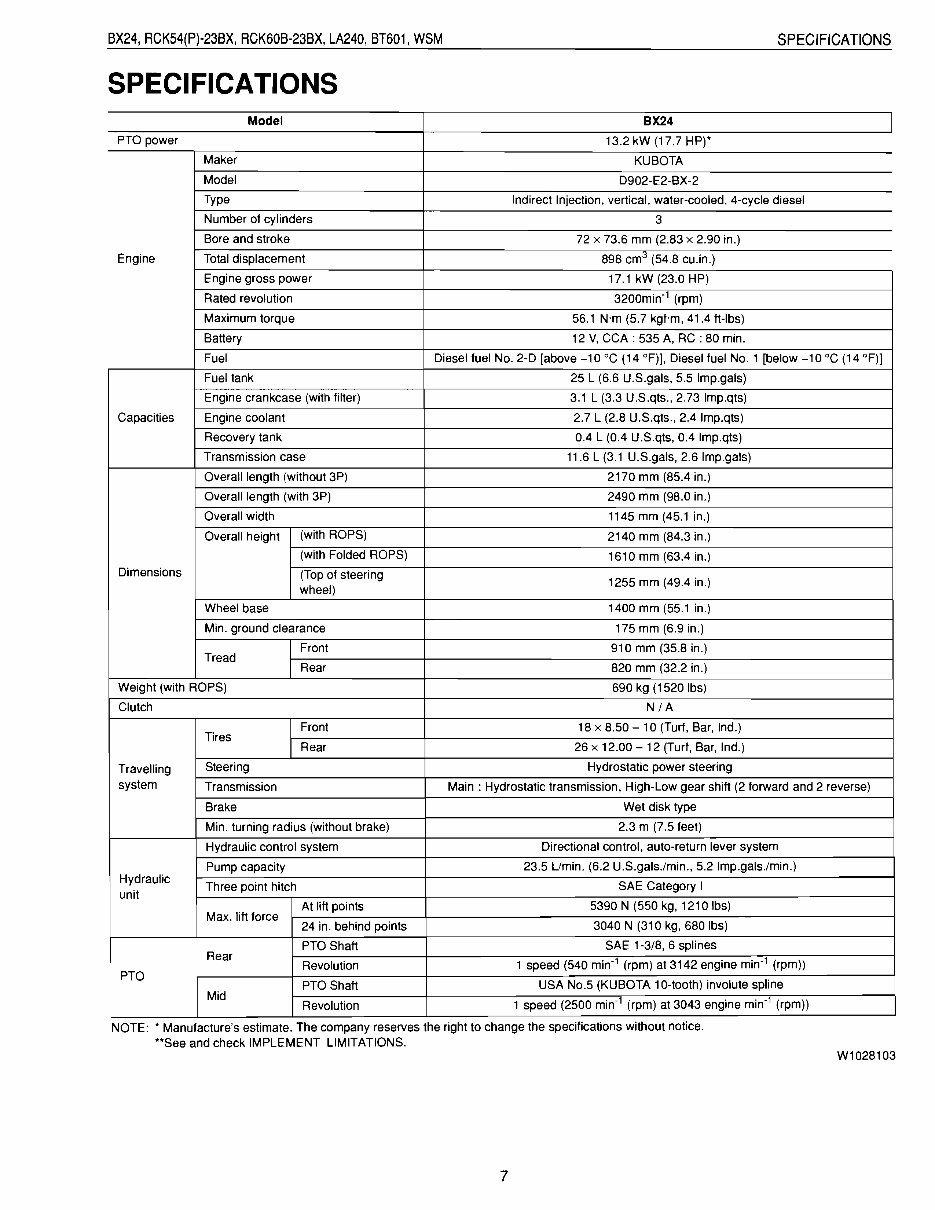

BX24, RCK54(P)-23BX, RCK60B-23BX, LA240, BT601, WSM SPECIFICATIONS SPECIFICATIONS Model BX24 PTO power 13.2 kW (17.7 HP)* Maker KUBOTA Model D902-E2-BX-2 Type Indirect Injection, vertical, water-cooled, 4-cycle diesel Number of cylinders 3 Bore and stroke 72 x 73.6 mm (2.83 x 2.90 in.) Engine Total displacement 898 cm 3 (54.8 cu.in.) Engine gross power 17.1 kW (23.0 HP) Rated revolution 3200min- 1 (rpm) Maximum torque 56.1 N'm (5.7 kgf'm, 41.4 ft-Ibs) Battery 12 V, CCA: 535 A, RC: 80 min. Diesel fuel No. 2-D [above -10°C (14 OF)], Diesel fuel No.1 [below -10°C (14 OF)] Fuel Fuel tank 25 L (6.6 U.S.gals, 5.5 Imp.gals) Engine crankcase (with filter) 3.1 L (3.3 U.S.qts., 2.73 Imp.qts) Capacities Engine coolant 2.7 L (2.8 U.S.qts., 2.4 Imp.qts) Recovery tank 0.4 L (0.4 U.S.qts, 0.4 Imp.qts) Transmission case 11.6 L (3.1 U.S.gals, 2.6 Imp.gals) Overall length (without 3P) 2170 mm (85.4 in.) Overall length (with 3P) 2490 mm (98.0 in.) Overall width 1145 mm (45.1 in.) Overall height (with ROPS) 2140 mm (84.3 in.) (with Folded ROPS) 1610 mm (63.4 in.) Dimensions (Top of steering wheel) 1255 mm (49.4 in.) Wheel base 1400 mm (55.1 in.) Min. ground clearance 175 mm (6.9 in.) Tread Front 910 mm (35.8 in.) Rear 820 mm (32.2 in.) Weight (with ROPS) 690 kg (1520 Ibs) Clutch N/A Tires Front 18 x 8.50 - 10 (Turt, Bar, Ind.) Rear 26 x 12.00 - 12 (Turf, Bar, Ind.) Travelling Steering Hydrostatic power steering system Transmission Main: Hydrostatic transmission, High-Low gear shift (2 forward and 2 reverse) Brake Wet disk type Min. turning radius (without brake) 2.3 m (7.5 feet) Hydraulic control system Directional control, auto-return lever system Pump capacity 23.5 Umin. (6.2 U.S.gals./min., 5.2 Imp.gals./min.) Hydraulic unit Three point hitch SAE Category I Max. lift force At lift points 24 in. behind points 5390 N (550 kg, 1210 Ibs) 3040 N (310 kg, 680 Ibs) Rear PTO Shaft Revolution SAE 1-3/8, 6 splines 1 speed (540 min- 1 (rpm) at 3142 engine min- 1 (rpm)) PTO PTO Shaft USA NO.5 (KUBOTA 10-tooth) involute spline Mid Revolution 1 speed (2500 min- 1 (rpm) at 3043 engine min- (rpm)) NOTE: • Manufacture's estimate. The company reserves the right to change the specifications without notice. "See and check IMPLEMENT LIMITATIONS. W1028103 7

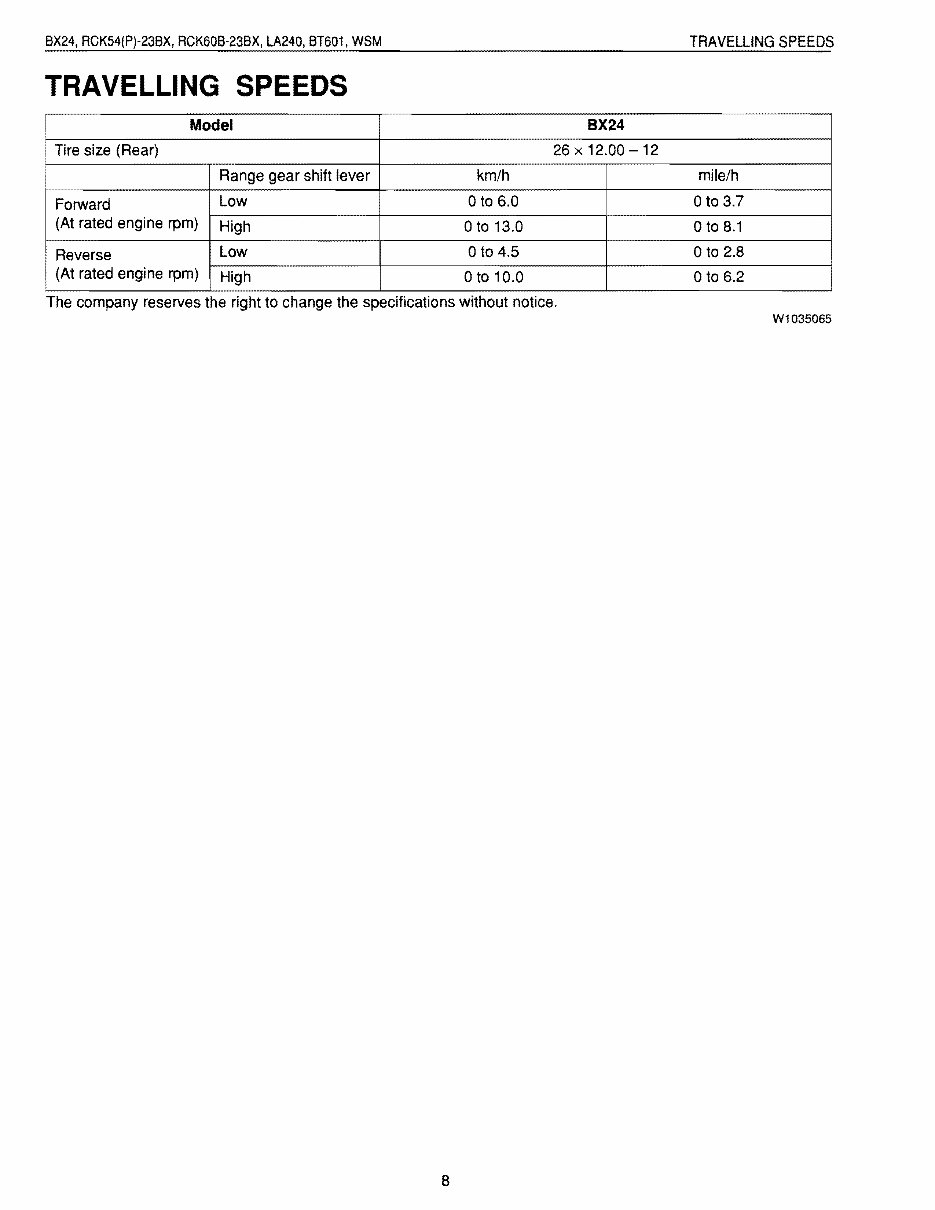

BX24. RCK54(P)-23BX. RCK60B-23BX. LA240. BT601. WSM TRAVELLING SPEEDS TRAVELLING SPEEDS Model BX24 • Tire size (Rear) 26 x 12.00 -12 Range gear shift lever km/h mile/h Forward (At rated engine rpm) Low oto 6.0 oto 3.7 High Ot013.0 oto 8.1 Reverse (At rated engine rpm) Low oto 4.5 oto 2.8 High oto 10.0 oto 6.2 The company reserves the right to change the specifications without notice. W1035065 8

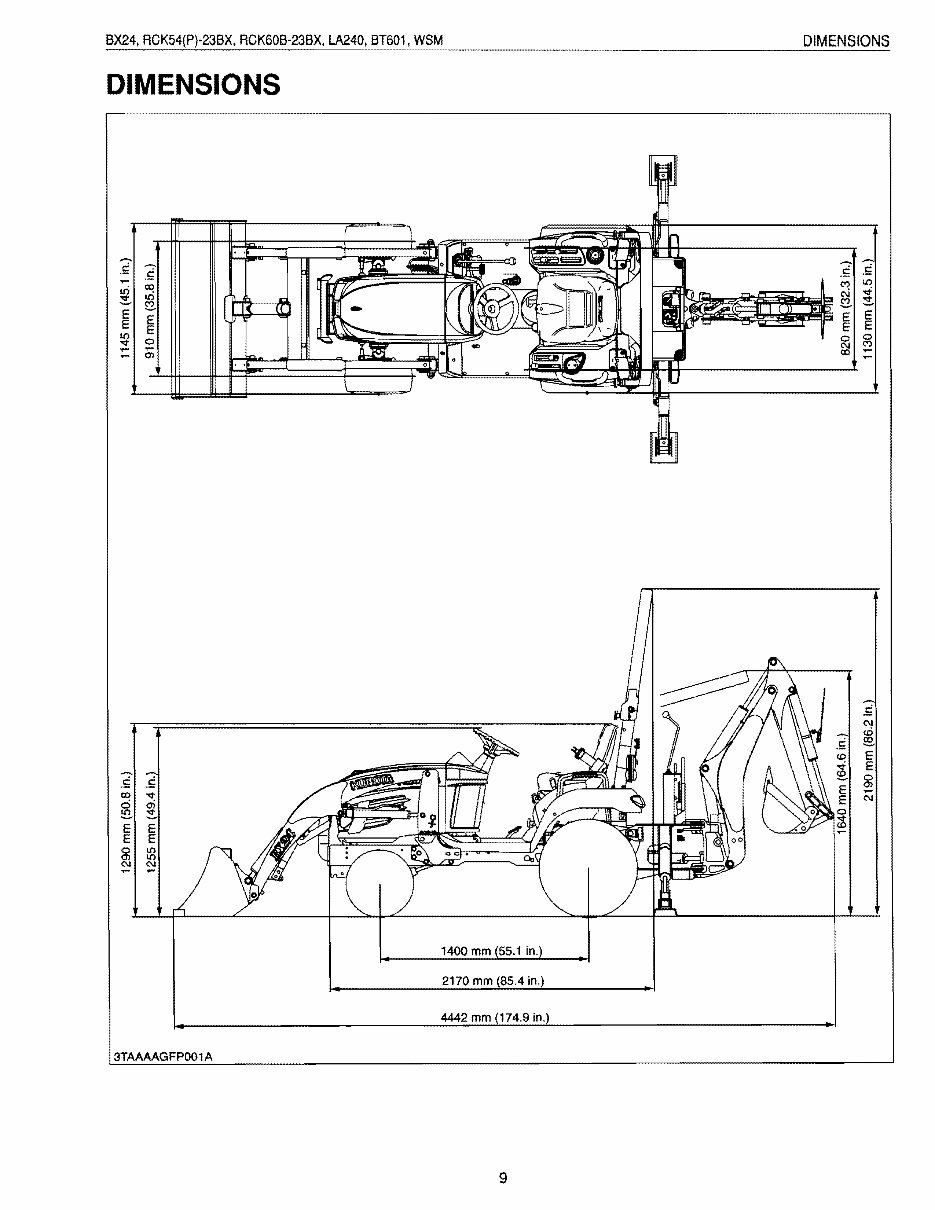

BX24, RCK54(P)-23BX, RCK60B-23BX, LA240, BT601, WSM DIMENSIONS DIMENSIONS ~ .5 ~ .5 ..0 a) ..0 ~ ~ E E E LO E "<t 0 0; ~ .5 .5 C') LO N ..t ~ ~ E E E E 0 g (\j (X) (X) E §. E E E E E a; LO LO (\j (\j ... ~ .5 (\j ~ E E a; N 2170 mm 85.4 in.) 4442 mm 174.9 in.) 3TAAAAGFPOO1 A 9
