Kubota B21 Tractor Illustrated Master Parts List Manual

Instructions for Parts Books The heading at the top of the page will be the same for the picture of the parts at it is for the page with the part numbers. Definition of column headings on part number pages: REF.No  The number refering to the part on the picture page of the parts book. Part No.  The number assigned to this part at the time of printing the parts book. Description  Discription of part. Q'ty  Quanity of part used on that page. S.No.  Serial number range of the equipment that this part will fit. >= Your serial number should be greater than or equal to the number shown. <= Your serial number should be lesser than or equal to the serial number shown. I/C  Interchangeability of part shown.  The part shown will work for the older and later serial number. # The part shown is not interchangable with the other serial number.  new for old  old for new Remarks  Notes about this particulart part. Sometimes this may say except [FR] or [CA] Note about Country Codes: The parts books we use in the United States of America may also contain information about a part that would be different in another country. It is important that you are aware of the country codes in some instances. Symbol Country A United States of America CA Canada FR France GR Greece PO Portugal AU Australia If the remarks column says for example EXCEPT [FR] this part works in all countries except France. That means it will work here in the USA.

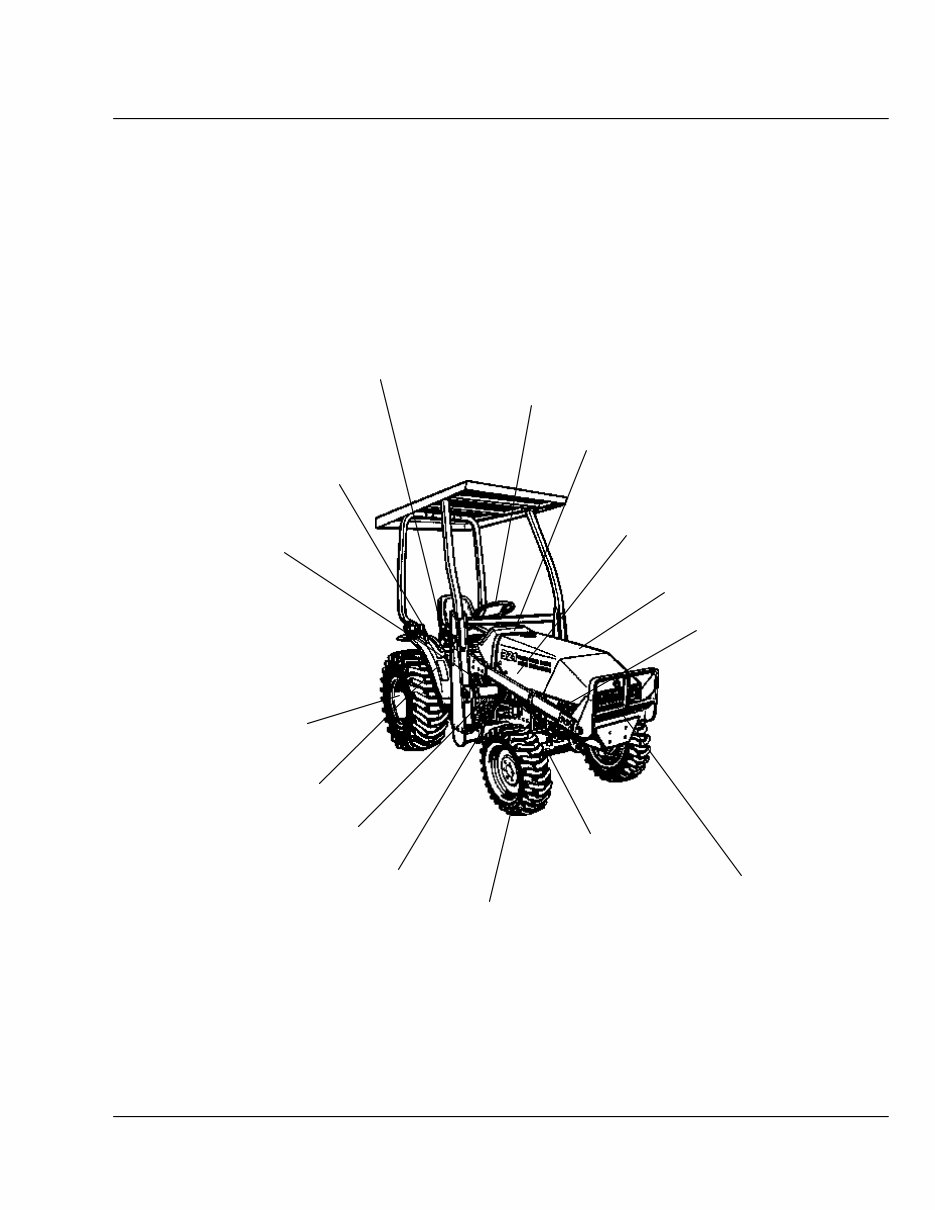

|ALL PRODUCT INDEX B21 Ref. B21 Page 11014 PUMP/MOTOR SYSTEM FRONT AXLE STEERING TOP LINK/TOP LINK BRACKET/PTO PROTECTOR HOOD/BONNET FRONT TIRE REAR TIRE LABELS ACCESSORIES AND SERVICE PARTS OPTION BRAKE ENGINE FUEL SYSTEM COOLING WATER SYSTEM ELECTRICAL SYSTEM CLUTCH TRANSMISSION SPEED CHANGE REAR AXLE

Ref. B21 Page 11014 Item Part No. Description Book ENGINE 010001 CRANKCASE 100K0813 01000101 CRANKCASE 100K0813 010002 OIL PAN 100K0813 010003 CYLINDER HEAD 100K0813 010004 GEAR CASE 100K0813 010005 HEAD COVER 100K0813 01000501 HEAD COVER 100K0813 010006 OIL FILTER 100K0813 010100 MAIN BEARING CASE 100K0813 010101 CAMSHAFT AND IDLE GEAR SHAFT 100K0813 010102 PISTON AND CRANKSHAFT 100K0813 010103 FLYWHEEL 100K0813 010105 FUEL CAMSHAFT AND GOVERNOR SHAFT 100K0813 01020001 IDLE APPARATUS 100K0813 01020002 IDLE APPARATUS 100K0813 010202 INJECTION PUMP 100K0813 01020401 GOVERNOR 100K0813 01020402 GOVERNOR 100K0813 01020403 GOVERNOR 100K0813 010205 SPEED CONTROL PLATE 100K0813 010206 NOZZLE HOLDER AND GLOW PLUG 100K0813 01020601 NOZZLE HOLDER AND GLOW PLUG 100K0813 010207 NOZZLE HOLDER [COMPONENT PARTS] 100K0813 01020701 NOZZLE HOLDER [COMPONENT PARTS] 100K0813 010301 FUEL PUMP(MECHANICAL) 100K0813 010500 WATER FLANGE AND THERMOSTAT 100K0813 010501 WATER PUMP 100K0813 010600 VALVE AND ROCKER ARM 100K0813 010601 INLET MANIFOLD 100K0813 01060101 INLET MANIFOLD 100K0813 010602 EXHAUST MANIFOLD 100K0813 010603 AIR CLEANER 100K0813 010605 MUFFLER 100K0813 010900 UPPER GASKET KIT 100K0813 01090001 UPPER GASKET KIT 100K0813 010901 LOWER GASKET KIT 100K0813 01090101 LOWER GASKET KIT 100K0813 01A001 ACCELERATOR LEVER 100K0813 FUEL SYSTEM 01A101 FUEL TANK 100K0813 01A11001 FUEL PIPE 100K0813 01A11002 FUEL PIPE 100K0813 01A130 FUEL FILTER [COMPONENT PARTS] 100K0813 COOLING WATER SYSTEM 01A401 FAN 100K0813 01A410 WATER PIPE 100K0813 01A42001 RADIATOR [EXCEPT [AU]] 100K0813

Ref. B21 Page 11014 Item Part No. Description Book COOLING WATER SYSTEM 01A42002 RADIATOR [AU] 100K0813 ELECTRICAL SYSTEM 01A510 STOP SOLENOID 100K0813 01A515 ALTERNATOR 100K0813 01A520 ALTERNATOR [COMPONENT PARTS] 100K0813 01A525 STARTER 100K0813 01A530 STARTER [COMPONENT PARTS] 100K0813 01A535 BATTERY 100K0813 01B101 SWITCH 100K0813 01B115 PANEL BOARD 100K0813 01B120 PANEL BOARD [COMPONENT PARTS] 100K0813 01B301 HEAD LIGHT 100K0813 01B302 HAZARD LIGHT 100K0813 01B304 TAIL LIGHT 100K0813 01B30401 TAIL LIGHT 100K0813 01B310 WINKER LAMP 100K0813 01B501 ELECTRICAL WIRING 100K0813 CLUTCH 01C101 CLUTCH 100K0813 01C110 CLUTCH ROD 100K0813 01C301 CLUTCH PEDAL 100K0813 01C401 CLUTCH HOUSING 100K0813 01C415 CENTER FRAME 100K0813 TRANSMISSION 01C420 TRANSMISSION CASE 100K0813 01C425 DIFFERENTIAL GEAR CASE 100K0813 01C427 REAR AXLE CASE 100K0813 01D001 CLUTCH SHAFT 100K0813 01D005 PROPELLER SHAFT 100K0813 01D010 HST 100K0813 01D01501 HST [COMPONENT PARTS] 100K0813 01D01502 HST [COMPONENT PARTS] 100K0813 01D01503 HST [COMPONENT PARTS] 100K0813 01D103 FRONT SHAFT 100K0813 01D105 2ND SHAFT/3RD SHAFT/4TH SHAFT 100K0813 01D135 PTO SHAFT 100K0813 01D140 REAR DIFFERENTIAL 100K0813 01D143 FRONT WHEEL PROPELLER SHAFT 100K0813 SPEED CHANGE 01D217 RANGE GEAR SHIFT FORK 100K0813 REAR AXLE 01D301 REAR AXLE 100K0813 BRAKE 01E001 BRAKE 100K0813 01E015 PARKING BRAKE LEVER 100K0813 SPEED CHANGE 01F107 NEUTRAL HOLDER LINK 100K0813 01F108 SPEED CONTROL PEDAL 100K0813 01F110 RANGE GEAR SHIFT LEVER 100K0813 01F111 RANGE GEAR SHIFT ROD 100K0813 01F113 FRONT WHEEL DRIVE LEVER 100K0813 01F125 PTO GEAR SHIFT LEVER 100K0813 PUMP/MOTOR SYSTEM 01F143 HYDRAULIC CONTROL LEVER 100K0813 01F167 HYDRAULIC CHANGE ROD 100K0813 BRAKE 01F201 BRAKE PEDAL 100K0813 REAR AXLE 01F205 DIFFERENTIAL LOCK PEDAL 100K0813

Ref. B21 Page 11014 Item Part No. Description Book FRONT AXLE 01G101 FRONT AXLE FRAME 100K0813 01G105 FRONT AXLE CASE 100K0813 01G115 FRONT DIFFERENTIAL 100K0813 01G123 BEVEL GEAR CASE 100K0813 01G130 FRONT AXLE 100K0813 01G135 FRONT DRIVE SHAFT 100K0813 STEERING 01H003 DRAG LINK 100K0813 01H005 TIE ROD 100K0813 01H101 STEERING HANDLE 100K0813 PUMP/MOTOR SYSTEM 01J101 HYDRAULIC PUMP(PS) 100K0813 STEERING 01J10501 HYDRAULIC PUMP(PS) [COMPONENT PARTS] 100K0813 PUMP/MOTOR SYSTEM 01J10502 HYDRAULIC PUMP(PS) [COMPONENT PARTS] 100K0813 01J120 HYDRAULIC PUMP 100K0813 01J125 HYDRAULIC PUMP [COMPONENT PARTS] 100K0813 01J150 OIL TANK 100K0813 01J201 HYDRAULIC OIL LINE(SUCTION) 100K0813 01J203 FLOW DIVIDER VALVE [COMPONENT PARTS] 100K0813 01J210 HYDRAULIC OIL LINE(DELIVERY) 100K0813 01J215 HYDRAULIC OIL LINE(STEERING) 100K0813 01J216 HYDRAULIC OIL LINE(BACKHOE) 100K0813 01J235 HYDRAULIC OIL LINE(HST) 100K0813 01J240 HYDRAULIC OIL LINE(OIL COOLER) 100K0813 01J245 HYDRAULIC OIL LINE(F/M) 100K0813 01J301 HYDRAULIC CYLINDER 100K0813 01J405 CONTROL VALVE 100K0813 01J410 CONTROL VALVE [COMPONENT PARTS] 100K0813 01J460 HYDRAULIC OUTLET 100K0813 01J461 HYDRAULIC OUTLET [COMPONENT PARTS] 100K0813 TOP LINK/TOP LINK BRACKET/PTO PROTECTOR 01K101 3-POINT LINKAGE 2(LIFT ROD) 100K0813 01K115 HITCH/LOWER LINK 100K0813 01K120 3-POINT LINKAGE 1(TOP LINK) 100K0813 01L12501 PTO PROTECTOR [EXCEPT [AU]] 100K0813 01L12502 PTO PROTECTOR [AU] 100K0813 HOOD/BONNET 01M10501 BONNET [EXCEPT [AU]] 100K0813 01M10502 BONNET [AU] 100K0813 01M11301 PANEL COVER/SHUTTER PLATE [EXCEPT [AU]] 100K0813 01M11302 PANEL COVER/SHUTTER PLATE [AU] 100K0813 01M21301 FENDER LH [EXCEPT [AU]] 100K0813 01M21302 FENDER LH [AU] 100K0813 01M21401 FENDER RH [EXCEPT [AU]] 100K0813

Ref. B21 Page 11014 Item Part No. Description Book HOOD/BONNET 01M21402 FENDER RH [AU] 100K0813 01M220 SEAT 100K0813 01M221 SEAT TURN TABLE 100K0813 01M222 BASE SEAT TURN TABLE 100K0813 01M223 SEAT ADJUSTER 100K0813 01M225 STEP 100K0813 01M230 MAIN FLAME 100K0813 01M32001 ROPS/FOPS 100K0813 01M32002 ROPS/FOPS 100K0813 01M501 SMV EMBLEM(BRACKET) 100K0813 FRONT TIRE 01R10101 FRONT WHEEL(23*8.50-14R4) 100K0813 01R10102 FRONT WHEEL(24*8.50-14) 100K0813 REAR TIRE 01R11001 REAR WHEEL(12.4-16R4) 100K0813 01R11002 REAR WHEEL(12.4-16) 100K0813 01R11003 REAR WHEEL(13.6-16) 100K0813 LABELS 01S10101 LABEL [A] [CA] [ENGLISH] 100K0813 01S10102 LABEL [A] [CA] [FRENCH] 100K0813 01S10103 LABEL [AU] 100K0813 ACCESSORIES AND SERVICE PARTS 01T105 ACCESSORIES AND SERVICE PARTS 100K0813 OPTION 01U80501 WORKING LIGHT KIT [OPTION] 100K0813 01U80502 WORKING LIGHT KIT [OPTION] 100K0813 01U807 WIRE HARNESS KIT [OPTION] [AU] 100K0813 01U890 DRAWBER KIT [OPTION] 100K0813

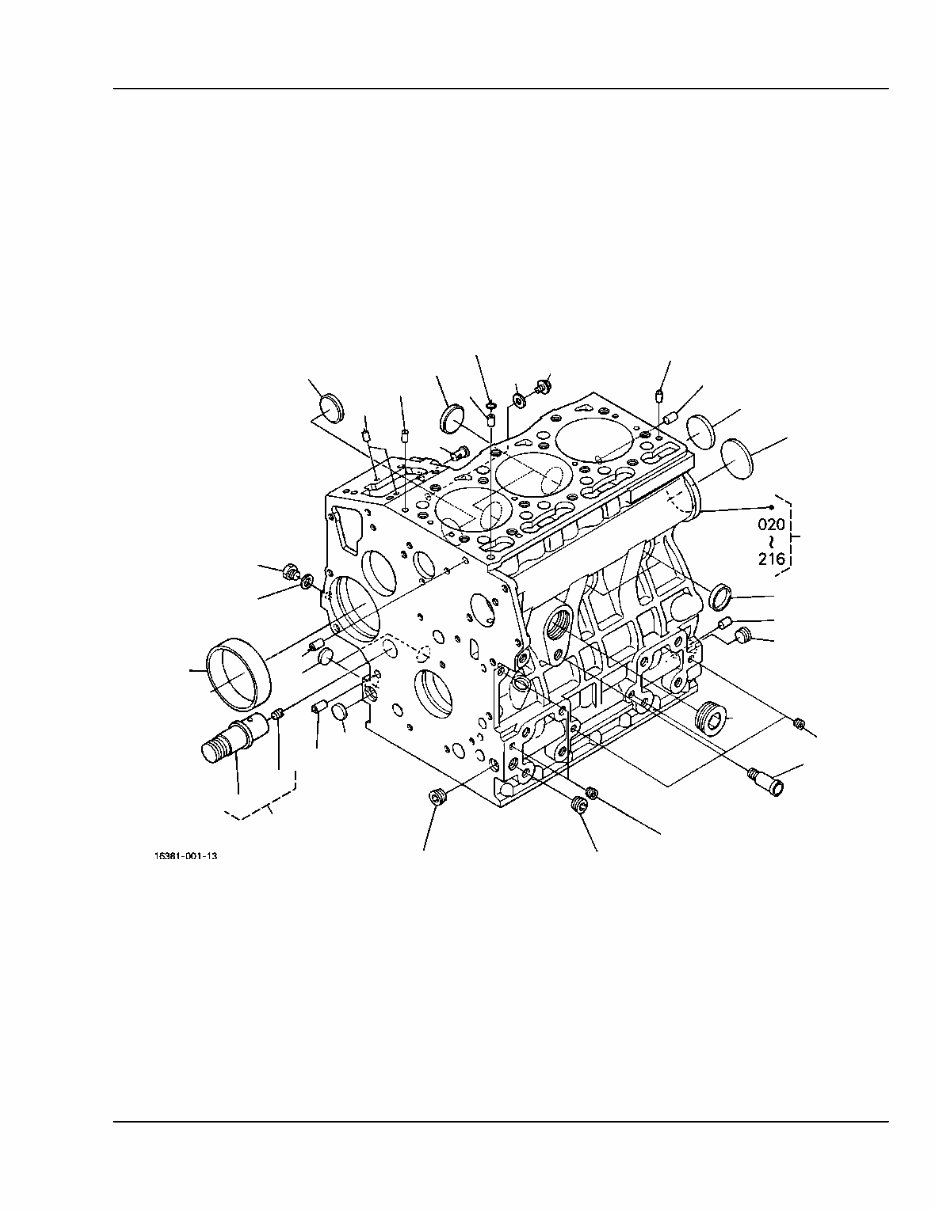

CRANKCASE Reference: 010001 Page: 1 010 020 020 030 040 050 060 060 060 070 080 080 090 100 110 110 120 120 130 130 140 150 160 165 170 180 190 200 210 215 216 220 230

CRANKCASE S.No.;<=4Z9999 Reference: 010001 Page: 1 REF.No Part No. Description Q'ty S.No. I/C REMARKS Weight (kgf) Weight (lb) 010 16234-01015 COMP.CRANKCASE 1 <=YD1625 32.28 71.016 010 16234-01017 COMP.CRANKCASE 1 >=YE0001 ‹ 0 0 010 16234-01018 COMP.CRANKCASE 1 >=YL0001 „ 0 0 010 16234-01019 COMP.CRANKCASE 1 >=1G0001 „ 0 0 010 16234-01020 COMP.CRANKCASE 1 >=2E0004 ‹ 32 70.4 010 16234-01022 COMP.CRANKCASE 1 >=3L0007 ‹ 33 72.6 020 15451-96270 CAP SEALING 4 0.001 0.0022 030 15221-03490 CAP SEALING 1 0.02 0.044 040 15261-96010 PLUG 3 0.002 0.0044 050 16683-96020 PLUG 1 0.07 0.154 060 16241-96010 PLUG 3 0.007 0.0154 070 15521-96020 PLUG 2 0.003 0.0066 080 17391-96160 PLUG EXPANSION 3 0.003 0.0066 090 16271-96160 PLUG EXPANSION 1 0.025 0.055 100 05012-00508 PIN STRAIGHT 2 0.001 0.0022 100 16225-94510 PIN STRAIGHT 2 « 0 0 100 05012-00508 PIN STRAIGHT 2 « 0.001 0.0022 110 05012-00814 PIN STRAIGHT 2 0.006 0.0132 110 16221-94530 PIN STRAIGHT 2 « 0.006 0.0132 110 05012-00814 PIN STRAIGHT 2 « 0.006 0.0132 120 05012-00610 PIN STRAIGHT 2 0.003 0.0066 120 16221-94520 PIN STRAIGHT 2 « 0.005 0.011 130 15231-33960 PIN PIPE 2 0.001 0.0022 140 16241-33650 PIN PIPE 1 0.002 0.0044 150 16241-96262 PLUG 1 0.007 0.0154 160 16261-56280 PIN START SPRING 1 0.004 0.0088 165 16251-24060 COMP SHAFT IDLE 1 0.18 0.396 170 16251-24260 SHAFT IDLE GEAR 1 NOT SALE 0.18 0.396 180 15521-93610 SCREW SET 1 0.002 0.0044 190 16271-55350 BUSH GOVERNOR GEAR 1 0.06 0.132 200 15221-33610 PLUG 1 0.009 0.0198 210 15021-33660 GASKET 1 0.001 0.0022 215 01754-50610 BOLT FLANGE 1 >=3L0007 0.006 0.0132 216 15601-96650 GASKET 1 >=3L0007 0.001 0.0022 220 15221-33700 O RING 1 0.001 0.0022 230 15321-73340 PIPE WATER RETURN 1 0.016 0.0352

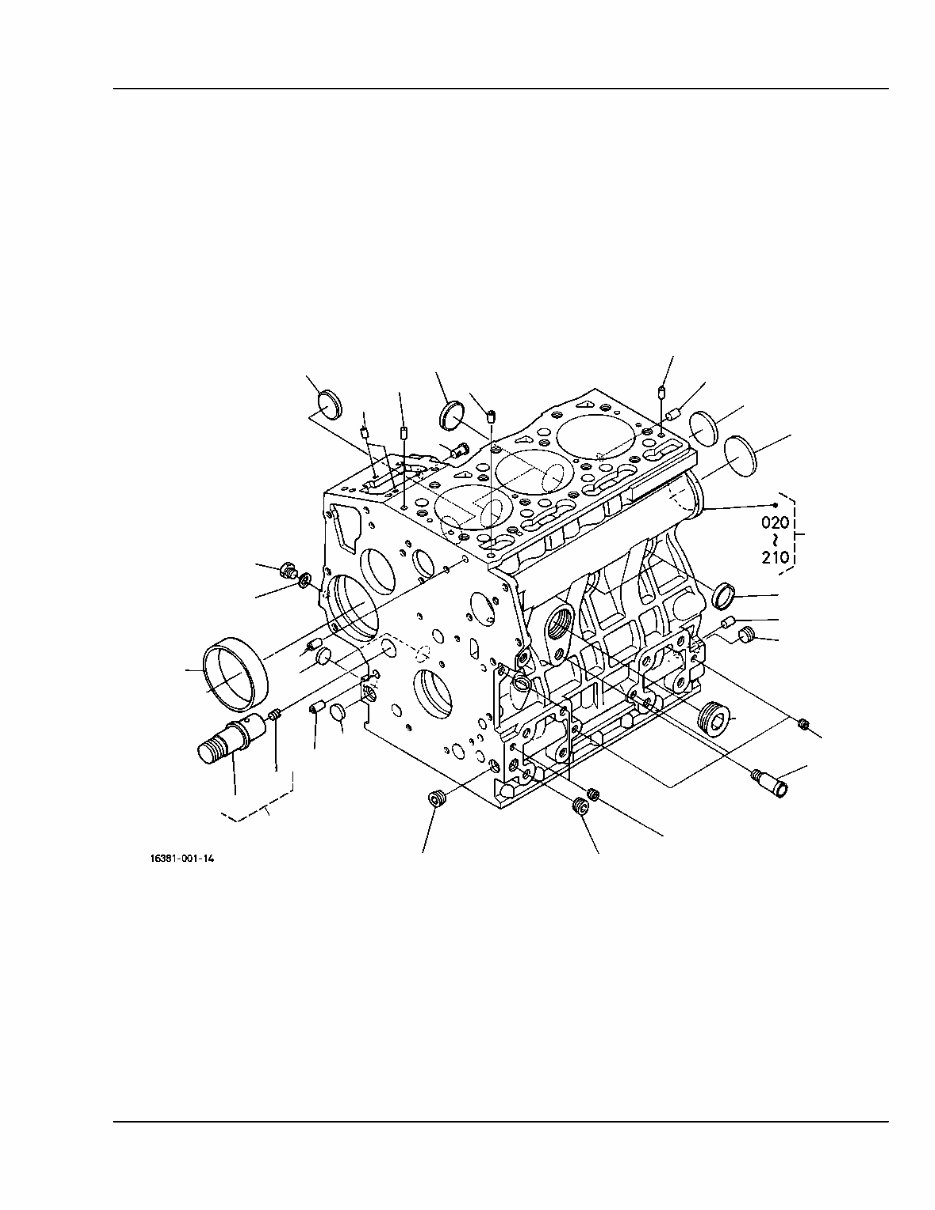

CRANKCASE Reference: 01000101 Page: 2 010 020 020 030 040 050 060 060 060 070 080 080 090 100 110 110 120 120 130 130 140 150 160 165 170 180 190 200 210 220

CRANKCASE S.No.;>=5A0001 Reference: 01000101 Page: 2 REF.No Part No. Description Q'ty S.No. I/C REMARKS Weight (kgf) Weight (lb) 010 1G045-01010 COMP.CRANKCASE 1 0 0 020 15451-96270 CAP SEALING 4 0.001 0.0022 030 15221-03490 CAP SEALING 1 0.02 0.044 040 15261-96010 PLUG 3 0.002 0.0044 050 16683-96020 PLUG 1 0.07 0.154 060 16241-96010 PLUG 3 0.007 0.0154 070 15521-96020 PLUG 2 0.003 0.0066 080 17391-96160 PLUG EXPANSION 3 0.003 0.0066 090 16271-96160 PLUG EXPANSION 1 0.025 0.055 100 05012-00508 PIN STRAIGHT 2 0.001 0.0022 110 05012-00814 PIN STRAIGHT 2 0.006 0.0132 120 16221-94520 PIN STRAIGHT 2 0.005 0.011 130 15231-33960 PIN PIPE 2 0.001 0.0022 140 16241-33650 PIN PIPE 1 0.002 0.0044 150 16241-96262 PLUG 1 0.007 0.0154 160 16261-56280 PIN START SPRING 1 0.004 0.0088 165 16251-24060 COMP SHAFT IDLE 1 0.18 0.396 170 16251-24260 SHAFT IDLE GEAR 1 NOT SALE 0.18 0.396 180 15521-93610 SCREW SET 1 0.002 0.0044 190 16271-55350 BUSH GOVERNOR GEAR 1 0.06 0.132 200 15221-33610 PLUG 1 0.009 0.0198 210 15021-33660 GASKET 1 0.001 0.0022 220 15321-73340 PIPE WATER RETURN 1 0.016 0.0352
