Models 310G 310SG 315SG Parts Catalog

310G,310SG and 315SG BACKHOE LOADERS PARTS CATALOG 310G,310SG and 315SG BACKHOE LOADERS PC2755 (Jan-07) English Worldwide Construction and Forestry Division Worldwide Edition Litho In U.S.A.(Revised) COPYRIGHT © 2007 DEERE & COMPANY Moline, Illinois All rights reserved

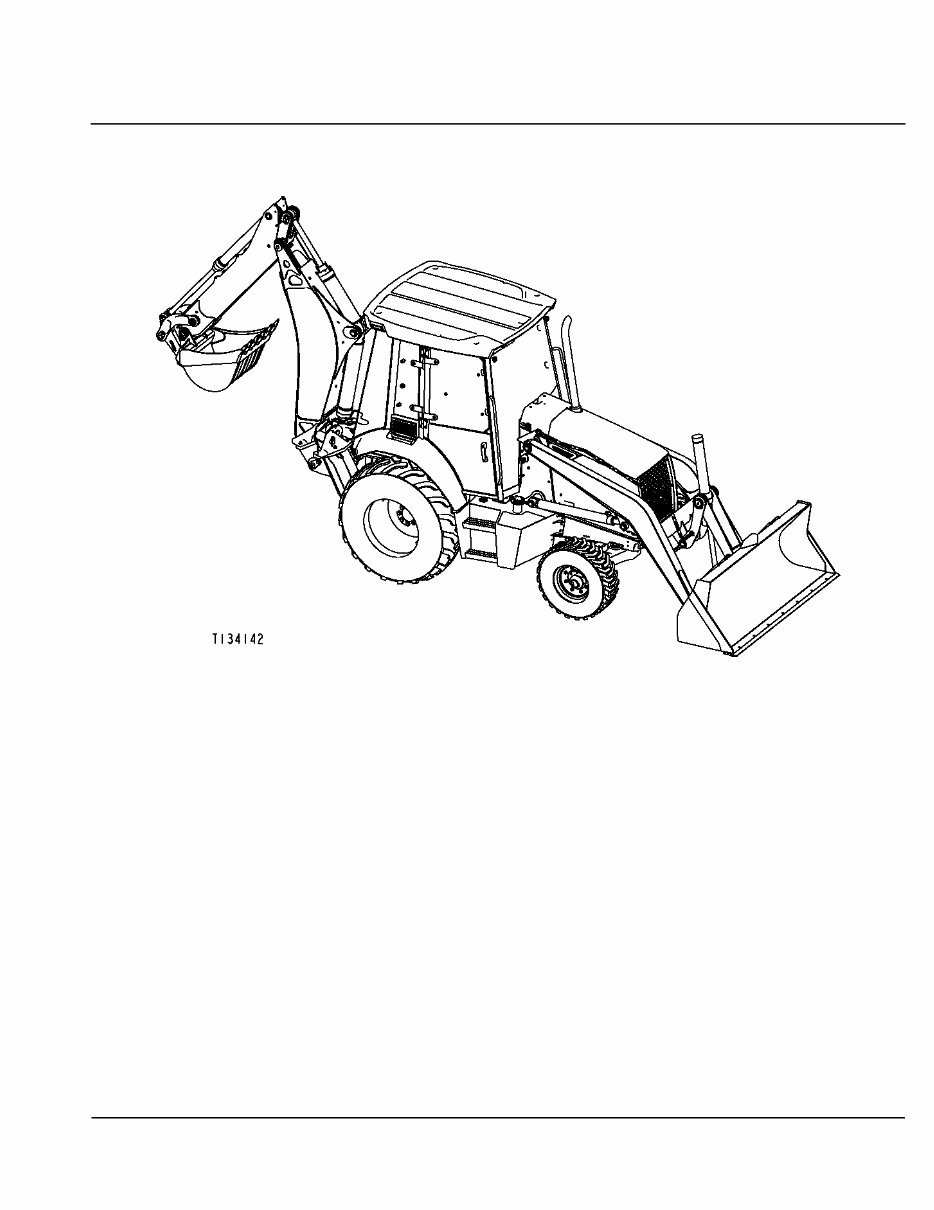

000I-1 310G, 310SG AND 315SG BACKHOE LOADERS INTRODUCTION AND CUSTOMER INFORMATION T134142 -UN-10OCT00 SIDE VIEW OF JOHN DEERE BACKHOE LOADER (MANUFACTURED 2000- ) TO THE CUSTOMER THE PART NUMBERS IN THIS PARTS CATALOG WERE CORRECT AT THE TIME YOUR CATALOG WAS PUBLISHED. IT IS OUR POLICY TO CONSTANTLY IMPROVE OUR MACHINES AND, THEREFORE, PART NUMBERS MAY CHANGE. WHEN ORDERING PARTS, VERIFY PART NUMBERS THROUGH YOUR DEALER’S (SPECIFICATIONS AND DESIGN SUBJECT TO CHANGE WITHOUT NOTICE.) 310G, 310SG AND 315SG BACKHOE LOADERS PC2755 (14-SEP-06) 000I-1 PN=1

000I-2 310G, 310SG AND 315SG BACKHOE LOADERS SERIAL NUMBER LOCATIONS EACH 310G, 310SG AND 315SG BACKHOE LOADER HAS SIX SERIAL NUMBERS, A PRODUCT IDENTIFICATION NUMBER PLATE, AN ENGINE SERIAL NUMBER PLATE, A HYDRAULIC PUMP SERIAL NUMBER PLATE, A MFWD AXLE SERIAL NUMBER PLATE, A TRANSMISSION SERIAL NUMBER PLATE, AND A REAR AXLE SERIAL NUMBER PLATE. THE PRODUCT IDENTIFICATION NUMBER IS ON THE LEFT-HAND SIDE OF THE LOADER FRAME JUST ABOVE THE LIFT CYLINDER PIVOT BOSS. THE ENGINE SERIAL NUMBER PLATE IS LOCATED ON THE RIGHT-HAND SIDE OF THE CYLINDER BLOCK NEAR THE FUEL PUMP. THE MFWD AXLE SERIAL NUMBER PLATE IS LOCATED ON THE RIGHT-HAND (REAR) SIDE OF THE MFWD AXLE HOUSING. THE REAR AXLE SERIAL NUMBER PLATE IS LOCATED ON THE RIGHT-HAND (FRONT) SIDE OF THE AXLE HOUSING. THE TRANSMISSION SERIAL NUMBER PLATE IS LOCATED ON THE BOTTOM-REAR FACE OF THE HOUSING. THE HYDRAULIC PUMP SERIAL NUMBER IS LOCATED ON THE BOTTOM FACE OF THE PUMP. LEFT-HAND SIDE, RIGHT-HAND SIDE, FRONT AND REAR OF THE BACKHOE LOADER ARE VIEWED BY FACING IN THE DIRECTION OF THE BACKHOE LOADER FORWARD TRAVEL. LEFT-HAND SIDE, RIGHT-HAND SIDE, FRONT AND REAR OF THE BACKHOE COMPONENTS ARE DETERMINED WHEN SEATED IN THE BACKHOE OPERATING POSITION. IF PRODUCT IDENTIFICATION NUMBERS OR SERIAL NUMBERS ARE REQUIRED FOR WARRANTY CLAIMS OR CORRESPONDENCE PERTAINING TO THIS PRODUCT. IT IS EXTREMELY IMPORTANT THAT ALL CHARACTERS BE FURNISHED. THIS POINT CANNOT BE OVEREMPHASIZED. 000I-2 310G, 310SG AND 315SG BACKHOE LOADERS PC2755 (14-SEP-06) PN=2

000I-3 310G, 310SG AND 315SG BACKHOE LOADERS PRODUCT IDENTIFICATION NUMBER TP16004 -UN-01JAN94 1. DESIGNATES BACKHOE MANUFACTURER T0 - JOHN DEERE DUBUQUE WORKS BE - BELL EQUIPMENT SOUTH AFRICA 2. DESIGNATES BACKHOE MODEL 315 3. DESIGNATES BACKHOE CONFIGURATION SG 4. DESIGNATES DUBUQUE WORKS SERIAL NUMBERS 893079 THRU 948698 DESIGNATES BELL EQUIPMENT SERIAL NUMBERS 200001 THRU XXXXXX 5. DESIGNATES UNIT TYPE BACKHOE LOADER 310G, 310SG AND 315SG BACKHOE LOADERS PC2755 (14-SEP-06) 000I-3 PN=3

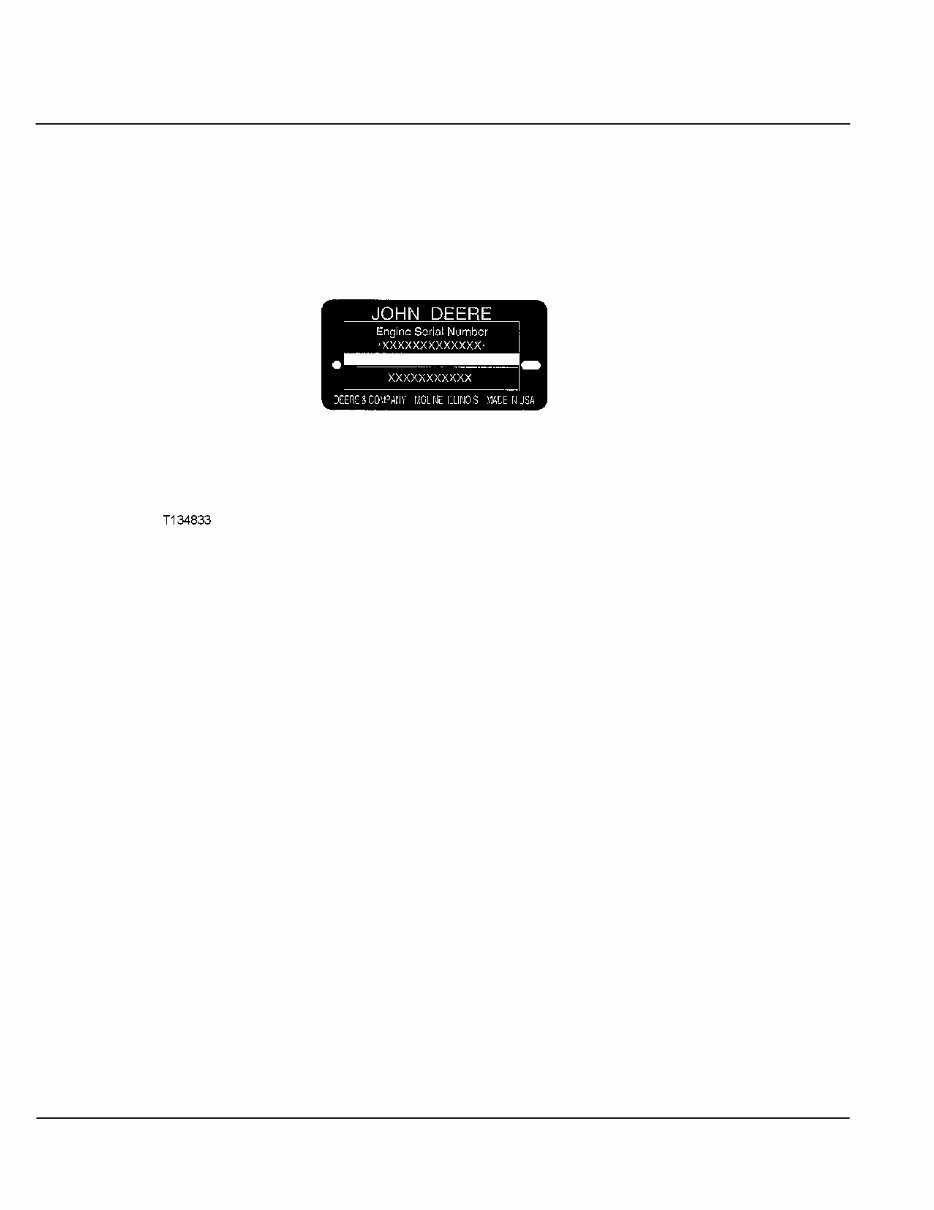

000I-4 310G, 310SG AND 315SG BACKHOE LOADERS ENGINE SERIAL NUMBER PLATE T134833 -UN-23OCT00 1. DESIGNATES ENGINE MANUFACTURER T-JOHN DEERE DUBUQUE WORKS 1. P-JOHN DEERE MOTORES 2. DESIGNATES NUMBER OF CYLINDERS 4045 (4.5 LITER) AND LITERS. 3. DESIGNATES FUEL TYPE OR SPECIAL COND. DT NON-TURBOCHARGED DIESEL ENGINE TT TURBOCHARGED DIESEL ENGINE 4. DESIGNATES ENGINE SERIAL NUMBER 123456 5. DESIGNATES THE ENGINE APPLICATION T04045DT056 (WITHOUT TURBOCHARGER)(310G) AND FACTORY USER. PE4045DT056 (WITHOUT TURBOCHARGER)(310G) T04045TT080 (WITH TURBOCHARGER)(310G) PE4045TT080 (WITH TURBOCHARGER)(310G) T04045TT081 (WITH TURBOCHARGER)(310SG,315SG) PE4045TT081 (WITH TURBOCHARGER)(310SG,315SG) PE4045DT058 (WITHOUT TURBOCHARGER)(310G) PE4045TT088 (WITH TURBOCHARGER)(310G) PE4045TT089 (WITH TURBOCHARGER)(310SG) 000I-4 310G, 310SG AND 315SG BACKHOE LOADERS PC2755 (14-SEP-06) PN=4

000I-5 310G, 310SG AND 315SG BACKHOE LOADERS MFWD AXLE SERIAL NUMBER PLATE TP19438 -UN-01JAN94 1. DESIGNATES CUSTOMER’S CODE NUMBER JOHN DEERE PART NUMBER 2. DESIGNATES TYPE OF LUBRICANT M1L-L-2105B, SAE90 3. DESIGNATES ZF-PARTS-LIST NUMBER 4464 006 101 4. DESIGNATES AXLE TYPE AP-11H 5. DESIGNATES AXLE SERIAL NUMBER 12345 6. DESIGNATES TOTAL - RATIO OF THE AXLE 20.28 7. DESIGNATES VERSION SP. DIFF. (WITH OR WITHOUT SELF-LOCKING DIFFERENTIAL) 8. DESIGNATES LUBRICANT SPECIFICATION 05 9. DESIGNATES CAPACITY LTR (DIFFERENTIAL CARRIER AND PLANETARY GEAR ASSEMBLY 310G, 310SG AND 315SG BACKHOE LOADERS PC2755 (14-SEP-06) 000I-5 PN=5

000I-6 310G, 310SG AND 315SG BACKHOE LOADERS SERIAL NUMBER LISTING INFORMATION SERIAL NUMBER INFORMATION IS LISTED TO SHOW ON WHICH MACHINES EACH PART CAN BE USED; FOR EXAMPLE: - THE PART CAN BE USED ON ALL MACHINES. 000000- THE PART CAN BE USED ON ALL MACHINES BEGINNING WITH THE SERIAL NUMBER LISTED. -000000 THE PART CAN BE USED ON ALL MACHINES UP TO AND INCLUDING THE SERIAL NUMBER LISTED. 000000-000000 THE PART CAN BE USED ON ALL MACHINES BETWEEN AND INCLUDING THE SERIAL NUMBERS LISTED. WHEN XXXXXX’S ARE LISTED IN PLACE OF A SERIAL NUMBER, A SERIAL NUMBER CHANGE WAS MADE BUT THE EXACT SERIAL NUMBER WAS NOT AVAILABLE WHEN THE CATALOG WAS PRODUCED. USE OF VEHICLE SERIAL NUMBERS ON ENGINE PAGES: PLEASE PROVIDE THE VEHICLE SERIAL NUMBER (VSN-T0450HX910011), ENGINE SERIAL NUMBER (ESN-PE4045T19 0332), AND ENGINE MODEL NO. (PE4045TT058) WHEN ORDERING REPLACEMENT PARTS. ENGINE PARTS PAGES HAV E BEEN REVISED TO DETAIL THE VSN IN THE HEADER, ENGINE MODEL NO. IN THE REMARKS SECTION, AND VEHIC LE SERIAL NO. IN THE ALPHABETICAL INDEX. PLEASE PROVIDE ALL THREE NUMBERS WHEN ORDERING ENGINE PA RTS TO INSURE EFFICIENT SERVICE. DIRECTION ARROW ARROWS ARE USED WITH ILLUSTRATIONS TO INDICATE THE FRONT OF THE UNIT. "RIGHT-HAND" AND "LEFT- HAND" SIDES OF THE LOADER OR TRACTOR PARTS ARE DETERMINED BY FACING IN THE DIRECTION OF MACHINE FORWARD TRAVEL EXCEPTION: FOR ALL BACKHOE PARTS, "RIGHT-HAND" AND "LEFT-HAND" SIDES, "FRONT" AND "REAR" ARE DETERMINED WHEN SEATED FOR BACKHOE OPERATION. BOX-ENCLOSED ILLUSTRATIONS A KEY NUMBER, SHOWN IN THE PARTS LIST, IS ASSIGNED TO A BOX ENCLOSING ALL PARTS SOLD AS A SERVICE ASSEMBLY. COMPLETE GOODS LISTINGS COMPLETE GOODS ARE LISTED IN THE REMARKS COLUMN AS WHOLE GOODS. DO NOT INCLUDE ON REPLACEMENT PARTS ORDER. SI UNITS OF MEASURE METRIC DIMENSIONS ARE GIVEN, WHERE APPLICABLE, THROUGHOUT THIS PARTS CATALOG. CHANGE INDICATOR LINE CHANGES AFFECTING THE ORDERING OF PARTS ARE IDENTIFIED BY VERTICAL LINES MARKED IN THE LEFT- HAND MARGIN OF REVISED PARTS LISTING IMAGES. A LINE IS ALSO AT THE LEFT-HAND EDGE OF THE SAME PART NUMBER IN THE NUMERICAL INDEX TO SHOW THE LOCATION OF REVISED INFORMATION. 000I-6 310G, 310SG AND 315SG BACKHOE LOADERS PC2755 (14-SEP-06) PN=6

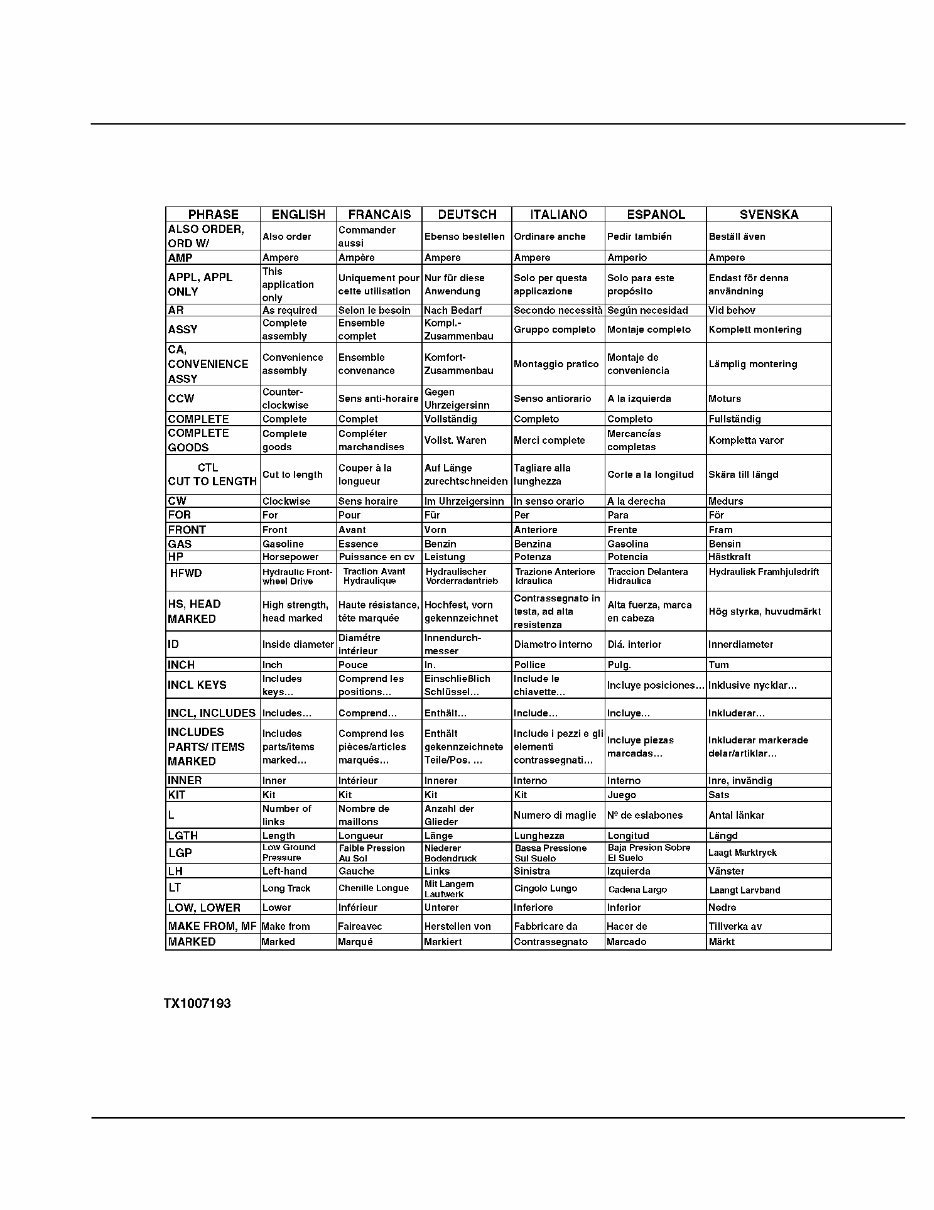

000I-7 310G, 310SG AND 315SG BACKHOE LOADERS REMARKS AND ABBREVIATIONS TX1007193 -UN-04MAY06 310G, 310SG AND 315SG BACKHOE LOADERS PC2755 (14-SEP-06) 000I-7 PN=7

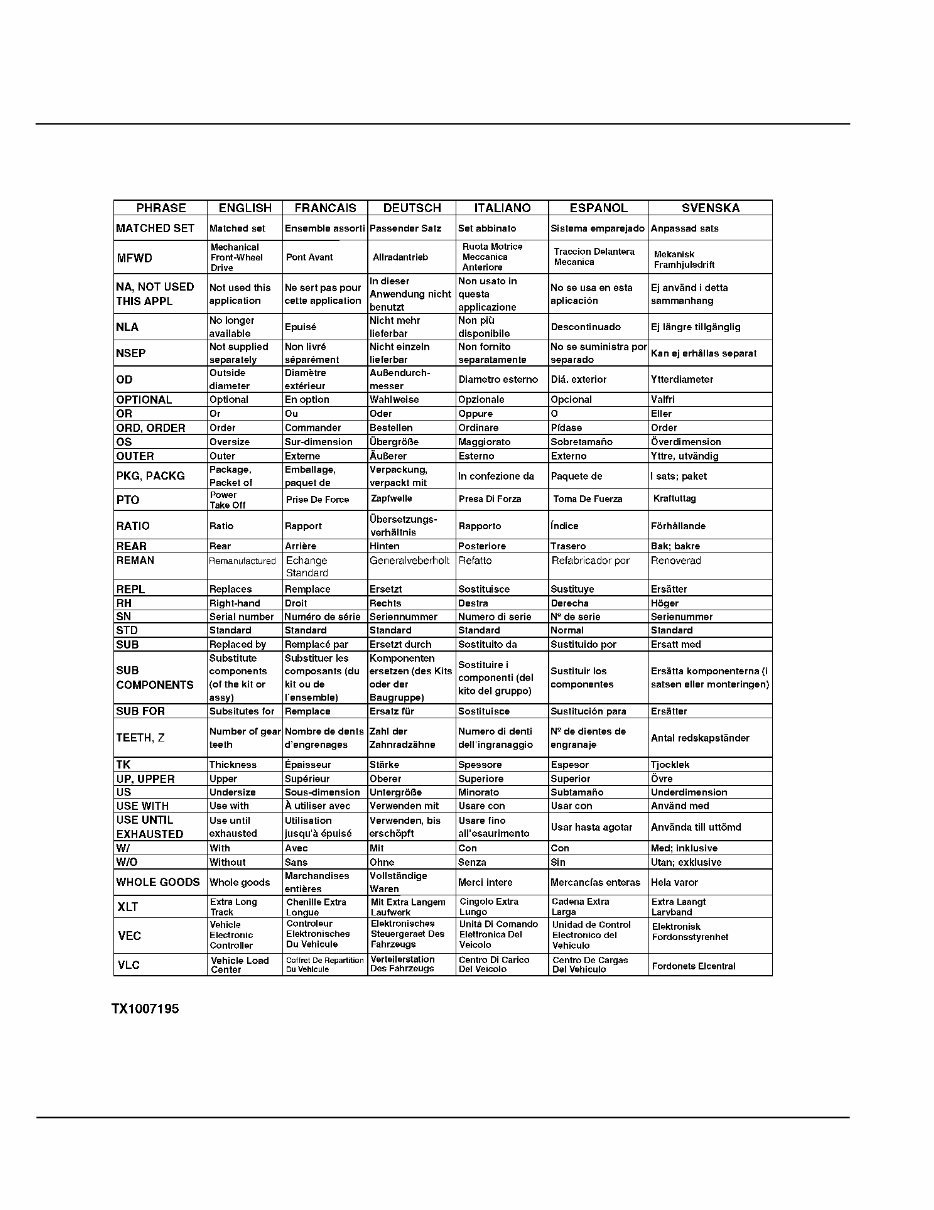

000I-8 310G, 310SG AND 315SG BACKHOE LOADERS REMARKS AND ABBREVIATIONS TX1007195 -UN-04MAY06 000I-8 310G, 310SG AND 315SG BACKHOE LOADERS PC2755 (14-SEP-06) PN=8
