John Deere 310SK Backhoe Loader Parts Catalog

310SK Backhoe Loader Worldwide Construction and Forestry Division Worldwide Edition Printed in U.S.A. (Revised) COPYRIGHT © 2014 DEERE & COMPANY Moline, Illinois All rights reserved PARTS CATALOG PIN:1T0310SK_ _E219607- PC11112 (Feb-14) English 310SK Backhoe Loader PIN:1T0310SK_ _E219607-

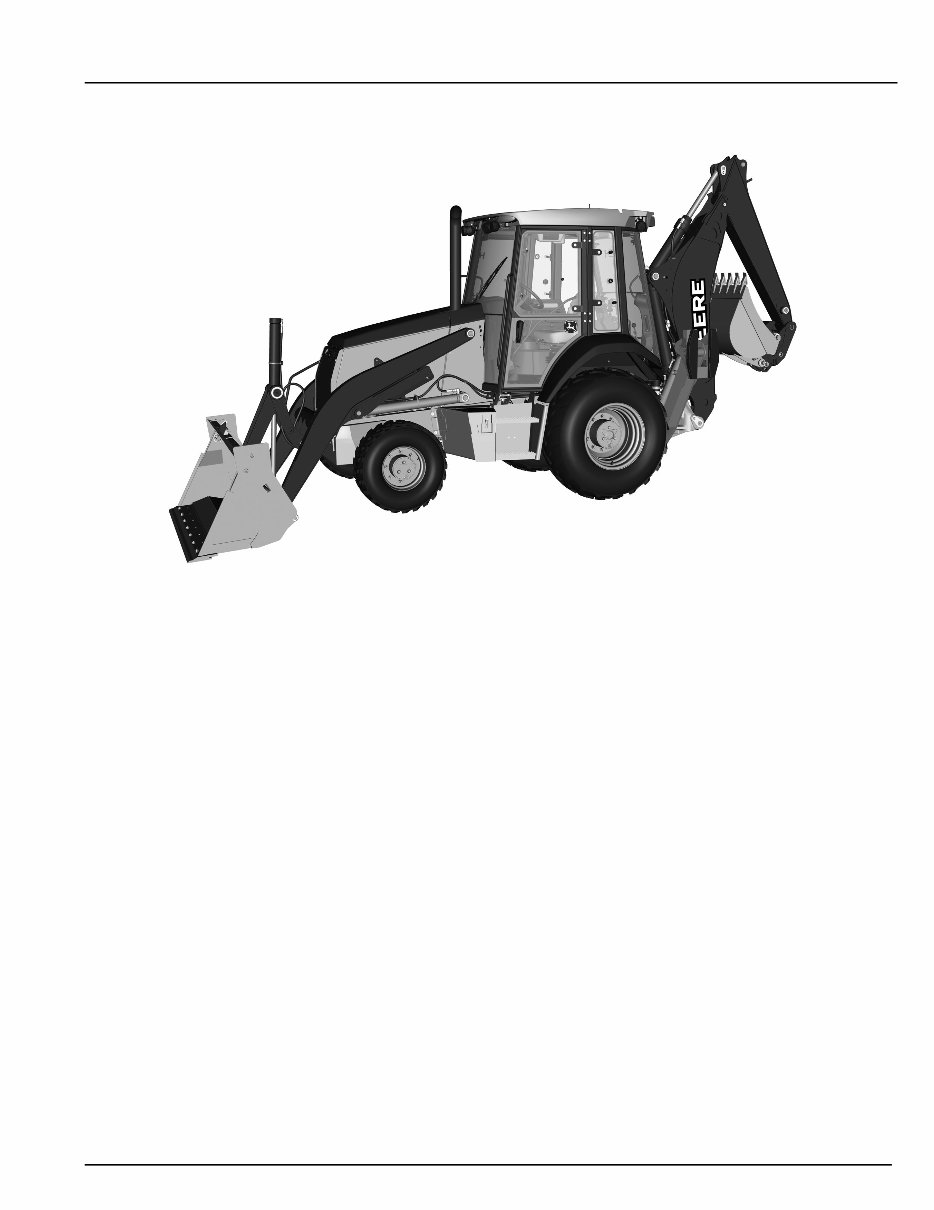

310SK Backhoe Loader 310SK Backhoe Loader TX1105164 B.1 310SK Backhoe Loader Engine 4045HT073 (Manufactured 2012– ) (Speciﬁcations and design subject to change without notice) PC11112 (J.1) 310SK Backhoe Loader 3

310SK Backhoe Loader To the Customer The part numbers in this parts catalog were correct at the time your catalog was published. It is our policy to constantly improve our machines, and therefore, part numbers may change. When ordering parts, verify part numbers through your dealer. SI Units of Measure Metric dimensions are given, where applicable, throughout this parts catalog. Bolt and Cap Screw Strength Identification Bolts and cap screws required to have high-strength qualities equivalent to SAE grade 8 are identified throughout this catalog by the description HS SAE 8 (10.9 for metric). All standard bolts and cap screws are SAE grade 5 (metric 8.8) or lower. Serial Number Listing Information Serial number information is listed to show on which machines each part can be used; for example: – The part can be used on all products. 000000 – The part can be used on products beginning with the serial number listed. – 000000 The part can be used on products up to and including the serial number listed. 000000 – 000000 The part can be used on products between and including the serial number listed. When XXXXXX's are listed in place of a serial number, a serial number change was made, but the exact serial number was not available when the catalog was produced. If product identification numbers or serial numbers are required for warranty claims or correspondence pertaining to this product, it is extremely important that all characters be furnished. This point cannot be overemphasized. Direction Arrow Arrows are used with illustrations to indicate the front of the unit. “Right-Hand” and “Left-Hand” sides are determined by facing in direction of machine forward travel. Exception: For all backhoe parts, “Right-Hand” and “Left-Hand” sides, “Front” and “Rear” are determined when seated for backhoe operation. Box-enclosed Illustrations A key number, shown in the parts list, is assigned to a box enclosing all parts sold as a service assembly. A box not keyed includes non-current parts. Complete Goods Listings Complete Goods are listed in bold face type. Order separately. Do not include on replacement part order. Orientation of Engine “Right Hand” and “Left Hand” sides are determined by standing at the flywheel and facing the engine. John Deere Reman Components The service parts listed in this catalog are intended for the repair of original equipment components. Although most service parts may be used to repair remanufactured components, the remanufacturing process may change parts sufficiently so that service parts are inadequate or not usable. 4 310SK Backhoe Loader PC11112 (J.1)

310SK Backhoe Loader Serial Number Location Each K-Series Backhoe Loader has six serial numbers: • Product identification number plate • Engine serial number plate • Hydraulic pump serial number plate • MFWD axle serial number plate • Transmission serial number plate • Rear axle serial number plate Locations: • The product identification number is on the left-hand side of the loader frame just above the lift cylinder pivot boss. • The engine serial number plate is located on the right-hand side of the cylinder block near the fuel pump. • The MFWD axle serial number plate is located on the right-hand (rear) side of the MFWD axle housing. • The rear axle serial number plate is located near the rear axle housing fill plug. • The transmission serial number plate is located on the bottom-rear face of the housing. • The hydraulic pump serial number is located on the bottom face of the pump. PC11112 (J.1) 310SK Backhoe Loader 5

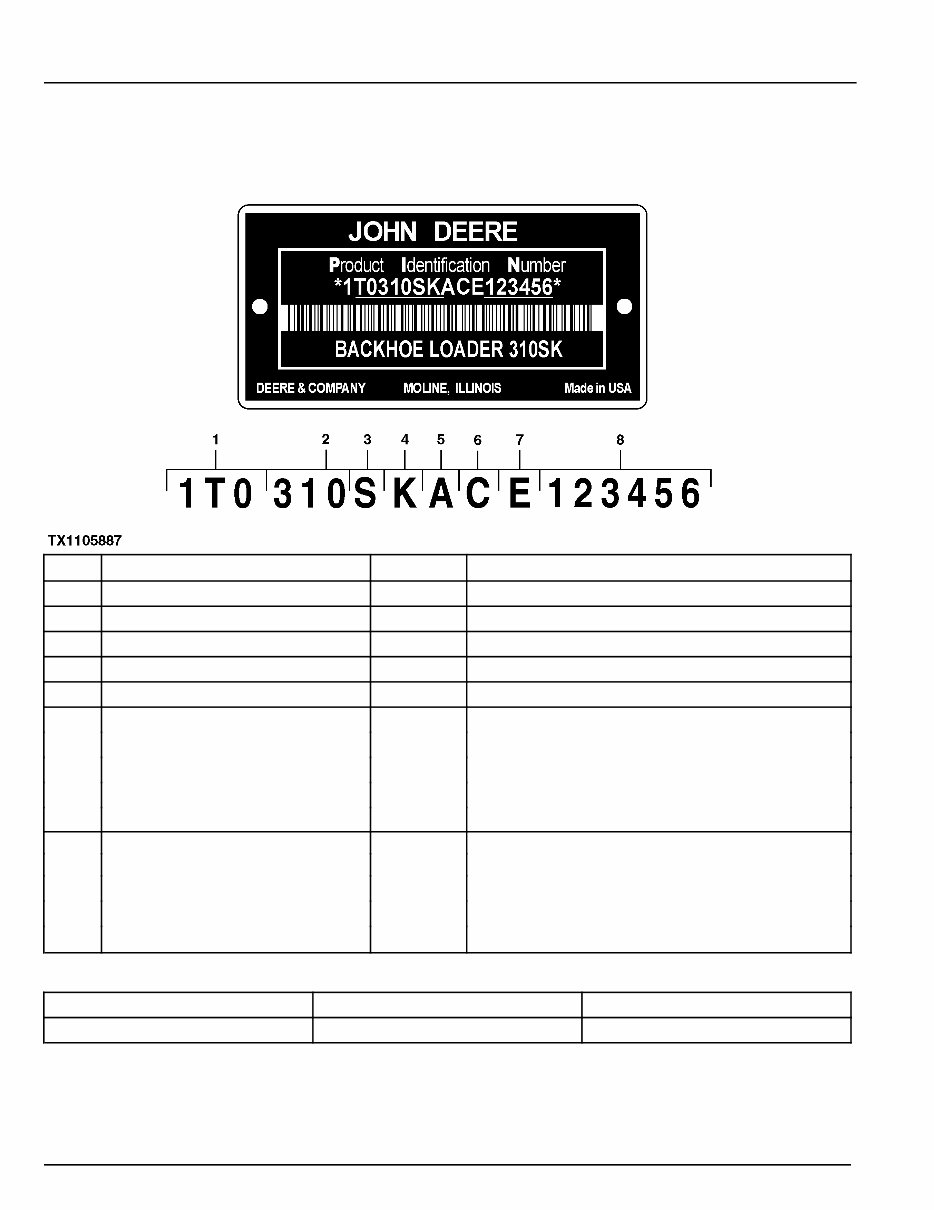

310SK Backhoe Loader 17 Digit Product Identification Number TX1105887 C.1 Key 1 World Code 1T0 John Deere Dubuque Works 2 Machine Size 310 3 Model Identifier S Super Duty 4 Model Series K 5 Check Letter A Factory Use Only 6 Manufacturing Year Code C C................................2012 D................................2013 E................................2014 F ................................2015 G................................2016 7 Engine Emissions Code E Emissions Level C: Stage II D: Tier 3 / Stage III A E: IT4 / Stage lll B 8 Machine Serial Number 123456 Engine Emissions Level Identification Engine Model Number 17 Digit PIN (11 th digit) Emissions Level 4045HT073 xxxxxxxxxxExxxxxx Interim Tier 4 / Stage III B 6 310SK Backhoe Loader PC11112 (J.1)

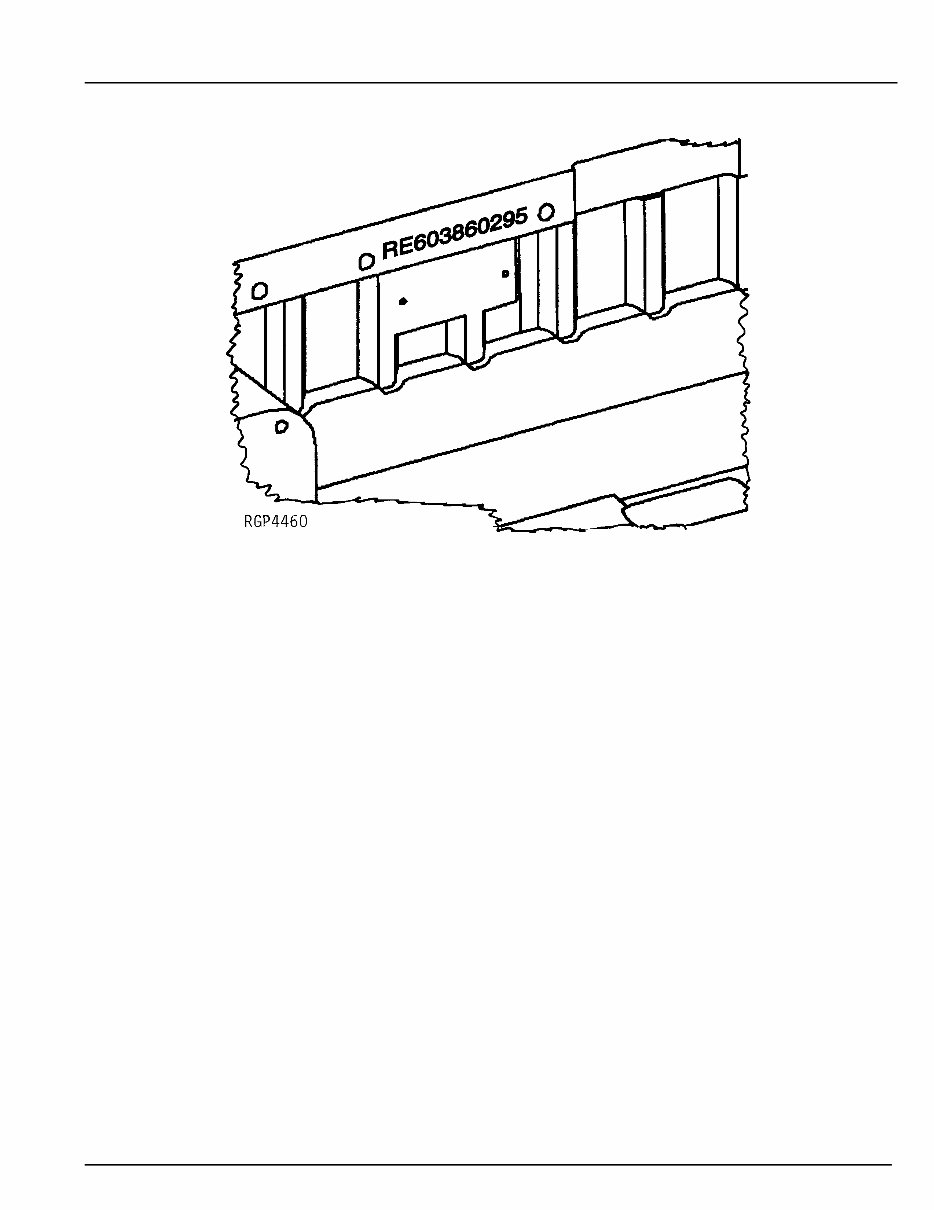

310SK Backhoe Loader Short Block Serial Number Identiﬁcation RGP4460 A.1 Serial number stamped into casting of block near previous serial number plate. 1. RE60386 Service Part Number 2. 02 Month Assembled 3. 95 Year Assembled PC11112 (J.1) 310SK Backhoe Loader 7

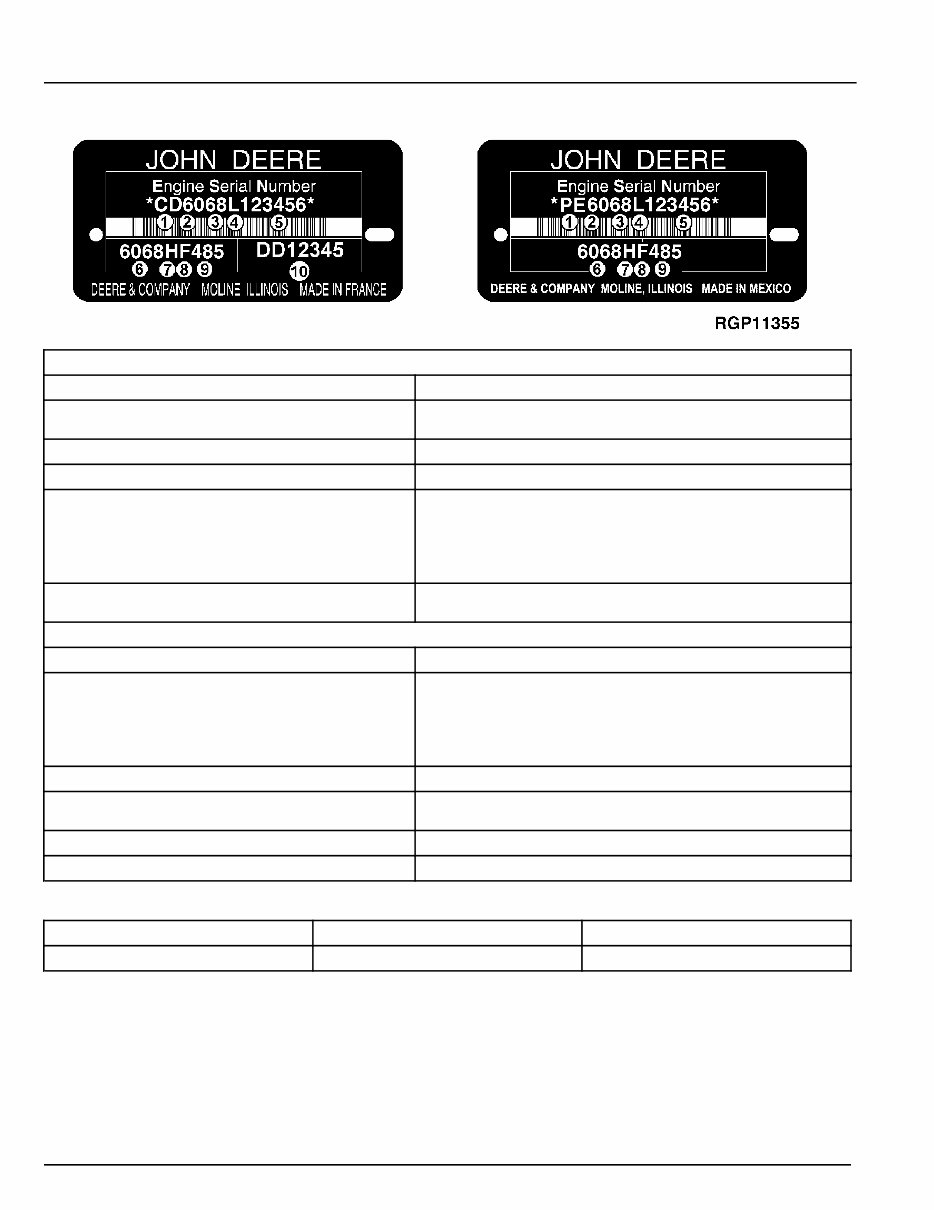

310SK Backhoe Loader Engine Serial Number Plate — 4045 & 6068 RGP11355 A.1 Engine Serial Number is Defined by 13 Characters First Line Designates 1 — Two letters for engine factory designation PE: Torreon, Mexico, CD: Saran, France, JX: Rosario, Argentina, UG: Teda, China 2 — One digit for number of cylinders. 4 Cylinder, 6 Cylinder 3 — Three digits for displacement in liters 045: 4.5 Liter, 068: 6.8 Liter 4 — One letter for emission level B= Non-Certified C= Tier1/Stage I emission level G= Tier 2/Stage II emission level L= Tier 3/Stage IIIA emission level R= Interim Tier 4/Stage IIIB emission level 5 — Six digits 123456= Engine build sequence number. Sequence numbers start at 000001 Engine Type is Defined by 9 Alpha-Numerical Characters 6 — Four digits Same as items 2 and 3 above 7 — One letter for aspiration type A= Turbocharged with air-to-water after-cooler D= Naturally Aspirated T= Turbocharged H= Turbocharged with air-to-air after cooler S= Turbocharged with air-to-sea water after-cooler 8 — One or two letters for OEM application F: OEM, FM: Marine, FH: HazLoc, FN: Compressed Natural Gas 8 — One or two letters for John Deere Vehicle application DW, KV: Construction, RW, LV, L, BM: Tractor, TJ: Forestry, H, Z, CQ : Combine, N: Picker/Sprayer, E: Windrower 9 — Two or three digits for version 485 10 — Two Letter and 5 or 6 digit for engine Part number DD12345 (Saran Only Engines) Engine Emissions Level Identification Engine Model Number 17 Digit PIN (11 th digit) Emissions Level 4045HT073 xxxxxxxxxxExxxxxx Interim Tier 4 / Stage III B 8 310SK Backhoe Loader PC11112 (J.1)

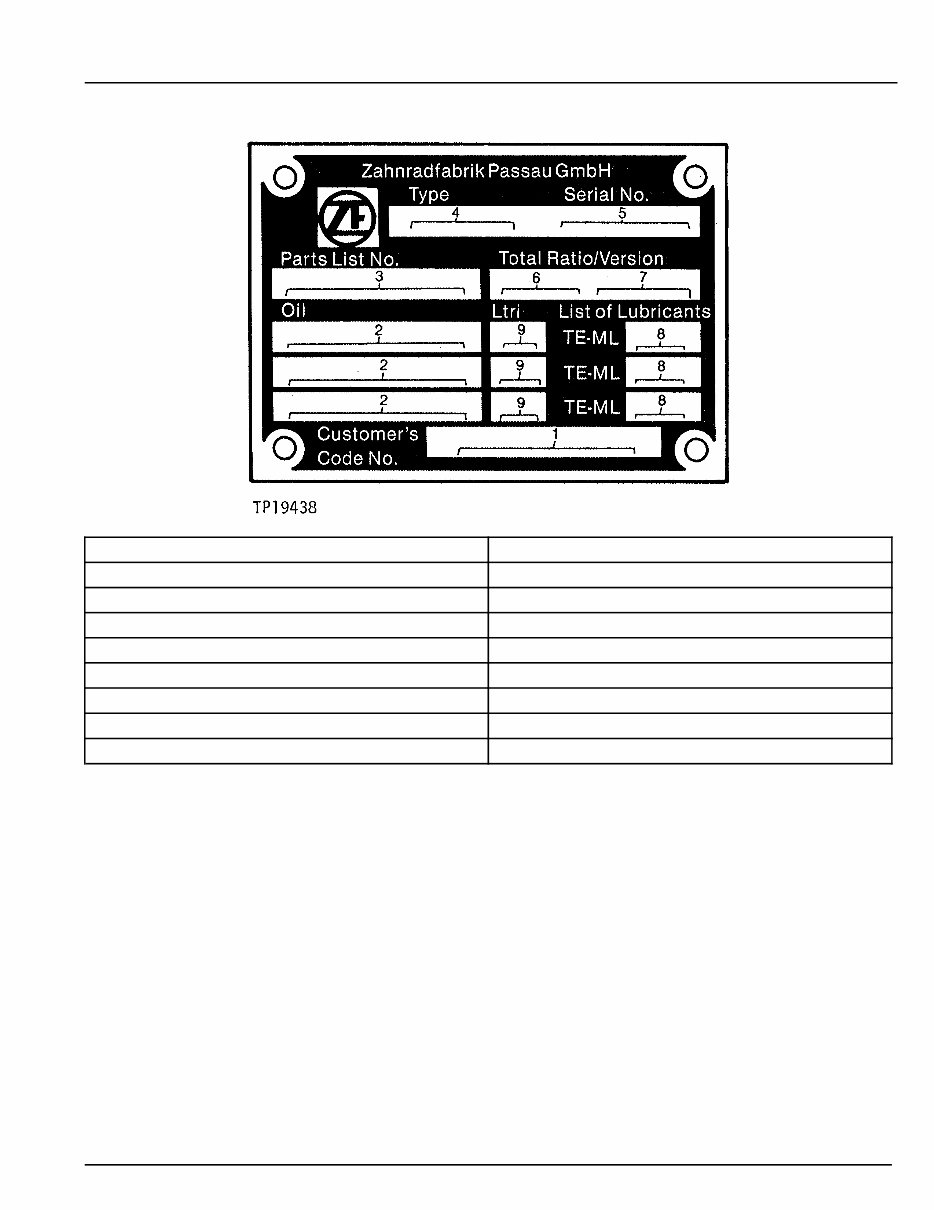

310SK Backhoe Loader MFWD Axle Serial Number Plate TP19438 A.1 1. Designates customer's code number John Deere Part Number 2. Designates type of lubricant M1L-L-2105B, SAE90 3. Designates ZF-parts-list number 4464 006 101 4. Designates axle type AP-11H 5. Designates axle serial number 12345 6. Designates total ratio of the axle 20.28 7. Designates version Sp. Diff. (with or without self-locking differential) 8. Designates lubricant speciﬁcation 05 9. Designates capacity LTR (differential carrier and planetary gear assembly) PC11112 (J.1) 310SK Backhoe Loader 9

310SK Backhoe Loader Trademarks Throughout this parts catalog, you may ﬁnd the following Deere and Company trademarks: Best Bid™ CounterParts™ DEERE™ (Deere™) Dura-Trax™ Fanggs™ Guardian™ HTH™ Jagz™ JDLink™ MARKS™ MIC™ [Machine Information Center] MTH™ Power Curve™ Powerllel™ PowerShift Plus™ Powerwize™ POWR SAVR™ PowrShift™ ProPath™ Quad-Cool™ Quik-Tatch™ SC-2™ Side-Tracker™ Stinger™ StructureALL™ Swamper™ TMC™ [Total Machine Control] ValueSelect™ Waratah™ Worksite Pro™ FlexBox™ Funk™ iTorque™ Phoenix™ Phoenix International™ PowerTech™ PowerTech™ E PowerTech™ M PowerTech™ Plus Precision Joint™ SHIFT-O-MATIC™ SWEDA™ (Super Wide Extreme Dual Axle) TeamMate™ TeamMate™II TeamMate™ IV TMII™ TMIII™ 10 310SK Backhoe Loader PC11112 (J.1)
