BACKHOE LOADER
3CXT 35
S.N. 00400000-00430000
Sideshift
http://localhost:8033/ProductCatalog/DrawingPrint.aspx?ServicePartsPagelD ... 22.01.2016
143430
2

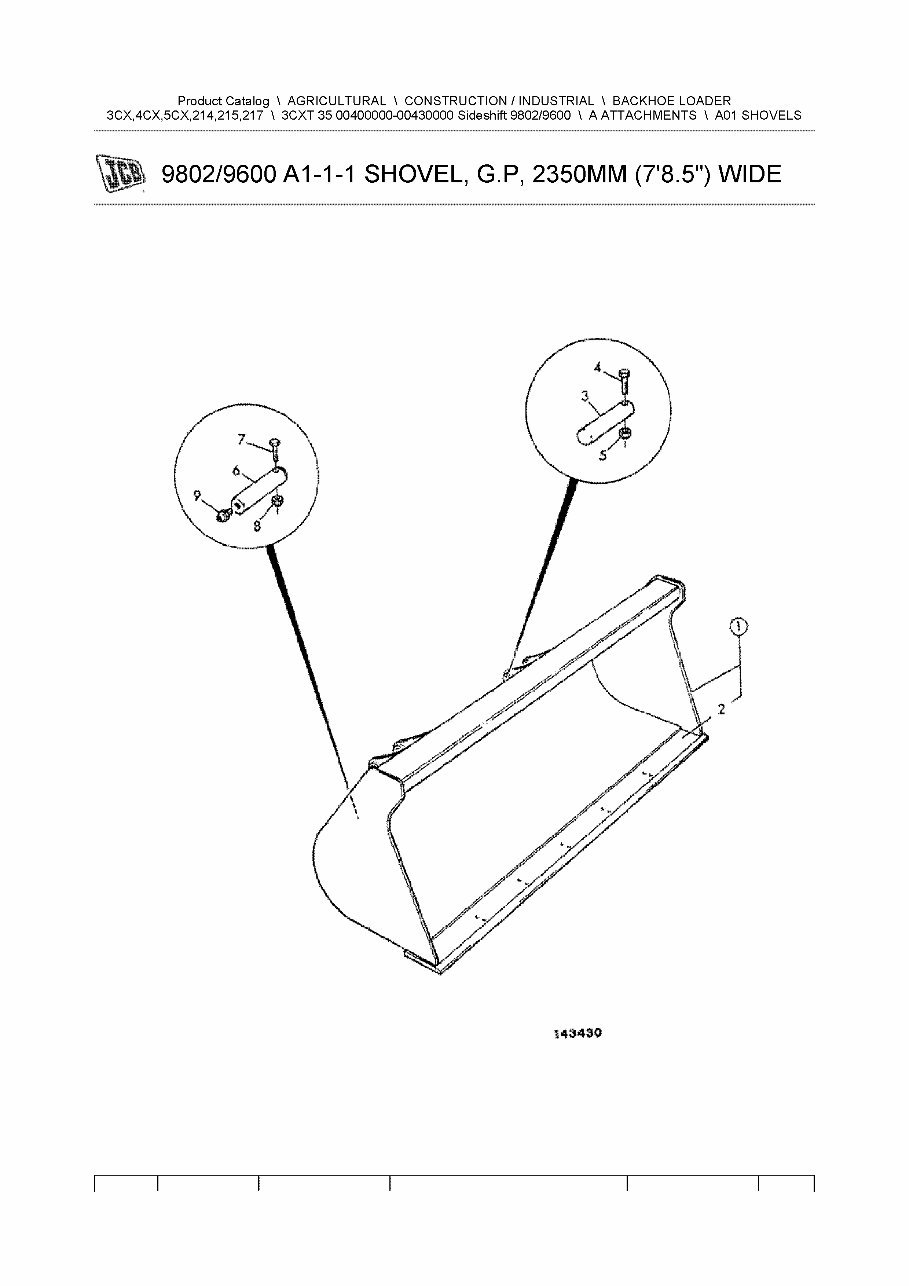

9802/9600 A1-1-1 SHOVEL, G.P, 2350MM (7'8.5") WIDE
Product Catalog \ AGRICULTURAL \ CONSTRUCTION/ INDUSTRIAL \ BACKHOE LOADER
3CX,4CX,5CX,214,215,217 \ 3CXT 35 00400000-00430000 Sideshift 9802/9600 \ A ATTACHMENTS \ A01 SHOVELS
Page 1 of 2 Untitled Page
111111111111111111111111111111111111111111111111111111111111111
1111111111111111111111111
NOT FOR REPRODUCTION
Page 1
http://localhost:8033/ProductCatalog/DrawingPrint.aspx?ServicePartsPagelD ... 22.01.2016

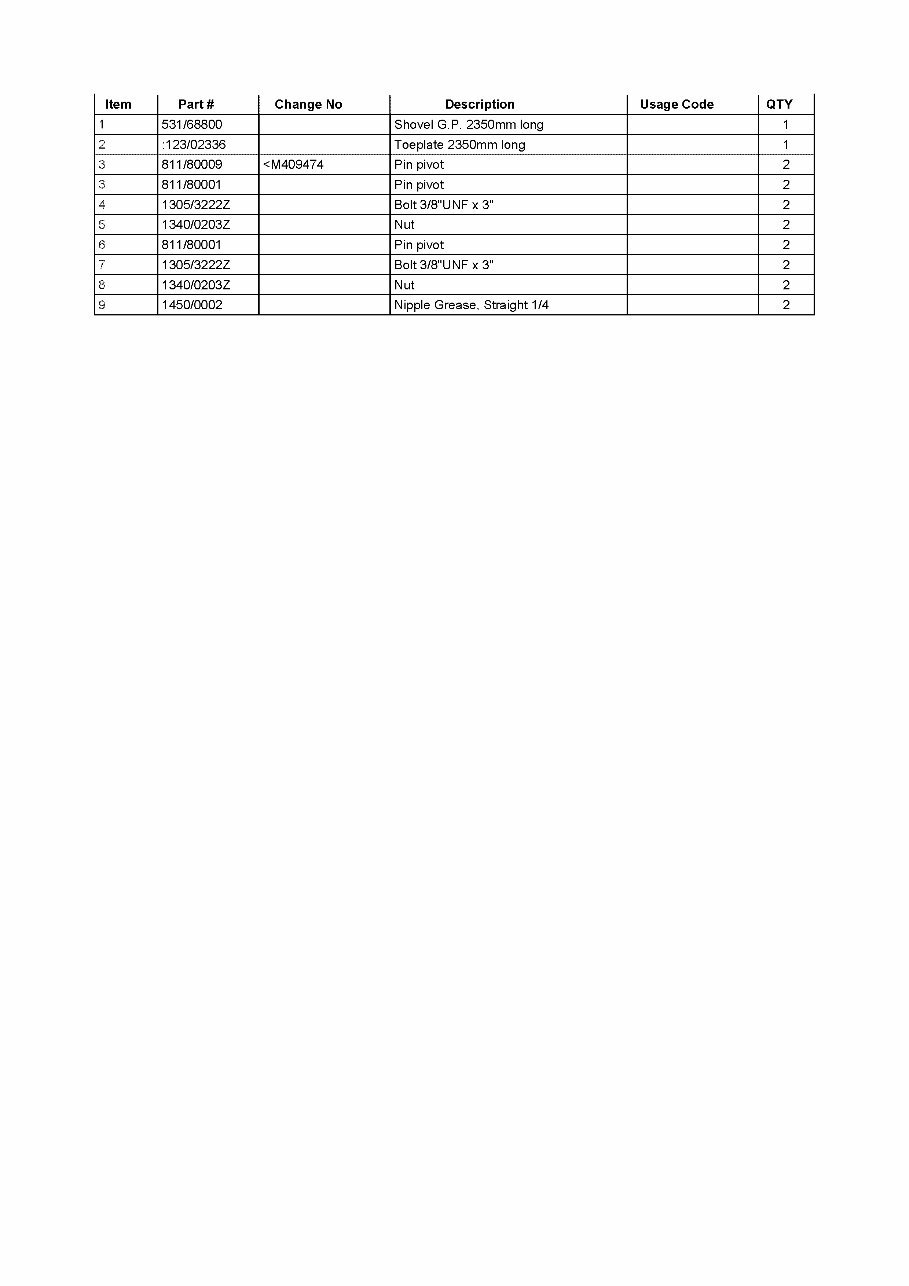

Item Part# Change No Description Usage Code QTY
1 531/68800 Shovel G.P. 2350mm long 1
2 :123/02336 Toeplate 2350mm long 1
3 811/80009 <M409474 Pin pivot 2
3 811 /80001 Pin pivot 2
4 1305/3222Z Bolt 3/8"UNF x 3" 2
5 1340/0203Z Nut 2
6 811 /80001 Pin pivot 2
7 1305/3222Z Bolt 3/8"UNF x 3" 2
8 1340/0203Z Nut 2
9 1450/0002 Nipple Grease, Straight 1/4 2
Page 2 of 2 Untitled Page
111111111111111111111111111111111111111111111111111111111111111
1111111111111111111111111
NOT FOR REPRODUCTION
Page 2
http://localhost:8033/ProductCatalog/DrawingPrint.aspx?ServicePartsPagelD ... 22.01.2016
Item Part# Change No Description Usage Code QTY
1 125/36800 Shovel GP 1 .1 m3 2350mm (7'8.5") wide 1
212940
WIDE

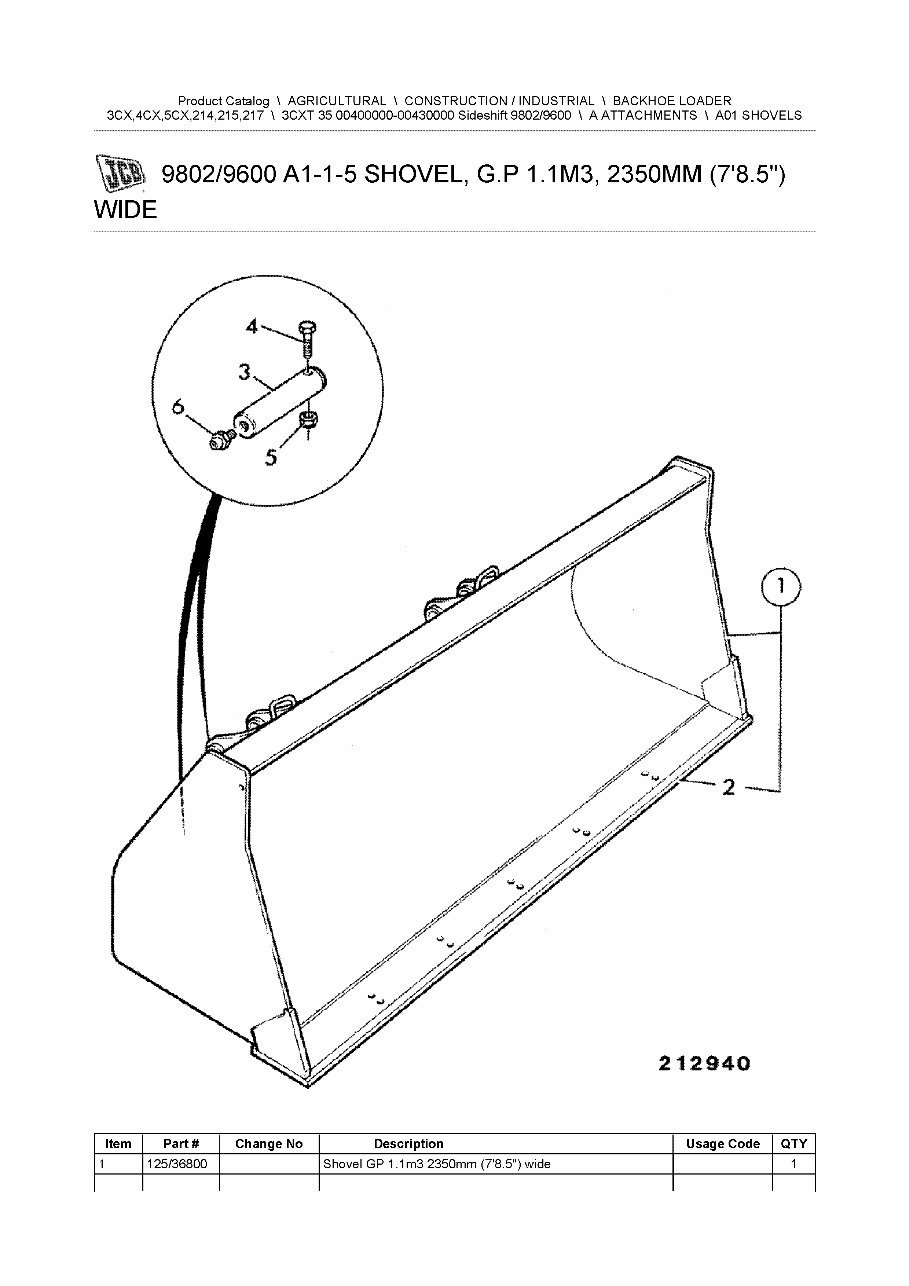

9802/9600 A 1-1-5 SHOVEL, G. P 1.1 M3, 2350MM (7'8.5")
Page 1 of 2
Product Catalog \ AGRICULTURAL \ CONSTRUCTION/ INDUSTRIAL \ BACKHOE LOADER
3CX,4CX,5CX,214,215,217 \ 3CXT 35 00400000-00430000 Sideshift 9802/9600 \ A ATTACHMENTS \ A01 SHOVELS
Untitled Page
111111111111111111111111111111111111111111111111111111111111111
1111111111111111111111111
NOT FOR REPRODUCTION
Page 3
http://localhost:8033/ProductCatalog/DrawingPrint.aspx?ServicePartsPagelD ... 22.01.2016
2 :123/04255 Toe plate 1
3 811 /80001 Pin pivot 4
4 1305/3222Z Bolt 3/8"UNF x 3" 4
5 1340/0203Z Nut 4
6 1450/0001 Nipple Grease, Straight 1/8 BSP 4
Page 2 of 2 Untitled Page
111111111111111111111111111111111111111111111111111111111111111
1111111111111111111111111
NOT FOR REPRODUCTION
Page 4
http://localhost:8033/ProductCatalog/DrawingPrint.aspx?ServicePartsPagelD ... 22.01.2016
Item Part# Change No Description Usage Code QTY
1 125/36900 Shovel GP 1.1 M3 heavy duty 2350MM (7.8") wide 1
212940
9802/9600 A 1-1-6 SHOVEL, G. P 1.1 M3, 2350MM (7'8.5")
WIDE, HEAVY DUTY
Page 1 of 2
Product Catalog \ AGRICULTURAL \ CONSTRUCTION/ INDUSTRIAL \ BACKHOE LOADER
3CX,4CX,5CX,214,215,217 \ 3CXT 35 00400000-00430000 Sideshift 9802/9600 \ A ATTACHMENTS \ A01 SHOVELS
Untitled Page
111111111111111111111111111111111111111111111111111111111111111
1111111111111111111111111
NOT FOR REPRODUCTION
Page 5
http://localhost:8033/ProductCatalog/DrawingPrint.aspx?ServicePartsPagelD ... 22.01.2016

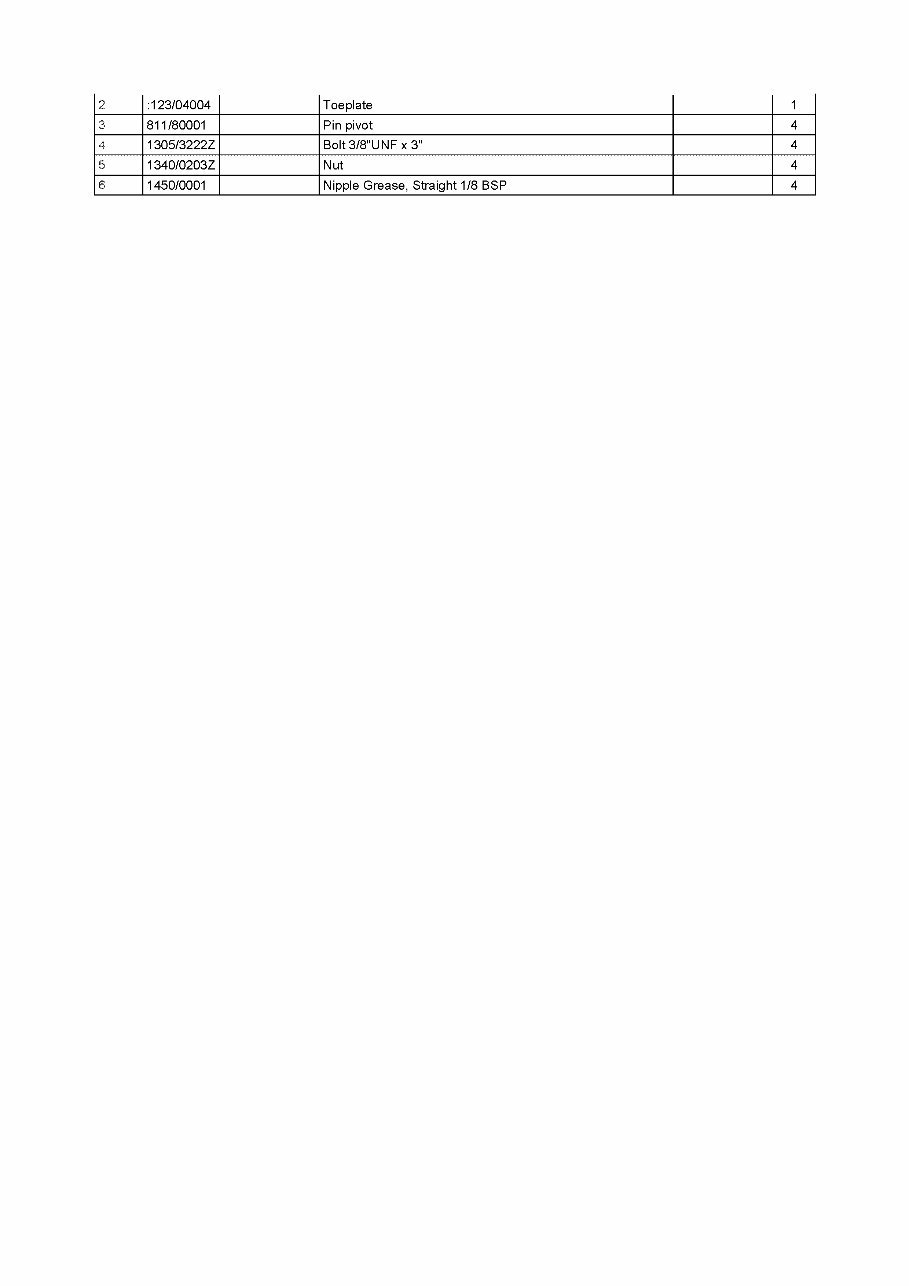

2 :123/04004 Toe plate 1
3 811 /80001 Pin pivot 4
4 1305/3222Z Bolt 3/8"UNF x 3" 4
5 1340/0203Z Nut 4
6 1450/0001 Nipple Grease, Straight 1/8 BSP 4
Page 2 of 2 Untitled Page
111111111111111111111111111111111111111111111111111111111111111
1111111111111111111111111
NOT FOR REPRODUCTION
Page 6
http://localhost:8033/ProductCatalog/DrawingPrint.aspx?ServicePartsPagelD ... 22.01.2016
Item Part# Change No Description Usage Code QTY
1 125/37000 Shovel GP 1 .3m3 heavy duty 2350mm (7.8.5") wide 1
212940
9802/9600 A1-1-7 SHOVEL, G.P 1.3M3, 2350MM (7'8.5")
WIDE, HEAVY DUTY
Page 1 of 2
Product Catalog \ AGRICULTURAL \ CONSTRUCTION/ INDUSTRIAL \ BACKHOE LOADER
3CX,4CX,5CX,214,215,217 \ 3CXT 35 00400000-00430000 Sideshift 9802/9600 \ A ATTACHMENTS \ A01 SHOVELS
Untitled Page
111111111111111111111111111111111111111111111111111111111111111
1111111111111111111111111
NOT FOR REPRODUCTION
Page 7
http://localhost:8033/ProductCatalog/DrawingPrint.aspx?ServicePartsPagelD ... 22.01.2016
2 :123/04014 Toe plate 1
3 811 /80001 Pin pivot 4
4 1305/3222Z Bolt 3/8"UNF x 3" 4
5 1340/0203Z Nut 4
6 1450/0001 Nipple Grease, Straight 1/8 BSP 4
Page 2 of 2 Untitled Page
111111111111111111111111111111111111111111111111111111111111111
1111111111111111111111111
NOT FOR REPRODUCTION
Page 8
http://localhost:8033/ProductCatalog/DrawingPrint.aspx?ServicePartsPagelD ... 22.01.2016
Item Part# Change No Description Usage Code QTY
1 125/37100 Shovel 1 .5m3 heavy duty 2350mm (7'8.5") 1
212940

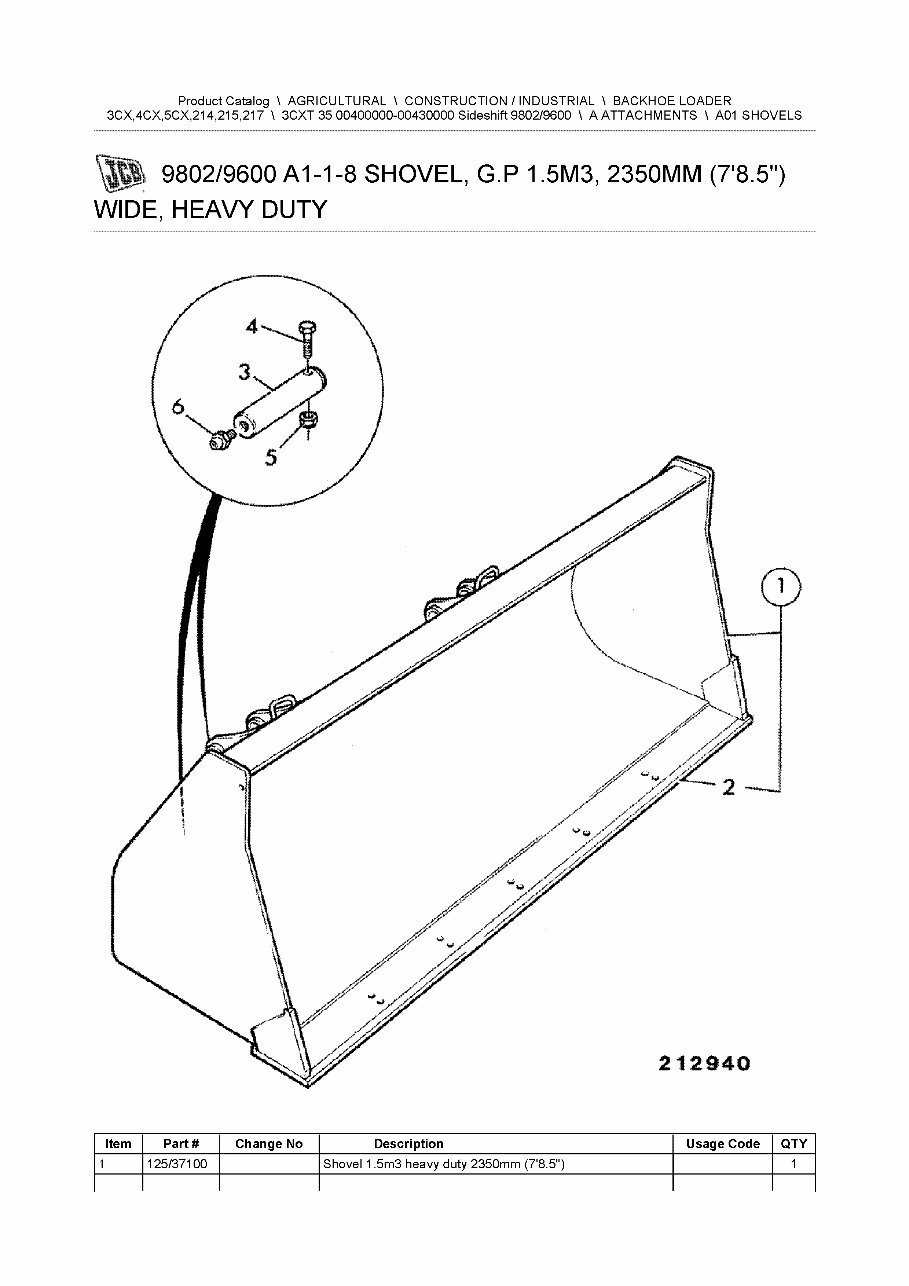

9802/9600 A1-1-8 SHOVEL, G.P 1.5M3, 2350MM (7'8.5")
WIDE, HEAVY DUTY
Page 1 of 2
Product Catalog \ AGRICULTURAL \ CONSTRUCTION/ INDUSTRIAL \ BACKHOE LOADER
3CX,4CX,5CX,214,215,217 \ 3CXT 35 00400000-00430000 Sideshift 9802/9600 \ A ATTACHMENTS \ A01 SHOVELS
Untitled Page
111111111111111111111111111111111111111111111111111111111111111
1111111111111111111111111
NOT FOR REPRODUCTION
Page 9
