143440

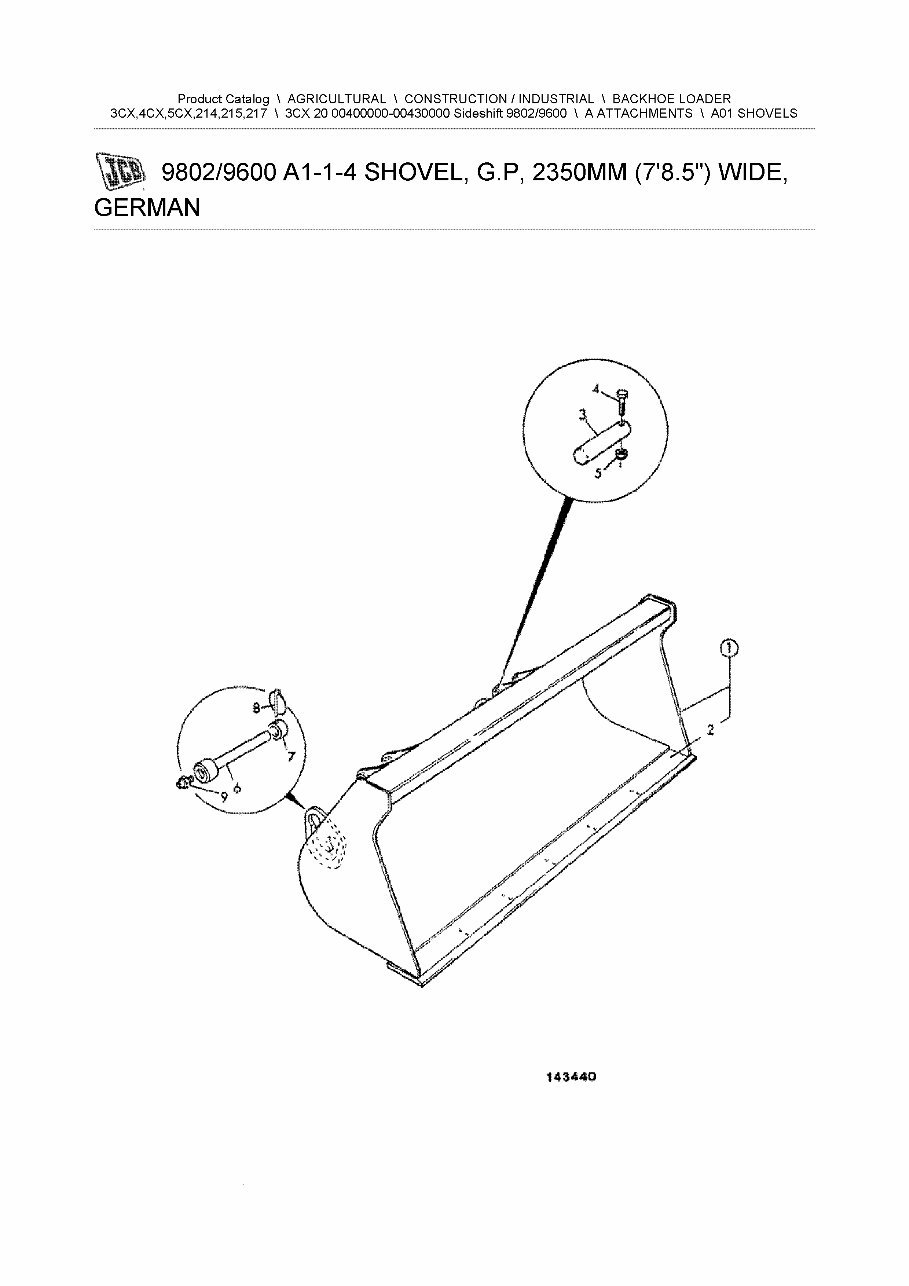

9802/9600 A1-1-4 SHOVEL, G.P, 2350MM (7'8.5") WIDE,
GERMAN
Product Catalog \ AGRICULTURAL \ CONSTRUCTION/ INDUSTRIAL \ BACKHOE LOADER
3CX,4CX,5CX,214,215,217 \ 3CX 20 00400000-00430000 Sideshift 9802/9600 \ A ATTACHMENTS \ A01 SHOVELS
Page 1 of 2 Untitled Page
1111111111111111111111111
111111111111111111111111111111111111111111111111111111111111111
NOT FOR REPRODUCTION
Page 1
http://localhost:8033/ProductCatalog/DrawingPrint.aspx?ServicePartsPagelD... 13.10.2015

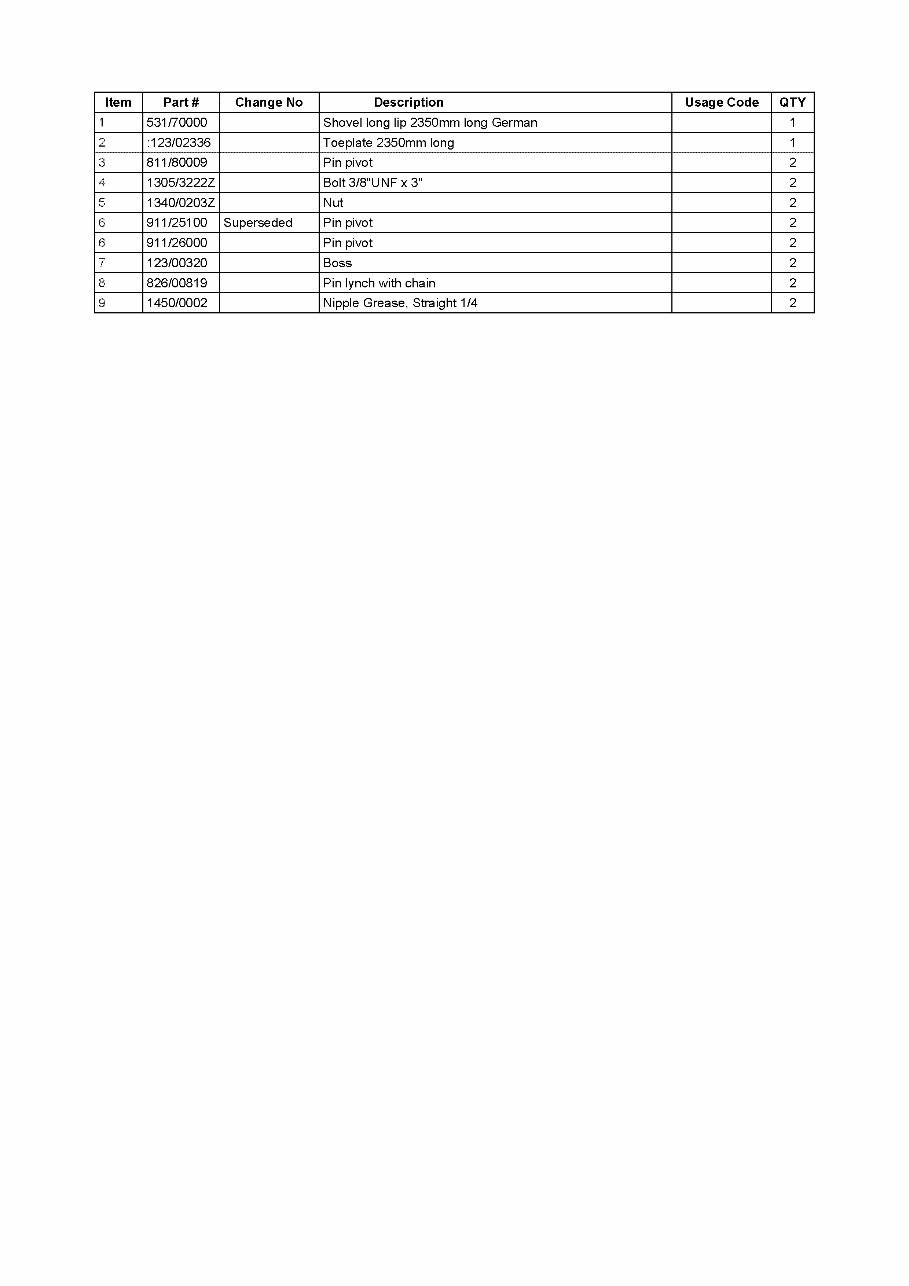

Item Part# Change No Description Usage Code QTY
1 531/70000 Shovel long lip 2350mm long German 1
2 :123/02336 Toeplate 2350mm long 1
3 811/80009 Pin pivot 2
4 1305/3222Z Bolt 3/8"UNF x 3" 2
5 1340/0203Z Nut 2
6 911/25100 Superseded Pin pivot 2
6 911/26000 Pin pivot 2
7 123/00320 Boss 2
8 826/00819 Pin lynch with chain 2
9 1450/0002 Nipple Grease, Straight 1/4 2
Page 2 of 2 Untitled Page
1111111111111111111111111
111111111111111111111111111111111111111111111111111111111111111
NOT FOR REPRODUCTION
Page 2
http://localhost:8033/ProductCatalog/DrawingPrint.aspx?ServicePartsPagelD... 13.10.2015
Item Part# Change No Description Usage Code QTY
1 125/36800 Shovel GP 1 .1 m3 2350mm (7'8.5") wide 1
212940
WIDE

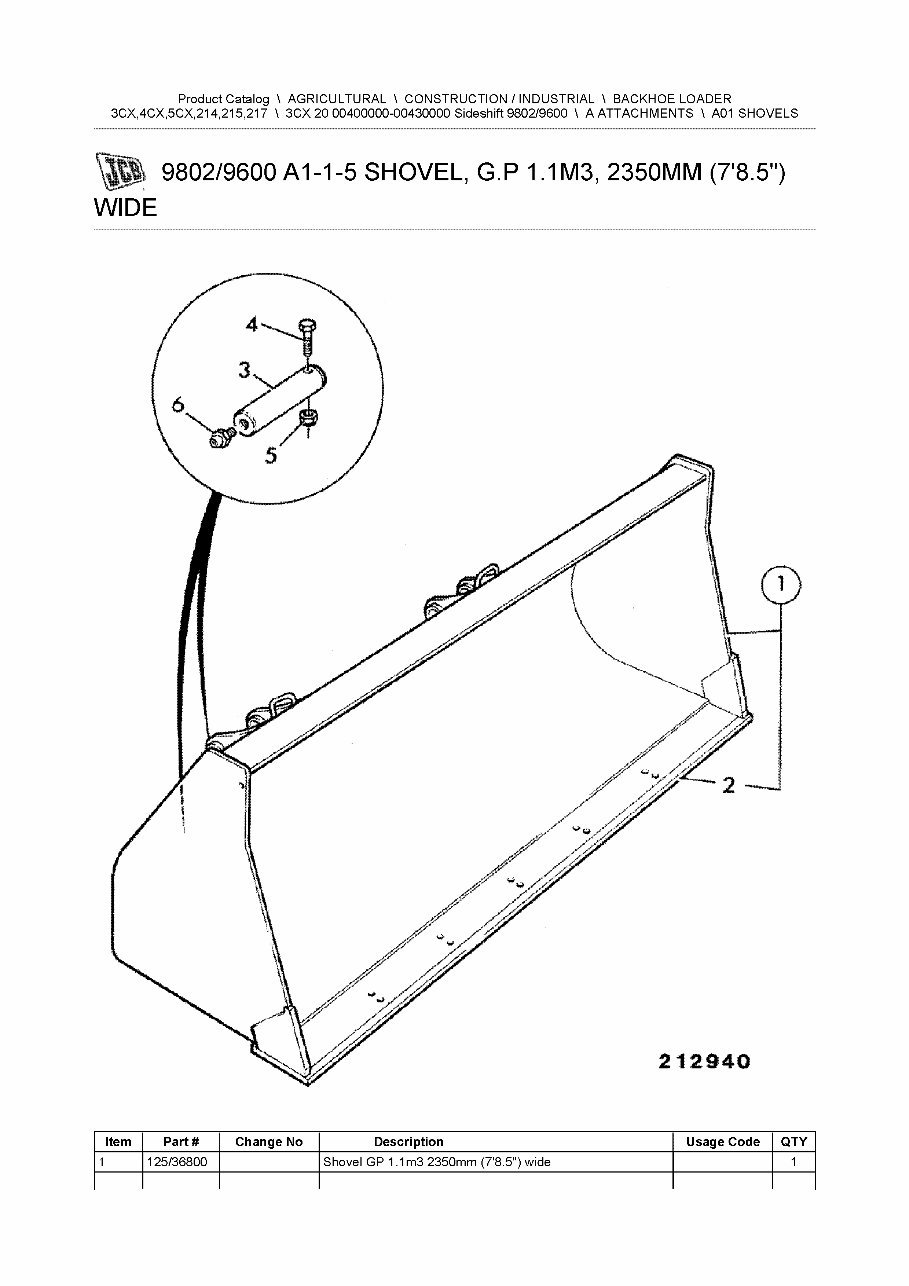

9802/9600 A 1-1-5 SHOVEL, G. P 1.1 M3, 2350MM (7'8.5")
Page 1 of 2
Product Catalog \ AGRICULTURAL \ CONSTRUCTION/ INDUSTRIAL \ BACKHOE LOADER
3CX,4CX,5CX,214,215,217 \ 3CX 20 00400000-00430000 Sideshift 9802/9600 \ A ATTACHMENTS \ A01 SHOVELS
Untitled Page
1111111111111111111111111
111111111111111111111111111111111111111111111111111111111111111
NOT FOR REPRODUCTION
Page 3
http://localhost:8033/ProductCatalog/DrawingPrint.aspx?ServicePartsPagelD... 13.10.2015

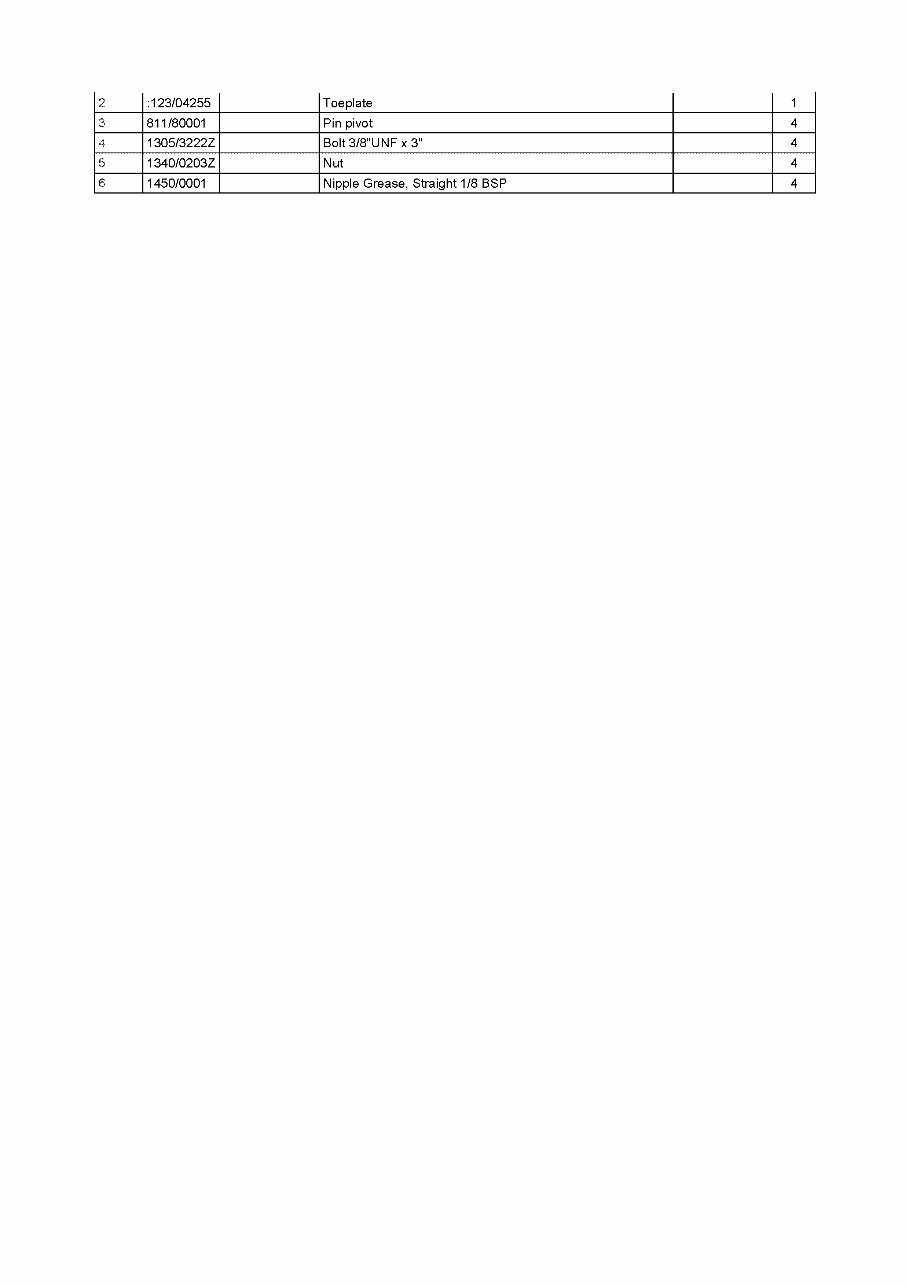

2 :123/04255 Toe plate 1
3 811 /80001 Pin pivot 4
4 1305/3222Z Bolt 3/8"UNF x 3" 4
5 1340/0203Z Nut 4
6 1450/0001 Nipple Grease, Straight 1/8 BSP 4
Page 2 of 2 Untitled Page
1111111111111111111111111
111111111111111111111111111111111111111111111111111111111111111
NOT FOR REPRODUCTION
Page 4
http://localhost:8033/ProductCatalog/DrawingPrint.aspx?ServicePartsPagelD... 13.10.2015
Item Part# Change No Description Usage Code QTY
1 125/36800 Shovel GP 1 .1 m3 2350mm (7'8.5") wide 1
212940
WIDE
9802/9600 A 1-1-5 SHOVEL, G. P 1.1 M3, 2350MM (7'8.5")
Page 1 of 2
Product Catalog \ AGRICULTURAL \ CONSTRUCTION/ INDUSTRIAL \ BACKHOE LOADER
3CX,4CX,5CX,214,215,217 \ 3CX 20 00400000-00430000 Sideshift 9802/9600 \ A ATTACHMENTS \ A01 SHOVELS
Untitled Page
1111111111111111111111111
111111111111111111111111111111111111111111111111111111111111111
NOT FOR REPRODUCTION
Page 5
http://localhost:8033/ProductCatalog/DrawingPrint.aspx?ServicePartsPagelD... 13.10.2015
2 :123/04255 Toe plate 1
3 811 /80001 Pin pivot 4
4 1305/3222Z Bolt 3/8"UNF x 3" 4
5 1340/0203Z Nut 4
6 1450/0001 Nipple Grease, Straight 1/8 BSP 4
Page 2 of 2 Untitled Page
1111111111111111111111111
111111111111111111111111111111111111111111111111111111111111111
NOT FOR REPRODUCTION
Page 6
http://localhost:8033/ProductCatalog/DrawingPrint.aspx?ServicePartsPagelD... 13.10.2015
212950
5

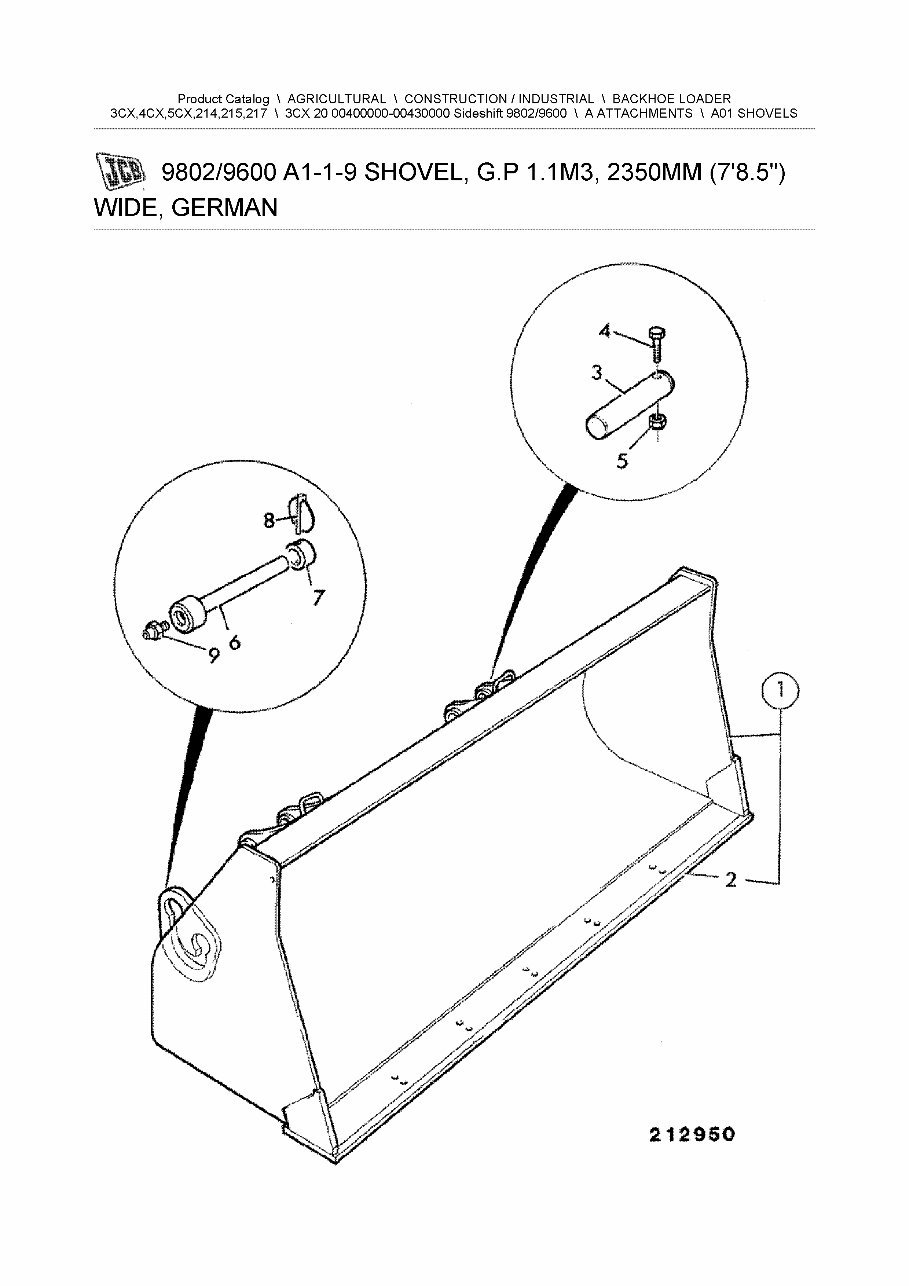

9802/9600 A 1-1-9 SHOVEL, G. P 1.1 M3, 2350MM (7'8.5")
WIDE, GERMAN
Page 1 of 2
Product Catalog \ AGRICULTURAL \ CONSTRUCTION/ INDUSTRIAL \ BACKHOE LOADER
3CX,4CX,5CX,214,215,217 \ 3CX 20 00400000-00430000 Sideshift 9802/9600 \ A ATTACHMENTS \ A01 SHOVELS
Untitled Page
1111111111111111111111111
111111111111111111111111111111111111111111111111111111111111111
NOT FOR REPRODUCTION
Page 7
http://localhost:8033/ProductCatalog/DrawingPrint.aspx?ServicePartsPagelD... 13.10.2015

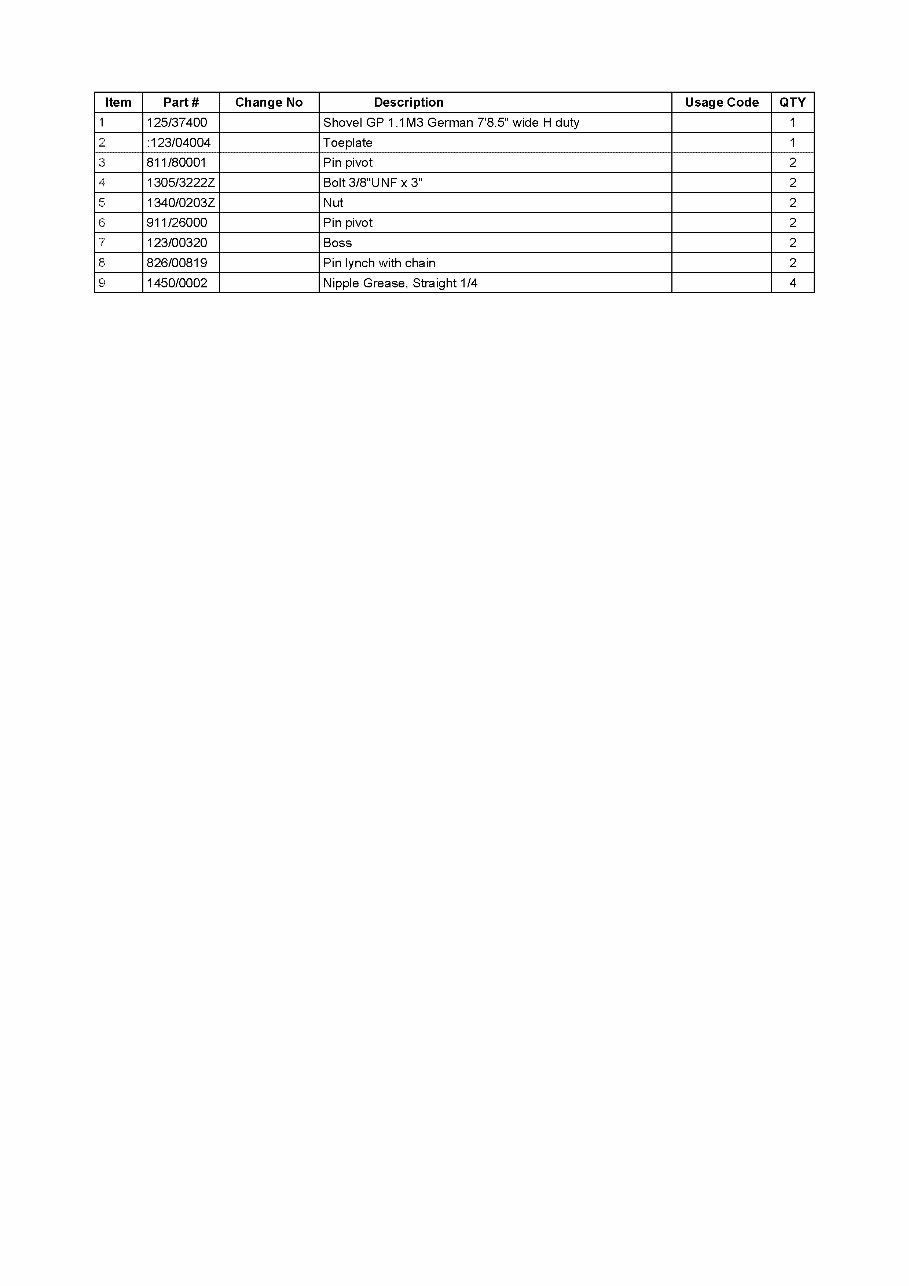

Item Part# Change No Description Usage Code QTY
1 125/37400 Shovel GP 1 .1 M3 German 7'8.5" wide H duty 1
2 :123/04004 Toe plate 1
3 811 /80001 Pin pivot 2
4 1305/3222Z Bolt 3/8"UNF x 3" 2
5 1340/0203Z Nut 2
6 911/26000 Pin pivot 2
7 123/00320 Boss 2
8 826/00819 Pin lynch with chain 2
9 1450/0002 Nipple Grease, Straight 1/4 4
Page 2 of 2 Untitled Page
1111111111111111111111111
111111111111111111111111111111111111111111111111111111111111111
NOT FOR REPRODUCTION
Page 8
http://localhost:8033/ProductCatalog/DrawingPrint.aspx?ServicePartsPagelD... 13.10.2015
087621

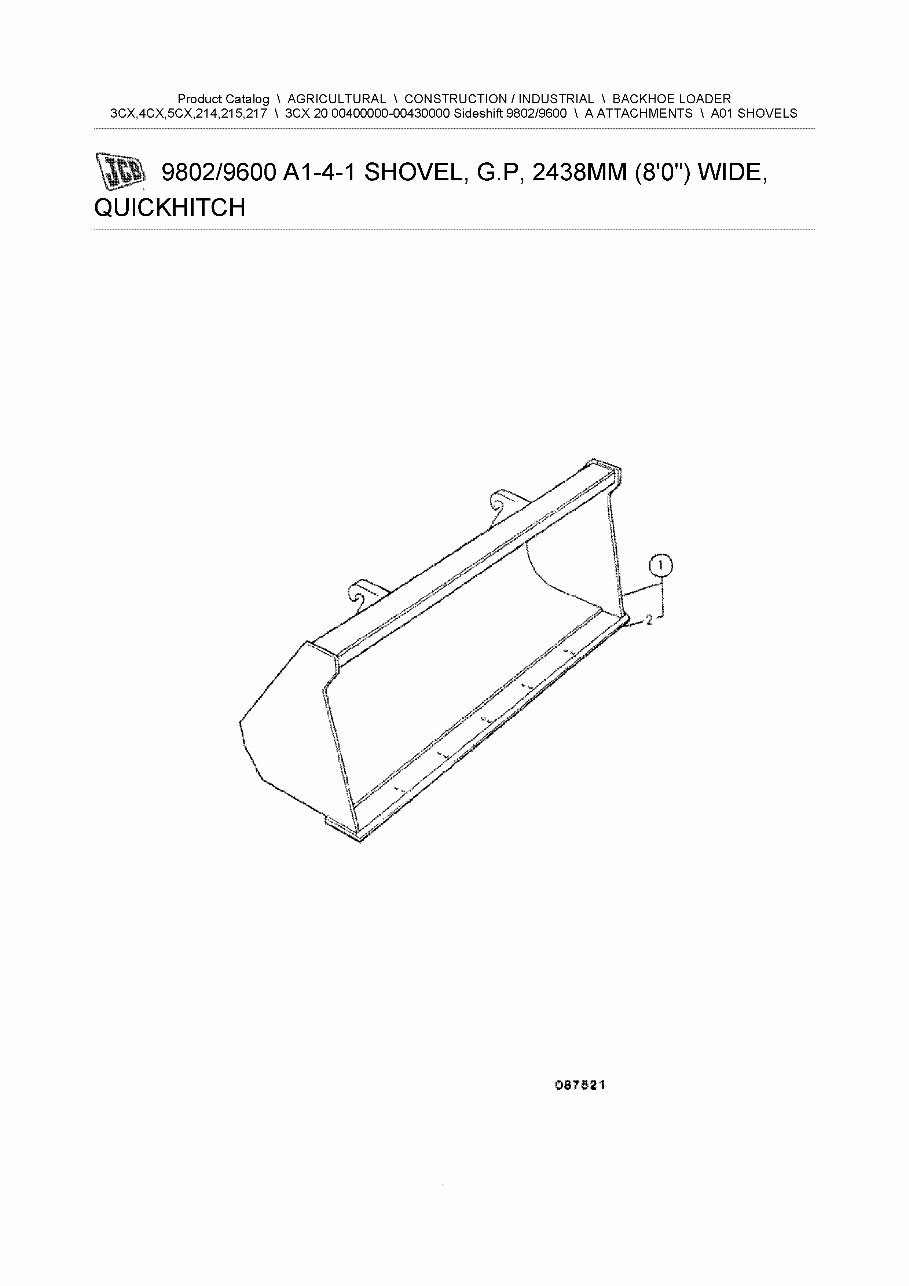

9802/9600 A1-4-1 SHOVEL, G.P, 2438MM (8'0") WIDE,
QUICKHITCH
Product Catalog \ AGRICULTURAL \ CONSTRUCTION/ INDUSTRIAL \ BACKHOE LOADER
3CX,4CX,5CX,214,215,217 \ 3CX 20 00400000-00430000 Sideshift 9802/9600 \ A ATTACHMENTS \ A01 SHOVELS
Page 1 of 2 Untitled Page
1111111111111111111111111
111111111111111111111111111111111111111111111111111111111111111
NOT FOR REPRODUCTION
Page 9
You're Reading a Preview
What's Included?
Lifetime Access
Fast Download Speeds
Online & Offline Access
Access PDF Contents & Bookmarks
Full Search Facility
Print one or all pages of your manual
$61.99

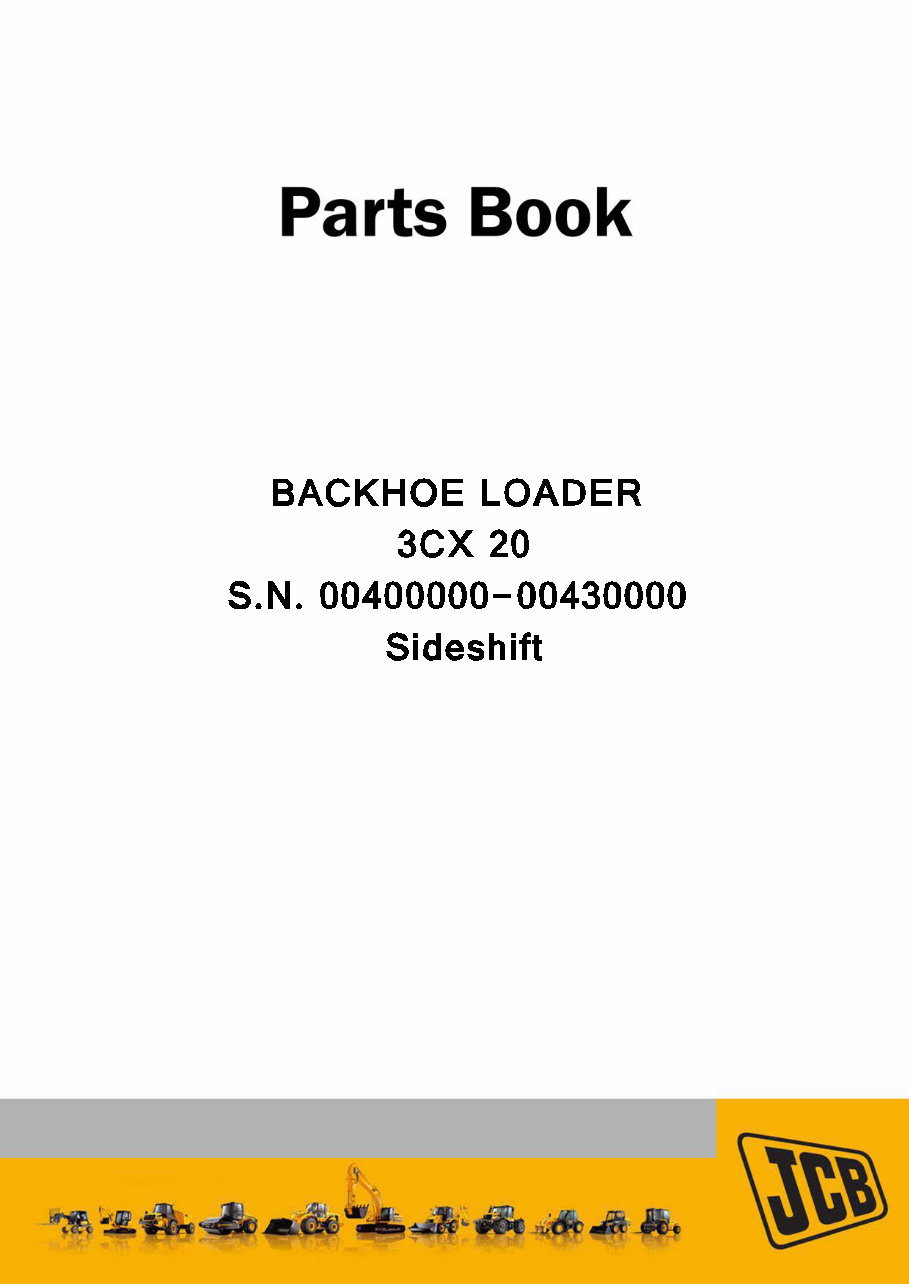

JCB 3CX SMT 35 BACKHOE Loader Parts Catalog Manual (SER. NUMBER 00400000-00430000)
