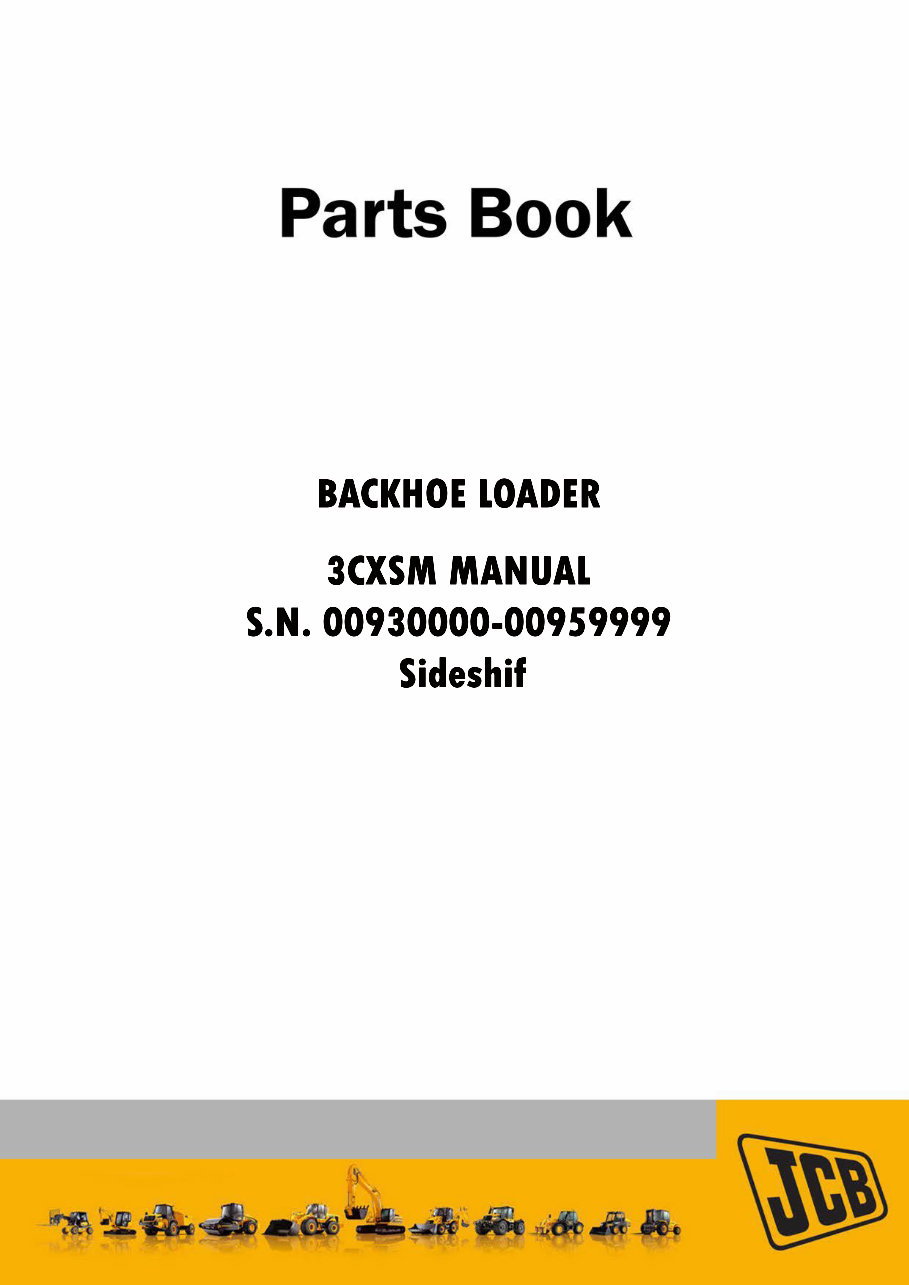

BACKHOE LOADER
3CXSMMANUAL
S.N. 00930000-00959999
Sideshif
http://localhost:8033/ProductCatalog/DrawingPrint.aspx?ServicePartsPagelD... 04.01.2016
212960
Page 1 of 2

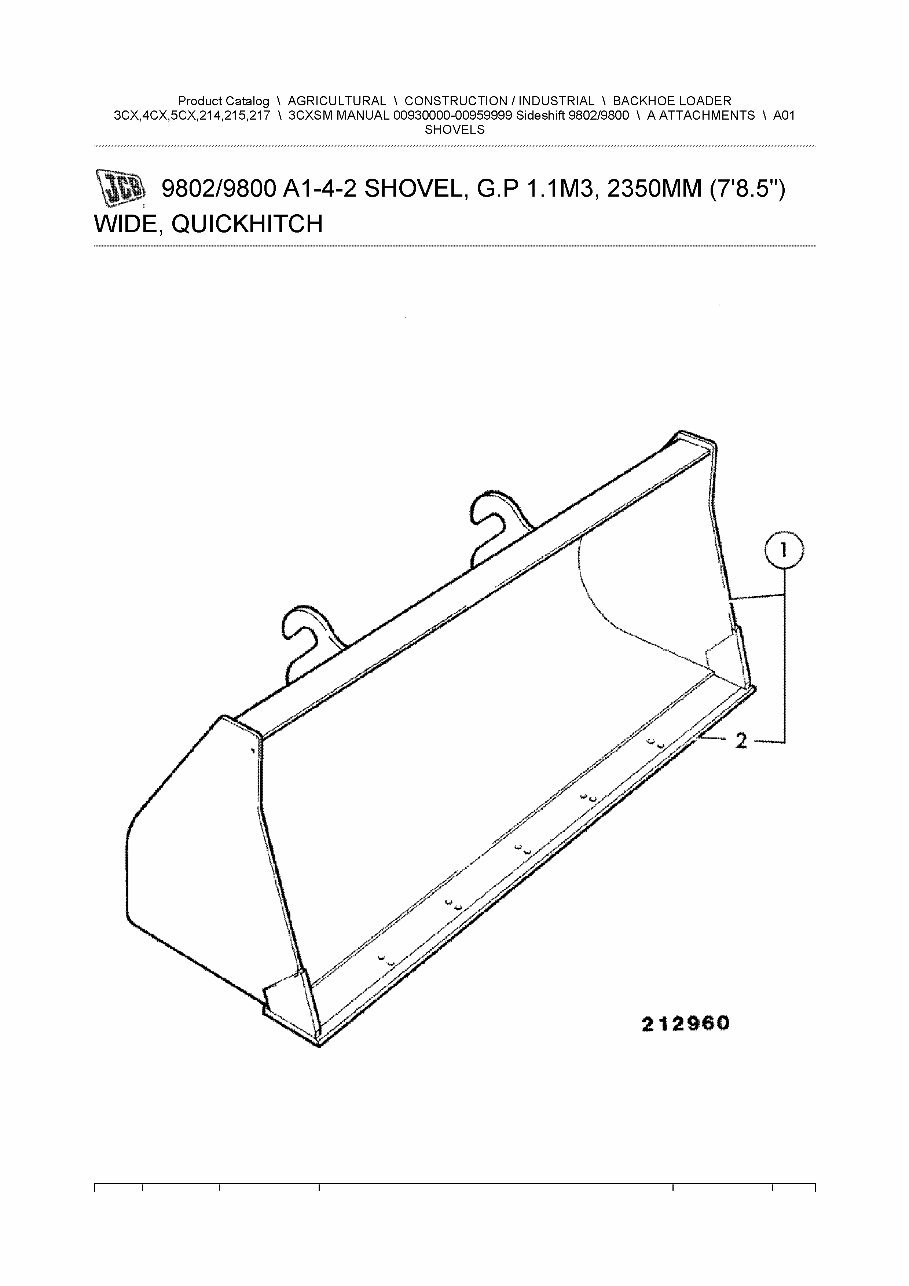

9802/9800 A 1-4-2 SHOVEL, G. P 1.1 M3, 2350MM (7'8.5")
WIDE, QUICKHITCH
Product Catalog \ AGRICULTURAL \ CONSTRUCTION/ INDUSTRIAL \ BACKHOE LOADER
3CX,4CX,5CX,214,215,217 \ 3CXSM MANUAL 00930000-00959999 Sideshift 9802/9800 \ A ATTACHMENTS \ A01
SHOVELS
Untitled Page
1111111111111111111111111
111111111111111111111111111111111111111111111111111111111111111
NOT FOR REPRODUCTION
Page 1
http://localhost:8033/ProductCatalog/DrawingPrint.aspx?ServicePartsPagelD... 04.01.2016

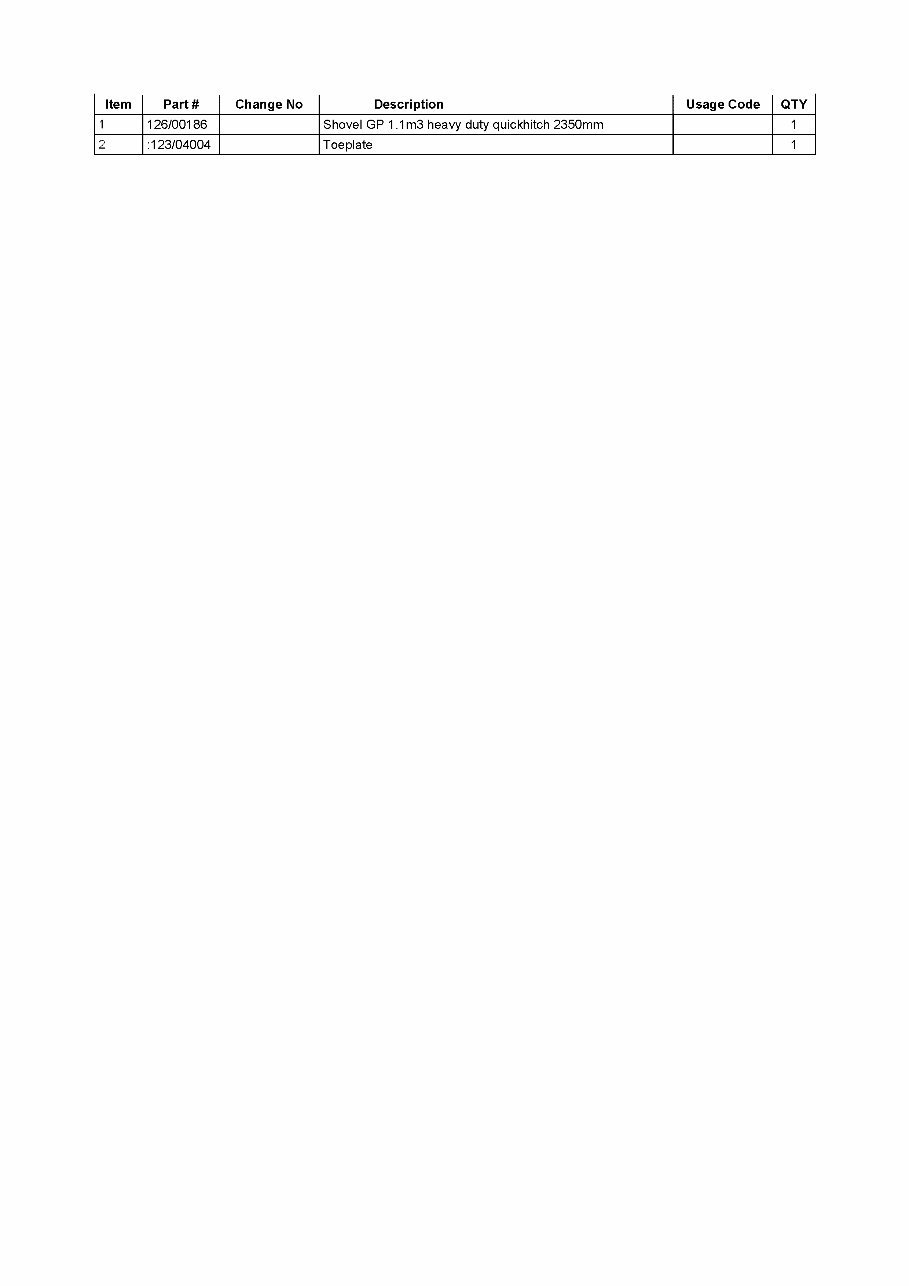

Item Part# Change No Description Usage Code QTY
1 126/00186 Shovel GP 1 .1 m3 heavy duty quickhitch 2350mm 1
2 :123/04004 Toe plate 1
Page 2 of 2 Untitled Page
1111111111111111111111111
111111111111111111111111111111111111111111111111111111111111111
NOT FOR REPRODUCTION
Page 2
http://localhost:8033/ProductCatalog/DrawingPrint.aspx?ServicePartsPagelD... 04.01.2016

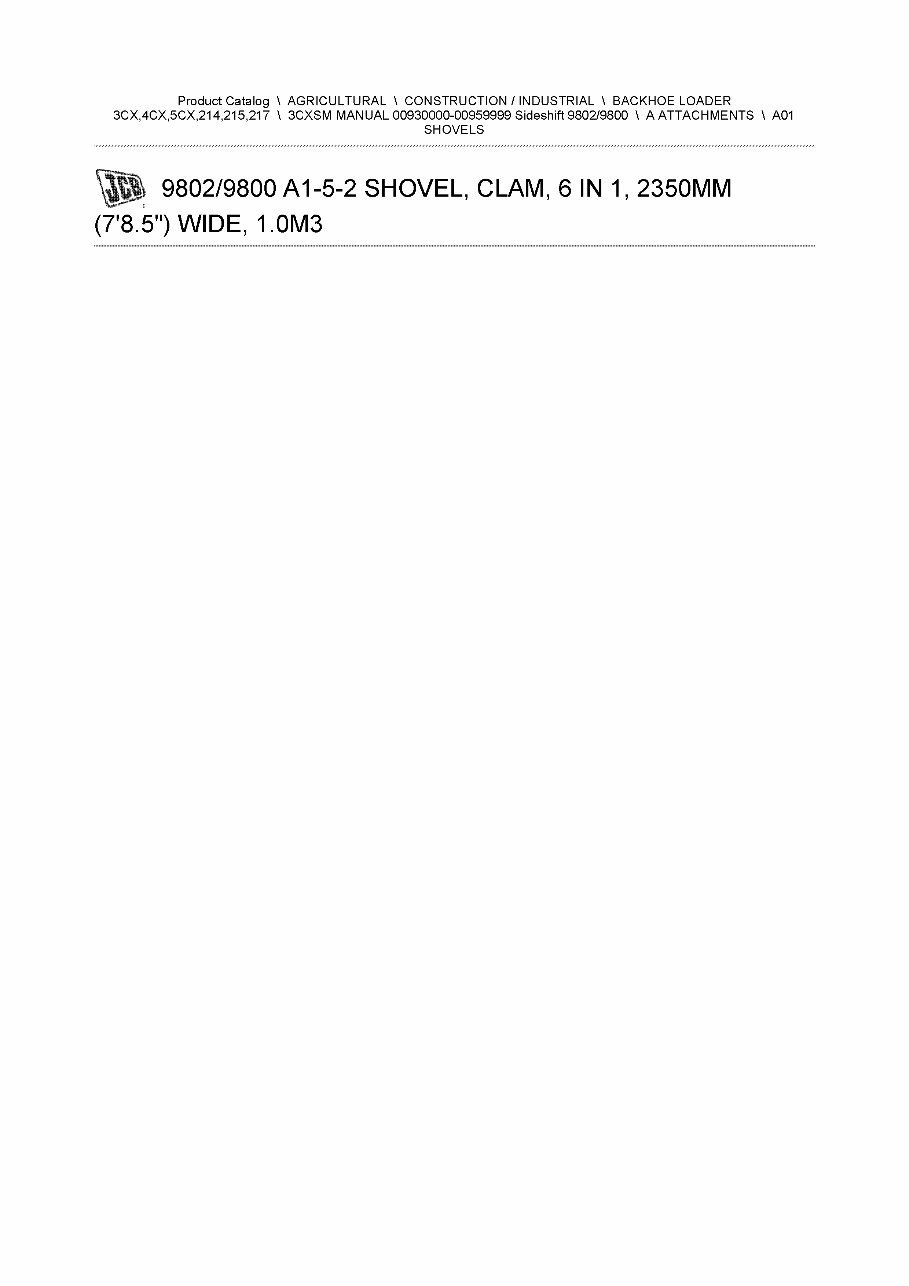

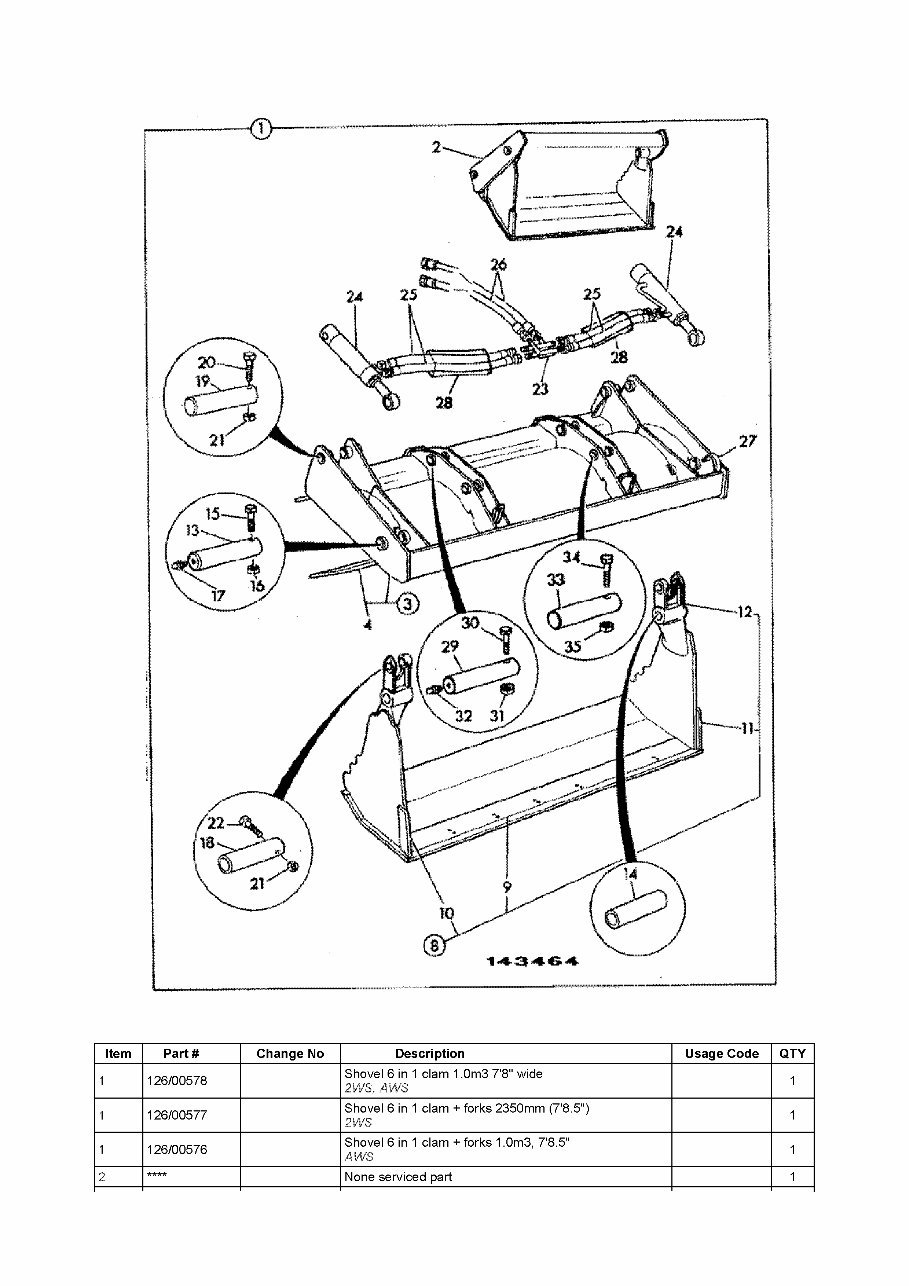

9802/9800A1-5-2 SHOVEL, CLAM, 6 IN 1, 2350MM
(7'8.5") WIDE, 1.0M3
Product Catalog \ AGRICULTURAL \ CONSTRUCTION/ INDUSTRIAL \ BACKHOE LOADER
3CX,4CX,5CX,214,215,217 \ 3CXSM MANUAL 00930000-00959999 Sideshift 9802/9800 \ A ATTACHMENTS \ A01
SHOVELS
Page 1 of 3 Untitled Page
1111111111111111111111111
111111111111111111111111111111111111111111111111111111111111111
NOT FOR REPRODUCTION
Page 3
http://localhost:8033/ProductCatalog/DrawingPrint.aspx?ServicePartsPagelD... 04.01.2016
Item Part# Change No Description Usage Code QTY
1 126/00578
Shovel 6 in 1 clam 1 .Om3 7'8" wide
1
2WS. AWS
1 126/00577
Shovel 6 in 1 clam + forks 2350mm (7'8.5")
1
2WS
1 126/00576
Shovel 6 in 1 clam + forks 1.0m3, 7'8.5"
1
AWS
2 **** None serviced part 1
Page 2 of 3 Untitled Page
1111111111111111111111111
111111111111111111111111111111111111111111111111111111111111111
NOT FOR REPRODUCTION
Page 4
http://localhost:8033/ProductCatalog/DrawingPrint.aspx?ServicePartsPagelD... 04.01.2016

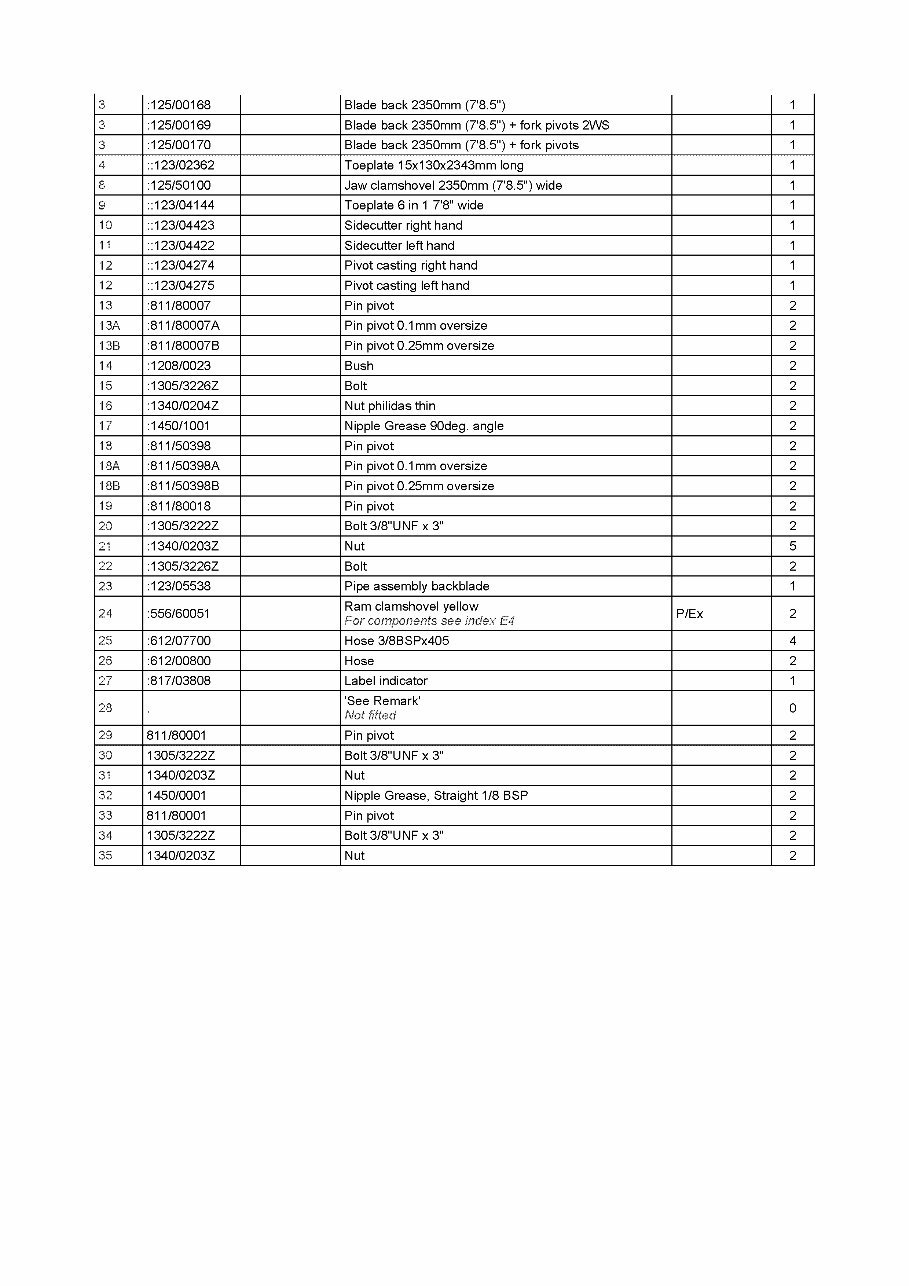

3 :125/00168 Blade back 2350mm (7'8.5") 1
3 :125/00169 Blade back 2350mm (7'8.5") + fork pivots 2WS 1
3 :125/00170 Blade back 2350mm (7'8.5") + fork pivots 1
4 : : 123/02362 Toe plate 15x130x2343mm long 1
8 :125/50100 Jaw clamshovel 2350mm (7'8.5") wide 1
9 ::123/04144 Toeplate 6 in 1 7'8" wide 1
10 : : 123/04423 Sidecutter right hand 1
11 : : 123/04422 Sidecutter left hand 1
12 : : 123/0427 4 Pivot casting right hand 1
12 : : 123/04275 Pivot casting left hand 1
13 :811/80007 Pin pivot 2
13A :811/80007A Pin pivot 0.1 mm oversize 2
138 :811/800078 Pin pivot 0.25mm oversize 2
14 :1208/0023 Bush 2
15 : 1 305/3226Z Bolt 2
16 : 1 340/0204Z Nut philidas thin 2
17 :1450/1001 Nipple Grease 90deg. angle 2
18 :811/50398 Pin pivot 2
18A :811/50398A Pin pivot 0.1 mm oversize 2
188 :811/503988 Pin pivot 0.25mm oversize 2
19 :811/80018 Pin pivot 2
20 : 1 305/3222Z Bolt 3/8"UNF x 3" 2
21 : 1 340/0203Z Nut 5
22 : 1 305/3226Z Bolt 2
23 :123/05538 Pipe assembly backblade 1
24 :556/60051
Ram clamshovel yellow
P/Ex 2
For components see index E4
25 :612/07700 Hose 3/8BSPx405 4
26 :612/00800 Hose 2
27 :817/03808 Label indicator 1
28
'See Remark'
0
Not fitted
29 811 /80001 Pin pivot 2
30 1305/3222Z Bolt 3/8"UNF x 3" 2
31 1340/0203Z Nut 2
32 1450/0001 Nipple Grease, Straight 1/8 BSP 2
33 811 /80001 Pin pivot 2
34 1305/3222Z Bolt 3/8"UNF x 3" 2
35 1340/0203Z Nut 2
Page 3 of 3 Untitled Page
1111111111111111111111111
111111111111111111111111111111111111111111111111111111111111111
NOT FOR REPRODUCTION
Page 5
http://localhost:8033/ProductCatalog/DrawingPrint.aspx?ServicePartsPagelD... 04.01.2016

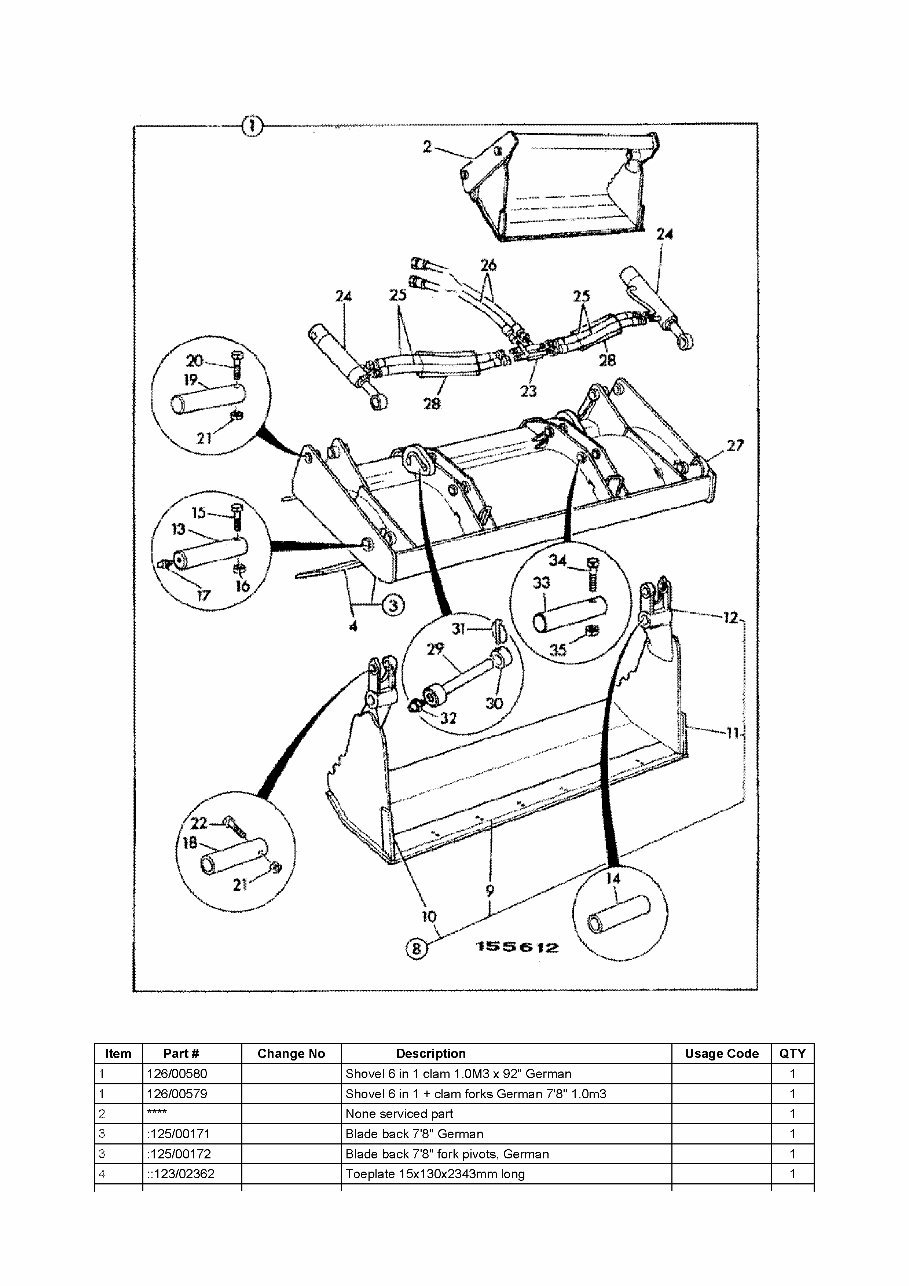

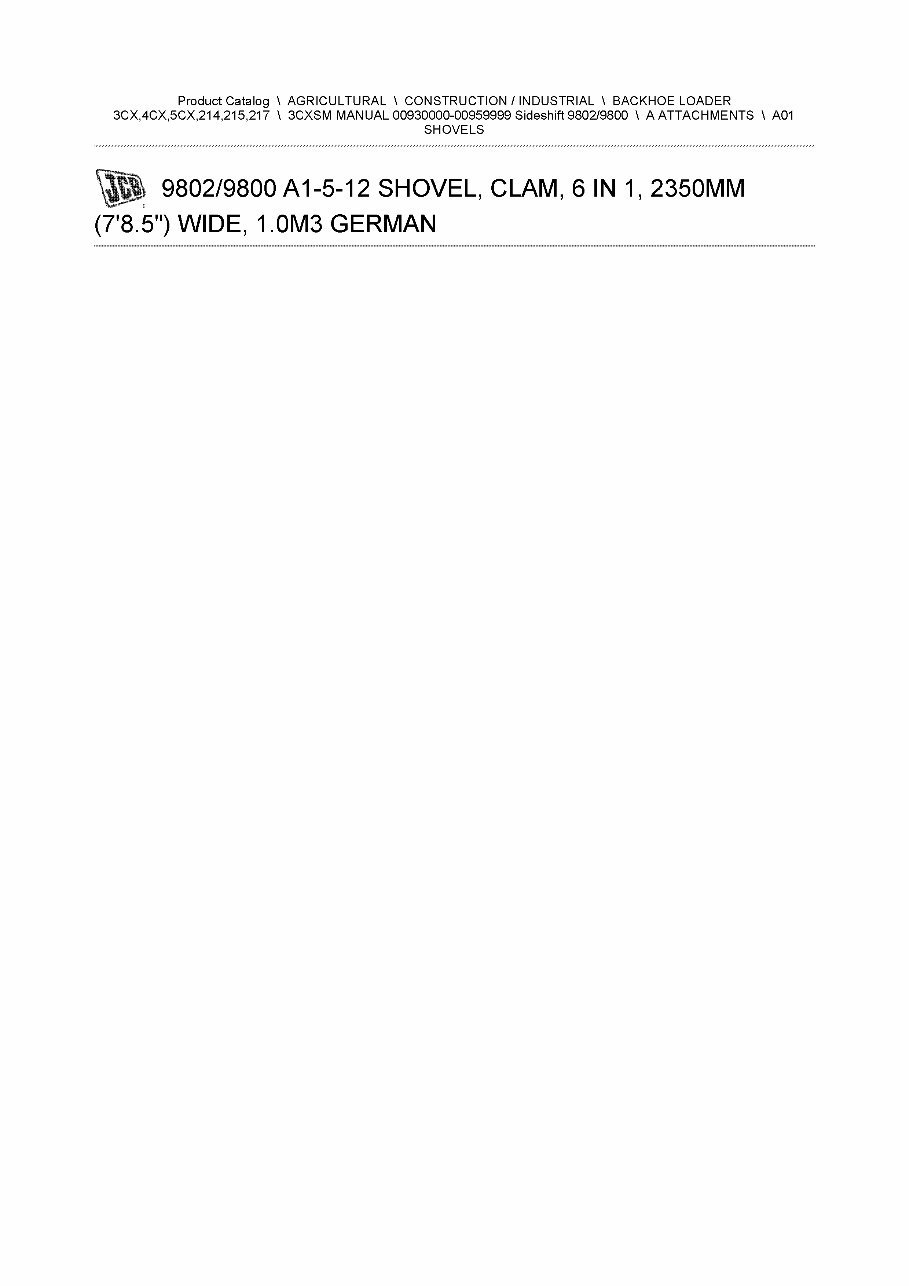

9802/9800 A1-5-12 SHOVEL, CLAM, 6 IN 1, 2350MM
(7'8.5") WIDE, 1.0M3 GERMAN
Product Catalog \ AGRICULTURAL \ CONSTRUCTION/ INDUSTRIAL \ BACKHOE LOADER
3CX,4CX,5CX,214,215,217 \ 3CXSM MANUAL 00930000-00959999 Sideshift 9802/9800 \ A ATTACHMENTS \ A01
SHOVELS
Page 1 of 3 Untitled Page
1111111111111111111111111
111111111111111111111111111111111111111111111111111111111111111
NOT FOR REPRODUCTION
Page 6
http://localhost:8033/ProductCatalog/DrawingPrint.aspx?ServicePartsPagelD... 04.01.2016
155612
Item Part# Change No Description Usage Code QTY
1 126/00580 Shovel 6 in 1 clam 1 .OM3 x 92" German 1
1 126/00579 Shovel 6 in 1 + clam forks German 7'8" 1.0m3 1
2 **** None serviced part 1
3 :125/00171 Blade back 7'8" German 1
3 :125/00172 Blade back 7'8" fork pivots, German 1
4 : : 123/02362 Toe plate 15x130x2343mm long 1
2~· .• ·•··· ..•...
l8 .
"
21~
2
12
27
Page 2 of 3 Untitled Page
1111111111111111111111111
111111111111111111111111111111111111111111111111111111111111111
NOT FOR REPRODUCTION
Page 7
http://localhost:8033/ProductCatalog/DrawingPrint.aspx?ServicePartsPagelD... 04.01.2016
8 :125/50100 Jaw clamshovel 2350mm (7'8.5") wide 1
9 ::123/04144 Toeplate 6 in 1 7'8" wide 1
9A : : 123/03338 Plate 1
10 : : 123/04423 Sidecutter right hand 1
11 : : 123/04422 Sidecutter left hand 1
12 : : 123/0427 4 Pivot casting right hand 1
12 : : 123/04275 Pivot casting left hand 1
13 :811/80007 Pin pivot 2
13A :811/80007A Pin pivot 0.1 mm oversize 2
138 :811/800078 Pin pivot 0.25mm oversize 2
14 :1208/0023 Bush 2
15 : 1 305/3226Z Bolt 2
16 : 1 340/0204Z Nut philidas thin 2
17 :1450/1001 Nipple Grease 90deg. angle 2
18 :811/50398 Pin pivot 2
18A :811/50398A Pin pivot 0.1 mm oversize 2
188 :811/503988 Pin pivot 0.25mm oversize 2
19 :811/80018 Pin pivot 2
20 : 1 305/3222Z Bolt 3/8"UNF x 3" 2
21 : 1 340/0203Z Nut 5
22 : 1 305/3226Z Bolt 2
23 :531/38500 Pipe Assembly 1
24 :556/60051
Ram clamshovel yellow
P/Ex 2
For components see index E4
25 :612/03300 Hose 3/8"BSP x 950mm 4
26 :612/00800 Hose 2
27 :817/03808 Label indicator 1
28 647/02703 Tube black pvc 2400mm 0
29 911/26000 Pin pivot 2
30 123/00320 Boss 2
31 826/00819 Pin lynch with chain 2
32 1450/0001 Nipple Grease, Straight 1/8 BSP 2
33 811 /80001 Pin pivot 2
34 1305/3222Z Bolt 3/8"UNF x 3" 2
35 1340/0203Z Nut 2
Page 3 of 3 Untitled Page
1111111111111111111111111
111111111111111111111111111111111111111111111111111111111111111
NOT FOR REPRODUCTION
Page 8
http://localhost:8033/ProductCatalog/DrawingPrint.aspx?ServicePartsPagelD... 04.01.2016
WIDE

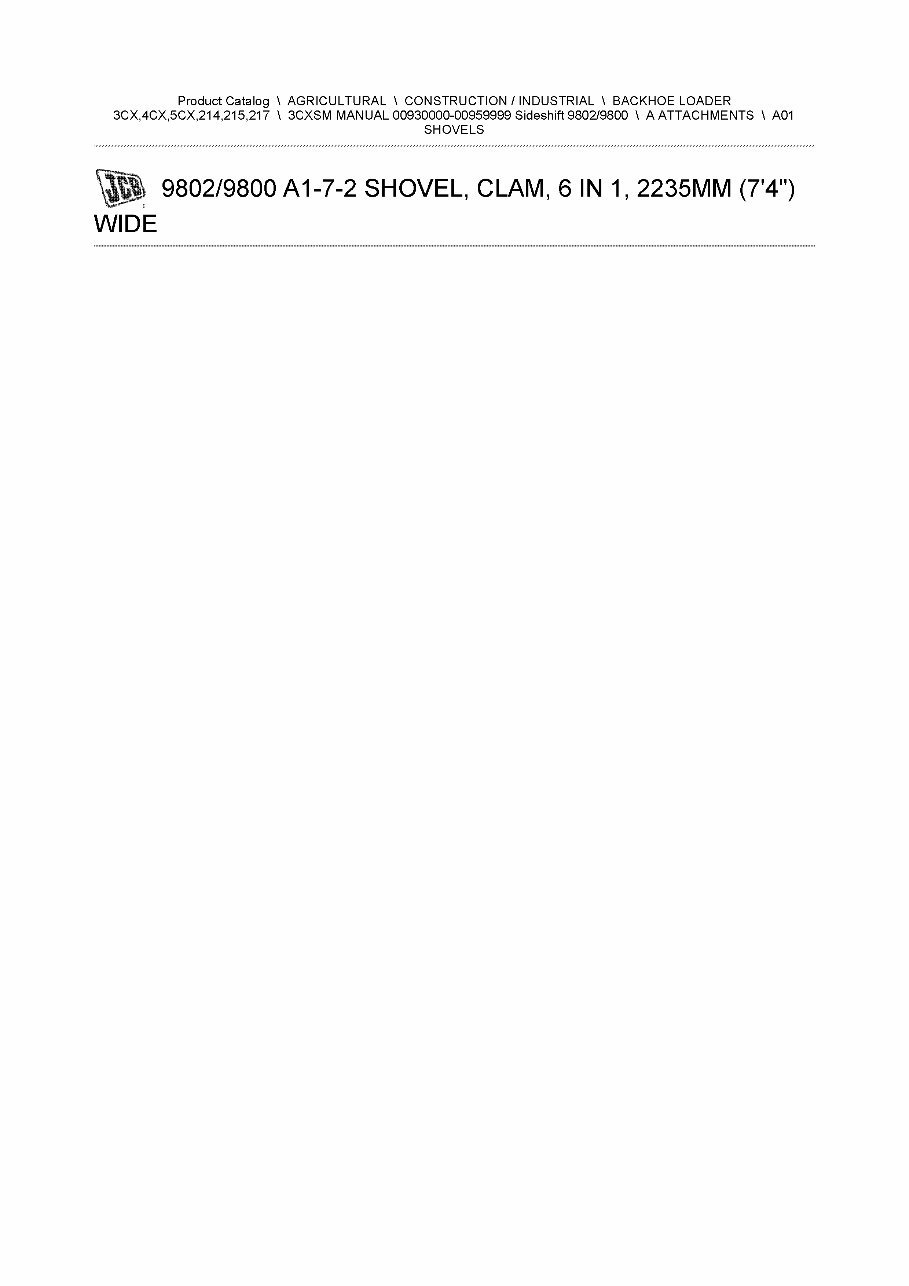

9802/9800 A1-7-2 SHOVEL, CLAM, 6 IN 1, 2235MM (7'4")
Product Catalog \ AGRICULTURAL \ CONSTRUCTION/ INDUSTRIAL \ BACKHOE LOADER
3CX,4CX,5CX,214,215,217 \ 3CXSM MANUAL 00930000-00959999 Sideshift 9802/9800 \ A ATTACHMENTS \ A01
SHOVELS
Page 1 of 3 Untitled Page
1111111111111111111111111
111111111111111111111111111111111111111111111111111111111111111
NOT FOR REPRODUCTION
