http://localhost:8033/ProductCatalog/DrawingPrint.aspx?ServicePartsPagelD... 07.12.2015
Shovel GP 1 .Om3 7'4" wide 125/00365
Description Change No Part# QTY Usage Code Item
212940
2
Page 1 of 2
WIDE

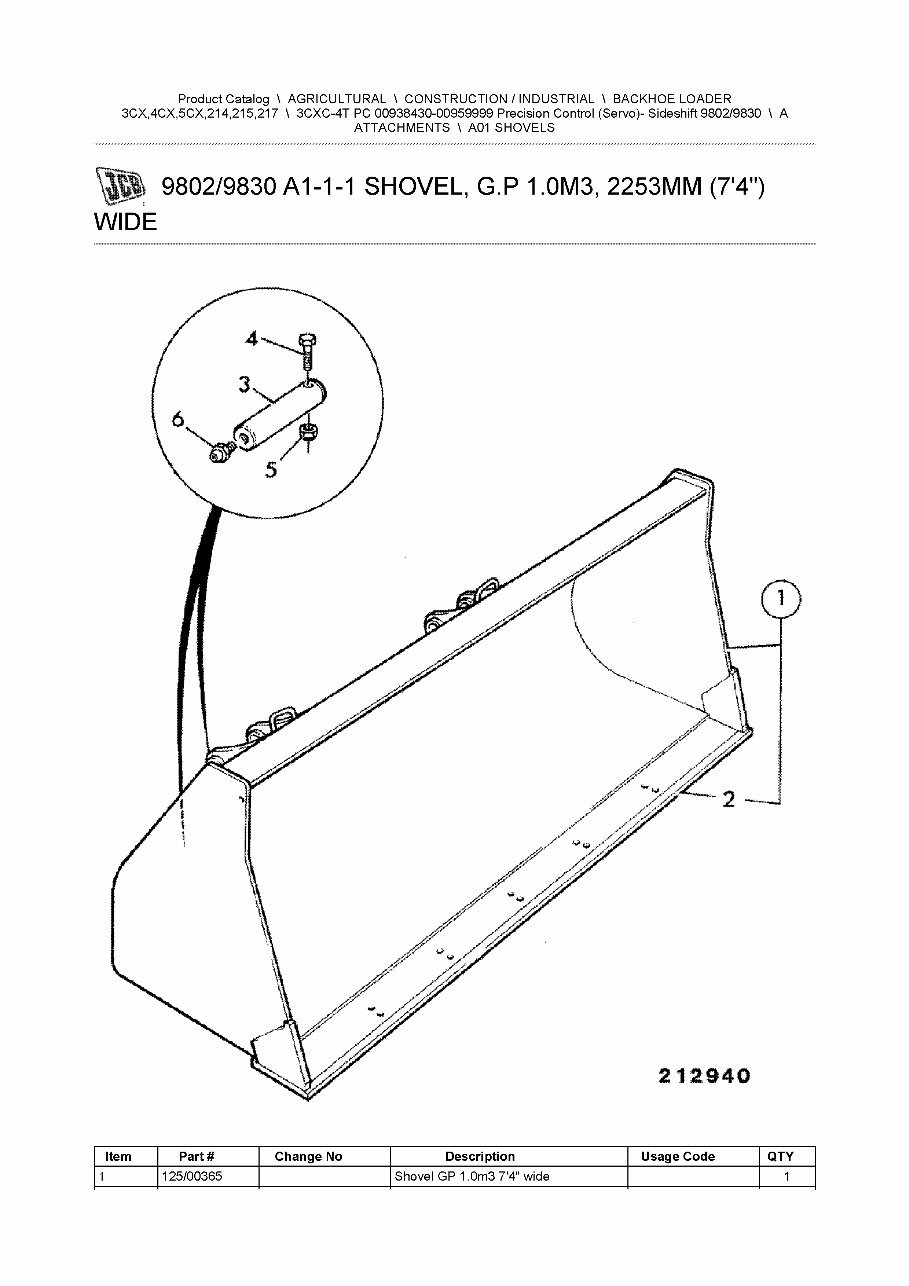

9802/9830 A1-1-1 SHOVEL, G.P 1.0M3, 2253MM (7'4")
Product Catalog \ AGRICULTURAL \ CONSTRUCTION/ INDUSTRIAL \ BACKHOE LOADER
3CX,4CX,5CX,214,215,217 \ 3CXC-4T PC 00938430-00959999 Precision Control (Servo)- Sideshift 9802/9830 \ A
ATTACHMENTS \ A01 SHOVELS
Untitled Page
1111111111111111111111111
111111111111111111111111111111111111111111111111111111111111111
NOT FOR REPRODUCTION
Page 1
http://localhost:8033/ProductCatalog/DrawingPrint.aspx?ServicePartsPagelD... 07.12.2015

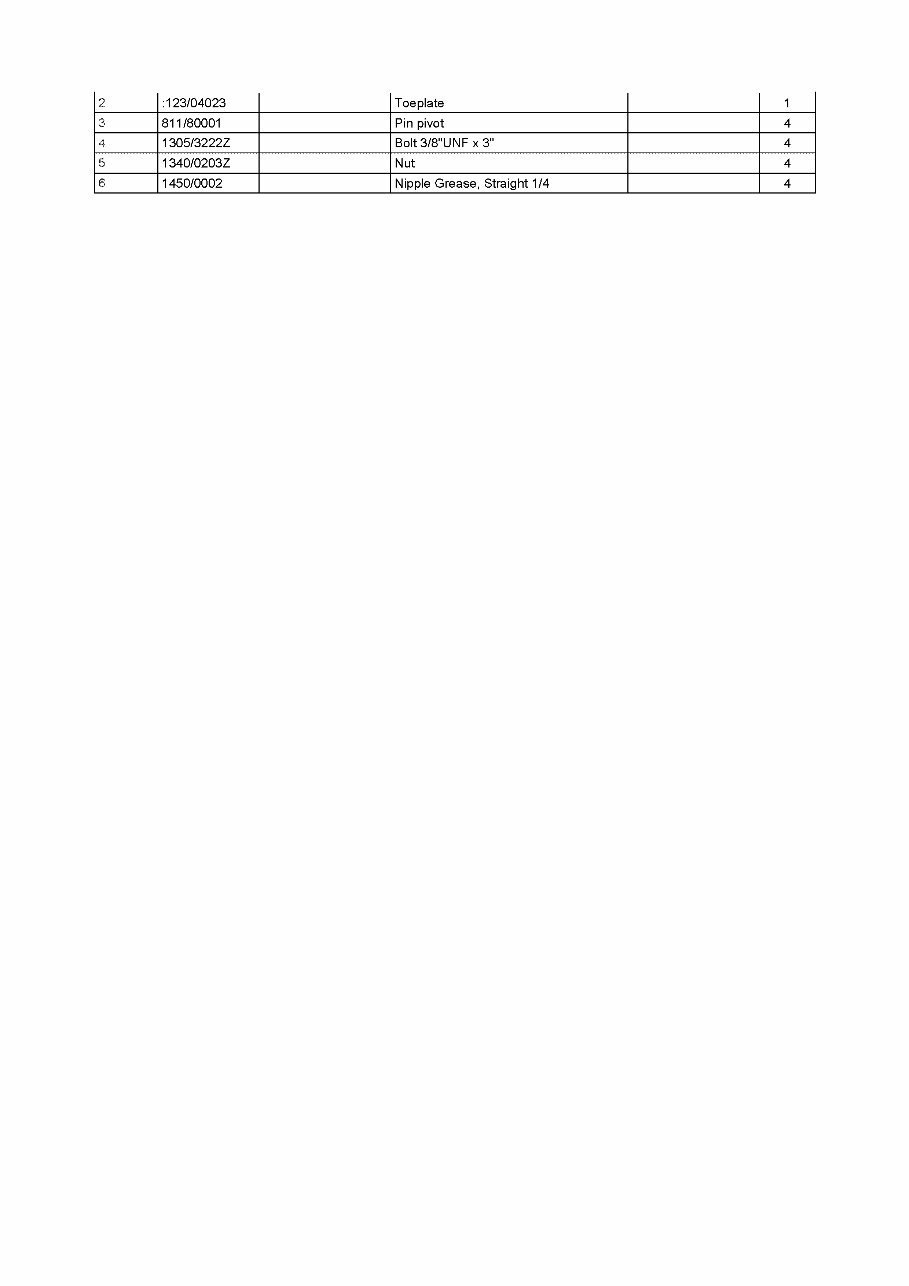

2 :123/04023 Toe plate 1
3 811 /80001 Pin pivot 4
4 1305/3222Z Bolt 3/8"UNF x 3" 4
5 1340/0203Z Nut 4
6 1450/0002 Nipple Grease, Straight 1/4 4
Page 2 of 2 Untitled Page
1111111111111111111111111
111111111111111111111111111111111111111111111111111111111111111
NOT FOR REPRODUCTION
Page 2
http://localhost:8033/ProductCatalog/DrawingPrint.aspx?ServicePartsPagelD... 07.12.2015
Usage Code QTY Item Part# Change No Description
125/00474 Shovel GP 1.0m3 7'4" wide heavy duty
212940
2
Page 1 of 2

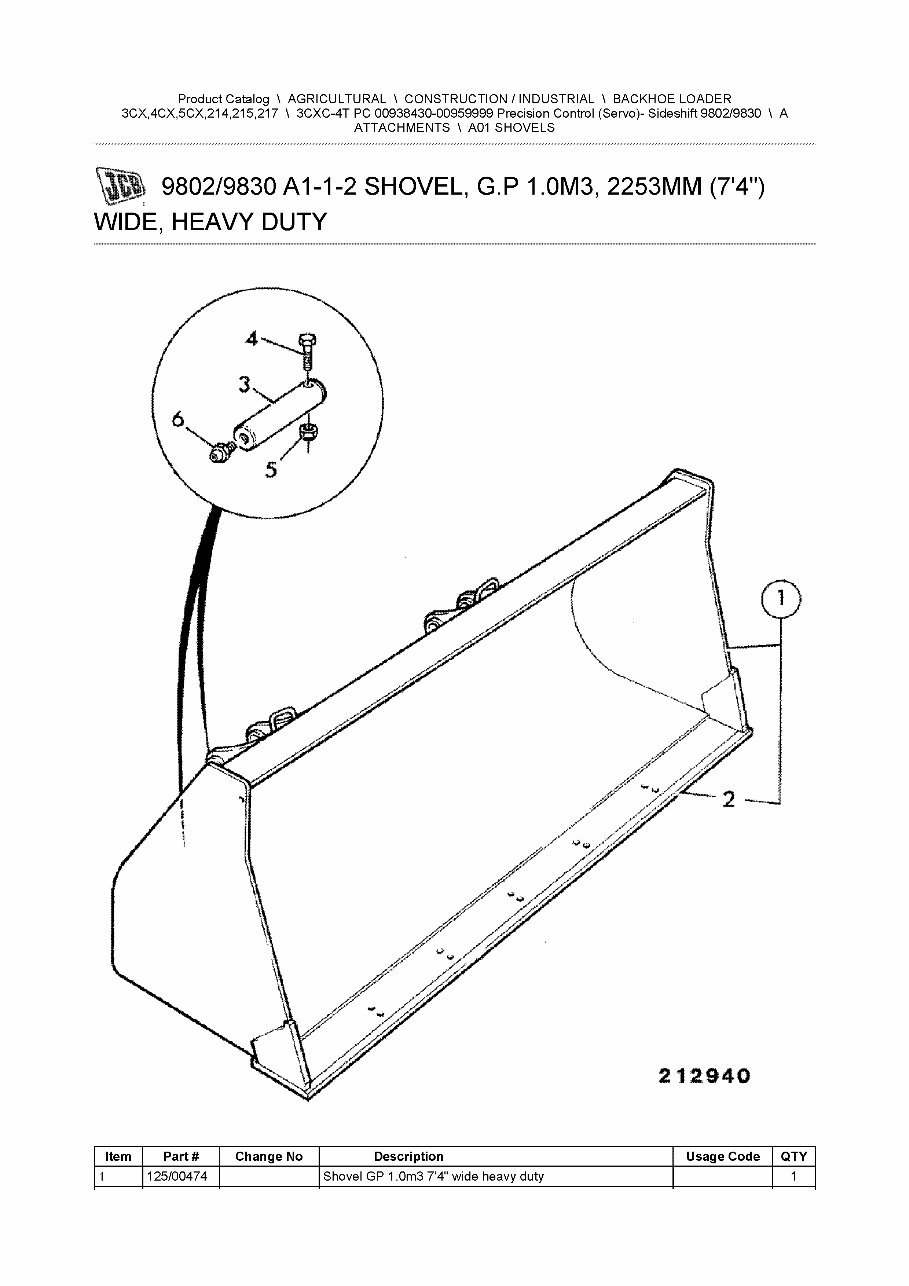

9802/9830 A1-1-2 SHOVEL, G.P 1.0M3, 2253MM (7'4")
WIDE, HEAVY DUTY
Product Catalog \ AGRICULTURAL \ CONSTRUCTION/ INDUSTRIAL \ BACKHOE LOADER
3CX,4CX,5CX,214,215,217 \ 3CXC-4T PC 00938430-00959999 Precision Control (Servo)- Sideshift 9802/9830 \ A
ATTACHMENTS \ A01 SHOVELS
Untitled Page
1111111111111111111111111
111111111111111111111111111111111111111111111111111111111111111
NOT FOR REPRODUCTION
Page 3
http://localhost:8033/ProductCatalog/DrawingPrint.aspx?ServicePartsPagelD... 07.12.2015

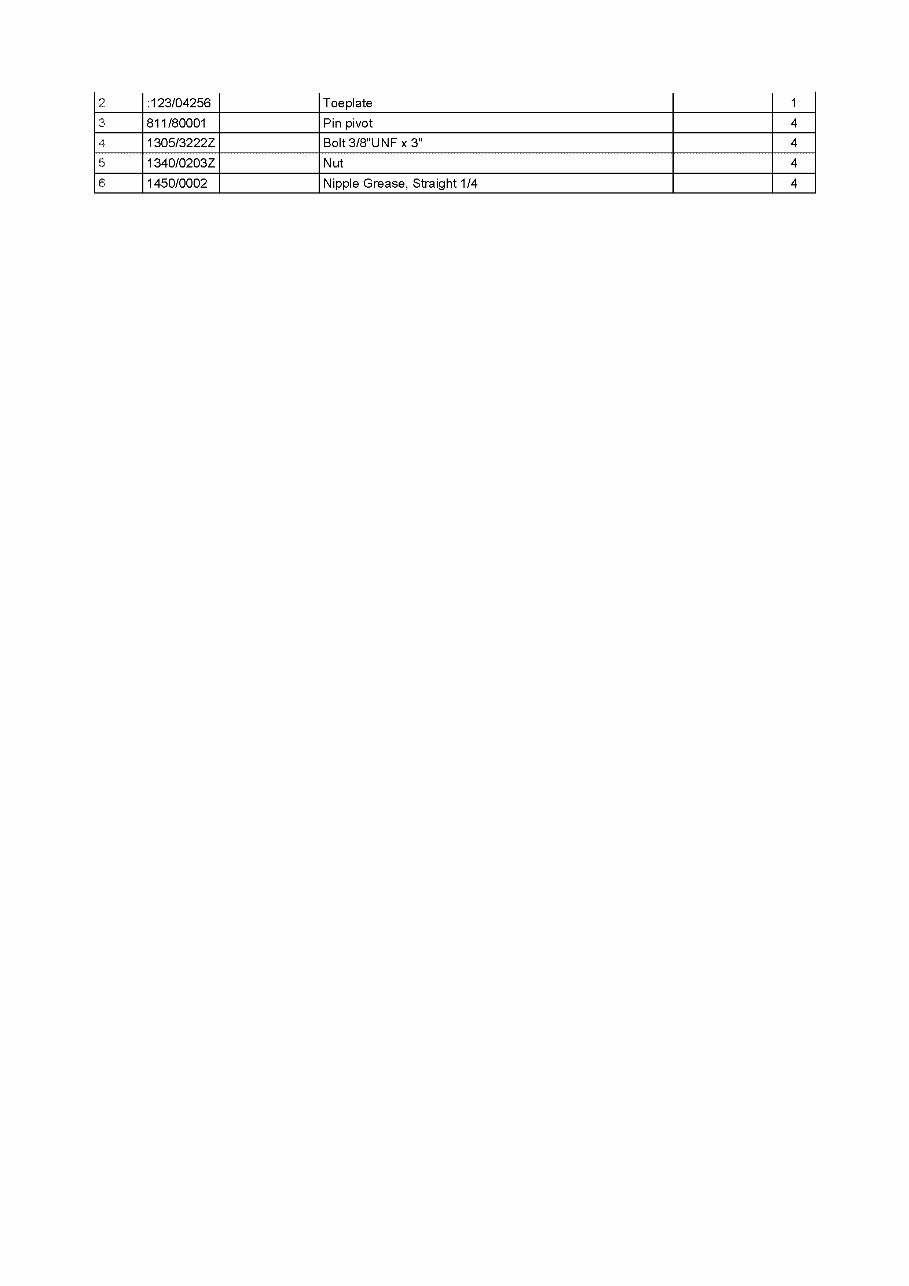

2 :123/04256 Toe plate 1
3 811 /80001 Pin pivot 4
4 1305/3222Z Bolt 3/8"UNF x 3" 4
5 1340/0203Z Nut 4
6 1450/0002 Nipple Grease, Straight 1/4 4
Page 2 of 2 Untitled Page
1111111111111111111111111
111111111111111111111111111111111111111111111111111111111111111
NOT FOR REPRODUCTION
Page 4
http://localhost:8033/ProductCatalog/DrawingPrint.aspx?ServicePartsPagelD... 07.12.2015
Usage Code QTY Item Part# Change No Description
A 125/36800 Shovel GP 1 .1 m3 2350mm (7'8.5") wide
212940
2
Page 1 of 2
WIDE

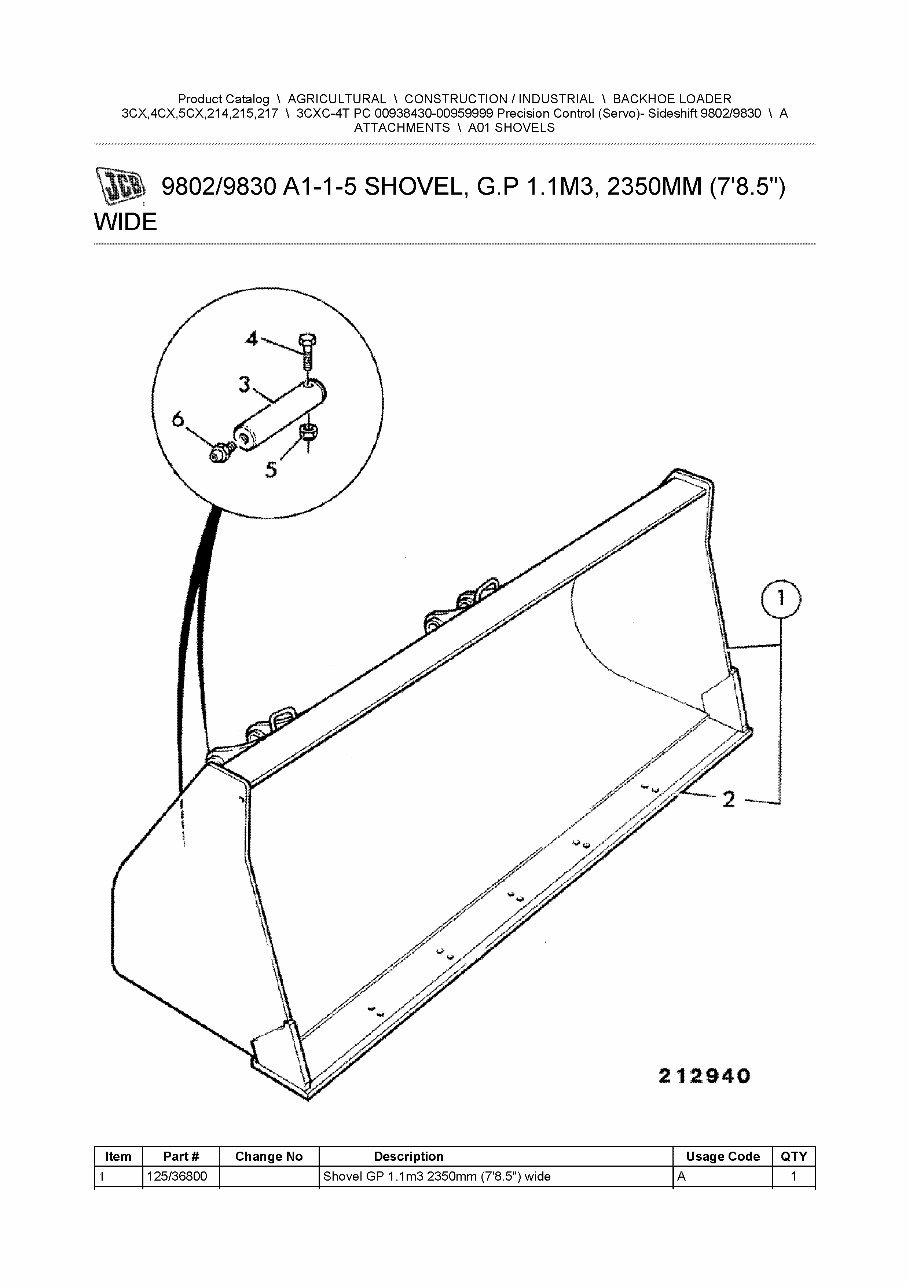

9802/9830 A 1-1-5 SHOVEL, G. P 1.1 M3, 2350MM (7'8.5")
Product Catalog \ AGRICULTURAL \ CONSTRUCTION/ INDUSTRIAL \ BACKHOE LOADER
3CX,4CX,5CX,214,215,217 \ 3CXC-4T PC 00938430-00959999 Precision Control (Servo)- Sideshift 9802/9830 \ A
ATTACHMENTS \ A01 SHOVELS
Untitled Page
1111111111111111111111111
111111111111111111111111111111111111111111111111111111111111111
NOT FOR REPRODUCTION
Page 5
http://localhost:8033/ProductCatalog/DrawingPrint.aspx?ServicePartsPagelD... 07.12.2015

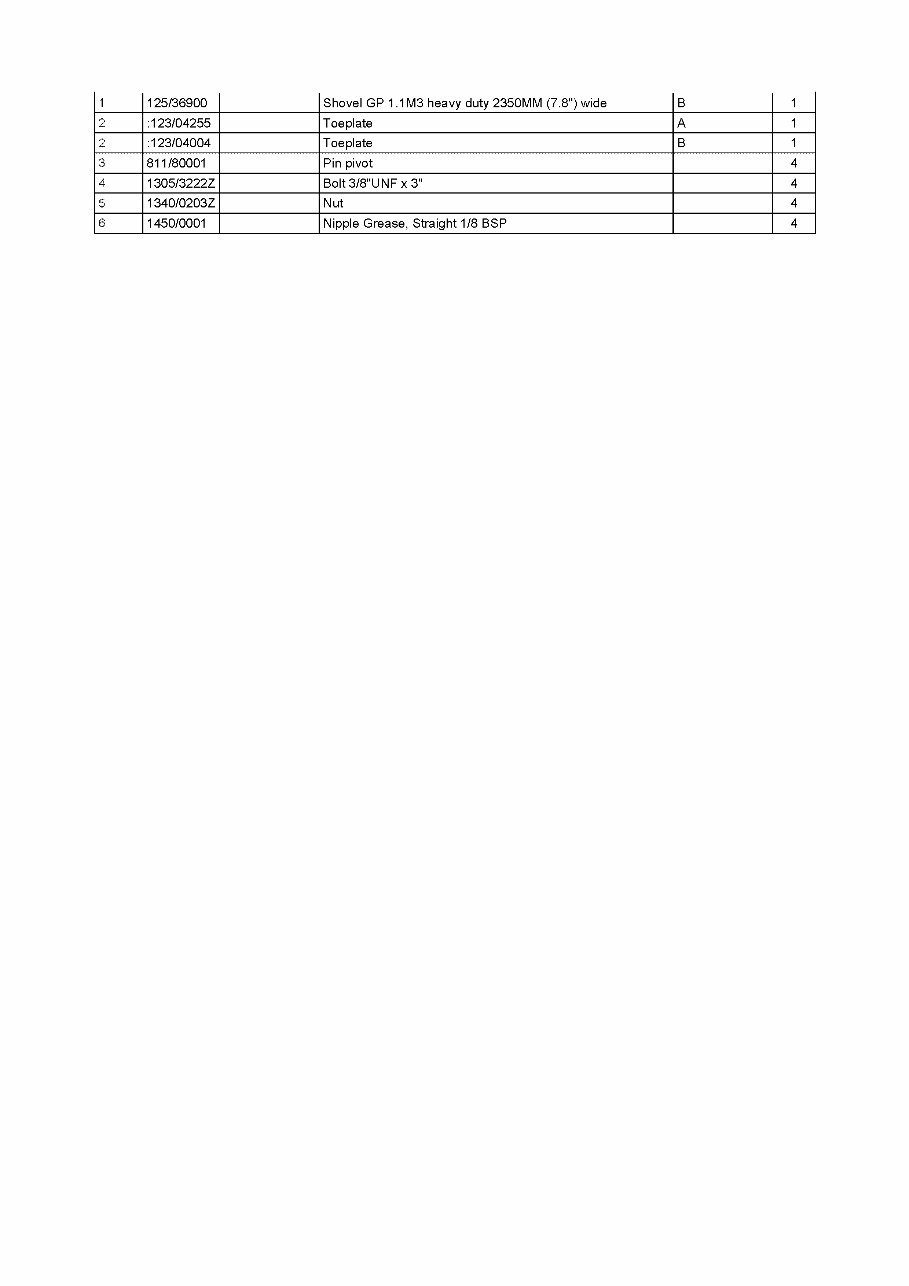

1 125/36900 Shovel GP 1.1 M3 heavy duty 2350MM (7.8") wide B 1
2 :123/04255 Toe plate A 1
2 :123/04004 Toe plate B 1
3 811 /80001 Pin pivot 4
4 1305/3222Z Bolt 3/8"UNF x 3" 4
5 1340/0203Z Nut 4
6 1450/0001 Nipple Grease, Straight 1/8 BSP 4
Page 2 of 2 Untitled Page
1111111111111111111111111
111111111111111111111111111111111111111111111111111111111111111
NOT FOR REPRODUCTION
Page 6
http://localhost:8033/ProductCatalog/DrawingPrint.aspx?ServicePartsPagelD... 07.12.2015
Usage Code QTY Item Part# Change No Description
125/36900 Shovel GP 1.1 M3 heavy duty 2350MM (7.8") wide
212940
2
Page 1 of 2

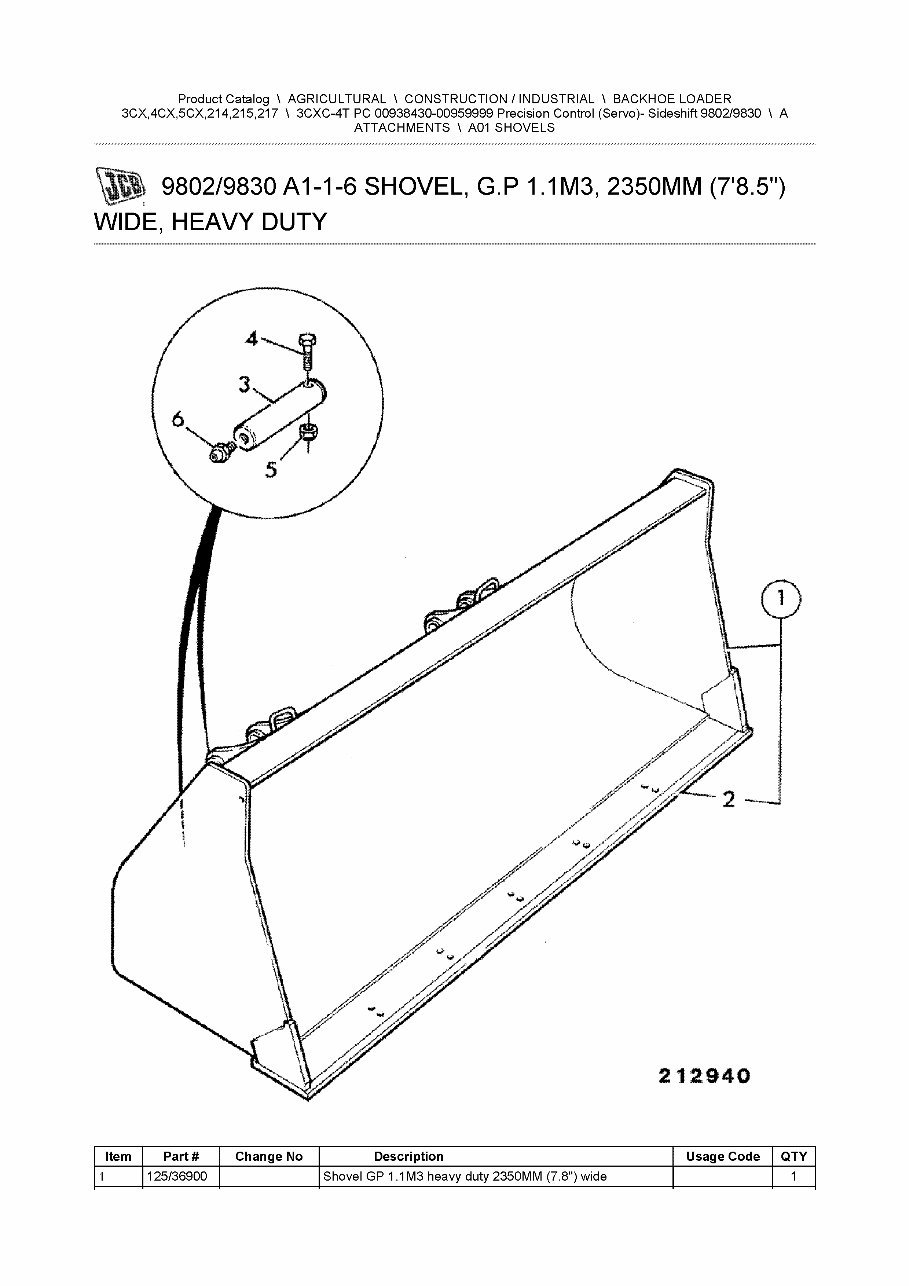

9802/9830 A 1-1-6 SHOVEL, G. P 1.1 M3, 2350MM (7'8.5")
WIDE, HEAVY DUTY
Product Catalog \ AGRICULTURAL \ CONSTRUCTION/ INDUSTRIAL \ BACKHOE LOADER
3CX,4CX,5CX,214,215,217 \ 3CXC-4T PC 00938430-00959999 Precision Control (Servo)- Sideshift 9802/9830 \ A
ATTACHMENTS \ A01 SHOVELS
Untitled Page
1111111111111111111111111
111111111111111111111111111111111111111111111111111111111111111
NOT FOR REPRODUCTION
Page 7
http://localhost:8033/ProductCatalog/DrawingPrint.aspx?ServicePartsPagelD... 07.12.2015

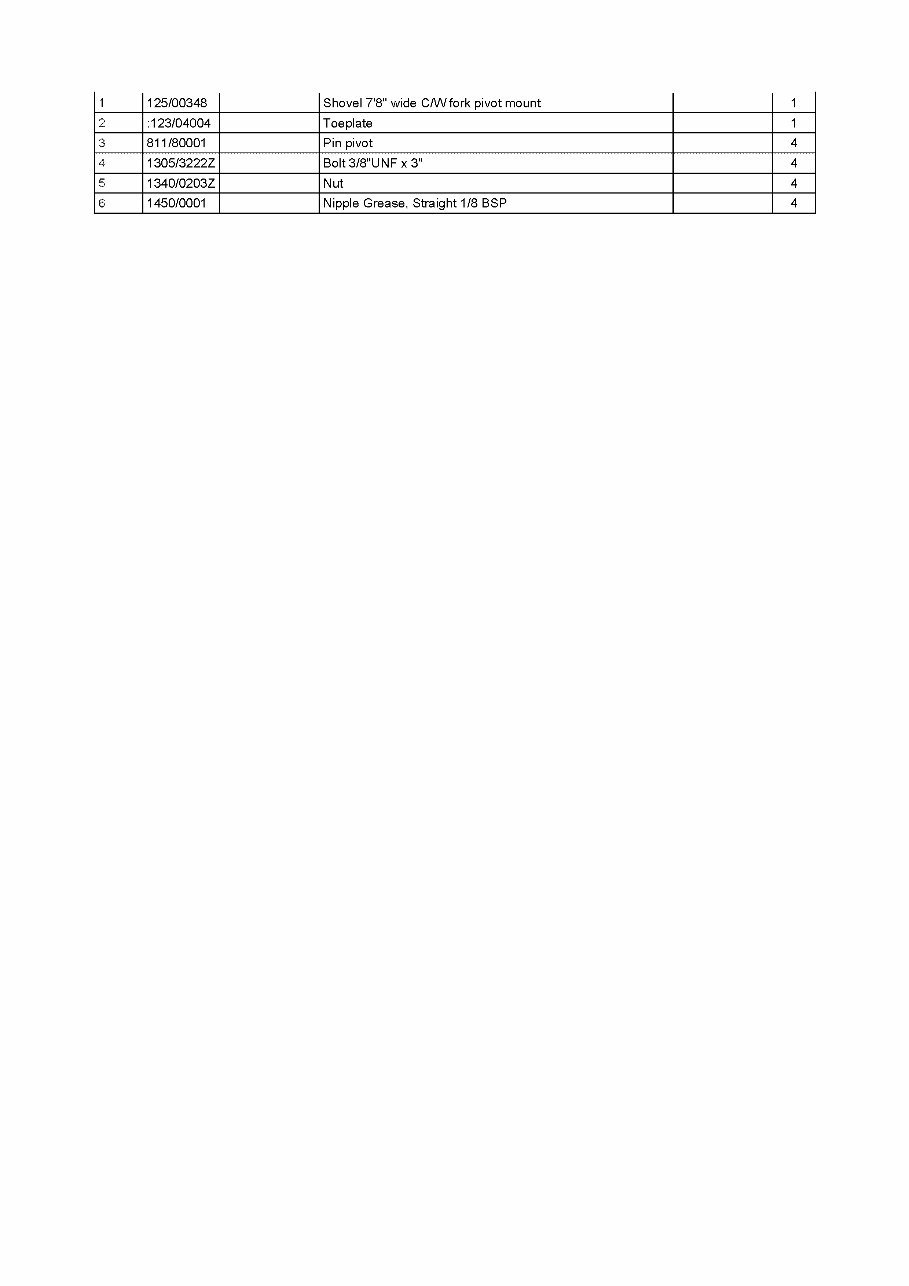

1 125/00348 Shovel 7'8" wide C/Wfork pivot mount 1
2 :123/04004 Toe plate 1
3 811 /80001 Pin pivot 4
4 1305/3222Z Bolt 3/8"UNF x 3" 4
5 1340/0203Z Nut 4
6 1450/0001 Nipple Grease, Straight 1/8 BSP 4
Page 2 of 2 Untitled Page
1111111111111111111111111
111111111111111111111111111111111111111111111111111111111111111
NOT FOR REPRODUCTION
Page 8
http://localhost:8033/ProductCatalog/DrawingPrint.aspx?ServicePartsPagelD... 07.12.2015
Usage Code QTY Item Part# Change No Description
125/37000 Shovel GP 1 .3m3 heavy duty 2350mm (7.8.5") wide
212940
2
Page 1 of 2
9802/9830 A1-1-7 SHOVEL, G.P 1.3M3, 2350MM (7'8.5")
WIDE, HEAVY DUTY
Product Catalog \ AGRICULTURAL \ CONSTRUCTION/ INDUSTRIAL \ BACKHOE LOADER
3CX,4CX,5CX,214,215,217 \ 3CXC-4T PC 00938430-00959999 Precision Control (Servo)- Sideshift 9802/9830 \ A
ATTACHMENTS \ A01 SHOVELS
Untitled Page
1111111111111111111111111
111111111111111111111111111111111111111111111111111111111111111
NOT FOR REPRODUCTION
Page 9
