http://localhost:8033/ProductCatalog/DrawingPrint.aspx?ServicePartsPagelD... 18.11.2015
Item Part# Change No Description Usage Code QTY
1 531/27400 <M325208
Shovel 1.1/4 cu. yds 2235mm wide
A 1
Basic Arms
1 531/26600 Superseded Shovel 1 .1 /4 cu yd 2235mm wide A 1
1
2
..... ==
•

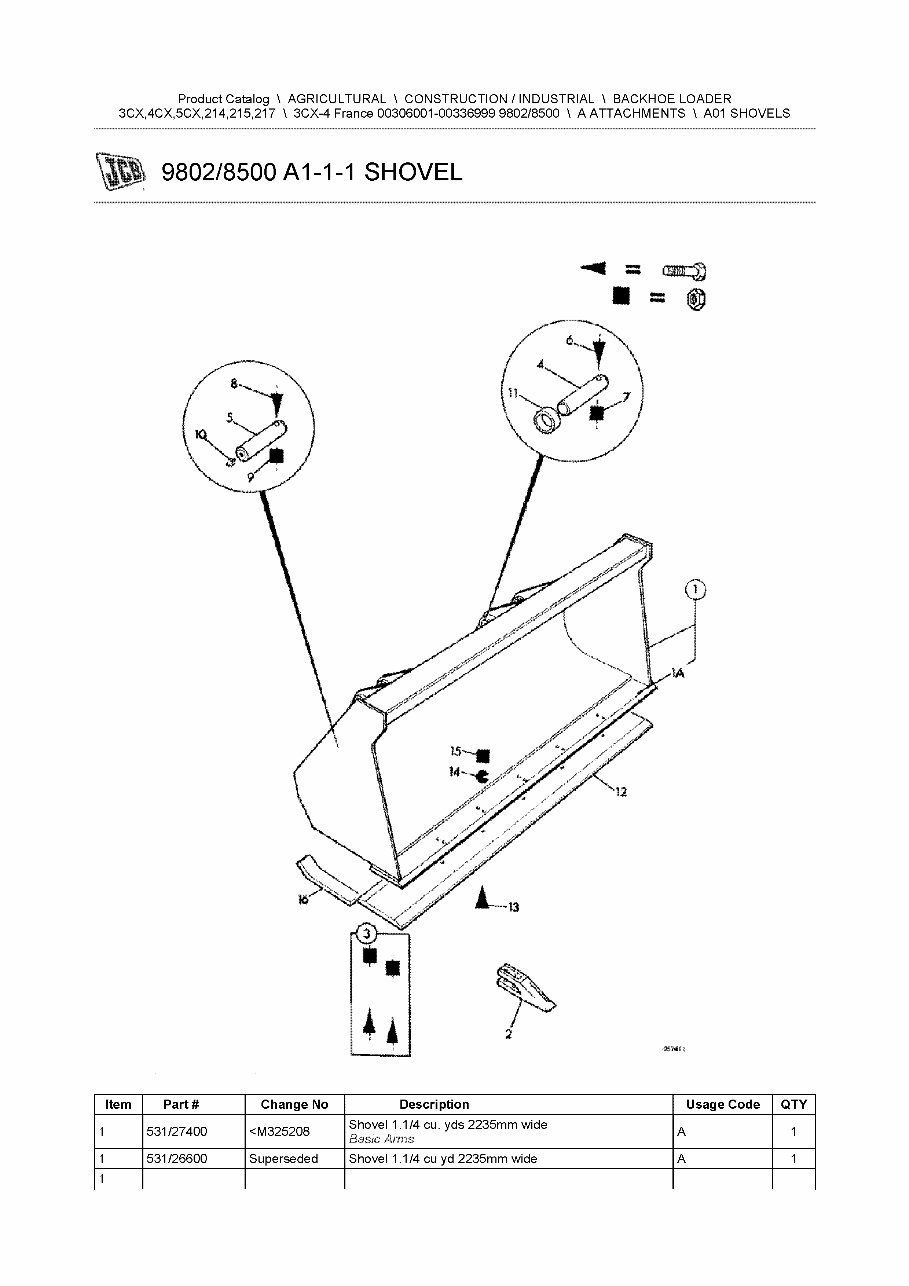

9802/8500 A 1-1-1 SHOVEL
Product Catalog \ AGRICULTURAL \ CONSTRUCTION/ INDUSTRIAL \ BACKHOE LOADER
3CX,4CX,5CX,214,215,217 \ 3CX-4France00306001-003369999802/8500 \ AATTACHMENTS \ A01 SHOVELS
Page 1 of 2 Untitled Page
1111111111111111111111111
111111111111111111111111111111111111111111111111111111111111111
NOT FOR REPRODUCTION
Page 1
http://localhost:8033/ProductCatalog/DrawingPrint.aspx?ServicePartsPagelD... 18.11.2015

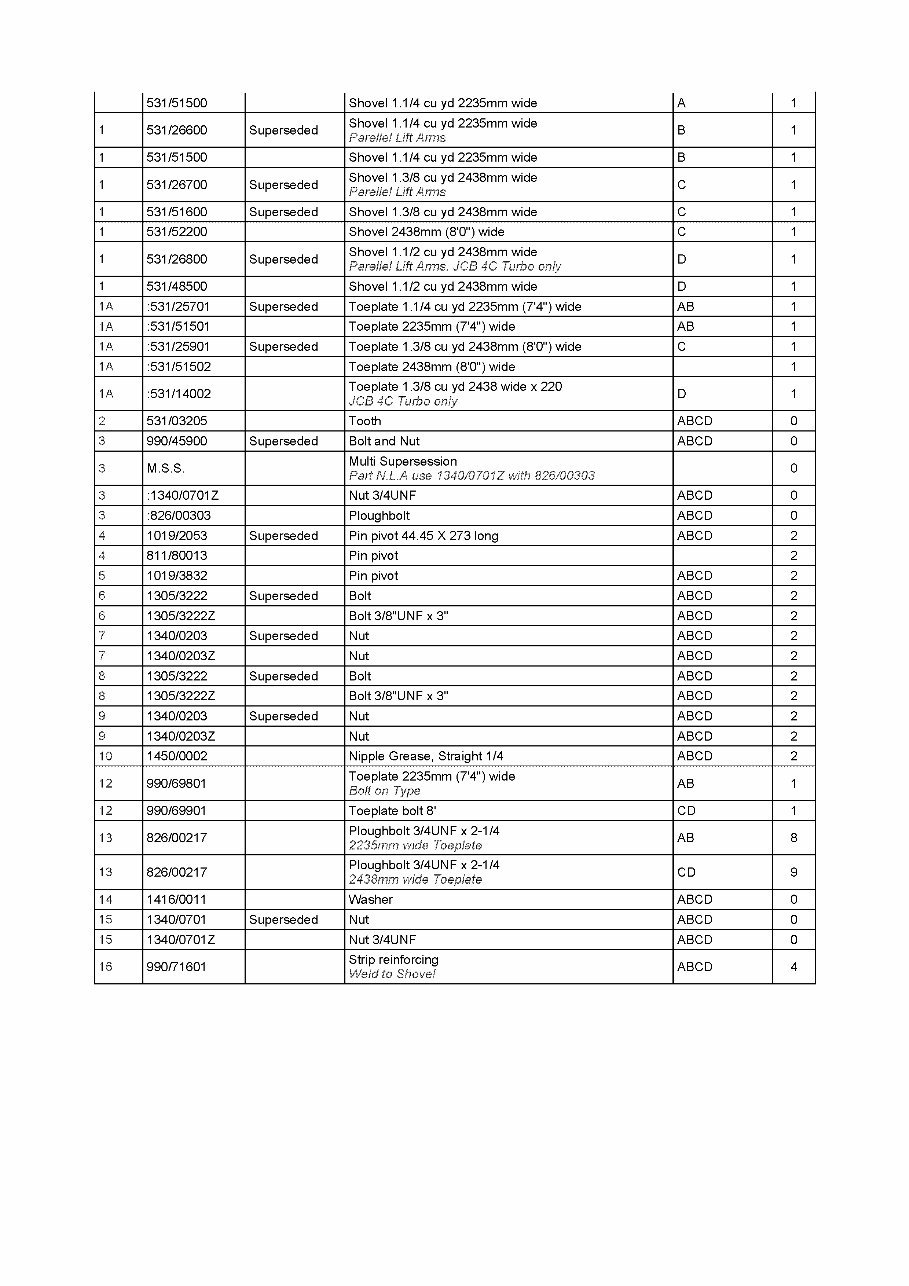

531 /51500 Shovel 1 .1 /4 cu yd 2235mm wide A 1
1 531/26600 Superseded
Shovel 1 .1 /4 cu yd 2235mm wide
B 1
Pare/le/ Lift Arms
1 531 /51500 Shovel 1 .1 /4 cu yd 2235mm wide B 1
1 531/26700 Superseded
Shovel 1 .3/8 cu yd 2438mm wide
c 1
Pare/le/ Lift Arms
1 531 /51600 Superseded Shovel 1 .3/8 cu yd 2438mm wide c 1
1 531/52200 Shovel 2438mm (8'0") wide c 1
1 531/26800 Superseded
Shovel 1 .1 /2 cu yd 2438mm wide
D 1
Pare/le/ Lift Arms. JCB 4C Turbo only
1 531/48500 Shovel 1 .1 /2 cu yd 2438mm wide D 1
1A :531/25701 Superseded Toeplate 1.1 /4 cu yd 2235mm (7'4") wide AB 1
1A :531/51501 Toeplate 2235mm (7'4") wide AB 1
1A :531/25901 Superseded Toeplate 1.3/8 cu yd 2438mm (8'0") wide c 1
1A :531/51502 Toeplate 2438mm (8'0") wide 1
1A :531/14002
Toeplate 1.3/8 cu yd 2438 wide x 220
D 1
JCB 4C Turbo only
2 531/03205 Tooth ABCD 0
3 990/45900 Superseded Bolt and Nut ABCD 0
3 M.S.S.
Multi Supersession
0
Part NLA use 1340!0701Z with 826/00303
3 : 1340/0701 Z Nut 3/4UNF ABCD 0
3 :826/00303 Ploughbolt ABCD 0
4 1019/2053 Superseded Pin pivot 44.45 X 273 long ABCD 2
4 811 /80013 Pin pivot 2
5 1019/3832 Pin pivot ABCD 2
6 1305/3222 Superseded Bolt ABCD 2
6 1305/3222Z Bolt 3/8"UNF x 3" ABCD 2
7 1340/0203 Superseded Nut ABCD 2
7 1340/0203Z Nut ABCD 2
8 1305/3222 Superseded Bolt ABCD 2
8 1305/3222Z Bolt 3/8"UNF x 3" ABCD 2
9 1340/0203 Superseded Nut ABCD 2
9 1340/0203Z Nut ABCD 2
10 1450/0002 Nipple Grease, Straight 1/4 ABCD 2
12 990/69801
Toeplate 2235mm (7'4") wide
AB 1
Bolton Type
12 990/69901 Toeplate bolt 8' CD 1
13 826/00217
Ploughbolt 3/4UNF x 2-1/4
AB 8
2235mm wide Toeplate
13 826/00217
Ploughbolt 3/4UNF x 2-1/4
CD 9
2438mm wide Toeplate
14 1416/0011 Washer ABCD 0
15 1340/0701 Superseded Nut ABCD 0
15 1340/0701 Z Nut 3/4UNF ABCD 0
16 990/71601
Strip reinforcing
ABCD 4
Weld to Shovel
Page 2 of 2 Untitled Page
1111111111111111111111111
111111111111111111111111111111111111111111111111111111111111111
NOT FOR REPRODUCTION
Page 2
http://localhost:8033/ProductCatalog/DrawingPrint.aspx?ServicePartsPagelD... 18.11.2015
13:..-,,
3

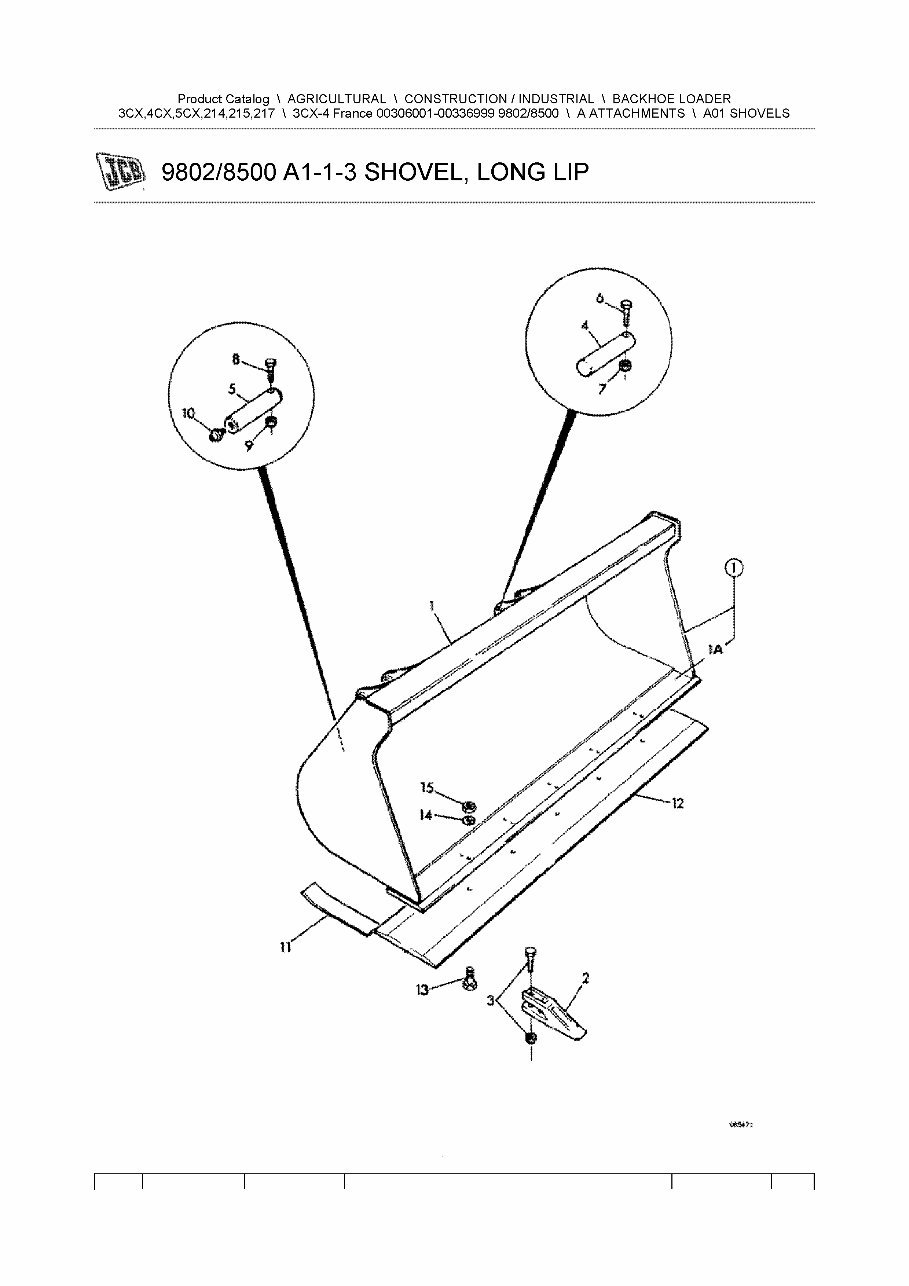

9802/8500 A1-1-3 SHOVEL, LONG LIP
Product Catalog \ AGRICULTURAL \ CONSTRUCTION/ INDUSTRIAL \ BACKHOE LOADER
3CX,4CX,5CX,214,215,217 \ 3CX-4 France 00306001-00336999 9802/8500 \ A ATTACHMENTS \ A01 SHOVELS
Page 1 of 2 Untitled Page
1111111111111111111111111
111111111111111111111111111111111111111111111111111111111111111
NOT FOR REPRODUCTION
Page 3
http://localhost:8033/ProductCatalog/DrawingPrint.aspx?ServicePartsPagelD... 18.11.2015

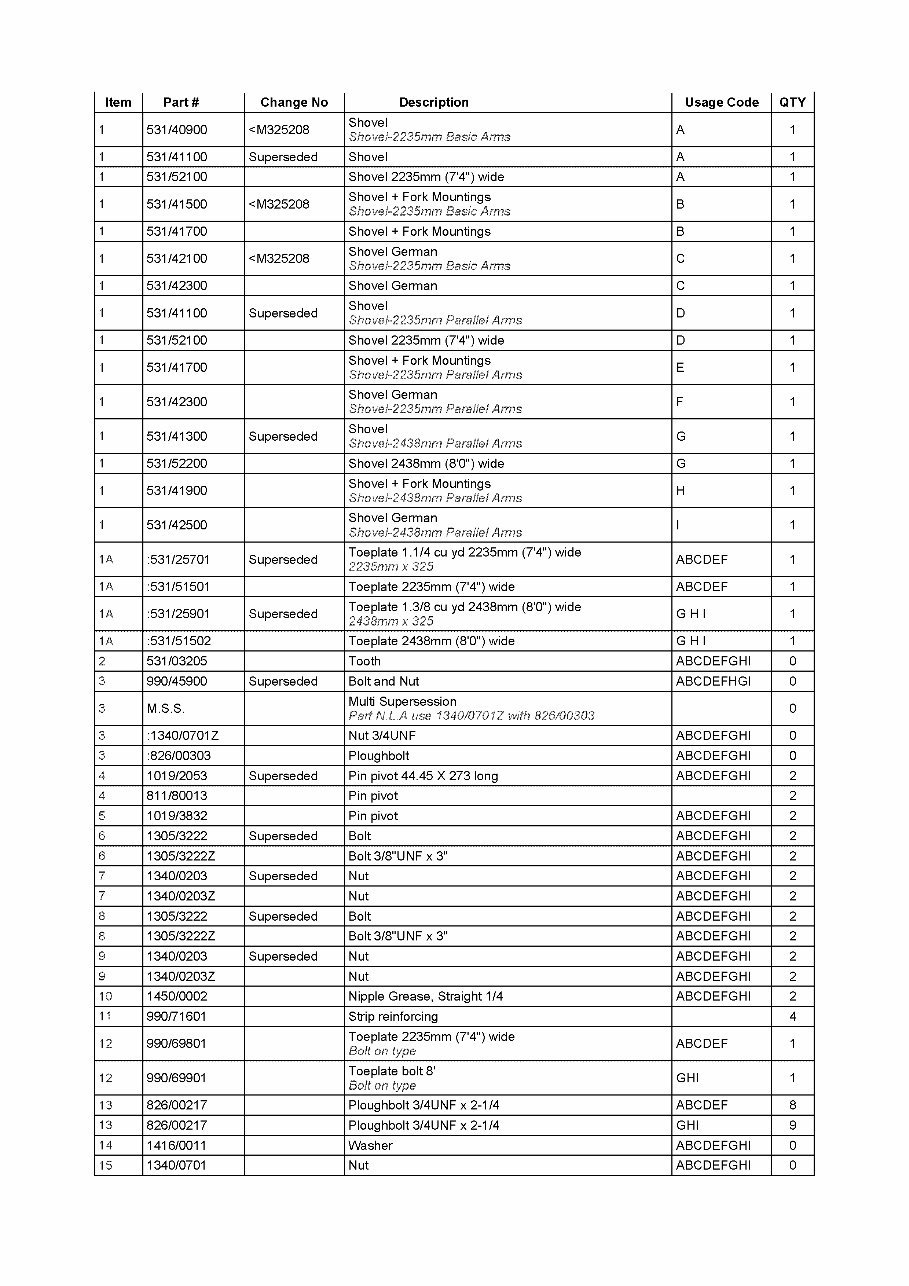

Item Part# Change No Description Usage Code QTY
1 531/40900 <M325208
Shovel
A 1
Shovel-2235mm Basic Anns
1 531/41100 Superseded Shovel A 1
1 531/52100 Shovel 2235mm (7'4") wide A 1
1 531 /41500 <M325208
Shovel + Fork Mountings
B 1
Shovel-2235mm Basic Arms
1 531 /41700 Shovel + Fork Mountings B 1
1 531/42100 <M325208
Shovel German
c 1
Shovel-2235mm Basic Anns
1 531/42300 Shovel German c 1
1 531/41100 Superseded
Shovel
D 1
Shovel-2235mm Parallel Arms
1 531/52100 Shovel 2235mm (7'4") wide D 1
1 531 /41700
Shovel + Fork Mountings
E 1
Shovel-2235mm Parallel Anns
1 531/42300
Shovel German
F 1
Shovel-2235mm Parallel Arms
1 531 /41300 Superseded
Shovel
G 1
Shovel-2438mm Parallel Arms
1 531/52200 Shovel 2438mm (8'0") wide G 1
1 531 /41900
Shovel + Fork Mountings
H 1
Shovel-2438mm Parallel Anns
1 531/42500
Shovel German
I 1
Shovel-2438mm Parallel Anns
1A :531/25701 Superseded
Toeplate 1.1 /4 cu yd 2235mm (7'4") wide
ABC DEF 1
2235mmx 325
1A :531/51501 Toeplate 2235mm (7'4") wide ABC DEF 1
1A :531/25901 Superseded
Toeplate 1.3/8 cu yd 2438mm (8'0") wide
G HI 1
2438mmx 325
1A :531/51502 Toeplate 2438mm (8'0") wide G HI 1
2 531/03205 Tooth ABCDEFGHI 0
3 990/45900 Superseded Bolt and Nut ABCDEFHGI 0
3 M.S.S.
Multi Supersession
0
Part NLA use 1340!0701Z with 826/00303
3 : 1340/0701 Z Nut 3/4UNF ABCDEFGHI 0
3 :826/00303 Ploughbolt ABCDEFGHI 0
4 1019/2053 Superseded Pin pivot 44.45 X 273 long ABCDEFGHI 2
4 811 /80013 Pin pivot 2
5 1019/3832 Pin pivot ABCDEFGHI 2
6 1305/3222 Superseded Bolt ABCDEFGHI 2
6 1305/3222Z Bolt 3/8"UNF x 3" ABCDEFGHI 2
7 1340/0203 Superseded Nut ABCDEFGHI 2
7 1340/0203Z Nut ABCDEFGHI 2
8 1305/3222 Superseded Bolt ABCDEFGHI 2
8 1305/3222Z Bolt 3/8"UNF x 3" ABCDEFGHI 2
9 1340/0203 Superseded Nut ABCDEFGHI 2
9 1340/0203Z Nut ABCDEFGHI 2
10 1450/0002 Nipple Grease, Straight 1/4 ABCDEFGHI 2
11 990/71601 Strip reinforcing 4
12 990/69801
Toeplate 2235mm (7'4") wide
ABC DEF 1
Bolt on type
12 990/69901
Toeplate bolt 8'
GHI 1
Bolt on type
13 826/00217 Ploughbolt 3/4UNF x 2-1/4 ABC DEF 8
13 826/00217 Ploughbolt 3/4UNF x 2-1/4 GHI 9
14 1416/0011 Washer ABCDEFGHI 0
15 1340/0701 Nut ABCDEFGHI 0
Page 2 of 2 Untitled Page
1111111111111111111111111
111111111111111111111111111111111111111111111111111111111111111
NOT FOR REPRODUCTION
Page 4
http://localhost:8033/ProductCatalog/DrawingPrint.aspx?ServicePartsPagelD... 18.11.2015
3

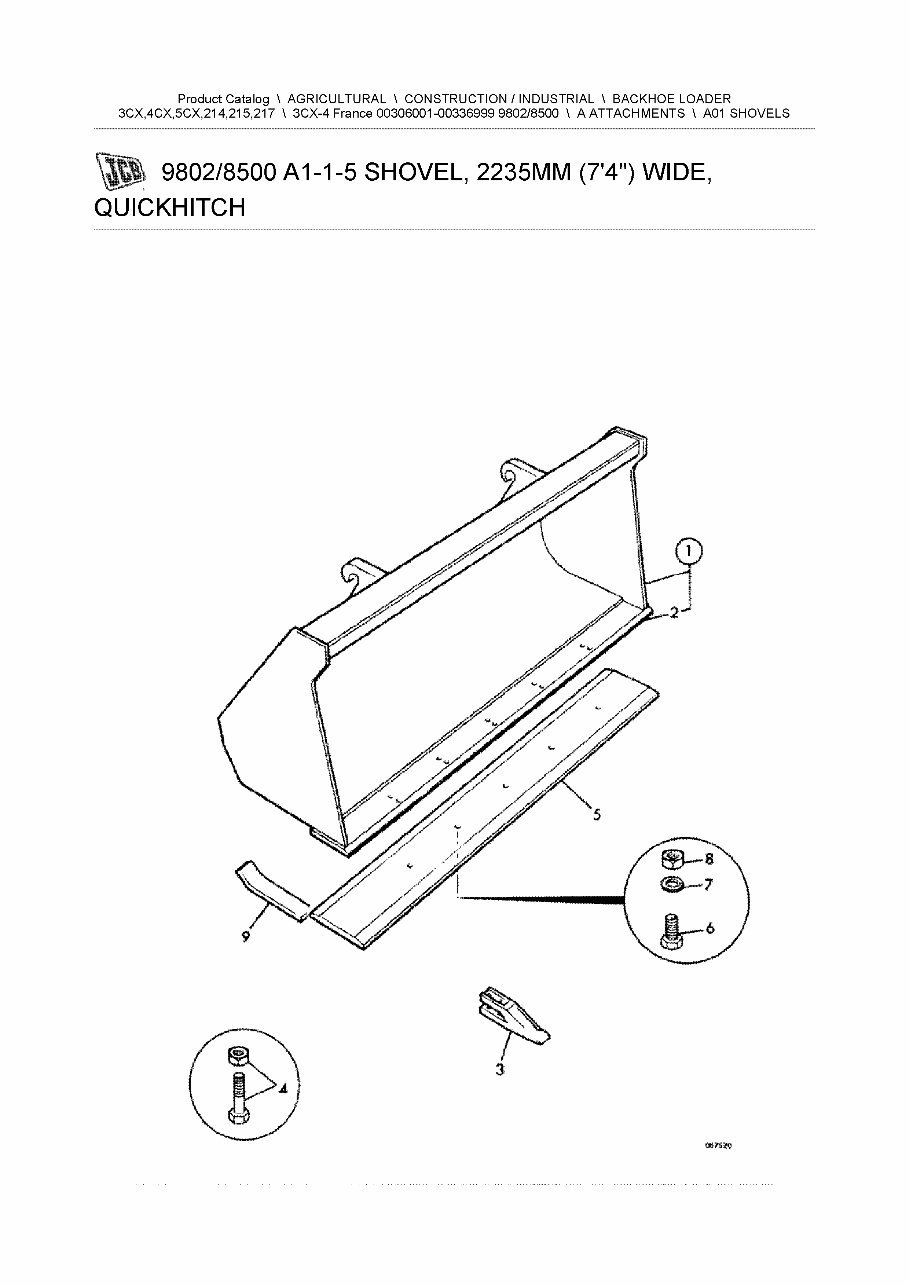

9802/8500 A1-1-5 SHOVEL, 2235MM (7'4") WIDE,
QUICKHITCH
Product Catalog \ AGRICULTURAL \ CONSTRUCTION/ INDUSTRIAL \ BACKHOE LOADER
3CX,4CX,5CX,214,215,217 \ 3CX-4 France 00306001-00336999 9802/8500 \ A ATTACHMENTS \ A01 SHOVELS
Page 1 of 2 Untitled Page
1111111111111111111111111
111111111111111111111111111111111111111111111111111111111111111
NOT FOR REPRODUCTION
Page 5
http://localhost:8033/ProductCatalog/DrawingPrint.aspx?ServicePartsPagelD... 18.11.2015

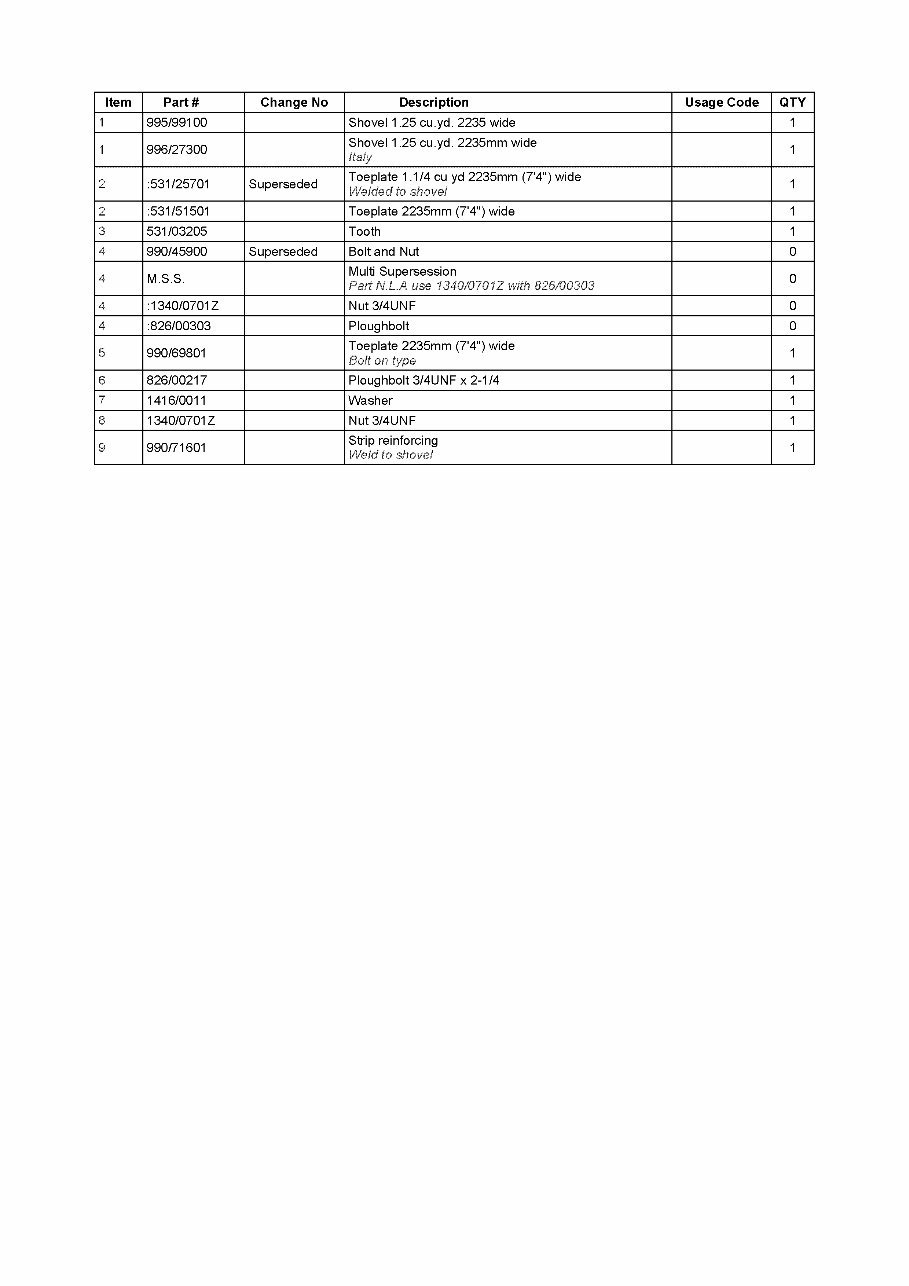

Item Part# Change No Description Usage Code QTY
1 995/99100 Shovel 1.25 cu.yd. 2235 wide 1
1 996/27300
Shovel 1.25 cu.yd. 2235mm wide
1
Italy
2 :531/25701 Superseded
Toeplate 1.1 /4 cu yd 2235mm (7'4") wide
1
Welded to shovel
2 :531/51501 Toeplate 2235mm (7'4") wide 1
3 531/03205 Tooth 1
4 990/45900 Superseded Bolt and Nut 0
4 M.S.S.
Multi Supersession
0
Patt NLA use 1340/07012 with 826/00303
4 : 1340/0701 Z Nut 3/4UNF 0
4 :826/00303 Ploughbolt 0
5 990/69801
Toeplate 2235mm (7'4") wide
1
Bolt on type
6 826/00217 Ploughbolt 3/4UNF x 2-1/4 1
7 1416/0011 Washer 1
8 1340/0701 Z Nut 3/4UNF 1
9 990/71601
Strip reinforcing
1
Weld to shovel
Page 2 of 2 Untitled Page
1111111111111111111111111
111111111111111111111111111111111111111111111111111111111111111
NOT FOR REPRODUCTION
Page 6
http://localhost:8033/ProductCatalog/DrawingPrint.aspx?ServicePartsPagelD... 18.11.2015
Item Part# Change No Description Usage Code QTY
1 531/25400 Superseded
Shovel clam 1.1 cu. yd.
1
NSP. Standard
.rrr
5
...... = ~
• = ®

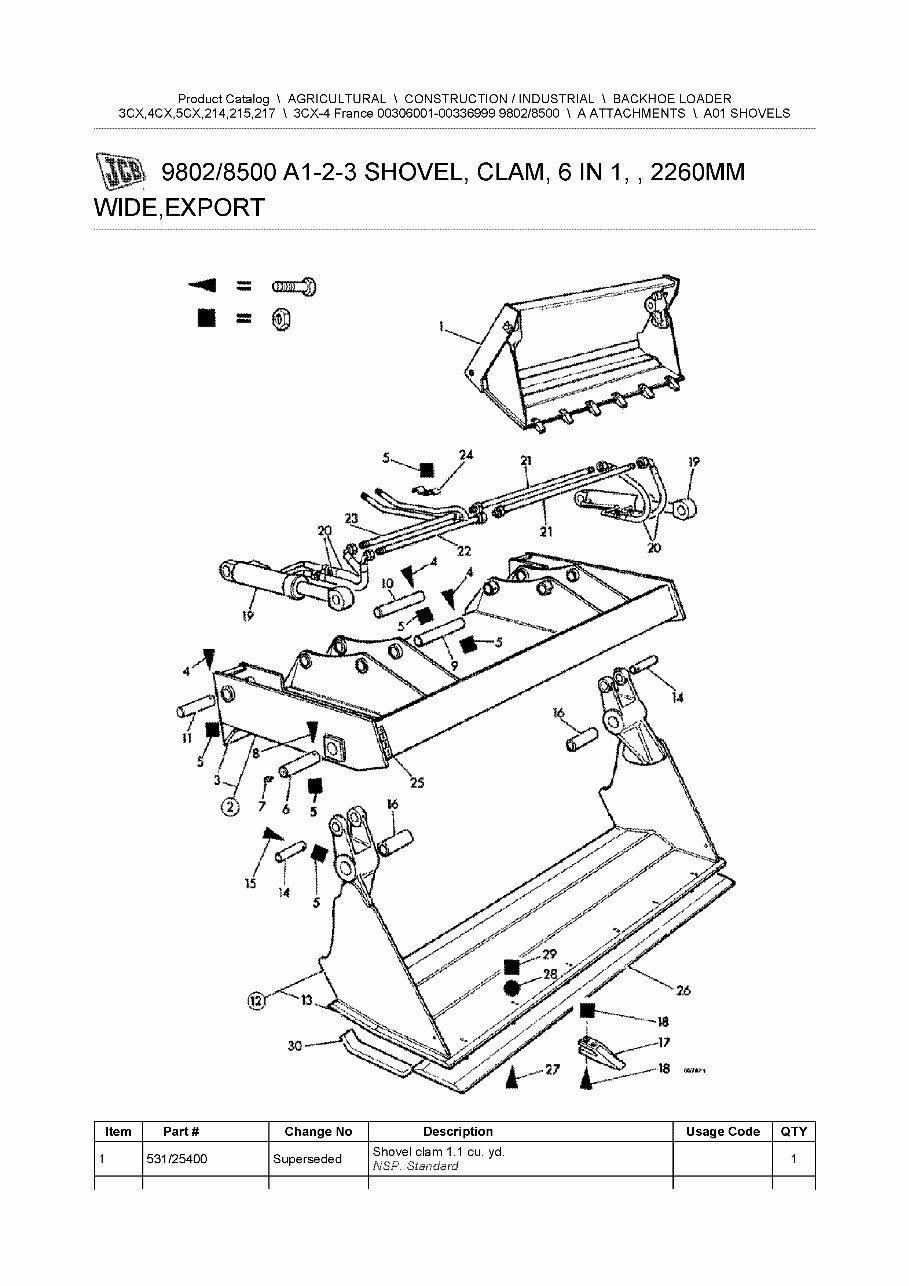

9802/8500A1-2-3 SHOVEL, CLAM, 6 IN 1,, 2260MM
WIDE,EXPORT
Product Catalog \ AGRICULTURAL \ CONSTRUCTION/ INDUSTRIAL \ BACKHOE LOADER
3CX,4CX,5CX,214,215,217 \ 3CX-4France00306001-003369999802/8500 \ AATTACHMENTS \ A01 SHOVELS
Page 1 of 2 Untitled Page
1111111111111111111111111
111111111111111111111111111111111111111111111111111111111111111
NOT FOR REPRODUCTION
Page 7
http://localhost:8033/ProductCatalog/DrawingPrint.aspx?ServicePartsPagelD... 18.11.2015

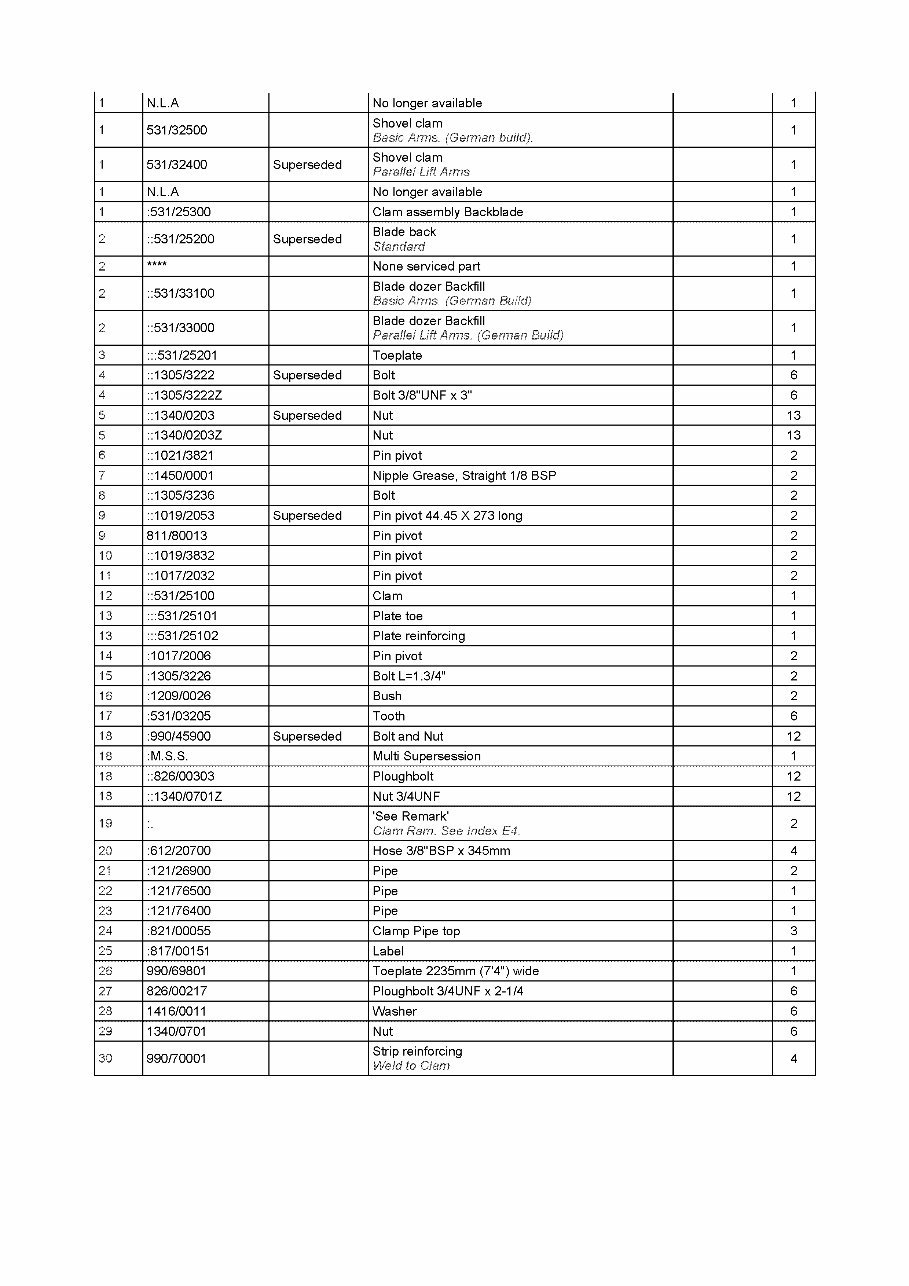

1 N.L.A No longer available 1
1 531/32500
Shovel clam
1
Basic Arms. (German build).
1 531/32400 Superseded
Shovel clam
1
Parallel Lift Arms
1 N.L.A No longer available 1
1 :531/25300 Clam assembly Backblade 1
2 ::531/25200 Superseded
Blade back
1
Standard
2 **** None serviced part 1
2 ::531/33100
Blade dozer Backfill
1
Basic Arms. (German Build)
2 ::531/33000
Blade dozer Backfill
1
Parallel Lift Arms. (German Build)
3 :::531/25201 Toe plate 1
4 : : 1305/3222 Superseded Bolt 6
4 : : 1305/3222Z Bolt 3/8"UNF x 3" 6
5 : : 1340/0203 Superseded Nut 13
5 : : 1340/0203Z Nut 13
6 : : 1021 /3821 Pin pivot 2
7 : : 1450/0001 Nipple Grease, Straight 1/8 BSP 2
8 : : 1305/3236 Bolt 2
9 ::1019/2053 Superseded Pin pivot 44.45 X 273 long 2
9 811 /80013 Pin pivot 2
10 ::1019/3832 Pin pivot 2
11 ::1017/2032 Pin pivot 2
12 ::531/25100 Clam 1
13 : : :531 /25101 Plate toe 1
13 :::531/25102 Plate reinforcing 1
14 :1017/2006 Pin pivot 2
15 :1305/3226 Bolt L=1 .3/4" 2
16 :1209/0026 Bush 2
17 :531/03205 Tooth 6
18 :990/45900 Superseded Bolt and Nut 12
18 :M.S.S. Multi Supersession 1
18 ::826/00303 Ploughbolt 12
18 : : 1340/0701 Z Nut 3/4UNF 12
19
'See Remark'
2 ..
Clam Ram. See Index E4 .
20 :612/20700 Hose 3/8"BSP x 345mm 4
21 :121/26900 Pipe 2
22 :121/76500 Pipe 1
23 :121/76400 Pipe 1
24 :821/00055 Clamp Pipe top 3
25 :817/00151 Label 1
26 990/69801 Toeplate 2235mm (7'4") wide 1
27 826/00217 Ploughbolt 3/4UNF x 2-1/4 6
28 1416/0011 Washer 6
29 1340/0701 Nut 6
30 990/70001
Strip reinforcing
4
Weld to Clam
Page 2 of 2 Untitled Page
1111111111111111111111111
111111111111111111111111111111111111111111111111111111111111111
NOT FOR REPRODUCTION
Page 8
http://localhost:8033/ProductCatalog/DrawingPrint.aspx?ServicePartsPagelD... 18.11.2015

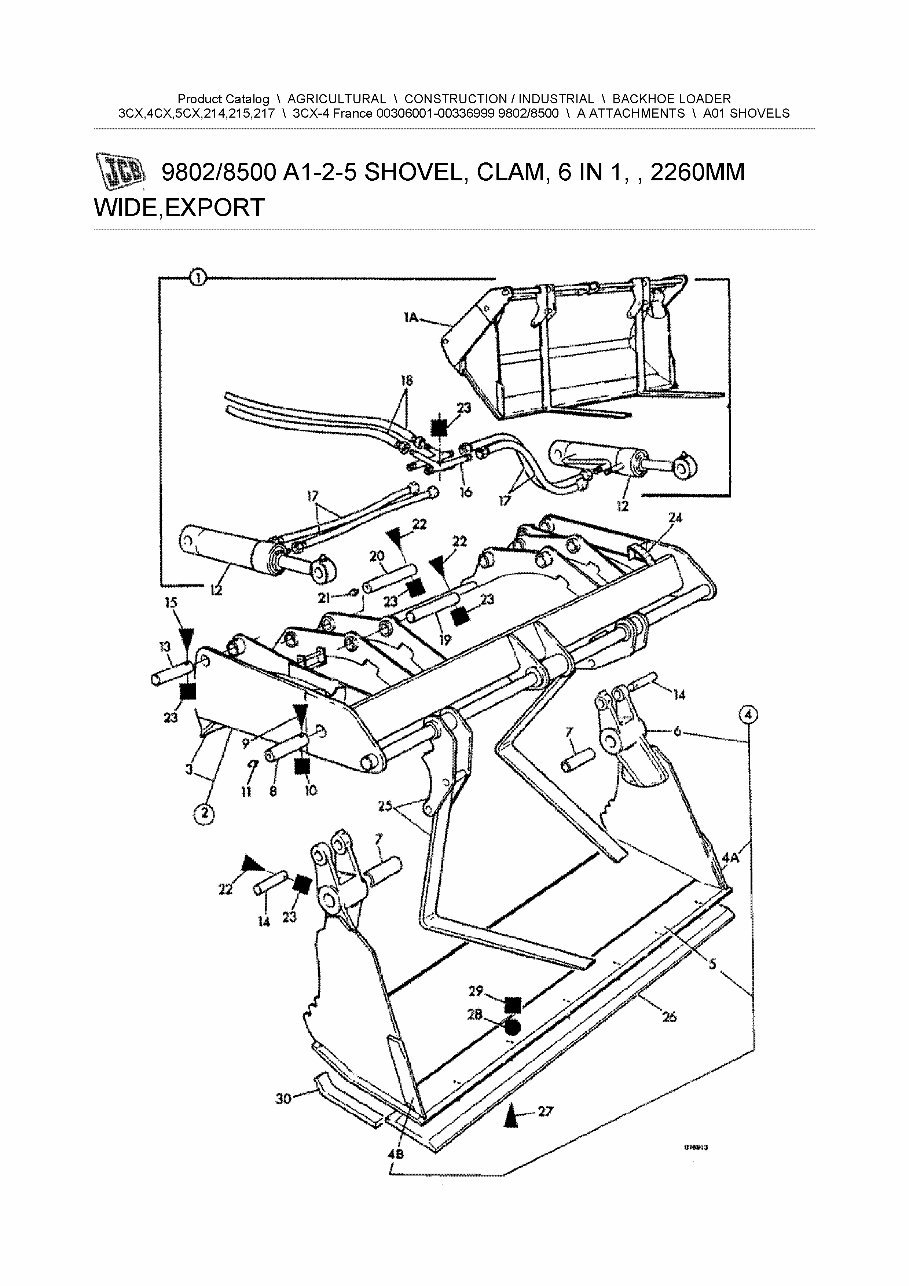

9802/8500A1-2-5 SHOVEL, CLAM, 6 IN 1,, 2260MM
WIDE,EXPORT
Product Catalog \ AGRICULTURAL \ CONSTRUCTION/ INDUSTRIAL \ BACKHOE LOADER
3CX,4CX,5CX,214,215,217 \ 3CX-4 France 00306001-00336999 9802/8500 \ A ATTACHMENTS \ A01 SHOVELS
Page 1 of 3 Untitled Page
1111111111111111111111111
111111111111111111111111111111111111111111111111111111111111111
NOT FOR REPRODUCTION
Page 9
You're Reading a Preview
What's Included?
Lifetime Access
Fast Download Speeds
Online & Offline Access
Access PDF Contents & Bookmarks
Full Search Facility
Print one or all pages of your manual
$61.99
JCB 3CX-4 Backhoe Loader (SN 00306001-00336999) Parts Catalog
Viewed 93 Times Today
What's Included?
Lifetime Access
Fast Download Speeds
Online & Offline Access
Access PDF Contents & Bookmarks
Full Search Facility
Print one or all pages of your manual
$61.99
Secure transaction
What's Included?
Lifetime Access
Fast Download Speeds
Online & Offline Access
Access PDF Contents & Bookmarks
Full Search Facility
Print one or all pages of your manual
Description
JCB 3CX-4 Backhoe Loader (SN 00306001-00336999) Parts Catalog
For machines with serial numbers 00306001-00336999.
PAGES: 799.
This parts catalog is essential for identifying the original spare part numbers for your machine. It enables easy ordering and purchasing of the required spare parts.
This catalog includes parts used for all machines with matching machine numbers corresponding to the serial numbers listed in this directory.
The manual features bookmarks, searchable text, and improved quality for seamless navigation.
*INSTANT - NO WAITING
*LANGUAGE: English
*FORMAT: .PDF
*COMPATIBLE: All Versions of Windows, Mac, iOS, BB, Android, etc
*SEARCHABLE - BOOKMARKED
This catalogue is divided into main sections corresponding to specific areas of the product. Each section is represented by detailed figures, diagrams, and part numbers to assist in locating and identifying parts.
Keep in mind that this is NOT a service/repair manual, only a parts catalog!
Categorized into groups such as:
- Engine
- Wheels
- Fuel System
- and MUCH MORE
The searchable design makes finding what you need as simple as typing a word. The manual can be viewed on any computer and allows for both zooming and printing.
Additional Information:
Documents may require the newest version of Acrobat Reader to display correctly. If you experience any issues while reading your document, please try upgrading to the latest version of Adobe Acrobat Reader.
I have thousands of manuals – email me about any you might need.
