JCB 3CX-4 AUSTRALIA BACKHOE Loader Parts Catalog Manual (SER. NUMBER 0033700-00399999) #1
What's Included?
Lifetime Access
Fast Download Speeds
Online & Offline Access
Access PDF Contents & Bookmarks
Full Search Facility
Print one or all pages of your manual
http://localhost:8033/ProductCatalog/DrawingPrint.aspx?ServicePartsPagelD... 05.10.2015
3
9802/8550 A1-1-5 SHOVEL, 2235MM (7'4") WIDE,
QUICKHITCH
Product Catalog \ AGRICULTURAL \ CONSTRUCTION/ INDUSTRIAL \ BACKHOE LOADER
3CX,4CX,5CX,214,215,217 \ .3CX-4 S'master 00337000-00399999 9802/8550 \ A ATTACHMENTS L \ A01 SHOVELS
Page 1 of 2 Untitled Page
1111111111111111111111111
111111111111111111111111111111111111111111111111111111111111111
1111111111111111111111111
111111111111111111111111111111111111111111111111111111111111111
NOT FOR REPRODUCTION
Page 1
http://localhost:8033/ProductCatalog/DrawingPrint.aspx?ServicePartsPagelD... 05.10.2015

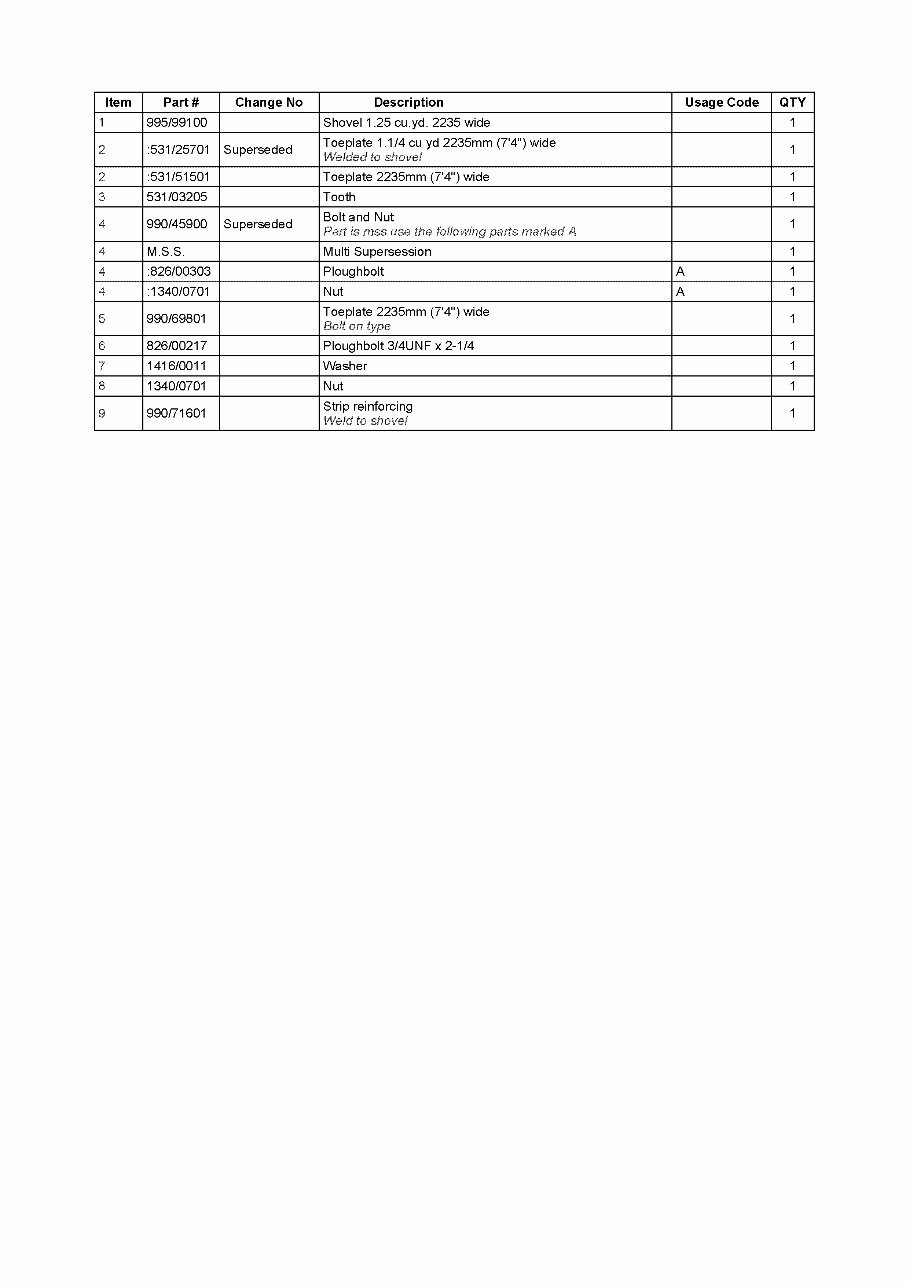

Item Part# Change No Description Usage Code QTY
1 995/99100 Shovel 1.25 cu.yd. 2235 wide 1
2 :531/25701 Superseded
Toeplate 1.1 /4 cu yd 2235mm (7'4") wide
1
Welded to shovel
2 :531/51501 Toeplate 2235mm (7'4") wide 1
3 531/03205 Tooth 1
4 990/45900 Superseded
Bolt and Nut
1
Part is mss use the following parts marked A
4 M.S.S. Multi Supersession 1
4 :826/00303 Ploughbolt A 1
4 :1340/0701 Nut A 1
5 990/69801
Toeplate 2235mm (7'4") wide
1
Bolt on type
6 826/00217 Ploughbolt 3/4UNF x 2-1/4 1
7 1416/0011 Washer 1
8 1340/0701 Nut 1
9 990/71601
Strip reinforcing
1
Weld to shovel
Page 2 of 2 Untitled Page
1111111111111111111111111
111111111111111111111111111111111111111111111111111111111111111
1111111111111111111111111
111111111111111111111111111111111111111111111111111111111111111
NOT FOR REPRODUCTION
Page 2
http://localhost:8033/ProductCatalog/DrawingPrint.aspx?ServicePartsPagelD... 05.10.2015
3
9802/8550 A1-1-14 SHOVEL, 2235MM (7'4") WIDE,
QUICKHITCH
Product Catalog \ AGRICULTURAL \ CONSTRUCTION/ INDUSTRIAL \ BACKHOE LOADER
3CX,4CX,5CX,214,215,217 \ .3CX-4 S'master 00337000-00399999 9802/8550 \ A ATTACHMENTS L \ A01 SHOVELS
Page 1 of 2 Untitled Page
1111111111111111111111111
111111111111111111111111111111111111111111111111111111111111111
1111111111111111111111111
111111111111111111111111111111111111111111111111111111111111111
NOT FOR REPRODUCTION
Page 3
http://localhost:8033/ProductCatalog/DrawingPrint.aspx?ServicePartsPagelD... 05.10.2015

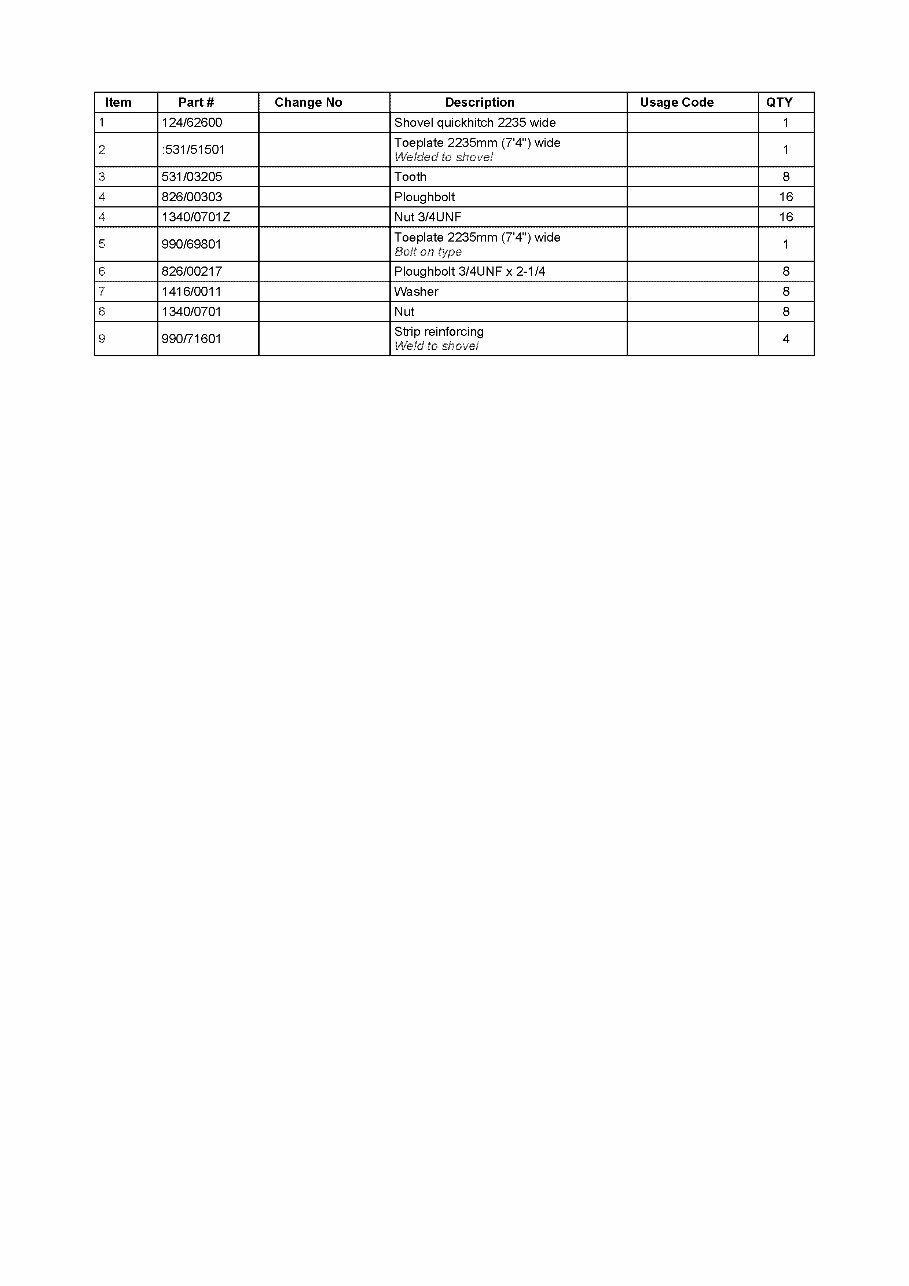

Item Part# Change No Description Usage Code QTY
1 124/62600 Shovel quickhitch 2235 wide 1
2 :531/51501
Toeplate 2235mm (7'4") wide
1
Welded to shovel
3 531/03205 Tooth 8
4 826/00303 Ploughbolt 16
4 1340/0701 Z Nut 3/4UNF 16
5 990/69801
Toeplate 2235mm (7'4") wide
1
Bolt on type
6 826/00217 Ploughbolt 3/4UNF x 2-1/4 8
7 1416/0011 Washer 8
8 1340/0701 Nut 8
9 990/71601
Strip reinforcing
4
Weld to shovel
Page 2 of 2 Untitled Page
1111111111111111111111111
111111111111111111111111111111111111111111111111111111111111111
1111111111111111111111111
111111111111111111111111111111111111111111111111111111111111111
NOT FOR REPRODUCTION
Page 4
http://localhost:8033/ProductCatalog/DrawingPrint.aspx?ServicePartsPagelD... 05.10.2015
3

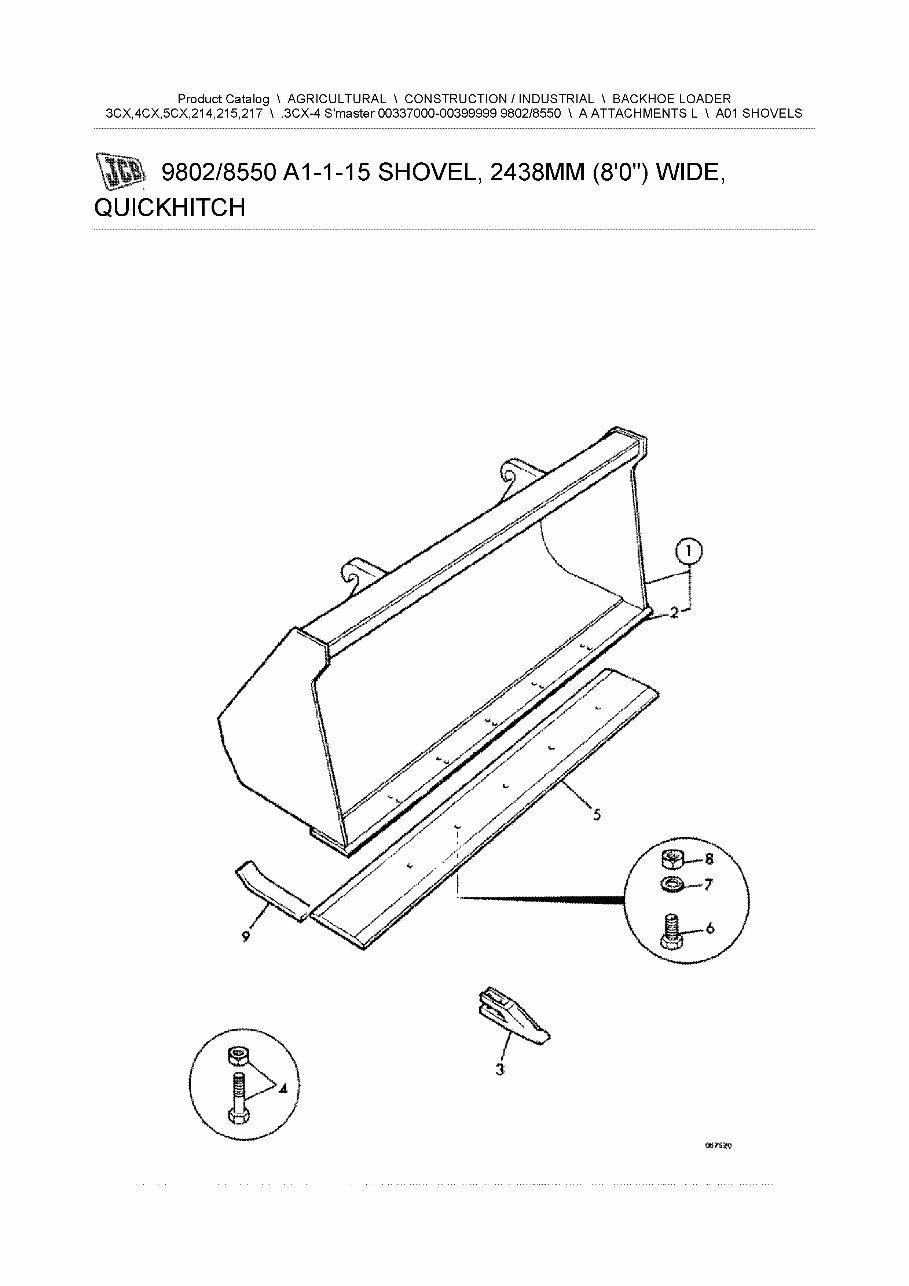

9802/8550 A1-1-15 SHOVEL, 2438MM (8'0") WIDE,
QUICKHITCH
Product Catalog \ AGRICULTURAL \ CONSTRUCTION/ INDUSTRIAL \ BACKHOE LOADER
3CX,4CX,5CX,214,215,217 \ .3CX-4 S'master 00337000-00399999 9802/8550 \ A ATTACHMENTS L \ A01 SHOVELS
Page 1 of 2 Untitled Page
1111111111111111111111111
111111111111111111111111111111111111111111111111111111111111111
1111111111111111111111111
111111111111111111111111111111111111111111111111111111111111111
NOT FOR REPRODUCTION
Page 5
http://localhost:8033/ProductCatalog/DrawingPrint.aspx?ServicePartsPagelD... 05.10.2015

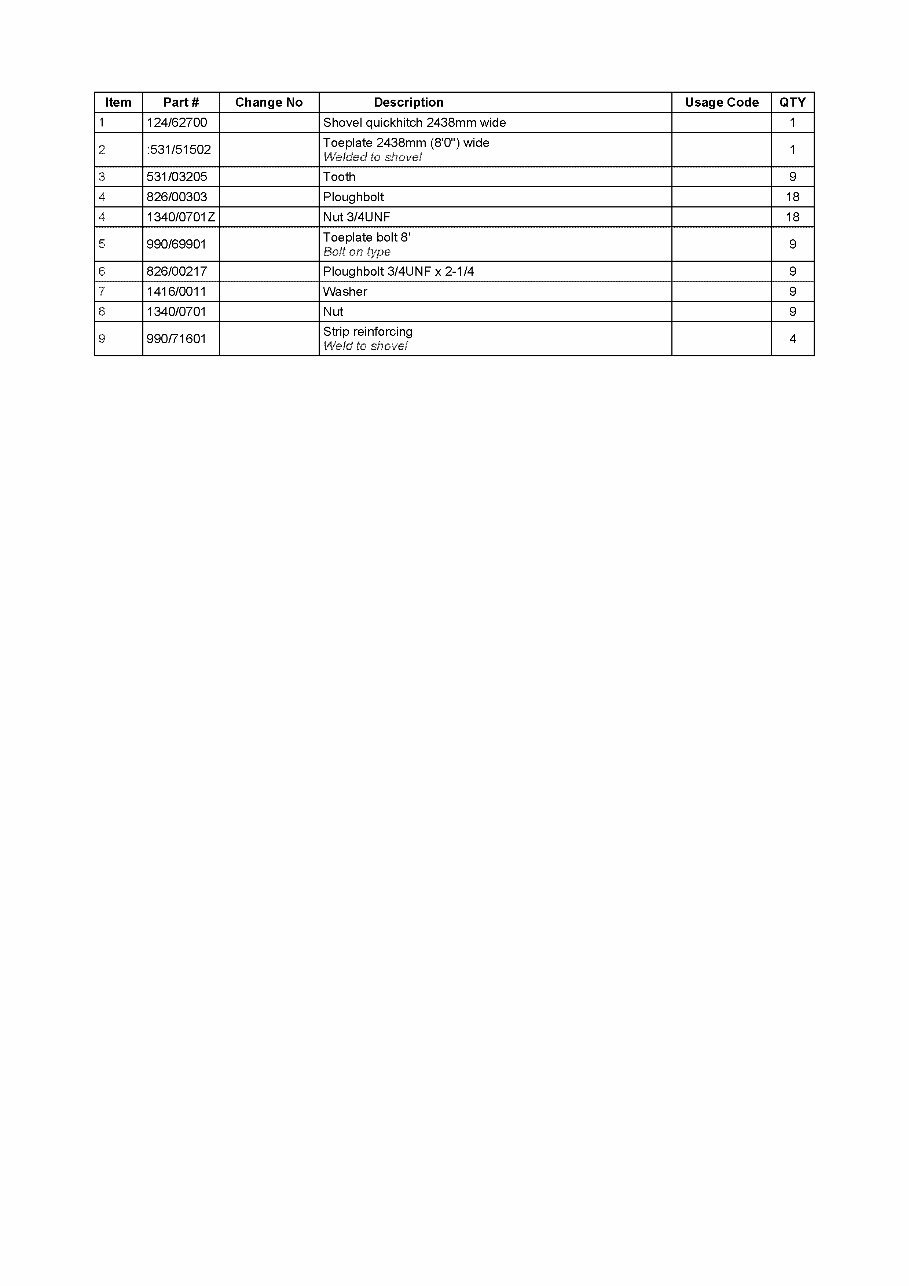

Item Part# Change No Description Usage Code QTY
1 124/62700 Shovel quickhitch 2438mm wide 1
2 :531/51502
Toeplate 2438mm (8'0") wide
1
Welded to shovel
3 531/03205 Tooth 9
4 826/00303 Ploughbolt 18
4 1340/0701 Z Nut 3/4UNF 18
5 990/69901
Toeplate bolt 8'
9
Bolt on type
6 826/00217 Ploughbolt 3/4UNF x 2-1/4 9
7 1416/0011 Washer 9
8 1340/0701 Nut 9
9 990/71601
Strip reinforcing
4
Weld to shovel
Page 2 of 2 Untitled Page
1111111111111111111111111
111111111111111111111111111111111111111111111111111111111111111
1111111111111111111111111
111111111111111111111111111111111111111111111111111111111111111
NOT FOR REPRODUCTION
Page 6
http://localhost:8033/ProductCatalog/DrawingPrint.aspx?ServicePartsPagelD... 05.10.2015
WIDE

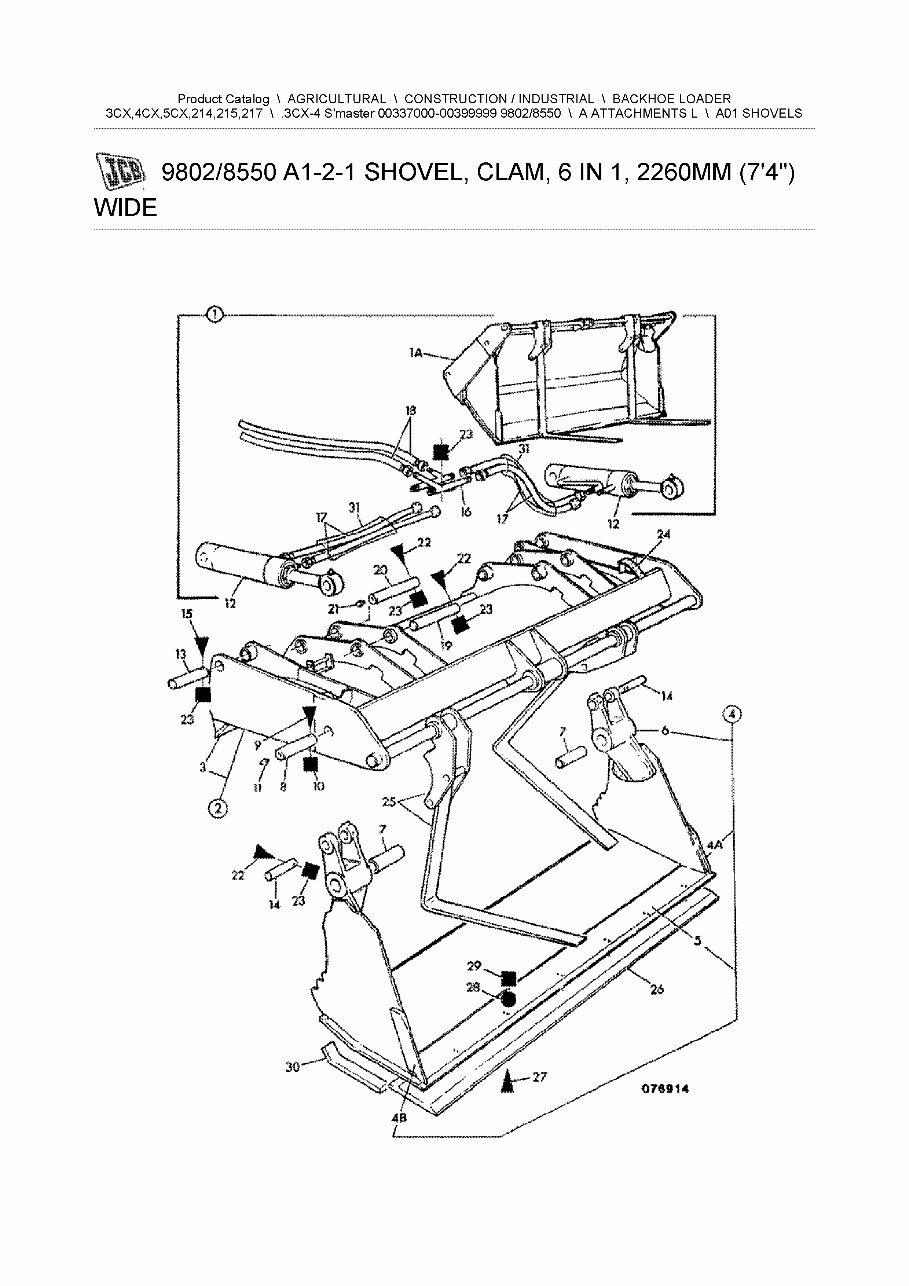

9802/8550 A1-2-1 SHOVEL, CLAM, 6 IN 1, 2260MM (7'4")
Product Catalog \ AGRICULTURAL \ CONSTRUCTION/ INDUSTRIAL \ BACKHOE LOADER
3CX,4CX,5CX,214,215,217 \ .3CX-4 S'master 00337000-00399999 9802/8550 \ A ATTACHMENTS L \ A01 SHOVELS
Page 1 of 3 Untitled Page
1111111111111111111111111
111111111111111111111111111111111111111111111111111111111111111
1111111111111111111111111
111111111111111111111111111111111111111111111111111111111111111
NOT FOR REPRODUCTION
Page 7
http://localhost:8033/ProductCatalog/DrawingPrint.aspx?ServicePartsPagelD... 05.10.2015

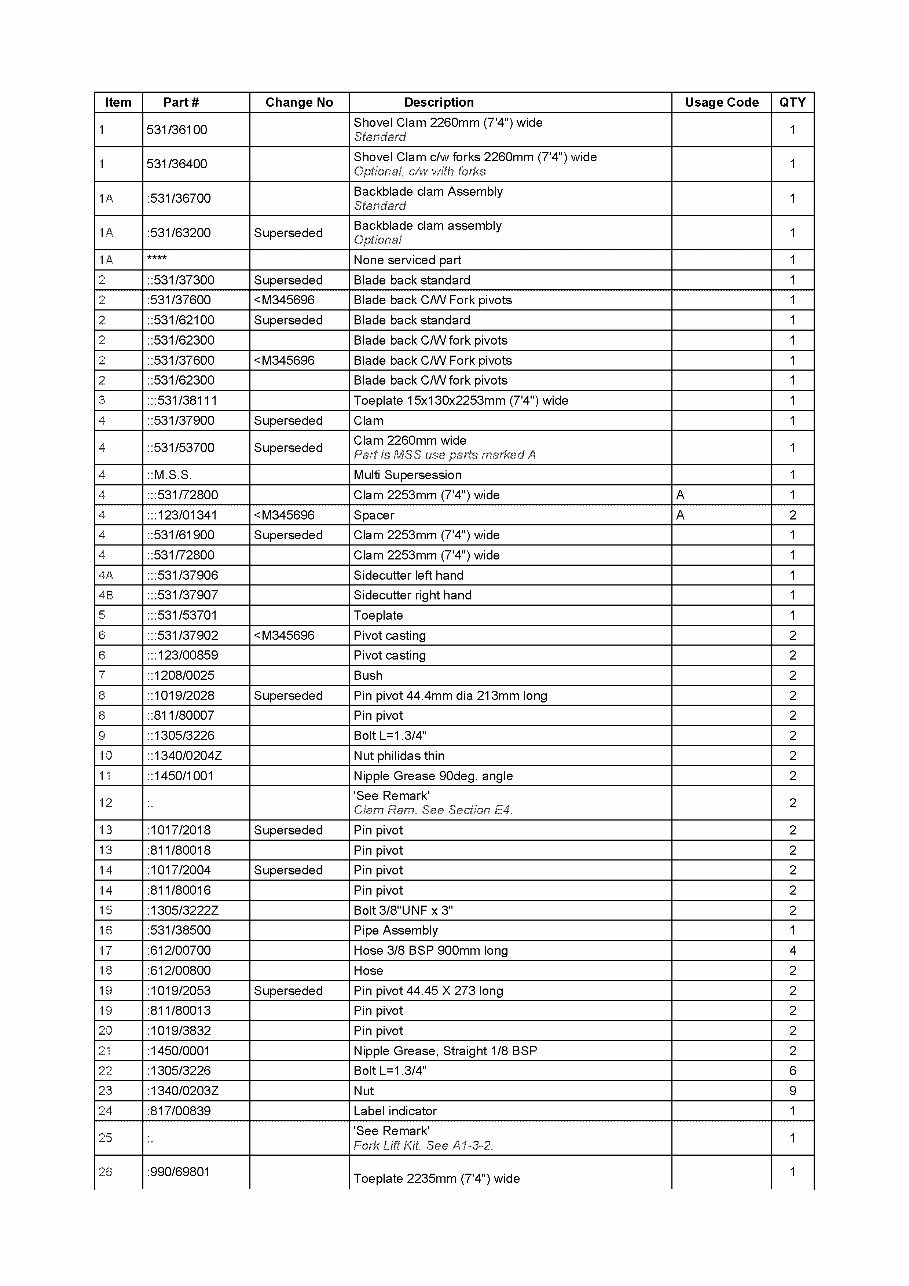

Item Part# Change No Description Usage Code QTY
1 531/36100
Shovel Clam 2260mm (7'4") wide
1
Standard
1 531/36400
Shovel Clam c/w forks 2260mm (7'4") wide
1
Optional, c/w with forks
1A :531/36700
Backblade clam Assembly
1
Standard
1A :531/63200 Superseded
Backblade clam assembly
1
Optional
1A **** None serviced part 1
2 : : 531 /37300 Superseded Blade back standard 1
2 :531/37600 <M345696 Blade back CNV Fork pivots 1
2 ::531/62100 Superseded Blade back standard 1
2 : : 531 /62300 Blade back CNV fork pivots 1
2 ::531/37600 <M345696 Blade back CNV Fork pivots 1
2 : : 531 /62300 Blade back CNV fork pivots 1
3 :::531/38111 Toe plate 15x130x2253mm (7'4") wide 1
4 : : 531 /37900 Superseded Clam 1
4 ::531/53700 Superseded
Clam 2260mm wide
1
Part Is MSS use parts marked A
4 ::M.S.S. Multi Supersession 1
4 : : :531 /72800 Clam 2253mm (7'4") wide A 1
4 : : : 123/01341 <M345696 Spacer A 2
4 ::531/61900 Superseded Clam 2253mm (7'4") wide 1
4 : : 531 /72800 Clam 2253mm (7'4") wide 1
4A : : :531 /37906 Sidecutter left hand 1
48 :::531/37907 Sidecutter right hand 1
5 :::531/53701 Toe plate 1
6 : : :531 /37902 <M345696 Pivot casting 2
6 : : : 123/00859 Pivot casting 2
7 : : 1208/0025 Bush 2
8 ::1019/2028 Superseded Pin pivot 44.4mm dia 213mm long 2
8 ::811/80007 Pin pivot 2
9 : : 1305/3226 Bolt L=1 .3/4" 2
10 : : 1340/0204Z Nut philidas thin 2
11 : : 1450/1001 Nipple Grease 90deg. angle 2
12
'See Remark'
2 ..
Clam Ram. See Section E4 .
13 :1017/2018 Superseded Pin pivot 2
13 :811/80018 Pin pivot 2
14 :1017/2004 Superseded Pin pivot 2
14 :811/80016 Pin pivot 2
15 : 1 305/3222Z Bolt 3/8"UNF x 3" 2
16 :531/38500 Pipe Assembly 1
17 :612/00700 Hose 3/8 BSP 900mm long 4
18 :612/00800 Hose 2
19 :1019/2053 Superseded Pin pivot 44.45 X 273 long 2
19 :811/80013 Pin pivot 2
20 :1019/3832 Pin pivot 2
21 :1450/0001 Nipple Grease, Straight 1/8 BSP 2
22 :1305/3226 Bolt L=1 .3/4" 6
23 : 1 340/0203Z Nut 9
24 :817/00839 Label indicator 1
25
'See Remark'
1 ..
Fork Lift Kit. See A 1-3-2 .
26 :990/69801
Toeplate 2235mm (7'4") wide
1
Page 2 of 3 Untitled Page
1111111111111111111111111
111111111111111111111111111111111111111111111111111111111111111
1111111111111111111111111
111111111111111111111111111111111111111111111111111111111111111
NOT FOR REPRODUCTION
Page 8
http://localhost:8033/ProductCatalog/DrawingPrint.aspx?ServicePartsPagelD... 05.10.2015

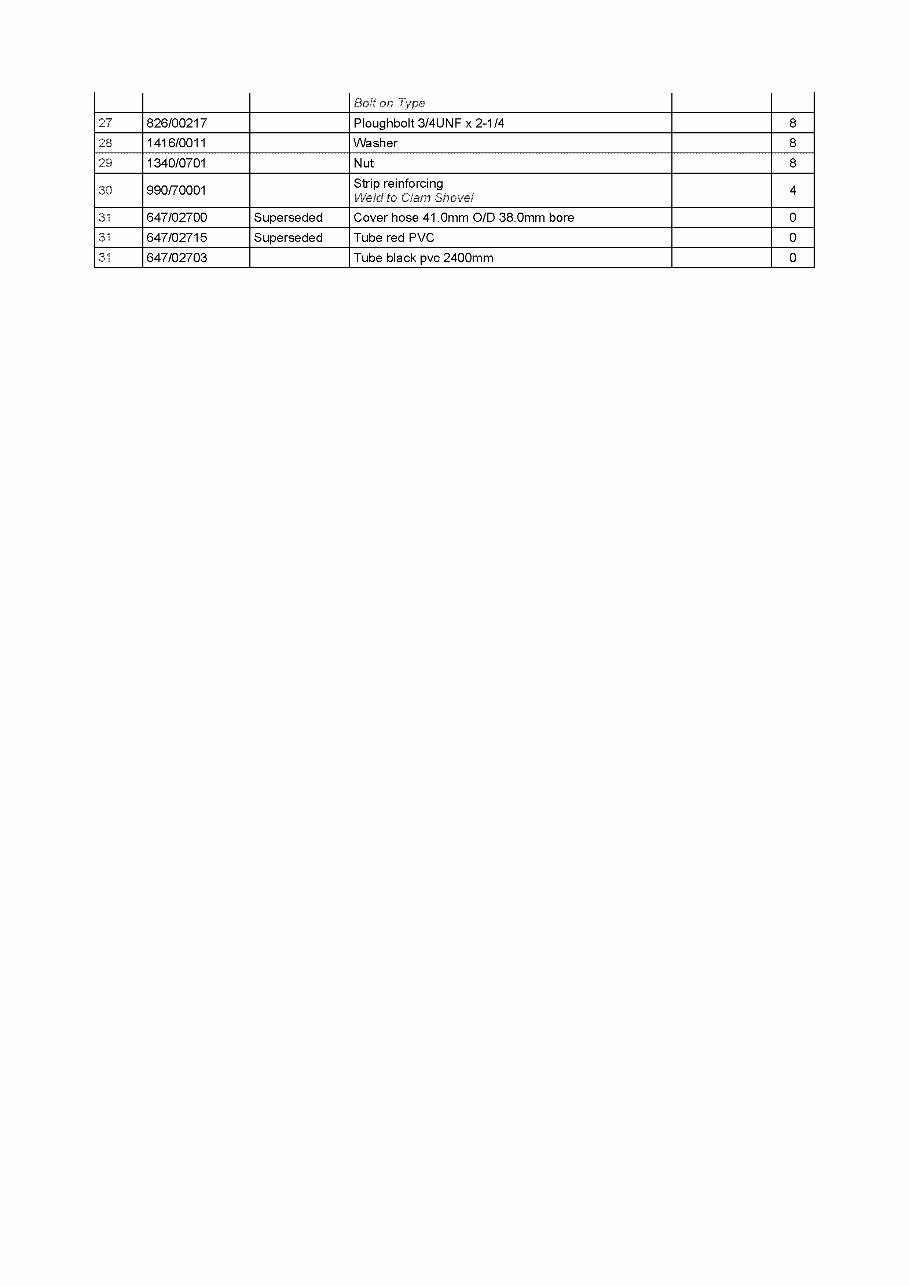

Bolton Type
27 826/00217 Ploughbolt 3/4UNF x 2-1/4 8
28 1416/0011 Washer 8
29 1340/0701 Nut 8
30 990/70001
Strip reinforcing
4
Weld to Clam Shovel
31 647/02700 Superseded Cover hose 41.0mm 0/D 38.0mm bore 0
31 647/02715 Superseded Tube red PVC 0
31 647/02703 Tube black pvc 2400mm 0
Page 3 of 3 Untitled Page
1111111111111111111111111
111111111111111111111111111111111111111111111111111111111111111
1111111111111111111111111
111111111111111111111111111111111111111111111111111111111111111
NOT FOR REPRODUCTION
Page 9
