http://localhost:8033/ProductCatalog/DrawingPrint.aspx?ServicePartsPagelD... 17.01.2016
313350

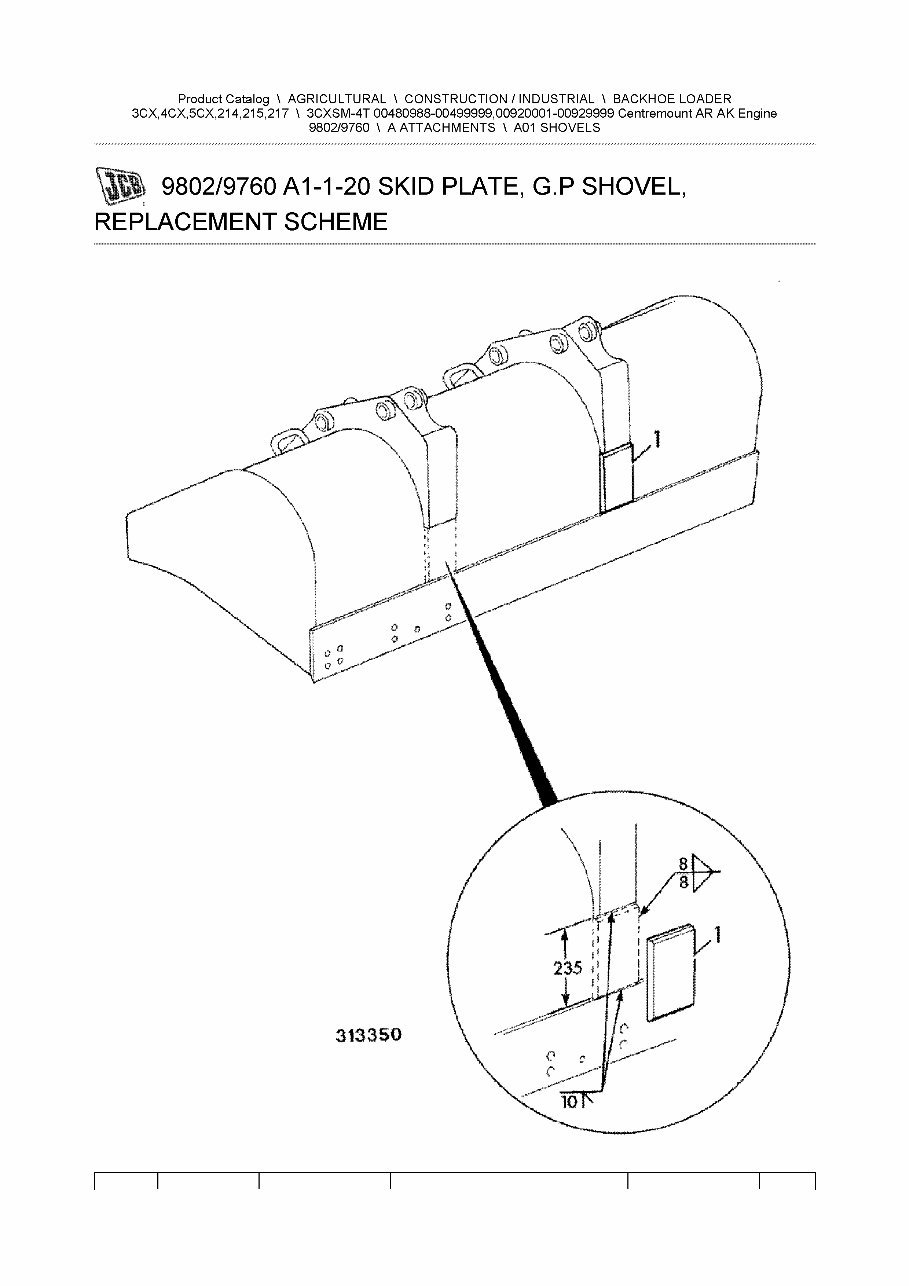

9802/9760 A1-1-20 SKID PLATE, G.P SHOVEL,
REPLACEMENT SCHEME
Product Catalog \ AGRICULTURAL \ CONSTRUCTION/ INDUSTRIAL \ BACKHOE LOADER
3CX,4CX,5CX,214,215,217 \ 3CXSM-4T 00480988-00499999,00920001-00929999 Centremount AR AK Engine
9802/9760 \ A ATTACHMENTS \ A01 SHOVELS
Page 1 of 2 Untitled Page
NOT FOR REPRODUCTION
1111111111111111111111111
111111111111111111111111111111111111111111111111111111111111111
Page 1
http://localhost:8033/ProductCatalog/DrawingPrint.aspx?ServicePartsPagelD... 17.01.2016

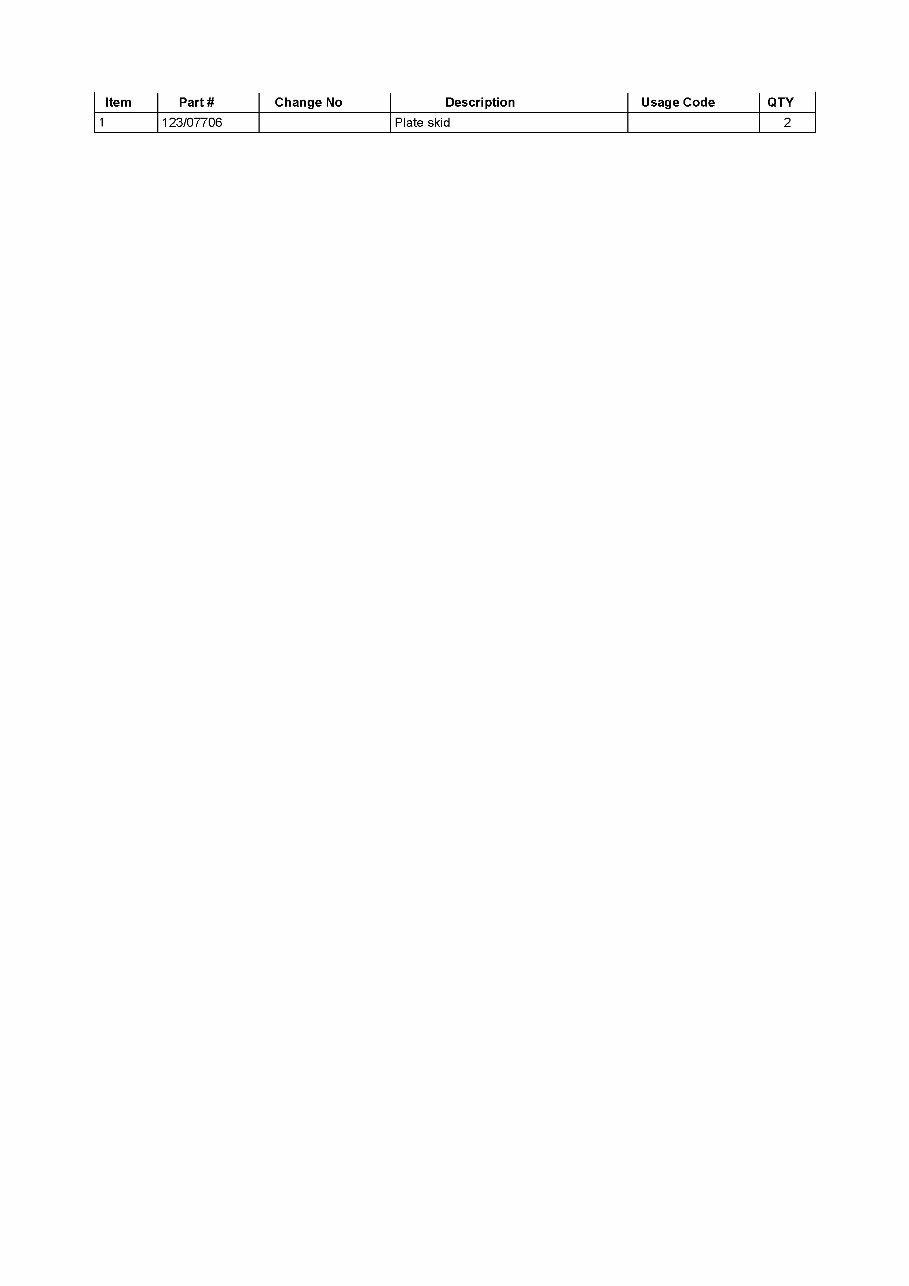

2 Plate skid 123/07706
QTY Usage Code Description Change No Part# Item
Page 2 of 2 Untitled Page
NOT FOR REPRODUCTION
1111111111111111111111111
111111111111111111111111111111111111111111111111111111111111111
Page 2
http://localhost:8033/ProductCatalog/DrawingPrint.aspx?ServicePartsPagelD... 17.01.2016
212960
Page 1 of 2

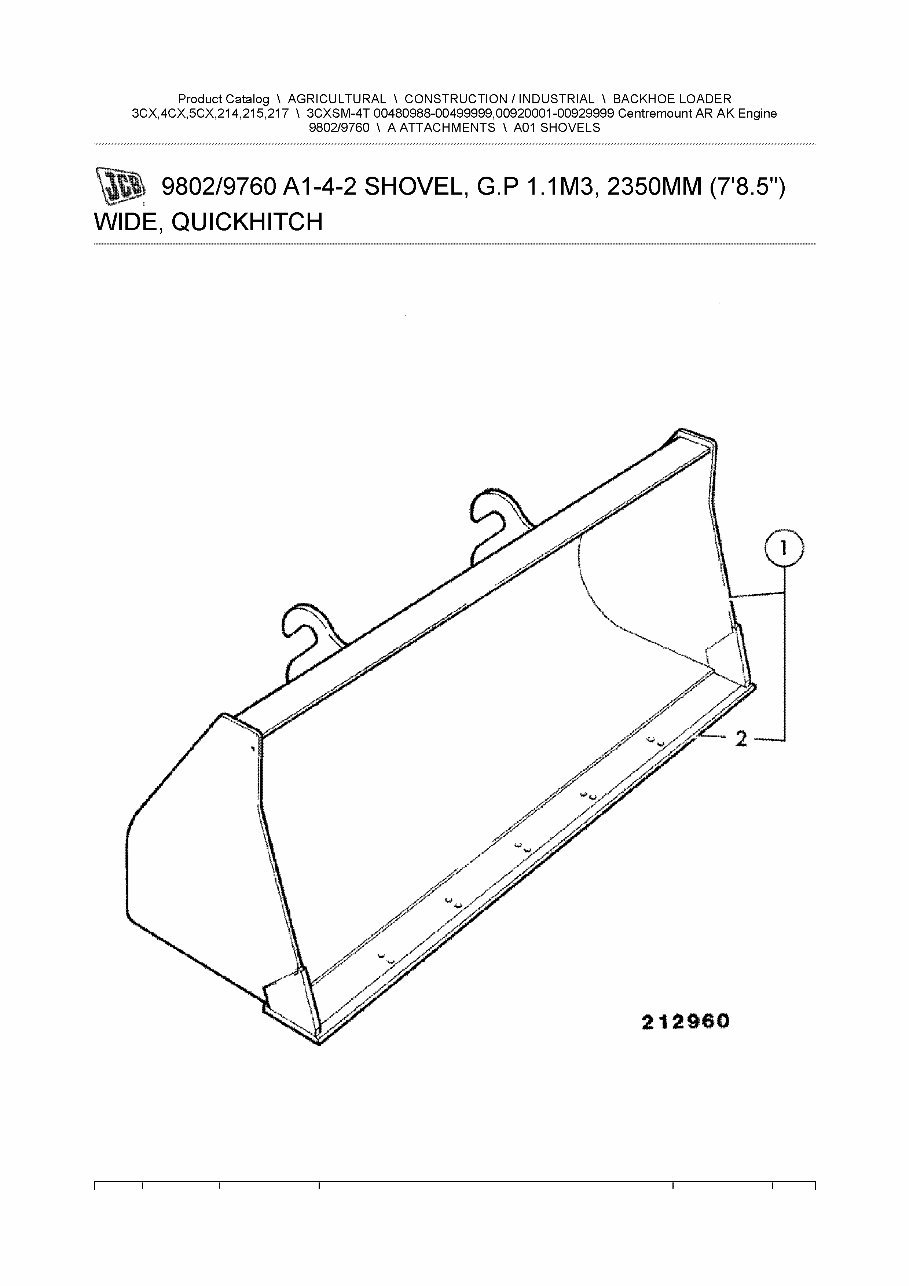

9802/9760 A 1-4-2 SHOVEL, G. P 1.1 M3, 2350MM (7'8.5")
WIDE, QUICKHITCH
Product Catalog \ AGRICULTURAL \ CONSTRUCTION/ INDUSTRIAL \ BACKHOE LOADER
3CX,4CX,5CX,214,215,217 \ 3CXSM-4T 00480988-00499999,00920001-00929999 Centremount AR AK Engine
9802/9760 \ A ATTACHMENTS \ A01 SHOVELS
Untitled Page
NOT FOR REPRODUCTION
1111111111111111111111111
111111111111111111111111111111111111111111111111111111111111111
Page 3
http://localhost:8033/ProductCatalog/DrawingPrint.aspx?ServicePartsPagelD... 17.01.2016

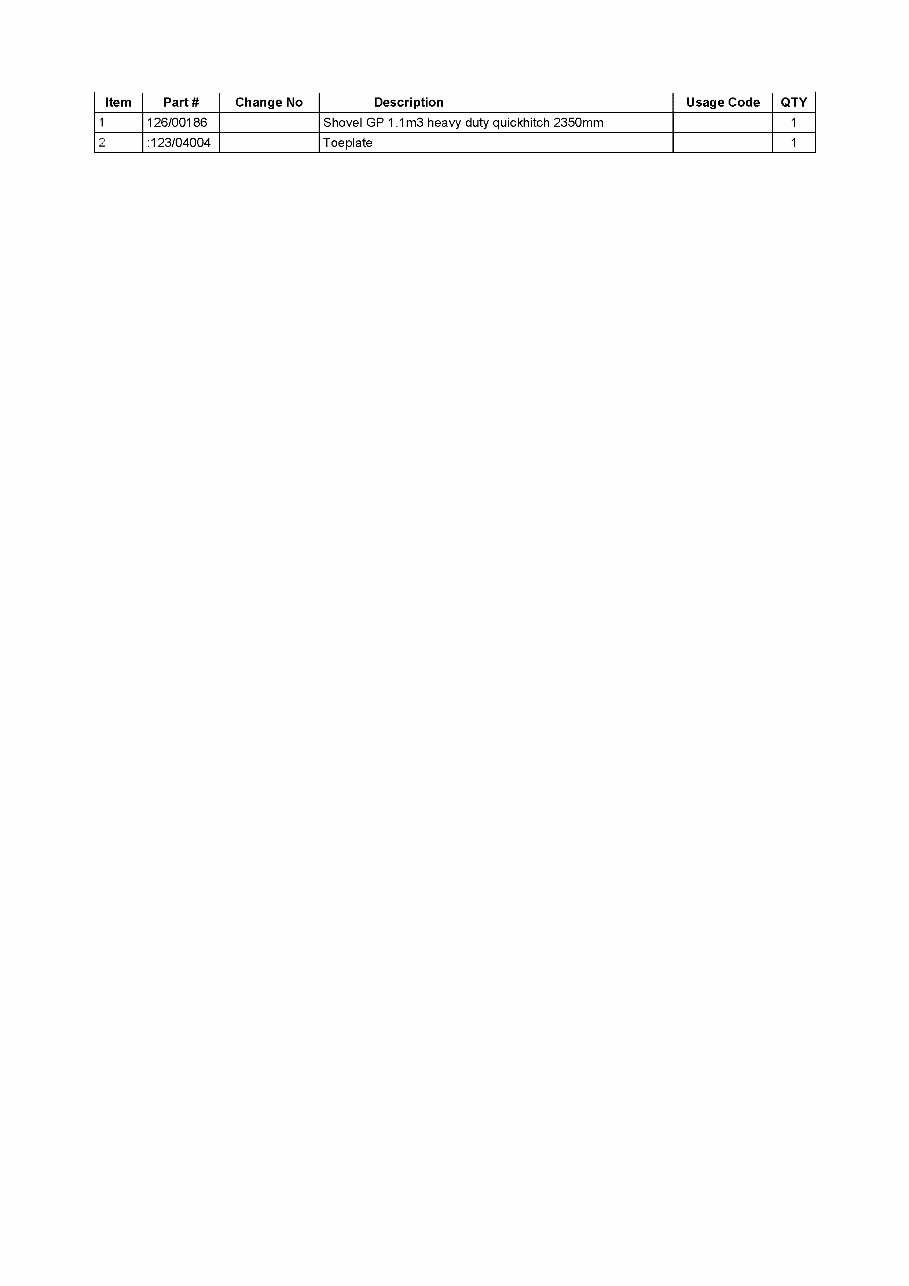

Item Part# Change No Description Usage Code QTY
1 126/00186 Shovel GP 1 .1 m3 heavy duty quickhitch 2350mm 1
2 :123/04004 Toe plate 1
Page 2 of 2 Untitled Page
NOT FOR REPRODUCTION
1111111111111111111111111
111111111111111111111111111111111111111111111111111111111111111
Page 4
http://localhost:8033/ProductCatalog/DrawingPrint.aspx?ServicePartsPagelD... 17.01.2016

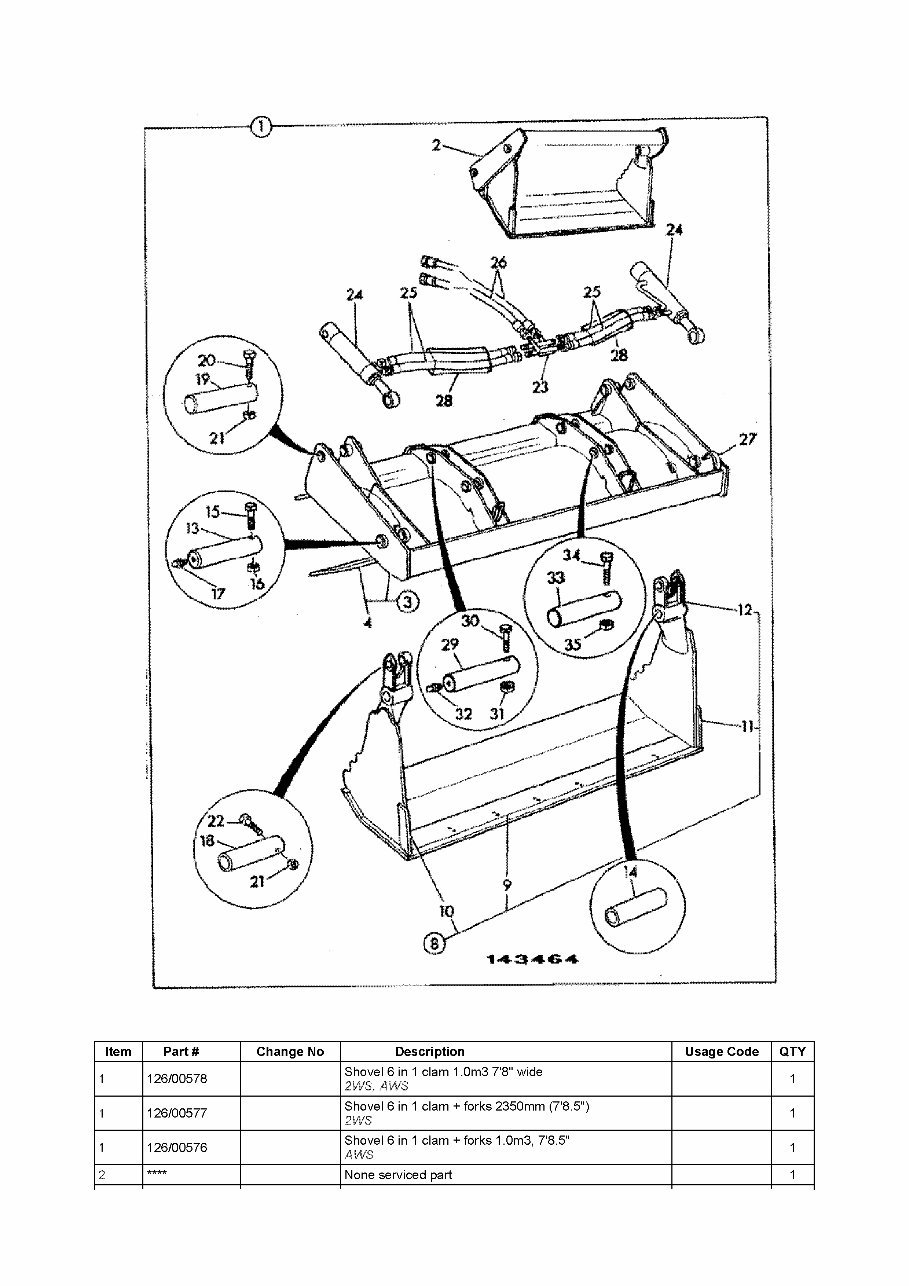

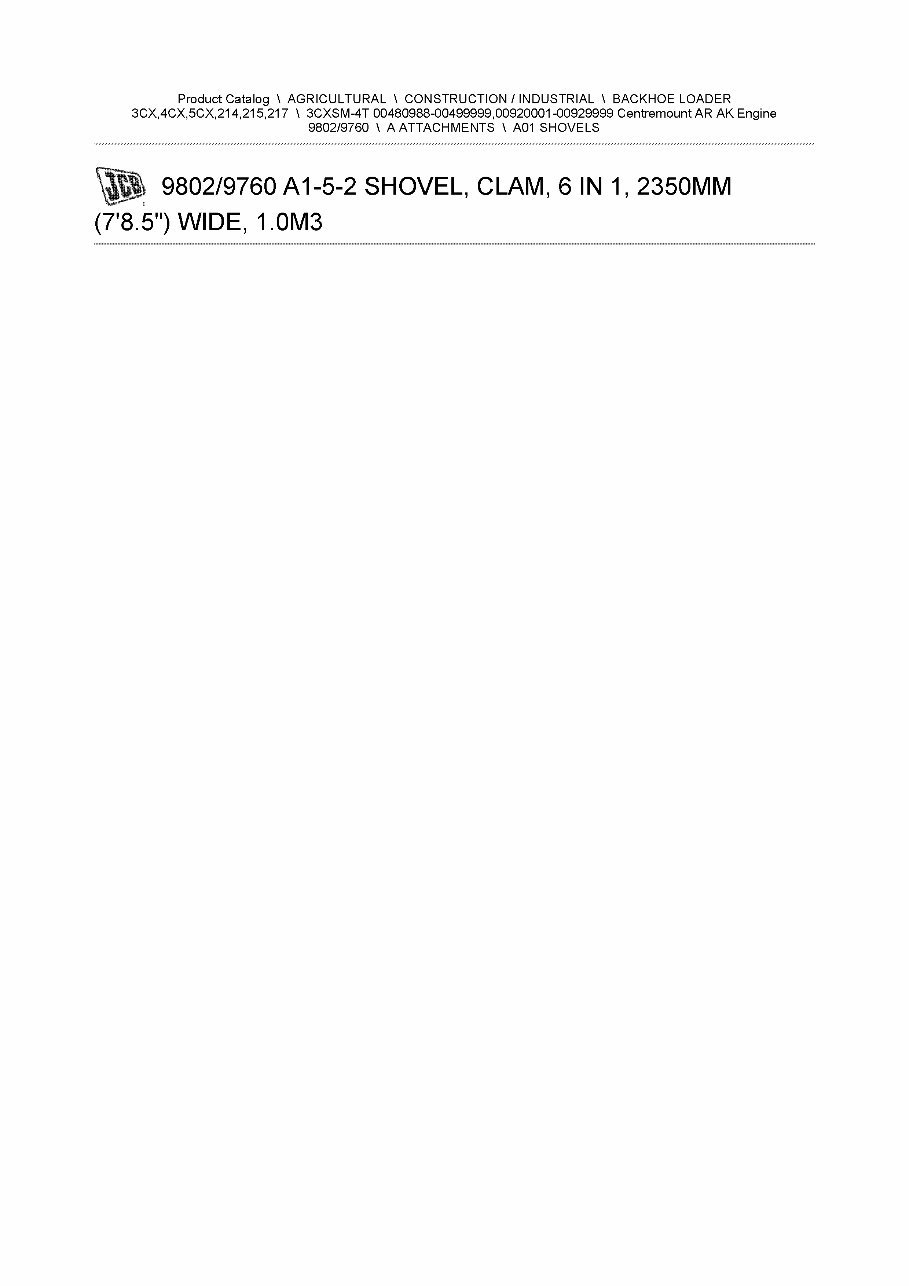

9802/9760A1-5-2 SHOVEL, CLAM, 6 IN 1, 2350MM
(7'8.5") WIDE, 1.0M3
Product Catalog \ AGRICULTURAL \ CONSTRUCTION/ INDUSTRIAL \ BACKHOE LOADER
3CX,4CX,5CX,214,215,217 \ 3CXSM-4T 00480988-00499999,00920001-00929999 Centremount AR AK Engine
9802/9760 \ A ATTACHMENTS \ A01 SHOVELS
Page 1 of 3 Untitled Page
NOT FOR REPRODUCTION
1111111111111111111111111
111111111111111111111111111111111111111111111111111111111111111
Page 5
http://localhost:8033/ProductCatalog/DrawingPrint.aspx?ServicePartsPagelD... 17.01.2016
Item Part# Change No Description Usage Code QTY
1 126/00578
Shovel 6 in 1 clam 1 .Om3 7'8" wide
1
2WS. AWS
1 126/00577
Shovel 6 in 1 clam + forks 2350mm (7'8.5")
1
2WS
1 126/00576
Shovel 6 in 1 clam + forks 1.0m3, 7'8.5"
1
AWS
2 **** None serviced part 1
Page 2 of 3 Untitled Page
NOT FOR REPRODUCTION
1111111111111111111111111
111111111111111111111111111111111111111111111111111111111111111
Page 6
http://localhost:8033/ProductCatalog/DrawingPrint.aspx?ServicePartsPagelD... 17.01.2016

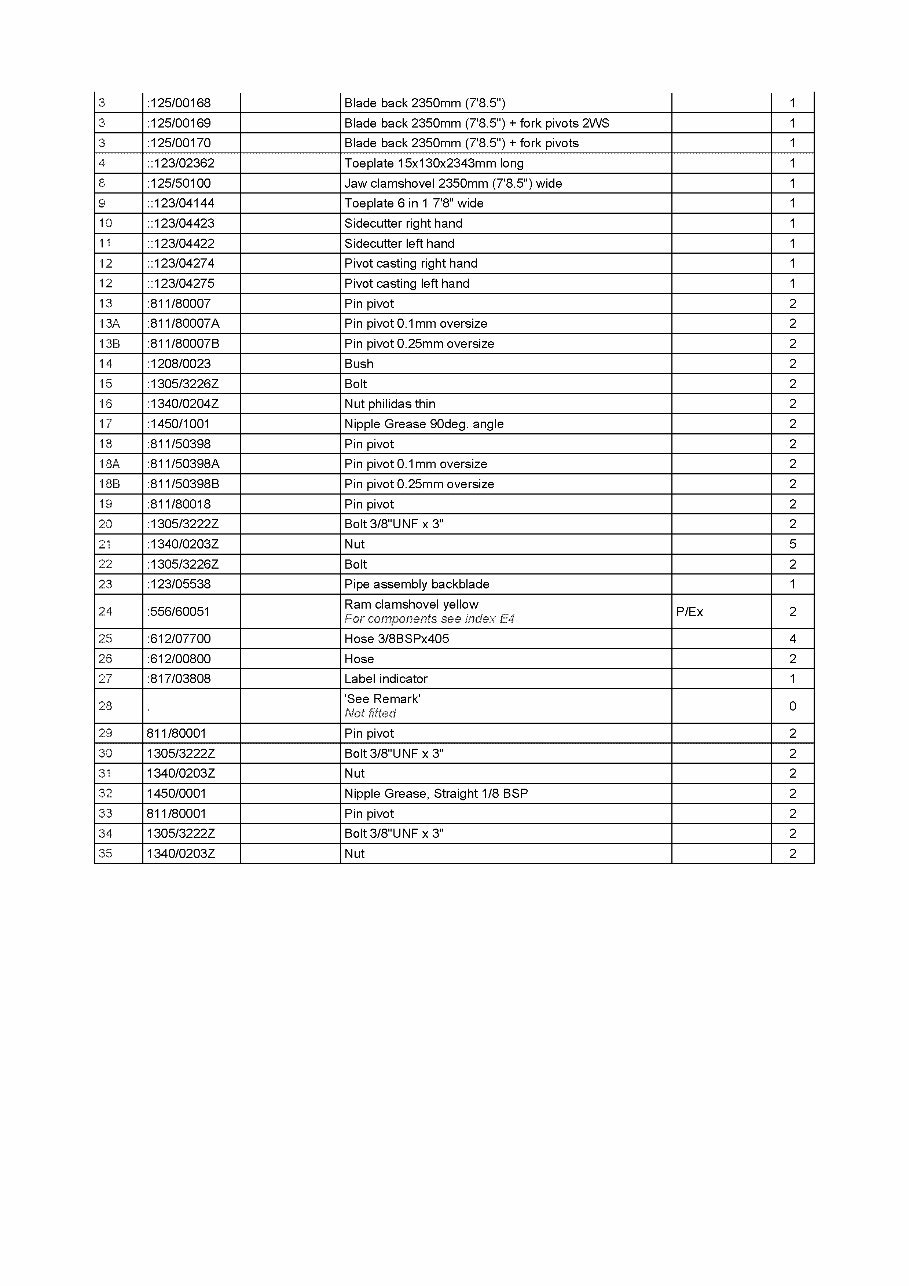

3 :125/00168 Blade back 2350mm (7'8.5") 1
3 :125/00169 Blade back 2350mm (7'8.5") + fork pivots 2WS 1
3 :125/00170 Blade back 2350mm (7'8.5") + fork pivots 1
4 : : 123/02362 Toe plate 15x130x2343mm long 1
8 :125/50100 Jaw clamshovel 2350mm (7'8.5") wide 1
9 ::123/04144 Toeplate 6 in 1 7'8" wide 1
10 : : 123/04423 Sidecutter right hand 1
11 : : 123/04422 Sidecutter left hand 1
12 : : 123/0427 4 Pivot casting right hand 1
12 : : 123/04275 Pivot casting left hand 1
13 :811/80007 Pin pivot 2
13A :811/80007A Pin pivot 0.1 mm oversize 2
138 :811/800078 Pin pivot 0.25mm oversize 2
14 :1208/0023 Bush 2
15 : 1 305/3226Z Bolt 2
16 : 1 340/0204Z Nut philidas thin 2
17 :1450/1001 Nipple Grease 90deg. angle 2
18 :811/50398 Pin pivot 2
18A :811/50398A Pin pivot 0.1 mm oversize 2
188 :811/503988 Pin pivot 0.25mm oversize 2
19 :811/80018 Pin pivot 2
20 : 1 305/3222Z Bolt 3/8"UNF x 3" 2
21 : 1 340/0203Z Nut 5
22 : 1 305/3226Z Bolt 2
23 :123/05538 Pipe assembly backblade 1
24 :556/60051
Ram clamshovel yellow
P/Ex 2
For components see index E4
25 :612/07700 Hose 3/8BSPx405 4
26 :612/00800 Hose 2
27 :817/03808 Label indicator 1
28
'See Remark'
0
Not fitted
29 811 /80001 Pin pivot 2
30 1305/3222Z Bolt 3/8"UNF x 3" 2
31 1340/0203Z Nut 2
32 1450/0001 Nipple Grease, Straight 1/8 BSP 2
33 811 /80001 Pin pivot 2
34 1305/3222Z Bolt 3/8"UNF x 3" 2
35 1340/0203Z Nut 2
Page 3 of 3 Untitled Page
NOT FOR REPRODUCTION
1111111111111111111111111
111111111111111111111111111111111111111111111111111111111111111
Page 7
http://localhost:8033/ProductCatalog/DrawingPrint.aspx?ServicePartsPagelD... 17.01.2016

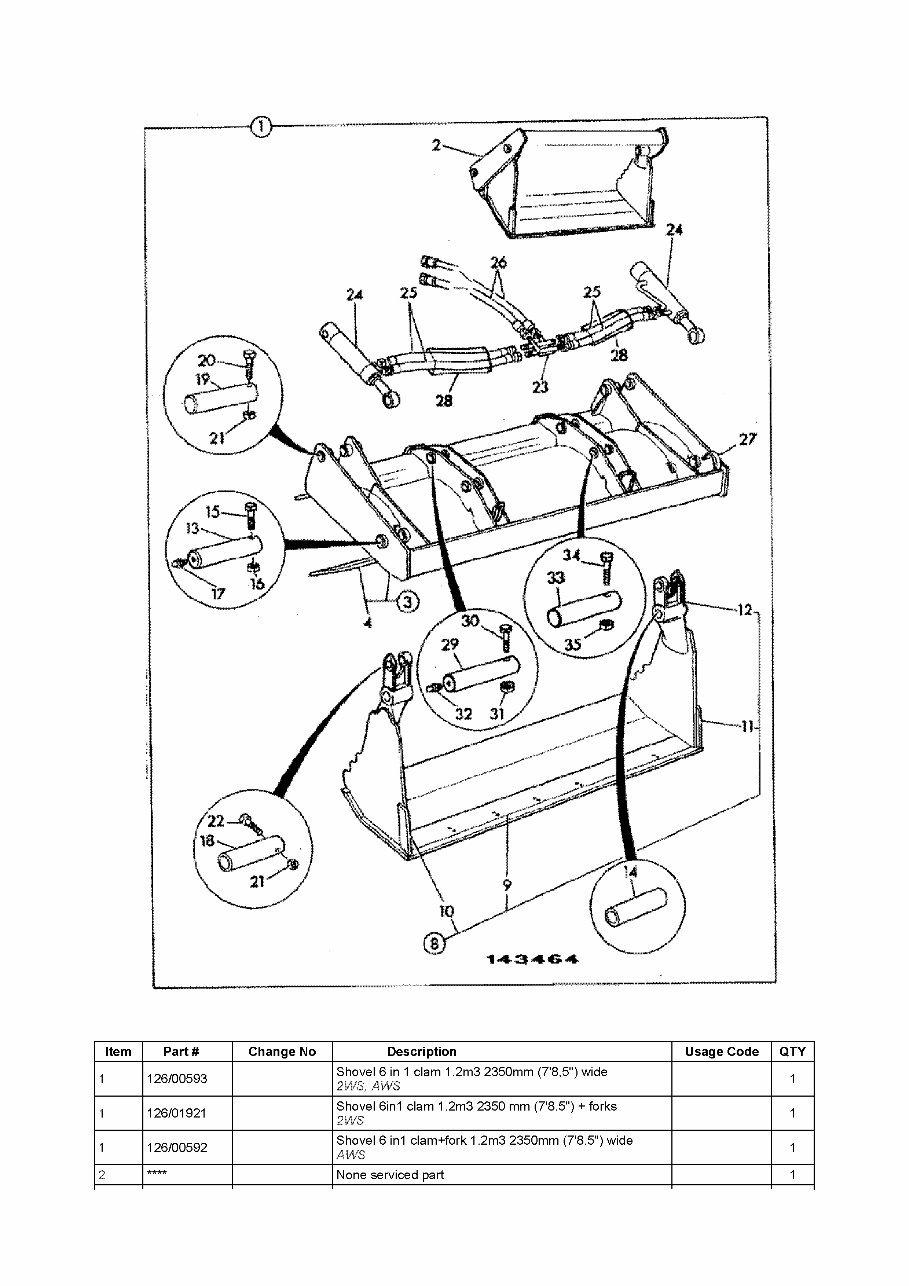

9802/9760A1-5-3 SHOVEL, CLAM, 6 IN 1, 2350MM
(7'8.5") WIDE, 1.2M3
Product Catalog \ AGRICULTURAL \ CONSTRUCTION/ INDUSTRIAL \ BACKHOE LOADER
3CX,4CX,5CX,214,215,217 \ 3CXSM-4T 00480988-00499999,00920001-00929999 Centremount AR AK Engine
9802/9760 \ A ATTACHMENTS \ A01 SHOVELS
Page 1 of 3 Untitled Page
NOT FOR REPRODUCTION
1111111111111111111111111
111111111111111111111111111111111111111111111111111111111111111
Page 8
http://localhost:8033/ProductCatalog/DrawingPrint.aspx?ServicePartsPagelD... 17.01.2016
Item Part# Change No Description Usage Code QTY
1 126/00593
Shovel 6 in 1 clam 1 .2m3 2350mm (7'8,5") wide
1
2WS. AWS
1 126/01921
Shovel 6in1 clam 1.2m3 2350 mm (7'8.5") + forks
1
2WS
1 126/00592
Shovel 6 in1 clam+fork 1.2m3 2350mm (7'8.5") wide
1
AWS
2 **** None serviced part 1
Page 2 of 3 Untitled Page
NOT FOR REPRODUCTION
1111111111111111111111111
111111111111111111111111111111111111111111111111111111111111111
Page 9
