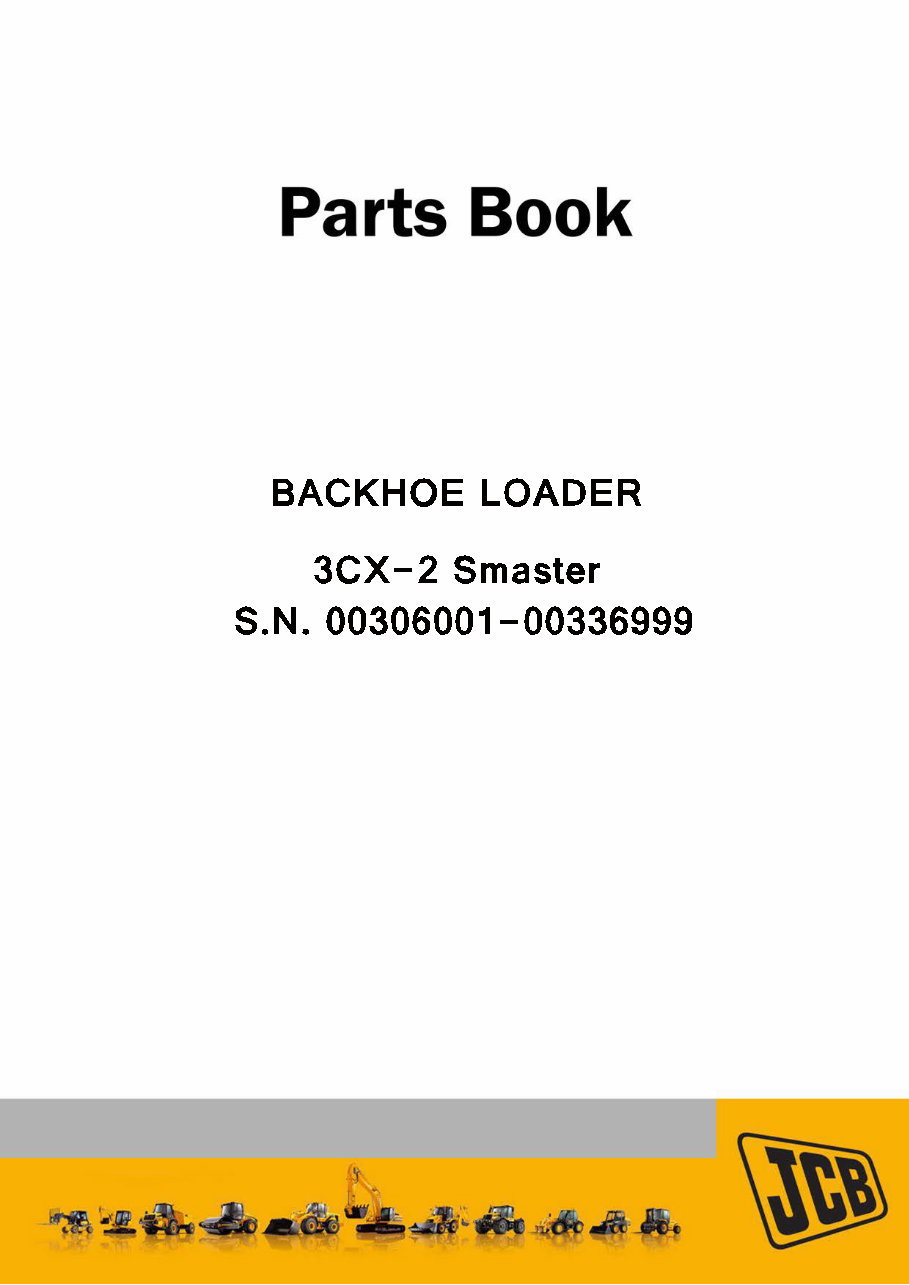

JCB 3CX-2 BACKHOE Loader Parts Catalog Manual #1 (SER. NUMBER 00306001-00336999)
What's Included?
Lifetime Access
Fast Download Speeds
Online & Offline Access
Access PDF Contents & Bookmarks
Full Search Facility
Print one or all pages of your manual
http://localhost:8033/ProductCatalog/DrawingPrint.aspx?ServicePartsPagelD... 02.10.2015
Item Part# Change No Description Usage Code QTY
0 531/22400 Superseded Shovel clam 1.2 cu.yd. 1
0 531/36200 Shovel 1.2 cu.yd. 45deg. 2438mm (8'0") wide 1
.rrr
5
...... = ~
• = ®
WIDE

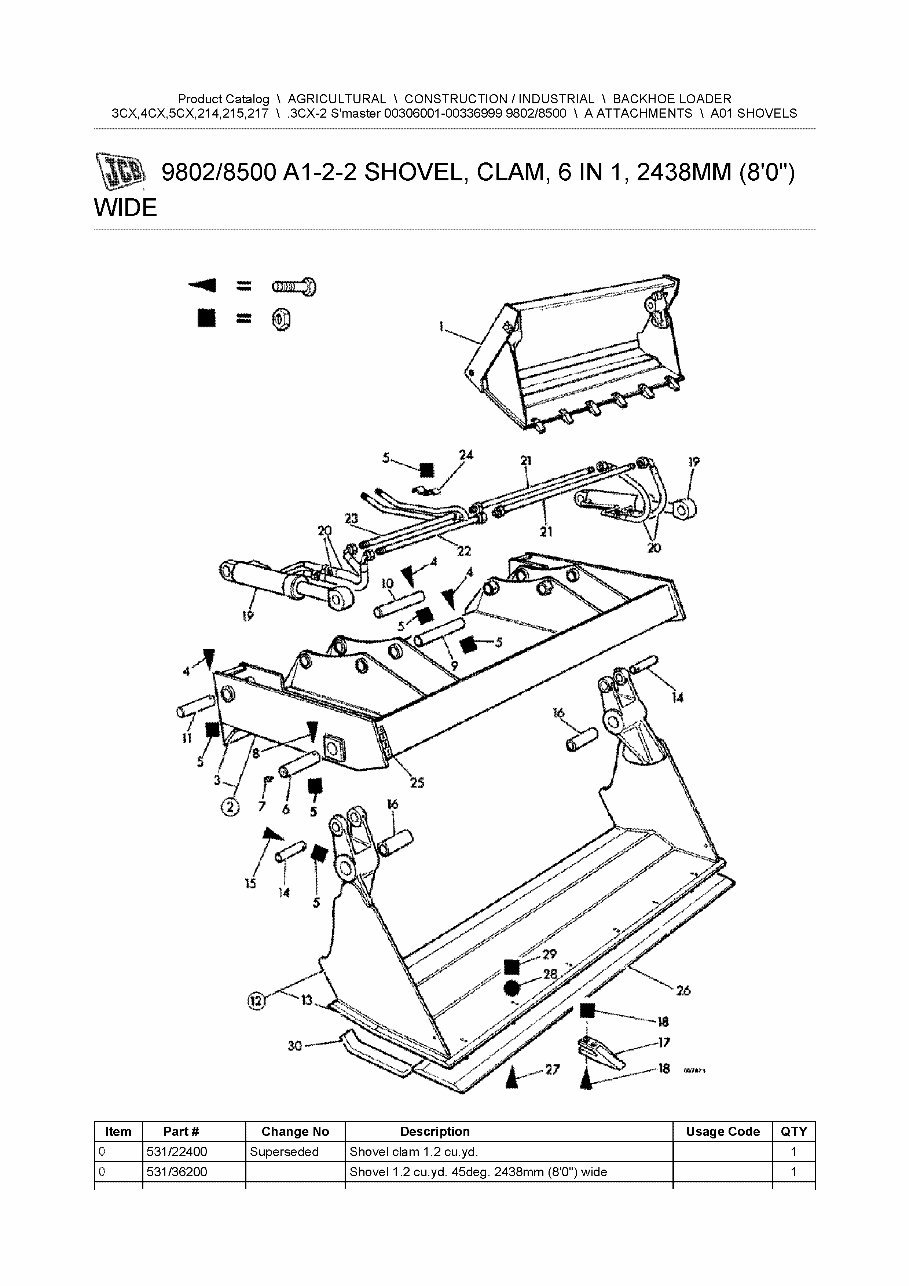

9802/8500 A 1-2-2 SHOVEL, CLAM, 6 IN 1, 2438MM (8'0")
Product Catalog \ AGRICULTURAL \ CONSTRUCTION/ INDUSTRIAL \ BACKHOE LOADER
3CX,4CX,5CX,214,215,217 \ .3CX-2 S'master 00306001-00336999 9802/8500 \ A ATTACHMENTS \ A01 SHOVELS
Page 1 of 2 Untitled Page
NOT FOR REPRODUCTION
Page 1
http://localhost:8033/ProductCatalog/DrawingPrint.aspx?ServicePartsPagelD... 02.10.2015

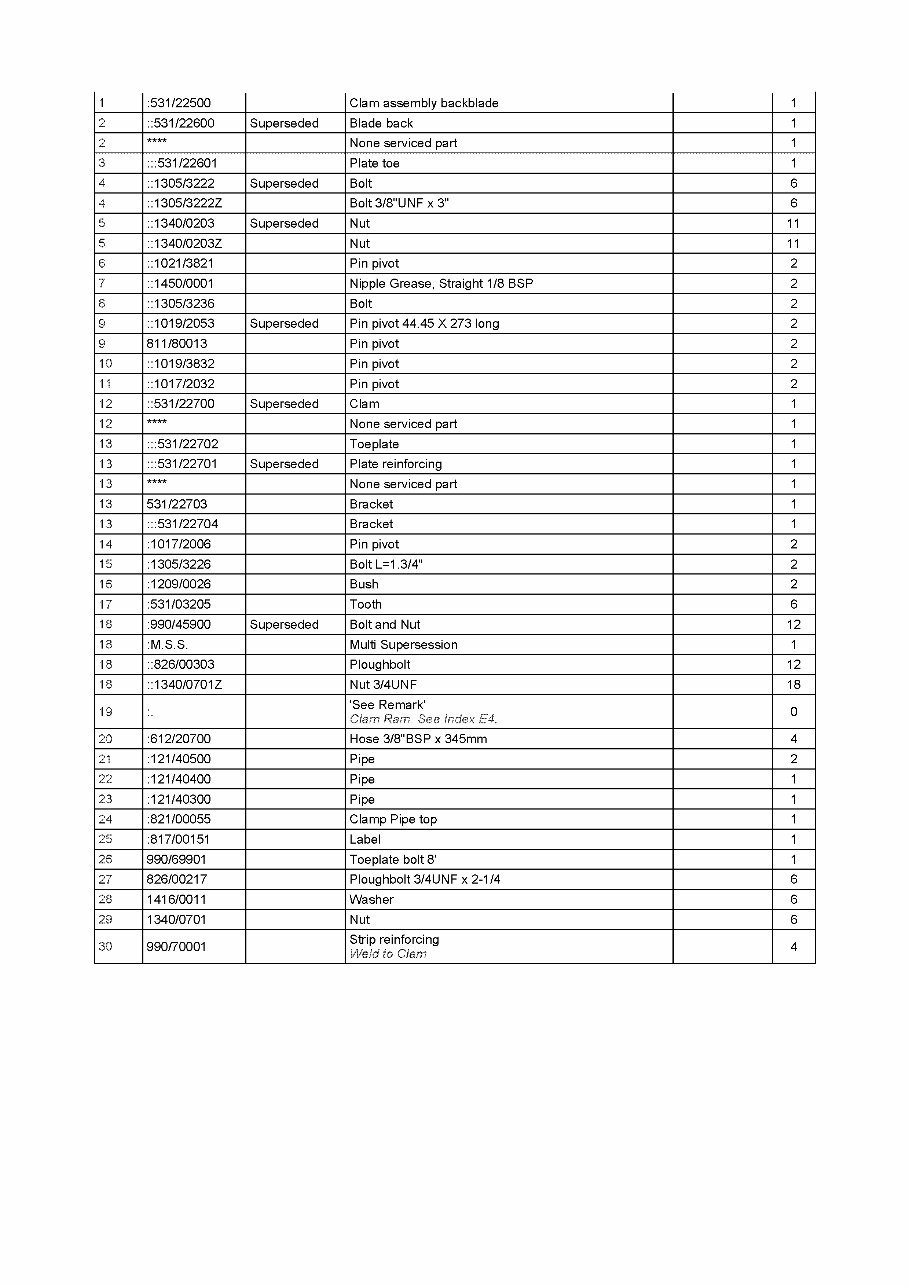

1 :531/22500 Clam assembly backblade 1
2 ::531/22600 Superseded Blade back 1
2 **** None serviced part 1
3 :::531/22601 Plate toe 1
4 : : 1305/3222 Superseded Bolt 6
4 : : 1305/3222Z Bolt 3/8"UNF x 3" 6
5 : : 1340/0203 Superseded Nut 11
5 : : 1340/0203Z Nut 11
6 : : 1021 /3821 Pin pivot 2
7 : : 1450/0001 Nipple Grease, Straight 1/8 BSP 2
8 : : 1305/3236 Bolt 2
9 ::1019/2053 Superseded Pin pivot 44.45 X 273 long 2
9 811 /80013 Pin pivot 2
10 ::1019/3832 Pin pivot 2
11 ::1017/2032 Pin pivot 2
12 : : 531 /22700 Superseded Clam 1
12 **** None serviced part 1
13 : : :531 /22702 Toe plate 1
13 :::531/22701 Superseded Plate reinforcing 1
13 **** None serviced part 1
13 531/22703 Bracket 1
13 : : :531 /22704 Bracket 1
14 :1017/2006 Pin pivot 2
15 :1305/3226 Bolt L=1 .3/4" 2
16 :1209/0026 Bush 2
17 :531/03205 Tooth 6
18 :990/45900 Superseded Bolt and Nut 12
18 :M.S.S. Multi Supersession 1
18 ::826/00303 Ploughbolt 12
18 : : 1340/0701 Z Nut 3/4UNF 18
19
'See Remark'
0 ..
Clam Ram. See Index E4 .
20 :612/20700 Hose 3/8"BSP x 345mm 4
21 :121/40500 Pipe 2
22 :121/40400 Pipe 1
23 :121/40300 Pipe 1
24 :821/00055 Clamp Pipe top 1
25 :817/00151 Label 1
26 990/69901 Toeplate bolt 8' 1
27 826/00217 Ploughbolt 3/4UNF x 2-1/4 6
28 1416/0011 Washer 6
29 1340/0701 Nut 6
30 990/70001
Strip reinforcing
4
Weld to Clam
Page 2 of 2 Untitled Page
NOT FOR REPRODUCTION
Page 2
http://localhost:8033/ProductCatalog/DrawingPrint.aspx?ServicePartsPagelD... 02.10.2015
Item Part# Change No Description Usage Code QTY
1 531/25400 Superseded
Shovel clam 1.1 cu. yd.
1
NSP. Standard
.rrr
5
...... = ~
• = ®

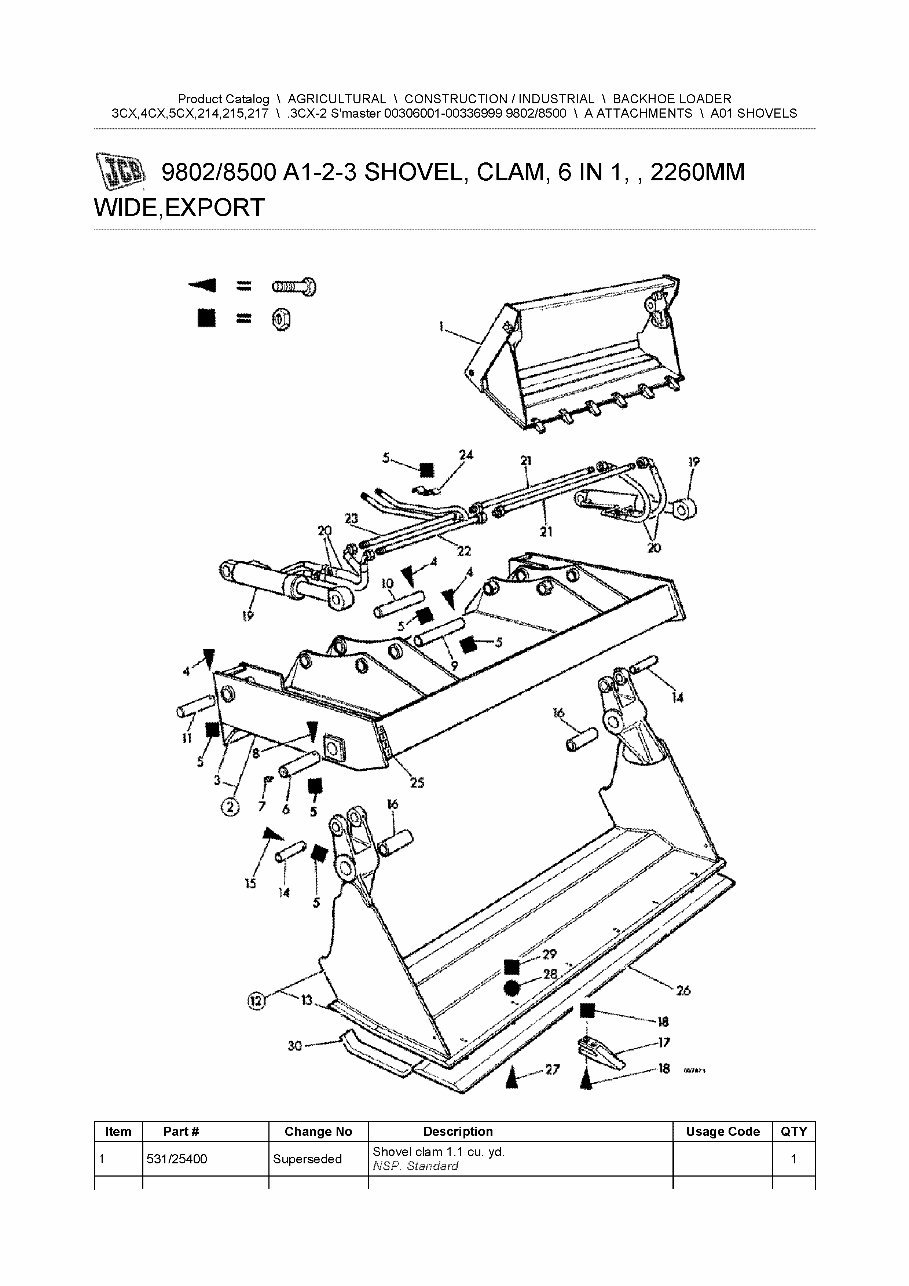

9802/8500A1-2-3 SHOVEL, CLAM, 6 IN 1,, 2260MM
WIDE,EXPORT
Product Catalog \ AGRICULTURAL \ CONSTRUCTION/ INDUSTRIAL \ BACKHOE LOADER
3CX,4CX,5CX,214,215,217 \ .3CX-2 S'master 00306001-00336999 9802/8500 \ A ATTACHMENTS \ A01 SHOVELS
Page 1 of 2 Untitled Page
NOT FOR REPRODUCTION
Page 3
http://localhost:8033/ProductCatalog/DrawingPrint.aspx?ServicePartsPagelD... 02.10.2015

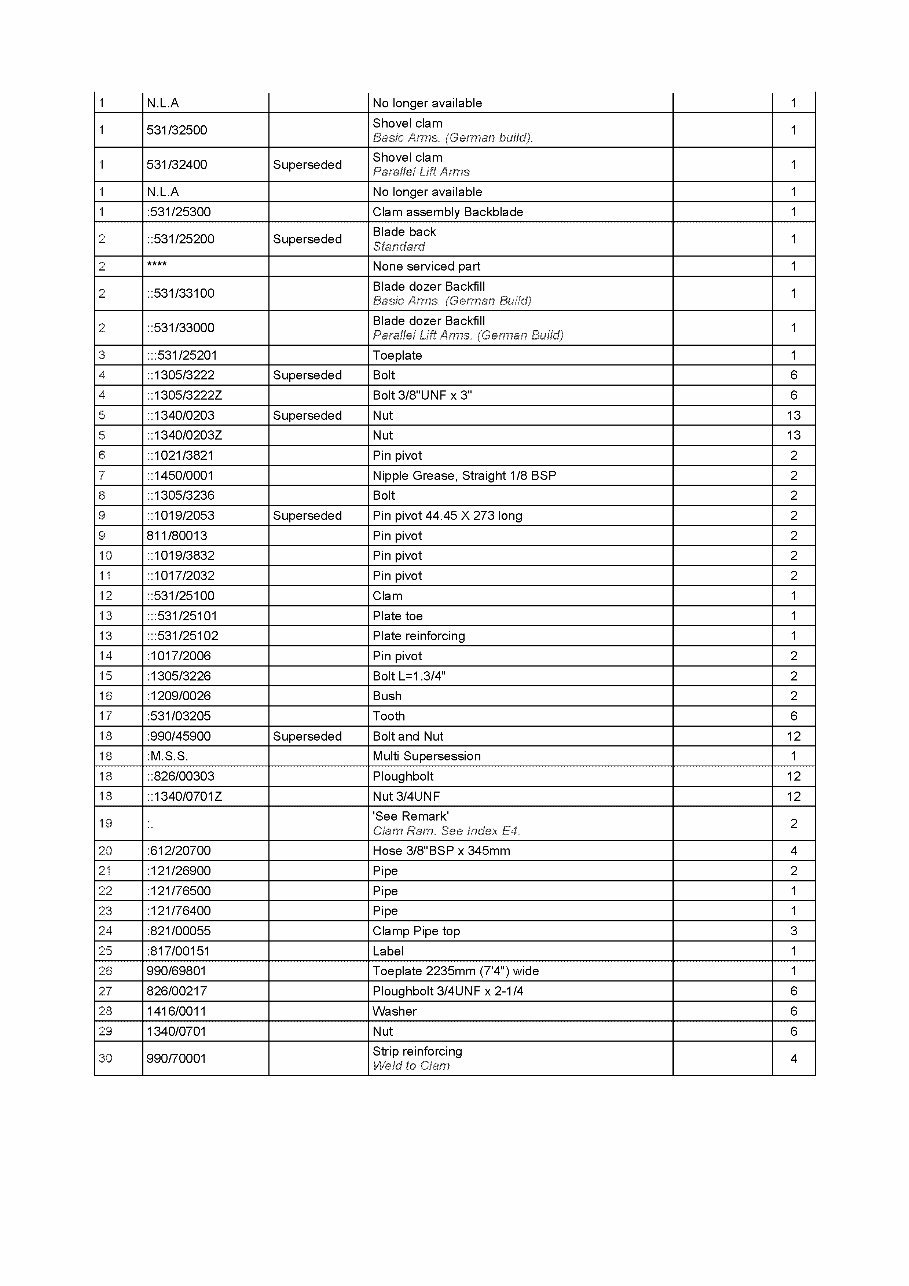

1 N.L.A No longer available 1
1 531/32500
Shovel clam
1
Basic Arms. (German build).
1 531/32400 Superseded
Shovel clam
1
Parallel Lift Arms
1 N.L.A No longer available 1
1 :531/25300 Clam assembly Backblade 1
2 ::531/25200 Superseded
Blade back
1
Standard
2 **** None serviced part 1
2 ::531/33100
Blade dozer Backfill
1
Basic Arms. (German Build)
2 ::531/33000
Blade dozer Backfill
1
Parallel Lift Arms. (German Build)
3 :::531/25201 Toe plate 1
4 : : 1305/3222 Superseded Bolt 6
4 : : 1305/3222Z Bolt 3/8"UNF x 3" 6
5 : : 1340/0203 Superseded Nut 13
5 : : 1340/0203Z Nut 13
6 : : 1021 /3821 Pin pivot 2
7 : : 1450/0001 Nipple Grease, Straight 1/8 BSP 2
8 : : 1305/3236 Bolt 2
9 ::1019/2053 Superseded Pin pivot 44.45 X 273 long 2
9 811 /80013 Pin pivot 2
10 ::1019/3832 Pin pivot 2
11 ::1017/2032 Pin pivot 2
12 ::531/25100 Clam 1
13 : : :531 /25101 Plate toe 1
13 :::531/25102 Plate reinforcing 1
14 :1017/2006 Pin pivot 2
15 :1305/3226 Bolt L=1 .3/4" 2
16 :1209/0026 Bush 2
17 :531/03205 Tooth 6
18 :990/45900 Superseded Bolt and Nut 12
18 :M.S.S. Multi Supersession 1
18 ::826/00303 Ploughbolt 12
18 : : 1340/0701 Z Nut 3/4UNF 12
19
'See Remark'
2 ..
Clam Ram. See Index E4 .
20 :612/20700 Hose 3/8"BSP x 345mm 4
21 :121/26900 Pipe 2
22 :121/76500 Pipe 1
23 :121/76400 Pipe 1
24 :821/00055 Clamp Pipe top 3
25 :817/00151 Label 1
26 990/69801 Toeplate 2235mm (7'4") wide 1
27 826/00217 Ploughbolt 3/4UNF x 2-1/4 6
28 1416/0011 Washer 6
29 1340/0701 Nut 6
30 990/70001
Strip reinforcing
4
Weld to Clam
Page 2 of 2 Untitled Page
NOT FOR REPRODUCTION
Page 4
http://localhost:8033/ProductCatalog/DrawingPrint.aspx?ServicePartsPagelD... 02.10.2015
Item Part# Change No Description Usage Code QTY
1 531/25400 Superseded
Shovel clam 1.1 cu. yd.
1
NSP. Standard
.rrr
5
...... = ~
• = ®

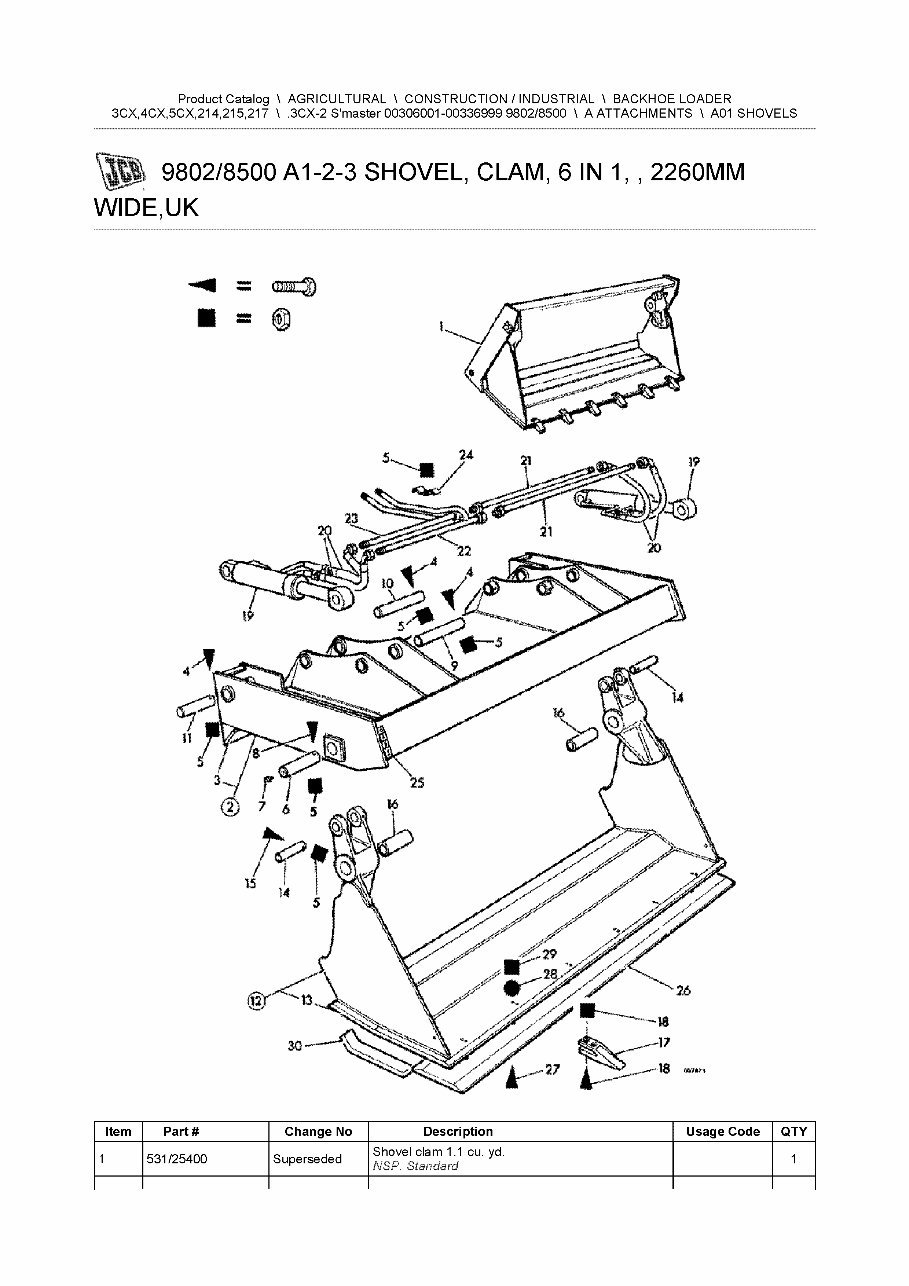

9802/8500A1-2-3 SHOVEL, CLAM, 6 IN 1,, 2260MM
WIDE,UK
Product Catalog \ AGRICULTURAL \ CONSTRUCTION/ INDUSTRIAL \ BACKHOE LOADER
3CX,4CX,5CX,214,215,217 \ .3CX-2 S'master 00306001-00336999 9802/8500 \ A ATTACHMENTS \ A01 SHOVELS
Page 1 of 2 Untitled Page
NOT FOR REPRODUCTION
Page 5
http://localhost:8033/ProductCatalog/DrawingPrint.aspx?ServicePartsPagelD... 02.10.2015
1 N.L.A No longer available 1
1 531/32500
Shovel clam
1
Basic Arms. (German build).
1 531/32400 Superseded
Shovel clam
1
Parallel Lift Arms
1 N.L.A No longer available 1
1 :531/25300 Clam assembly Backblade 1
2 ::531/25200 Superseded
Blade back
1
Standard
2 **** None serviced part 1
2 ::531/33100
Blade dozer Backfill
1
Basic Arms. (German Build)
2 ::531/33000
Blade dozer Backfill
1
Parallel Lift Arms. (German Build)
3 :::531/25201 Toe plate 1
4 : : 1305/3222 Superseded Bolt 6
4 : : 1305/3222Z Bolt 3/8"UNF x 3" 6
5 : : 1340/0203 Superseded Nut 13
5 : : 1340/0203Z Nut 13
6 : : 1021 /3821 Pin pivot 2
7 : : 1450/0001 Nipple Grease, Straight 1/8 BSP 2
8 : : 1305/3236 Bolt 2
9 ::1019/2053 Superseded Pin pivot 44.45 X 273 long 2
9 811 /80013 Pin pivot 2
10 ::1019/3832 Pin pivot 2
11 ::1017/2032 Pin pivot 2
12 ::531/25100 Clam 1
13 : : :531 /25101 Plate toe 1
13 :::531/25102 Plate reinforcing 1
14 :1017/2006 Pin pivot 2
15 :1305/3226 Bolt L=1 .3/4" 2
16 :1209/0026 Bush 2
17 :531/03205 Tooth 6
18 :990/45900 Superseded Bolt and Nut 12
18 :M.S.S. Multi Supersession 1
18 ::826/00303 Ploughbolt 12
18 : : 1340/0701 Z Nut 3/4UNF 12
19
'See Remark'
2 ..
Clam Ram. See Index E4 .
20 :612/20700 Hose 3/8"BSP x 345mm 4
21 :121/26900 Pipe 2
22 :121/76500 Pipe 1
23 :121/76400 Pipe 1
24 :821/00055 Clamp Pipe top 3
25 :817/00151 Label 1
26 990/69801 Toeplate 2235mm (7'4") wide 1
27 826/00217 Ploughbolt 3/4UNF x 2-1/4 6
28 1416/0011 Washer 6
29 1340/0701 Nut 6
30 990/70001
Strip reinforcing
4
Weld to Clam
Page 2 of 2 Untitled Page
NOT FOR REPRODUCTION
Page 6
http://localhost:8033/ProductCatalog/DrawingPrint.aspx?ServicePartsPagelD... 02.10.2015

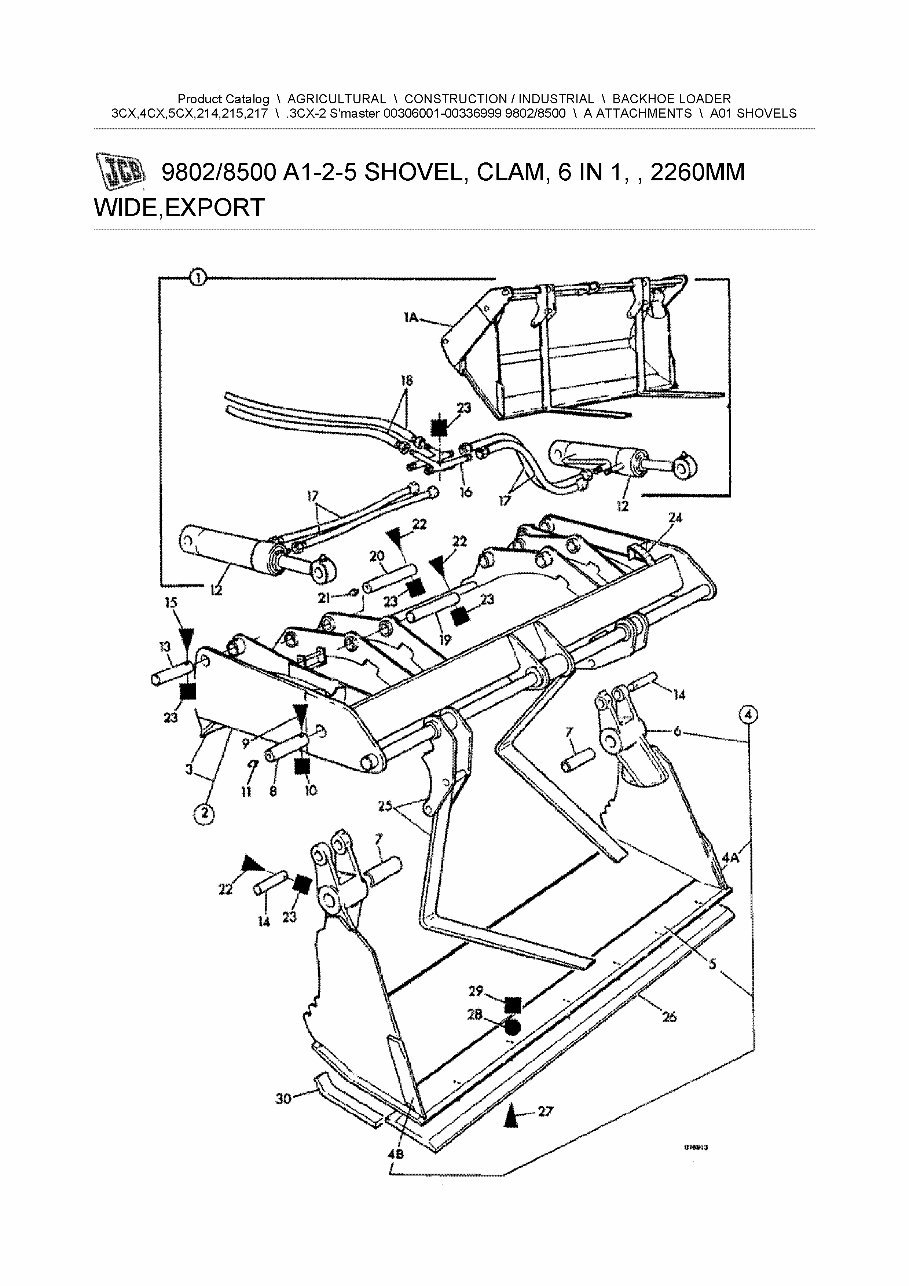

9802/8500A1-2-5 SHOVEL, CLAM, 6 IN 1,, 2260MM
WIDE,EXPORT
Product Catalog \ AGRICULTURAL \ CONSTRUCTION/ INDUSTRIAL \ BACKHOE LOADER
3CX,4CX,5CX,214,215,217 \ .3CX-2 S'master 00306001-00336999 9802/8500 \ A ATTACHMENTS \ A01 SHOVELS
Page 1 of 3 Untitled Page
NOT FOR REPRODUCTION
Page 7
http://localhost:8033/ProductCatalog/DrawingPrint.aspx?ServicePartsPagelD... 02.10.2015

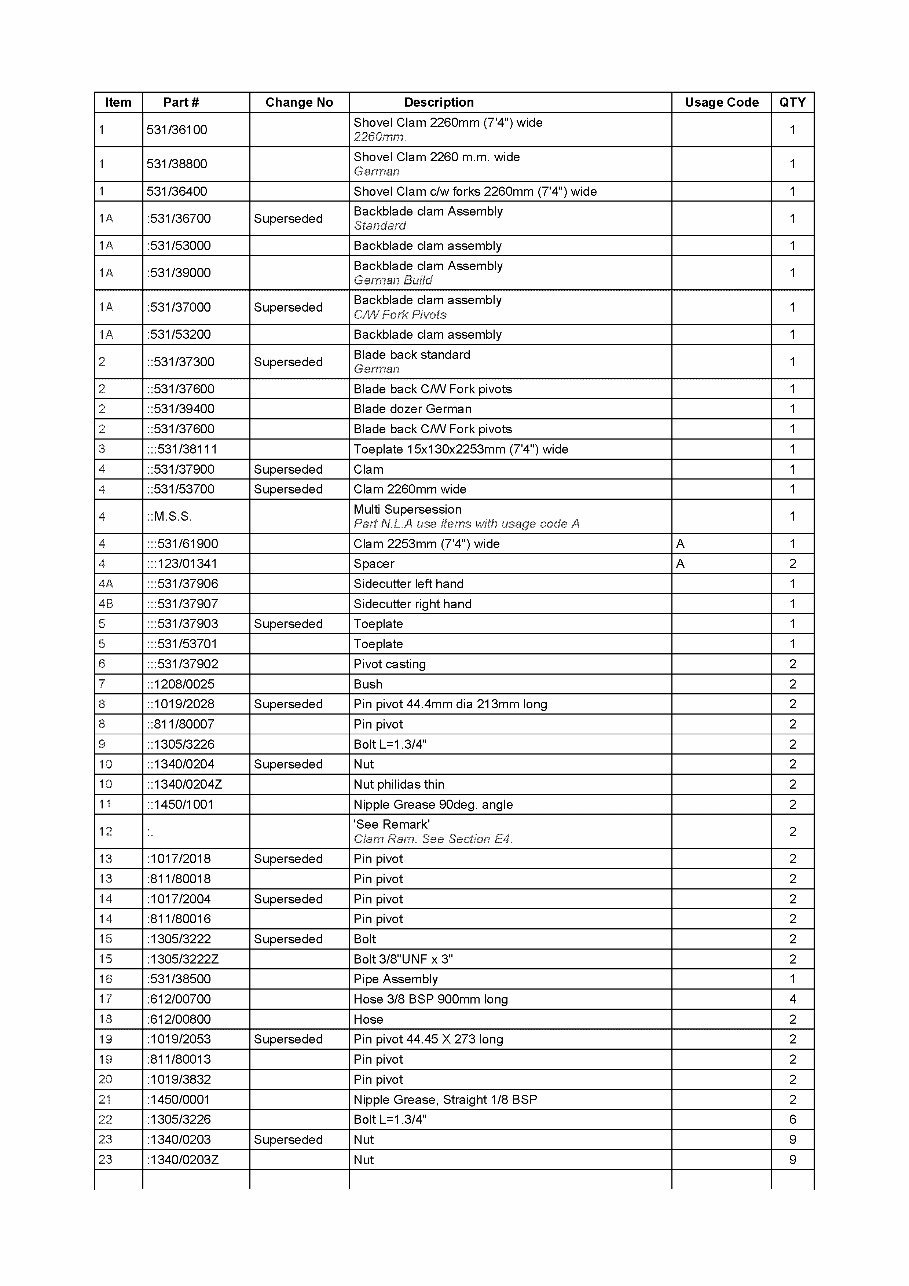

Item Part# Change No Description Usage Code QTY
1 531/36100
Shovel Clam 2260mm (7'4") wide
1
2260mm.
1 531/38800
Shovel Clam 2260 m.m. wide
1
German
1 531/36400 Shovel Clam c/w forks 2260mm (7'4") wide 1
1A :531/36700 Superseded
Backblade clam Assembly
1
Standard
1A :531/53000 Backblade clam assembly 1
1A :531/39000
Backblade clam Assembly
1
German Build
1A :531/37000 Superseded
Backblade clam assembly
1
CJ\/11 Fork Pivots
1A :531/53200 Backblade clam assembly 1
2 : : 531 /37300 Superseded
Blade back standard
1
German
2 ::531/37600 Blade back CNV Fork pivots 1
2 ::531/39400 Blade dozer German 1
2 ::531/37600 Blade back CNV Fork pivots 1
3 :::531/38111 Toe plate 15x130x2253mm (7'4") wide 1
4 : : 531 /37900 Superseded Clam 1
4 ::531/53700 Superseded Clam 2260mm wide 1
4 ::M.S.S.
Multi Supersession
1
Part N.L.A use items with usage code A
4 :::531/61900 Clam 2253mm (7'4") wide A 1
4 : : : 123/01341 Spacer A 2
4A : : :531 /37906 Sidecutter left hand 1
48 :::531/37907 Sidecutter right hand 1
5 : : :531 /37903 Superseded Toe plate 1
5 :::531/53701 Toe plate 1
6 : : :531 /37902 Pivot casting 2
7 : : 1208/0025 Bush 2
8 ::1019/2028 Superseded Pin pivot 44.4mm dia 213mm long 2
8 ::811/80007 Pin pivot 2
9 : : 1305/3226 Bolt L=1 .3/4" 2
10 : : 1340/0204 Superseded Nut 2
10 : : 1340/0204Z Nut philidas thin 2
11 : : 1450/1001 Nipple Grease 90deg. angle 2
12
'See Remark'
2 ..
Clam Ram. See Section E4 .
13 :1017/2018 Superseded Pin pivot 2
13 :811/80018 Pin pivot 2
14 :1017/2004 Superseded Pin pivot 2
14 :811/80016 Pin pivot 2
15 :1305/3222 Superseded Bolt 2
15 : 1 305/3222Z Bolt 3/8"UNF x 3" 2
16 :531/38500 Pipe Assembly 1
17 :612/00700 Hose 3/8 BSP 900mm long 4
18 :612/00800 Hose 2
19 :1019/2053 Superseded Pin pivot 44.45 X 273 long 2
19 :811/80013 Pin pivot 2
20 :1019/3832 Pin pivot 2
21 :1450/0001 Nipple Grease, Straight 1/8 BSP 2
22 :1305/3226 Bolt L=1 .3/4" 6
23 :1340/0203 Superseded Nut 9
23 : 1 340/0203Z Nut 9
Page 2 of 3 Untitled Page
NOT FOR REPRODUCTION
Page 8
http://localhost:8033/ProductCatalog/DrawingPrint.aspx?ServicePartsPagelD... 02.10.2015

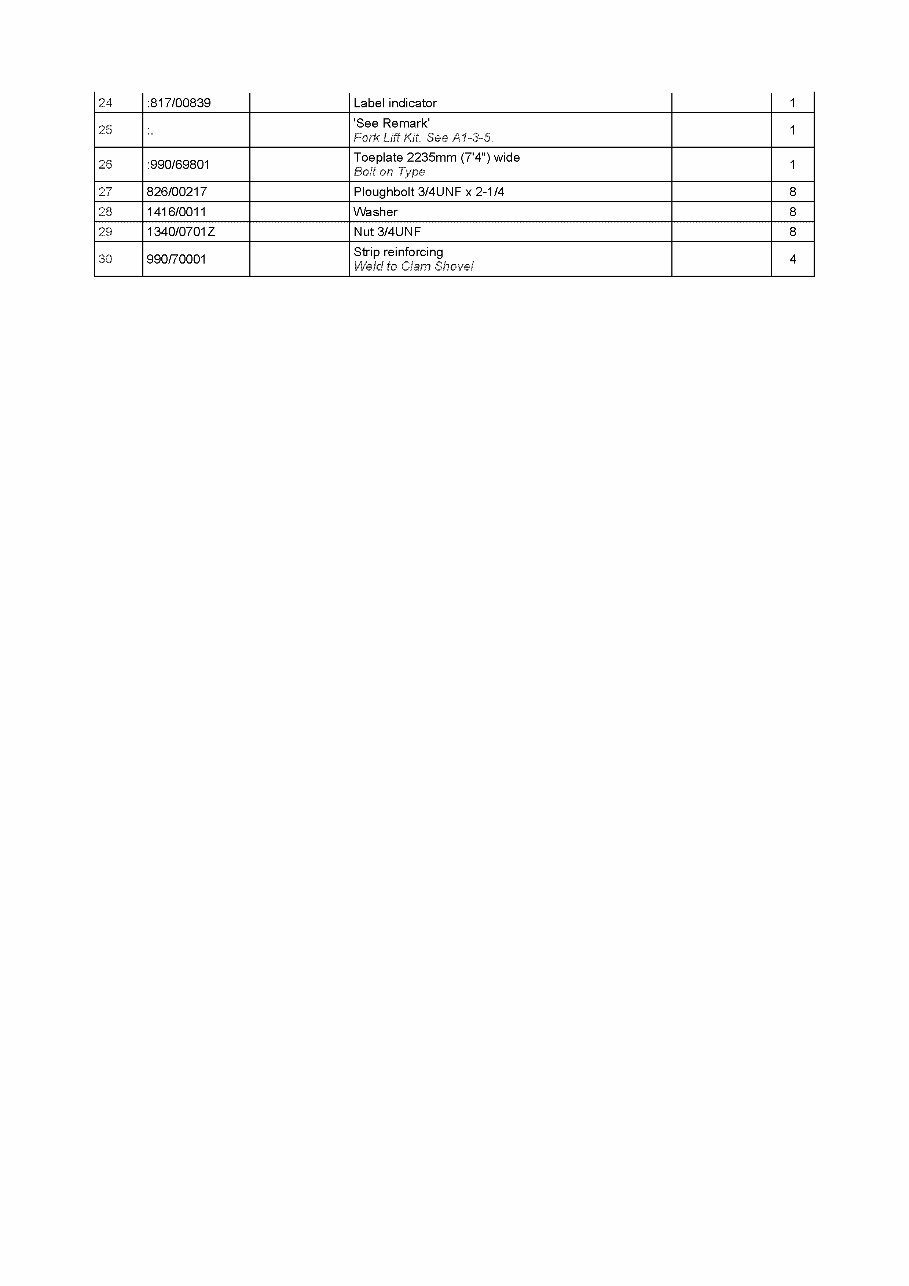

24 :817/00839 Label indicator 1
25
'See Remark'
1 ..
Fork Lift Kit. See A 1-3-5 .
26 :990/69801
Toeplate 2235mm (7'4") wide
1
Bolton Type
27 826/00217 Ploughbolt 3/4UNF x 2-1/4 8
28 1416/0011 Washer 8
29 1340/0701 Z Nut 3/4UNF 8
30 990/70001
Strip reinforcing
4
Weld to Clam Shovel
Page 3 of 3 Untitled Page
NOT FOR REPRODUCTION
Page 9
