http://localhost:8033/ProductCatalog/DrawingPrint.aspx?ServicePartsPageID... 03.09.2015

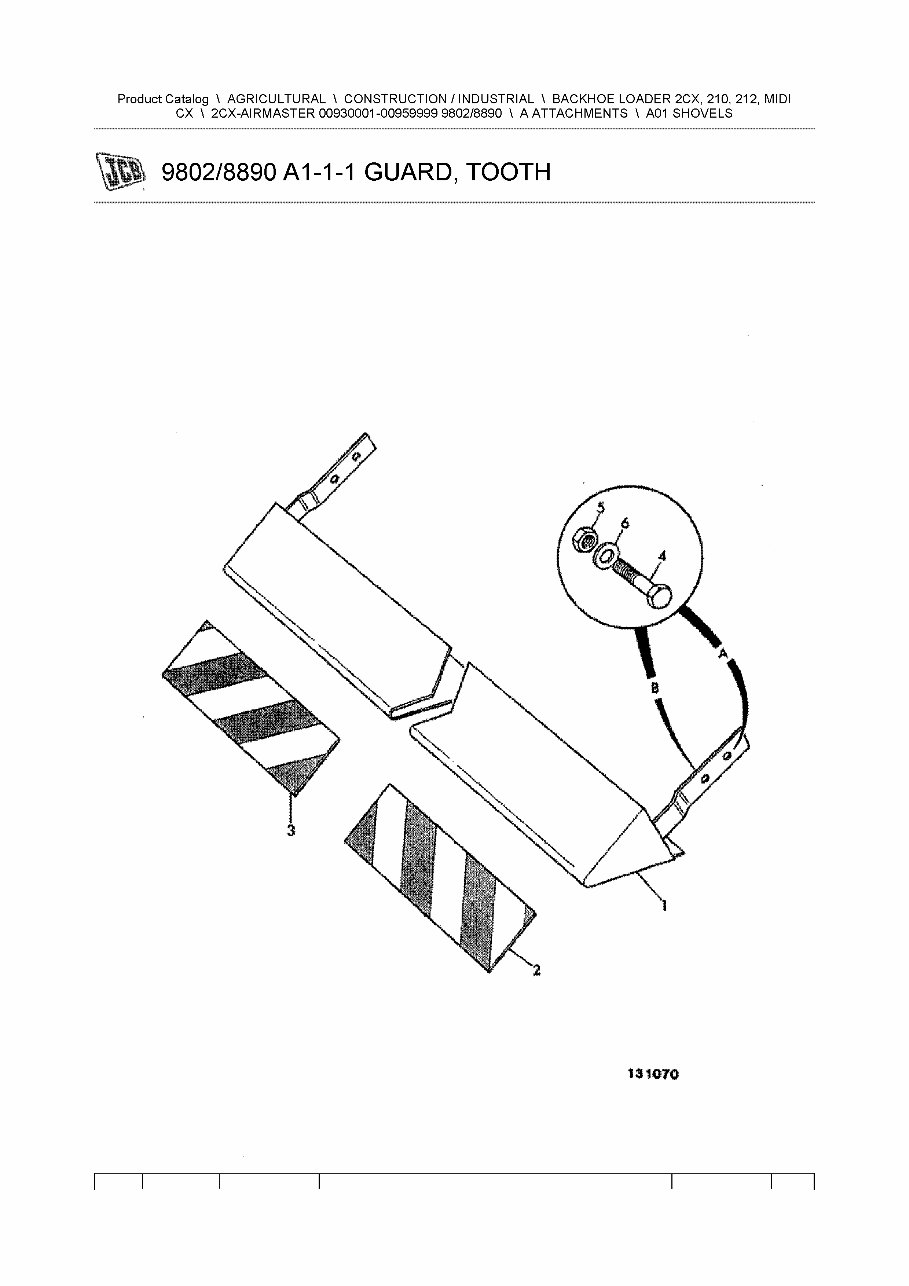

9802/8890 A1-1-1 GUARD, TOOTH
Product Catalog \ AGRICULTURAL \ CONSTRUCTION 1 INDUSTRIAL \ BACKHOE lOADER 2CX, 210, 212, MIDI
CX \ 2CX-AIRMASTER 00930001-00959999 9802/8890 \ A ATTACHMENTS \ A01 SHOVELS
Page 1 of 2 Untitled Page
JCB
Page 1
http://localhost:8033/ProductCatalog/DrawingPrint.aspx?ServicePartsPageID... 03.09.2015

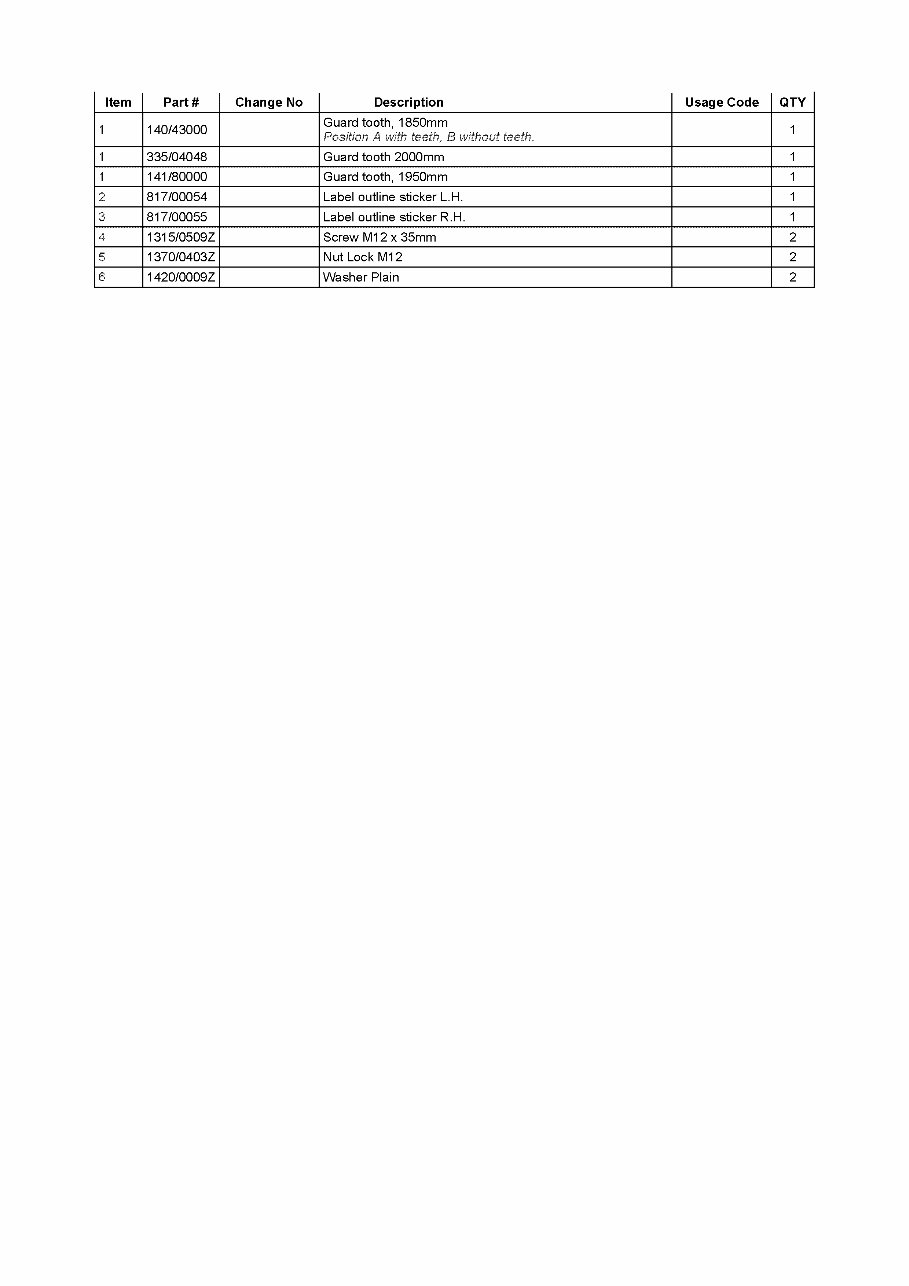

Item Part # Change No Description Usage Code QTY
140/43000
Guard tooth, 1850mm
1
1 Position A with teeth, B without teeth
1 335/04048 Guard tooth 2000mm 1
1 141/80000 Guard tooth, 1950mm 1
12 817/00054 Label outline sticker L.H. 1
13
817/00055 Label outline sticker R.H. 1
4 1315/0509Z Screw M12 x 35mm 2
5 137010403Z Nut Lock M12 2
6 142010009Z Washer Plain 2
Page 2 of 2 Untitled Page
JCB
Page 2
http://localhost:8033/ProductCatalog/DrawingPrint.aspx?ServicePartsPageID... 03.09.2015
Item Part # Change No Description Usage Code QTY
IA 128/12142 Clamshovel assemblY,1850mm 1
1 :128/12235 Clamshovel assembly as supplied 1
414341
9802/8890 A 1-2-5 SHOVEL CLAM 0.6CU.M, 1850MM (6'0")
WIDE, DIRECT MOUNT,TWIN SHOVEL RAM
Product Catalog \ AGRICULTURAL \ CONSTRUCTION 1 INDUSTRIAL \ BACKHOE LOADER 2CX, 210, 212, MIDI
CX \ 2CX-AI RMASTER 00930001-00959999 9802/8890 \ A ATTACH MENTS \ A01 SHOVELS
Page 1 of 2 Untitled Page
JCB
Page 3
http://localhost:8033/ProductCatalog/DrawingPrint.aspx?ServicePartsPageID... 03.09.2015

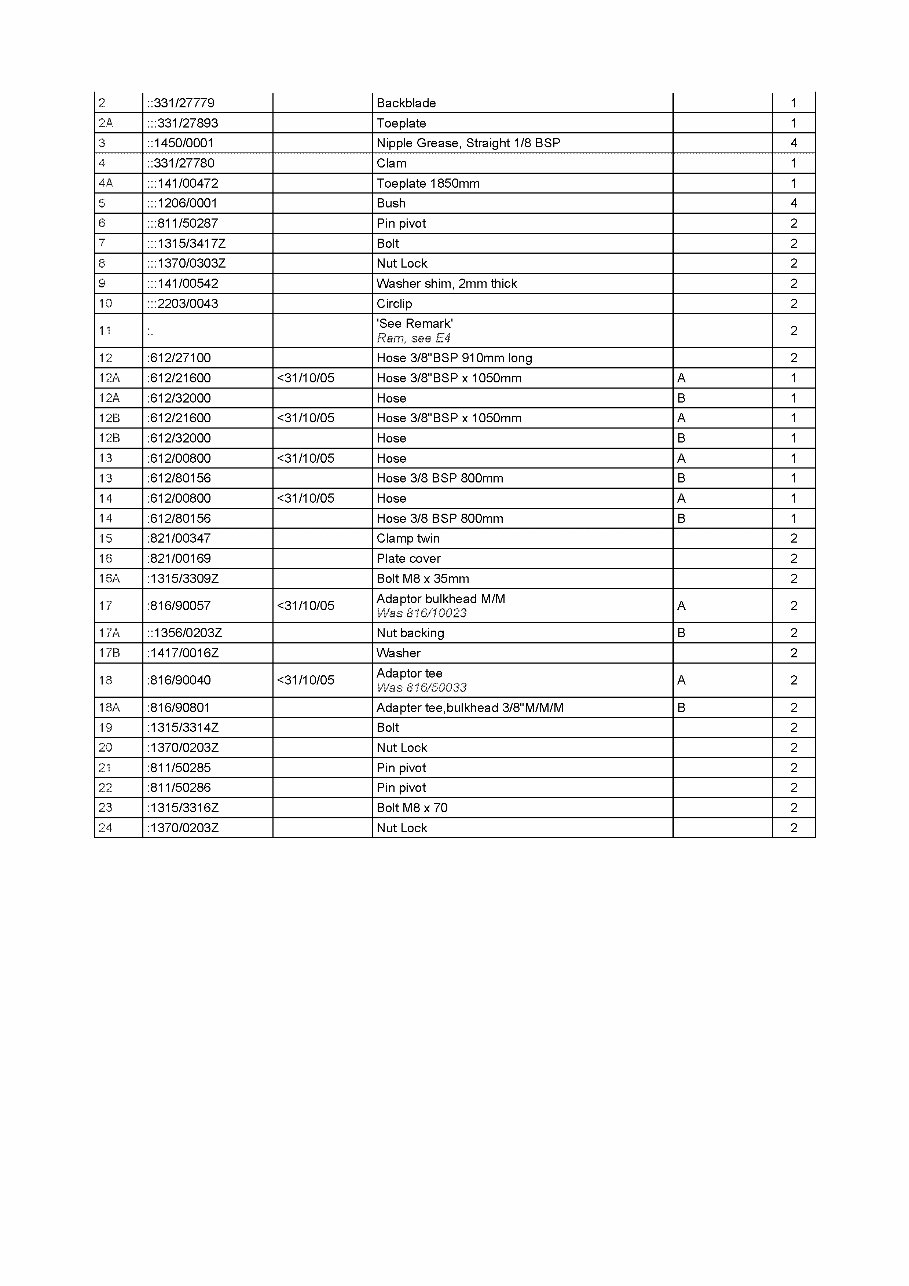

2 ::331/27779 Backblade 1
2A :::331/27893 Toeplate 1
3 ::145010001 Nipple Grease, Straight 1/8 BSP 4
4 ::331127780 Clam 1
14A :::141/00472 Toeplate 1850mm 1
15 :::1206/0001 Bush 4
6 :::811/50287 Pin pivot 2
7 :::1315/3417Z Bolt 2
8 :::137010303Z Nut Lock 2
9 :::141/00542 Washer shim, 2mm thick 2
10 :::2203/0043 Circlip 2
1
'See Remark'
2 ..
Ram, see E4
12 :612/27100 Hose 3/8"BSP 91Omm long 2
12A :612/21600 <31/10105 Hose 3/8"BSP x 1050mm A 1
12A :612/32000 Hose B 1
12B :612/21600 <31/10105 Hose 3/8"BSP x 1050mm A 1
12B :612/32000 Hose B 1
13 :612/00800 <31/10105 Hose A 1
13 :612/80156 Hose 3/8 BSP 800mm B 1
14 :612/00800 <31/10105 Hose A 1
14 :612/80156 Hose 3/8 BSP 800mm B 1
15 :821/00347 Clamp twin 2
16 :821/00169 Plate cover 2
16A :1315/3309Z Bolt M8 x 35mm 2
:816190057 <31/10105
Adap~ol bulkhead M/M
A 2
Was 816110023
17A ::1356/0203Z Nut backing B 2
17B :1417/0016Z Washer 2
:816190040 <31/10105
~aa~ 816~~O33
A 2
18A :816/90801 Adapter tee,bulkhead 3/8"M/M/M B 2
19 :1315/3314Z Bolt 2
20 :137010203Z Nut Lock 2
121 :811/50285 Pin pivot 2
22 :811/50286 Pin pivot 2
23 :1315/3316Z Bolt M8 x 70 2
124 :137010203Z Nut Lock 2
Page 2 of 2 Untitled Page
JCB
Page 4
http://localhost:8033/ProductCatalog/DrawingPrint.aspx?ServicePartsPageID... 03.09.2015
Item Part # Change No Description Usage Code QTY
IA 128/12151 Clamshovel assembly,2000mm 1
12 :331/27777 Backblade 1
400131

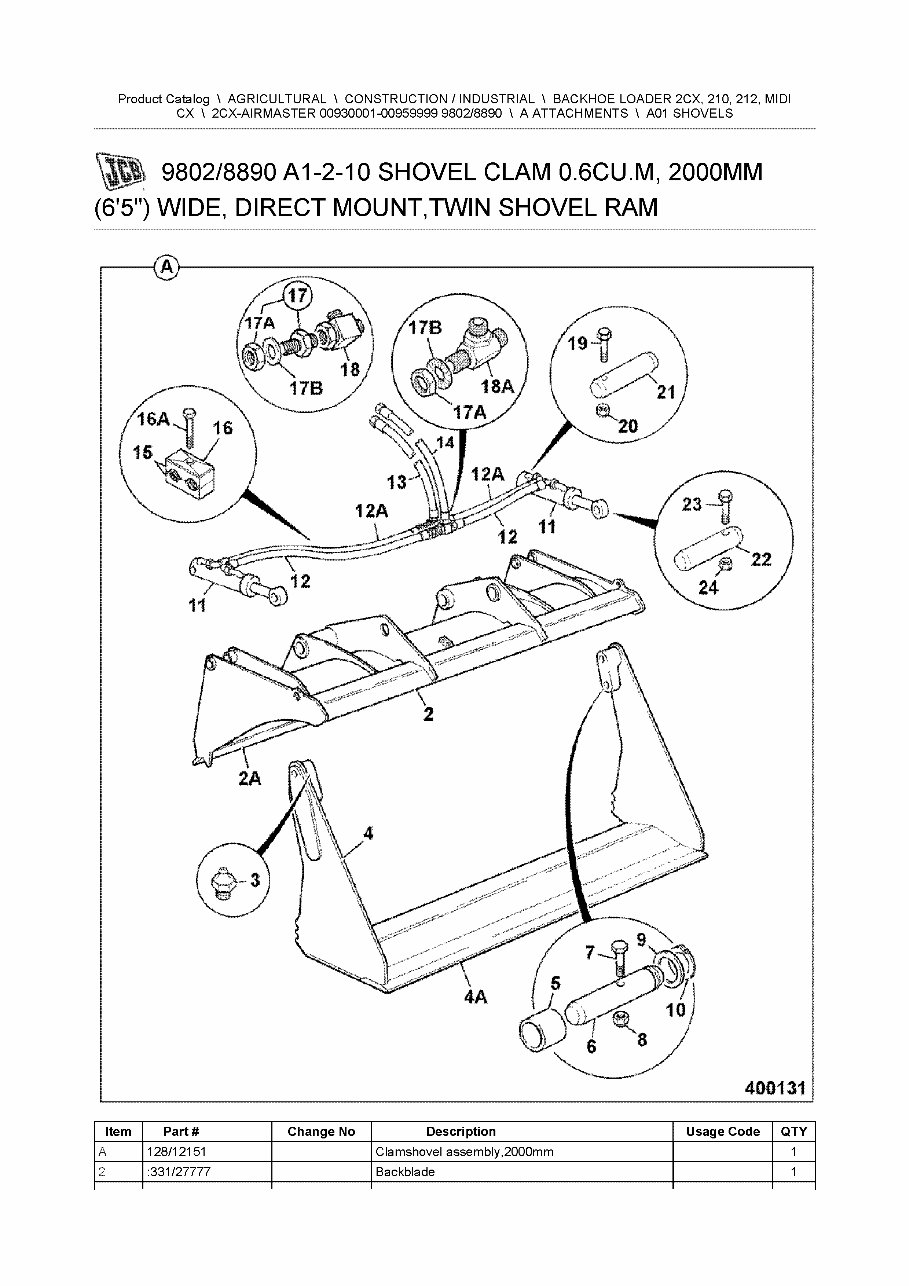

9802/8890 A 1-2-10 SHOVEL CLAM 0.6CU.M, 2000MM
(6'5") WIDE, DIRECT MOUNT,TWIN SHOVEL RAM
Product Catalog \ AGRICULTURAL \ CONSTRUCTION 1 INDUSTRIAL \ BACKHOE LOADER 2CX, 210, 212, MIDI
CX \ 2CX-AI RMASTER 00930001-00959999 9802/8890 \ A ATTACH MENTS \ A01 SHOVELS
Page 1 of 2 Untitled Page
JCB
Page 5
http://localhost:8033/ProductCatalog/DrawingPrint.aspx?ServicePartsPageID... 03.09.2015

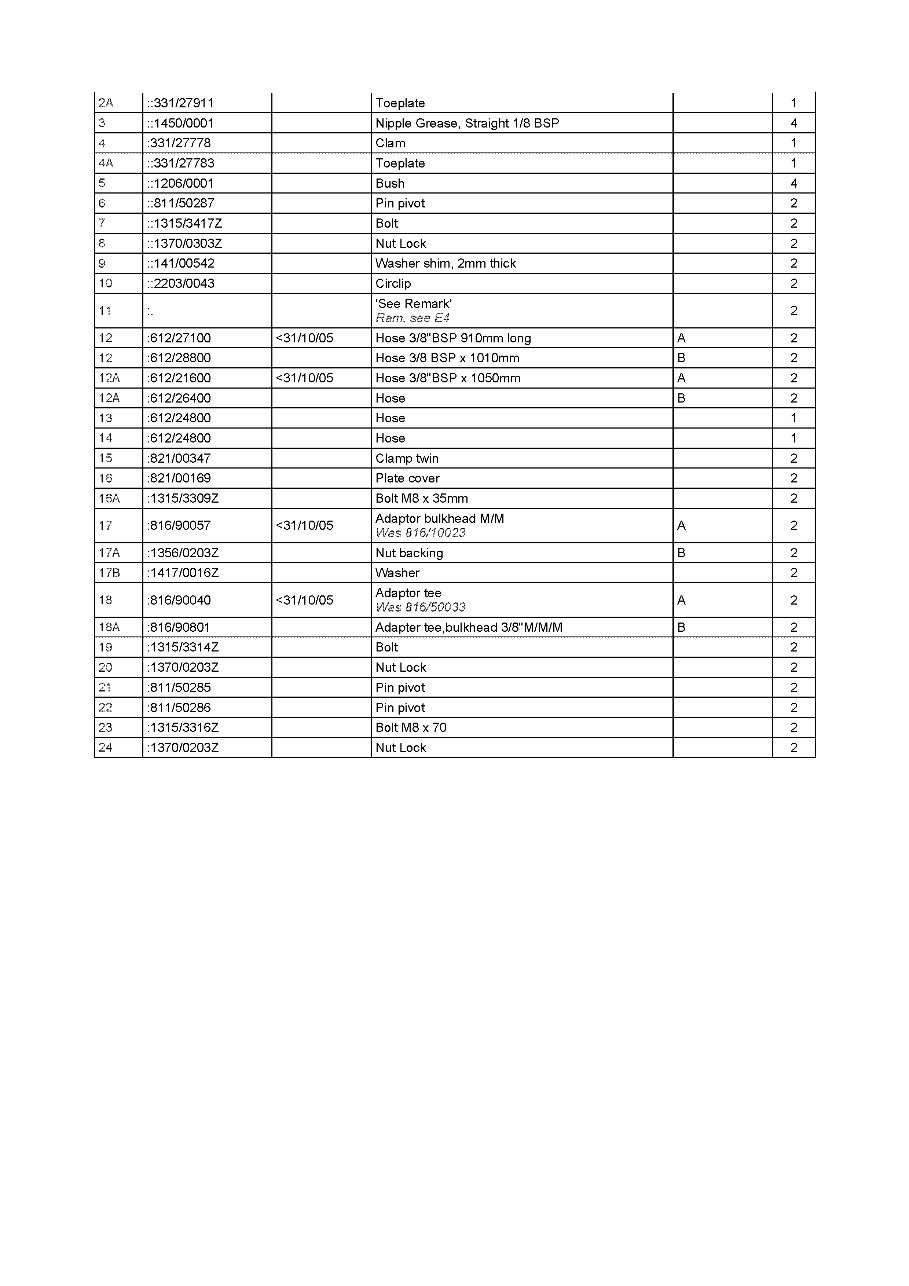

12A ::331/27911 Toeplate 1
13
::145010001 Nipple Grease, Straight 1/8 BSP 4
4 :331/27778 Clam 1
14A ::331127783 Toeplate 1
5 ::1206/0001 Bush 4
6 ::811/50287 Pin pivot 2
7 ::1315/3417Z Bolt 2
18
::137010303Z Nut Lock 2
9 ::141/00542 Washer shim, 2mm thick 2
10 ::2203/0043 Circlip 2
1
'See Remark'
2 ..
IRam. see E4
12 :612/27100 <31/10105 Hose 3/8"BSP 91Omm long A 2
12 :612/28800 Hose 3/8 BSP x 101Omm B 2
12A :612/21600 <31/10105 Hose 3/8"BSP x 1050mm A 2
12A :612/26400 Hose B 2
13 :612/24800 Hose 1
14 :612/24800 Hose 1
15 :821/00347 Clamp twin 2
16 :821/00169 Plate cover 2
16A :1315/3309Z Bolt M8 x 35mm 2
7 :816190057 <31/10105
I Ada: bulkhead M/M
A 2
Was 816110023
17A :1356/0203Z Nut backing B 2
17B :1417/0016Z Washer 2
:816190040 <31/10105
I ~aa:~o;6~~033
A 2
18A :816/90801 Adapter tee,bulkhead 3/8"M/M/M B 2
19 :1315/3314Z Bolt 2
20 :137010203Z Nut Lock 2
21 :811/50285 Pin pivot 2
22 :811/50286 Pin pivot 2
23 :1315/3316Z Bolt M8 x 70 2
24 :137010203Z Nut Lock 2
Page 2 of 2 Untitled Page
JCB
Page 6
http://localhost:8033/ProductCatalog/DrawingPrint.aspx?ServicePartsPageID... 03.09.2015
Item Part # Change No Description Usage Code QTY
IA 128/11303
Clamshovel assembly
1
See Note 1

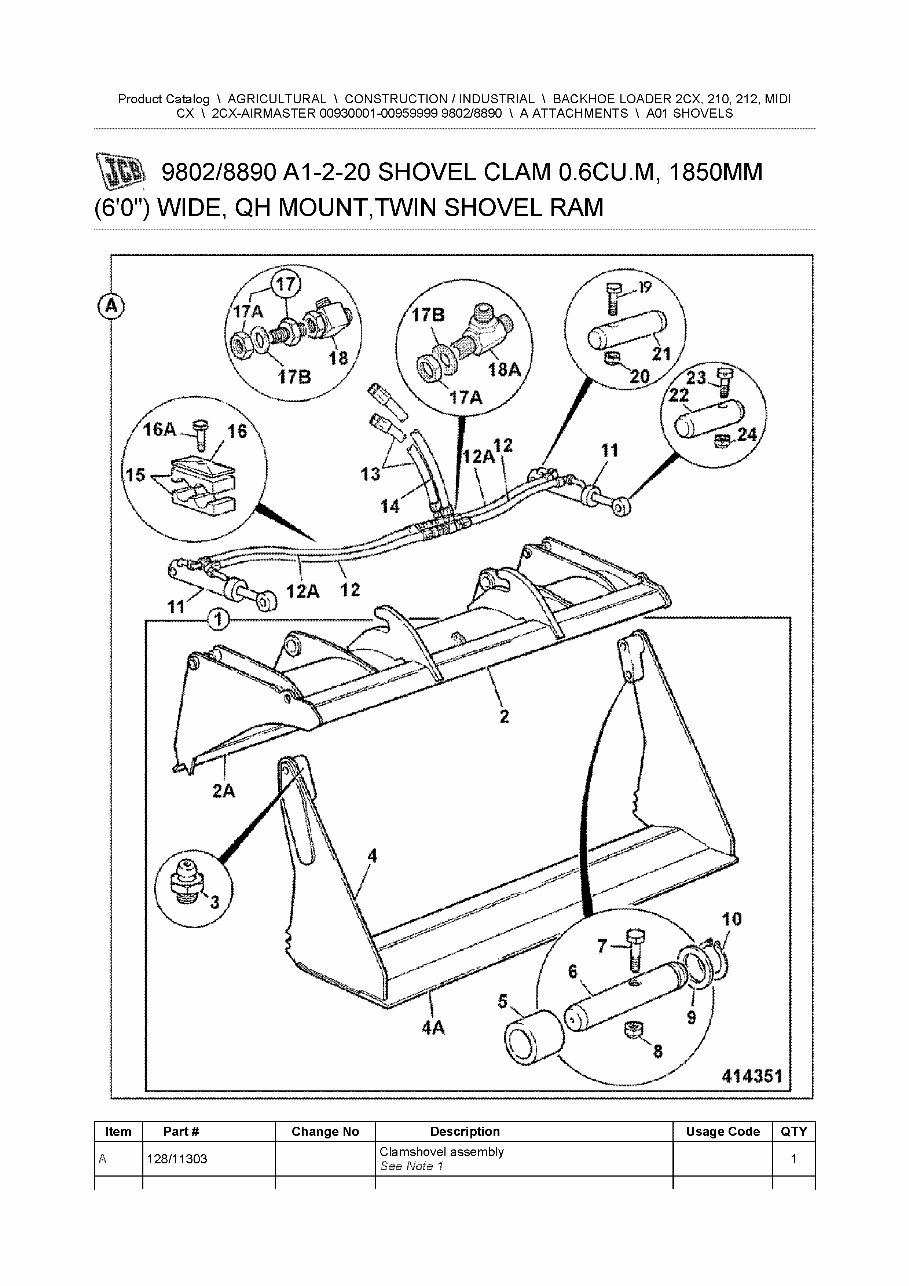

9802/8890 A 1-2-20 SHOVEL CLAM 0.6CU.M, 1850MM
(6'0") WIDE, QH MOUNT,TWIN SHOVEL RAM
Product Catalog \ AGRICULTURAL \ CONSTRUCTION 1 INDUSTRIAL \ BACKHOE LOADER 2CX, 210, 212, MIDI
CX \ 2CX-AI RMASTER 00930001-00959999 9802/8890 \ A ATTACH MENTS \ A01 SHOVELS
Page 1 of 2 Untitled Page
JCB
Page 7
http://localhost:8033/ProductCatalog/DrawingPrint.aspx?ServicePartsPageID... 03.09.2015

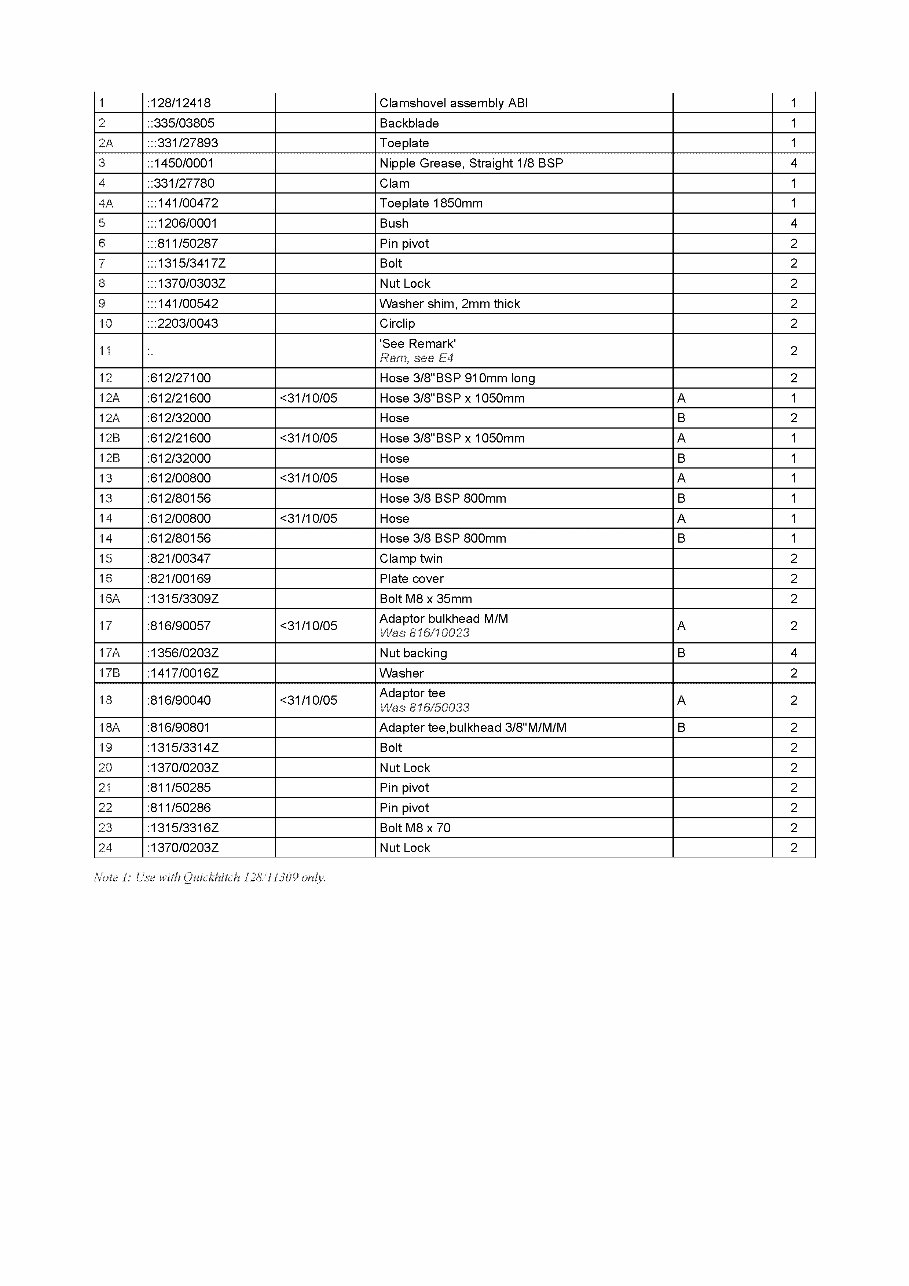

1 :128/12418 Clamshovel assembly ABI 1
12 ::335/03805 Backblade 1
12A :::331/27893 Toeplate 1
3 ::145010001 Nipple Grease, Straight 1/8 BSP 4
14 ::331127780 Clam 1
14A :::141/00472 Toeplate 1850mm 1
IS :::1206/0001 Bush 4
6 :::811/50287 Pin pivot 2
7 :::1315/3417Z Bolt 2
8 :::137010303Z Nut Lock 2
19
:::141/00542 Washer shim, 2mm thick 2
10 :::2203/0043 Circlip 2
1
'See Remark'
2 ..
Ram. see E4
12 :612/27100 Hose 3/8"BSP 91Omm long 2
12A :612/21600 <31/10105 Hose 3/8"BSP x 1050mm A 1
12A :612/32000 Hose B 2
12B :612/21600 <31/10105 Hose 3/8"BSP x 1050mm A 1
12B :612/32000 Hose B 1
13 :612/00800 <31/10105 Hose A 1
13 :612/80156 Hose 3/8 BSP 800mm B 1
14 :612/00800 <31/10105 Hose A 1
14 :612/80156 Hose 3/8 BSP 800mm B 1
15 :821/00347 Clamp twin 2
16 :821/00169 Plate cover 2
16A :1315/3309Z Bolt M8 x 35mm 2
:816190057 <31/10105
Ada] bulkhead M/M
A 2
Was 816110023
17A :1356/0203Z Nut backing B 4
17B :1417/0016Z Washer 2
:816190040 <31/10105
Adaptor tee
A 2
Was 816150033
18A :816/90801 Adapter tee,bulkhead 3/8"M/M/M B 2
19 :1315/3314Z Bolt 2
120 :137010203Z Nut Lock 2
21 :811/50285 Pin pivot 2
22 :811/50286 Pin pivot 2
23 :1315/3316Z Bolt M8 x 70 2
24 :137010203Z Nut Lock 2
Page 2 of 2 Untitled Page
JCB
Page 8
http://localhost:8033/ProductCatalog/DrawingPrint.aspx?ServicePartsPageID... 03.09.2015
Item Part # Change No Description Usage Code QTY
IA 128/11307
Clamshovel assembly
1
I See Note 1
9802/8890 A 1-2-30 SHOVEL CLAM 0.6CU.M, 2000MM
(6'5") WIDE, QH MOUNT,TWIN SHOVEL RAM
Product Catalog \ AGRICULTURAL \ CONSTRUCTION 1 INDUSTRIAL \ BACKHOE LOADER 2CX, 210, 212, MIDI
CX \ 2CX-AI RMASTER 00930001-00959999 9802/8890 \ A ATTACH MENTS \ A01 SHOVELS
Page 1 of 2 Untitled Page
JCB
Page 9
You're Reading a Preview
What's Included?
Lifetime Access
Fast Download Speeds
Online & Offline Access
Access PDF Contents & Bookmarks
Full Search Facility
Print one or all pages of your manual
$61.99
Viewed 33 Times Today
Secure transaction
What's Included?
Lifetime Access
Fast Download Speeds
Online & Offline Access
Access PDF Contents & Bookmarks
Full Search Facility
Print one or all pages of your manual
$61.99
JCB 2CX-AIRMASTER BACKHOE LOADER PARTS CATALOG MANUAL #1
For machines with serial numbers 00930001-00959999.
PAGES: 861
This parts catalog is essential for identifying the original spare part numbers for your machine. It enables easy ordering and purchasing of the required spare parts.
The catalog includes parts used for machines with serial numbers matching those listed in this directory.
The manual features bookmarks, searchable text, and improved quality.
*INSTANT - NO WAITING
*LANGUAGE: English
*FORMAT: PDF
*COMPATIBLE: All Versions of Windows, Mac, iOS, BB, Android, etc
*SEARCHABLE - BOOKMARKED
This catalogue is divided into main sections corresponding to specific areas of the product. Each section is represented by detailed figures (illustrations), diagrams, and part numbers to assist in locating and identifying parts.
Keep in mind that this is NOT a service/repair manual, only a parts catalog!
Categorized into groups such as:
- Engine
- Wheels
- Fuel System
- and MUCH MORE
The ability to search makes finding what you need as easy as typing a word.
The Manual can be viewed on any computer, as well as zoomed and printed.
Additional Information:
Documents may require the newest version of Acrobat Reader to display correctly. Should you have any problems reading your document, please initially try upgrading to the latest version of Adobe Acrobat Reader.
I have Thousands of Manuals - email me about any you might need.
