Case 580SK 580 Super K Loader Backhoe Operators Owner Instruction Manual

This symbol means A TTENTION! BECOME ALERt! YOUR ~ SAFETY IS INVOLVED. The message that follows tqe symbol , contains important information about your safety. Carefully read • the message. Make sure you fully understand the causes of possible injury or death. 58001 IF THIS MACHINE IS USED BY AN EMPLOYEE, IS LOANED'; OR IS RENTED, MAKE SURE THAT THE OPERATOR UNDERSTANDS THE TWO INSTRUCTIONS BELOW. BEFORE THE OPERATOR STARTS THE ENGINE: 1. GIVE INSTRUCTIONS TO THE OPERATOR ON SAFE AND CORRECT USE OF THE MACHINE. 2. MAKE SURE THE OPERATOR READS AND UNDERSTANDS THE OPERATOR'S MANUAL FOR THIS MACHINE. A WARNING IMPROPER OPERATION OFTHIS MACHINE CAN CAUSE INJURY OR DEATH. BEFORE STARTING THE ENGINE, DO THE FOLLOWING: 1. READ THE OPERATOR'S MANUAL. 2. READ ALL SAFETY DECALS ON THE MACHINE. 3. CLEAR THE AREA OF OTHER PERSONS. LEARN AND PRACTICE SAFE USE OF MACHINE CONTROLS IN A SAFE, CLEAR AREA BEFORE YOU OPERATE THIS MACHINE ON A JOB SITE. It is your responsibility to observe pertinent laws and regulations and to follow manufacturer's instructions on machine operation and maintenance. See your Authorized Case dealer for additional operator's manuals, parts cat- alogs, and service manuals. © 1995 Case Corporation CASE and IH are registered trade marks of Case Corporation

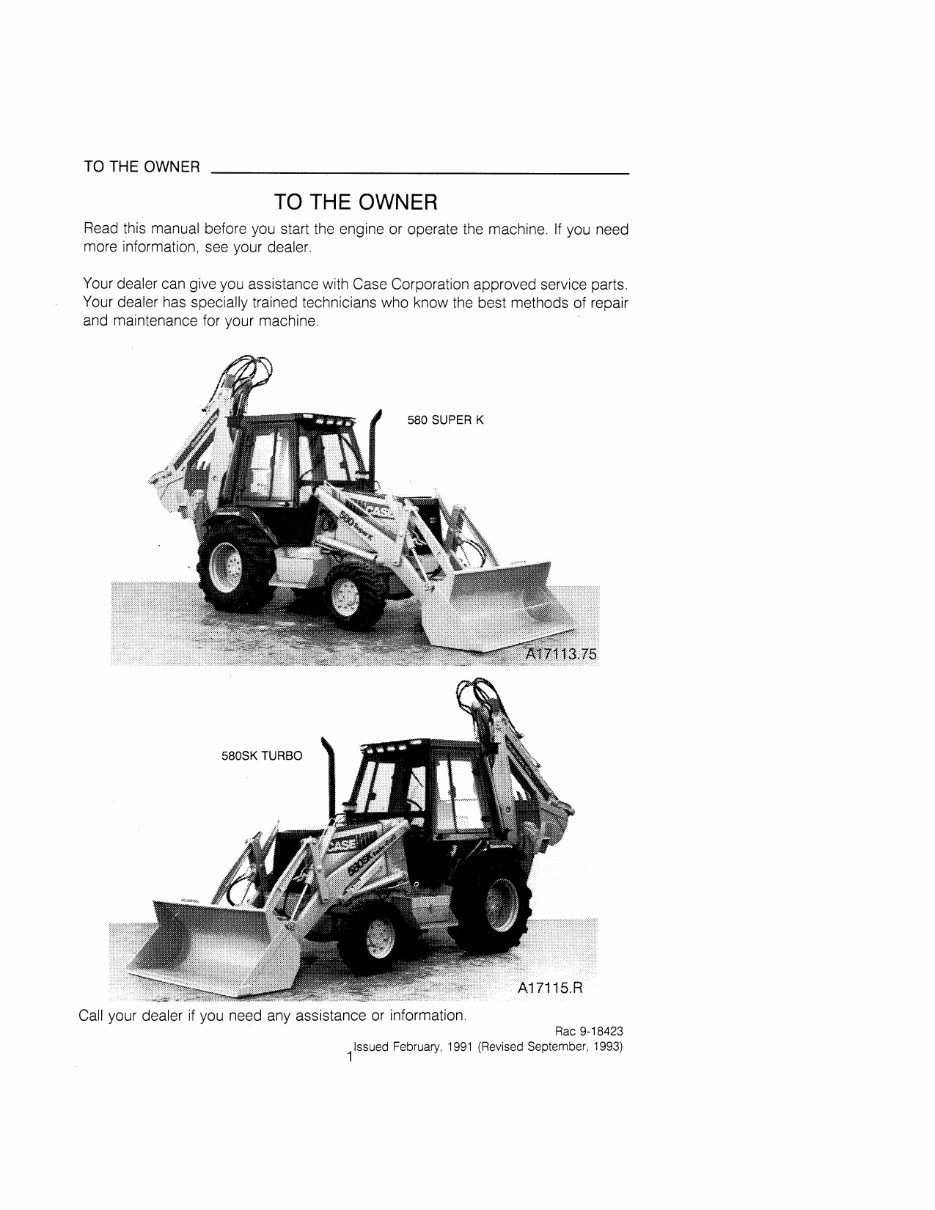

TO THE OWNER TO THE OWNER Read this manual before you start the engine or operate the machine. If you need more information, see your dealer. Your dealer can give you assistance with Case Corporation approved service parts. Your dealer has specially trained technicians who know the best methods of repair and maintenance for your machine. 580 SUPER K 580SK TURBO Call your dealer if you need any assistance or information. Rae 9-18423 11ssued February, 1991 (Revised September, 1993)

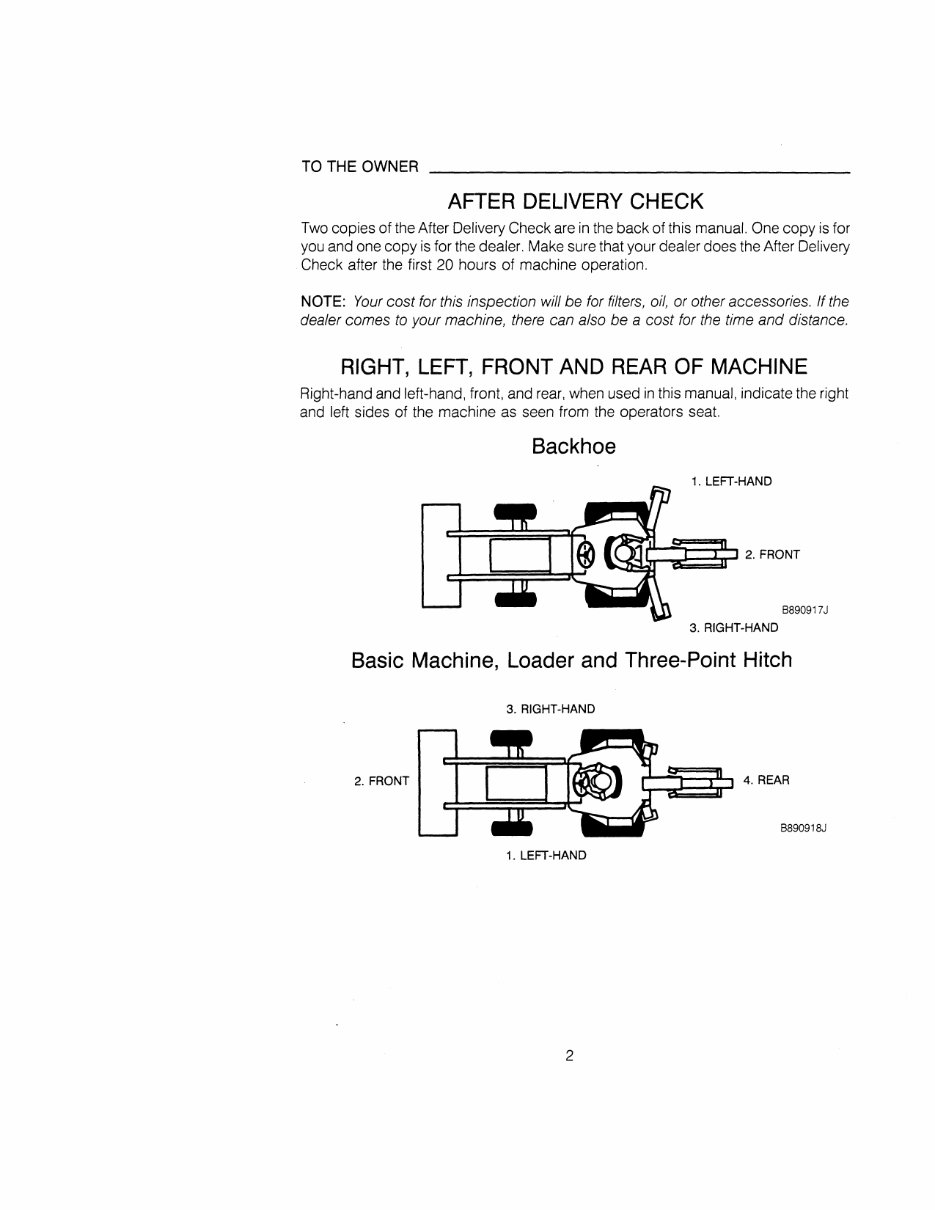

TO THE OWNER ____________________________________ _ AFTER DELIVERY CHECK Two copies of the After Delivery Check are in the back of this manual. One copy is for you and one copy is for the dealer. Make sure that your dealer does the After Delivery Check after the first 20 hours of machine operation. NOTE: Your cost for this inspection will be for filters, oil, or other accessories. If the dealer comes to your machine, there can also be a cost for the time and distance. RIGHT, LEFT, FRONT AND REAR OF MACHINE Right-hand and left-hand, front, and rear, when used in this manual, indicate the right and left sides of the machine as seen from the operators seat. Backhoe 1. LEFT-HAND ~i~~~~::J 2. FRONT B890917J 3. RIGHT-HAND Basic Machine, Loader and Three-Point Hitch 3. RIGHT-HAND 2. FRONT S=~E~:::J 4. REAR B890918J 1. LEFT-HAND 2

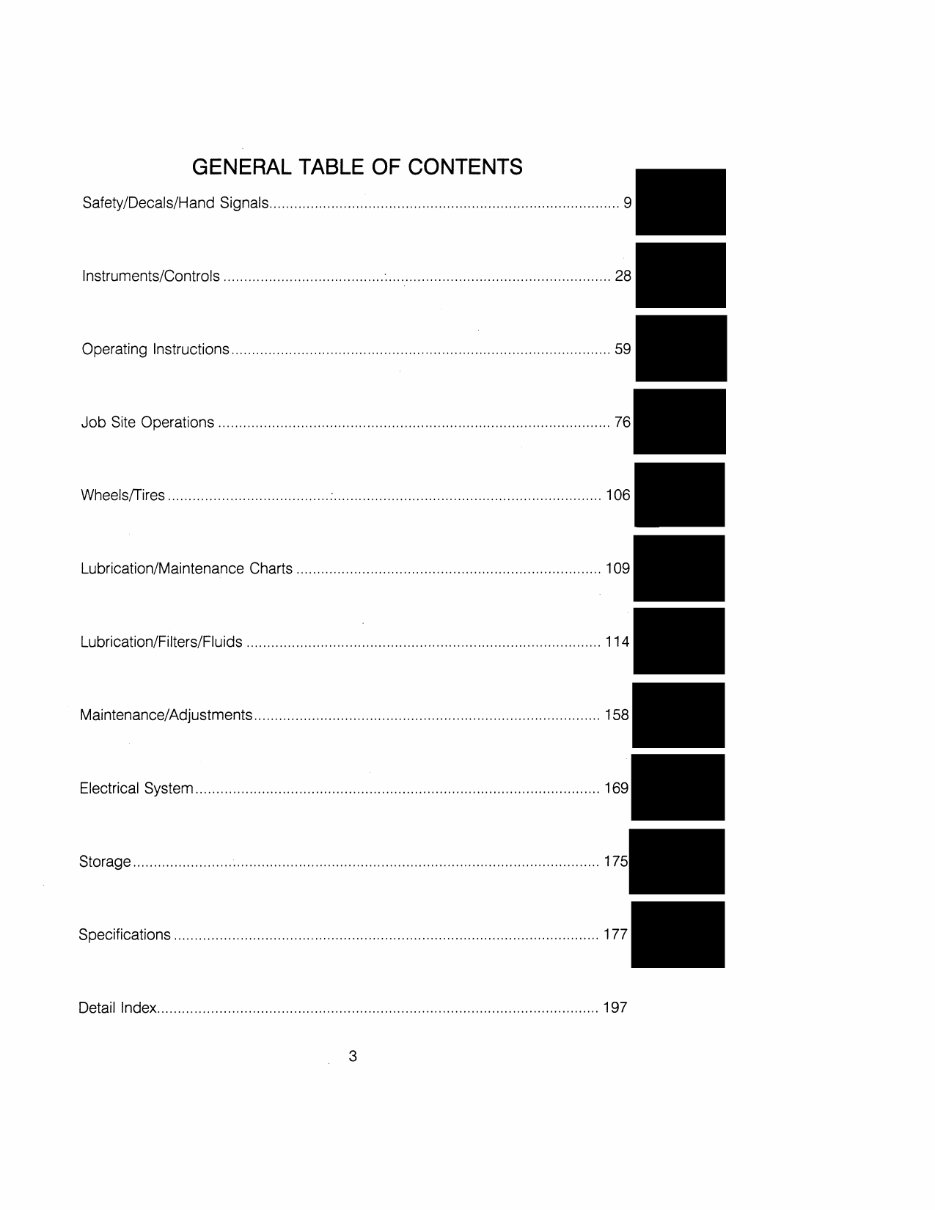

GENERAL TABLE OF CONTENTS Safety/Decals/Hand Signals ..................................................................................... 9 Instruments/Controls ....................................... : ...................................................... 28 Operating Instructions ............................................................................................ 59 Job Site Operations ............................................................................................... 76 Wheels!Tires ....................................... :................................................................. 106 Lubrication/Maintenance Charts .......................................................................... 109 Lubrication/Filters/Fluids ...................................................................................... 114 Maintenance/Adjustments .................................................................................... 158 Electrical System .................................................................................................. 169 Storage ................................................................................................................. 1 Specifications ....................................................................................................... 1 77 Detail Index ........................................................................................................... 197 3

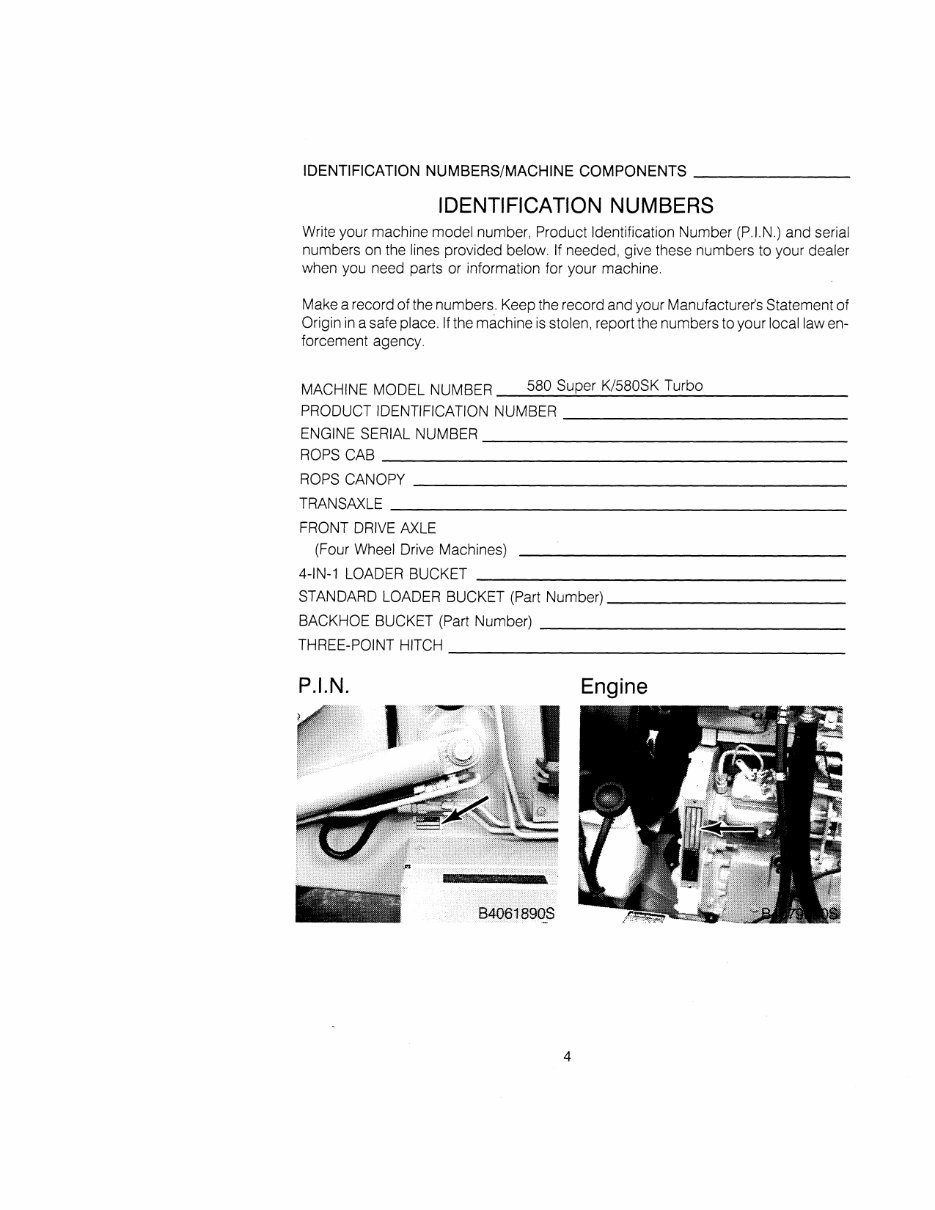

IDENTIFICATION NUMBERS/MACHINE COMPONENTS ______ _ IDENTIFICATION NUMBERS Write your machine model number, Product Identification Number (P.I.N.) and serial numbers on the lines provided below. If needed, give these numbers to your dealer when you need parts or information for your machine. Make a record of the numbers. Keep the record and your Manufacturer's Statement of Origin in a safe place. If the machine is stolen, report the numbers to your local law en- forcement agency. MACHINE MODEL NUMBER 580 Super K/580SK Turbo PRODUCT IDENTIFICATION NUMBER ____________ _ ENGINE SERIAL NUMBER _______________ _ ROPSCAB ____________________ _ ROPSCANOPY __________________ _ TRANSAXLE ____________________ __ FRONT DRIVE AXLE (Four Wheel Drive Machines) 4-IN-1 LOADER BUCKET ________________ _ STANDARD LOADER BUCKET (Part Number) __________ _ BACKHOE BUCKET (Part Number) _____________ _ THREE-POINT HITCH _________________ _ P.I.N. Engine 4

IDENTIFICATION NUMBERS/MACHINE COMPONENTS _____ _ ROPS Cab Front Drive Axle - Four Wheel Drive Machines 4-ln-1 Loader Bucket 5 ROPS Canopy Transaxle Backhoe Bucket - Part Number B866555V

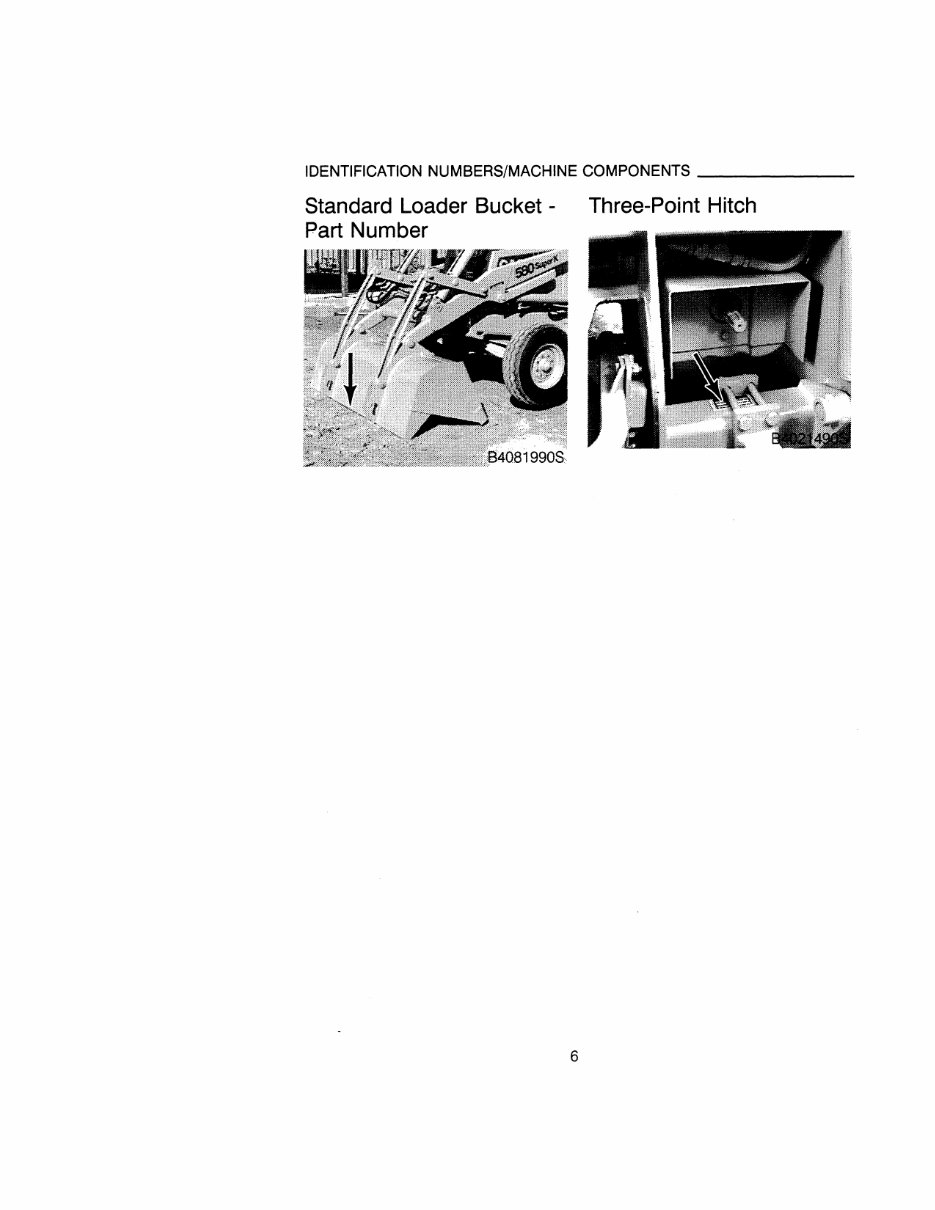

IDENTIFICATION NUMBERS/MACHINE COMPONENTS _____ _ Standard Loader Bucket - Three-Point Hitch Part Number 6

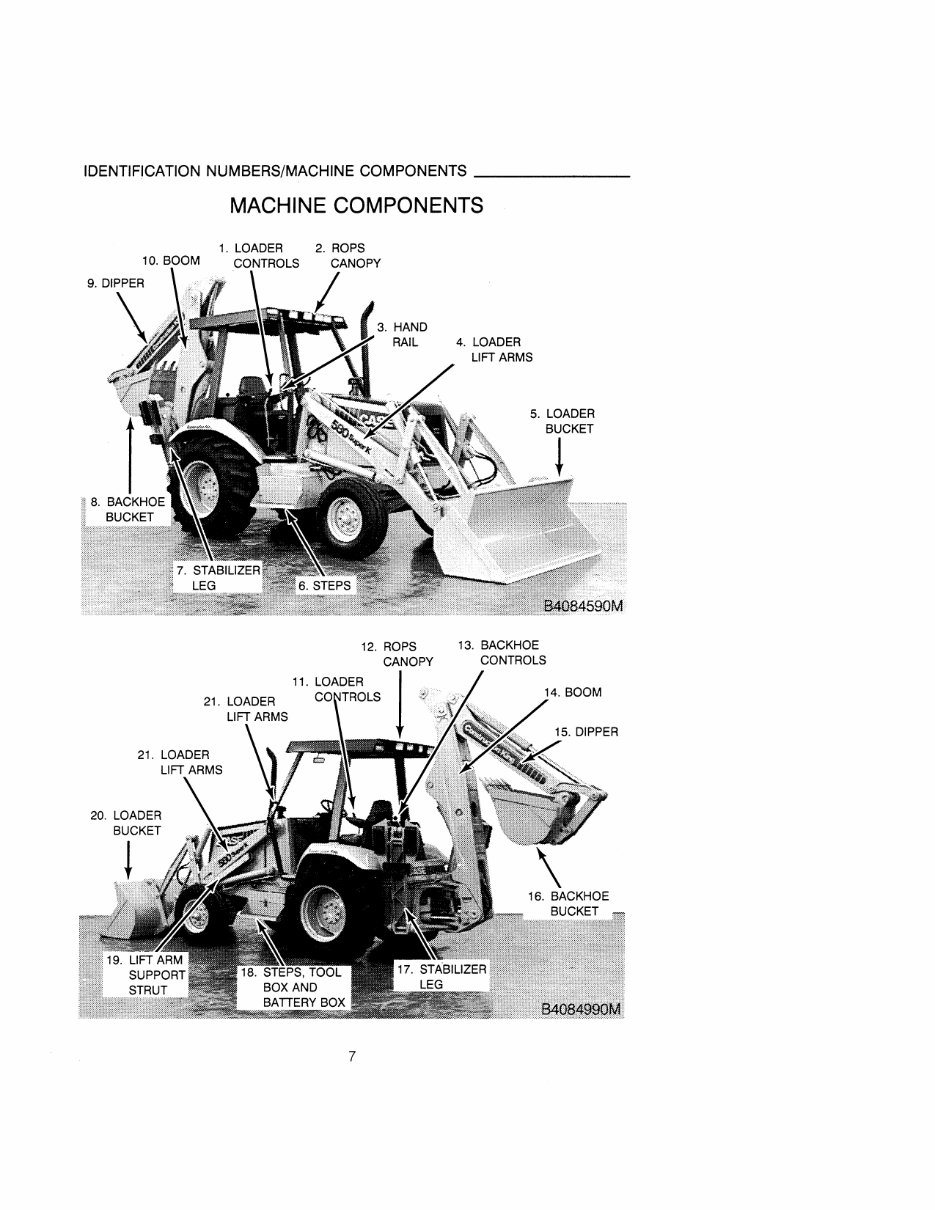

IDENTIFICATION NUMBERS/MACHINE COMPONENTS ______ _ MACHINE COMPONENTS 1. LOADER 2. ROPS 10. BOOM CONTROLS CANOPY 20. LOADER BUCKET ~ 7 3. HAND RAIL 4. LOADER LIFT ARMS 13. BACKHOE CONTROLS

IDENTIFICATION NUMBERS/MACHINE COMPONENTS ______ _ 8 3. 4-IN-1 BUCKET
