PARTS CATALOGUE
BACKHOE LOADER
580SM
580SM CASE BACKHOE LOADER (EUROPE) (2/02- )

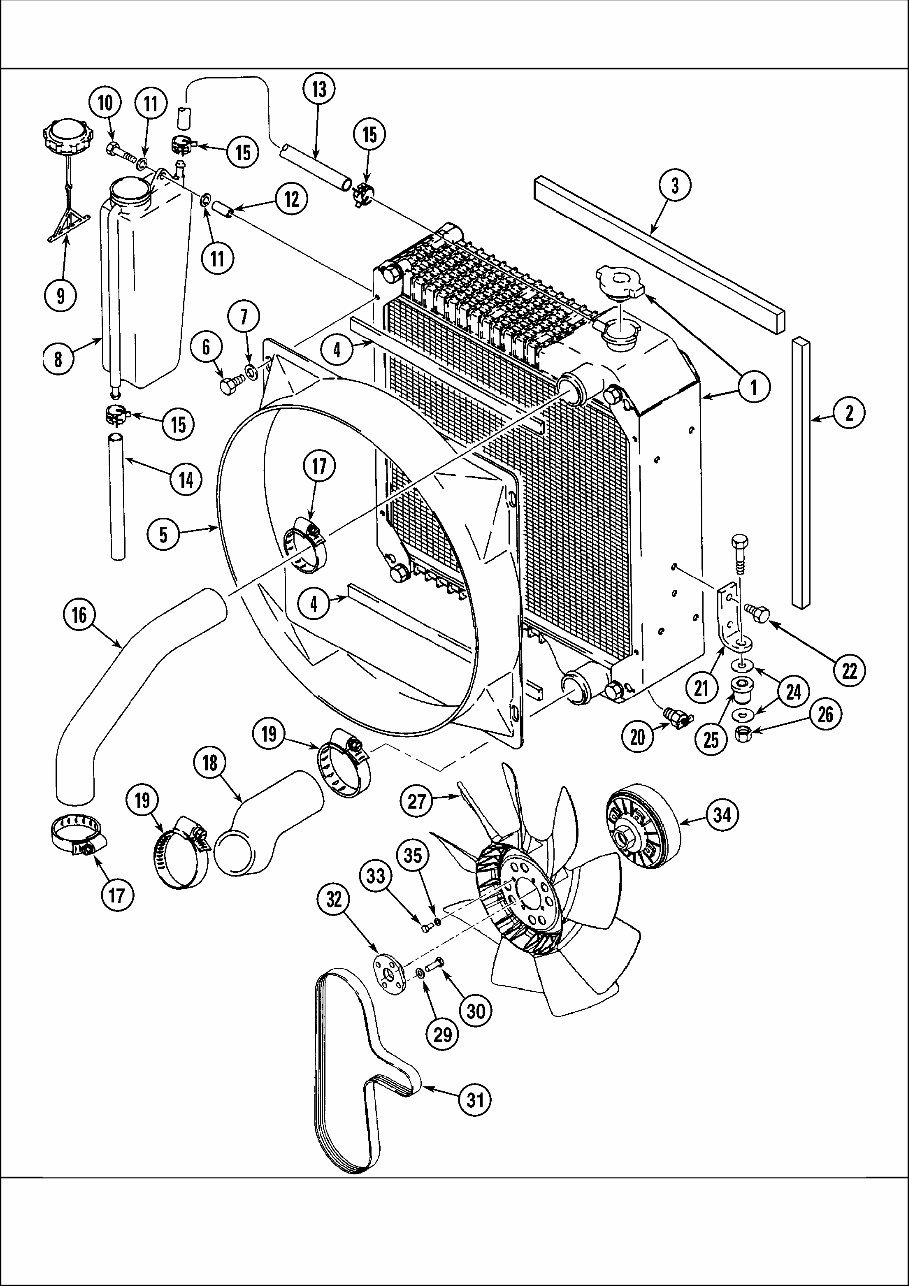

02-001/2B-00(01) COOLING SYSTEM
Ref Part Number Qty Description
580SM CASE BACKHOE LOADER (EUROPE) (2/02- )
02-001/2B-00(01) COOLING SYSTEM
1 239739A2 1 RADIATOR, , See Page(s) 02-002B-00-01, Heavy Duty
1 234876A1 1 RADIATOR, , Order 234876A2, See Page(s) 02-002/2C-00-01
2 235038A2 1 SEAL,
3 235040A2 2 SEAL,
4 233272A1 2 SEAL,
5 186433A1 1 SHROUD,
6 806-8016 4 BOLT, Hex, Lock, M8 x 16, Cl 10.9, M8 x 16; 10.9
8 131084A2 1 RESERVOIR, , Consists Of Ref. Number 9
9 1547924C1 1 CAP,
10 806-8050 2 BOLT, Hex, Lock, M8 x 50, Cl 10.9, M8 x 50
11 895-11008 4 WASHER, M8 x 16 x 1.6, 9 x 17 x 1,6 mm
12 132215A1 2 SPACER,
13 366588A1 1 HOSE,
14 366591A1 1 HOSE,
15 A171099 3 CLAMP, HOSE,
16 232366A1 1 HOSE, LARGE,
17 214-1432 2 CLAMP, HOSE, #32, 1.56/2.50 Type F Worm,
18 141513A1 1 HOSE, LARGE,
19 214-1440 2 CLAMP, HOSE, #40, 2.06/3.00 Type F Worm, 2-1/16 - 3
20 217-92 1 COCK, DRAIN, 1/4
21 121501A2 2 SUPPORT,
22 614-8016 4 BOLT, Hex, M8 x 16, 8.8,
23 814-10050 2 BOLT, Hex, M10 x 50, 8.8,
24 K691987 4 WASHER,
25 D52276 2 ISOLATOR,
26 832-10410 2 NUT, LOCK, M10 x 1.5, Cl 8,
27 221854A1 1 FAN,
28 892-11008 4 WASHER, LOCK, M8, M8
29 896-11010 4 WASHER, M10 x 21.5 x 2.5, HT, 11 x 21 x 2,5 mm
30 614-10030 4 BOLT, Hex, M10 x 30, 8.8,
31 86982450 1 V-BELT,
32 303192A1 1 ADAPTER,
33 614-8016 4 BOLT, Hex, M8 x 16, 8.8,
34 303195A1 1 ASSEMBLY,
7 895-15008 4 WASHER, M8 x 20 x 1.6, 9 x 20 x 1,6 mm
580SM CASE BACKHOE LOADER (EUROPE) (2/02- )

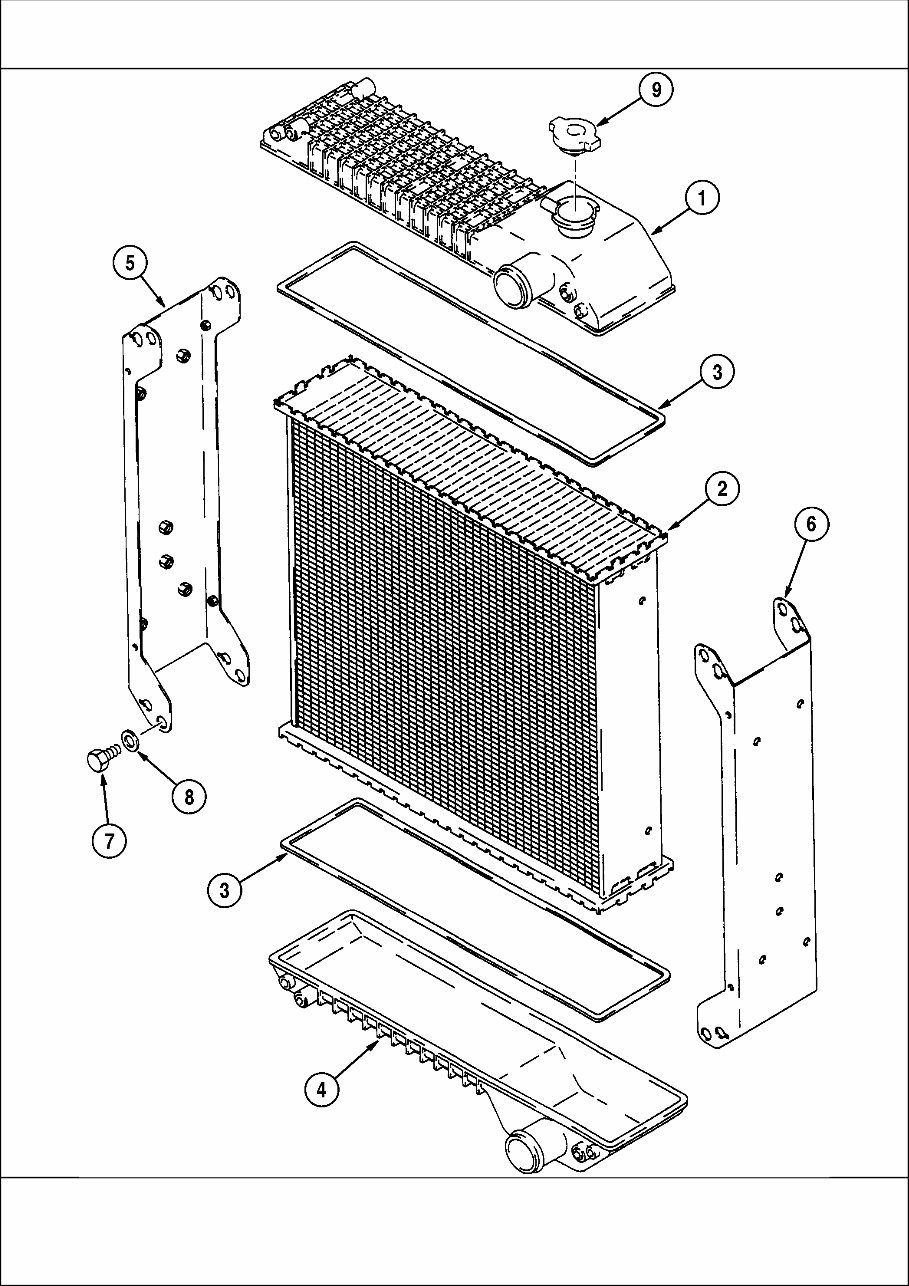

02-002/2C-00(01) RADIATOR
Ref Part Number Qty Description
580SM CASE BACKHOE LOADER (EUROPE) (2/02- )
02-002/2C-00(01) RADIATOR
234876A2 1 RADIATOR, , Consists Of Ref. Numbers 1-9
1 175161A1 1 RESERVOIR,
2 181148A1 1 ASSEMBLY,
3 226586A1 2 PACKAGE,SERVICE,
4 175162A1 1 RESERVOIR,
5 175164A1 1 SUPPORT,
6 175165A2 1 SUPPORT,
7 614-8012 8 BOLT, Hex, M8 x 12, 8.8, Full Thd, M8 x 12; 8,8
8 895-11008 8 WASHER, M8 x 16 x 1.6, 9 x 17 x 1,6 mm
9 A170241 1 CAP, RADIATOR, CAP, FILLER, 15 psi
Heavy Duty
580SM CASE BACKHOE LOADER (EUROPE) (2/02- )
02-002B-00(01) RADIATOR
Ref Part Number Qty Description
Heavy Duty
580SM CASE BACKHOE LOADER (EUROPE) (2/02- )
02-002B-00(01) RADIATOR
239739A2 1 RADIATOR, , Consists Of Ref. Numbers 1-9
1 175161A1 1 RESERVOIR,
2 257434A1 1 ASSEMBLY,
3 226586A1 2 PACKAGE,SERVICE,
4 175162A1 1 RESERVOIR,
5 175164A1 1 SUPPORT,
6 175165A2 1 SUPPORT,
7 614-8012 8 BOLT, Hex, M8 x 12, 8.8, Full Thd, M8 x 12; 8,8
8 895-11008 8 WASHER, M8 x 16 x 1.6, 9 x 17 x 1,6 mm
9 A170241 1 CAP, RADIATOR, CAP, FILLER, 15 psi
Powershift No Emission Engine / Power Shuttle No Emission Engine
580SM CASE BACKHOE LOADER (EUROPE) (2/02- )

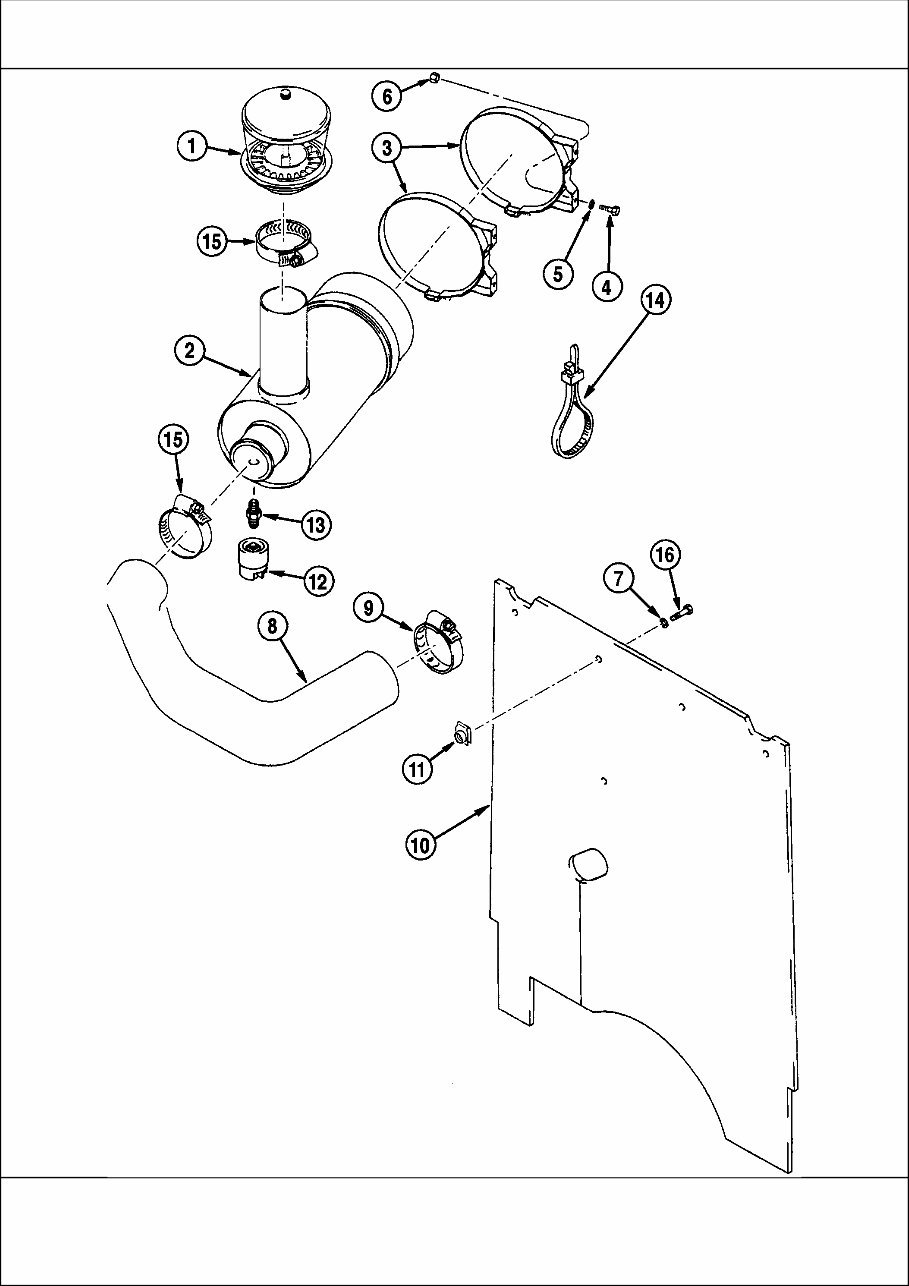

02-003/2-00(01) AIR FILTRATION
Ref Part Number Qty Description
Powershift No Emission Engine / Power Shuttle No Emission Engine
580SM CASE BACKHOE LOADER (EUROPE) (2/02- )
02-003/2-00(01) AIR FILTRATION
1 193867A1 1 PRE-CLEANER ASSY, AIR, , See Page(s) 02-004/2A-00-01
2 293568A1 1 AIR CLEANER, , See Page(s) 02-004/2A-00-01
3 L113910 2 CLAMP,
4 614-10020 4 BOLT, Hex, M10 x 20, 8.8, Full Thd,
6 829-1410 4 NUT, M10, Cl 10,
8 223944A1 1 HOSE, LARGE,
9 214-1456 1 CLAMP, HOSE, #56, 3.06/4.00 Type F Worm, 3-1/16 - 4 in dia
10 275464A1 1 CURTAIN,
11 833-40408 4 NUT, M8, U, M8
12 292740A1 1 SWITCH, , See Page(s) 02-004/2A-00-01
13 D36264 1 FITTING, , See Page(s) 02-004/2A-00-01
14 L11541 2 STRAP,
15 214-1464 2 CLAMP, HOSE, #64, 3.56/4.50 Type F Worm,
16 806-8025 4 BOLT, Hex, Lock, M8 x 25, Cl 10.9, M8 x 25
7 895-15008 4 WASHER, M8 x 20 x 1.6, 9 x 20 x 1,6 mm
5 895-11010 4 WASHER, M10 x 20 x 2, M10
580SM CASE BACKHOE LOADER (EUROPE) (2/02- )
02-003B-00(01) AIR FILTRATION
