2004 Volvo XC90 Owners Manual

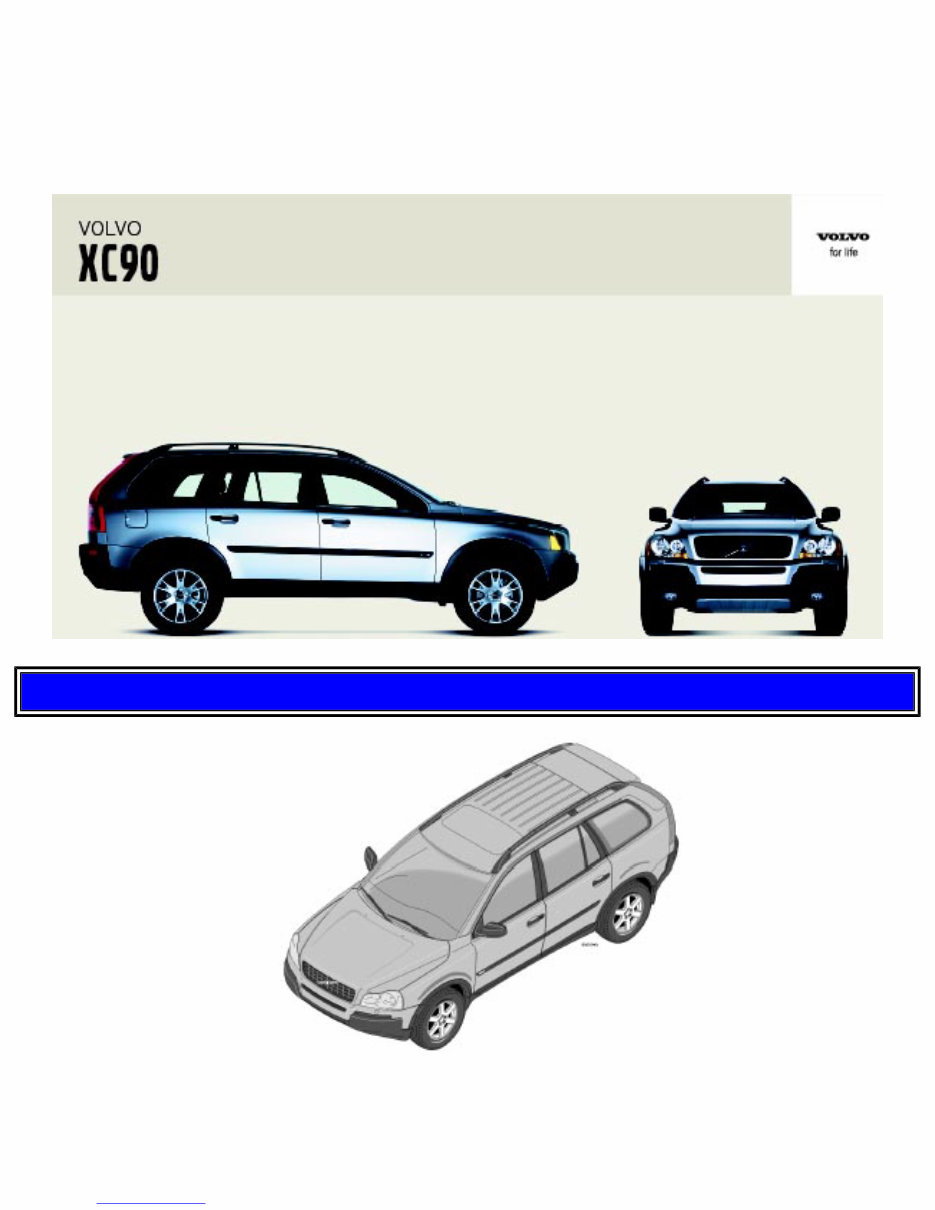

2004 VOLVO XC90 2 0 0 4 VOLVO XC90 Introduction Welcome to the world-wide family of Volvo owners. We trust that you will enjoy many years of safe driving in your Volvo, an automobile designed with your safety and comfort in mind. To help ensure your satisfaction with this vehicle, we encourage you to familiarize yourself with the equipment descriptions, operating file:///K|/ownersdocs/2004/2004_XC90/04xc90_00.htm (1 of 7)12/30/2006 4:35:10 PM Downloaded from www.Manualslib.com manuals search engine

2004 VOLVO XC90 instructions and maintenance requirements/recommendations in this manual. We also urge you and your passengers to wear seat belts at all times in this (or any other) automobile. And, of course, please do not operate a vehicle if you may be affected by alcohol, medication or any impairment that could hinder your ability to drive. Your Volvo is designed to meet all applicable safety and emission standards, as evidenced by the certification labels attached to the driver's door opening and on the left wheel housing in the engine compartment. For further information please contact your retailer, or: In the USA: Volvo Cars of North America Customer Relations P.O. Box 914 Rockleigh, New Jersey 07647-0914 800-458-1552 In Canada: Volvo Cars of Canada Ltd. 175 Gordon Baker Road North York, Ontario M2H 2N7 800-663-8255 General information Shiftlock (automatic transmission) When your car is parked, the gear selector is locked in the (P)ark position. To release the selector from this position, turn the ignition key to position II (or start the engine), depress the brake pedal, press the button on the front side of the gear selector knob and move the selector from (P)ark. Keylock (automatic transmission) When you switch off the ignition, the gear selector must be in the (P)ark position before the key can be removed from the ignition switch. Anti-lock Brake System (ABS) The ABS system in your car performs a self-diagnostic test when the vehicle first reaches the speed of approximately 12 mph (20 km/h). The brake pedal will pulsate several times and a sound may be audible from the ABS control module. This is normal. Fuel filler door The fuel filler door, located on the right rear fender, is connected to your vehicle's central locking system. Press the button on the light switch panel (see page 30) when the car is at a standstill to unlock the fuel filler door. Please note that the fuel filler door will remain unlocked until the car begins to move forward. An audible click will be heard when the fuel filler door relocks. Fuel filler cap file:///K|/ownersdocs/2004/2004_XC90/04xc90_00.htm (2 of 7)12/30/2006 4:35:10 PM Downloaded from www.Manualslib.com manuals search engine

2004 VOLVO XC90 After refueling, close the fuel filler cap by turning it clockwise until it clicks into place. If this cap is not closed tightly or if the engine is running when the car is refueled, the Malfunction Indicator Lamp ("Check Engine" light) may indicate a fault. Important information Before you operate your vehicle for the first time, please familiarize yourself with the new engine oil consumption information on page 82. You should also be familiar with the information in chapters one, two and eight of this manual. Information contained in the balance of the manual is extremely useful and should be read after operating the vehicle for the first time. The manual is structured so that it can be used for reference. For this reason, it should be kept in the vehicle for ready access. Do not export your Volvo to another country before investigating that country's applicable safety and exhaust emission requirements. In some cases it may be difficult or impossible to comply with these requirements. Modifications to the emission control system(s) may render your Volvo not certifiable for legal operation in the U.S., Canada and other countries. All information, illustrations and specifications contained in this manual are based on the latest product information available at the time of publication. Please note that some vehicles may be equipped differently, depending on special legal requirements. Optional equipment described in this manual may not be available in all markets. Volvo reserves the right to make model changes at any time, or to change specifications or design, without notice and without incurring obligation. CALIFORNIA Proposition 65 Warning Engine exhaust, some of its constituents, and certain vehicle components contain or emit chemicals known to the state of California to cause cancer, and birth defects or other reproductive harm. In addition, certain fluids contained in vehicles and certain products of component wear contain or emit chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm. Volvo and the environment Volvo is committed to the well being of our customers. As a natural part of this commitment, we care about the environment in which we all live. Caring for the environment means an everyday involvement in reducing our environmental impact. Volvo's environmental activities are based on a holistic view, which means we consider the overall environmental impact of a product throughout its complete life cycle. In this context, design, production, product use, and recycling are all important considerations. file:///K|/ownersdocs/2004/2004_XC90/04xc90_00.htm (3 of 7)12/30/2006 4:35:10 PM Downloaded from www.Manualslib.com manuals search engine

2004 VOLVO XC90 In production, Volvo has partly or completely phased out several chemicals including chloro-fluorocarbons (CFCs), lead chromates, naphtanates, asbestos, mercury and cadmium; and reduced the amount of chemicals used in our plants 50% since 1991. Volvo was the first in the world to introduce into production a three-way catalytic converter with Lambda Sond, now called oxygen sensor, in 1976. The current version of this highly efficient system reduces emissions of harmful substances (CO, HC, NOx) from the exhaust pipe by approximately 95% and the search to eliminate the remaining emissions continues. Volvo is the only automobile manufacturer to offer CFC-free retrofit kits for the air conditioning system of all models as far back as the 1975 Volvo 240. Advanced electronic engine controls, refined purification systems and cleaner fuels are bringing us closer to our goal. After Volvo vehicles and parts have fulfilled their use, recycling is the next critical step in completing the life cycle. The metal content is about 75% of the total weight of a vehicle, which makes the vehicle among the most recycled industrial products. In order to have efficient and well controlled recycling, many Volvo variants have printed dismantling manuals, indicating the weight and material of individual components. For Volvo, all homogeneous plastic parts weighing more than 1.7 oz. (50 grams) are marked with international symbols that indicate how the component is to be sorted for recycling. In addition to continuous environmental refinement of conventional gasoline-powered internal combustion engines, Volvo is actively looking at advanced technology alternative-fuel vehicles. When you drive a Volvo, you become our partner in the work to lessen the car's impact on the environment. To reduce your vehicle's environmental impact, you can: ● Maintain proper air pressure in your tires. Tests have shown decreased fuel economy with improperly inflated tires. ● Follow the recommended maintenance schedule in your Warranty and Service Records Information booklet. ● Drive at a constant speed. ● See an authorized Volvo retailer as soon as possible for inspection if the check engine (malfunction indicator) lamp illuminates, or stays on after the vehicle has started. ● Properly dispose of any vehicle-related waste such as used motor oil, used batteries, brake pads, etc. ● When cleaning your car, use Volvo's own car care products, all of which have systematically been adapted to the environment. For additional information regarding the environmental activities in which Volvo Cars of North America, LLC. and Volvo Car Corporation are involved, visit our Internet Home Page at: http://www.volvocars.com PremAir® On the surface of the radiator in the engine compartment, there is a special coating called PremAir®. PremAir® works as a catalytic converter, converting most of the ground-level ozone passing through the radiator into oxygen, thereby reducing harmful ground-level ozone. file:///K|/ownersdocs/2004/2004_XC90/04xc90_00.htm (4 of 7)12/30/2006 4:35:10 PM Downloaded from www.Manualslib.com manuals search engine

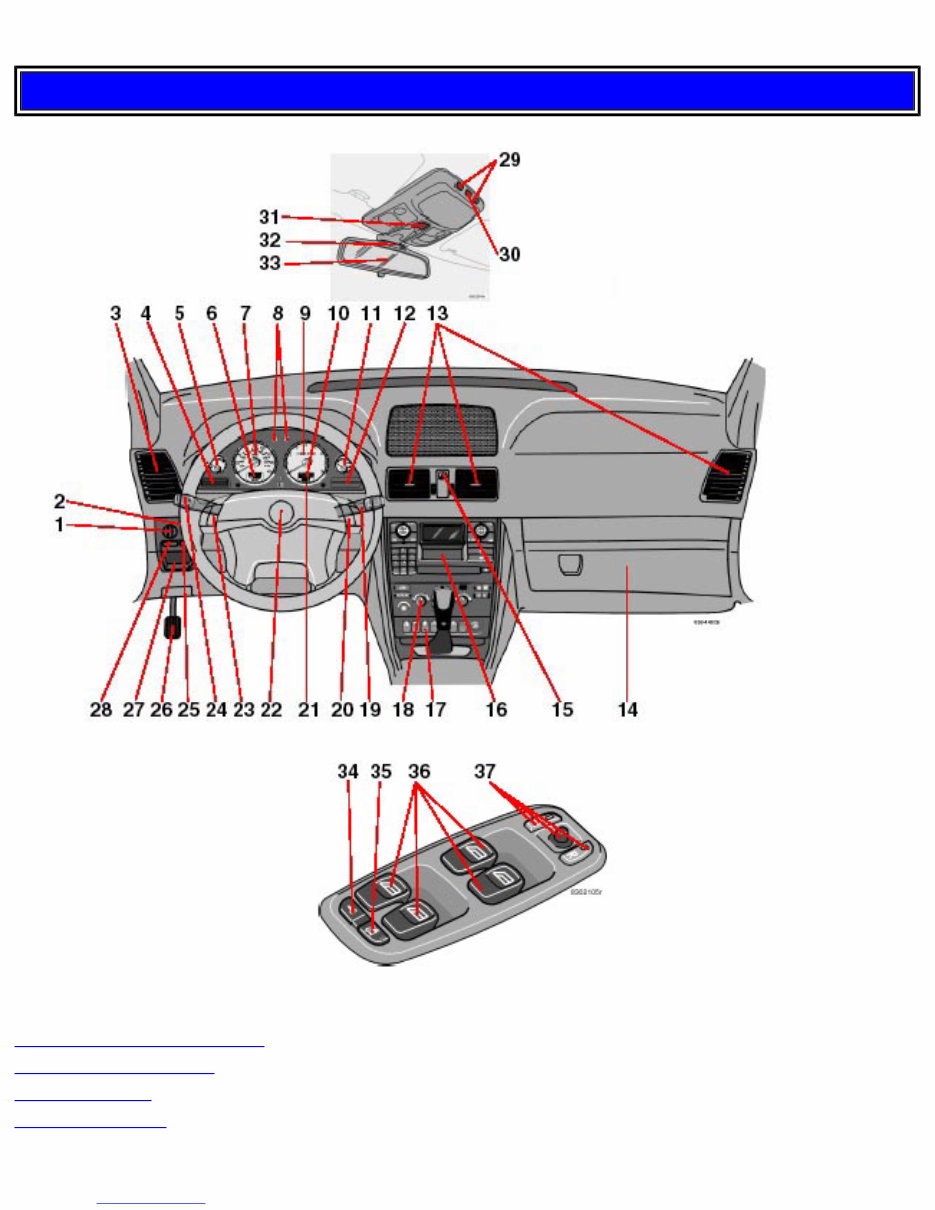

2004 VOLVO XC90 Instruments, switches and controls Control panel in driver's door (controls 34-37) 1. Headlights/Parking lights 30 2. Instrument lighting 30 3. Panel vents 47 4. Text window 28 file:///K|/ownersdocs/2004/2004_XC90/04xc90_00.htm (5 of 7)12/30/2006 4:35:10 PM Downloaded from www.Manualslib.com manuals search engine

2004 VOLVO XC90 5. Temperature gauge 24 6. Odometer/Trip odometer/Cruise control indicator 24, 37 7. Speedometer iv 8. Turn signal indicator lights 24 9. Tachometer 24 10. Ambient temperature gauge, clock, gear indicator 24 11. Fuel gauge 24 12. Indicator and warning symbols 25 13. Panel vents 47 14. Glove compartment 65 15. Hazard warning flashers 35 16. Audio system 159 17. Switches in the center console 29 18. Climate system controls 48 19. Windshield wiper/washer lever 33 20. Audio control buttons in steering wheel 161 21. Instrument panel 24 22. Horn iv 23. Cruise control buttons in steering wheel 37 24. Turn signals, High/low beams 32 25. Front fog lights, Rear fog light 30 26. Parking brake pedal 38 27. Parking brake release handle 38 28. Button for unlocking fuel filler door 30 29. Reading lights 61 30. Courtesy light 61 31. Moonroof control (option) 43 32. Seat belt reminder 27 33. Rearview mirror 42 34. Central locking button 75 35. Lockout switch for rear seat power windows 41 36. Power window controls 40 37. Sideview mirror controls 42 WARNING! If your vehicle is involved in an accident, unseen damage may affect your vehicle's driveability and safety. Contents file:///K|/ownersdocs/2004/2004_XC90/04xc90_00.htm (6 of 7)12/30/2006 4:35:10 PM Downloaded from www.Manualslib.com manuals search engine

2004 VOLVO XC90 Contents Safety Instruments and controls Climate control Interior Locks and Alarm Starting and driving Wheels and tires Vehicle care Maintenance Specifications Audio Index Back Cover Top of Page file:///K|/ownersdocs/2004/2004_XC90/04xc90_00.htm (7 of 7)12/30/2006 4:35:10 PM Downloaded from www.Manualslib.com manuals search engine

2004 VOLVO XC90 2 0 0 4 VOLVO XC90 Safety pg. 1 Safety Seat belts 2 Airbags (Supplemental Restraint System) 4 Side airbags (SIPS airbags) 10 Inflatable Curtain (IC) 12 Roll-over Protection System 13 Inspection of airbags, Inflatable Curtains and seat belt pretensioners 14 Whiplash Protection System (WHIPS) 15 Child safety 17 Occupant safety, Reporting safety defects 21 pg. 2 Safety Seat belts Not wearing a seat belt is like believing "It'll never happen to me!" Volvo, the inventor of the three-point seat belt, urges you and all occupants of your vehicle to wear seat belts and ensure that children are properly restrained, using an infant, car or booster seat determined by age, weight and height. Volvo also believes no child should sit in the front seat of a vehicle. NOTE: Most states and provinces make it mandatory for occupants of a vehicle to use seat belts. So, urging you to buckle up is not just our recommendation. The few moments it takes to buckle your seat belt may one day allow you to say "It's a good thing I was wearing my seat belt." file:///K|/ownersdocs/2004/2004_XC90/04xc90_01a.htm (1 of 12)12/30/2006 4:35:11 PM Downloaded from www.Manualslib.com manuals search engine

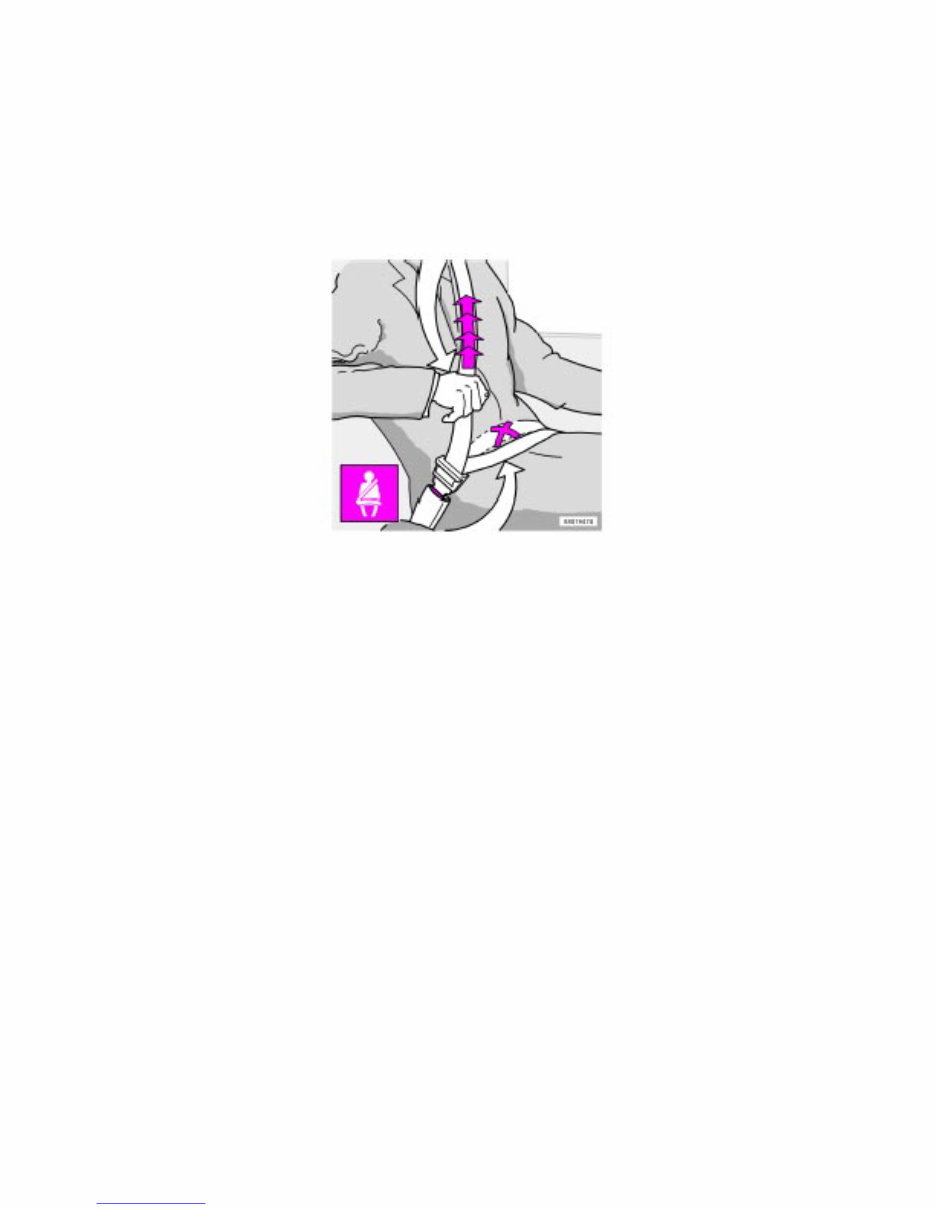

2004 VOLVO XC90 NOTE: A chime will sound several times if the driver has not fastened his/her seat belt. The seat belts are equipped with tensioners that reduce slack in the seat belts. These tensioners are triggered in situations where the airbags deploy. The front seat belts also include a tension reducing device which, in the event of a collision, limits the peak forces exerted by the seat belt on the occupant. Extending the lap belt To buckle a seat belt: Pull the belt out far enough to insert the latch plate into the receptacle until a distinct click is heard. The seat belt retractor is normally "unlocked" and you can move freely, provided that the shoulder belt is not pulled out too far. The retractor will lock up as follows: ● if the belt is pulled out rapidly ● during braking and acceleration ● if the vehicle is leaning excessively ● when driving in turns For the seat belt to provide maximum protection in the event of an accident, it must be worn correctly. When wearing the seat belt remember: ● The belt should not be twisted or turned. ● The lap belt must be positioned low on the hips (not pressing against the abdomen). Make sure that the shoulder belt is rolled up into its retractor and that the shoulder and lap belts are taut. Before exiting the vehicle, check that the seat belt retracts fully after being unbuckled. If necessary, guide the belt back into the retractor slot. Child seats: file:///K|/ownersdocs/2004/2004_XC90/04xc90_01a.htm (2 of 12)12/30/2006 4:35:11 PM Downloaded from www.Manualslib.com manuals search engine

2004 VOLVO XC90 Please refer to page 20 for information on securing child seats with the seat belts. pg. 3 Safety During pregnancy Pregnant women should always wear seat belts. Remember that the belt should always be positioned in such a way as to avoid any possible pressure on the abdomen. The lap portion of the belt should be located low, as shown in the above illustration. WARNING! Seat belts: ● Never use a seat belt for more than one occupant. Never wear the shoulder portion of the belt under the arm, behind the back or otherwise out of position. Such use could cause injury in the event of an accident. As seat belts lose much of their strength when exposed to violent stretching, they should be replaced after any collision, even if they appear to be undamaged. ● Never repair the belt on your own; have this work done by an authorized Volvo retailer only. ● Any device used to induce slack into the shoulder belt portion of the three-point belt system will have a detrimental effect on the amount of protection available to you in the event of a collision. ● The seat back should not be tilted too far back. The shoulder belt must be taut in order to function properly. ● Do not use child safety seats or child booster cushions/backrests in the front passenger's seat. We also recommend that children who have outgrown these devices sit in the rear seat with the seat belt properly fastened. file:///K|/ownersdocs/2004/2004_XC90/04xc90_01a.htm (3 of 12)12/30/2006 4:35:11 PM Downloaded from www.Manualslib.com manuals search engine
