Wiring diagram 2010 VOLVO XC60 TP 39153201

© Volvo Car Corporation Vehicles with SRS (Airbag)/SIPS bag/IC (Inflatable Curtain) Warning! Extra caution must be exercised when working on vehicles equipped with SRS/SIPS bag/IC in order to avoid: 1. Personal injuries when performing repair work. 2. Damage or malfunction of the SRS/SIPS bag/IC system. Work involving the SRS/SIPS bag/IC systems or other components in the vehicle that may affect the SRS/SIPS bag/IC systems must always be performed by an authorized Volvo workshop. In case of doubt, consult the SRS and SIPS bag/IC service manual. Is the vehicle equipped with SRS/SIPS bag/IC? Vehicles with SRS are most easily recognized by the letters SRS in the center of the steering wheel. If the vehicle also has a passenger side airbag, the letters SRS are stamped on the dashboard above the glove compartment. SRS vehicles from 1993 and onward also have explosive seat belt tensioners. SIPS bags are only installed on SRS vehicles from 1995 and onward. SIPS bag decals are located on the windshield and seat compartment. Vehicles with IC can be recognized by the letters IC on the C/D panel (4 door) or the B panel (5 door). General recommendations • Be especially careful when working on or around SRS, SIPS, and IC components. • Make sure that no wires are pinched, frayed, or pierced. • Never install accessories by the sensors. • Where applicable, work on the steering wheel, steering shaft, or steering gear must be done in accordance with the methods in the SRS section of VIDA. • Certain components of the aforementioned systems must be grounded while working. Read the appropriate sections in VIDA. • Install no accessories in the areas between the A and B-posts, the B and C-posts, and the C and D-posts. Test terminal Data link connector in the passenger compartment. Changes implemented up to and including December 2008 Any changes made to the vehicles after this date are not included in the manual. If necessary refer to service bulletins. Volvo models are sold in versions adapted for different markets. These adaptations depend on factors such as legal requirements, taxation, and market demands. This manual may therefore include illustrations and text that do not apply to the vehicles in your country. Ordering: Electronic Wiring Diagrams (EWDs) can be ordered from the Technical Information Shop (TIS) at www.volvocarstechinfo.ford.com/vss We reserve the right to make modifications.

TP39153201 XC60 2010 3 Vehicles with SRS (Airbag)/SIPS bag/IC (Inflatable Curtain) ......................................................... 2 Explanations .................................................................. 5 Abbreviations ................................................................. 5 How to use the wiring diagrams 1:2............................... 6 Electrical distribution 1:2 ................................................ 8 Fuses Distribution box in engine compartment F1-F7 ............. 10 Distribution box in engine compartment F9-F24 ........... 11 Distribution box in engine compartment F25-F30 ......... 12 Distribution box in engine compartment F31-F37 ......... 13 Distribution box in engine compartment F38-F43 ......... 14 Central Electronic Module (CEM) F1 - F13................... 15 Central Electronic Module (CEM) F14 - F19................. 16 Central Electronic Module (CEM) F20 - F28................. 17 Rear electrical center FA1-FA12 .................................. 18 Distribution box in cargo compartment FB1-FB12 ........ 19 Rear electrical center FD1-FD7 .................................... 20 Battery PF1-PF2 ........................................................... 21 Relays Relays in the engine compartment R2......................... 22 Relays in the engine compartment R8-R9 ................... 23 Relays in the engine compartment R10-R13 ............... 24 Distribution box in cargo compartment RA1-RD1 ........ 25 Central Electronic Module (CEM) ................................ 26 Ground connections Overview...................................................................... 27 31/1 - 31/7 ................................................................... 28 31/10 - 31/15 continues ............................................... 29 31/15 - 31/68 ............................................................... 30 31/83 - 31/89 ............................................................... 31 31/90 - 31/XX10........................................................... 32 31/XX14 - 31/TRM ....................................................... 33 Control modules Overview locations....................................................... 34 Overview designations................................................. 35 Central Electronic Module (CEM) 1:3 .......................... 36 Data communication high speed CAN......................... 39 Data communication intermediate speed CAN, LHD ........................................................................ 40 Data communication intermediate speed CAN, RHD ........................................................................ 41 Data communication Local CAN.................................. 42 Data communication, LIN 1:2 ...................................... 43 Data communication MOST......................................... 45 Steering Wheel Module (SWM) ................................... 46 Group 23 Fuel system Engine management system 6-Cyl. 1:2 ....................... 47 Engine management system, 6-Cyl. B6324S2 1:2 ...... 49 Engine management system, 6-Cyl. Turbo 1:2............ 51 Engine management system, 5-Cyl. Diesel EURO5 1:3 .................................................................. 53 Emission control 6-Cyl. ................................................ 56 Group 26 Cooling system Cooling fan 5-Cyl. Diesel EURO5 ................................ 57 Cooling fan 6-Cyl. ........................................................ 58 Group 27 Engine controls Cruise control ................................................................ 59 Group 32 Alternator and voltage regulator Power supply ............................................................... 60 Group 33 Starting system Starting system ............................................................ 61 Group 35 Lighting High and low beam ...................................................... 62 High and low beam (Dual Xenon) ................................ 63 Beam length adjustment, manual ................................ 64 Running/Parking light, Tail lights ................................. 65 Running/Parking light, Tail lights (Dual Xenon) ........... 66 Fog lights ..................................................................... 67 Brake lights .................................................................. 68 Reversing lights ........................................................... 69 Follow-me-home lighting LHD...................................... 70 Follow-me-home lighting RHD ..................................... 71 Interior lighting, LHD 1:2 .............................................. 72 Interior lighting, RHD 1:2.............................................. 74 Active headlight ........................................................... 76 Lighting in door sill trims .............................................. 77 Auxiliary lights .............................................................. 78 Group 36 Additional electrical equipment Rain sensor .................................................................. 79 Direction indicator and hazard warning flashers LHD.............................................................................. 80 Direction indicator and hazard warning flashers RHD ............................................................................. 81 Wiper/Washer windshield ............................................ 82 High pressure headlight washer .................................. 83 Wiper/Washer rear window.......................................... 84 Horn ............................................................................. 85 Keyless vehicle 1:2 ...................................................... 86 Anti-theft alarm ............................................................ 88 Parking assistance....................................................... 89 Collision warning with power brake booster................. 90 Tire pressure monitoring system (TPMS) .................... 91 Alcohol lock .................................................................. 92 Table of Contents 1:2

TP39153201 XC60 2010 4 Group 37 Wiring and fuses Diagnostics system...................................................... 93 Outlet 12V.................................................................... 94 Cable harness towbar/tow hitch 4-pin ......................... 95 Cable harness towbar/tow hitch 7-pin.......................... 96 Cable harness towbar/tow hitch 13-pin........................ 97 USB unit (AUU)............................................................ 98 Group 38 Instruments Seat belt reminder ....................................................... 99 Driver information module.......................................... 100 Group 39 Other Audio Premium 1:3 .................................................... 101 Audio 1:2 ................................................................... 104 Cellular phone 1:2...................................................... 106 DAB Radio ................................................................. 108 Telephone system Bluetooth ..................................... 109 Bluetooth Handsfree .................................................. 110 Multimedia & Traffic information ................................ 111 Satellite radio ............................................................. 112 Parking camera.......................................................... 113 Group 43 Transmission Transmission M66 ..................................................... 114 Automatic transmission, TF-80SC AWD.................... 115 Differential electronic module (DEM) ......................... 116 Group 55 Parking brake Electric parking brake ................................................ 117 Group 59 Brake system Brake control system & DSTC ................................... 118 Group 64 Steering Speed dependent power steering .............................. 119 Group 76 Shock absorbers Four-C........................................................................ 120 Group 83 Doors and openings Central locking front doors LHD................................. 121 Central locking front doors RHD ................................ 122 Central locking rear doors .......................................... 123 Central locking tailgate............................................... 124 Central locking fuel filler flap ...................................... 125 Signal receiver central locking ................................... 126 Power windows front doors LHD................................ 127 Power windows front doors RHD ............................... 128 Power windows rear doors......................................... 129 Power sunroof ............................................................ 130 Group 84 Exterior decorative elements, etc. Power door mirrors LHD ............................................ 131 Power door mirrors RHD............................................ 132 Heated door mirrors LHD........................................... 133 Heated door mirrors RHD .......................................... 134 Blind spot information system LHD............................ 135 Blind spot information system RHD ........................... 136 Heated rear window ................................................... 137 Group 85 Interior equipment Power driver’s seat with memory function, LHD ........ 138 Power driver’s seat with memory function, RHD........ 139 Power passenger seat, LHD ...................................... 140 Power passenger seat, RHD ..................................... 141 Heated front seats ..................................................... 142 Heated rear seat ........................................................ 143 Group 87 Climate control system Climate control system PTC-element ........................ 144 Climate control system 1:2......................................... 145 Parking heater, auxiliary heater ................................. 147 Parking heater, remote start ...................................... 148 Group 88 Internal equipment Rear-view mirror with automatic dimming .................. 149 Supplemental restraint system 1:2............................. 150 Remote controlled garage opening............................ 152 Index 1:2 .................................................... 153 List of components 1:5 ............................ 155 Table of Contents 2:2

TP39153201 XC60 2010 5 Explanations Abbreviations Groups Group 23 = Fuel system Group 26 = Cooling system Group 27 = Engine controls Group 32 = Alternator and voltage regulator Group 33 = Starting system Group 35 = Lighting Group 36 = Additional electrical equipment Group 37 = Wiring and fuses Group 38 = Instruments Group 39 = Other Group 43 = Transmission Group 55 = Parking brake Group 59 = Brake system Group 64 = Steering Group 76 = Shock absorbers Group 83 = Doors and openings Group 84 = Exterior decorative elements, etc. Group 85 = Interior equipment Group 87 = Climate control system Group 88 = Internal equipment Ignition switch symbols X = Accessories (audio position) S = Powered upon insertion of key 15 = Contact remains connected during start 15l = Contact is broken while starting 30 = Constant power from the battery 50 = Start Countries/Markets A = Austria AUS = Australia B = Belgium CDN = Canada CH = Switzerland D = Germany DK = Denmark E = Spain EU/OS = Markets outside USA and Canada FIN = Finland GB = Great Britain ISR = Israel J = Japan KOR = Korea N = Norway NL = Netherlands S = Sweden USA = United States of America WEU = Western Europe Other ACC = Adaptive Cruise Control Ag = Silver plated Au = Gold plated AUTO = Automatic transmission BLIS = Blind spot information system CAN = CAN communication DPY = Display ECC = Electronic climate control system ETA = Throttle unit EXC = Exclusive GDL = Gas discharge lamp HS = High speed data bus IR = Infrared sensor LIN = LIN communication LH = Left-hand side LHD = Left-hand drive MAN = Manual transmission MEMORY = Memory driver’s seat MS = Midspeed data bus MMS = Mass Movement Sensor PETROL = Gasoline RH = Right-hand side RHD = Right-hand drive SCR = Screened SRS = Airbag T = Turbocharged engine W/O = Without 2WD = Two-wheel drive 4CYL, I4 = 4-cylinder engine 5CYL, I5 = 5-cylinder engine 6CYL, I6 = 6-cylinder engine 8CYL, V8 = 8-cylinder engine Colors BK, SB = Black BN = Brown BU, BL = Blue GN = Green GY, GR = Gray LGN = Light Green NL = Natural OG, OR = Orange PK, P = Pink RD, R = Red VT, VO = Violet WH, W = White YE, Y = Yellow

TP39153201 XC60 2010 6 The descriptions below apply in general to all wiring diagram manuals, although not all sections are necessarily con- tained in this manual. How to use the wiring diagrams 1:2 A. Component designation Every component has a component designation that consists of two parts. The first part is a type number that describes the type of component in question, for example 3/xx. The second part of the designation is a serial number, e.g. x/2. Together, this constitutes a component designation, e.g. 3/2. At the end of the manual is a list of components, where, with the help of the component designation, you can read off the name of the component, for example, 3/2 = light switch. List of type numbers The list shows which type of component that respec- tive type numbers refer to, for example, 3/x = switch, 6/x = electric motor, etc. 1 Battery 2 Relay 3 Switch 4 Control module 5 Driver information module 6 Electric motor 7 Sensor 8 Actuator 9 Heating element 10 Light 11 Fuse 15 Electrical distribution rail/box 16 Audio 17 Service/diagnostics 18 Contact reel 19 Meter 20 Ignition component/shunt 27 Optics 31 Ground connection 73 Branching point 74 Connector B. Branching points The wiring diagrams contain numbered branching points, for example 73/5035. This manual contains a section with a list of branching points. This list shows all the components that are connected to each branching point. The location of the branching points is shown in the "Cable harness routing in vehicle" section. C. Connectors Connectors provide a bridge between two cable harnesses and are described in the "Connectors" section. D. Electrical distribution Operation of the fuses and relays is shown in the "Electrical distribution" section. E. Data communication Today’s cars contain CAN, LIN and MOST networks that transfer information. Connections to these networks are not shown in their entirety in the respec- tive wiring diagram. Complete information on CAN, LIN and MOST communication is found in the section "Control modules". F. Abbreviations A number of different abbreviations are used in the manual. These are explained in the section "Abbreviations". G. Component location The end of the manual contains a section that describes component appearance and location in numerical order.

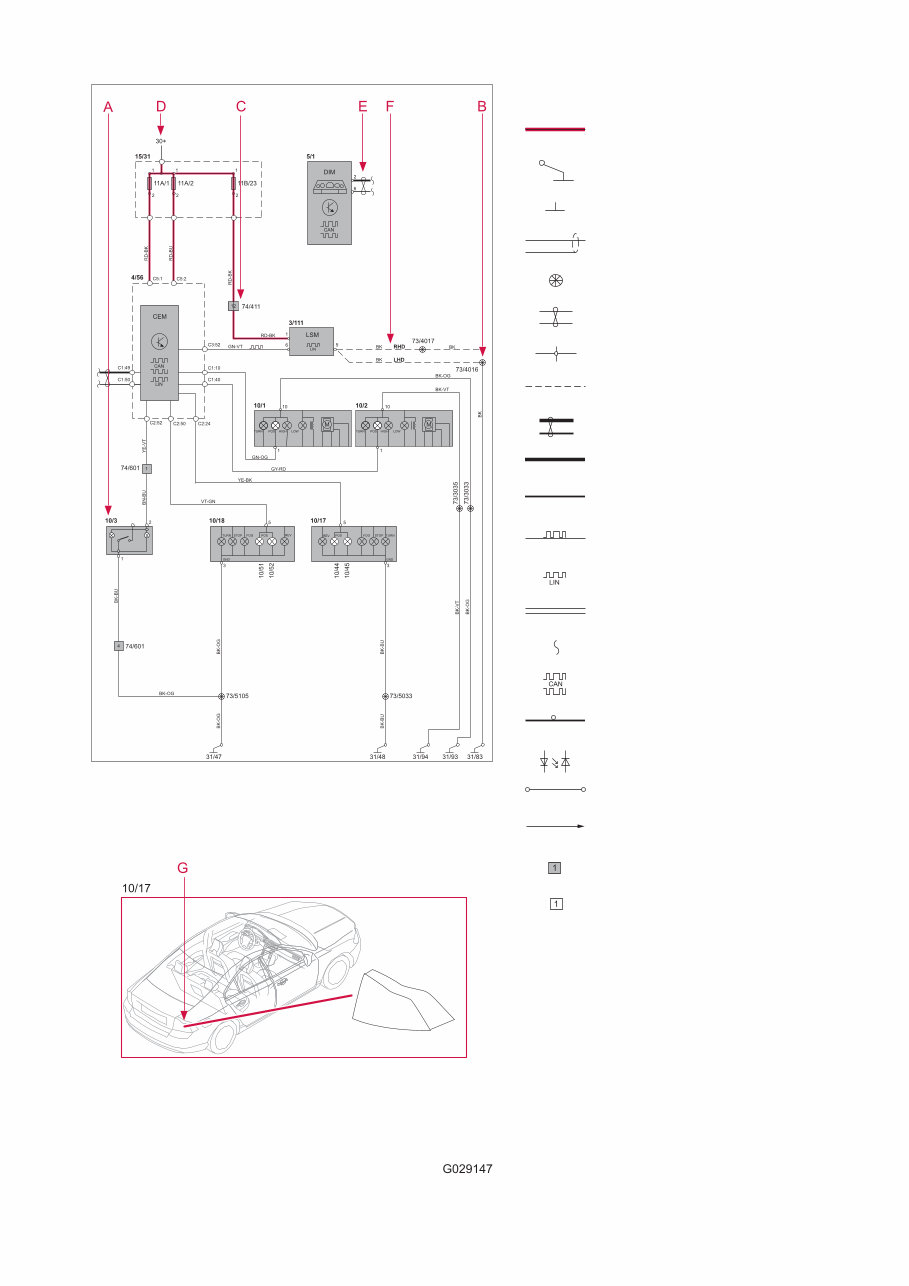

TP39153201 XC60 2010 7 How to use the wiring diagrams 2:2 List of symbols = System voltage = Ground connection via wiring = Ground connection in component/chassis = Screened wire = Junction point = Twisted cable = Electrical connection = Variant = CAN communication = CAN high data signal (CAN H) = CAN low data signal (CAN L) = LIN communication = LIN communication = DIN cable, coaxial cable, etc. = Data communication = CAN communication = MOST communication = MOST communication = Connection with distribution box = Further connection to... = Connector between cable harnesses = Connector connected in component

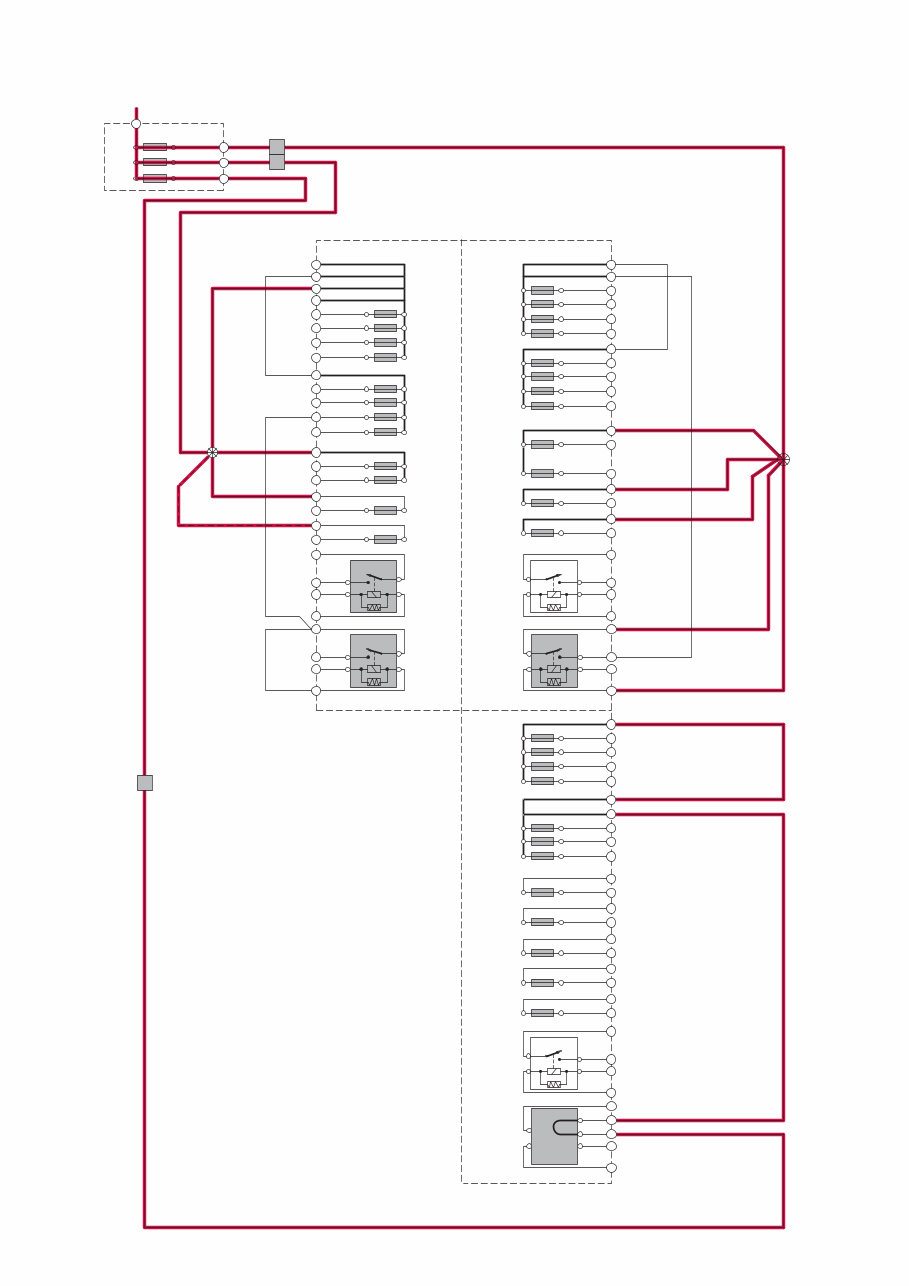

TP39153201 XC60 2010 8 Electrical distribution 1:2 Overview, Electrical center and Cold zone in engine compartment 2 1 3 5 2/193 R9 15/31 15/33 11B/26 2 1 11B/25 2 1 11B/24 2 1 11B/36 2 1 11B/37 2 1 11B/38 2 1 11B/41 11B/18 1 2 11B/16 1 2 11B/17 73/3068 73/3085 1 2 11B/19 1 2 11B/20 1 2 11B/21 1 2 11B/22 1 2 11B/23 1 2 11B/28 1 2 11B/29 1 2 RD-VT RD-VT RD-VT RD RD RD RD GY-BK RD RD GN-VT RD-BK RD_BU RD-GN RD-GY RD-BN 15/32 15/32 15/32 4/56C5:2 4/56C5:1 RD RD RD RD RD RD RD RD-GY VT-GN 4/56C1:48 4/46B:16 6 CYL RD RD RD RD RD RD RD RD RD GY-VT GY-VT GY-VT GY-VT RD RD-BK RD 11B/27 1 2 11A/1 11A/2 11A/3 11A/4 11A/5 11A/6 1 2 11A/7 1 2 1 2 1 2 1 2 1 2 1 2 2 1 11B/40 2 1 11B/39 2 1 11A/43 2 1 11A/42 2 1 11A/44 2 1 11B/15 2 1 11B/33 2 1 11B/32 2 1 11B/31 2 1 11B/30 2 1 11B/35 2 1 11B/34 2 1 2 1 3 5 2/22 R13 R10 2 1 3 5 2/31 R8 2 1 3 5 2/32 2 1 3 5 2/17 R2 2 1 3 5 2/35 R12 11B/13 11B/11 11B/9 11B/12 11B/10 1 2 11B/14 1 2 1 2 1 2 1 2 1 2 11B/8 1 2 73/3076 6/25 31 M ACM 30 C1:1 6/26 B+ 31 G C1:1 12V BK 31/3 1/1 PF1 PF2 2 1 1 2 LIN 9/42 4/56C1:45 4/56C1:65 73/3041 RD RD-VT RD 2/142 R11 BU-OG BU-OG

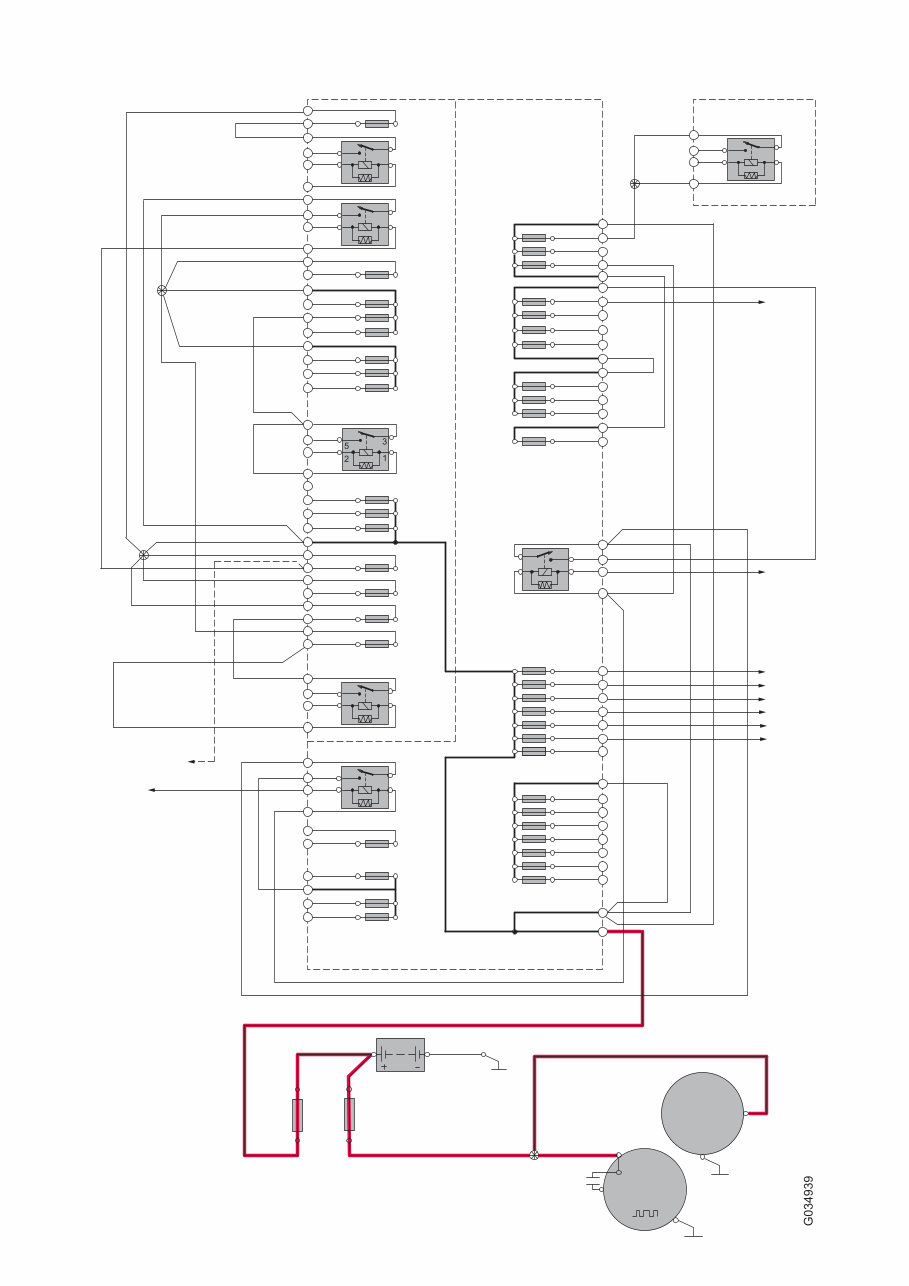

TP39153201 XC60 2010 9 Electrical distribution 2:2 Overview, rear electrical center 73/5040 11D/A7 2 1 11D/A6 2 1 11D/A5 2 1 11D/A8 2 1 11D/A3 2 1 11D/A2 2 1 11D/A1 2 1 11D/A4 2 1 11D/A10 2 1 11D/A9 2 1 11D/A11 2 1 11D/A12 2 1 2 1 3 5 2/82 15/32 15/31 RA2 2 1 3 5 A BK NL BU B D RA1 11D/B3 1 2 2 11D/B2 1 2 11D/B1 1 2 11D/B4 1 YE-VT YE-VT BU-RD RD-BN BU-RD RD-GY RD-GY RD-GY RD-GY RD-GY RD-GY RD-GY 11D/B7 1 2 11D/B6 1 2 11D/B5 1 2 11D/B8 1 2 11A/5 1 2 11A/3 1 2 11A/4 30+ 74/504B 1 2 RD-GN RD-GN RD-BN RD-GN RD-GN RD-GN RD-GN RD-VT RD-VT 11D/B9 1 2 11D/B10 1 2 11D/B11 1 2 11D/B12 1 2 11D/D8 1 2 11D/D9 1 2 11D/D10 1 2 11D/D11 1 2 11D/D12 1 2 2 1 3 5 RB2 2 1 3 5 2/88 RB1 11D/D3 1 2 11D/D2 1 2 11D/D1 1 2 11D/D4 1 2 11D/D7 1 2 11D/D6 1 2 11D/D5 1 2 2 1 3 5 RD1 RD2 1 74/505 2 73/5075 1 RD-GN 2/16 RD-BN 2 1 3 5 4 G034937

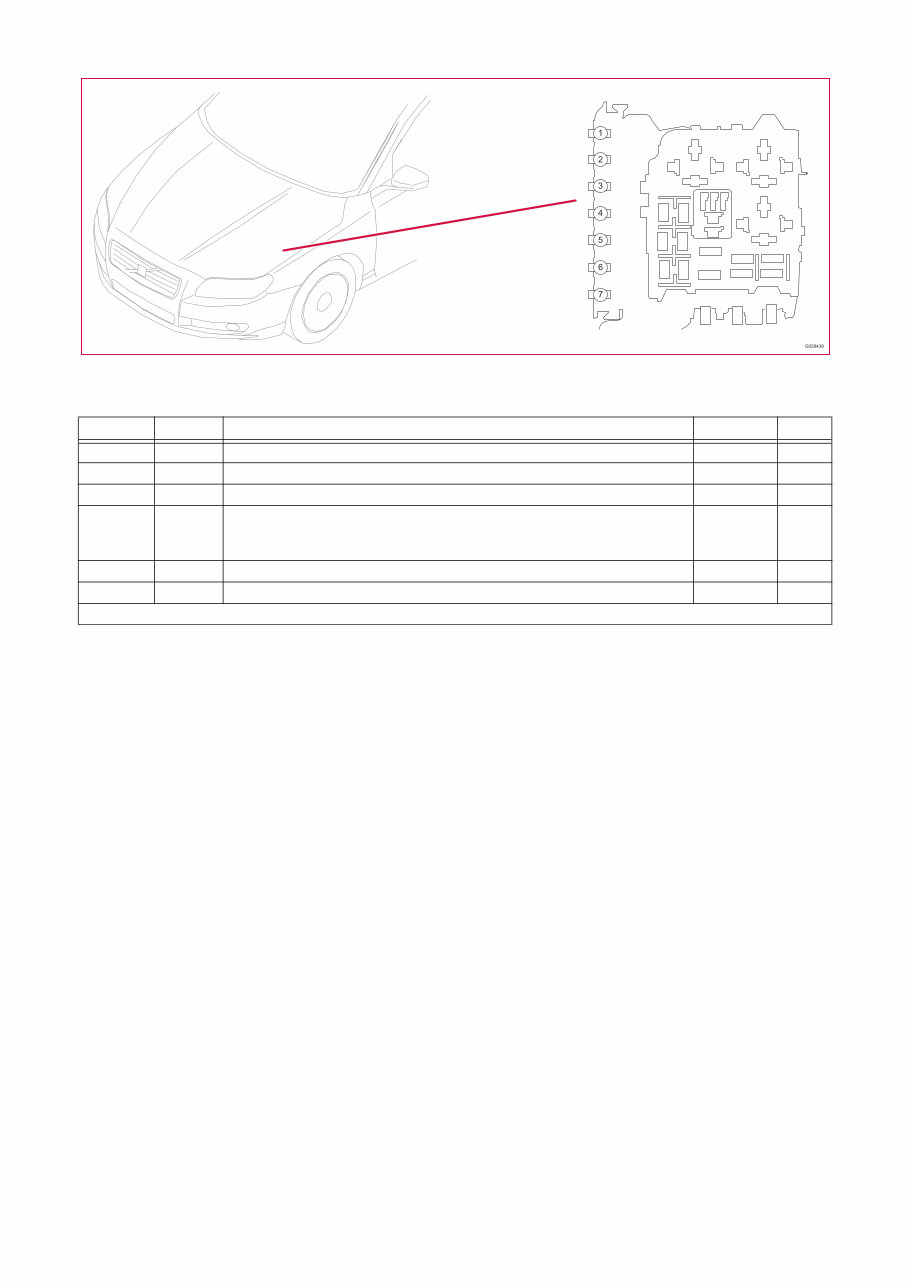

TP39153201 XC60 2010 10 Fuses Distribution box in engine compartment F1-F7 15/31 Distribution box in engine compartment No. No. Fuse function via A F1 11A/1 Main fuse for fuses in CEM - 50 F2 11A/2 Main fuse for fuses in CEM - 50 F3 11A/3 11D/A1-11D/A12 Fuses in cargo compartment fuse box - 60 F4 11A/4 2/88 Relay, 15-feed rear 11D/B1-11D/B8 Fuses in cargo compartment fuse box 11D/B9-11D/B12 Fuses in cargo compartment fuse box - 2/88 - 60 F5 11A/5 11D/D1-11D/D7 Fuses in cargo compartment fuse box - 50 F7 11A/7 9/42 PTC-element - 100 continues
