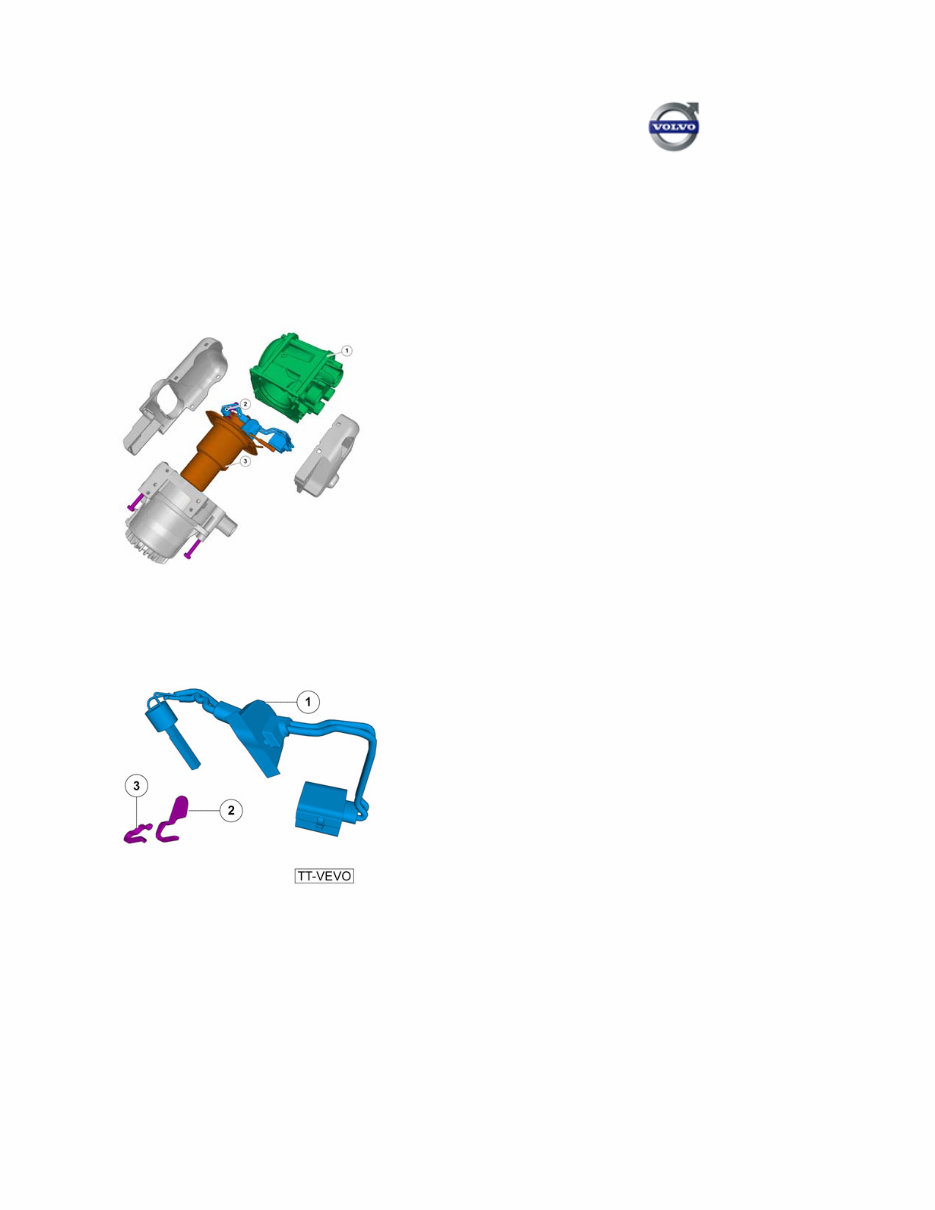

875: Auxiliary heater, fuel operated, B5254T5, L.H.D S60 (11-), 2012, L.H.D 27/9/2016 PRINT 875: Auxiliary heater, fuel operated, B5254T5, L.H.D Fuel Fired Booster Heater Location of components 1. control module 2. the glow plugs 3. combustion unit Location of components 1. the glow plugs 2. cradle 3. locking 27/9/2016 PRINT Page 1 of 1 875: Auxiliary heater, fuel operated, B5254T5, L.H.D
875: Auxiliary heater, fuel operated, B6304T4, L.H.D S60 (11-), 2012, L.H.D 27/9/2016 PRINT 875: Auxiliary heater, fuel operated, B6304T4, L.H.D Fuel Fired Booster Heater Location of components 1. control module 2. the glow plugs 3. combustion unit Location of components 1. the glow plugs 2. cradle 3. locking 27/9/2016 PRINT Page 1 of 1 875: Auxiliary heater, fuel operated, B6304T4, L.H.D

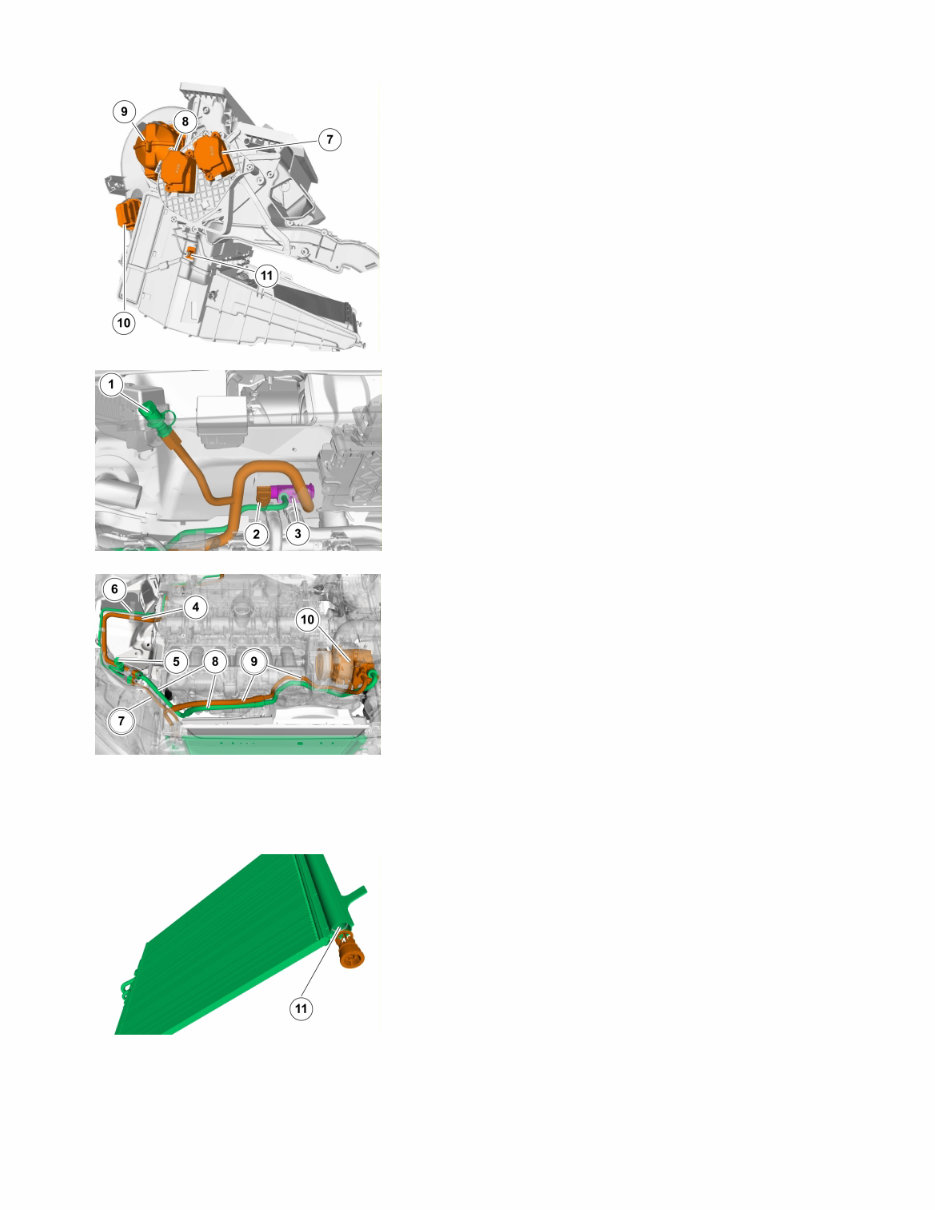

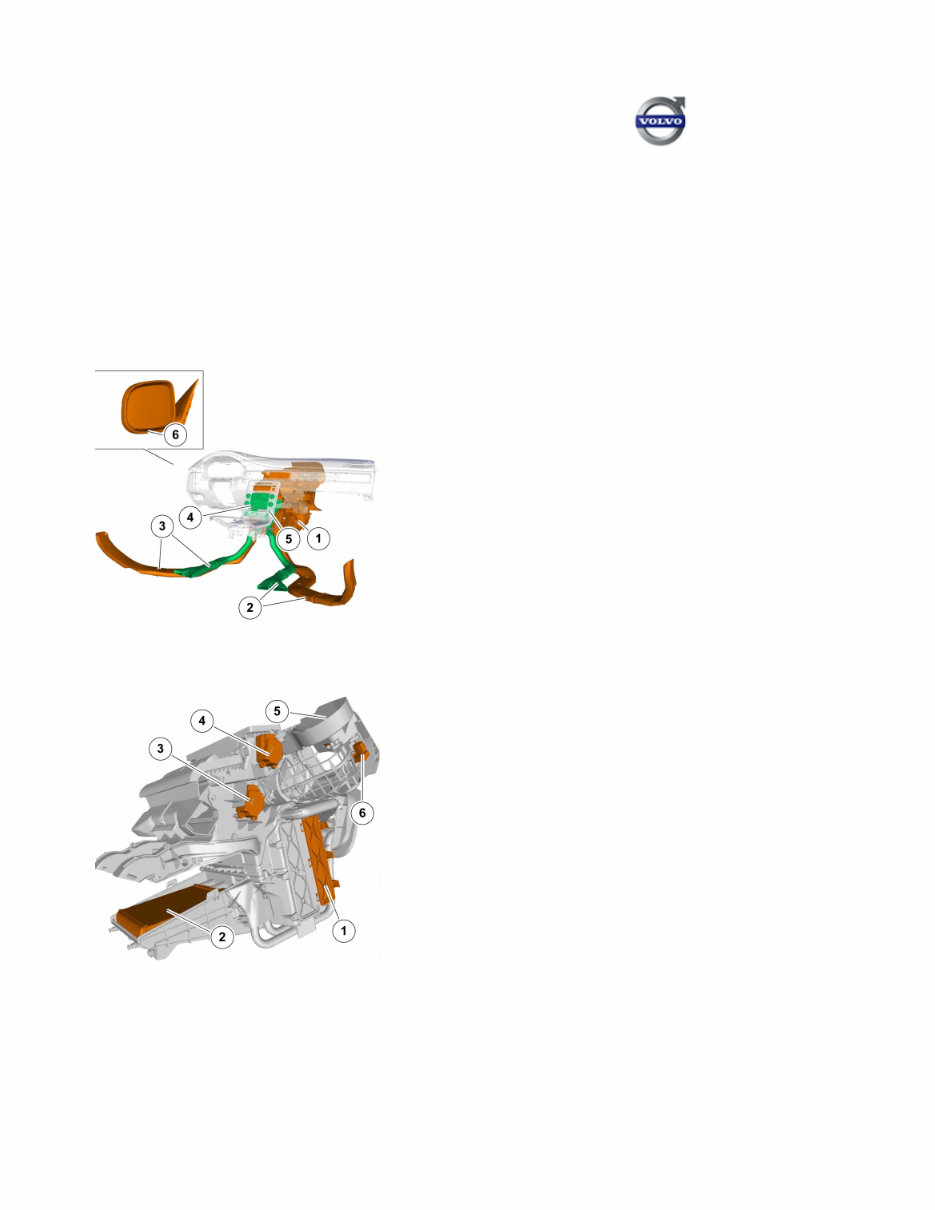

870: General, B6304T4, TF-80SC AWD, L.H.D S60 (11-), 2012, L.H.D 27/9/2016 PRINT 870: General, B6304T4, TF-80SC AWD, L.H.D Climate units Note! Some variation in the illustrations may occur, but the essential information is always correct. Positioning the climate control unit's components in the passenger/external rear view mirrors: â—¾ (1) Climate control unit â—¾ (2) Air distribution, right-hand side â—¾ (3) Air distribution, left-hand side â—¾ (4) Climate control module (CCM), climate control system â—¾ (5) In-vehicle temperature sensor â—¾ (6) Outdoor temperature sensor, left-hand side. Location of the climate control unit components: â—¾ (1) Cabin air filter â—¾ (2) Heat exchanger â—¾ (3) Damper motor module (DMM), air distribution right- hand side â—¾ (4) Damper motor module (DMM), defroster â—¾ (5) Damper motor module (DMM), recirculation â—¾ (6) Air quality sensor (AQS) â—¾ (7) Damper motor module (DMM), air distribution left- hand side â—¾ (8) Damper motor module (DMM), ventilation â—¾ (9) Blower motor â—¾ (10) Blower fan rheostat Page 1 of 2 870: General, B6304T4, TF-80SC AWD, L.H.D
â—¾ (11) Temperature sensor, evaporator. Location of the climate control unit components in the engine compartment: â—¾ (1) Service valve, LT â—¾ (2) Pressure valve, HT â—¾ (3) Expansion valve, (TXV) â—¾ (4) Pipe/hose between expansion valve - junction block â—¾ (5) Service valve, HT â—¾ (6) Pipe/hose between junction block - expansion valve â—¾ (7) Pipe/hose condenser - junction block â—¾ (8) Pipe/hose junction block - compressor â—¾ (9) Pipe/hose compressor - condenser â—¾ (10) Compressor Position of dryer filter in A/C condenser: â—¾ (11) Dryer/filter - integrated in left side of condenser 27/9/2016 PRINT Page 2 of 2 870: General, B6304T4, TF-80SC AWD, L.H.D

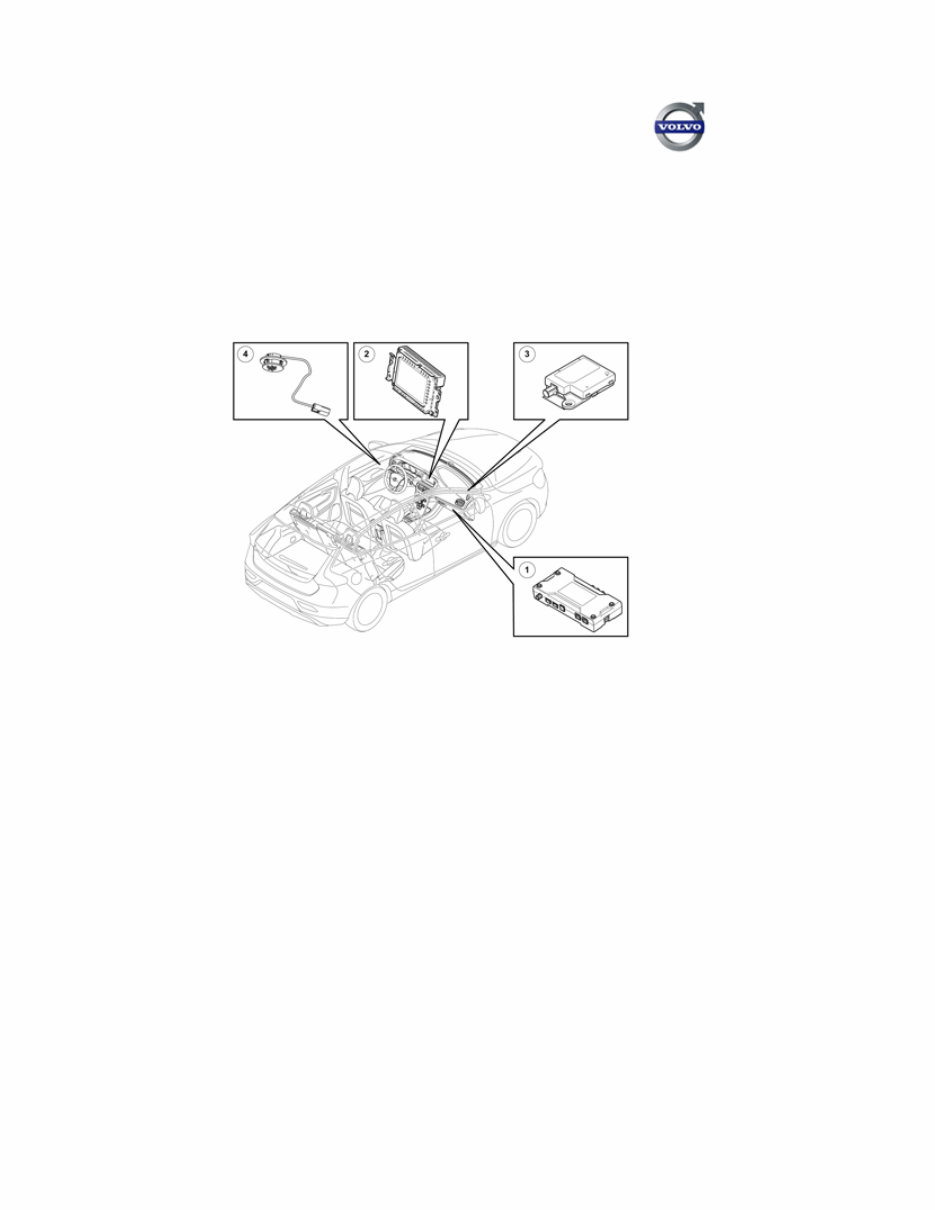

393: Component location, Accessory Connectivity Unit (ACU) S60 (11-), 2012, L.H.D 27/9/2016 PRINT 393: Component location, Accessory Connectivity Unit (ACU) Component location, Accessory Connectivity Unit (ACU) Overview 1. Accessory Connectivity Unit (ACU). 2. Touch panel. 3. GPS antenna. 4. Microphone. 27/9/2016 PRINT Page 1 of 1 393: Component location, Accessory Connectivity Unit (ACU)

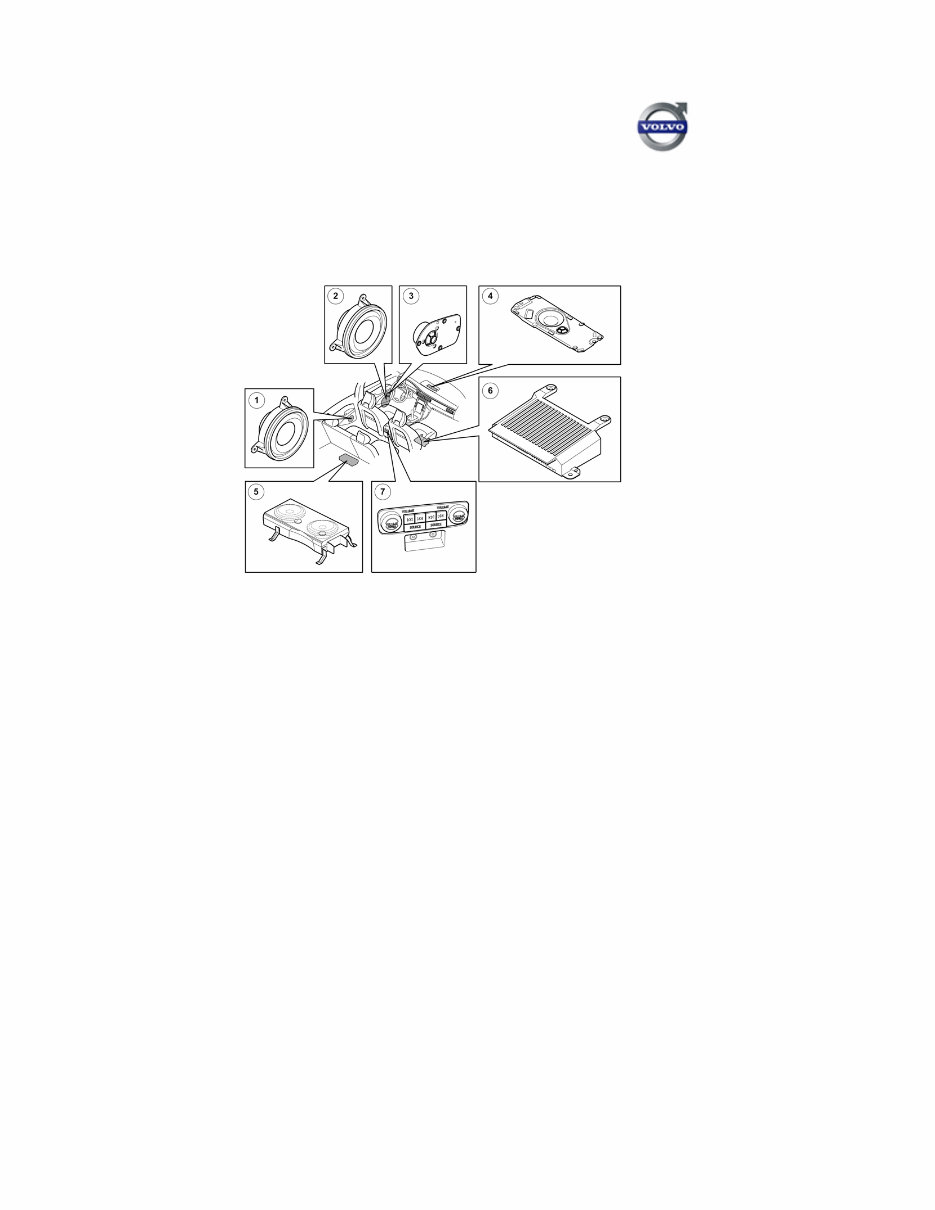

393: Component location, audio module (AUD) S60 (11-), 2012, L.H.D 27/9/2016 PRINT 393: Component location, audio module (AUD) Component location, audio module (AUD) Overview 1. Bass and mid- range speakers, rear door (certain models only). 2. Bass and mid- range speakers, front door. 3. Treble loudspeaker front door. 4. Center speaker (certain models only). 5. Subwoofer (certain models only). 6. Audio Control Module (AUD). 7. Headphone panel (certain models only). 27/9/2016 PRINT Page 1 of 1 393: Component location, audio module (AUD)

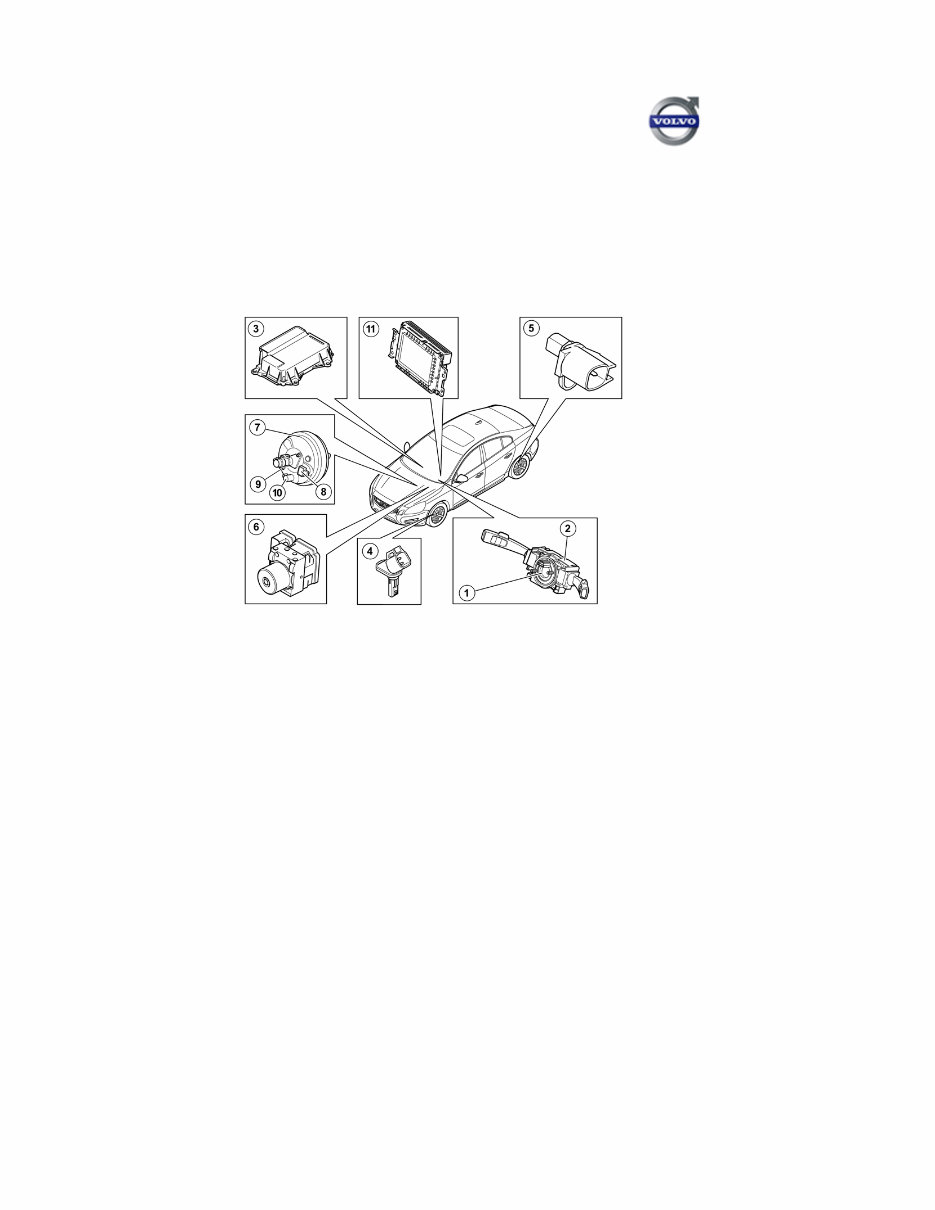

593: Component location, brake control module (BCM) S60 (11-), 2012, L.H.D 27/9/2016 PRINT 593: Component location, brake control module (BCM) Location of components Location of components for brake electronics 1. Contact roller / steering wheel angle sensor. 2. Steering wheel angle sensor module (located internally in steering wheel module (SWM)). 3. Supplemental restraint system module (SRS). 4. Front wheel sensor. 5. Rear wheel sensor. 6. Hydraulic modulator with control module. 7. Servo unit. 8. Vacuum sensor. 9. Activation unit (pedal pressure sensor, check valve). 10. Pedal position sensor. Page 1 of 2 593: Component location, brake control module (BCM)
11. Infotainment Control Module (ICM). 27/9/2016 PRINT Page 2 of 2 593: Component location, brake control module (BCM)

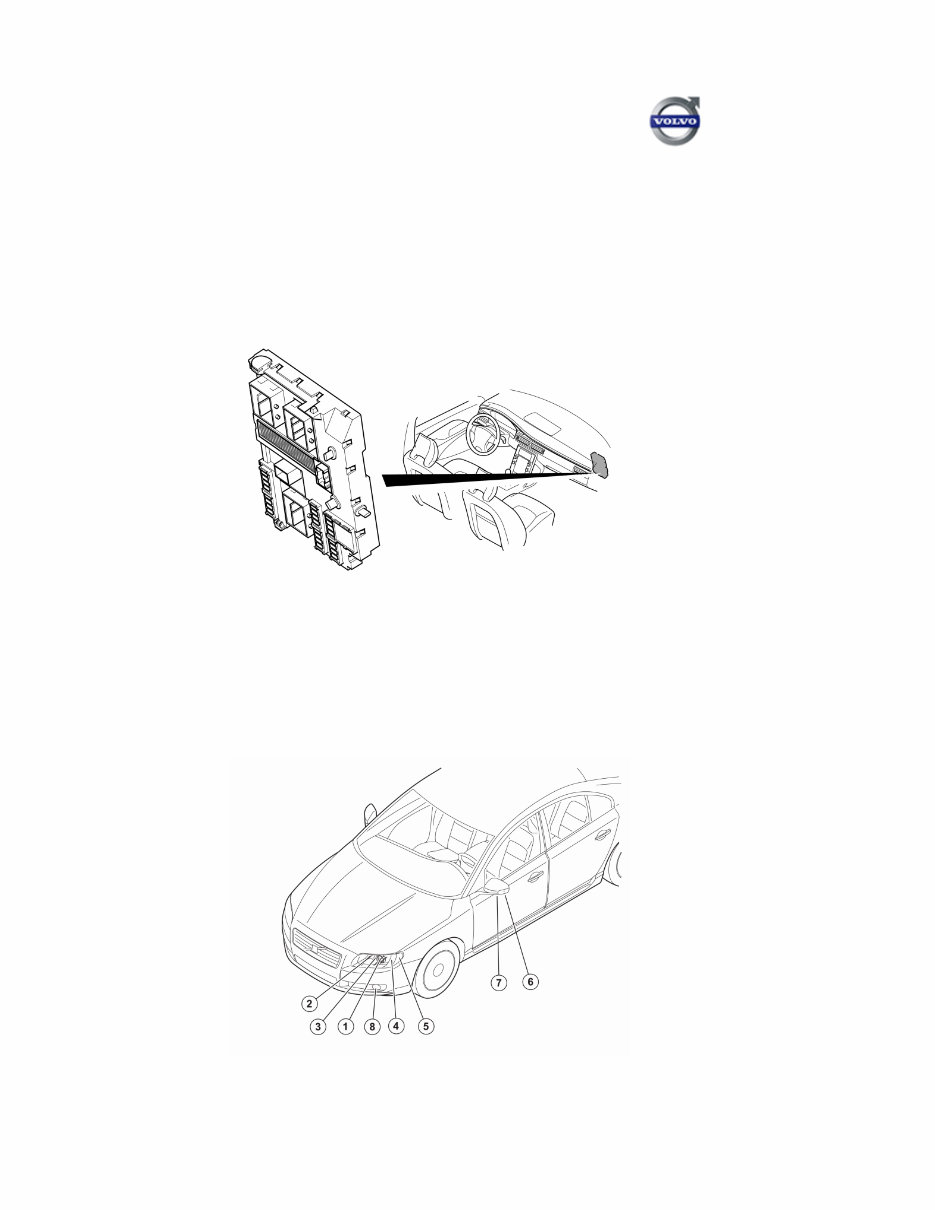

372: Component location, central electronic module (CEM) S60 (11-), 2012, L.H.D 27/9/2016 PRINT 372: Component location, central electronic module (CEM) Component location, central electronic module (CEM) Central electronic module 1. Central electronic module Lighting exterior, front Page 1 of 9 372: Component location, central electronic module (CEM)
