WIRING DIAGRAM 2011 VOLVO S60 (11-), V60 TP 39187202

© Volvo Car Corporation Vehicles with SRS (Airbag)/SIPS bag/IC (Inflatable curtain) Warning! Extra caution must be exercised when working on vehicles equipped with SRS/SIPS bag/IC in order to avoid: 1. Personal injuries when performing repair work. 2. Damage or malfunction of the SRS/SIPS bag/IC system. Work involving the SRS/SIPS bag/IC systems or other components in the vehicle that may affect the SRS/SIPS bag/IC systems must always be performed by an authorized Volvo workshop. In case of doubt, consult the SRS and SIPS bag/IC service manual. Is the vehicle equipped with SRS/SIPS bag/IC? Vehicles with SRS are most easily recognized by the letters SRS in the center of the steering wheel. If the vehicle also has a passenger side airbag, the letters SRS are stamped on the dashboard above the glove compartment. SRS vehicles from 1993 and onward also have explosive seat belt tensioners. SIPS bags are only installed on SRS vehicles from 1995 and onward. SIPS bag decals are located on the windshield and seat compartment. Vehicles with IC can be recognized by the letters IC on the C/D panel (4 door) or the B panel (5 door). General recommendations • Be especially careful when working on or around SRS, SIPS, and IC components. • Make sure that no wires are pinched, frayed, or pierced. • Never fit accessories by the sensors. • Where applicable, work on the steering wheel, steering shaft, or steering gear must be done in accordance with the methods in the SRS section of VIDA. • Certain components of the aforementioned systems must be grounded while working. Read the appropriate sections in VIDA. • Do not install any accessories in the areas between the A and B-posts, the B and C-posts, and the C and D-posts. Test terminal Fuse in cargo compartment auxiliary fuse box. Changes introduced up to May 2010 Any changes made to the vehicle after this date are not included in the manual. If necessary, refer to service bulletins. Volvo models are sold in versions adapted for different markets. These adaptations depend on factors such as legal requirements, taxation, and market demands. This manual may therefore include illustrations and text that do not apply to the vehicles in your country. Ordering: Electronic Wiring Diagrams (EWDs) can be ordered from the Technical Information Shop (TIS) at www.volvocarstechinfo.ford.com/vss We retain the right to make modifications.

TP39187202 S60 (11-), V60 2011 3 Vehicles with SRS (Airbag)/SIPS bag /IC (Inflatable curtain) .......................................................... 2 Explanations .................................................................. 6 Abbreviations ................................................................. 6 How to use the wiring diagrams 1:2............................... 7 Overview, Electrical center and Cold zone in engine compartment .................................................................. 9 Overview, Distribution box in cargo compartment ....... 10 Overview, Distribution box in passenger compartment 11 Fuses Distribution box in engine compartment F1-F7 ............. 12 Distribution box in engine compartment F8-F23 ........... 13 Distribution box in engine compartment F27-F36 ......... 14 Distribution box in engine compartment F37-F38 ......... 15 Engine compartment electrical center F39-F44 ............ 16 Central Electronic Module (CEM) F1 - F8..................... 17 Central Electronic Module (CEM) F9 - F19................... 18 Central Electronic Module (CEM) F20 - F24................. 19 Distribution box in passenger compartment F1 - F17... 20 Distribution box in passenger compartment F18 - F30. 21 Distribution box in cargo compartment FA1-FA11 ........ 22 Battery PF1-PF2 ........................................................... 23 Relays Relays in the engine compartment R1-R2 ................... 24 Relays in the engine compartment R8......................... 25 Relays in the engine compartment R10-R13 ............... 26 Relays in passenger compartment R1 - R4 ................. 27 Cargo compartment RA1 - RA2 ................................... 28 Ground connections Overview...................................................................... 29 31/1 - 31/7 ................................................................... 30 31/10 - 31/15 continues ............................................... 31 31/15 - 31/68 ............................................................... 32 31/83 - 31/89 ............................................................... 33 31/90 - 31/XX10........................................................... 34 31/XX14 - 31/TRM ....................................................... 35 Control modules Overview locations....................................................... 36 Overview designations................................................. 37 Central Electronic Module (CEM) 1:3 .......................... 38 Data communication, High speed CAN ....................... 41 Data communication intermediate speed CAN, LHD... 42 Data communication intermediate speed CAN, RHD .. 43 Data communication Local CAN.................................. 44 Data communication LIN 1:2 ....................................... 45 Data communication MOST......................................... 47 Steering Wheel Module (SWM) ................................... 48 Group 23 Fuel system Engine management system, 4-Cyl. Turbo 1:2............ 49 Engine management system, 6-Cyl. Turbo 1:2............ 51 Engine management system, 5-Cyl. Diesel EURO5 1:3 .................................................................. 53 Emission control 4-Cyl. Turbo ...................................... 56 Emission control 6-Cyl. ............................................... 57 Group 26 Cooling system Cooling fan 4-Cyl. Turbo .............................................. 58 Cooling fan 5-Cyl. Diesel EURO5 ................................ 59 Cooling fan 6-Cyl. ........................................................ 60 Group 27 Engine controls Cruise control 4-Cyl. Turbo ........................................... 61 Cruise control 5-Cyl. Diesel .......................................... 62 Cruise control 6-Cyl. ..................................................... 63 Group 32 Alternator and voltage regulator Power supply 4-Cyl...................................................... 64 Power supply 5-Cyl.&6-Cyl. ......................................... 65 Group 33 Starting system Starting system 4-Cyl................................................... 66 Starting system, 5-Cyl. & 6-Cyl. ................................... 67 Group 35 Lighting High and low beam ...................................................... 68 High and low beam (Dual Xenon) ................................ 69 Beam length adjustment, manual ................................ 70 Running/Parking light, Tail lights S60 .......................... 71 Running/Parking light, Tail lights V60 .......................... 72 Running/Parking light, Tail lights (Dual Xenon) S60 .... 73 Running/Parking light, Tail lights (Dual Xenon) V60 .... 74 Fog lights S60 .............................................................. 75 Fog lights V60 .............................................................. 76 Brake lights S60........................................................... 77 Brake lights V60........................................................... 78 Reversing lights S60 .................................................... 79 Reversing lights V60 .................................................... 80 Follow-me-home lighting LHD...................................... 81 Follow-me-home lighting RHD ..................................... 82 Interior lighting, LHD 1:2 .............................................. 83 Interior lighting, LHD 2:2 .............................................. 84 Interior lighting, RHD 1:2.............................................. 85 Active headlight ........................................................... 87 Lighting in door sill trims .............................................. 88 Auxiliary lights .............................................................. 89 Table of Contents 1:3

TP39187202 S60 (11-), V60 2011 4 Group 36 Additional electrical equipment Rain sensor.................................................................. 90 Direction indicator and hazard warning flashers LHD S60......................................................... 91 Direction indicator and hazard warning flashers LHD V60......................................................... 92 Direction indicator and hazard warning flashers RHD S60 ........................................................ 93 Direction indicator and hazard warning flashers RHD V60 ........................................................ 94 Wiper/washer windshield ............................................. 95 Washer headlights ....................................................... 96 Wiper/Washer rear windowV60 ................................... 97 Horn ........................................................................ 98 Keyless vehicle 1:2 ...................................................... 99 Anti-theft alarm .......................................................... 101 Parking assistance..................................................... 102 Collision warning with power brake booster .............. 103 Tire pressure monitoring system (TPMS) .................. 104 Group 37 Wiring and fuses Diagnostics system.................................................... 105 12 V outlet, S60 ......................................................... 106 12 V outlet, V60 ......................................................... 107 Cable harness towbar/tow hitch 13-pin S60 .............. 108 Cable harness towbar/tow hitch 13-pin V60 .............. 109 Group 38 Instruments Seat belt reminder ..................................................... 110 Driver information module.......................................... 111 Group 39 Other Audio Premium 1:3 .................................................... 112 Audio 1:2 ................................................................... 115 Cellular phone 1:2...................................................... 117 DAB Radio ................................................................. 119 Multimedia monitor with DVD, Dual Screen (RSE) .... 120 TV receiver / TV control module S60 ......................... 121 TV receiver / TV control module V60 ......................... 122 Bluetooth Handsfree .................................................. 123 Navigation system and Traffic information, portable.. 124 Satellite radio ............................................................. 125 Parking camera front ................................................. 126 Parking camera rear .................................................. 127 Parking camera wide angle front ............................... 128 Group 43 Transmission Transmission M66...................................................... 129 Automatic transmission, TF-80SC AWD.................... 130 Automatic transmission MPS6 ................................... 131 Differential Electronic Module (DEM) ......................... 132 Group 55 Parking brake Electric parking brake ................................................ 133 Group 59 Brake system Brake control system & DSTC ................................... 134 Group 64 Steering Speed dependent power steering .............................. 135 Group 76 Shock absorbers Four-C ...................................................................... 136 Group 83 Doors and openings Central locking front doors LHD................................. 137 Central locking front doors RHD ................................ 138 Central locking rear doors .......................................... 139 Central locking tailgate S60 ....................................... 140 Central locking tailgate V60 ....................................... 141 Central locking fuel filler flap ...................................... 142 Signal receiver central locking ................................... 143 Power windows front doors LHD................................ 144 Power windows front doors RHD ............................... 145 Power windows rear doors......................................... 146 Power sunroof ............................................................ 147 Group 84 Exterior decorative elements, etc. Power door mirrors LHD ............................................ 148 Power door mirrors RHD............................................ 149 Heated door mirrors LHD........................................... 150 Heated door mirrors RHD .......................................... 151 Blind spot information system LHD............................ 152 Blind spot information system RHD ........................... 153 Heated rear window ................................................... 154 Table of Contents 2:3

TP39187202 S60 (11-), V60 2011 5 Group 85 Interior equipment Power driver’s seat with memory function, LHD ........ 155 Power driver’s seat with memory function, RHD ....... 156 Power passenger seat, LHD...................................... 157 Power passenger seat, RHD ..................................... 158 Heated front seats ..................................................... 159 Heated rear seat ........................................................ 160 Group 87 Climate control system Climate control system, 4-Cyl. 1:2 ............................. 161 Climate control system 5-Cyl. & 6-Cyl. 1:2 ................ 163 Climate control system PTC-elements ...................... 165 Parking heater, auxiliary heater ................................. 166 Parking heater, remote start ...................................... 167 Group 88 Internal equipment Rear-view mirror with automatic dimming.................. 168 Supplemental restraint system 1:2 ............................ 169 Remote control opener garage door .......................... 171 Group 89 Body other Radiator masking blind .............................................. 172 Connectors .............................................. 173 Branching points ..................................... 204 Cable harness routing in vehicle Harness engine 4-Cyl. Turbo ...................................... 219 Harness engine, 6-Cyl. Turbo ..................................... 219 Harness engine, 2.0L Diesel ....................................... 220 Harness engine, 2.4L Diesel ....................................... 220 Engine compartment harness LHD............................. 221 Engine compartment harness RHD ............................ 222 Harness dashboard, LHD ........................................... 223 Harness Dashboard, RHD .......................................... 224 Harness Floor, LHD S60 ............................................. 225 Harness Floor, RHD S60 ............................................ 226 Floor Harness, LHD V60 ............................................. 227 Harness Floor, RHD V60 ............................................ 228 Harness infotainment, LHD S60 ................................. 229 Harness infotainment, RHD S60................................. 230 Harness infotainment, LHD V60 ................................. 231 Harness infotainment, RHD V60................................. 232 Roof harness, S60 ...................................................... 233 Roof harness V60 ....................................................... 233 Center console harness .............................................. 234 Tunnel harness ........................................................... 234 Harness front door, left ............................................... 235 Harness front door, right ............................................. 235 Harness rear door, left ................................................ 236 Harness rear door, right .............................................. 236 Trunk lid/tailgate harness, S60 ................................... 237 Trunk lid/tailgate harness, V60 ................................... 237 Harnesses rear axle.................................................... 238 Component illustrations .......................... 239 Index 1:3 .................................................... 293 List of components 1:6 ............................ 295 Table of Contents 3:3

TP39187202 S60 (11-), V60 2011 6 Explanations Abbreviations Groups Group 23 = Fuel system Group 26 = Cooling system Group 27 = Engine controls Group 32 = Alternator and voltage regulator Group 33 = Starting system Group 35 = Lighting Group 36 = Additional electrical equipment Group 37 = Wiring and fuses Group 38 = Instruments Group 39 = Other Group 43 = Transmission Group 55 = Parking brake Group 59 = Brake system Group 64 = Steering Group 76 = Shock absorbers Group 83 = Doors and openings Group 84 = Exterior decorative elements, etc. Group 85 = Interior equipment Group 87 = Climate control system Group 88 = Internal equipment Designations ignition switch X = Accessories (audio position) S = Powered upon insertion of key 15 = The switch remains connected during start 15l = Contact is broken while starting 30 = Constant power from the battery 50 = Start Countries/Markets A = Austria AUS = Australia B = Belgium CDN = Canada CH = Switzerland D = Germany DK = Denmark E = Spain EU/OS = Markets outside USA and Canada FIN = Finland GB = Great Britain ISR = Israel J = Japan KOR = Korea N = Norway NL = Netherlands S = Sweden USA = United States of America WEU = Western Europe Other ACC = Adaptive Cruise Control Ag = Silver plated Au = Gold plated AUTO = Automatic transmission BLIS = Blind Spot Information System CAN = CAN communication DPY = Display ECC = Electronic climate control system ETA = Throttle unit EXC = Exclusive GDL = Gas discharge lamp HS = High speed data bus KEYLESS = Keyless vehicle IR = Infrared sensor LIN = LIN communication LH = Left-hand side LHD = Left-hand drive MAN = Manual transmission MEMORY = Memory driver’s seat MIRCAM = Parking camera in rear-view mirror MS = Midspeed data bus MMS = Mass Movement Sensor PANROOF = Panoramic roof PETROL = Gasoline RH = Right-hand side RHD = Right-hand drive RTI = Road Traffic Information SCR = Screened SRS = Airbag T = Turbo engine W/O = Without 2WD = Two-wheel drive 4CYL, I4 = 4-cylinder engine 5CYL, I5 = 5-cylinder engine 6CYL, I6 = 6-cylinder engine Colors BK, SB = Black BN = Brown BU, BL = Blue GN = Green GY, GR = Gray LGN = Light Green NL = Natural OG, OR = Orange PK, P = Pink RD, R = Red VT, VO = Violet WH, W = White YE, Y = Yellow

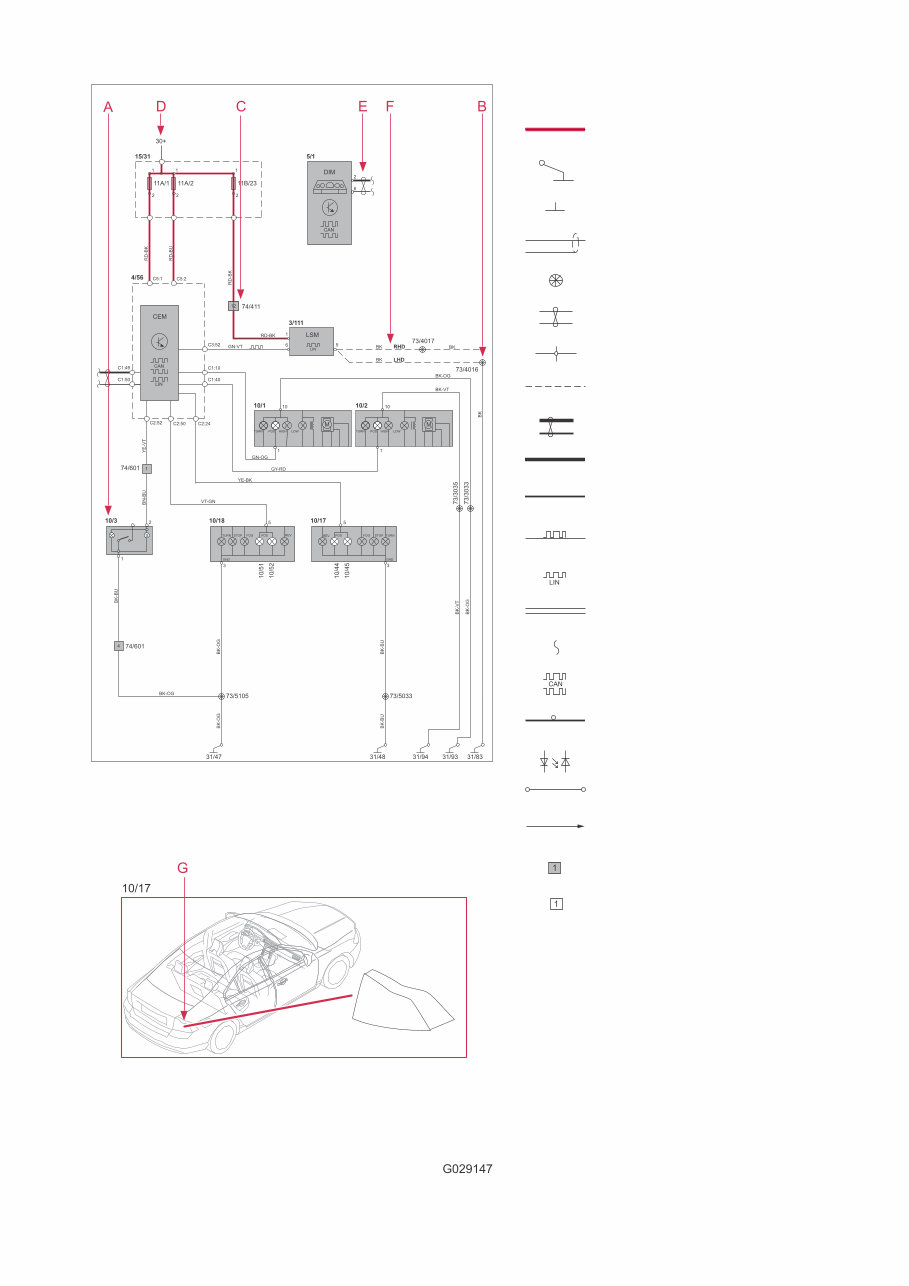

TP39187202 S60 (11-), V60 2011 7 The descriptions below apply in general to all wiring diagram manuals, although not all sections are necessarily con- tained in this manual. The systems are shown in not active sta- tus, i.e. "key removed" and when doors, trunk lid/tailgate and hood are closed. How to use the wiring diagrams 1:2 A. Component designation Every component has a component designation that consists of two parts. The first part is a type number that describes the type of component in question, for example 3/xx. The second part of the designation is a serial number, for example x/2. Combined these give a component designation, for example 3/2. At the end of the manual is a list of components, where, with the help of the component designation, you can read off the name of the component, for example, 3/2 = light switch. List of type numbers The list shows which type of component that respec- tive type numbers refer to, for example, 3/x = switch, 6/x = electric motor, etc. 1 Battery 2 Relay 3 Switch 4 Control module 5 Driver Information Module 6 Electric motor 7 Sensor 8 Actuator 9 Heating element 10 Light 11 Fuse 15 Electrical distribution rail/box 16 Audio 17 Service/diagnostics 18 Contact reel 19 Meter 20 Ignition component/shunt 27 Optics 31 Ground connection 73 Branching point 74 Connector B. Branching points The wiring diagrams contain numbered branching points, for example 73/5035. This manual contains a section with a list of branching points. This list shows all the components which are connected to each branching point. The location of the branching points is shown in the "Cable harness routing in vehicle" section. C. Connectors Connectors provide a bridge between two cable harnesses and are described in the "Connectors" section. D. Electrical distribution Operation of the fuses and relays is shown in the "Electrical distribution" section. E. Data communication Today’s cars contain CAN, LIN and MOST networks that transfer information. Connections to these networks are not shown in their entirety in the respec- tive wiring diagram. Complete information on CAN, LIN and MOST communication is found in the section "Control modules". F. Abbreviations A number of different abbreviations are used in the manual. These are explained in the section "Abbre- viations". G. Component location The end of the manual contains a section that describes component appearance and location in numerical order.

TP39187202 S60 (11-), V60 2011 8 How to use the wiring diagrams 2:2 Explanation of symbols = System voltage = Ground connection via wiring = Ground connection in component/chassis = Screened wire = Branching point = Twisted cable = Electrical connection = Variant = CAN communication = CAN high data signal (CAN H) = CAN low data signal (CAN L) = LIN communication = LIN communication = DIN cable, coaxial cable, etc. = Data communication = CAN communication = MOST communication = MOST communication = Connection with distribution box = Further connection to... = Connector between cable harnesses = Connector connected in component

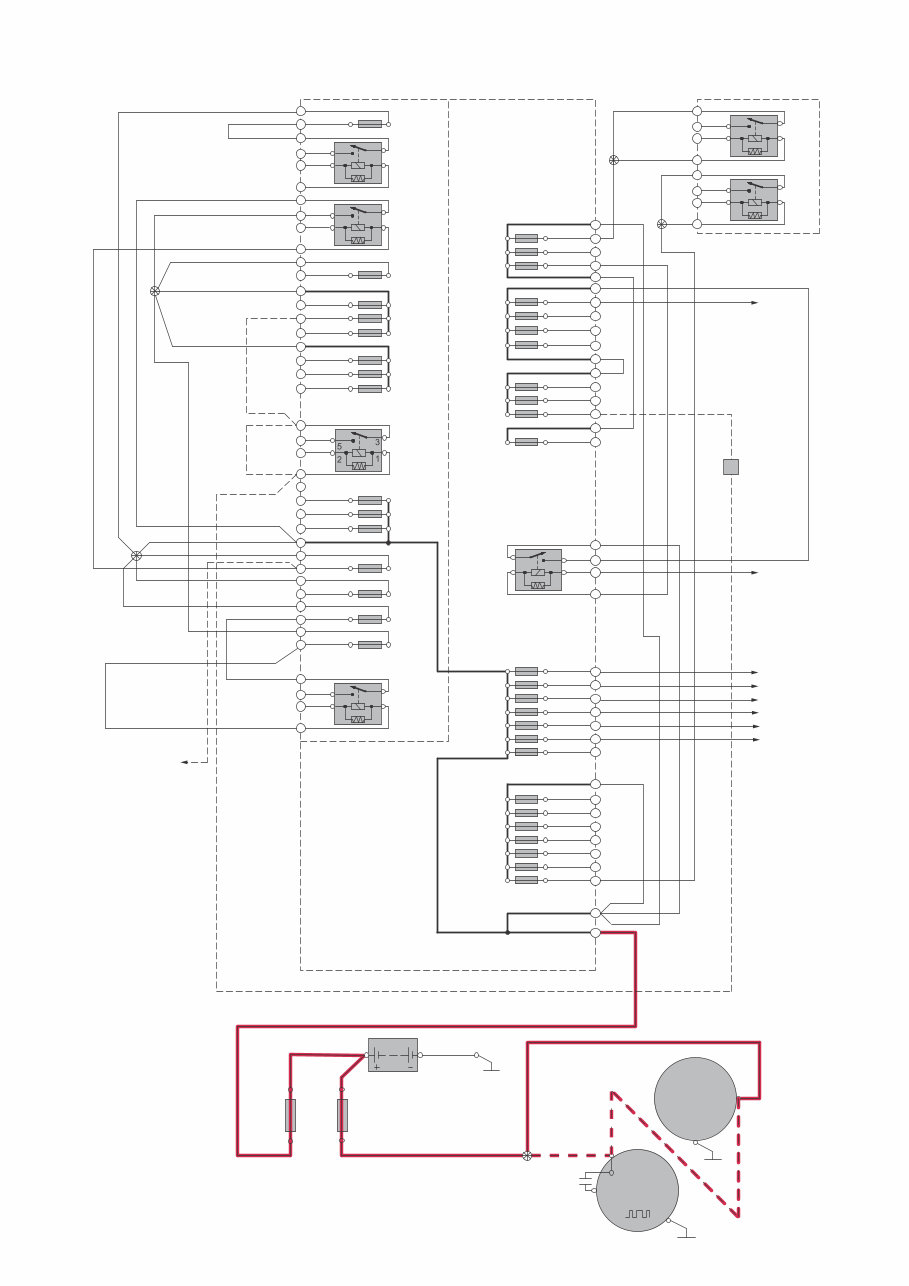

TP39187202 S60 (11-), V60 2011 9 Electrical distribution 1:3 Overview, Electrical center and Cold zone in engine compartment 15/31 15/33 11B/36 2 1 11B/37 2 1 11B/38 2 1 11B/41 11B/18 1 2 11B/16 1 2 11B/17 73/3068 73/3085 1 2 11B/19 1 2 11B/20 1 2 11B/21 1 2 11B/22 1 2 11B/23 1 2 11B/28 1 2 11B/29 1 2 RD-VT RD-VT YE-GN YE-GN RD-VT RD RD RD RD GY-BK RD RD GN-VT RD-BK RD_BU RD-GN RD-GY RD-BN 15/36 15/36 15/32 4/56C5:2 4/56C5:1 RD RD RD RD RD RD 4/46B:16 6 CYL RD RD RD RD RD RD RD RD GY-VT GY-VT GY-VT GY-VT RD RD-BK RD 11B/27 1 2 11A/1 11A/2 11A/3 11A/4 11A/5 11A/6 1 2 11A/7 1 2 1 2 1 2 1 2 1 2 1 2 2 1 11B/40 2 1 11B/39 2 1 11A/43 2 1 11A/42 2 1 11A/44 2 1 11B/33 2 1 11B/32 2 1 11B/31 2 1 11B/30 2 1 11B/35 2 1 11B/34 2 1 2 1 3 5 2/22 R13 R10 2 1 3 5 2/31 R8 2 1 3 5 2/32 2 1 3 5 2/17 R2 2 1 3 5 2/35 R12 11B/13 11B/11 11B/9 11B/12 11B/10 1 2 11B/14 1 2 1 2 1 2 1 2 1 2 11B/8 1 2 73/3076 6/25 31 M ACM 30 C1:1 6/26 B+ 31 G C1:1 12V BK 31/3 1/1 PF1 PF2 2 1 1 2 LIN 2 1 3 5 2/182 R1 9/42 4/56C1:45 4/56C1:65 73/3041 73/3138 RD RD-VT RD 2/142 R11 5 Cyl. Diesel 2/133 R11 4 Cyl. T 4 Cyl. T & 4 Cyl. T 4 Cyl. T 5 Cyl. D 5 Cyl. D BU-OG GN-OG GN-OG BU-OG YE-GN 74/301 16 G042211

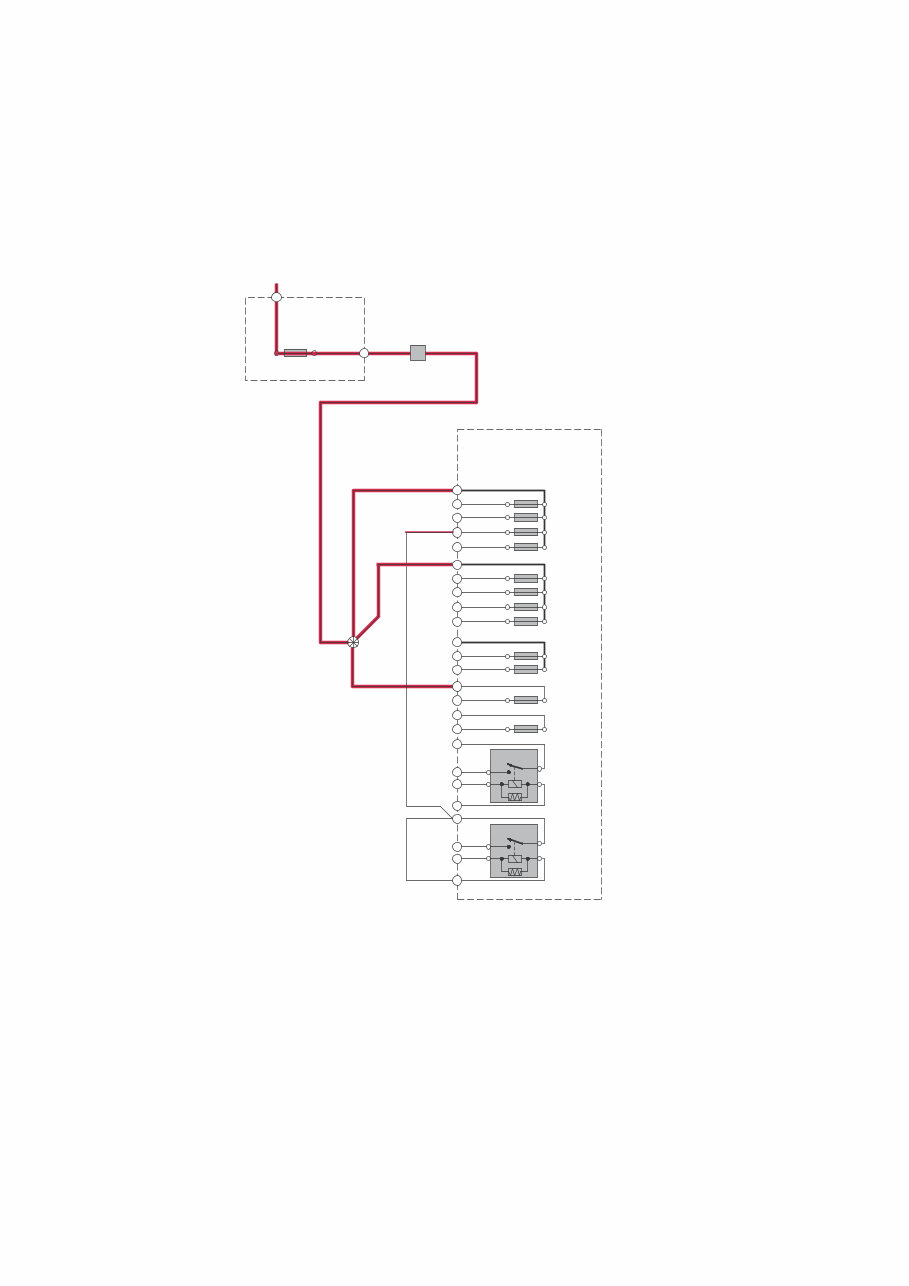

TP39187202 S60 (11-), V60 2011 10 Electrical distribution 2:3 Overview, Distribution box in cargo compartment 11D/A7 2 1 11D/A6 2 1 11D/A5 2 1 11D/A8 2 1 11D/A3 2 1 11D/A2 2 1 11D/A1 2 1 11D/A4 2 1 11D/A10 2 1 11D/A9 2 1 11D/A11 2 1 11D/A12 2 1 2 1 3 5 2/82 15/32 RA2 2 1 3 5 A RA1 RD-GN RD-GN RD-GN RD-GN RD-VT RD-VT 73/5075 2/16 15/31 11A/3 1 2 3 74/504B RD-GN 15/31 2 30+ 2 G042220
