01M 4 Speed Automatic
Fluid change Procedure
Here is the step by step on how to change the ATF fluid in the TDI 4 speed 01M
Automatic transmission. For the parts lists I included cropped picture links to the
ETKA pages relative to the 01M transmission.
NOTE:
-This is not the differential fluid which is independent of the ATF and is a
different type of fluid. Please refer to the Bentley manual for the simple
instructions on changing and checking this fluid.
-This job relies on ABSOLUTE cleanliness. Some of the pictures do not reflect
the cleaning that took place when reinstalling the parts due to reuse of
certain picture frames. Above all make sure that no dirt is allowed to get
into the transmission housing. The housing and valve controls contain
extremely close tolerance electronically controlled servo valves similar to
those found inside the TDI injection pump.
Parts
needed:

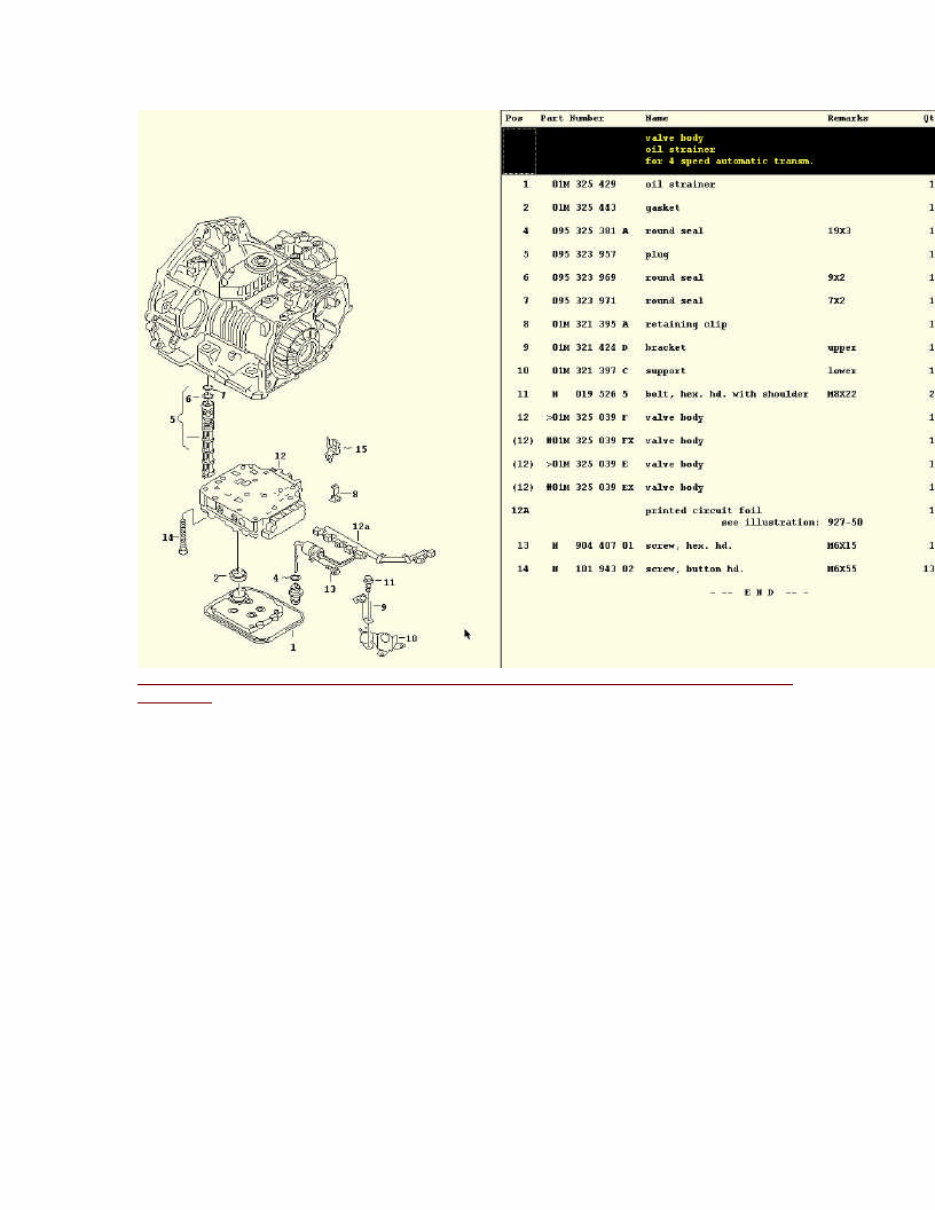

http://pics.tdiclub.com/members/drivbiwire/Auto%20Fluid%20change%20procedure
/1ATa.jpg
(1) 01M 325 429 "Oil Strainer"Fig 1
(1) 01M 325 443 "gasket" Fig 2

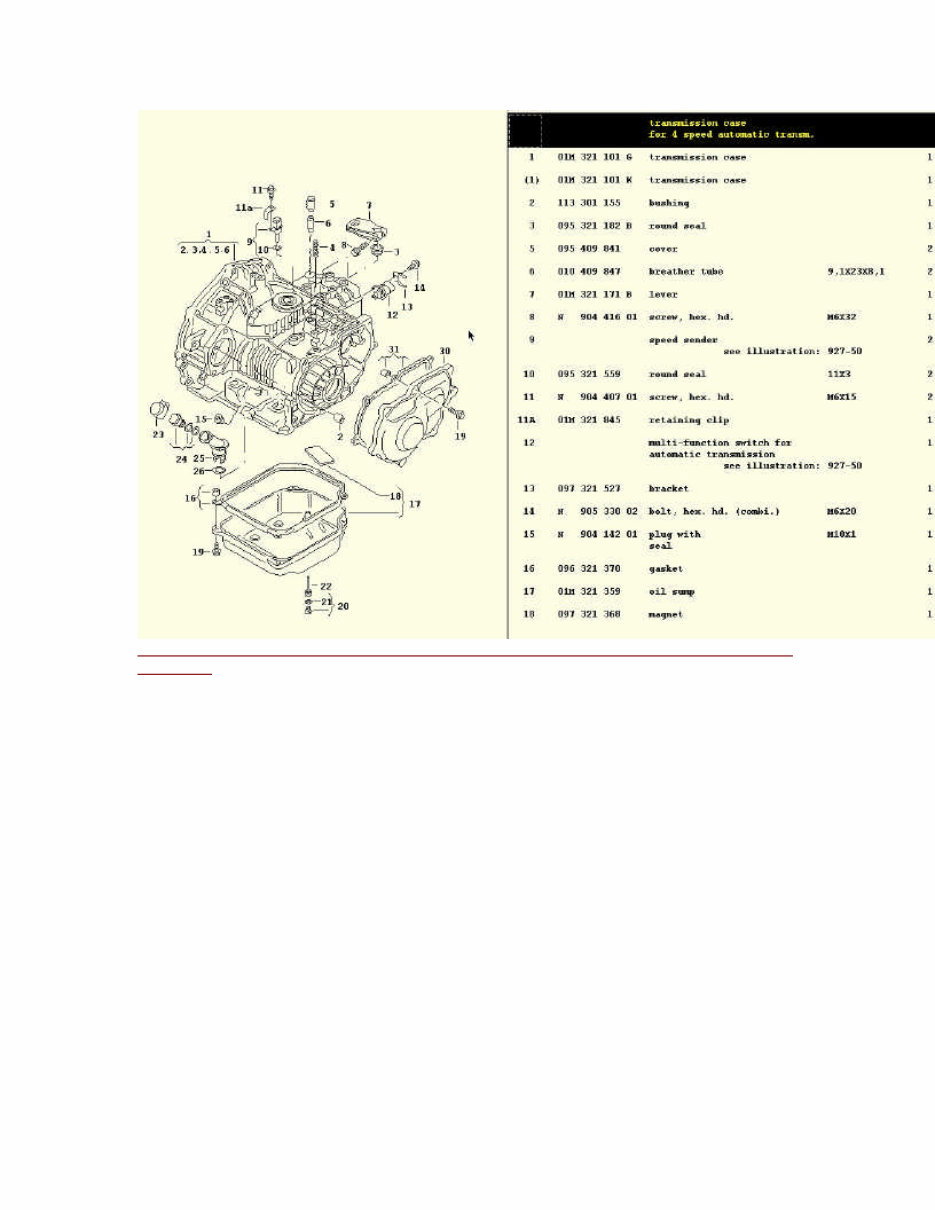

http://pics.tdiclub.com/members/drivbiwire/Auto%20Fluid%20change%20procedure
/1ATb.jpg
(1) 096 321 370 "gasket" Fig 16

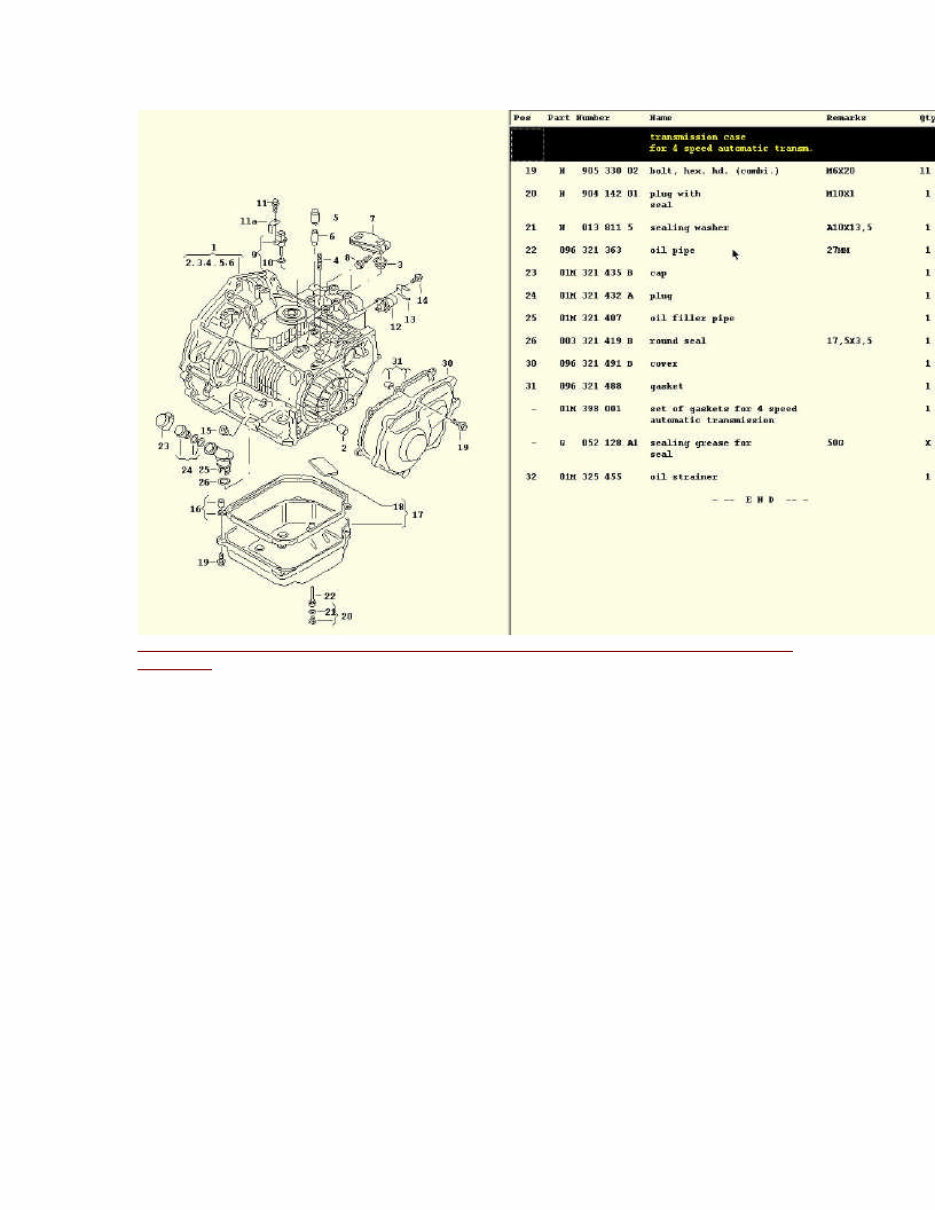

http://pics.tdiclub.com/members/drivbiwire/Auto%20Fluid%20change%20procedure
/1ATc.jpg
(1) N 013 811 5 "sealing washer" Fig 21
(1) 01M 321 435 B "cap" Fig 23
(1) 01M 321 432 A "plug" Fig 24 optional
Fluid needed per the Bentley Manual:
"VW ATF is obtainable as a spare part.
-Container size 1.0 ltr. (1.0567 qt) - Part No. G 052 162 A2"
Note: I found that 4.5 liters were needed when replacing the filter as
outlined in the following procedure.
Fluid and filter change Procedure:

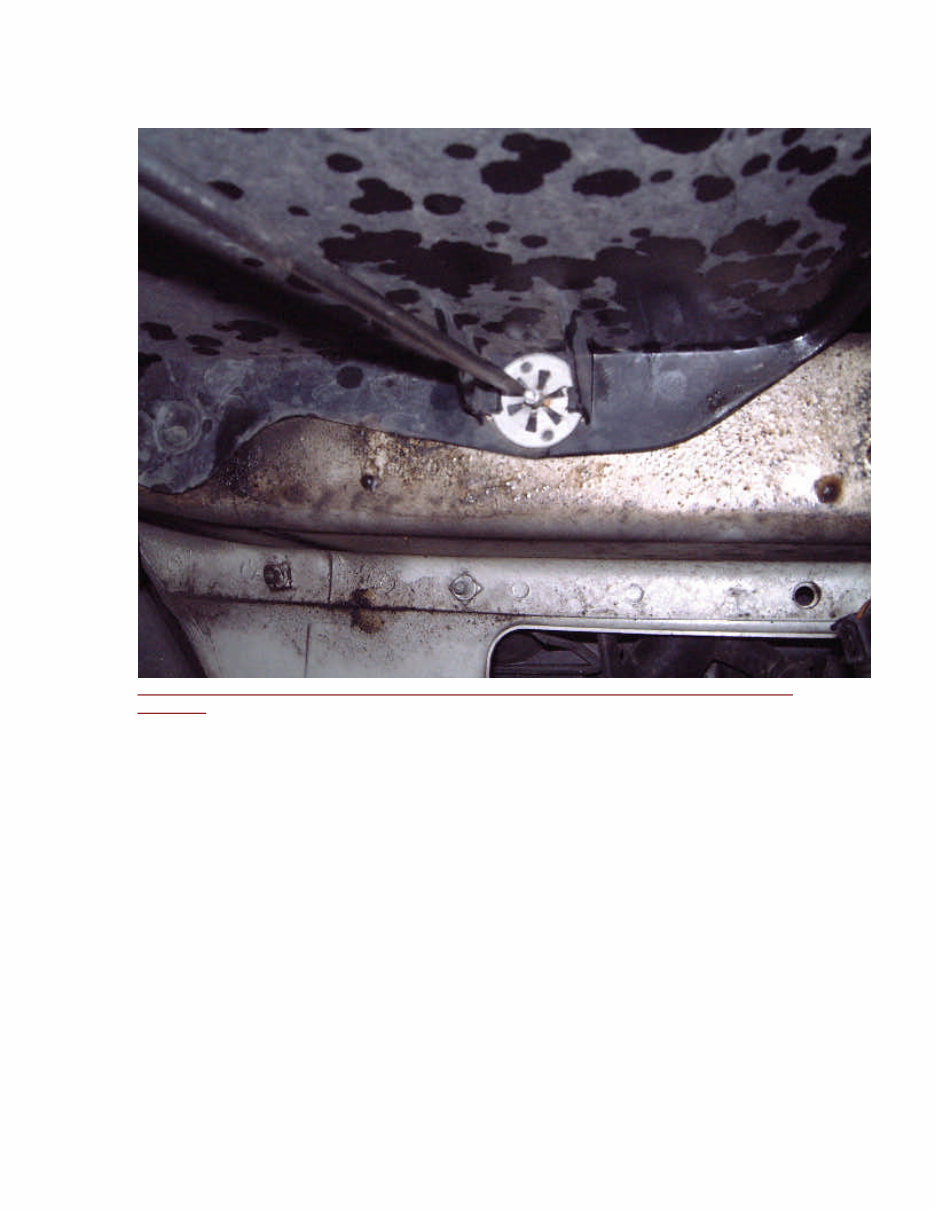

First remove the plastic side liner that covers the driver side of the transmission.
There are two washer retainers that can easily be removed turning them off with a
flat screwdriver.
Front flat washer
http://pics.tdiclub.com/members/drivbiwire/Auto%20Fluid%20change%20procedure
/AT1.JPG
