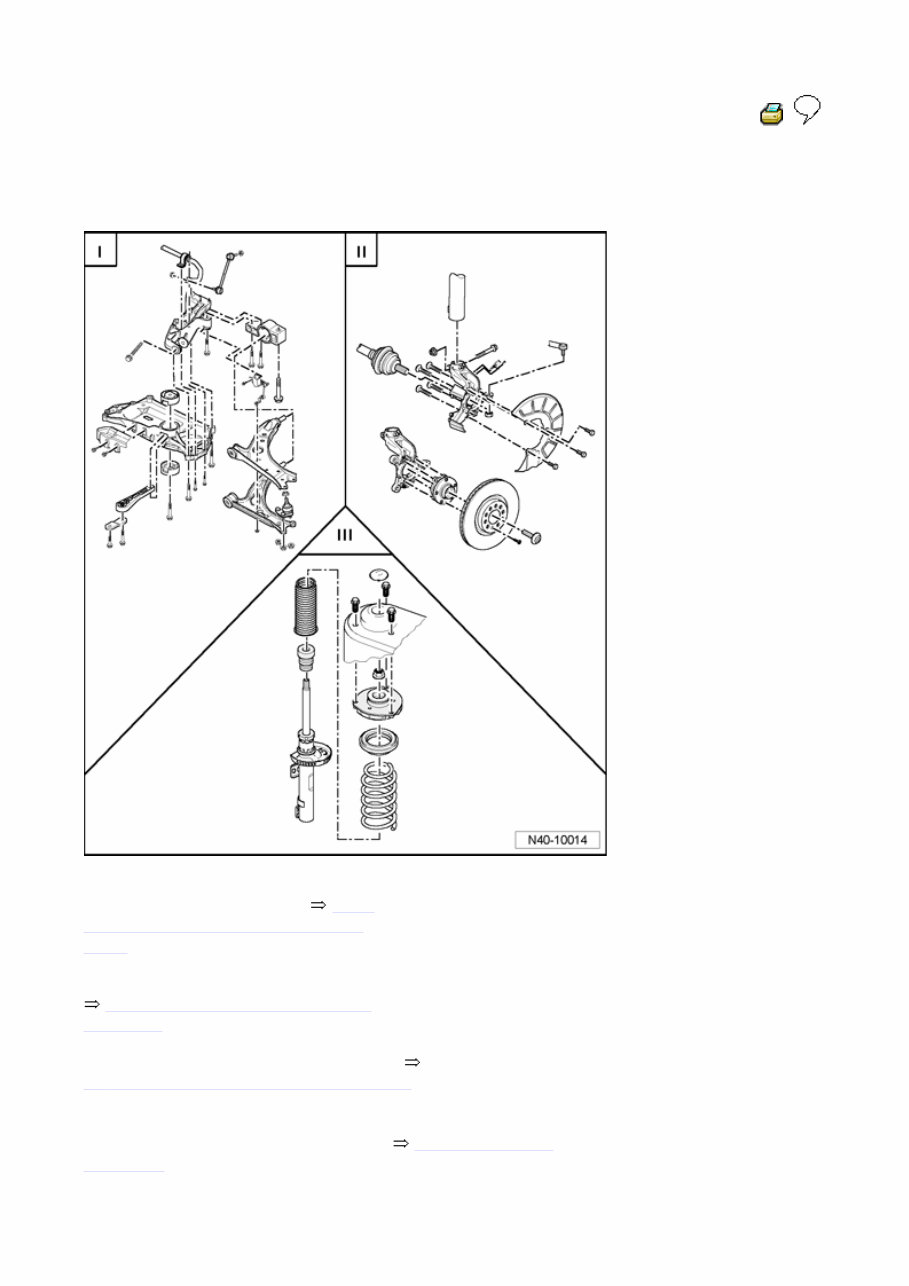

40 - 2 Front suspension, servicing Front axle, assembly overview I - Subframe, stabilizer bar, control arms, assembly overview 40 - 4, Subframe, stabilizer bar, control arms II - Wheel bearing, assembly overview 40 - 5, Wheel bearing, assembly overview III - Suspension, assembly overview 40 - 6, Suspension, assembly overview The chapter "Drive axle, servicing" 40 - 7, Drive axle, servicing Стр. 1 из 4 Volkswagen Golf 5 - Front suspension, servicing

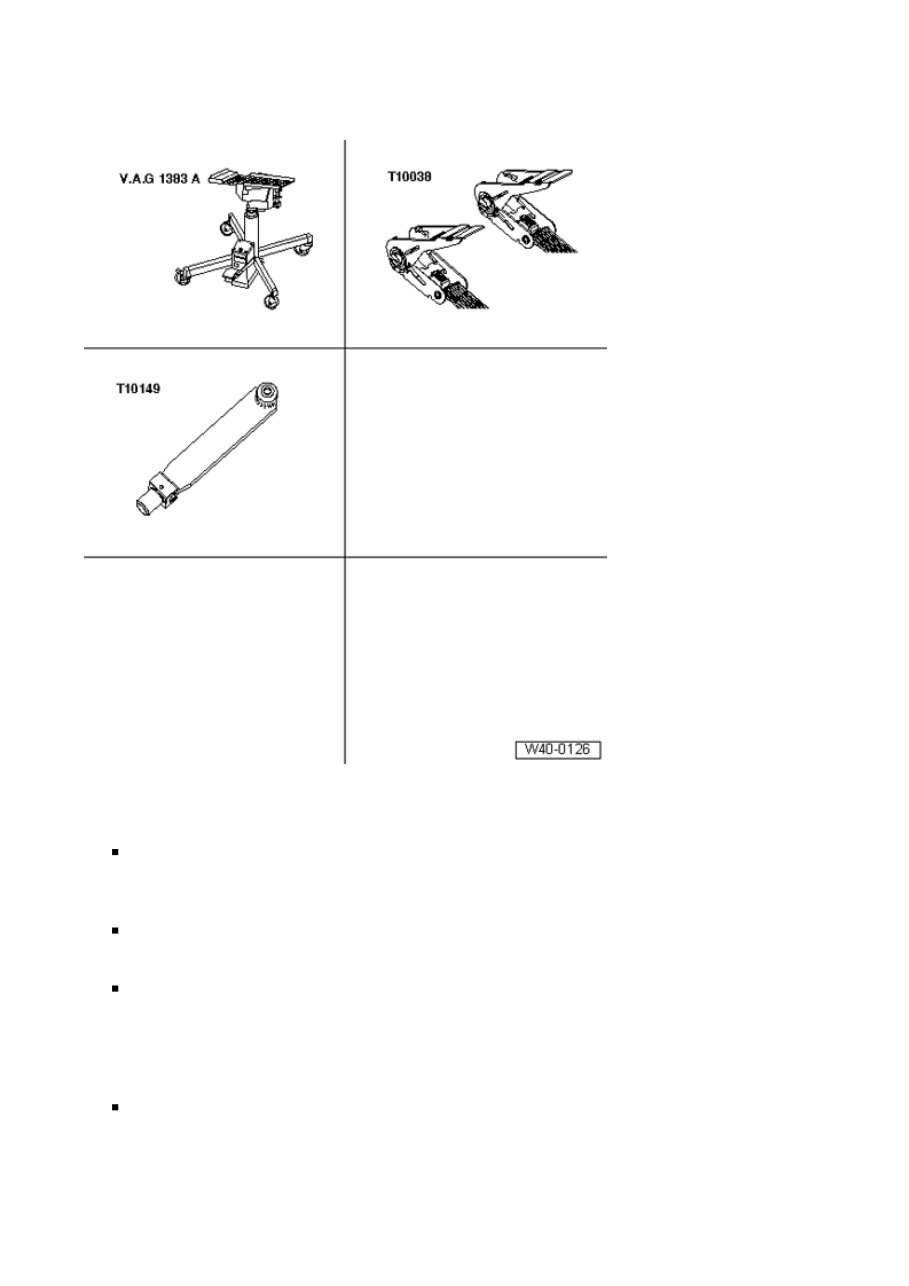

Wheel bearing, lifting to curb weight position Special tools, testers and auxiliary items required Engine/transmission jack V.A.G 1383 A Tensioning Strap T10038 Wheel hub support T10149 Note: All bolts at suspension parts with bonded rubber bushings must always be tightened in curb weight position (unloaded condition). Стр. 2 из 4 Front suspension, servicing

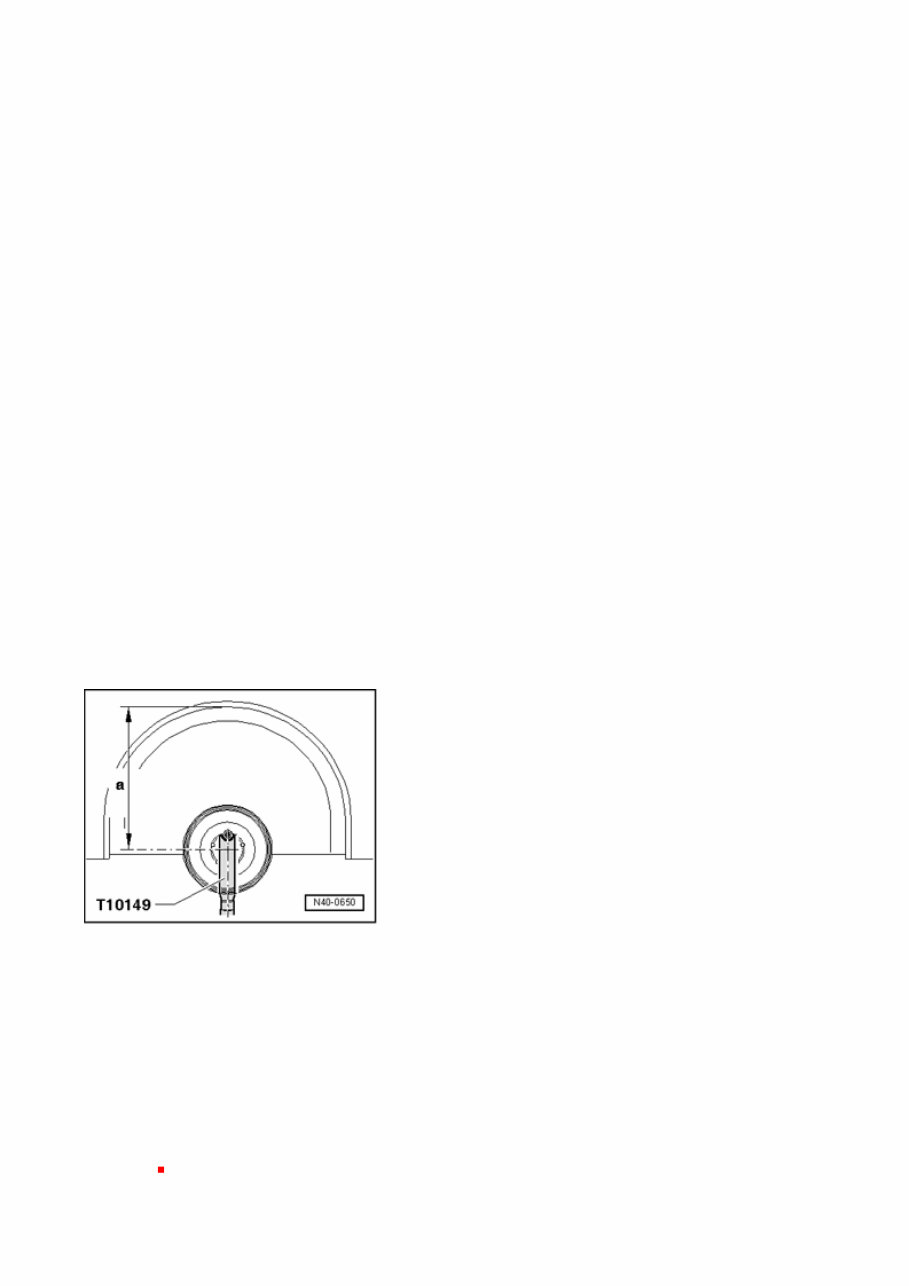

Bonded rubber bushings can only be turned to a limited extent. Components with bonded rubber bushings must be brought into a position that corresponds to the position in driving mode before being tightened (curb weight position) Otherwise, bonded rubber bushing will be stressed resulting in a shortened service life. By raising appropriate suspension using engine/transmission jack V.A.G 1383 A and wheel hub support T10149 , this position can be simulated on the hoist. Before appropriate suspension is raised, vehicle must be strapped to lift arms of hoist using tensioning straps T10038 . Warning! If a vehicle is not secured, there is danger that the vehicle could slip off the lift! - Turn wheel hub until one of the holes for wheel bolts is at the 12 o'clock position. - Install wheel hub support T10149 with wheel bolt on wheel hub. Tightening of respective bolts/nuts must only be performed when dimension - a - between wheel hub center and lower edge of wheel housing is reached. Dimension - a - = 356 mm. - Using engine/transmission jack V.A.G 1383 A , lift wheel bearing housing until dimension - a - is reached. Caution! Do not lift or lower vehicle with engine/transmission jack below vehicle. Стр. 3 из 4 Front suspension, servicing

Do not leave engine/transmission jack V.A.G 1383 A below vehicle any longer than necessary. - Tighten respective bolts/nuts. - Lower wheel bearing housing. - Remove engine/transmission jack V.A.G 1383 A under vehicle. - Remove wheel hub support T10149 . Стр. 4 из 4 Front suspension, servicing
