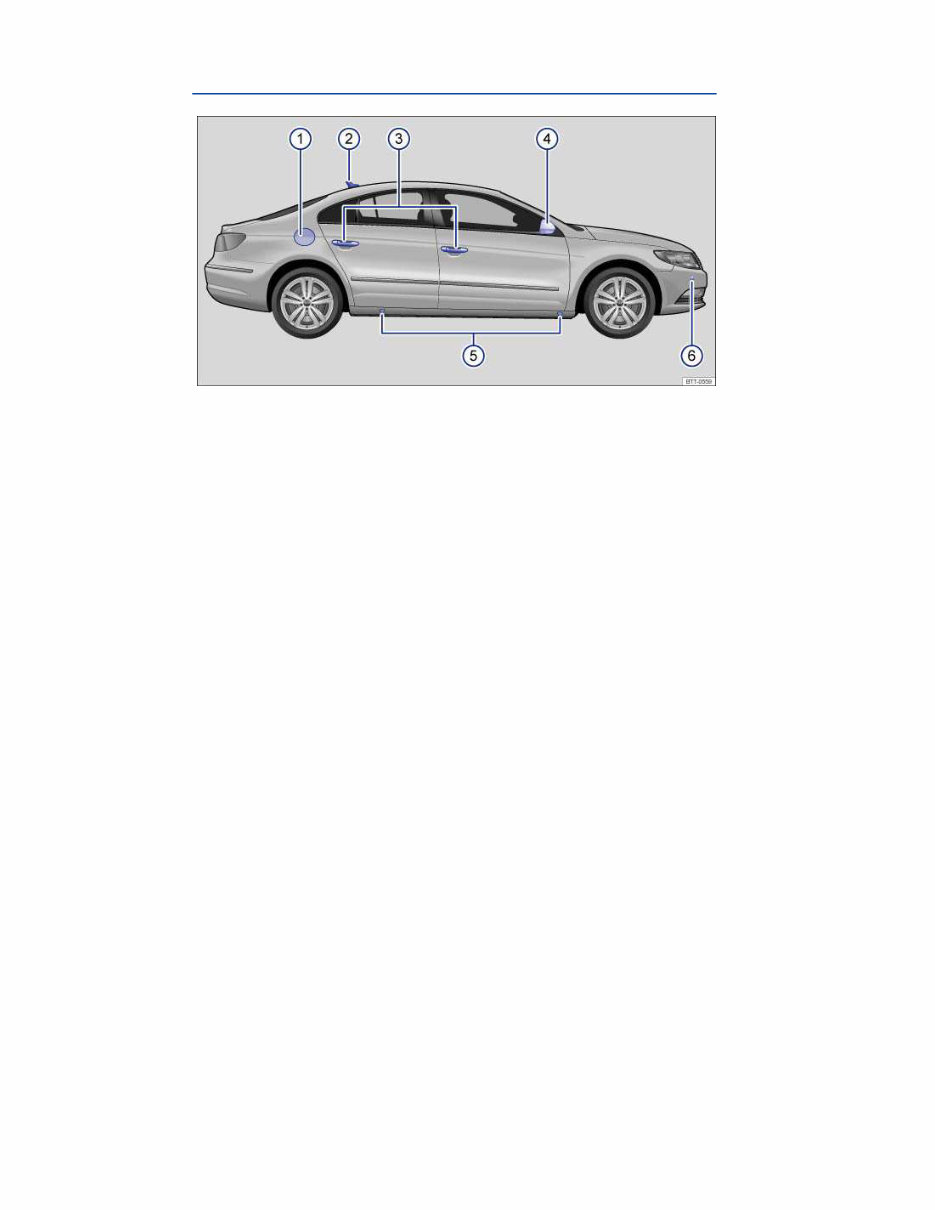

Side view Fig. 1 Vehicle side overview. Key to ⇒fig. 1: (1) Fuel filler flap (2) Roof antenna (3) Outside door handles (4) Outside mirror – Additional turn signal light – Background lighting (5) Lift points for the jack (6) Park Distance Control (PDC) sensors (if equipped)

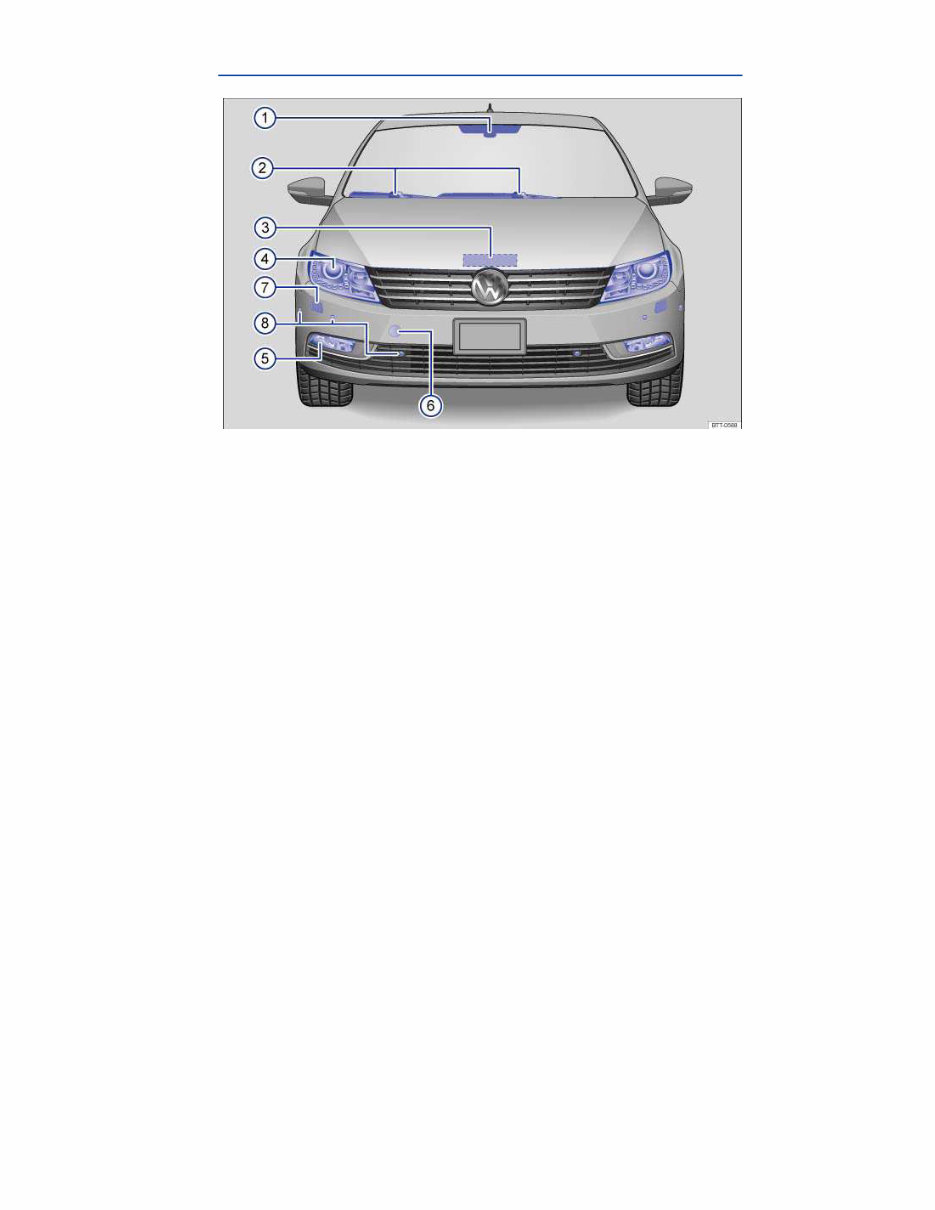

Front view Fig. 2 Vehicle front overview. Key to ⇒fig. 2: (1) Inside mirror with sensor on the mirror base for: – Rain sensor – Low-light sensor (2) Windshield wipers (3) Engine hood release (4) Headlights (on both left and right) (5) Fog lights/static cornering lights (on both left and right) (6) Threaded hole for the front towing eye (behind cover) (7) Headlight washers (on both left and right) (8) Park Distance Control (PDC) sensors (on both left and right, if equipped)

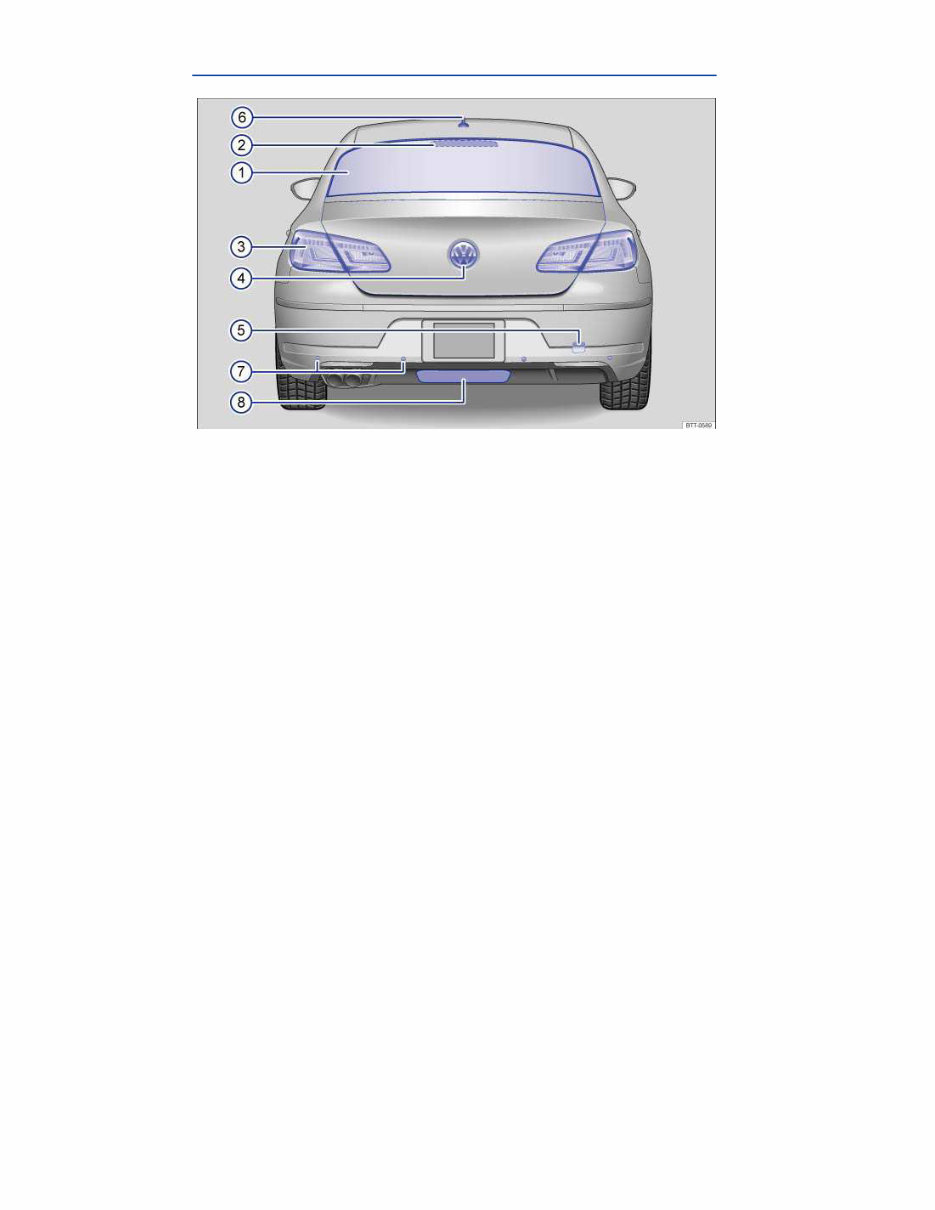

Rear view Fig. 3 Vehicle rear overview. Key to ⇒fig. 3: (1) Rear window – Rear window defroster – Rear window antenna (2) High-mounted brake light (3) Taillights (on both left and right) , (4) Volkswagen emblem. Area for: – Luggage compartment release – Rear Assist camera (if equipped) (5) Threaded hole for the rear towing eye (behind cover) (6) Roof antenna (7) Park Distance Control (PDC) sensors (on both left and right, if equipped) (8) Area for attaching a trailer hitch

Driver door overview Fig. 4 Overview of controls in the driver door. Key to fig. 4: (1) Door handle (2) Power locking button for locking and unlocking the vehicle 0 – 1 (3) Knob for adjusting the outside mirrors – Adjusting outside mirrors ,/2 – Outside mirror heating ? – Electrically folding outside mirrors # (4) Buttons for operating the power windows – Power windows  – Safety switch for rear power windows _ (5) Lever for releasing the engine hood (6) Indicator light for the power locking system (7) Storage compartment (8) Light or reflector (9) Luggage compartment release switch q (10) Fuel filler flap release switch  (11) Key switch for locking the luggage compartment lid .

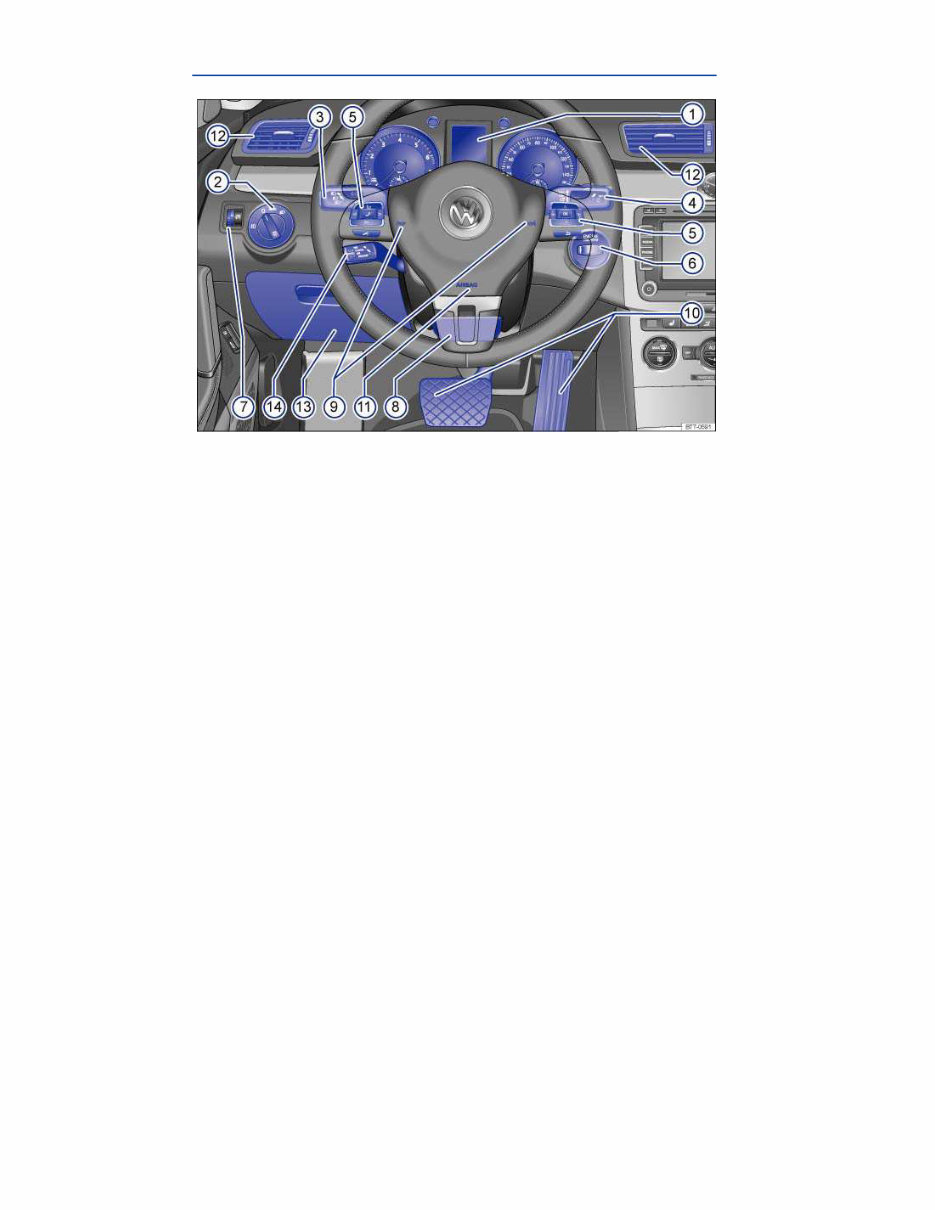

Driver side overview Fig. 5 Driver side overview. Key to ⇒fig. 5: (1) Instrument cluster: – Instruments – Display – Warning and indicator lights (2) Headlight switch  – Off position / – Automatic headlight control !54/ – Low beams  – Fog lights  (3) Lever for – High beams  – Headlight flasher x – Turn signals . – Driver assistance systems button (if equipped) (4) Windshield wiper and washer lever – Windshield wiper ()'( – ,/7 – Intermittent operation for windshield wipers z – Windshield wiper /&& – “One-tap wiping” 1 x – Windshield wiper U – Automatic wipe/wash for windshield W (5) Multi-function steering wheel controls – Volume setting for radio, navigation system notifications, or telephone calls & – '

– Mute switching for radio or activation of voice control  – Display Phone main menu or accept telephone calls - – Audio, Navigation  -  – Control buttons for the Volkswagen Information System # –& – '– ∃, /+, E (6) Ignition switch (vehicles without Keyless Access) (7) Dimmer control for the instrument and switch illumination  (8) Lever for adjustable steering wheel (9) Horn (only works when the ignition is switched on) (10) Pedals (11) Driver front airbag (12) Air vents   z   (13) Storage compartment (14) Lever for: – Cruise Control System (CCS) /. – #!.#%, – /&& – 2%3 – 3%4/-

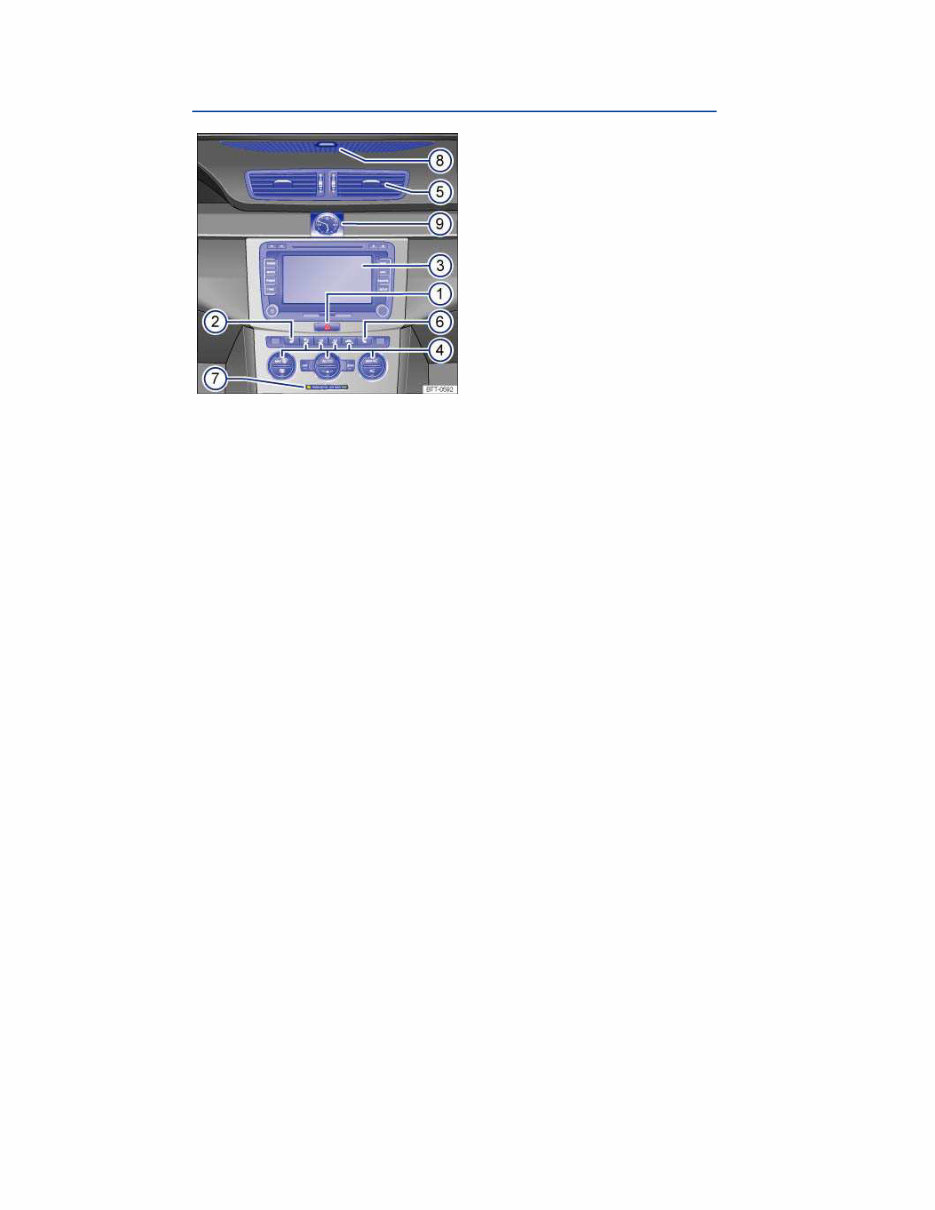

Center console overview Upper center console Fig. 6 Overview of the upper center console. Key to ⇒fig. 6: (1) Switch for emergency flashers . (2) Driver seat heating button A. (3) Radio or Radio & Navigation system (factory-installed) ⇒booklet Radio or ⇒booklet Navigation system. (4) Climatronic controls . (5) Air vents   z   (6) Passenger seat heating button [ (7) PASSENGER AIR BAG /&& light (front airbag for front seat passenger) (8) Air vent for indirect ventilation . (9) Analog clock .

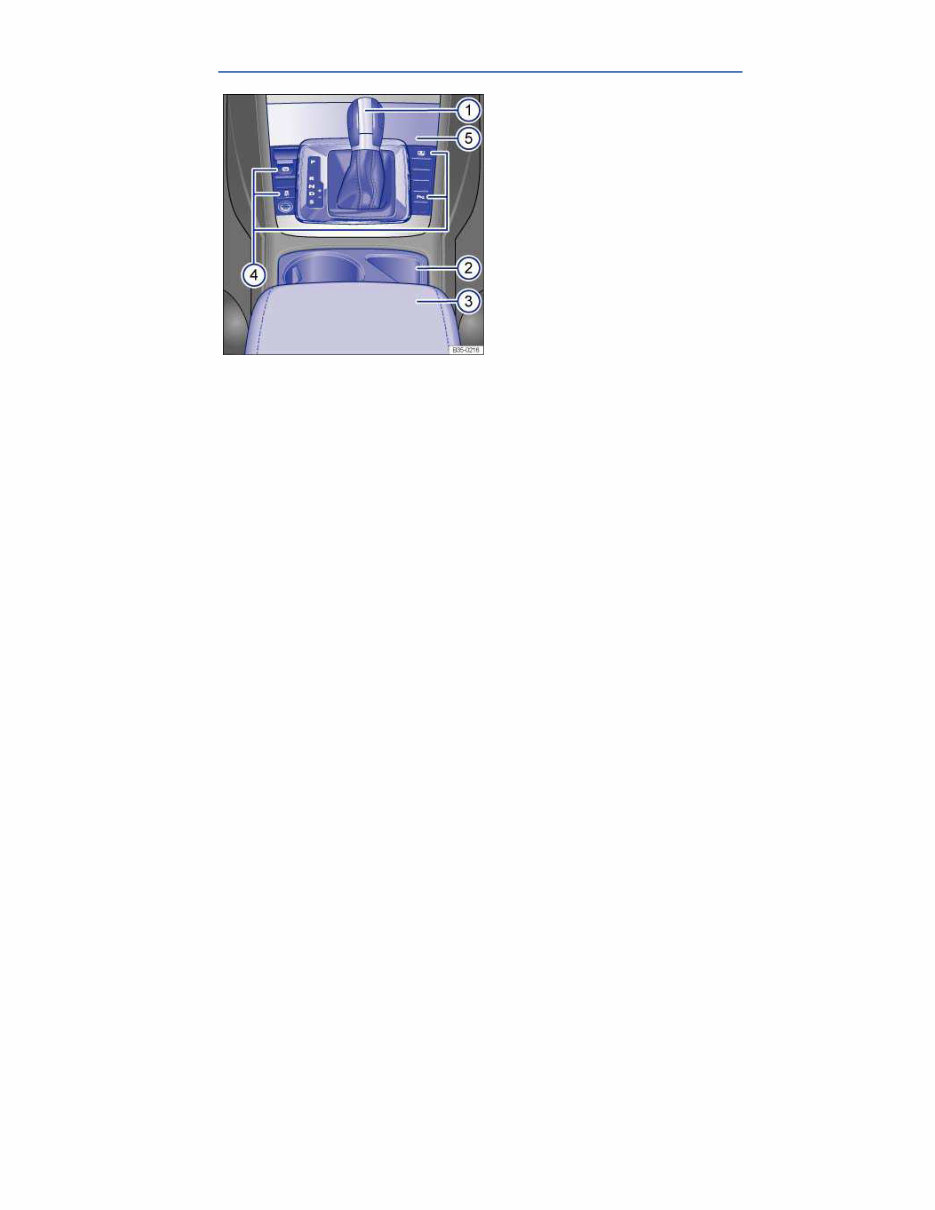

Lower center console Fig. 7 Overview of the lower center console. Key to ⇒fig. 7: (1) Lever for: – Manual transmission – Automatic transmission (2) Storage compartment with cup holders in the center console (3) Storage compartment in the center armrest (4) Buttons for: – Starter button (vehicles with Keyless Access locking and starting system) – Electronic parking brake G – Anti-slip regulation (ASR) m – Rear window sunshade j – Park Distance Control (ParkPilot) ' (5) Storage compartment – with 12 Volt socket

Front passenger side overview Fig. 8 Overview of the front passenger side. Key to ⇒fig. 8: (1) Passenger front airbag location in the instrument panel (approximate) (2) Opening handle for the lockable glove compartment (3) Air vents   z  

Symbols on the roof console and sun visor Symbol Meaning * /s Interior and reading lights h Power sunroof   a Three-button module (if equipped) ⇒booklet Mobile Phone Package. 1 2 3 HomeLink ® Universal Transmitter
