2013 VAUXHALL MERIVA B Service and Repair Manual

2013-2016 Vauxhall, Meriva B, 1.4L, FWD, 5-Door

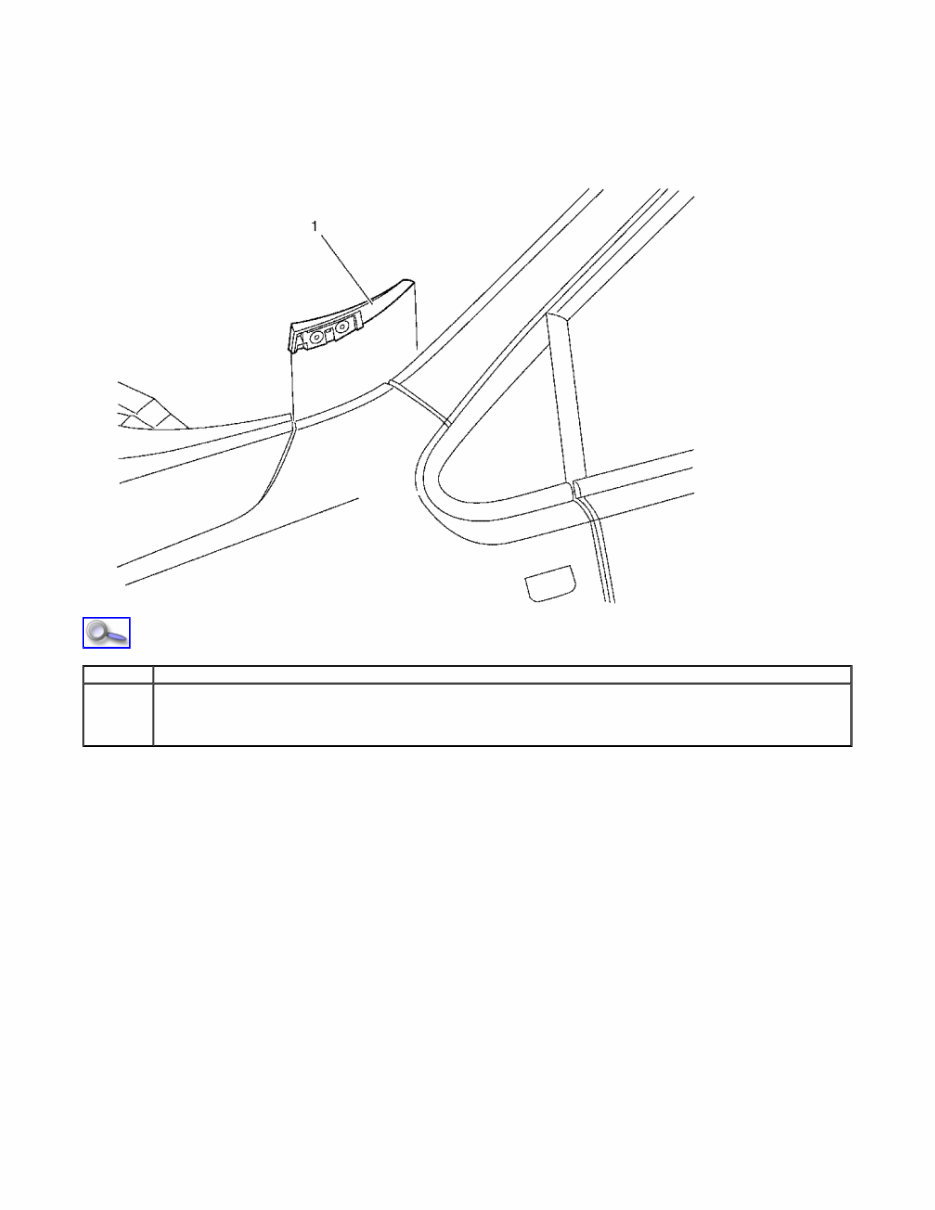

Body Hinge Pillar Filler Replacement Callout Component Name 1 Body Hinge Pillar Filler Tip Use a flat bladed plastic trim tool to aid in the removal of the body hinge pillar filler. Page 1 of 1

Body Hinge Pillar Lower Reveal Moulding Replacement Callout Component Name 1 Body Hinge Pillar Lower Reveal Moulding Retainer (Qty: 3) Tip Use a flat bladed plastic trim tool to aid in the removal of the Body Hinge Pillar Lower Reveal Moulding. 2 Body Hinge Pillar Lower Reveal Moulding Page 1 of 1

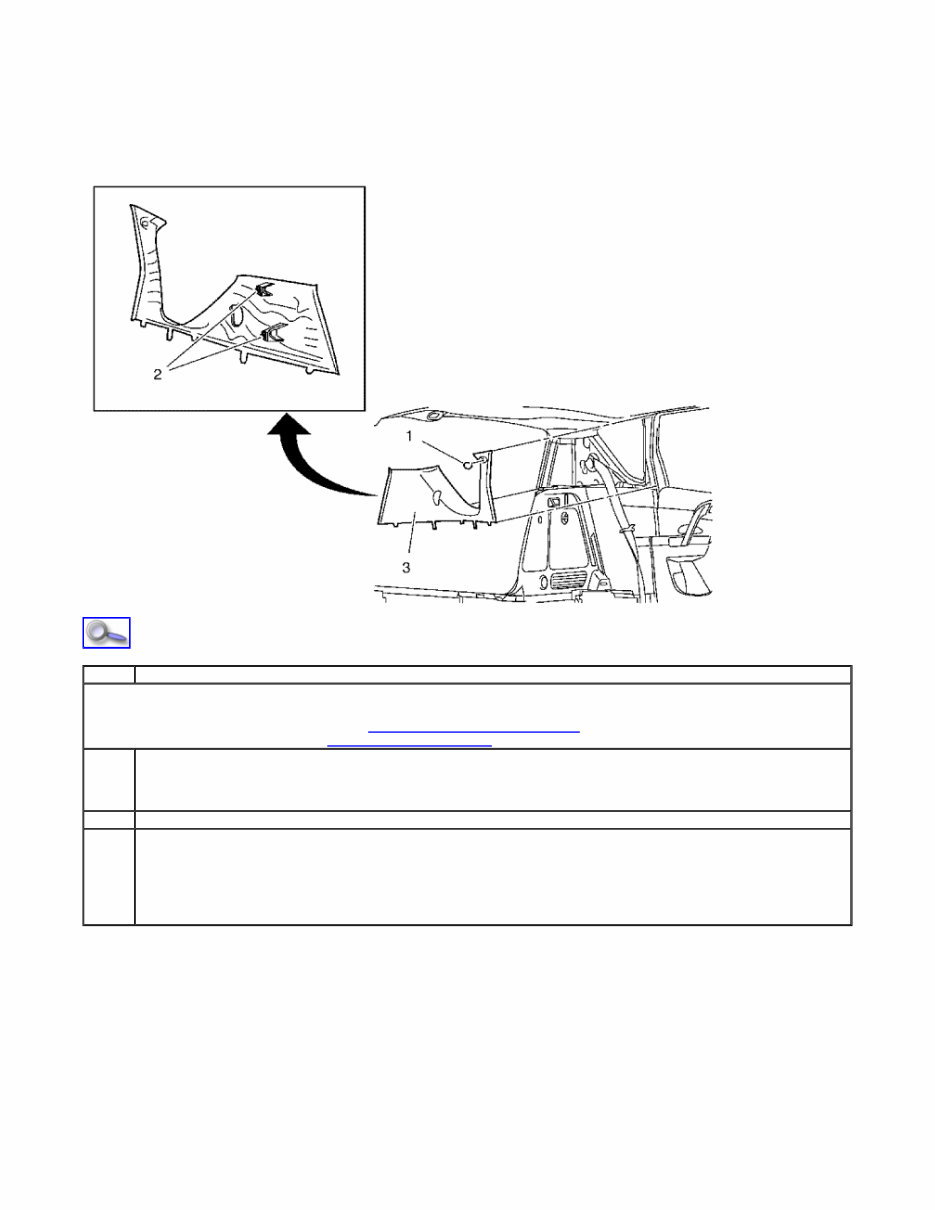

Body Lock Pillar Upper Trim Panel Replacement Callout Component Name Preliminary Procedures 1. Remove the rear seat belt retractor. Refer to Rear Seat Belt Retractor Replacement . 2. Remove the luggage shade. Refer to Luggage Shade Replacement . 1 Body Lock Pillar Upper Trim Panel Retainer Tip Use a flat bladed plastic trim tool to aid in the removal of the body lock pillar upper trim panel retainer. 2 Body Lock Pillar Upper Trim Panel Retainer (Qty: 2) 3 Body Lock Pillar Upper Trim Panel Procedures 1. Release the rear seat belt anchor bracket from the rear seat. 2. Use a flat bladed plastic trim tool to release the body lock pillar upper trim panel from the quarter inner panel. Page 1 of 1

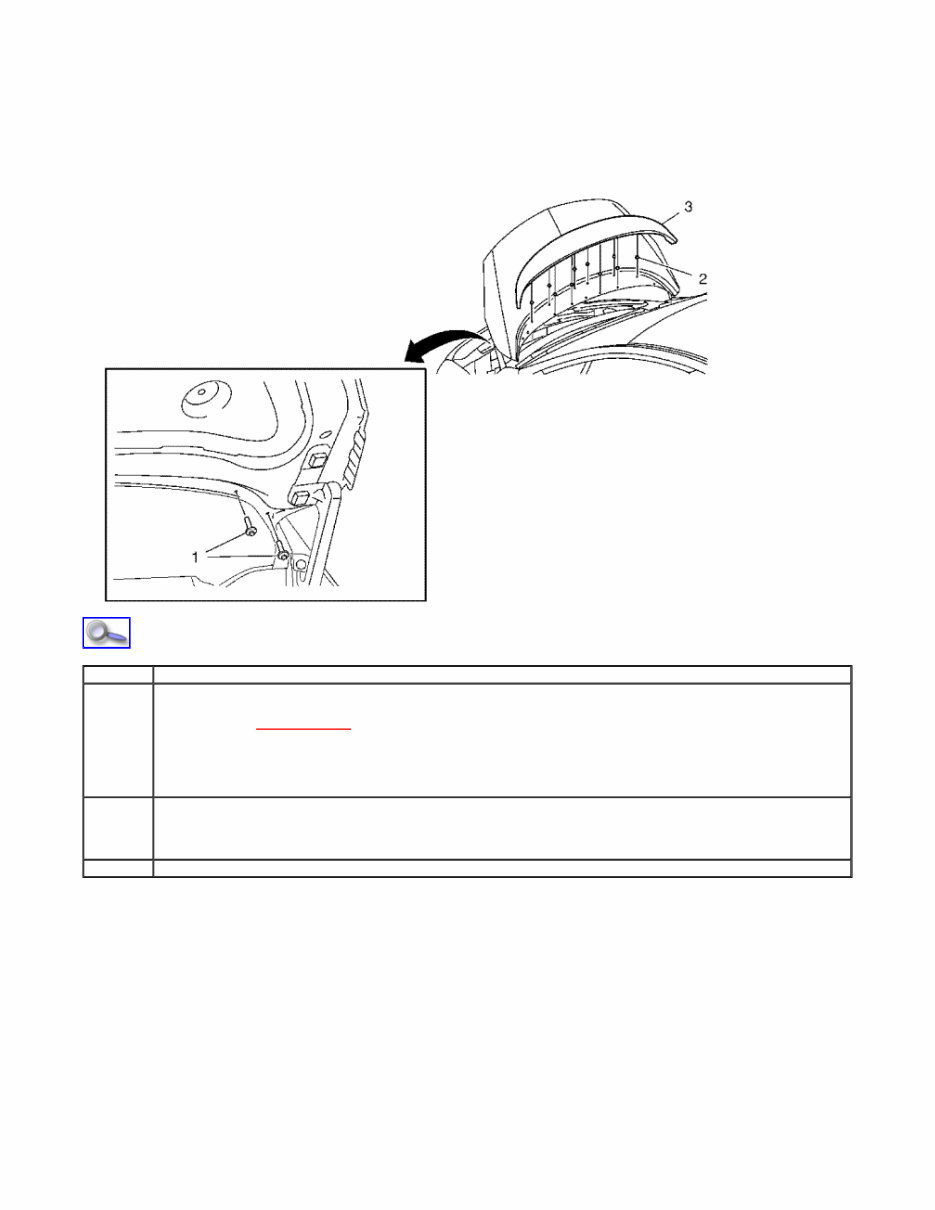

Bonnet Rear Moulding Replacement Callout Component Name 1 Bonnet Rear Moulding Fastener (Qty: 4) Caution: Refer to Fastener Caution in the Preface section. Procedure Disengage the windscreen washer nozzle hose from the bonnet rear moulding. 2 Bonnet Rear Moulding Retainer (Qty: 10) Tip Use a flat bladed plastic trim tool to aid in the removal of the bonnet rear moulding. 3 Bonnet Rear Moulding Page 1 of 1

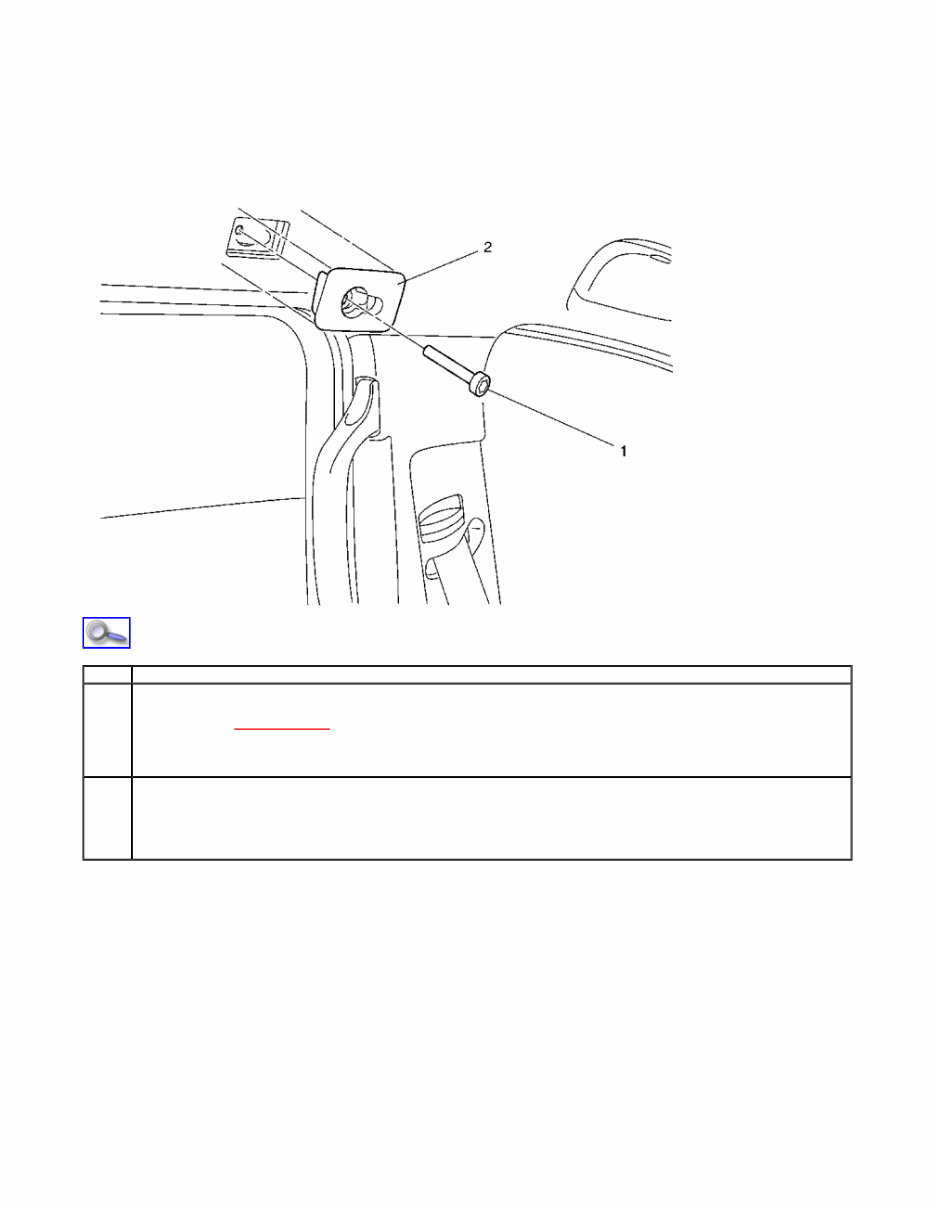

Cargo Net Bracket Opening Cover Replacement Callout Component Name 1 Cargo Net Bracket Opening Cover Fastener Caution: Refer to Fastener Caution in the Preface section. Tighten 9 N·m (80 lb in) 2 Cargo Net Bracket Opening Cover Procedure Use a flat bladed plastic trim tool and pull gently to release the cargo net bracket opening cover from the cargo net bracket. Page 1 of 1

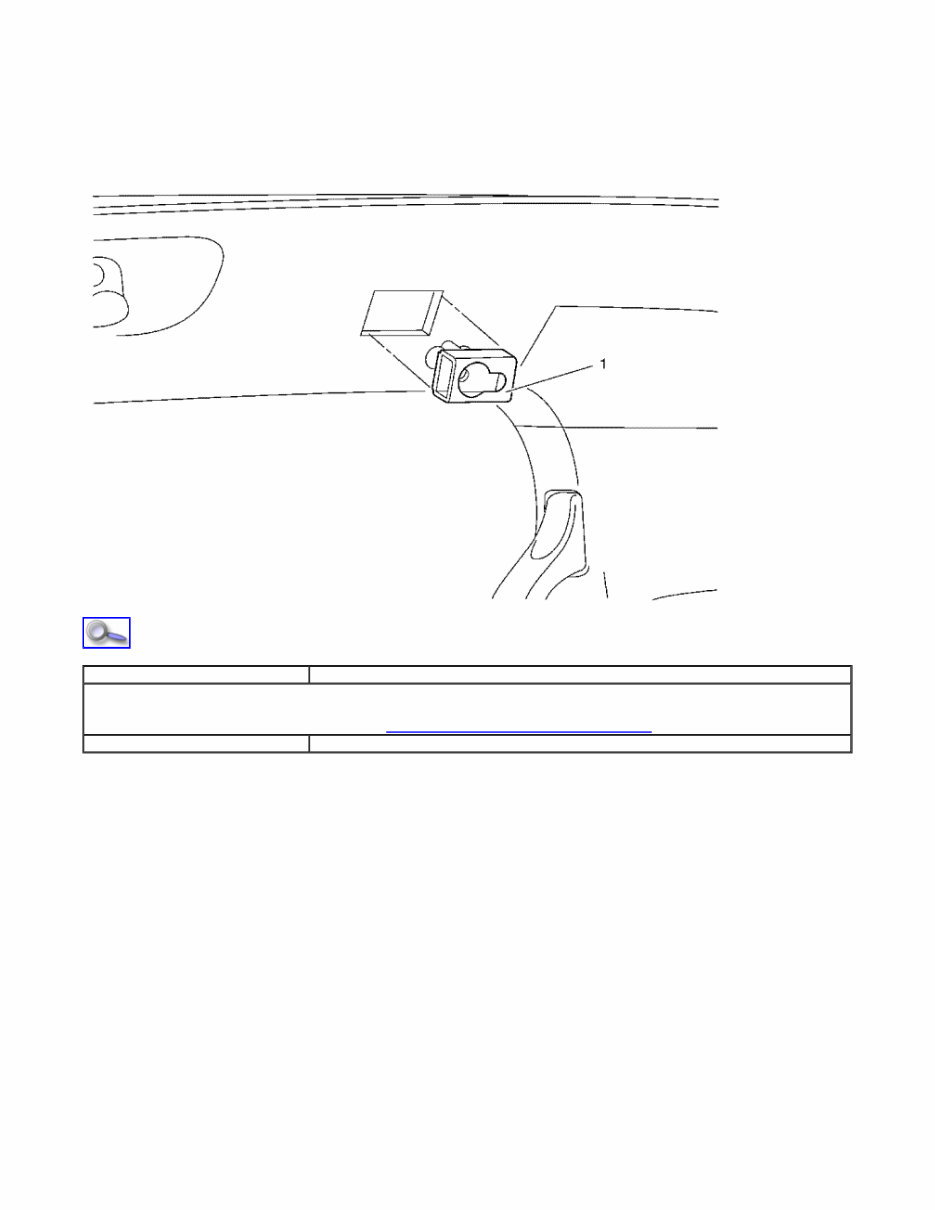

Cargo Net Bracket Replacement Callout Component Name Preliminary Procedure Remove the cargo net bracket opening cover. Refer to Cargo Net Bracket Opening Cover Replacement . 1 Cargo Net Bracket Page 1 of 1

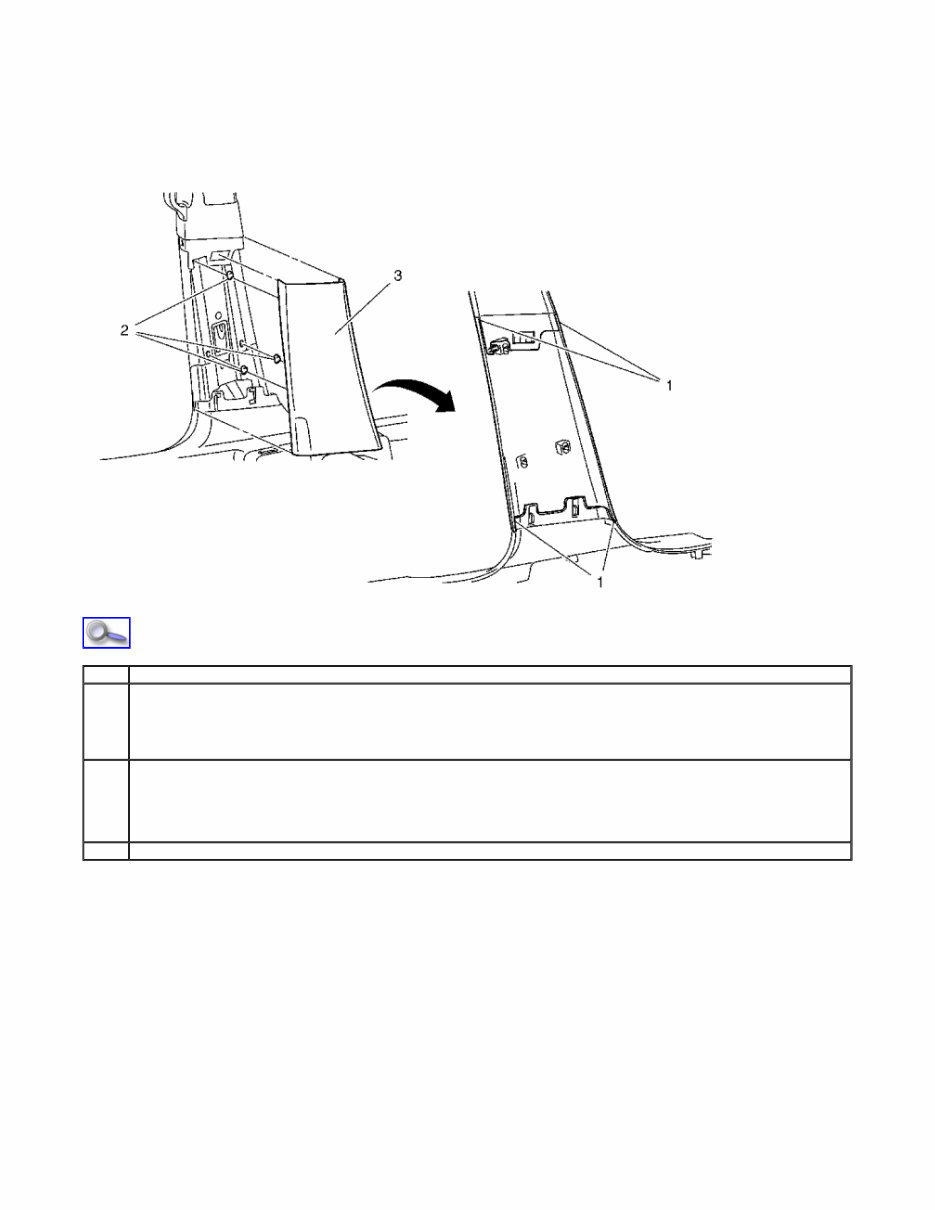

Center Pillar Lower Trim Panel Replacement Callout Component Name 1 Centre Pillar Lower Trim Panel Retainer (Qty: 4) Tip Use a flat bladed plastic trim tool to release the centre pillar lower trim panel locking retainer from the centre pillar upper trim panel and front and rear side door sill trim plate. 2 Center Pillar Lower Trim Panel Retainer (Qty: 3) Procedure Pull the centre pillar lower trim panel gently to disengage from the pillar inner panel. 3 Centre Pillar Lower Trim Panel Page 1 of 1

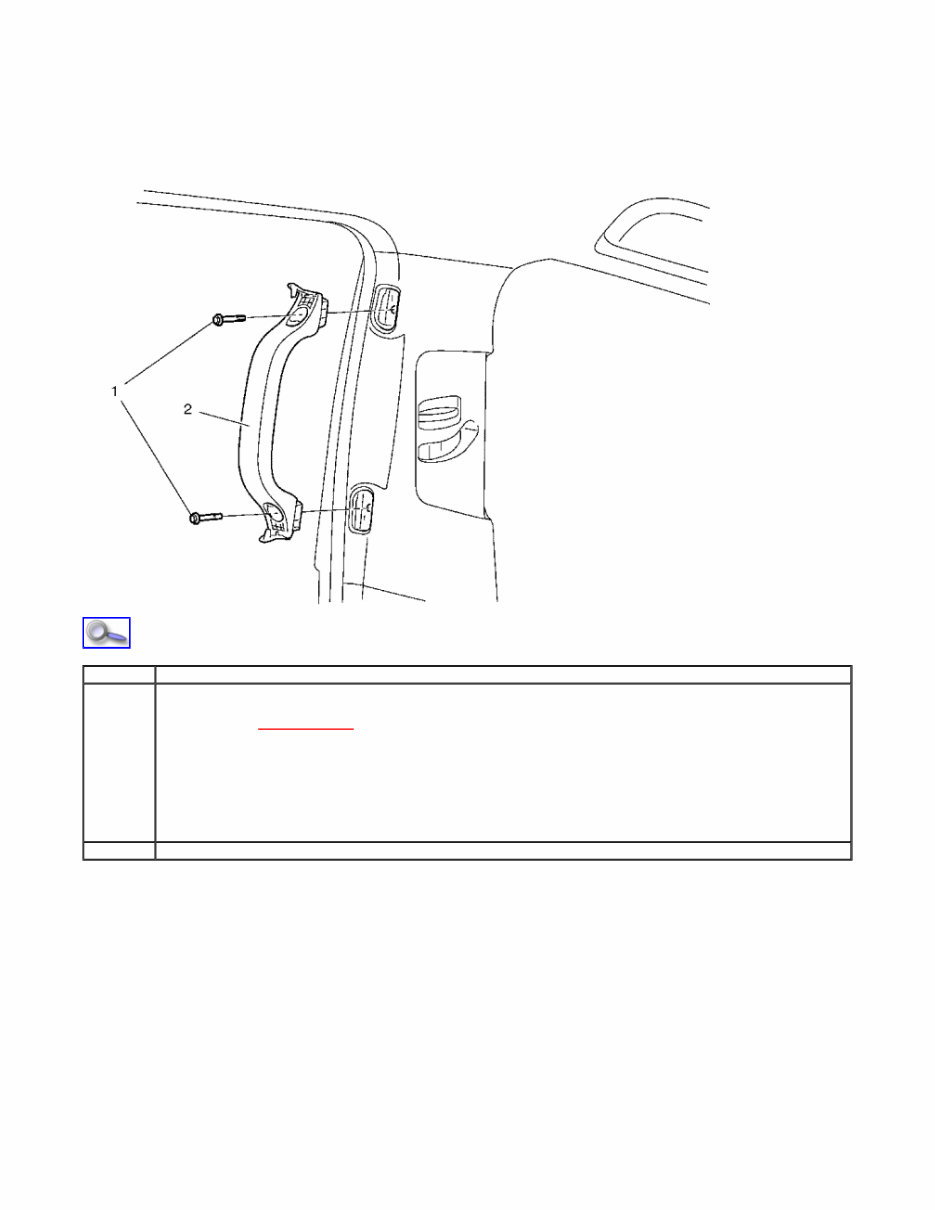

Centre Pillar Assist Handle Replacement Callout Component Name 1 Centre Pillar Assist Handle Fastener (Qty: 2) Caution: Refer to Fastener Caution in the Preface section. Procedure Use a flat bladed plastic trim tool to release the centre pillar assist handle cover. Tighten 6 N·m (53 lb in) 2 Centre Pillar Assist Handle Page 1 of 1

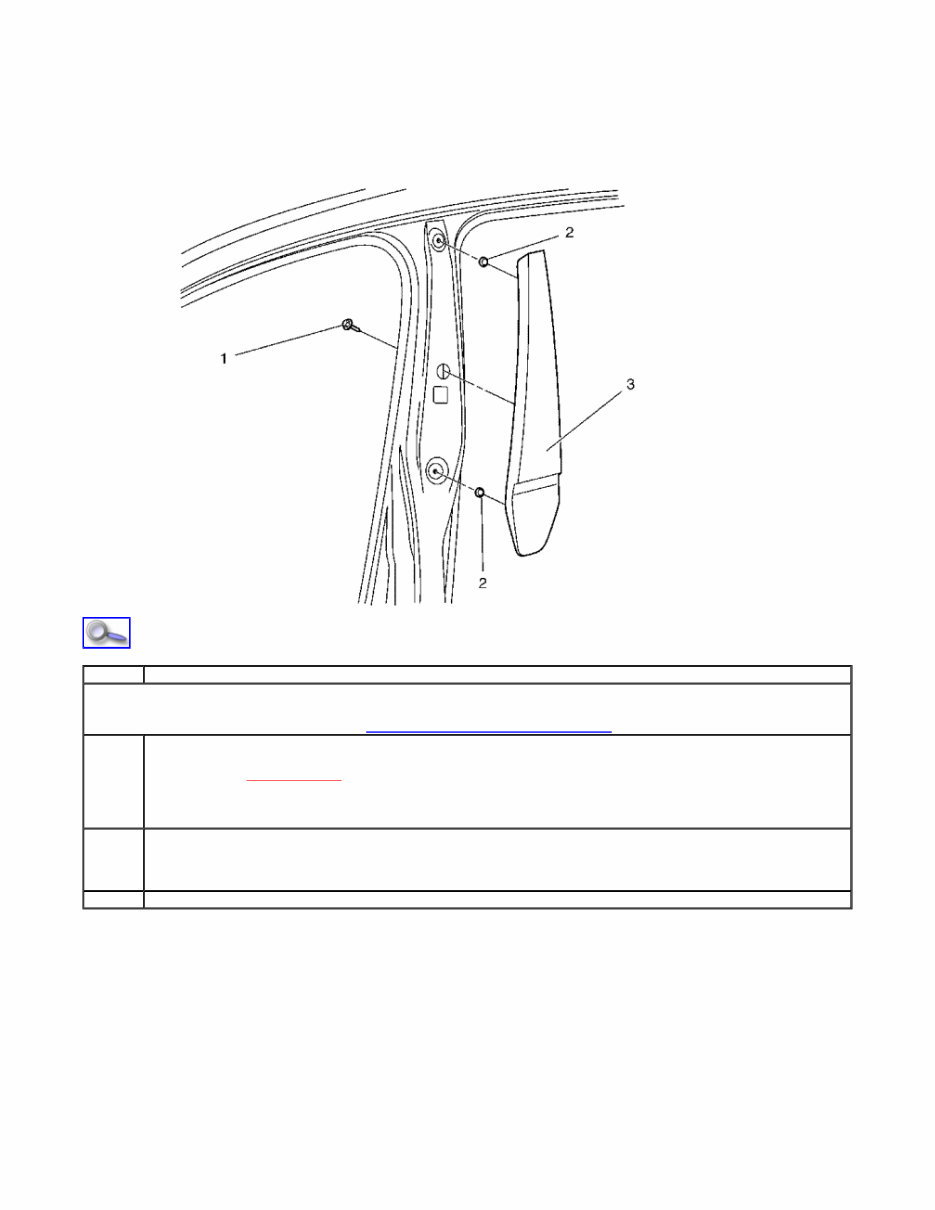

Centre Pillar Upper Finish Moulding Replacement Callout Component Name Preliminary Procedure Remove the centre pillar upper trim panel. Refer to Centre Pillar Upper Trim Panel Replacement . 1 Centre Pillar Upper Finish Moulding Fastener Caution: Refer to Fastener Caution in the Preface section. Tighten 3 N·m (26 lb in) 2 Centre Pillar Upper Finish Moulding Retainer (Qty: 2) Tip Use a flat bladed plastic trim tool to aid in the removal of the Centre Pillar Upper Finish Moulding. 3 Centre Pillar Upper Finish Moulding Page 1 of 1
