2001 BRAKES
ABS With EBD & Trac & VSC System - Diagnostics - Sequoia
HOW TO PROCEED WITH TROUBLESHOOTING
Troubleshoot in accordance with the procedure, CUSTOMER PROBLEM ANALYSIS CHECK .
2001 Toyota Sequoia Limited
2001 BRAKES ABS With EBD & Trac & VSC System - Diagnostics - Sequoia
2001 Toyota Sequoia Limited
2001 BRAKES ABS With EBD & Trac & VSC System - Diagnostics - Sequoia
Fig. 1: Troubleshooting Procedure Chart
CUSTOMER PROBLEM ANALYSIS CHECK
ABS & TRAC & VSC Check Sheet
2001 Toyota Sequoia Limited
2001 BRAKES ABS With EBD & Trac & VSC System - Diagnostics - Sequoia

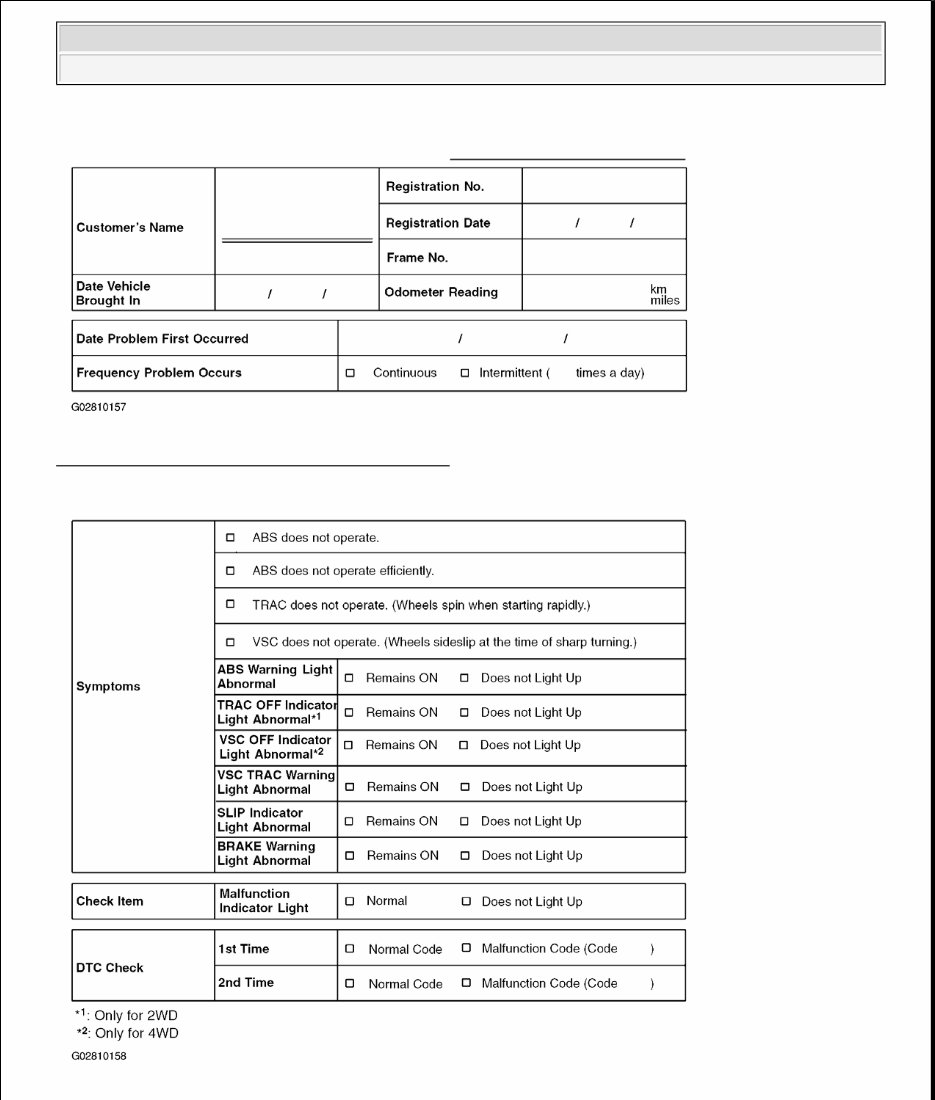

Fig. 2: Customer Problem Analysis Check (1 Of 2)
2001 Toyota Sequoia Limited
2001 BRAKES ABS With EBD & Trac & VSC System - Diagnostics - Sequoia
Fig. 3: Customer Problem Analysis Check (2 Of 2)
PRE-CHECK
1. DIAGNOSIS SYSTEM
a. Check the warning lights.
1. Release the parking brake pedal.
2. When the ignition switch is turned ON, check that the ABS warning light, VSC TRAC
warning light, VSC OFF (TRAC OFF) indicator light, BRAKE warning light and SLIP
indicator light goes on for approx. 3 seconds.

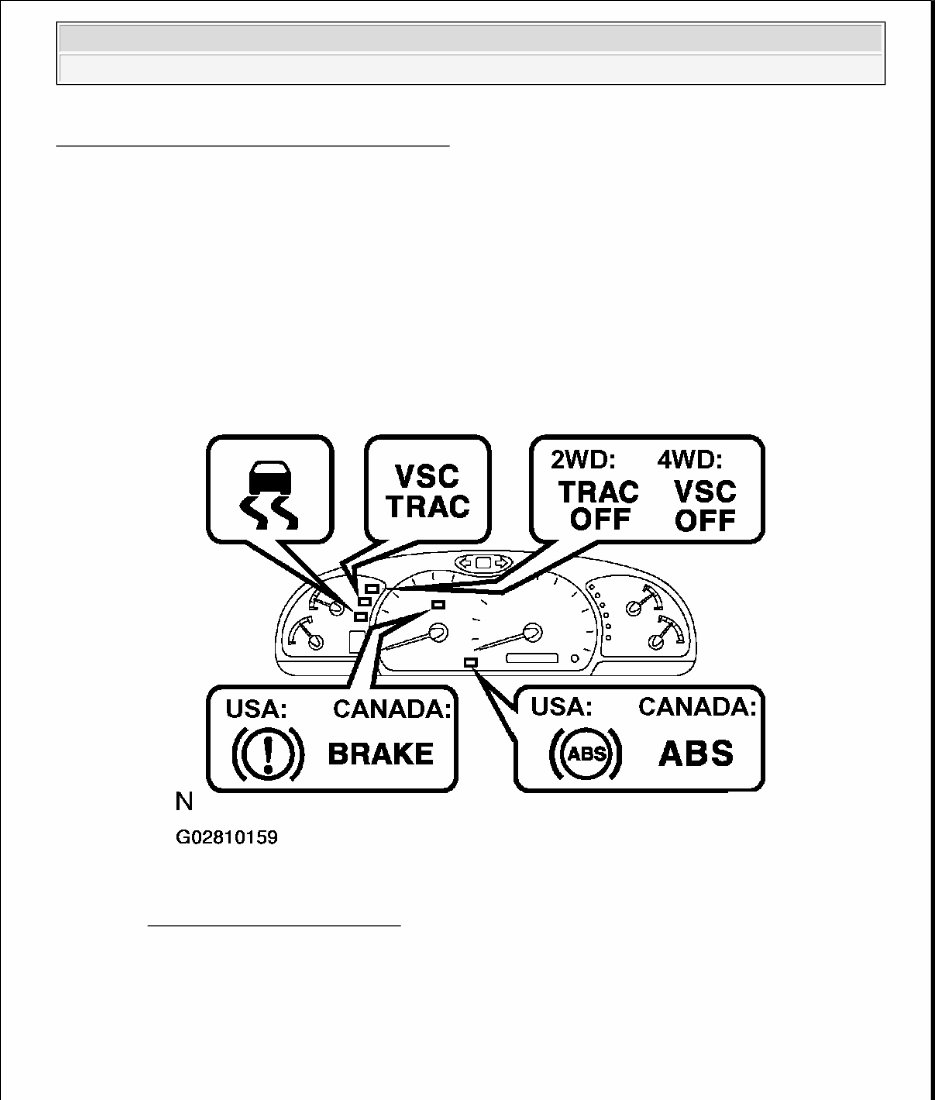

Fig. 4: Locating Warning Lights
NOTE:
When the parking brake is applied or the level of the brake fluid
is low, the BRAKE warning light is lit.
If the indicator check result is not normal, proceed to
troubleshooting for the ABS warning light circuit, VSC TRAC
warning light circuit, VSC OFF (TRAC OFF) indicator light
circuit, BRAKE warning light circuit or SLIP indicator light
2001 Toyota Sequoia Limited
2001 BRAKES ABS With EBD & Trac & VSC System - Diagnostics - Sequoia
REFERENCE DIAGRAM
b. In case of not using TOYOTA hand-held tester:
Check the DTC of skid control ECU.
1. Using SST, connect terminals Tc and CG of DLC3. SST 09843-18040
2. Turn the ignition switch ON.
3. Read the DTC from the ABS warning light and VSC TRAC warning light on the
combination meter.
circuit.
Trouble Area
ABS warning light circuit
VSC TRAC warning light circuit
VSC OFF (TRAC OFF) indicator light circuit
BRAKE warning light circuit
SLIP indicator light circuit
NOTE: If no code appears, inspect the diagnostic circuit, ABS warning light
circuit or VSC TRAC waning light circuit.
REFERENCE
Trouble Area
TC terminal circuit
ABS warning light circuit
VSC TRAC warning light circuit
2001 Toyota Sequoia Limited
2001 BRAKES ABS With EBD & Trac & VSC System - Diagnostics - Sequoia

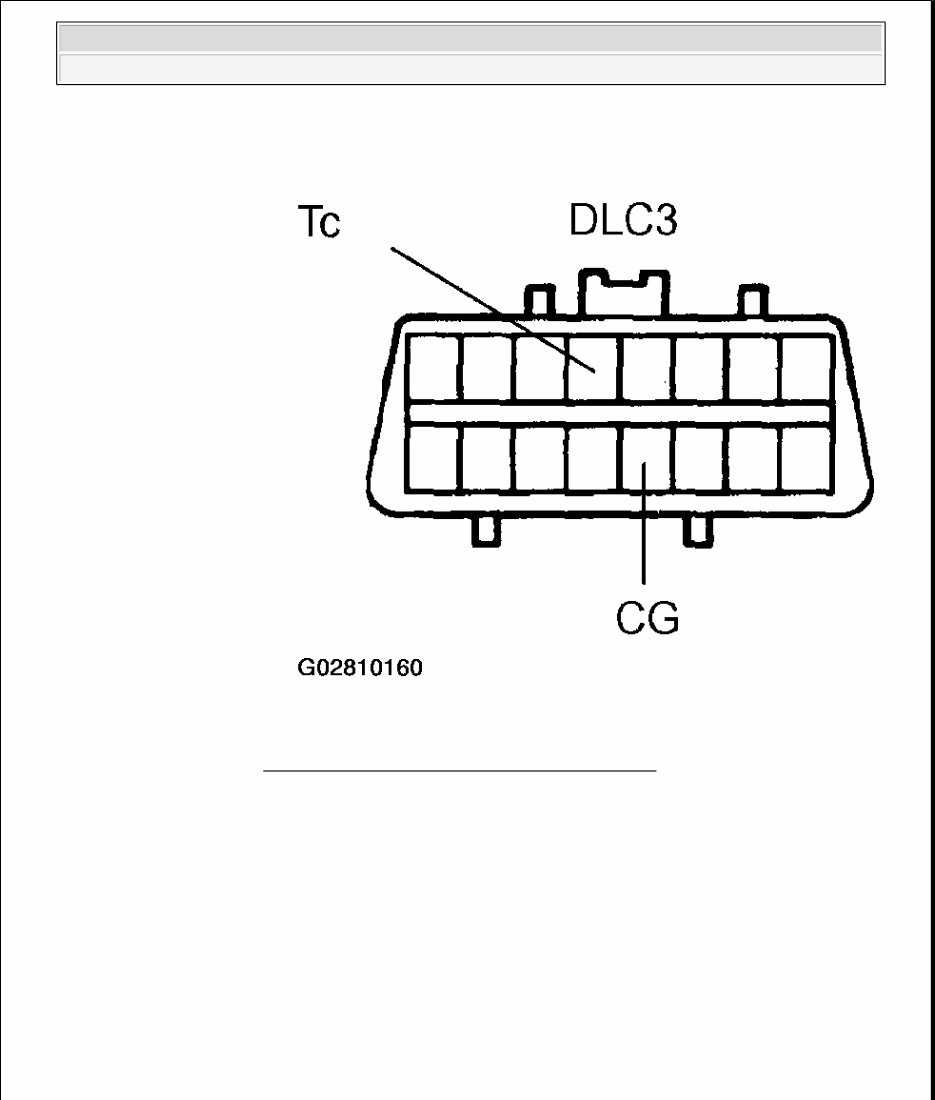

Fig. 5: Identifying DLC3 Connector Terminals
As an example, the blinking patterns for normal code and codes 11 and
21.
2001 Toyota Sequoia Limited
2001 BRAKES ABS With EBD & Trac & VSC System - Diagnostics - Sequoia
4. Codes are explained in the DIAGNOSTIC TROUBLE CODE CHART .
5. After completing the check, disconnect terminals Tc and CG of DLC3, and turn off the

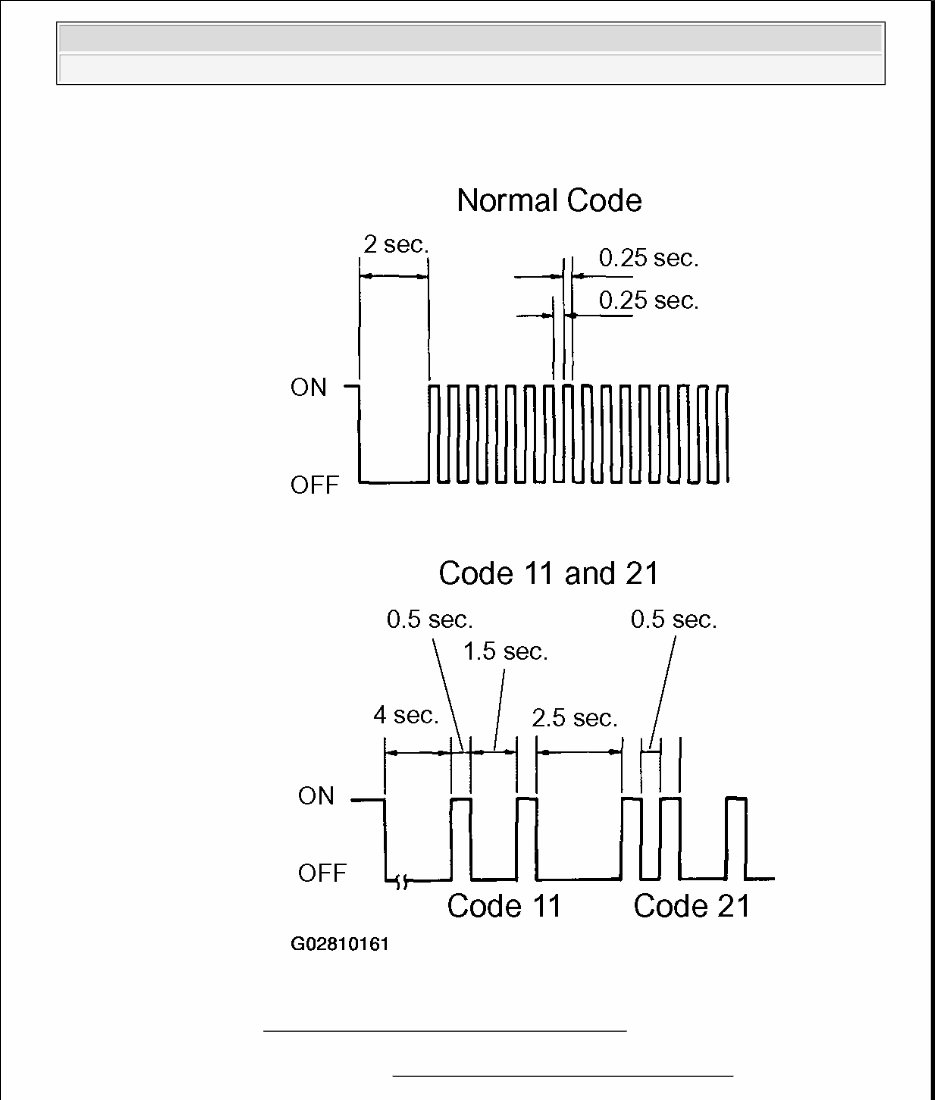

Fig. 6: Blinking Patterns For Normal Code
2001 Toyota Sequoia Limited
2001 BRAKES ABS With EBD & Trac & VSC System - Diagnostics - Sequoia
display.
If 2 or more malfunction codes are identified at the same time, the lowest numbered DTC will be
displayed 1st.
c. In case of not using TOYOTA hand-held tester:
Check the DTC of translate ECU.
1. Release the parking brake pedal.
2. Check the brake fluid level.
3. Using SST, connect terminals Tc and CG of DLC3.
SST 09843-18040
NOTE: Once the ignition switch is turned off, all DTC in the translate ECU
are cleared.
2001 Toyota Sequoia Limited
2001 BRAKES ABS With EBD & Trac & VSC System - Diagnostics - Sequoia

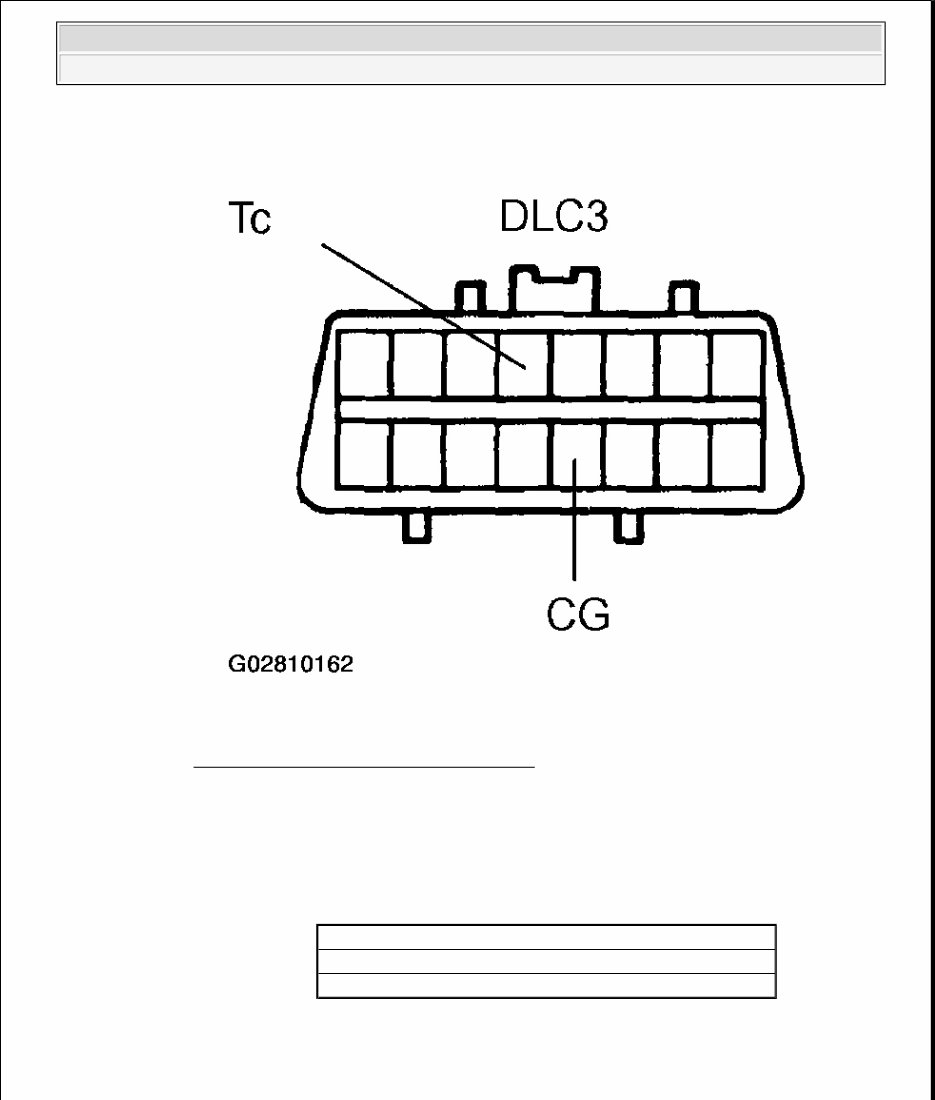

Fig. 7: Locating DLC3 Connector Terminal
4. Read the DTC from the BRAKE warning light.
NOTE:
If no code appears, inspect the diagnostic circuit, and BRAKE
warning light circuit.
TROUBLE DIAGNOSIS REFERENCE
When the parking brake is applied or the level of the brake fluid
is low, the BRAKE warning light is lit.
If every sensor is normal, a normal code is output. (A cycle of
Trouble Area
Tc terminal circuit
BRAKE warning light circuit
2001 Toyota Sequoia Limited
2001 BRAKES ABS With EBD & Trac & VSC System - Diagnostics - Sequoia

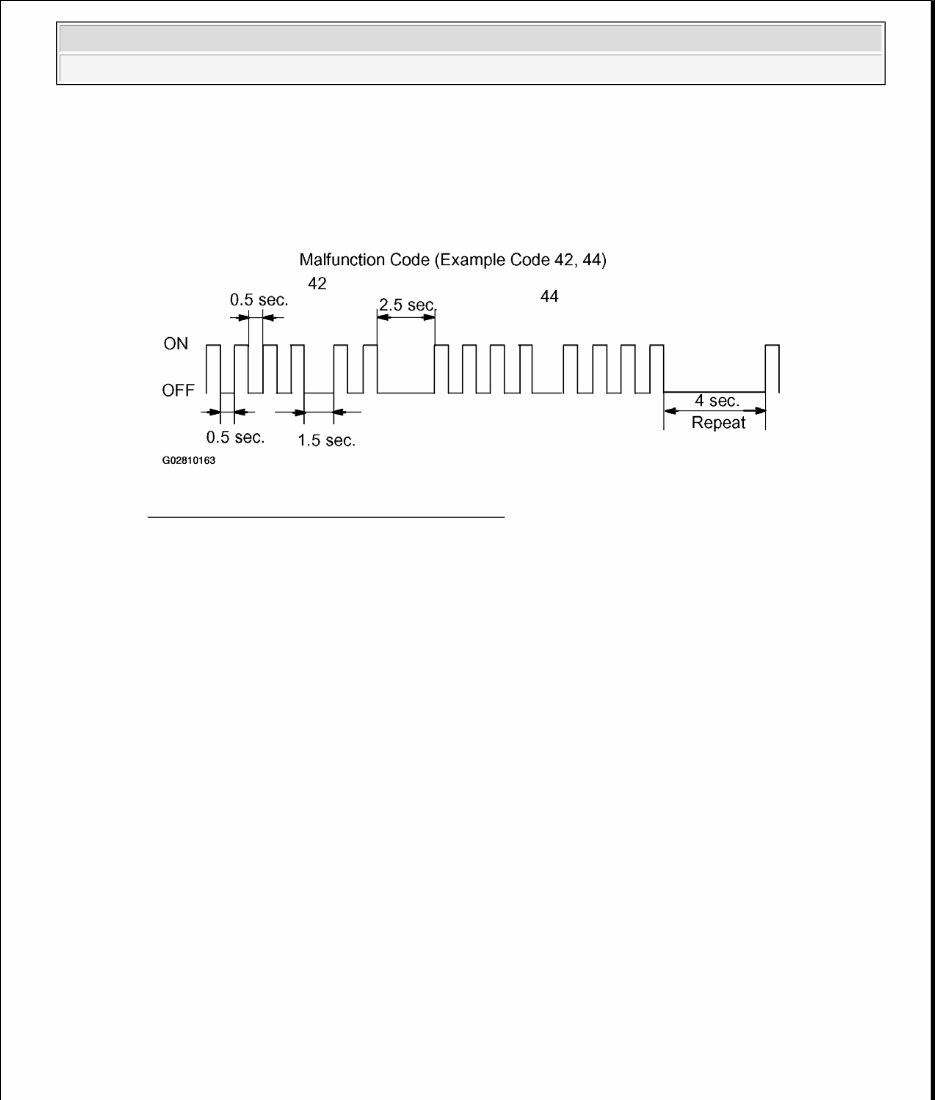

Fig. 8: Blinking Pattern Of Malfunction Code
d. In case of using TOYOTA hand-held tester: Check the DTC.
1. Hook up the TOYOTA hand-held tester to the DLC3.
0.25 sec. ON and 0.25 sec. OFF is repeated.)
If 2 or more malfunction codes are identified at the same time,
the lowest numbered code will be displayed 1st.
2001 Toyota Sequoia Limited
2001 BRAKES ABS With EBD & Trac & VSC System - Diagnostics - Sequoia
