05_SEQUOIA_U (L/O 0409) 1 2005 SEQUOIA from Sep. ’04 Prod. (OM34431U) OPERATION OF INSTRUMENTS AND CONTROLS Overview of instruments and controls Instrument panel overview 2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Instrument cluster overview 8 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Indicator symbols on the instrument panel 10 . . . . . . . . . . . . . . . . . . . . . . SECTION 1 − 1

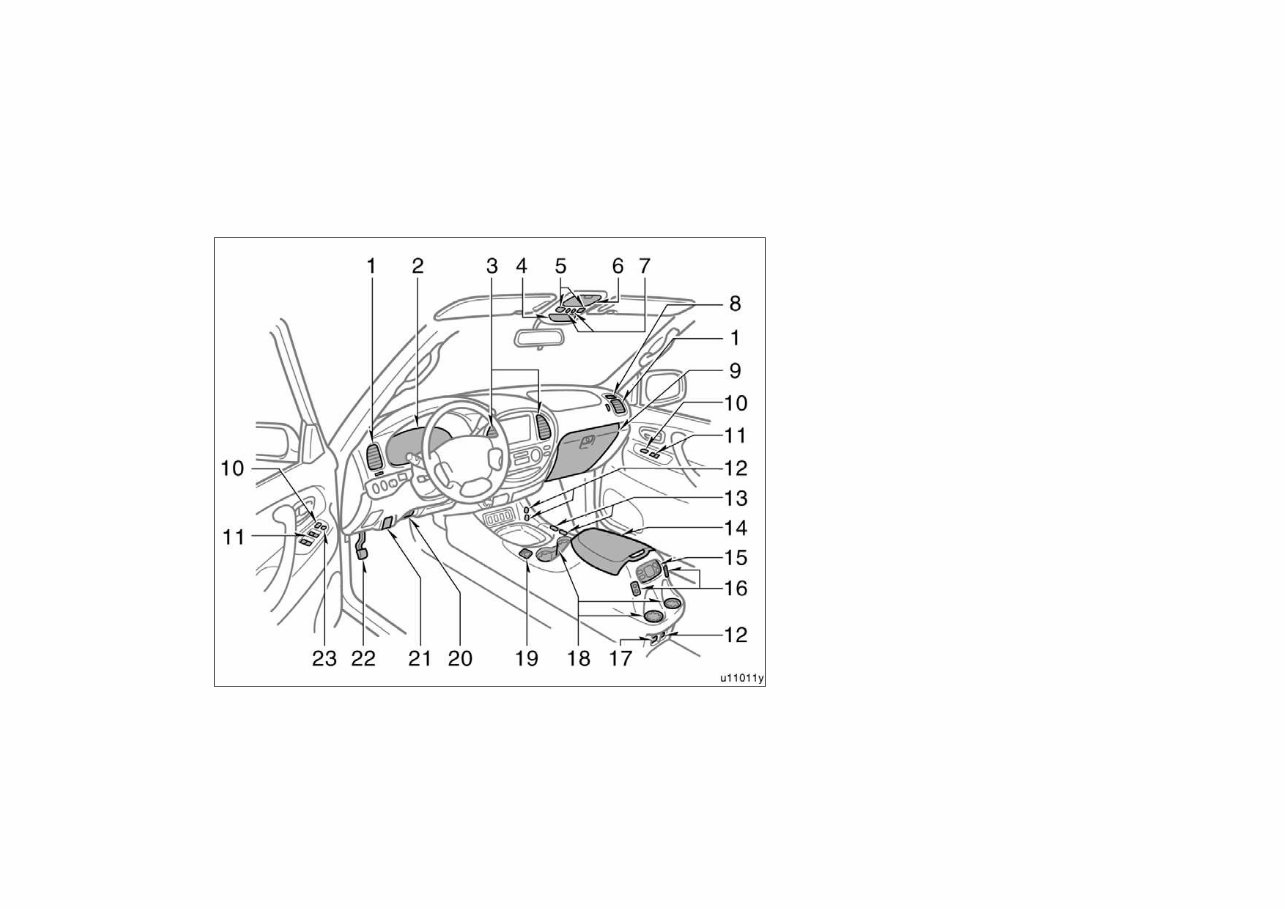

05_SEQUOIA_U (L/O 0409) 2 2005 SEQUOIA from Sep. ’04 Prod. (OM34431U) 1. Side vents 2. Instrument cluster 3. Center vents 4. Multi −information display 5. Personal lights 6. Garage door opener box or auxiliary box 7. Electric moon roof switches 8. Side defroster outlet 9. Glove box 10. Power door lock switches 11. Power window switches 12. Power outlets 13. Seat heater switches 14. Rear console box 15. Rear air conditioning controls 16. Headphone input jacks and headphone volume control dials 17. Input terminal adapter 18. Cup holders 19. Power rear view mirror control switches 20. Lower vent Instrument panel overview "View A

05_SEQUOIA_U (L/O 0409) 3 2005 SEQUOIA from Sep. ’04 Prod. (OM34431U) 21. Hood lock release lever 22. Parking brake pedal 23. Window lock switch

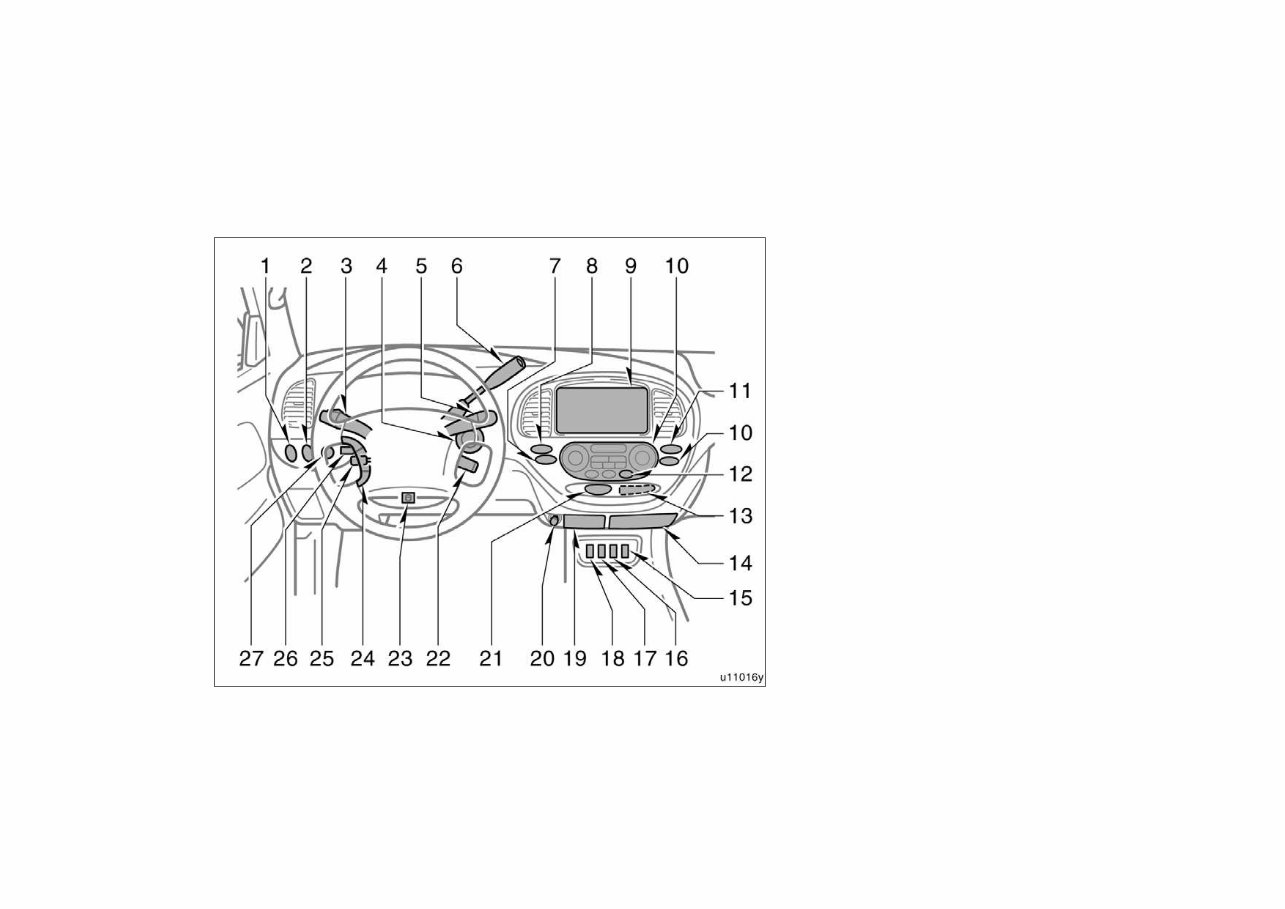

05_SEQUOIA_U (L/O 0409) 4 2005 SEQUOIA from Sep. ’04 Prod. (OM34431U) 1. Power back window switch 2. Driving position memory switches 3. Headlight, turn signal and front fog light switches 4. Ignition switch 5. Wiper and washer switches 6. Automatic transmission selector lever 7. Emergency flasher switch 8. Automatic transmission shift position “L” switch (“SHIFT L” switch) 9. Audio system or navigation system including audio system (For the navigation system, see the separate “Navigation System Owner’s Manual”.) 10. Air conditioning controls 11. Front passenger occupant classification indicator light/front passenger’s seat belt reminder light 12. Back window and outside rear view mirror defogger switch 13. Clock 14. Cup holder 15. Glass breakage sensor 16. Power outlet main switch 17. Height control switch "View B (two−wheel drive models)

05_SEQUOIA_U (L/O 0409) 5 2005 SEQUOIA from Sep. ’04 Prod. (OM34431U) 18. Height control mode select switch 19. Ashtray 20. Cigarette lighter 21. Traction control off switch (“TRAC OFF” switch) 22. Cruise control switch 23. Tire pressure warning system reset switch 24. Audio remote control switches 25. Tilt steering lock release lever 26. Roll sensing of curtain shield airbags off switch 27. Instrument panel light control knob

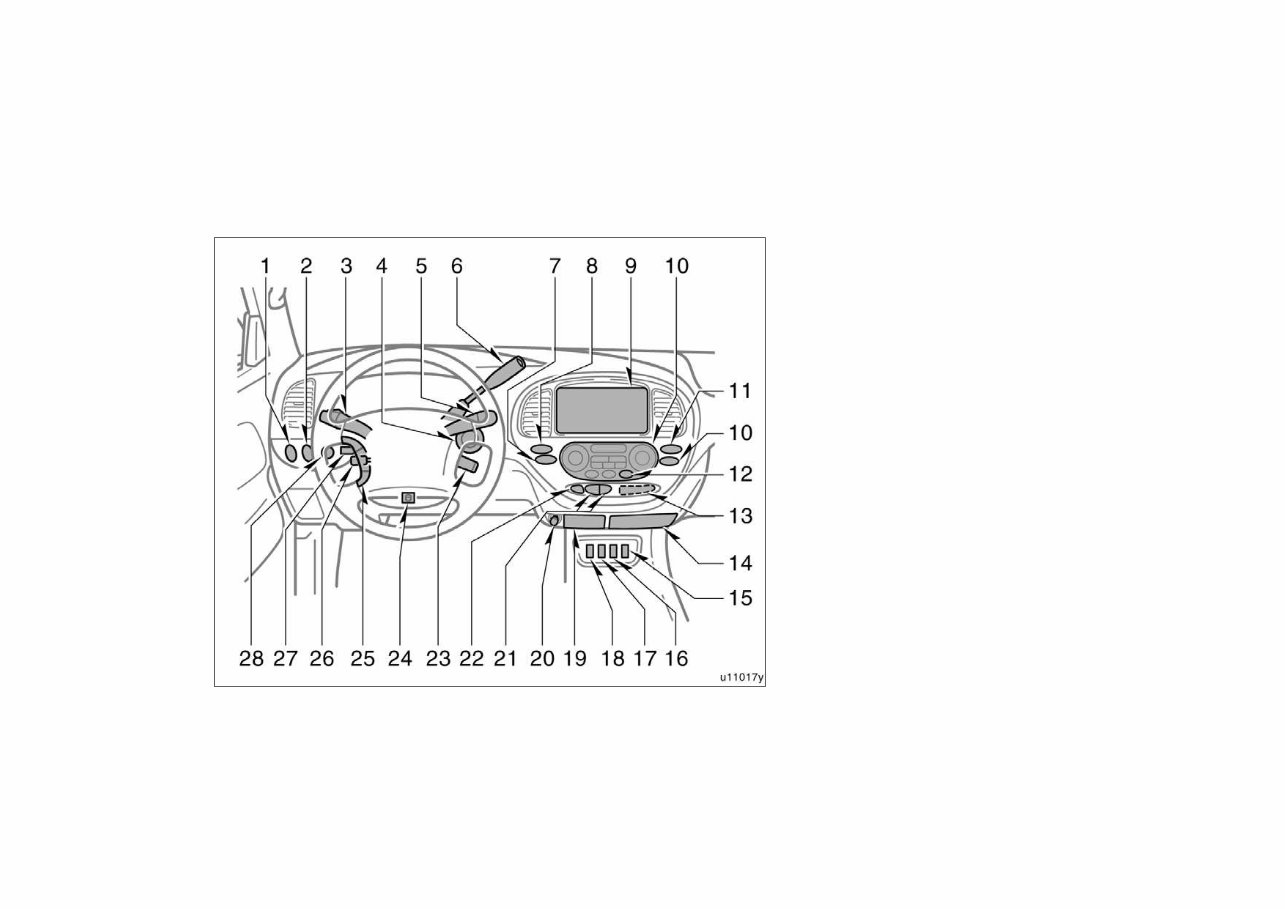

05_SEQUOIA_U (L/O 0409) 6 2005 SEQUOIA from Sep. ’04 Prod. (OM34431U) 1. Power back window switch 2. Driving position memory switches 3. Headlight, turn signal and front fog light switches 4. Ignition switch 5. Wiper and washer switches 6. Automatic transmission selector lever 7. Emergency flasher switch 8. Automatic transmission shift position “L” switch (“SHIFT L” switch) 9. Audio system or navigation system including audio system (For the navigation system, see the separate “Navigation System Owner’s Manual”.) 10. Air conditioning controls 11. Front passenger occupant classification indicator light/front passenger’s seat belt reminder light 12. Back window and outside rear view mirror defogger switch 13. Clock 14. Cup holder 15. Glass breakage sensor 16. Power outlet main switch 17. Height control switch "View B (four−wheel drive models)

05_SEQUOIA_U (L/O 0409) 7 2005 SEQUOIA from Sep. ’04 Prod. (OM34431U) 18. Height control mode select switch 19. Ashtray 20. Cigarette lighter 21. Front drive control switches 22. Center differential lock switch 23. Cruise control switch 24. Tire pressure warning system reset switch 25. Audio remote control switches 26. Tilt steering lock release lever 27. Roll sensing of curtain shield airbag off switch 28. Instrument panel light control knob

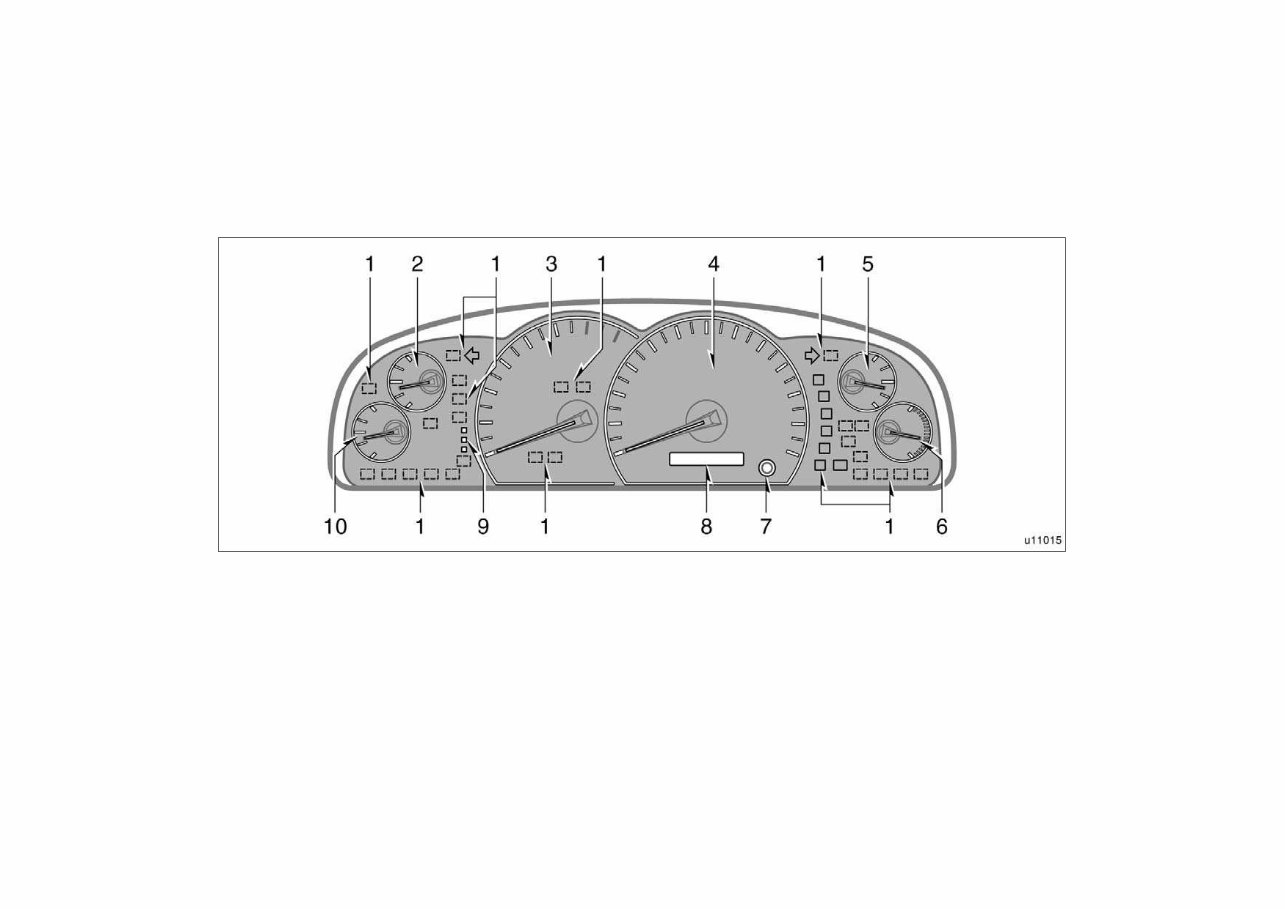

05_SEQUOIA_U (L/O 0409) 8 2005 SEQUOIA from Sep. ’04 Prod. (OM34431U) 1. Service reminder indicators and indicator lights 2. Oil pressure gauge 3. Tachometer 4. Speedometer 5. Fuel gauge 6. Engine coolant temperature gauge 7. Trip meter reset knob 8. Odometer and two trip meters 9. Height control indicator lights 10. Volt meter Instrument cluster overview "Type A

05_SEQUOIA_U (L/O 0409) 9 2005 SEQUOIA from Sep. ’04 Prod. (OM34431U) 1. Service reminder indicators and indicator lights 2. Oil pressure gauge 3. Tachometer 4. Speedometer 5. Fuel gauge 6. Engine coolant temperature gauge 7. Trip meter reset knob 8. Odometer and two trip meters 9. Height control indicator lights 10. Volt meter "Type B

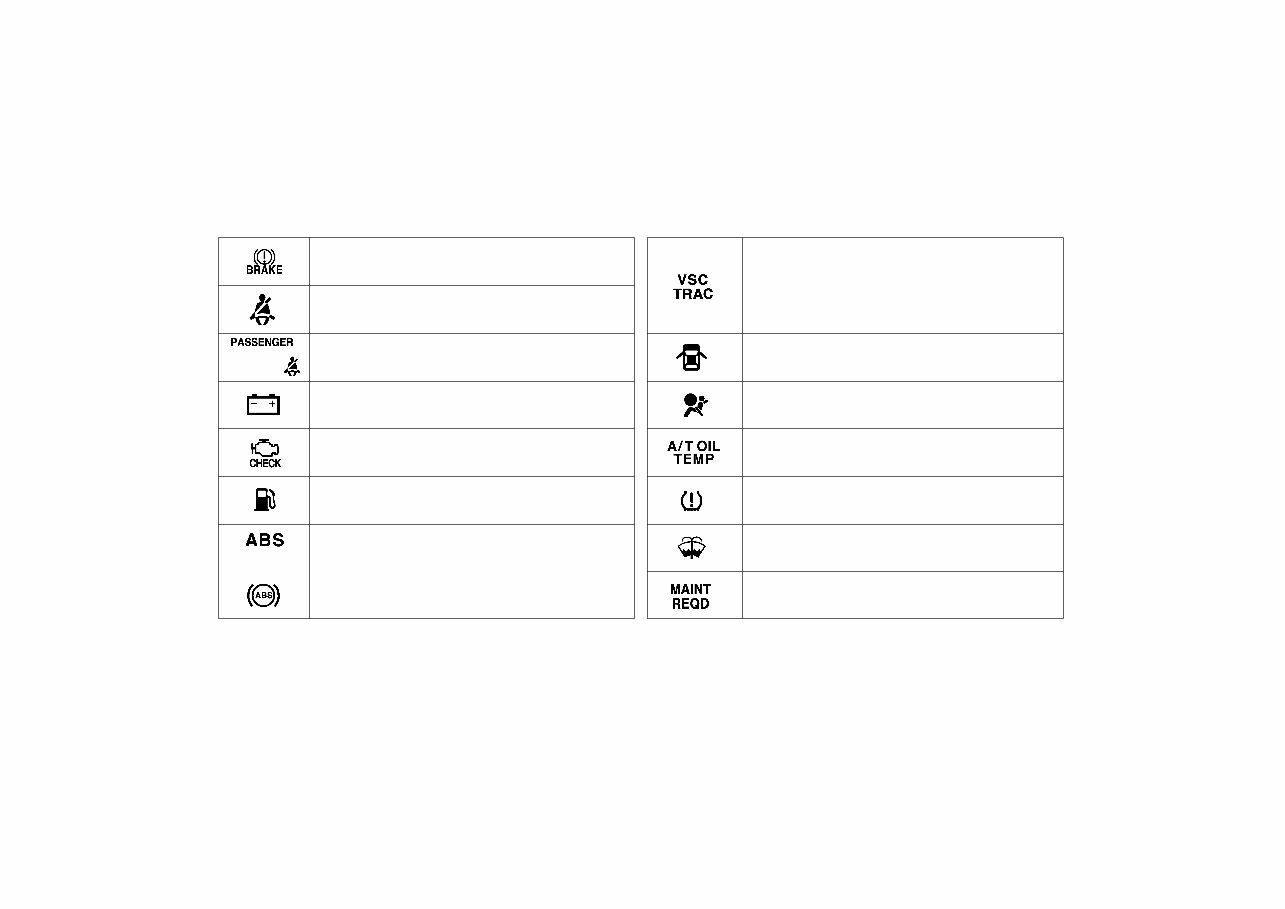

05_SEQUOIA_U (L/O 0409) 10 2005 SEQUOIA from Sep. ’04 Prod. (OM34431U) or Driver’s seat belt reminder light *1 Discharge warning light *1 Low fuel level warning light *1 Brake system warning light *1 Malfunction indicator lamp *1 Anti −lock brake system warning light *1 Automatic transmission fluid temperature warning light (four−wheel drive models) *1 SRS warning light *1 Open door warning light *1 Low windshield washer fluid level warning light *1 Front passenger’s seat belt reminder light *1 Vehicle stability control system/traction control system (two−wheel drive models) or active traction control system (four−wheel drive models) warning light *1 Low tire pressure warning light *1 Engine oil replacement reminder light *1 Indicator symbols on the instrument panel
