2024 Toyota Camry Service & Repair Manual

Last Modified: 11-20-2023 6.11:8.1.0 Doc ID: RM1000000012W72 Model Year Start: 2018 Model: Camry Prod Date Range: [03/2017 - ] Title: INTRODUCTION: HOW TO USE THIS MANUAL: GENERAL INFORMATION; 2018 - 2024 MY Camry [03/2017 - ] GENERAL INFORMATION GENERAL DESCRIPTION (a) This manual is written in accordance with SAE J2008. (b) Repair operations can be separated mainly into the following 3 processes: (1) Diagnosis (2) Removing/Installing, Replacing, Disassembling/Reassembling, Checking and Adjusting (3) Final Inspection (c) The following procedures are omitted from this manual. However, these procedures must be performed. (1) Use a jack or lift to perform operations. (2) Clean all removed parts. (3) Perform a visual check before and after performing any work. PREPARATION (a) Use of Special Service Tools (SST) and Special Service Materials (SSM) may be required, depending on the repair procedure. Be sure to use SST and SSM when they are required and follow the work procedure properly. A list of SST and SSM is in the "Preparation" section of this manual. REPAIR PROCEDURES (a) A component illustration is placed under the title where necessary. (b) Non-reusable parts, grease application areas, precoated parts and torque specifications are noted in the component illustrations. The following illustration is an example. *A Example - - *1 FILTER CAP *2 FLOAT

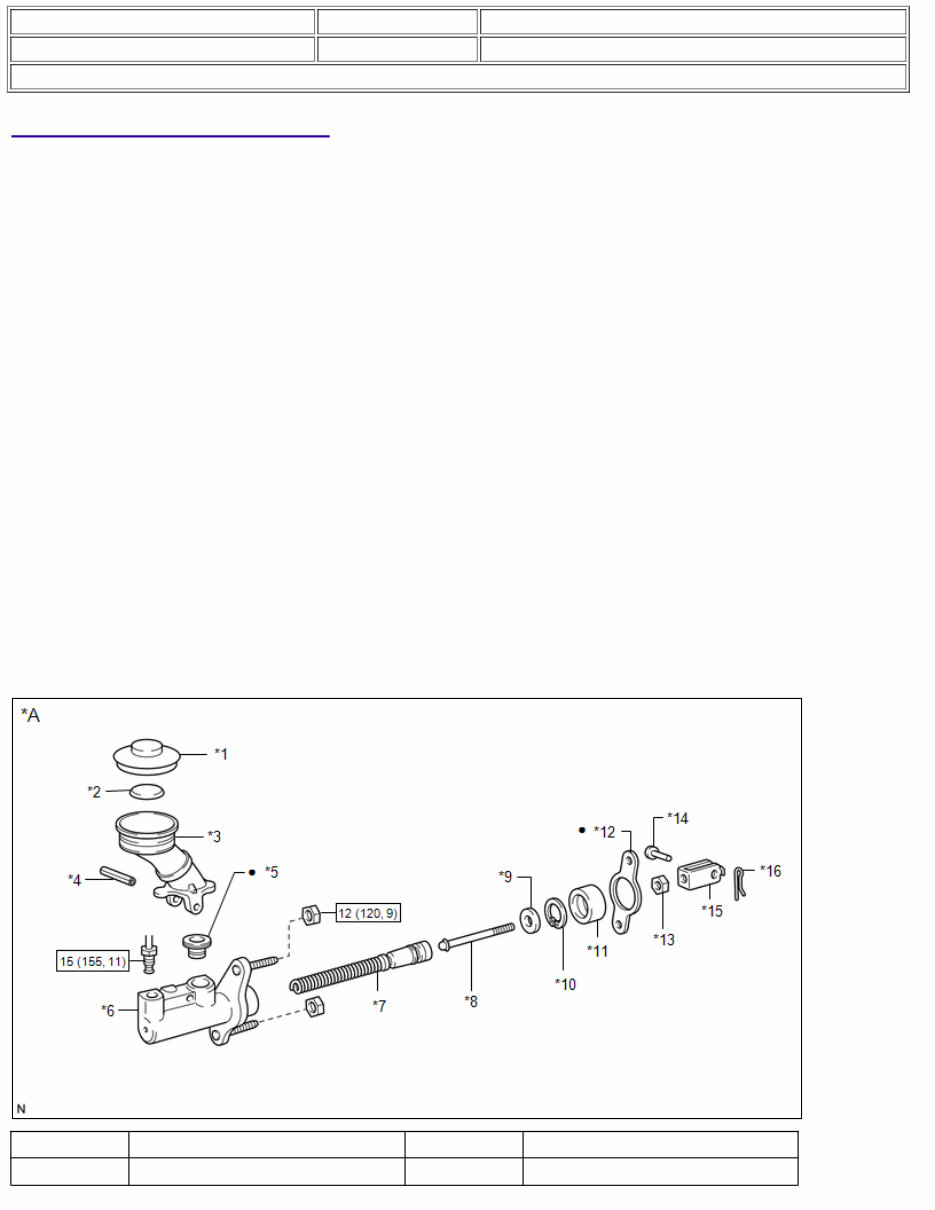

*3 RESERVOIR TANK *4 SLOTTED SPRING PIN *5 GROMMET *6 CYLINDER *7 PISTON *8 PUSH ROD *9 WASHER *10 SNAP RING *11 BOOT *12 GASKET *13 LOCK NUT *14 CLEVIS PIN *15 CLEVIS *16 CLIP N*m (kgf*cm, ft.*lbf): Specified torque ● Non-reusable part (c) Torque specifications, grease application areas and non-reusable parts are emphasized in the procedures. HINT: There are cases where such information can only be explained by using an illustration. In these cases, torque, oil and other information are described in the illustration. (d) Only items with key points are described in the text. What to do and other details are explained using illustrations next to the text. Both the text and illustrations are accompanied by standard values and notices. Illustration What to do and where to do it Task heading What work will be performed Explanation text How to perform the task Information such as specifications and warnings, which are written in boldface text (e) Illustrations of similar vehicle models are sometimes used. In these cases, minor details may be different from the actual vehicle. (f) Procedures are presented in a step-by-step format. SERVICE SPECIFICATIONS (a) Specifications are presented in boldface text throughout the manual. The specifications are also found in the "Specifications" section for reference. TERM DEFINITIONS CAUTION Possibility of injury to you or other people. NOTICE Possibility of damage to components being repaired. HINT Provides additional information to help you perform repairs. INTERNATIONAL SYSTEM OF UNITS (a) The units used in this manual comply with the International System of Units (SI UNIT) standard. Other units from the metric system and the English systems are also provided. Example: Torque: 30 N·m {306 kgf·cm, 22 ft·lbf}

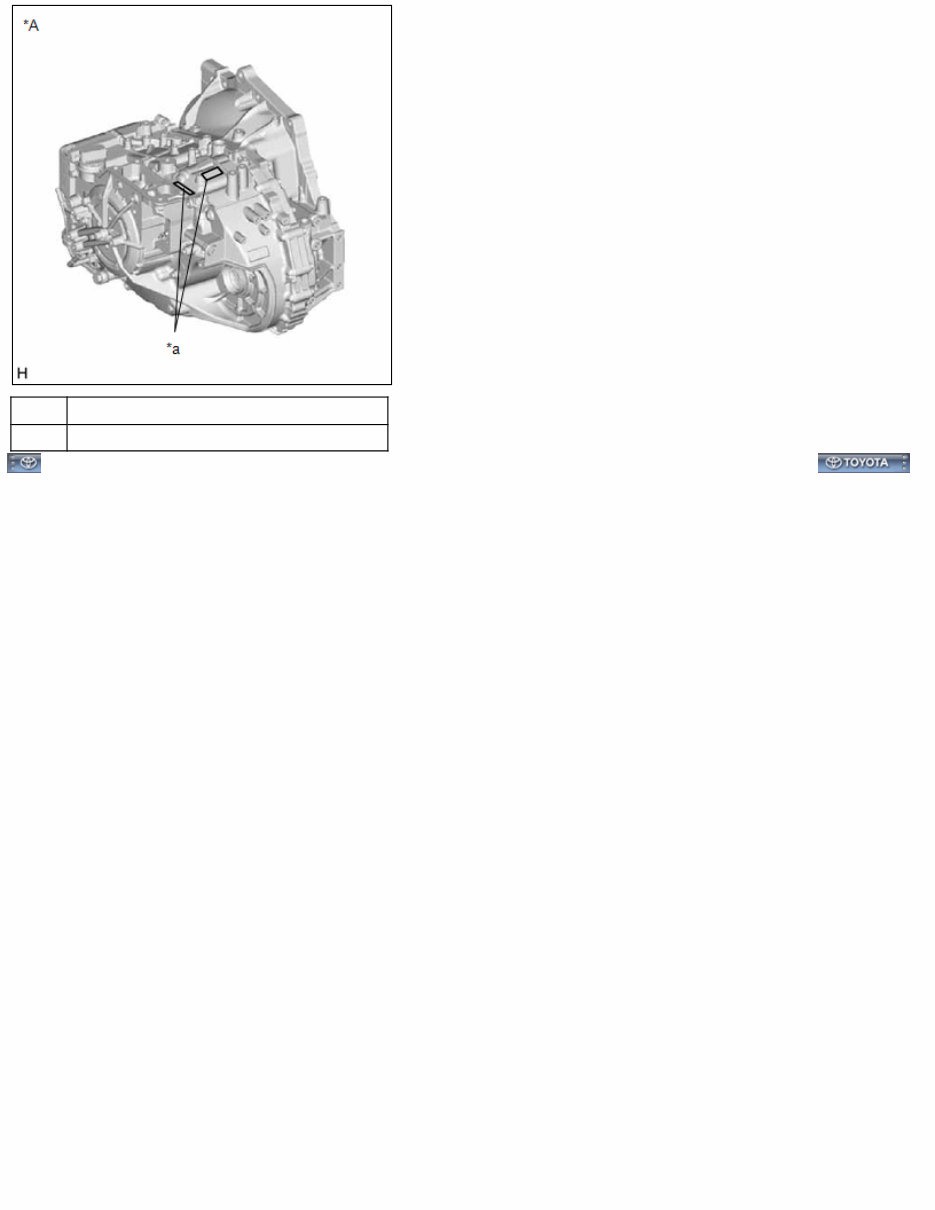

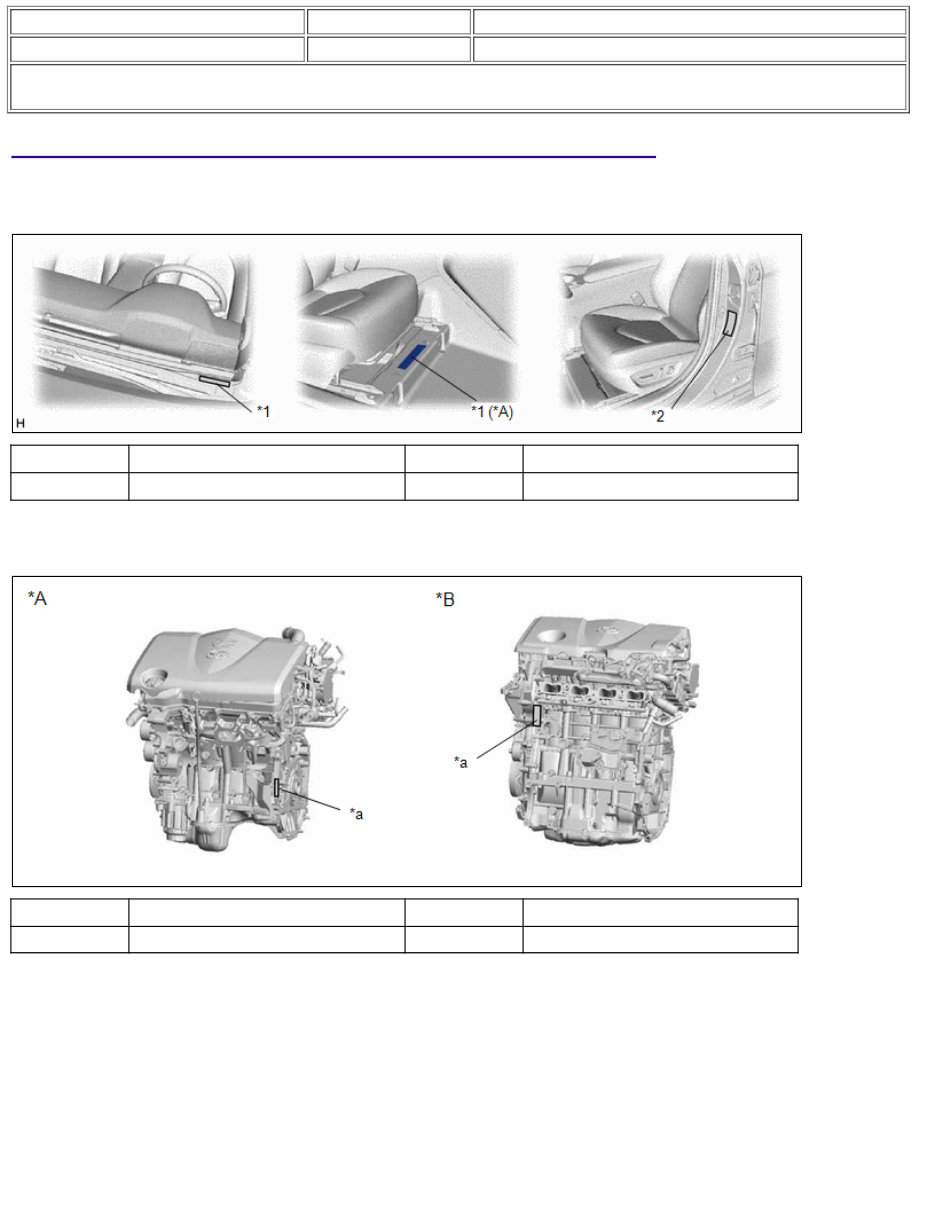

Last Modified: 11-20-2023 6.11:8.1.0 Doc ID: RM1000000012W73 Model Year Start: 2018 Model: Camry Prod Date Range: [03/2017 - 06/2017] Title: INTRODUCTION: IDENTIFICATION INFORMATION: VEHICLE IDENTIFICATION AND SERIAL NUMBERS; 2018 MY Camry [03/2017 - 06/2017] VEHICLE IDENTIFICATION AND SERIAL NUMBERS VEHICLE IDENTIFICATION NUMBER (a) The vehicle identification number is stamped on the vehicle body and on the certification label as shown in the illustration. *1 Vehicle Identification Number *2 Certification Label ENGINE SERIAL NUMBER AND TRANSAXLE SERIAL NUMBER (a) The engine serial number is stamped on the cylinder block of the engine as shown in the illustration. *A A25A-FKS *a Engine Serial Number (b) The transaxle serial number is stamped on the transaxle case as shown in the illustration.

*A UB80E *a Transaxle Serial Number

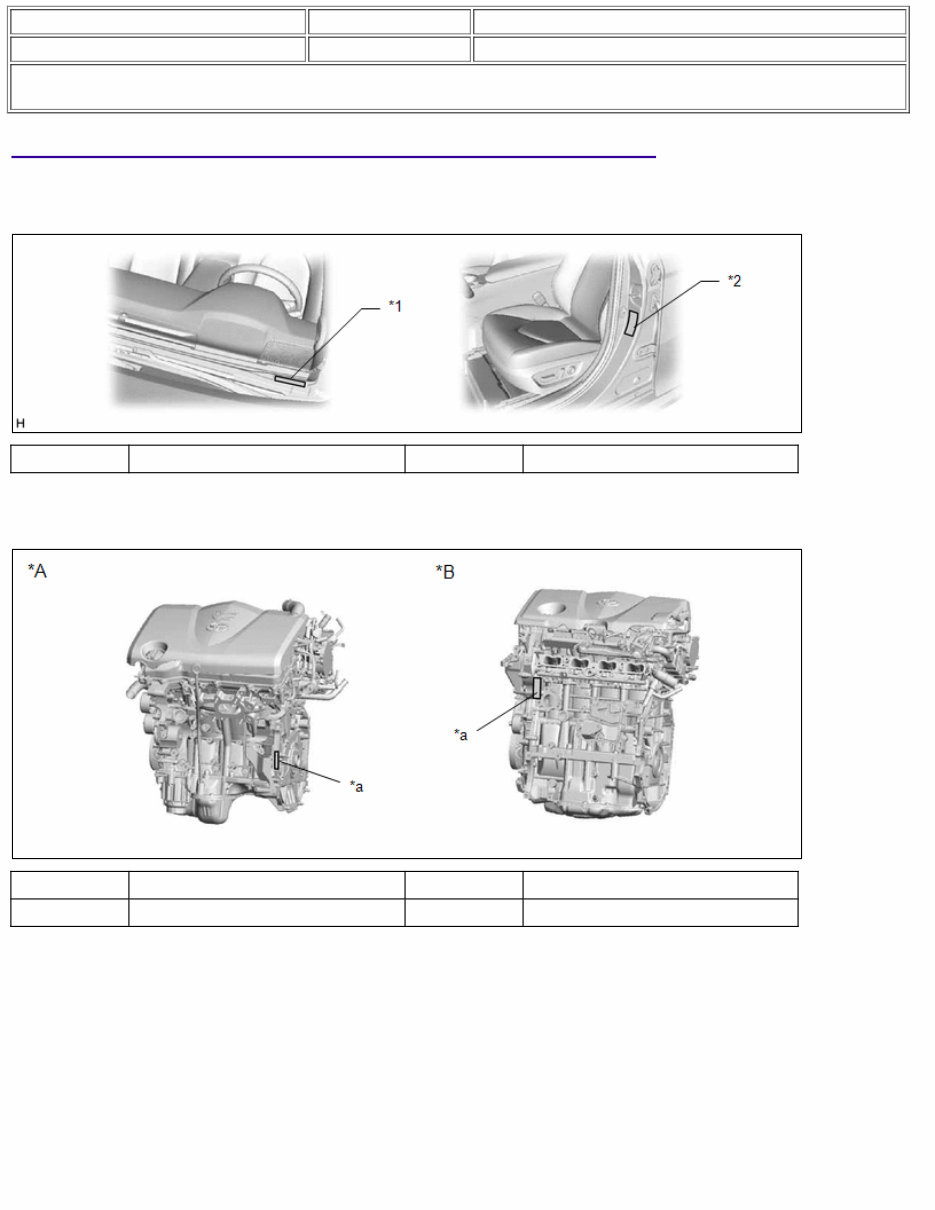

Last Modified: 11-20-2023 6.11:8.1.0 Doc ID: RM10000000150B5 Model Year Start: 2018 Model: Camry Prod Date Range: [06/2017 - 09/2019] Title: INTRODUCTION: IDENTIFICATION INFORMATION: VEHICLE IDENTIFICATION AND SERIAL NUMBERS; 2018 - 2019 MY Camry [06/2017 - 09/2019] VEHICLE IDENTIFICATION AND SERIAL NUMBERS VEHICLE IDENTIFICATION NUMBER (a) The vehicle identification number is stamped on the vehicle body and on the certification label as shown in the illustration. *A for TMC Made - - *1 Vehicle Identification Number *2 Certification Label ENGINE SERIAL NUMBER AND TRANSAXLE SERIAL NUMBER (a) The engine serial number is stamped on the cylinder block of the engine as shown in the illustration. *A 2GR-FKS *B A25A-FKS *a Engine Serial Number - - (b) The transaxle serial number is stamped on the transaxle case as shown in the illustration.

*A UA80E *B UB80E *a Transaxle Serial Number - -

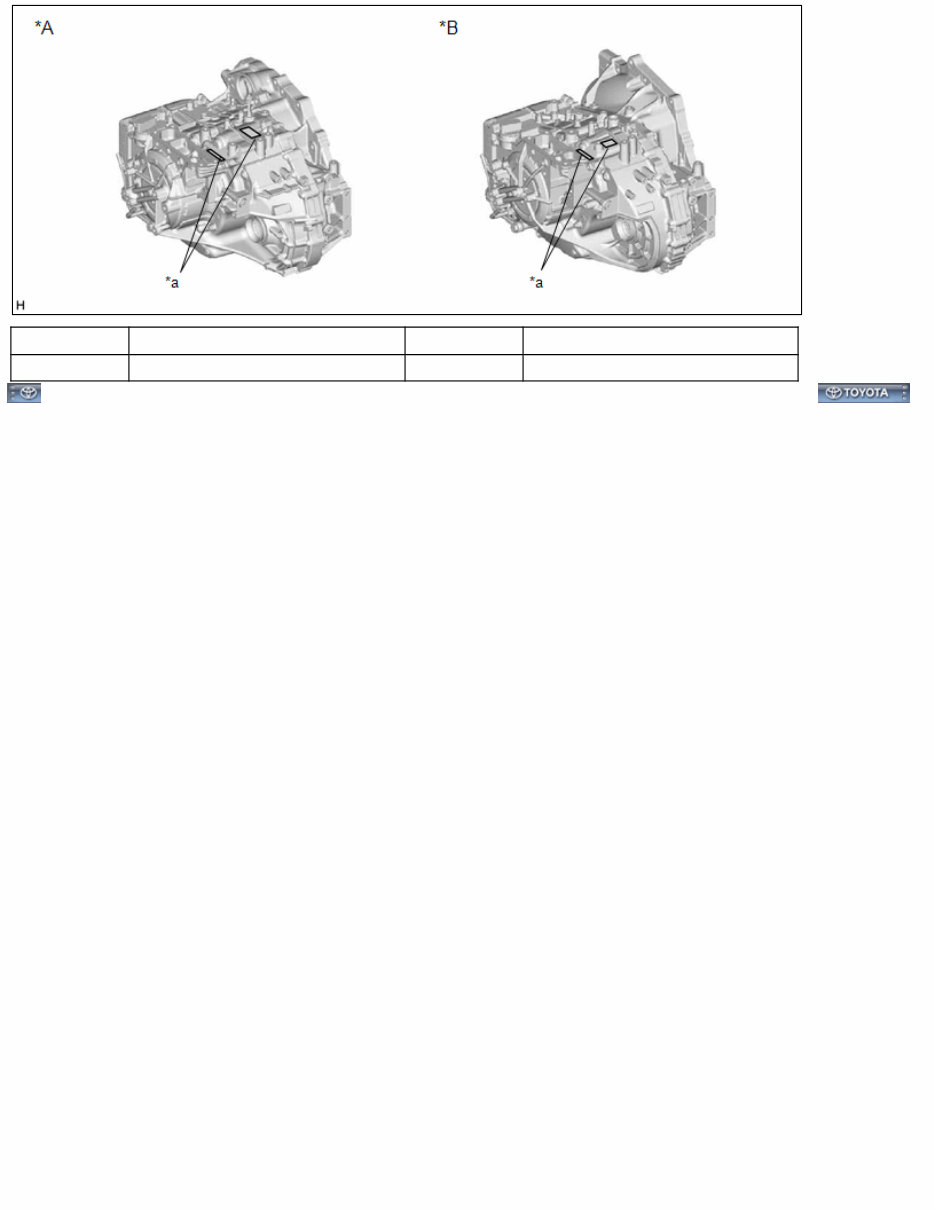

Last Modified: 11-20-2023 6.11:8.1.0 Doc ID: RM100000001KJHL Model Year Start: 2020 Model: Camry Prod Date Range: [09/2019 - 03/2020] Title: INTRODUCTION: IDENTIFICATION INFORMATION: VEHICLE IDENTIFICATION AND SERIAL NUMBERS; 2020 MY Camry [09/2019 - 03/2020] VEHICLE IDENTIFICATION AND SERIAL NUMBERS VEHICLE IDENTIFICATION NUMBER (a) The vehicle identification number is stamped on the vehicle body and on the certification label as shown in the illustration. *1 Vehicle Identification Number *2 Certification Label ENGINE SERIAL NUMBER AND TRANSAXLE SERIAL NUMBER (a) The engine serial number is stamped on the cylinder block of the engine as shown in the illustration. *A 2GR-FKS *B A25A-FKS *a Engine Serial Number - - (b) The transaxle serial number is stamped on the transaxle case as shown in the illustration.

*A UA80E *B UB80E *a Transaxle Serial Number - -

Last Modified: 11-20-2023 6.11:8.1.0 Doc ID: RM100000001MWRK Model Year Start: 2020 Model: Camry Prod Date Range: [03/2020 - ] Title: INTRODUCTION: IDENTIFICATION INFORMATION: VEHICLE IDENTIFICATION AND SERIAL NUMBERS; 2020 - 2024 MY Camry [03/2020 - ] VEHICLE IDENTIFICATION AND SERIAL NUMBERS VEHICLE IDENTIFICATION NUMBER (a) The vehicle identification number is stamped on the vehicle body and on the certification label or name label as shown in the illustration. *1 Vehicle Identification Number *2 Certification Label or Name Label ENGINE SERIAL NUMBER AND TRANSAXLE SERIAL NUMBER (a) The engine serial number is stamped on the cylinder block of the engine as shown in the illustration. *A 2GR-FKS *B A25A-FKS *a Engine Serial Number - - (b) The transaxle serial number is stamped on the transaxle case as shown in the illustration.

*A UA80E *B UB80E, UB80F *a Transaxle Serial Number - -
