1,524
(60.00)
K-k
C-K
or
c-k
Vehicle Dimensions Left ↔ Right
666
(26.22)
C-K
or
c-k
1,639
(64.53)
mm (in.)
(Three-Dimensional Distance)
HINT: For symbols, capital letters indicate right side of vehicle,
small letters indicate left side of vehicle (Seen from rear.)
Hole dia.
7 (0.28)
7 (0.28)
12 (0.47)
8 (0.31) nut
Name
Front crossmember gusset standard hole
Radiator side defector installation hole
Front crossmember standard hole
Hood hinge installation nut-rear
Front apron to cowl side member upper cut-out portion
Symbol
G, g
H, h
I, i
J, j
K, k
Hole dia.
6 (0.24) nut
11 (0.43)
6 (0.24) nut
7 (0.28)
13 (0.51)
15 (0.59)
Name
Front fender installation nut-front
Front spring support hole-inner
Front fender installation nut-rear
Cowl ventilator louver installation hole
Front side member standard hole
Front side member working hole
Symbol
A, a
B, b
C, c
D, d
E, e
F, f
BODY DIMENSION DRAWINGS
ENGINE COMPARTMENT
BODY PANEL REPLACEMENT BP-81
WWW.DARDOOR.COM
Vehicle Dimensions Left ↔ Right
N-n
1,415
(55.71)
1,498
(58.98)
O-o
1,242
(48.90)
P-p
1,494
(58.82)
S-s
1,373
(54.06)
T-t
1,491
(58.70)
G-q
or
g-Q
1,831
(72.09)
I-p
or
i-P
1,347
(53.03)
I-r
or
i-R
1,572
(61.89)
1,558
(61.34)
N-s
or
n-S
N-t
or
n-T
1,679
(66.10)
1,650
(64.96)
O-t
or
o-T
HINT: For symbols, capital letters indicate right side of vehicle,
small letters indicate left side of vehicle (Seen from rear).
1,689
(66.50)
P-q
or
p-Q
1,550
(59.06)
S-t
or
s-T
(Three-Dimensional Distance)
mm (in.)
Q-q
Hole dia.
Name
Rocker panel assembly mark
Roof side rail assembly mark
Quarter panel assembly mark
Quarter panel assembly mark
Symbol
Q, q
R, r
S, s
T, t
Hole dia.
Name
Rocker panel assembly mark
Roof side rail assembly mark
Center body pillar assembly mark
Center body pillar assembly mark
Roof side rail assembly mark
Symbol
G, g
I, i
N, n
O, o
P, p
BODY OPENING AREAS (Side View-Rear)
BODY PANEL REPLACEMENT BP-83
WWW.DARDOOR.COM
HINT: For symbols, capital letters indicate right side of vehicle,
small letters indicate left side of vehicle (Seen from rear).
Vehicle Dimensions Left ↔ Right
C-c
1,339
(52.72)
E-e
1,541
(60.67)
C-F
or
C-f
618
(24.33)
C-F
or
c-f
1,160
(45.67)
(Three-Dimensional Distance)
mm (in.)
Hole dia.
10 (0.39)
7 (0.28)
9.5 (0.374)
Name
Quarter panel standard hole
Rear floor finish plate installation hole
Rear spring support hole inner - rear
Center body pillar assembly mark
Symbol
E, e
F, f
G, g
H, h
Hole dia. Name
Roof panel / Quarter panel adjoining portion
Upper back panel / Quarter panel adjoining portion
Quarter panel / Upper back panel adjoining portion
Luggage compartment opening trough / Quarter panel
adjoining portion
Symbol
A, a
B, b
C, c
D, d
BODY OPENING AREAS (Rear View)
BODY PANEL REPLACEMENT BP-84
WWW.DARDOOR.COM
E-e
1,326
(52.20)
1,491
(58.70)
F-f
Vehicle Dimensions Left ↔ Right
1,491
(58.70)
G-g
H-h
1,491
(58.70)
1,242
(48.90)
I-i
J-j
1,402
(55.20)
1,498
(58.98)
K-k
1,623
(63.90)
E-f
or
e-F
1,654
(65.12)
E-h
or
e-H
E-j
or
e-J
1,483
(58.39)
F-j
or
f-J
1,880
(74.02)
F-k
or
f-K
1,742
(68.58)
H-i
or
h-I
1,691
(66.57)
1,574
(61.97)
J-k
or
j-K
HINT: For symbols, capital letters indicate right side of vehicle,
small letters indicate left side of vehicle (Seen from rear).
(Three-Dimensional Distance)
mm (in.)
Hole dia.
15 (0.59)
15 (0.59)
Name
Rocker panel assembly mark
Roof side rail assembly mark
Center body pillar assembly mark
Center body pillar assembly mark
Rear door hinge installation hole-front
Rear door hinge installation hole-front
Symbol
H, h
I, i
J, j
K, k
L, l
M, m
Hole dia.
8 (0.31) nut
8 (0.31) nut
Name
Roof panel / Front body pillar adjoining portion
Cowl panel / Front body pillar adjoining portion
Front door hinge installation nut-rear
Front door hinge installation nut-upper
Front body pillar assembly mark
Front body pillar assembly mark
Rocker panel assembly mark
Symbol
A, a
B, b
C, c
D, d
E, e
F, f
G, g
BODY OPENING AREAS (Side View-Front)
BODY PANEL REPLACEMENT BP-82
WWW.DARDOOR.COM
SYMBOL Name
1
The place that was lowered A mm from the under surface of
the rocker panel centered on the front jack up point.
2
The place that was lowered B mm from the under surface of
the rocker panel centered between 1 and 3.
3
The place that was lowered C mm from the under surface of
the rocker panel centered on the rear jack up point.
Imaginary Standard Line
Vertical distance
in lower surface
Vertical distance
in center
Two-dimensional
distance
Center-to-center
Horizontal distance
in forward / rearward
F10116A
Imaginary Standard Line
B mm C mm A mm
Under Surface of
The Rocker Panel
F10026A
3 1 2
F10115A
Three-dimensional
distance
Center-to-center
straight-line
distance
GENERAL INFORMATION
1. BASIC DIMENSIONS
(a) There are two typed of dimensions in the diagram.
(1) (Three-dimensional distance)
D Straight-line distance between the centers of two mea-
suring points.
(2) (Two-dimensional distance)
D Horizontal distance in forward/ rearward between the
centers of two measuring points.
D The height from an imaginary standard line.
(b) Incases in which only one dimension is given, left and right
are symmetrical.
(c) The dimensions in the following drawing indicate actual dis-
tance. Therefore, please use the dimensions as a refer-
ence.
(d) The line that connects the places listed below is the imagi-
nary standard line when measuring the height. (The dimen-
sions are printed in the text.)
BODY PANEL REPLACEMENT BP-79
WWW.DARDOOR.COM
Front Suspension Member Rear Side
Upper Installation Hole
Along Body
Surface
Tape Measure
Front Spring Support Inner Hole
F10117A
Master Gauge
Pointer
Pointer Looseness
Body Looseness
Plate Looseness
F10118A
Pointer
Correct Wrong
2. MEASURING
(a) Basically, all measurements are to be done with a tracking
gauge. For portions where it is not possible to use a track-
ing gauge, a tape measure should be used.
(b) Use only a tracking gauge that has no looseness in the
body, measuring plate, or pointers.
HINT:
1. The height of the left and right points must be equal.
2. Always calibrate the tracking gauge before measuring
or after adjusting the pointer height.
3. Take care not to drop the tracking gauge or otherwise
shock it.
4. Confirm that the pointers are securely in the holes.
(c) When using a tape measure, avoid twists and bends in the
tape.
(d) when tracking a diagonal measurement from the front
spring support inner hole to the suspension member upper
rear installation hole, measure along the front spring sup-
port panel surface.
F10118A
BODY PANEL REPLACEMENT BP-80
WWW.DARDOOR.COM
(Three-Dimensional Distance)
(Two-Dimensional Distance)
mm (in.)
Imaginary
Standard
Line
Hole dia.
13 (0.51)
15 (0.59)
Name
Front frame standard hole
Lower control link installation hole-lower
Symbol
D, d
E, e
Hole dia.
13 (0.51)
13 (0.51)
13 (0.51)
Name
Front frame standard hole
Front frame standard hole
Front frame standard hole
Symbol
A, a
B, b
C, c
SUSPENSION CROSSMEMBER
BODY PANEL REPLACEMENT BP-87
WWW.DARDOOR.COM
mm (in.)
(Three-Dimensional Distance)
Hole dia.
15 (0.59)
12 (0.47)
18 (0.71)
12 (0.47) nut
18 (0.71)
18 (0.71)
Name
Front floor under reinforcement standard hole
Strut bar installation hole-inner
Rear floor side member standard hole
Rear suspension member installation nut
Rear floor side member standard hole
Rear floor side member standard hole
Symbol
G, g
H, h
I, i
J, j
K, k
L, l
Hole dia.
10 (0.39)
14 (0.55) nut
18 (0.71)
14 (0.55) nut
18 (0.71)
15 (0.59)
Name
Front crossmember standard hole
Front frame installation nut
Front side member standard hole
Front frame installation nut
Front side member standard hole
Front side member working hole
Symbol
A, a
B, b
C, c
D, d
E, e
F, f
UNDER BODY
BODY PANEL REPLACEMENT BP-85
WWW.DARDOOR.COM
Wheel base
2,720 (107.09)
100
(3.94)
100
(3.94)
101
(3.98)
Imaginary
Standard
Line
mm (in.)
(Two-Dimensional Distance)
3 2
1
Hole dia.
15 (0.59)
12 (0.47)
18 (0.71)
12 (0.47) nut
9.5 (0.374)
18 (0.71)
18 (0.71)
Name
Front floor under reinforcement standard hole
Strut bar installation hole-inner
Rear floor side member standard hole
Rear suspension member installation nut
Rear spring support hole-outer
Rear floor side member standard hole
Rear floor side member standard hole
Symbol
H, h
I, i
J, j
K, k
L, l
M, m
N, n
Hole dia.
10 (0.39)
14 (0.55) nut
18 (0.71)
11 (0.43)
14 (0.55) nut
18 (0.71)
15 (0.59)
Name
Front crossmember standard hole
Front frame installation nut
Front side member standard hole
Front spring support hole outer-front
Front frame installation nut
Front side member standard hole
Front side member working hole
Symbol
A, a
B, b
C, c
D, d
E, e
F, f
G, g
UNDER BODY (Cont’d)
BODY PANEL REPLACEMENT BP-86
WWW.DARDOOR.COM
F10187
Braze
Braze

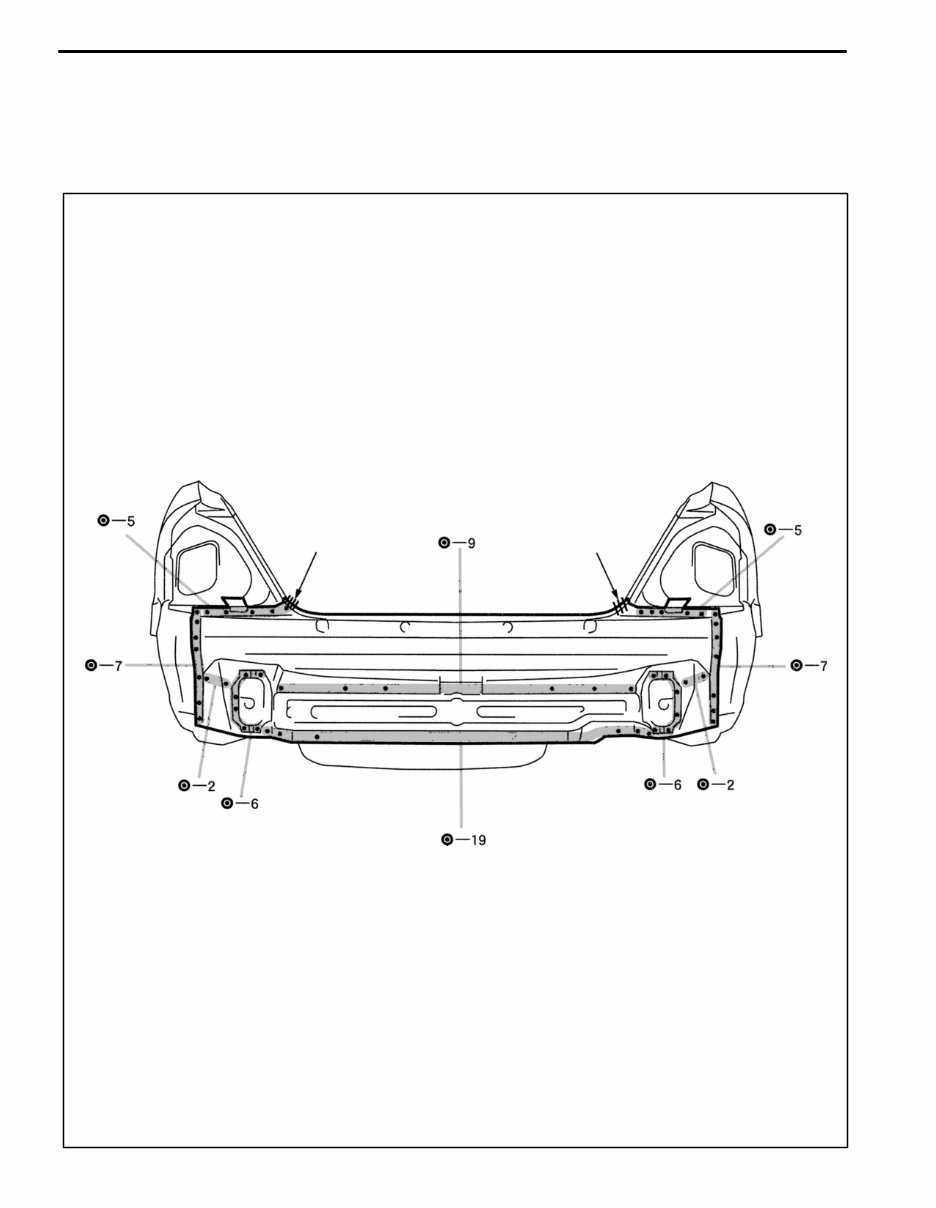

BODY LOWER BACK PANEL (ASSY)
REPLACEMENT
1. REMOVE BODY LOWER BACK PANEL
BODY PANEL REPLACEMENT BP-58
WWW.DARDOOR.COM
