Last Modified: 12-29-2023 6.11:8.1.0 Doc ID: RM100000000XGVV Model Year Start: 2017 Model: 86 Prod Date Range: [06/2016 - ] Title: INTRODUCTION: HOW TO USE THIS MANUAL: GENERAL INFORMATION; 2017 - 2020 MY 86 [06/2016 - ] GENERAL INFORMATION 1. GENERAL DESCRIPTION (a) This manual is written in accordance with SAE J2008. (b) Repair operations can be separated mainly into the following 3 processes: (1) Diagnosis (2) Removing/Installing, Replacing, Disassembling/Reassembling, Checking and Adjusting (3) Final Inspection (c) The following procedure is omitted from this manual. However, this procedure must be performed. (1) Use a jack or lift to perform operations. (2) Clean all removed parts. (3) Perform a visual check before and after performing any work. 2. INDEX (a) An alphabetical INDEX section is provided at the end of the manual as a reference to help find the item to be repaired. 3. PREPARATION (a) Use of Special Service Tools (SST) and Special Service Materials (SSM) may be required, depending on the repair procedure. Be sure to use SST and SSM when they are required and follow the work procedure properly. A list of SST and SSM is in the "Preparation" section of this manual. 4. REPAIR PROCEDURES (a) A component illustration is placed under the title where necessary. (b) Non-reusable parts, grease application areas, precoated parts and torque specifications are noted in the component illustrations. The following illustration is an example.

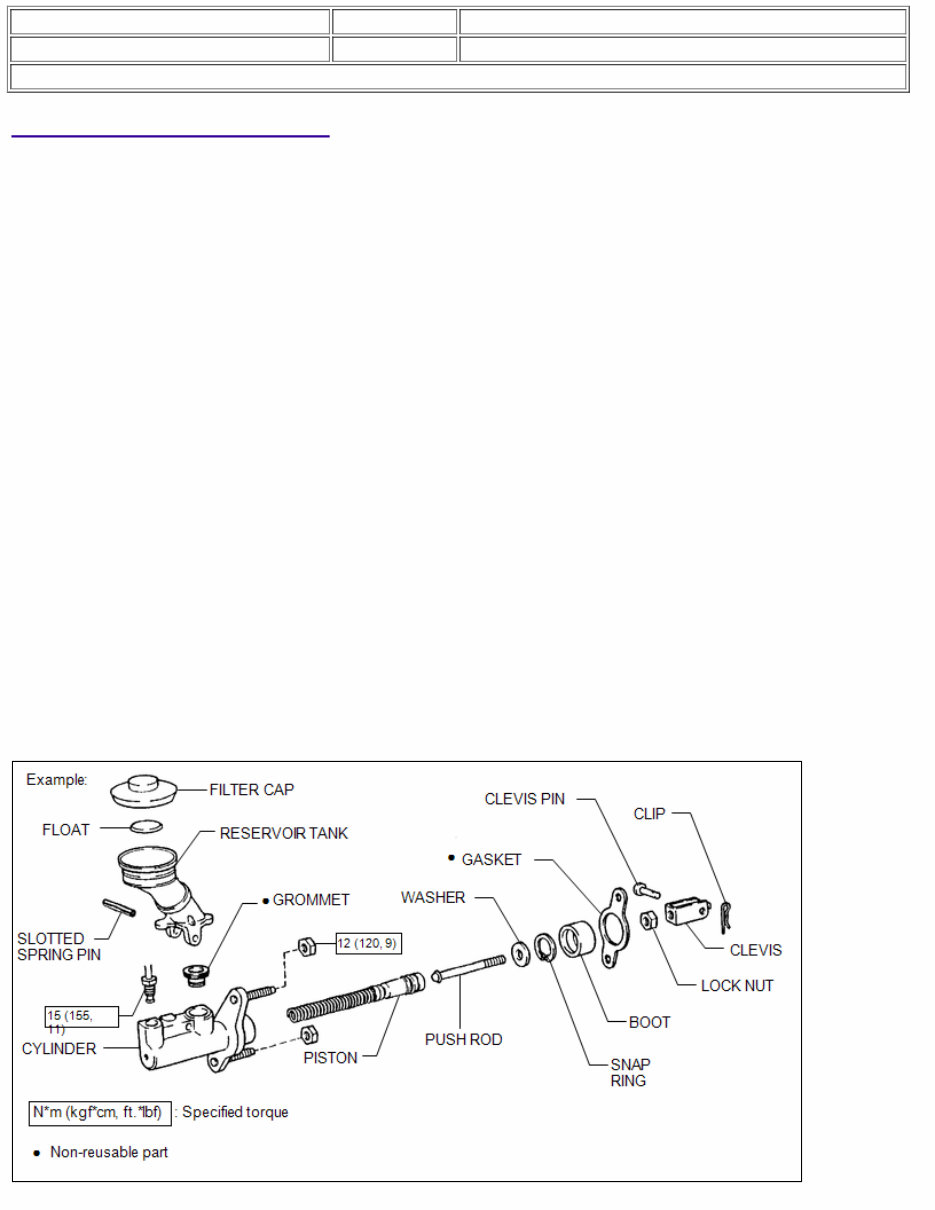

(c) Torque specifications, grease application areas and non-reusable parts are emphasized in the procedures. HINT: There are cases where such information can only be explained by using an illustration. In these cases, torque, oil and other information are described in the illustration. (d) Only items with key points are described in the text. What to do and other details are explained using illustrations next to the text. Both the text and illustrations are accompanied by standard values and notices. Illustration What to do and where to do it Task heading What work will be performed Explanation text How to perform the task Information such as specifications and warnings, which are written in boldface text (e) Illustrations of similar vehicle models are sometimes used. In these cases, minor details may be different from the actual vehicle. (f) Procedures are presented in a step-by-step format. 5. SERVICE SPECIFICATIONS (a) Specifications are presented in boldface text throughout the manual. The specifications are also found in the "Service Specifications" section for reference. 6. TERM DEFINITIONS CAUTION Possibility of injury to you or other people. NOTICE Possibility of damage to components being repaired. HINT Provides additional information to help you perform repairs. 7. INTERNATIONAL SYSTEM OF UNITS (a) The units used in this manual comply with the International System of Units (SI UNIT) standard. Other units from the metric system and the English systems are also provided. Example: Torque: 30 N·m {310 kgf·cm, 22 ft·lbf}

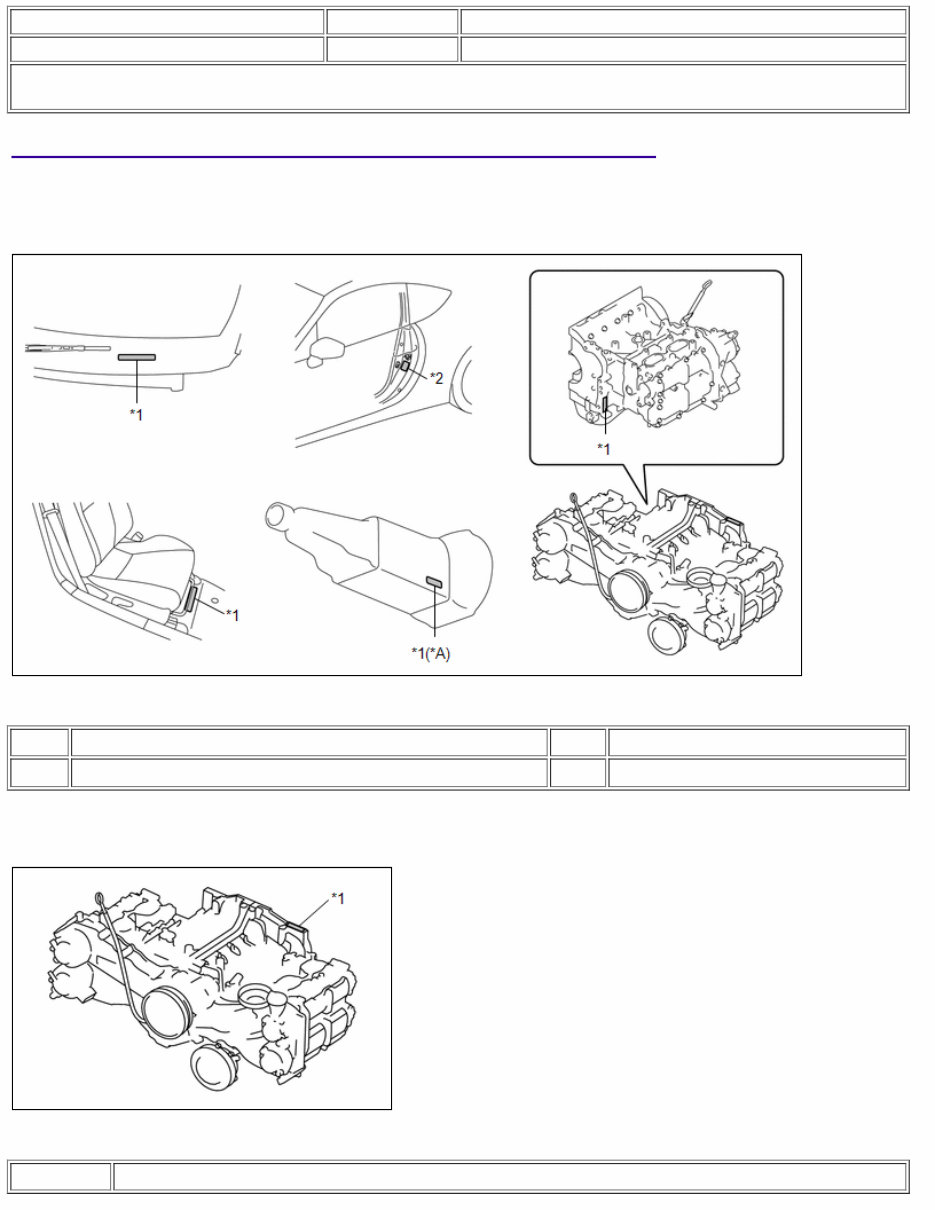

Last Modified: 12-29-2023 6.11:8.1.0 Doc ID: RM100000000XF8Q Model Year Start: 2017 Model: 86 Prod Date Range: [06/2016 - ] Title: INTRODUCTION: IDENTIFICATION INFORMATION: VEHICLE IDENTIFICATION AND SERIAL NUMBERS; 2017 - 2020 MY 86 [06/2016 - ] VEHICLE IDENTIFICATION AND SERIAL NUMBERS 1. VEHICLE IDENTIFICATION NUMBER (a) The vehicle identification number is stamped on the vehicle body, on the plates and on the certification label as shown in the illustration. Text in Illustration *A Manual transmission - - *1 Vehicle Identification Number *2 Certification Label 2. ENGINE SERIAL NUMBER AND TRANSMISSION SERIAL NUMBER (a) The engine serial number is stamped on the cylinder block of the engine as shown in the illustration. Text in Illustration *1 FA20 Engine Serial Number

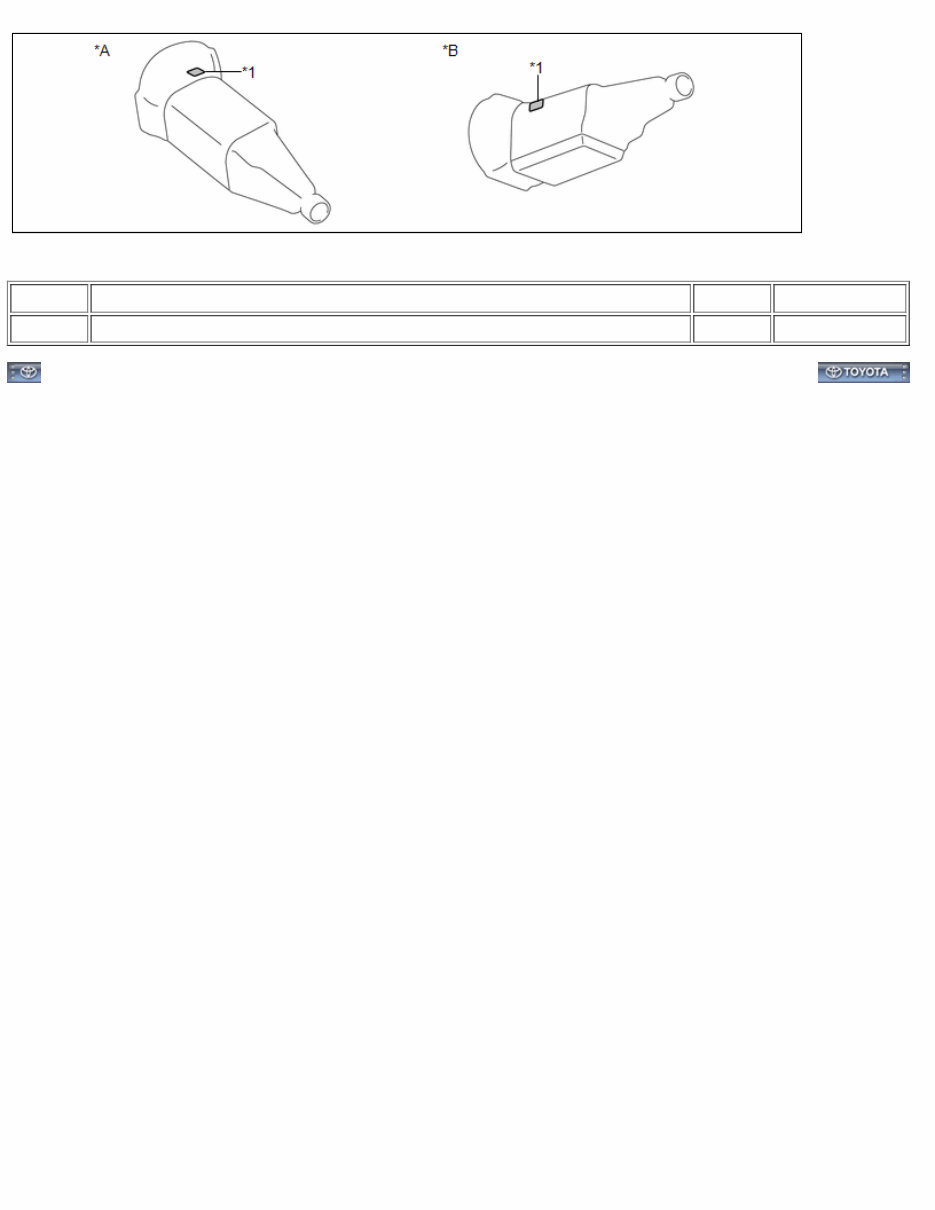

(b) The transmission serial number is printed on the transmission number label. Text in Illustration *A TL70 *B TX6A *1 Transmission Number Label - -

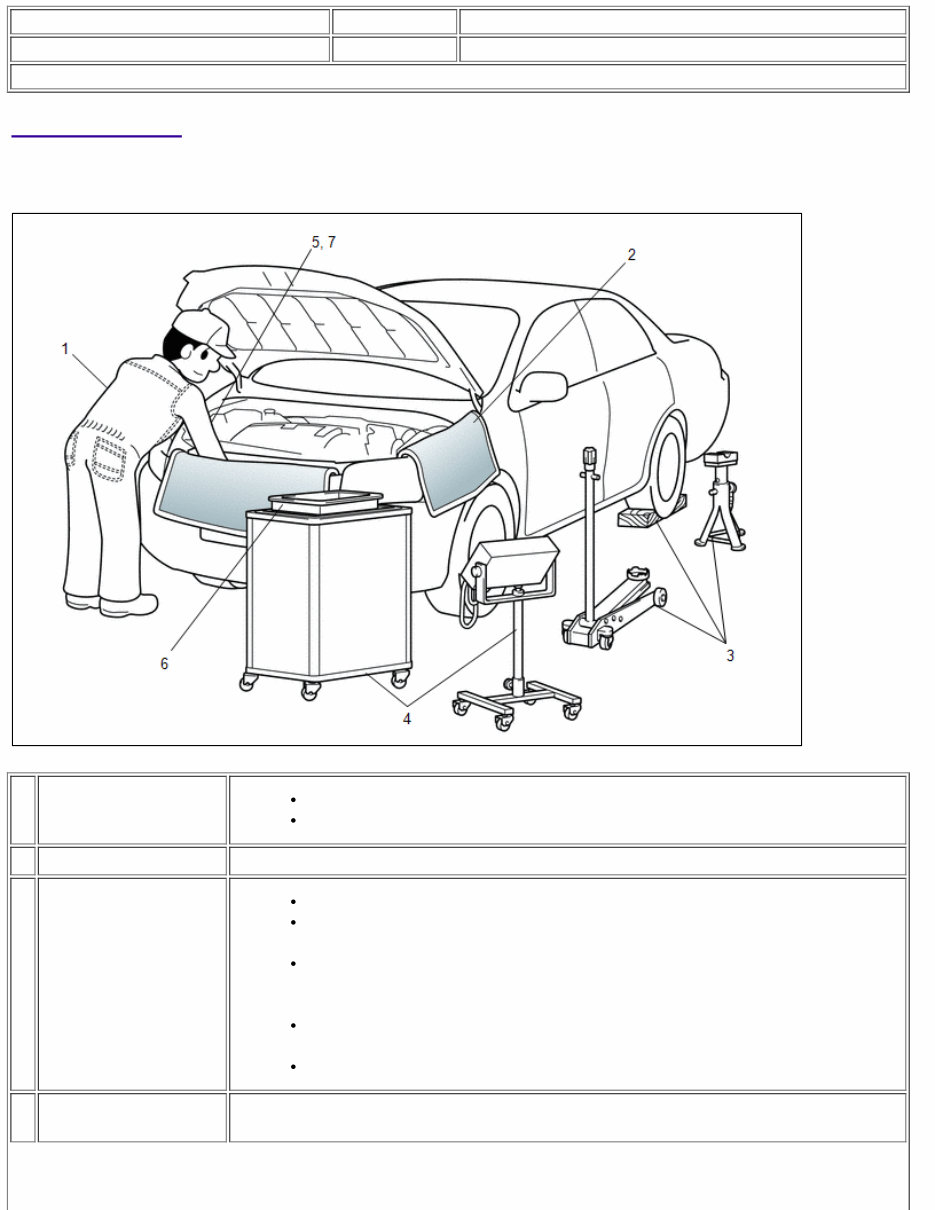

Last Modified: 12-29-2023 6.11:8.1.0 Doc ID: RM100000000XF8R Model Year Start: 2017 Model: 86 Prod Date Range: [06/2016 - ] Title: INTRODUCTION: REPAIR INSTRUCTION: PRECAUTION; 2017 - 2020 MY 86 [06/2016 - ] PRECAUTION 1. BASIC REPAIR HINT (a) HINTS ON OPERATIONS 1 Attire Always wear a clean uniform. A hat and safety shoes must be worn. 2 Vehicle protection Prepare a grille cover, fender cover, seat cover and floor mat before starting work. 3 Safety procedures When working with 2 or more persons, be sure to check the safety of one another. When working with the engine running, make sure to provide ventilation for exhaust fumes in the workshop. If working on high temperature, high pressure, rotating, moving or vibrating parts, wear appropriate safety equipment and take extra care not to injure yourself or others. When jacking up the vehicle, be sure to support the specified locations with safety stands. When lifting up the vehicle, use appropriate safety equipment. 4 Preparation of tools and measuring equipment Before starting work, prepare a tool stand, SST, measuring equipment, oil, and any replacement parts required.

5 Removal and installation, disassembly and assembly operations Diagnose with a thorough understanding of proper procedures and of the reported problem. Before removing any parts, check the general condition of the assembly and for deformation and damage. If the procedure is complicated, take notes. For example, note the total number of electrical connections, bolts or hoses removed. Add matchmarks to ensure reassembly of components in the original positions. Temporarily mark hoses and their fittings if needed. Clean and wash the removed parts if necessary and assemble them after a thorough check. 6 Removed parts Place the removed parts in a separate box to avoid mixing them up with new parts or contaminating the new parts. For non-reusable parts such as gaskets, O-rings and self-locking nuts, replace them with new ones as instructed in this manual. Retain the removed parts for customer inspection, if requested. 7* Checks to perform after work is finished Make sure that removed and installed parts (oil filler cap, level dipstick, floor mat, etc.) are properly installed/tightened. Make sure that none of the cloths or tools that were used have been left in the engine compartment or within the vehicle. Check that there are no oil leaks. CAUTION: *: Be sure to perform these checks properly, Not performing these checks properly after finishing work can lead to serious accident or injury. (b) JACKING UP AND SUPPORTING THE VEHICLE (1) Care must be taken when jacking up and supporting the vehicle. Be sure to lift and support the vehicle at the proper locations. (c) PRECOATED PARTS Text in Illustration *a Seal Lock Adhesive (1) Precoated parts are bolts and nuts that are coated with seal lock adhesive at the factory. (2) If a precoated part is retightened, loosened or moved in any way, it must be recoated with the specified adhesive. (3) When reusing a precoated part, clean off the old adhesive and dry the part with compressed air. Then apply new seal lock adhesive appropriately to that part. (4) Some seal lock agents harden slowly. You may have to wait for the seal lock adhesive to harden. (d) GASKETS

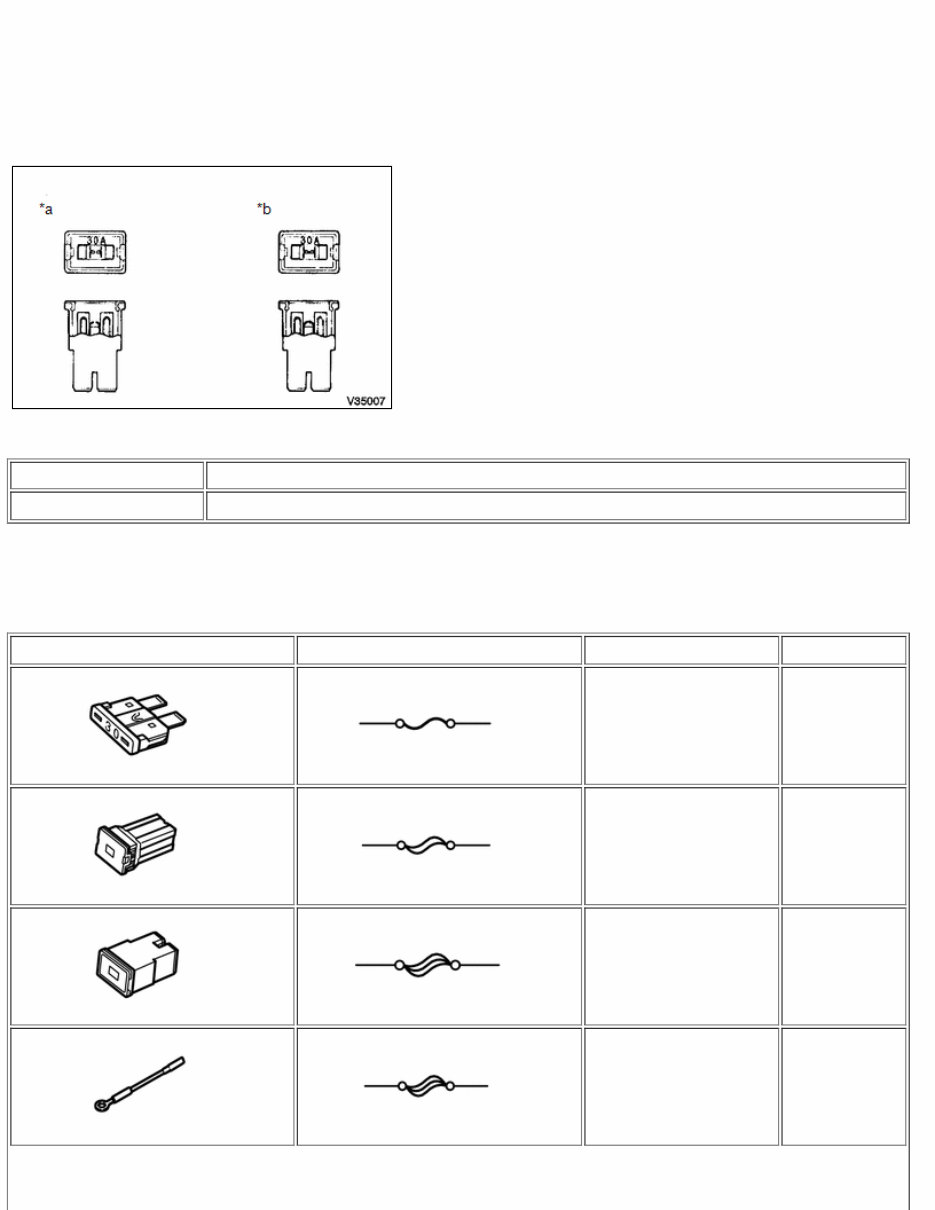

(1) When necessary, use a sealer on gaskets to prevent leaks. (e) BOLTS, NUTS AND SCREWS (1) Carefully follow all the specifications for tightening torque. Always use a torque wrench. (2) Make sure that no foreign matter (burrs, paint, etc.) gets trapped under the heads of the bolts and nuts when tightening them. (f) FUSES Text in Illustration *a INCORRECT *b CORRECT (1) When inspecting a fuse, check that the wire of the fuse is not broken. (2) If the wire of a fuse is broken, confirm that there are no shorts in its circuit. (3) When a fuse is replaced, a fuse with the same amperage rating must be used. ILLUSTRATION SYMBOL PART NAME ABBREVIATION FUSE FUSE MEDIUM CURRENT FUSE M-FUSE HIGH CURRENT FUSE H-FUSE FUSIBLE LINK FL

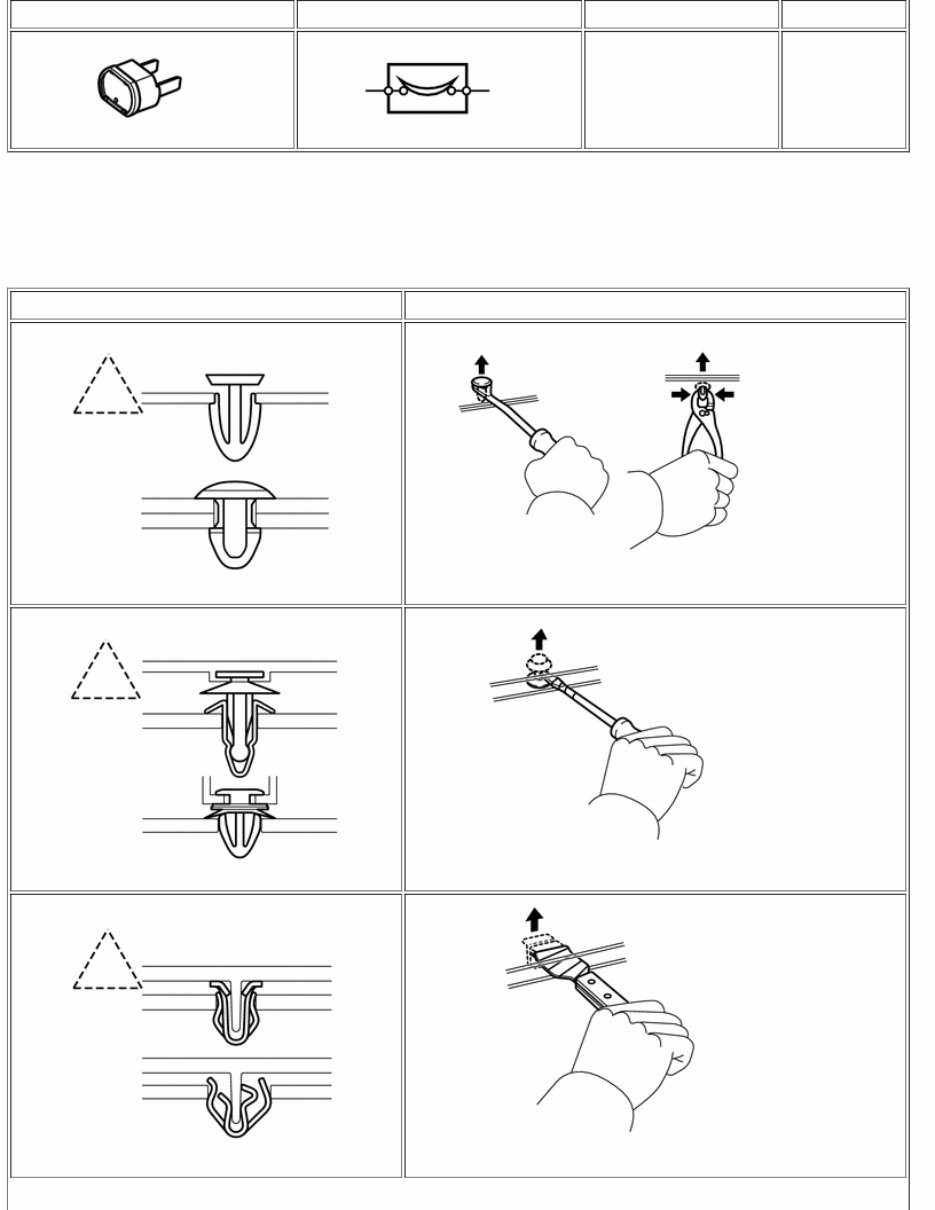

ILLUSTRATION SYMBOL PART NAME ABBREVIATION CIRCUIT BREAKER CB (g) CLIPS (1) The removal and installation methods of typical clips used for vehicle body parts are shown in the table below. HINT: If clips are damaged during a procedure, always replace the damaged clips with new ones. SHAPE (EXAMPLE) REMOVAL/INSTALLATION Remove the clips with a clip remover or pliers. Remove the clips with a clip remover or screwdriver. Remove the clips with a wide scraper to prevent panel damage.

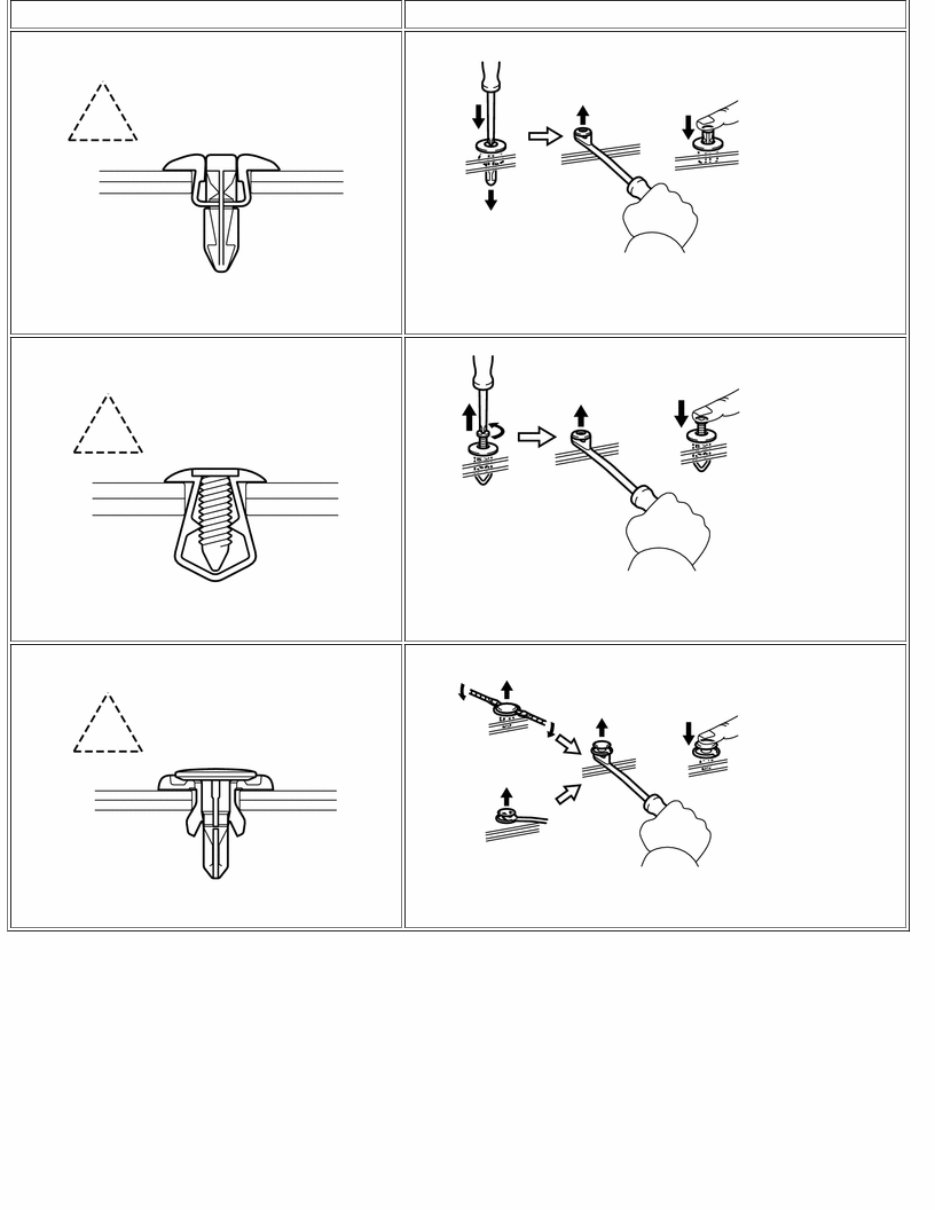

SHAPE (EXAMPLE) REMOVAL/INSTALLATION Remove the clips by pushing the center pin through and prying out the shell. Remove the clips by unscrewing the center pin and prying out the shell. Remove the clips by prying out the pin and then prying out the shell. (h) CLAWS (1) The removal and installation methods of typical claws used for vehicle body parts are shown in the table below. HINT: If claws are damaged during a procedure, always replace the cap or cover that has damaged claws with a new one.

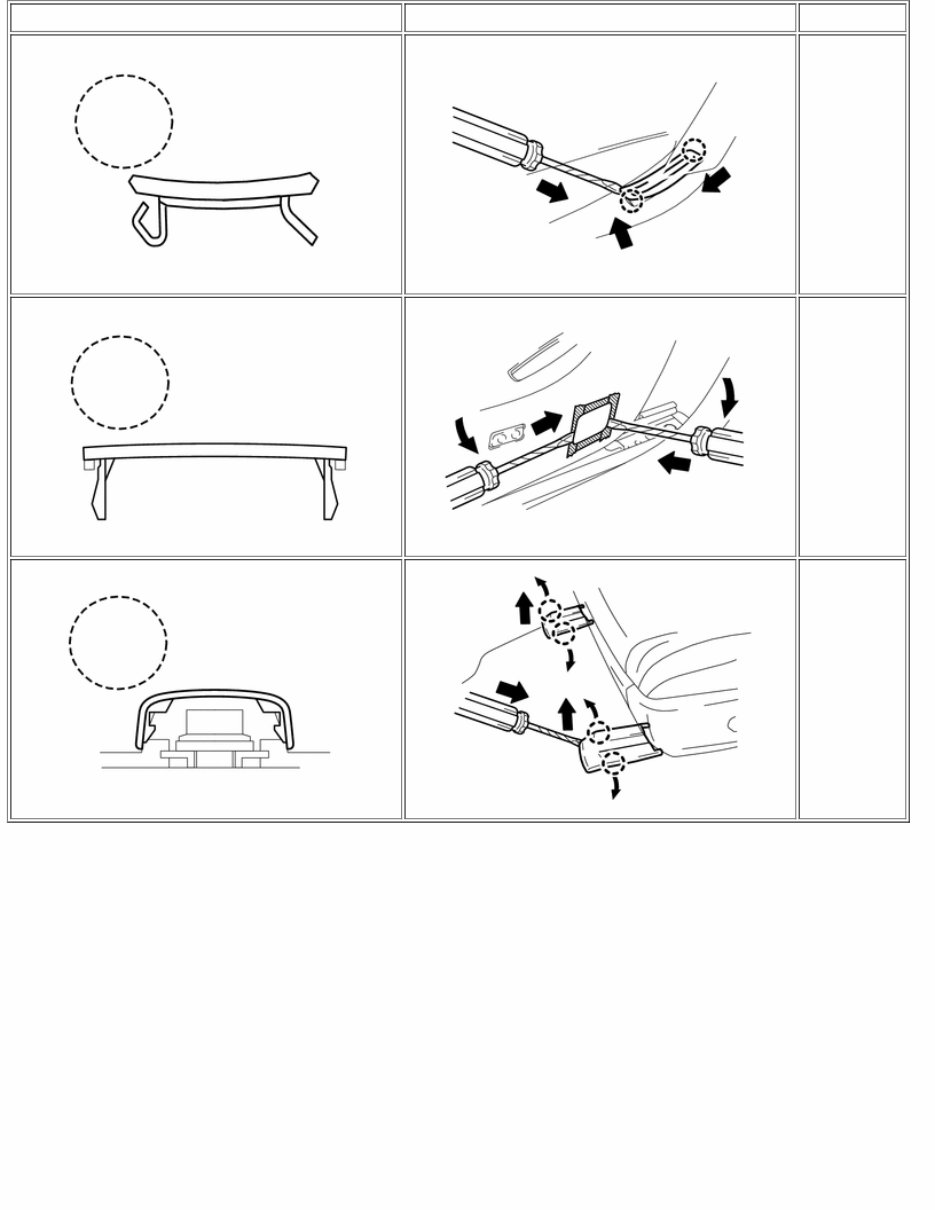

SHAPE (EXAMPLE) ILLUSTRATION PROCEDURE Using a screwdriver, disengage the claws and remove the cap or cover. Using a screwdriver, disengage the claws and remove the cap or cover. Using a screwdriver, disengage the claws and remove the cap or cover. (i) HINGES, GUIDES, CLAMPS, PINS, ETC. (1) The removal and installation methods of typical hinges, guides, clamps and pins used for vehicle body parts are shown in the table below. HINT: If clamps are damaged during a procedure, always replace the cap or cover that has damaged clamps with a new one.
