2007 Suzuki SX4 Owners Manual

Part No. 99011-80J20-03E June, 2006 99011-80J20-03E Printed in Japan 10.5 mm ENGLISH Suzuki Red: Magenta 100%, Yellow 100% Suzuki Blue: Cyan 100%, Magenta 70% OWNER’S MANUAL Keep With Vehicle At All Times. Contains Important Information On Safety, Operation & Maintenance. SX4 2007 Made from 100% recycled paper, except for cover. See page 1-1 SERVICE STATION INFORMATION Fuel recommendation: Brake and clutch fluid: Engine oil recommendation: Automatic transaxle fluid: Tire cold pressure: For further details, see “Engine Oil and Filter” in the “INSPECTION AND MAINTENANCE” section. DOT3 An equivalent of DEXRON® -III. See the “Tire Information Label” located on the driver’s door lock pillar. Engine oil with “Starburst” symbol

80J20-03E Prepared by June, 2006 Part No. 99011-80J20-03E Printed in Japan TPxxx

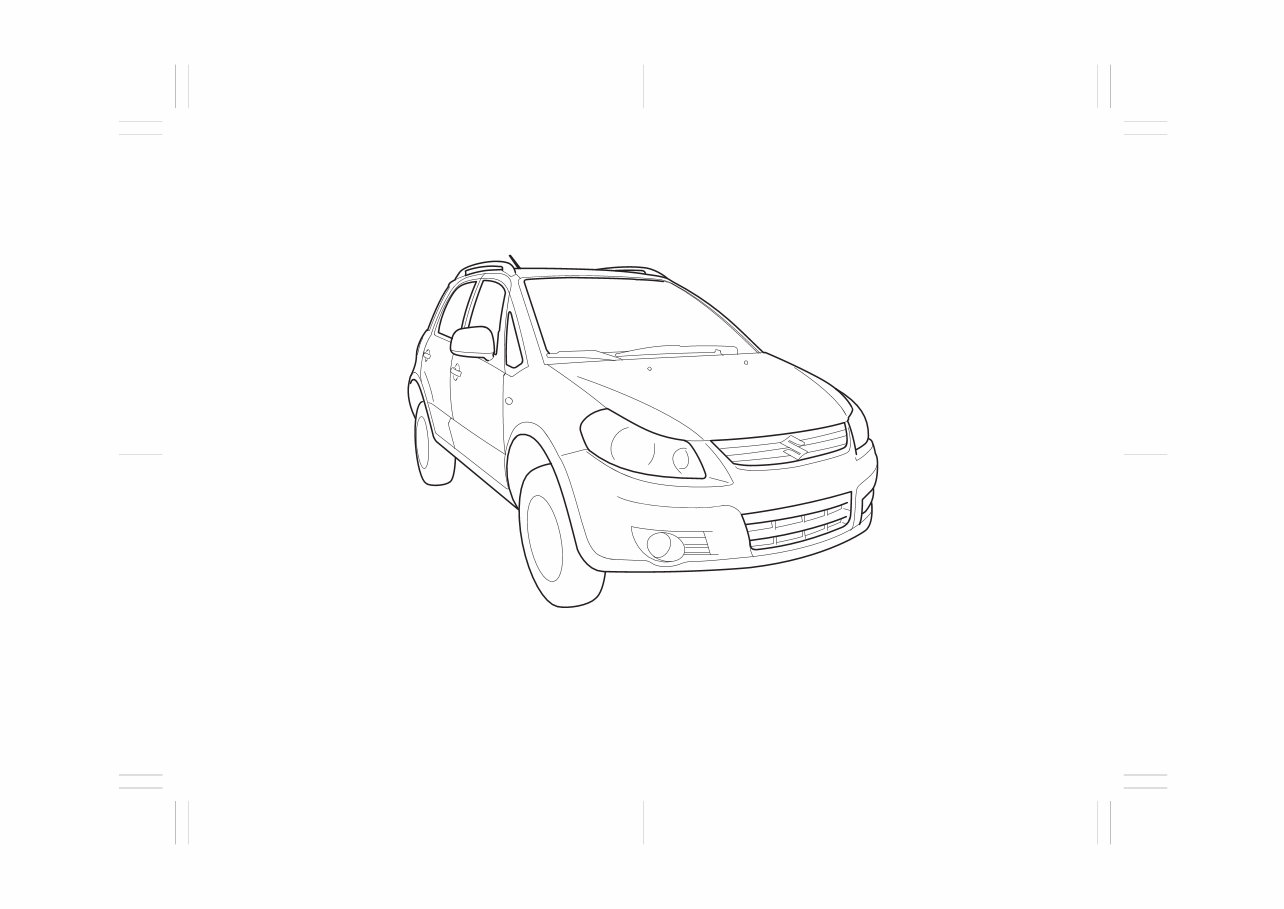

80J20-03E This owner’s manual applies to the SX4 series: 80J002 NOTE: The illustrated model is one of the SX4 series. © COPYRIGHT SUZUKI MOTOR CORPORATION 2006

80J20-03E INTRODUCTION Thank you for choosing SUZUKI and welcome to our growing family. Your choice was a wise one; SUZUKI products are a great value that will give you years of driving pleasure. This Owner’s Manual was prepared to help you have a safe, enjoyable, and trouble-free experience with your SUZUKI. In it you will learn about the vehicle’s operation, its safety features and maintenance requirements. Please read it carefully before operating your vehicle. Afterwards, keep this Manual in the glove box for future reference. Should you resell the vehicle, please leave this Manual with it for the next owner. In addition to the Owner’s Manual, the other booklets provided with your SUZUKI explain the vehicle’s warranties. We recommend you read them as well to familiarize yourself with this important information. When planning the regular scheduled maintenance of your SUZUKI, we recommend you visit your local SUZUKI dealership. Their fac- tory-trained technicians will provide the best possible service and use only genuine SUZUKI parts and accessories.

80J20-03E SERVICE STATION GUIDE 1. Fuel (see section 1) 2. Engine hood (see section 5) 3. Tire changing tools (see section 5) 4. Engine oil dipstick <Yellow> (see section 9) 5. Automatic transmission fluid dipstick <Red> (see section 9) 6. Engine coolant (see section 9) 7. Windshield washer fluid (see section 9) 8. Battery (see section 9) 9. Tire pressure (see tire information label on driver’s door lock pillar) 10. Spare tire (see section 9) 79J182 LHD: Left Hand Drive RHD: Right Hand Drive (RHD) 2 5 2 (LHD) 2 4 7 6 (LHD) 1 9 (RHD) 9 3 10 8

80J20-03E TABLE OF CONTENTS California Proposition 65 Warning WARNING Engine exhaust, some of its constitu- ents, and certain product compo- nents contain or emit chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. FUEL RECOMMENDATION 1 BEFORE DRIVING 2 STEERING COLUMN CONTROLS 3 INSTRUMENT PANEL 4 OTHER CONTROLS AND EQUIPMENT 5 OPERATING YOUR VEHICLE 6 DRIVING TIPS 7 VEHICLE LOADING AND TOWING 8 INSPECTION AND MAINTENANCE 9 EMERGENCY SERVICE 10 APPEARANCE CARE 11 GENERAL INFORMATION 12 FUSES AND PROTECTED CIRCUITS 13 SPECIFICATIONS 14 INDEX 15

80J20-03E LOCATION OF WARNING MESSAGES Read and follow all of the warnings (labels etc.) on your vehicle. Make sure you understand all of them. Keep them on the vehicle. Do not remove the messages for any reason. If a label comes off or the messages become difficult to be read, have it corrected by your SUZUKI dealer. 1. Air bag warning labels (on both sun visors) 2. Passenger seat belt warning label 3. Rear center seat belt warning label 4. Jacking warning label 5. Fuel filler cap message 6. Brake fluid cap message 7. Engine cooling fan warning label 8. Radiator cap warning label 9. Air conditioner warning label 10. Battery label 11. Compact spare tire warning label 12. Rear outboard seat belt warning label 13. Side air bag warning label 80J054 5 6 8 7 10 1 3 2 9 11 4 12 12 12 13 13 13 Driver Passenger

0-1 80J20-03E FOREWORD All information in this manual is based on the latest product information avail- able at the time of publication. Due to improvements or other changes, there may be discrepancies between information in this manual and your vehicle. SUZUKI MOTOR CORPORATION reserves the right to make production changes at any time, without notice and without incurring any obligation to make the same or similar changes to vehicles previously built or sold. SUZUKI MOTOR CORPORATION believes in conservation and protection of Earth’s natural resources. To that end, we encourage every vehicle owner to recycle, trade in, or properly dis- pose of, as appropriate, used motor oil, coolant, and other fluids, batteries and tires. IF YOU HAVE ANY PROBLEMS WITH YOUR SUZUKI: Please review the New Vehicle Warranty Information booklet supplied with your SUZUKI. Should you have a question or problem regarding the warranty or service of your vehicle, please take the following action: Consult the Service Manager and the Owner of the Suzuki Automotive Dealer- ship. Explain your problem and ask for their assistance in resolving your problem. The Owner of the dealership is in the very best position to assist you as he or she is vitally concerned with your continued satis- faction. If you are still in need of additional information, or if you are dissatisfied, request that your dealer arrange a meeting with your District Service Manager. If, after doing so, you still require further assistance, and you purchased your SUZUKI in the continental United States, please contact the American Suzuki Cus- tomer Relations Department by telephone at 1-800-934-0934 or in writing at: American Suzuki Motor Corporation Automotive Customer Relations 3251 East Imperial Highway Brea, CA 92821-6795 If you purchased your SUZUKI in Canada please contact the Suzuki Canada Cus- tomer Relations Department by telephone at 1-905-889-2677 extension 2254 or in writing at: Suzuki Canada Inc. Customer Relations 100 East Beaver Creek Road Richmond Hill, On L4B 1J6 In the event you require assistance related to your SUZUKI, while temporarily travel- ling in either the United States or Canada, you may wish to contact the Suzuki Cus- tomer Relations Department directly of the country in which you are temporarily operating your vehicle. Please be certain to provide us with the following information: the model, Vehicle Identification Number, mileage, accessories involved, event dates, your concern, and any other comments which you may have. When we receive your correspon- dence, we will be pleased to contact the Owner of your dealership and assist in resolving your concern. For owners outside the continental United States, please refer to the distributor’s address listed in your Warranty Information booklet.

0-2 80J20-03E IMPORTANT WARNING/CAUTION/NOTE Please read this manual and follow its instructions carefully. To emphasize special information, the symbol and the words WARNING, CAUTION and NOTE have special meanings. Pay special atten- tion to the messages highlighted by these signal words: NOTE: Indicates special information to make maintenance easier or instructions clearer. 75F135 The circle with a slash in this manual means “Don’t do this” or “Don’t let this hap- pen”. MODIFICATION WARNING WARNING Indicates a potential hazard that could result in death or injury. CAUTION Indicates a potential hazard that could result in vehicle damage. WARNING Do not modify this vehicle. Modifica- tion could adversely affect safety, handling, performance or durability and may violate governmental regu- lations. In addition, damage or performance problems resulting from modification may not be covered under warranty. CAUTION Improper installation of mobile communication equipment such as cellu- lar telephones or CB (Citizen’s Band) radios may cause electronic interfer- ence with your vehicle’s ignition system, resulting in vehicle performance problems. Consult your SUZUKI dealer or qualified service technician for advice on installing such mobile communication equipment.

0-3 80J20-03E LEAK DETECTION PUMP NOTE: Your vehicle has a pump to regularly check the vehicle’s evaporative emission control system for leaks. This check is per- formed approximately five hours after the engine is turned off. During this leak check, you may hear a sound coming from the vehicle for several minutes. This sound is normal and does not indicate a malfunc- tion.
