OIL PUMP
Automatic Transmission
AT-2
1. Oil Pump
A: CONSTRUCTION
The pump consists of a prachoid rotor pair, a housing and a cover. The inner rotor has nine teeth
and the outer rotor has ten teeth.

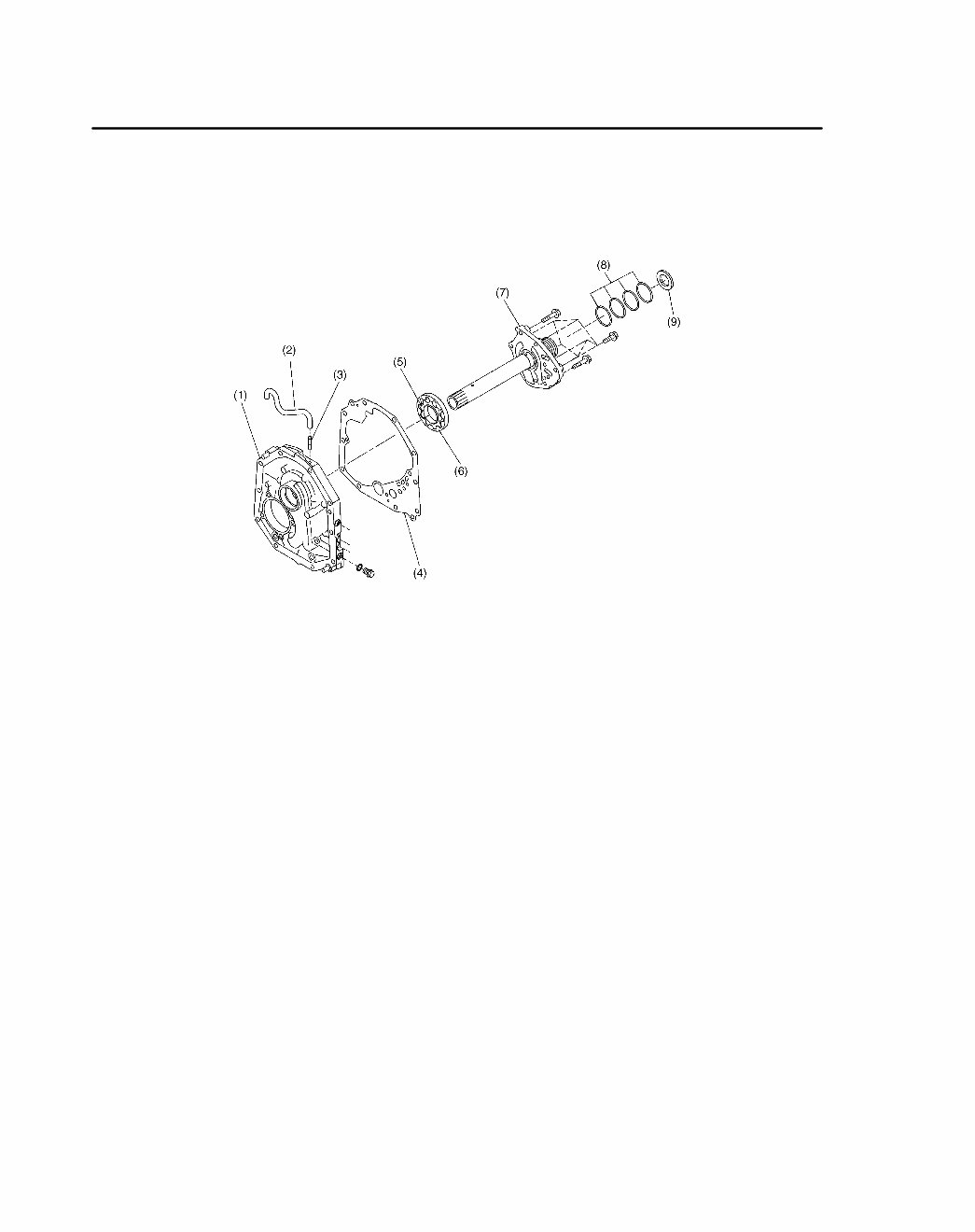

B3H0888A
(1) Oil pump housing (4) Gasket (7) Oil pump cover
(2) Hose (5) Inner rotor (8) Seal ring
(3) Nipple (6) Outer rotor (9) Thrust bearing
B: FUNCTION
D The pump draws automatic transmission fluid (ATF) from the oil pan through the oil strainer lo-
cated under the hydraulic control valve assembly. The ATF then flows through a passage in the
transmission case, and after passing through the oil pump housing and oil pump cover, it enters
the suction port.
D As the inner rotor rotates, the outer rotor also rotates. This motion causes the ATF to be sucked
up through the suction port and discharged from the discharged port.
D The discharged ATF flows through a passage in the oil pump cover and then a passage in the
oil pump housing. It then goes through a passage in the transmission case to the pressure regula-
tor valve in the control valve assembly, from which the ATF is directed to various clutches, brakes,
and torque converter lock-up clutch for acting as hydraulic fluid and lubricating oil. Part of the ATF
also flows, directly and after passing through the regulator valve, to the manual valve, from where
it is distributed to the circuit corresponding to the range selected by the selector lever.
D As engine speed increases, the delivery rate of the oil pump also increases.
OIL PUMP
Automatic Transmission
AT-3

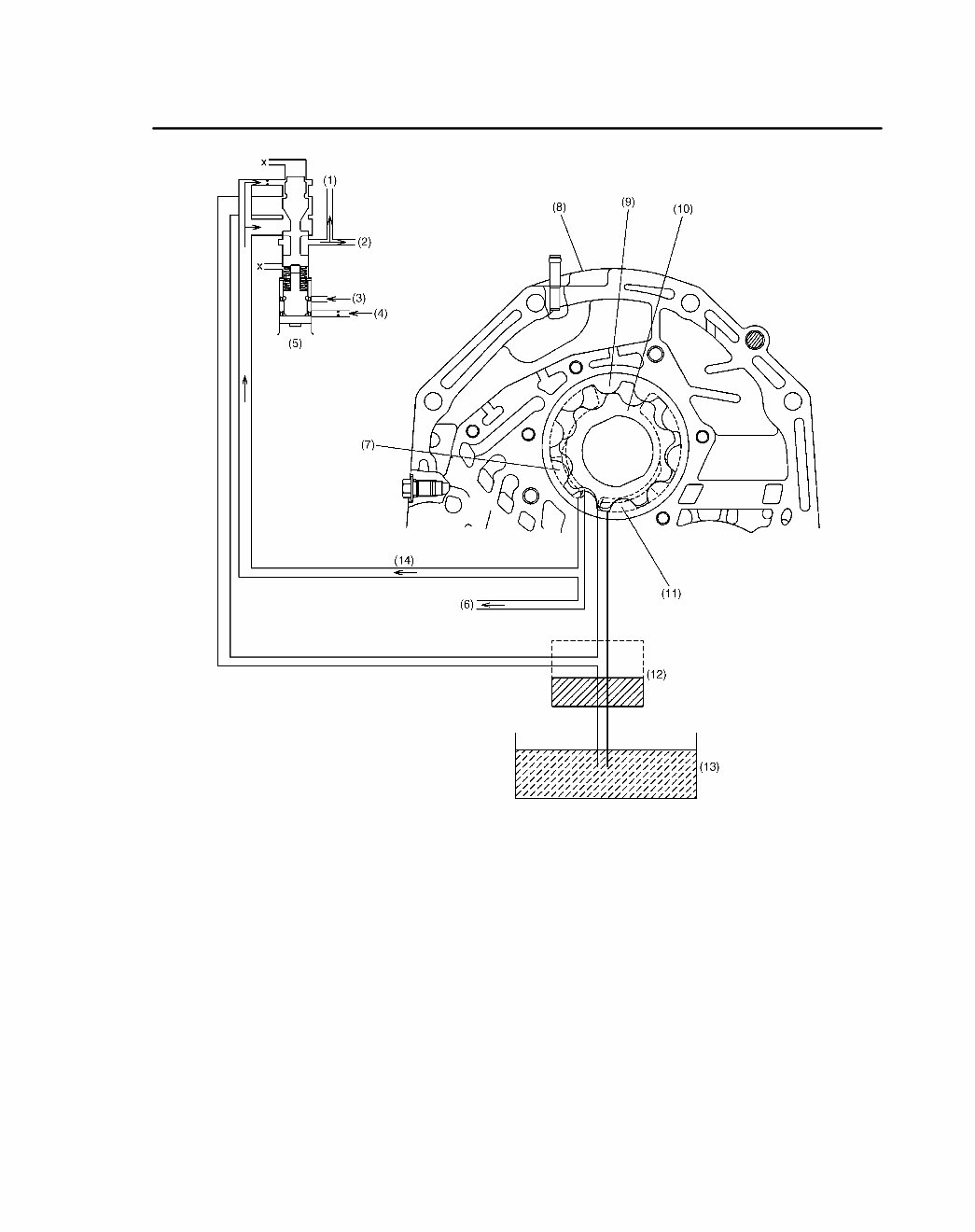

B3H1842A
(1) To torque converter regulator valve (8) Oil pump housing
(2) To manual valve (9) Outer rotor
(3) From reverse clutch (10) Inner rotor
(4) From pressure modifier valve (11) Suction port
(5) Pressure regulator valve (12) Oil strainer
(6) To manual valve (13) Oil pan
(7) Delivery port (14) Line pressure
