PS-2 General Description POWER ASSISTED SYSTEM (POWER STEERING) 1. General Description A: SPECIFICATION Model H4 model H6 model Whole system Minimum turning radius m (ft) 5.6 (18.4) Steering angle Inner wheel P225/50R17 tire: 37.4°±1.5° P225/45R18 tire: 37.4°±1.5° P215/50R17 tire: 37.6°±1.5° P205/60R16 tire: 37.6°±1.5° P225/60R17 tire: 38.4°±1.5° P215/70R16 tire: 38.4°±1.5° Outer wheel P225/50R17 tire: 33.0°±1.5° P225/45R18 tire: 33.0°±1.5° P215/50R17 tire: 33.3°±1.5° P205/60R16 tire: 33.3°±1.5° P225/60R17 tire: 34.1°±1.5° P215/70R16 tire: 34.1°±1.5° Steering wheel diameter mm (in) 375 (14.76) Lock-to-lock revolution number OUTBACK: 3.2 Except for OUTBACK: 2.8 Gearbox Type Rack and Pinion, Integral Backlash 0 (automatic adjusting) Valve (power steering system) Rotary valve Pump (Power steering system) Type Vane pump Oil tank Installed on body Specific output cm 3 (cu in)/rev. 8.5 (0.519) 8.5 (0.519) Relief pressure kPa (kgf/cm 2 , psi) 8,300 — 9,000 (85 — 92, 1,203 — 1,305) 8,900 — 9,600 (91 — 98, 1,290 — 1,392) Hydraulic fluid control Engine speed sensitive Hydraulic fluid L (US qt, Imp qt) 1,000 rpm: 6.5 (6.9, 5.7) 3,000 rpm: 5.3 (5.6, 4.7) 1,000 rpm: 6.8 (7.2, 6) 3,000 rpm: 5.8 (6.1, 5.1) RPM range rpm 500 — 9,600 645 — 9,675 Direction of rotation Clockwise Hydraulic oil (Power steering system) Capacity L (US qt, Imp qt) Oil tank 0.2 (0.2, 0.2) Whole system 0.7 (0.7, 0.6)

PS-3 General Description POWER ASSISTED SYSTEM (POWER STEERING) Steering wheel Free play mm (in) 17 (0.67) Steering shaft Clearance between the steering wheel and column cover mm (in) 4 — 6 (0.16 — 0.24) Steering gearbox (Power steering system) Sliding resistance N (kgf, lbf) 375 (38.2, 84) or less Difference between right and left sliding resistance: 20% Rack shaft play in the radial direction Right-turn steering mm (in) Horizontal play: 0.6 (0.024) or less Vertical play: 0.4 (0.016) or less Left-turn steering mm (in) 0.4 (0.016) or less Input shaft play In radial direction mm (in) 0.18 (0.0071) or less In axial direction mm (in) 0.27 (0.0106) or less Rotational resistance N (kgf, lbf) Maximum allowable value: 17 (1.7, 3.8) or less Difference between right and left sliding resistance: 20% Oil pump (Power steering system) Pulley shaft Radial play mm (in) 0.2 (0.008) or less Axial play mm (in) 0.9 (0.035) or less Pulley Ditch deflection mm (in) 1.0 (0.039) or less Rotational resistance N (kgf, lbf) 9.22 (0.94, 2.07) or less Regular pressure (unloaded) kPa (kgf/cm 2 , psi) 981 (10, 142) or less Steering wheel effort (Power steering system) At standstill with engine idling on paved road N (kgf, lbf) 29.4 (3.0, 6.6) or less At standstill with engine stalled on paved road N (kgf, lbf) 294.2 (30, 66.2) or less Recommended power steering fluid SUBARU PS fluid or DEXRON III

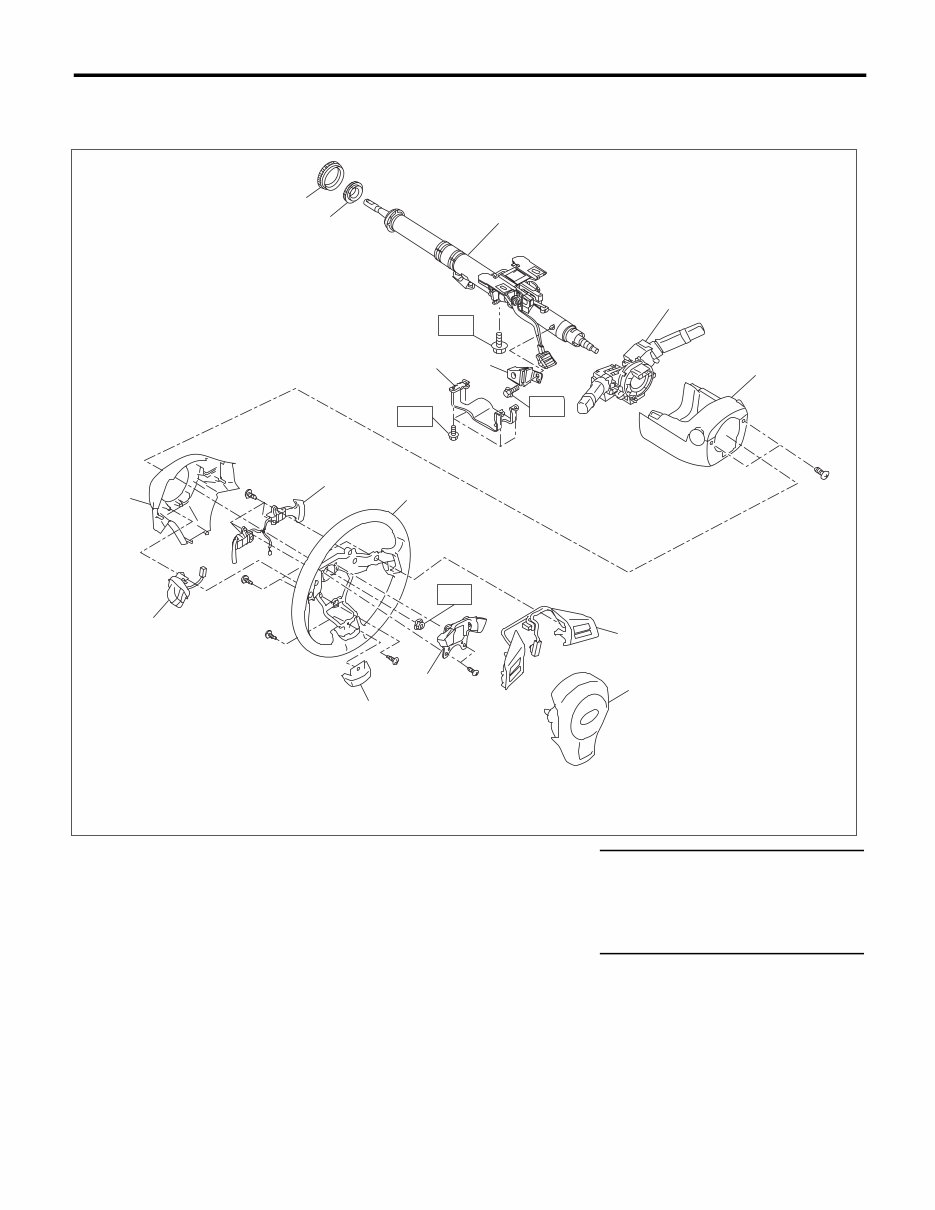

PS-4 General Description POWER ASSISTED SYSTEM (POWER STEERING) B: COMPONENT 1. STEERING WHEEL AND COLUMN (1) Bushing (8) Steering wheel lower cover Tightening torque: N·m (kgf-m, ft-lb) (2) Insulator (CVT model) (9) Paddle shift T1: 3.4 (0.35, 2.5) (3) Steering shaft (10) Steering switch T2: 7.5 (0.76, 5.5) (4) Dynamic damper (11) Steering wheel T3: 20 (2.04, 14.8) (5) Knee protector (12) Cover steering T4: 39 (3.98, 28.8) (6) Steering roll connector (13) Switch (7) Column cover (14) Airbag module PS-01664 T3 (1) (3) (6) (7) (2) (14) (11) (13) (9) (8) (12) (10) (4) T2 (4) T4 (5) T1

PS-5 General Description POWER ASSISTED SYSTEM (POWER STEERING) 2. HOSE AND TANK (1) Cap (7) Eyebolt Tightening torque: N·m (kgf-m, ft-lb) (2) Reservoir tank (8) Eyebolt gasket T1: 7.5 (0.76, 5.5) (3) Clip (9) Oil pump T2: 10 (1.02, 7.4) (4) Return hose (10) Clip T3: 13 (1.33, 9.6) (5) Clip (11) Suction hose T4: 40 (4.08, 29.5) (6) Hose ASSY PS-01103 T1 T2 T3 T3 T4 (1) (2) (3) (3) (4) (5) (6) (7) (8) (9) (10) (10) (11)

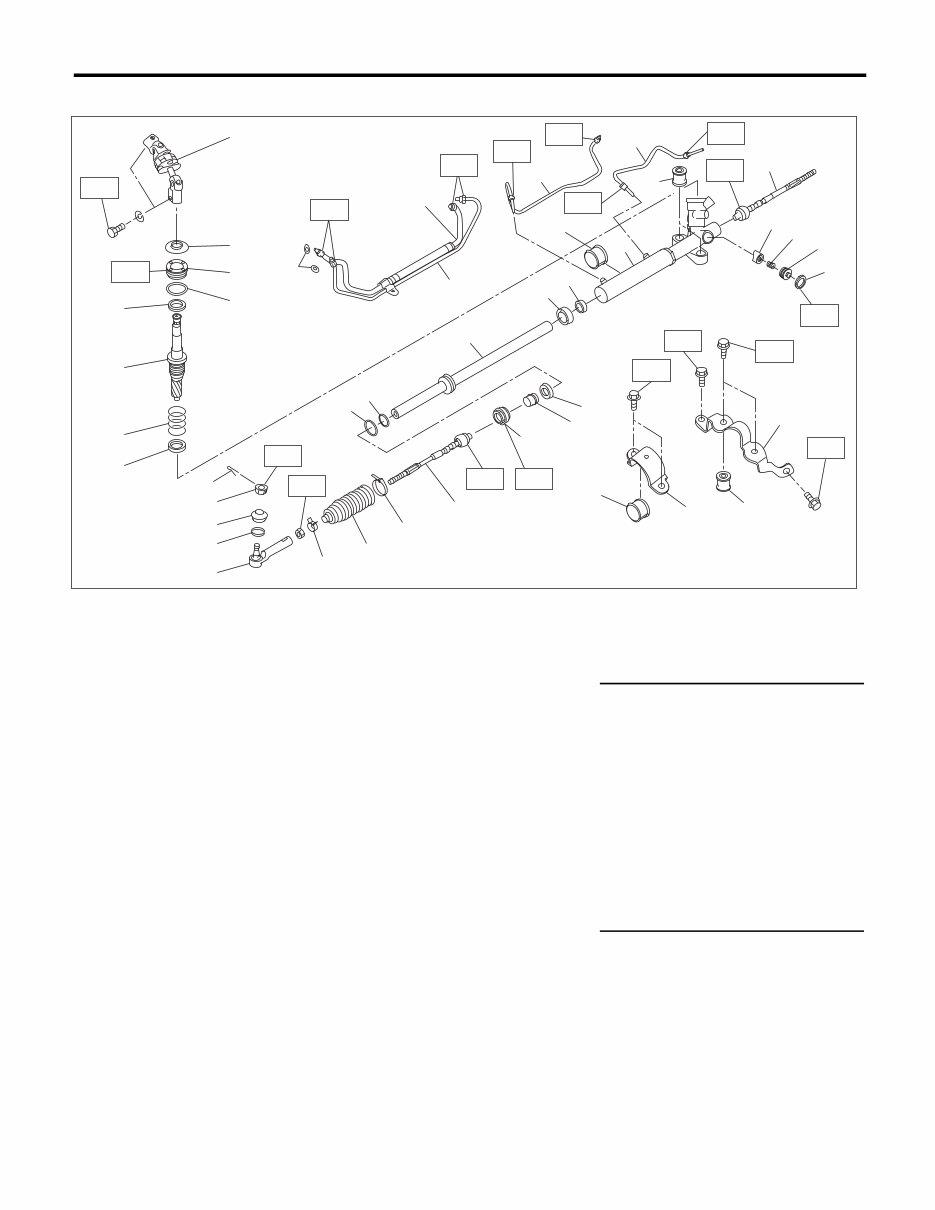

PS-6 General Description POWER ASSISTED SYSTEM (POWER STEERING) 3. STEERING GEARBOX (1) Universal joint (19) Tie-rod (37) Feed pipe (2) Dust cover (20) Holder (38) Return pipe (3) Plug (21) Bushing (39) O-ring (4) O-ring (22) Oil seal (5) Oil seal (23) Seal ring Tightening torque: N·m (kgf-m, ft-lb) (6) Control valve (24) O-ring T1: 15 (1.53, 11.1) (7) Seal ring (25) Rack T2: 20 (2.04, 14.8) (8) Oil seal (26) Oil seal T3: 24 (2.45, 17.7) (9) Adapter (27) Back-up ring T4: 27 (2.75, 19.9) (10) Clamp (28) Steering body T5: 39 (3.98, 28.8) (11) Castle nut (29) Pipe A T6: 45 (4.59, 33.2) (12) Cotter pin (30) Pipe B T7: 60 (6.12, 44.3) (13) Dust seal (31) Lock nut T8: 64 (6.53, 47.2) (14) Clip (32) Adjusting screw T9: 75 (7.65, 55.3) (15) Tie-rod end (33) Spring T10: 85 (8.67, 62.7) (16) Clip (34) Sleeve T11: 90 (9.18, 66.4) (17) Boot (35) Bushing (18) Band (36) Stiffener (1) (2) (3) (4) (5) (7) (6) (9) (11) (12) (13) (14) (15) (16) (17) (18) (19) (19) (21) (22) (23) (24) (25) (26) (27) (28) (30) (31) (32) (33) (34) (35) (36) (35) (9) (10) T3 T8 T4 T10 T7 T7 T7 T7 T5 T2 T11 (8) (38) (37) T11 T9 (20) T1 T6 T3 (29) T2 T3 (39) PS-01454

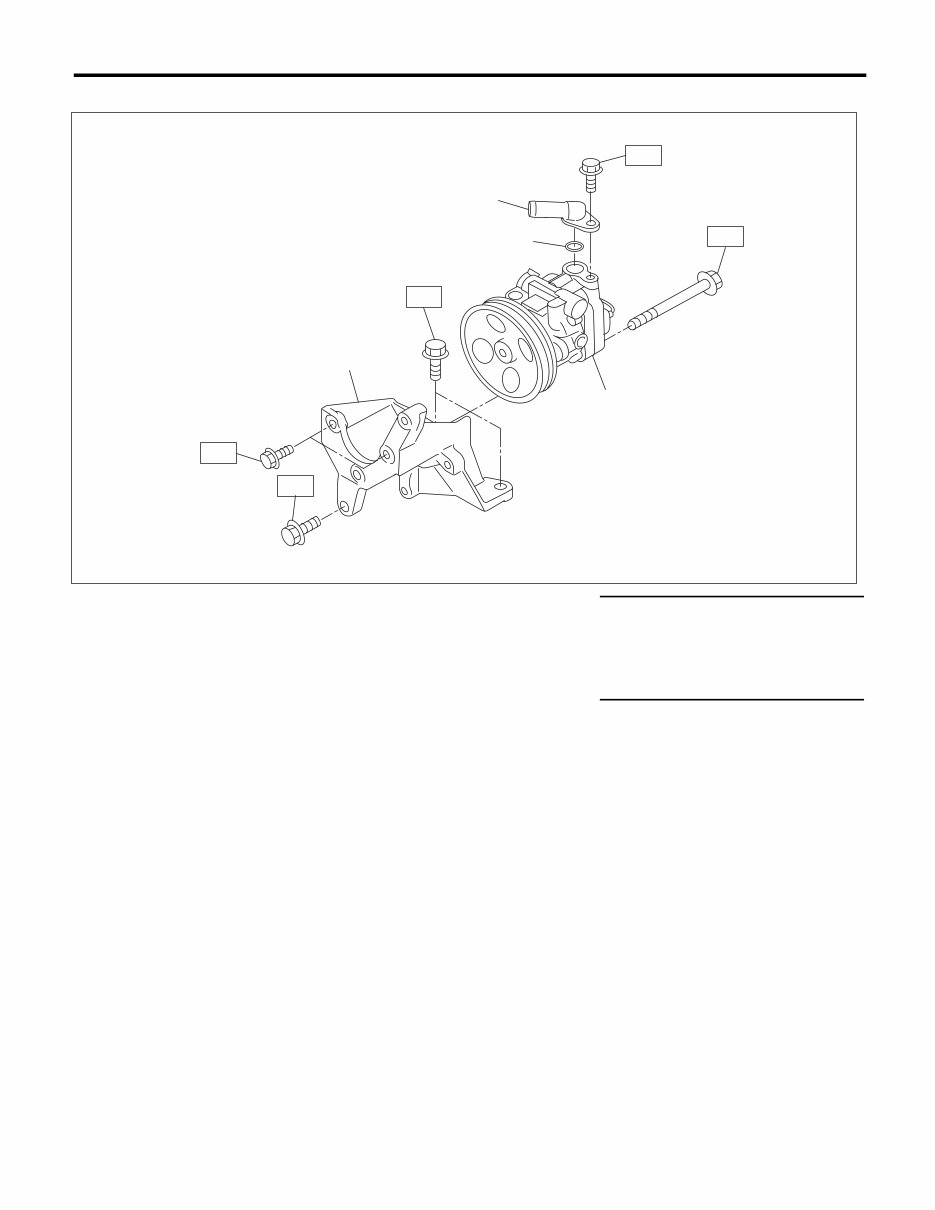

PS-7 General Description POWER ASSISTED SYSTEM (POWER STEERING) 4. OIL PUMP • H4 model (1) Bracket Tightening torque: N·m (kgf-m, ft-lb) (2) Oil pump T1: 11 (1.12, 8.1) (3) O-ring T2: 16 (1.63, 11.8) (4) Joint T3: 36 (3.67, 26.6) T3 (2) T2 PS-01665 T3 T3 T3 (1) (3) (4) T1

PS-8 General Description POWER ASSISTED SYSTEM (POWER STEERING) • H6 model C: CAUTION • Wear appropriate work clothing, including a helmet, protective goggles and protective shoes when per- forming any work. • Before removal, installation or disassembly, be sure to clarify the failure. Avoid unnecessary removal, installation, disassembly and replacement. • Vehicle components are extremely hot after driving. Be wary of receiving burns from heated parts. • Use grease and oil of Subaru genuine or the equivalent products. Do not mix them of different grades or manufacturers. • Be sure to tighten fasteners including bolts and nuts to the specified torque. • Place shop jacks or rigid racks at the specified points. • Before securing a part on a vise, place cushioning material such as wooden blocks, aluminum plate or cloth between the part and the vise. • If the steering wheel and steering angle sensor are removed, perform the 0 point setting mode for the steering angle sensor. <Ref. to VDC-20, ADJUSTMENT, VDC Control Module and Hydraulic Control Unit (VDCCM&H/U).> (1) Bracket Tightening torque: N·m (kgf-m, ft-lb) (2) Oil pump T1: 16 (1.63, 11.8) (3) O-ring T2: 21 (2.14, 15.5) (4) Joint T3: 33 (3.36, 24.3) T4: 36 (3.67, 26.6) PS-01065 T1 T2 T3 T3 T4 (2) (3) (4) (1)

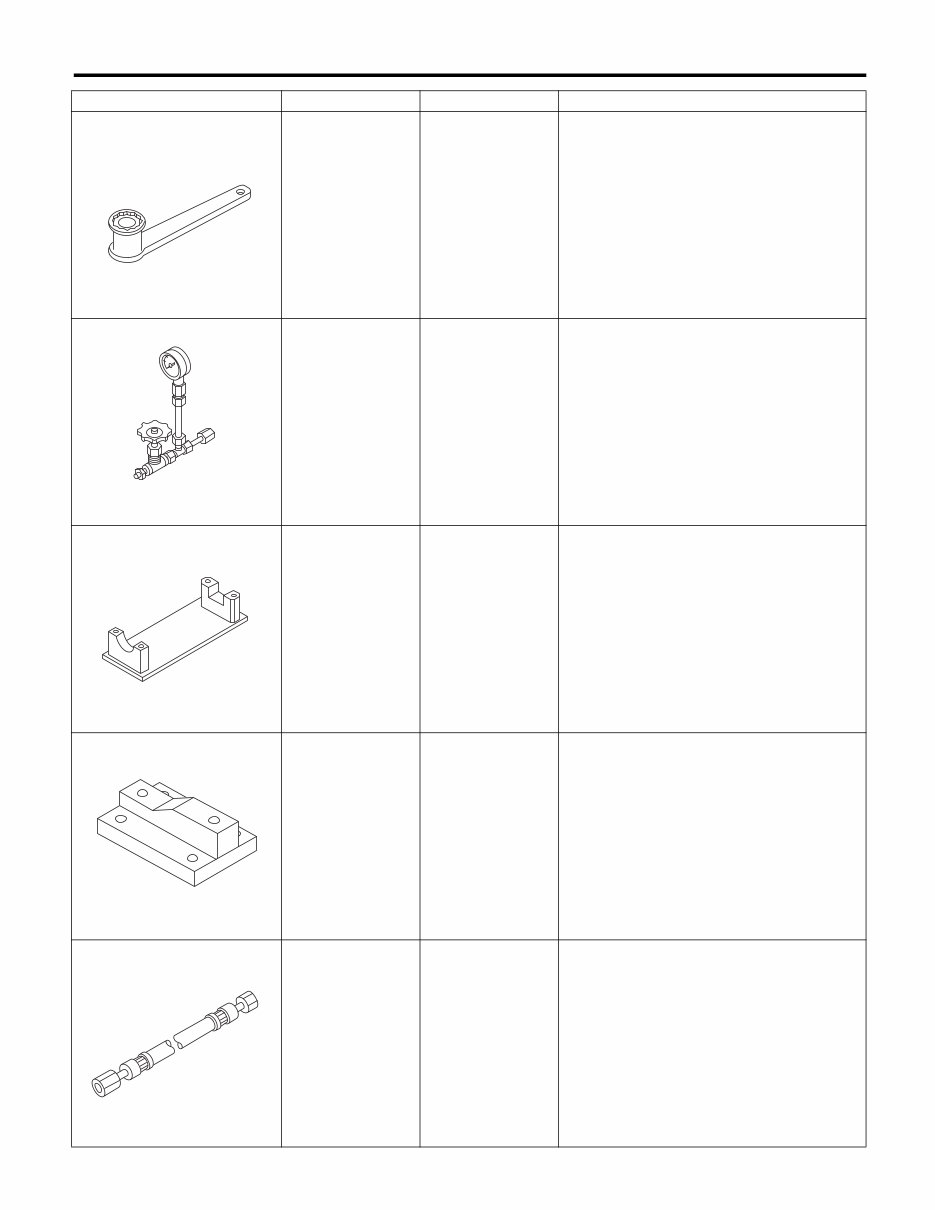

PS-9 General Description POWER ASSISTED SYSTEM (POWER STEERING) D: PREPARATION TOOL 1. SPECIAL TOOL ILLUSTRATION TOOL NUMBER DESCRIPTION REMARKS 99099AJ000 ENGINE HANGER • Used for hanging power unit. • Used together with CHAIN BALANCER (99099AJ010). 99099AJ010 CHAIN BALANCER • Used for hanging power unit. • Used together with ENGINE HANGER (99099AJ000). 10004AA180 (SUBARU genuine part) HANGER CP ENGINE RR • Used for hanging power unit. • For H4 non-turbo model. • SUBARU genuine part 18360AA020 HANGER • Used for hanging power unit. • For H6 model. ST99099AJ000 ST99099AJ010 ST10004AA180 ST18360AA020

PS-10 General Description POWER ASSISTED SYSTEM (POWER STEERING) 34199AJ060 SPECIAL TOOL CPS Used for adjusting the backlash of gearbox. (Lock nut side) 925711000 PRESSURE GAUGE Used for measuring oil pressure. 926200000 STAND • Used when inspecting characteristic of gearbox assembly and disassembling it. • Used together with BOSS D (34199AG000). 34199AG000 BOSS D • Used when inspecting characteristic of gearbox assembly and disassembling it. • Used together with STAND (926200000). 34099AC010 ADAPTER HOSE A Used together with PRESSURE GAUGE (925711000). ILLUSTRATION TOOL NUMBER DESCRIPTION REMARKS ST34199AJ060 ST-925711000 ST-926200000 ST34199AG000 ST34099AC010

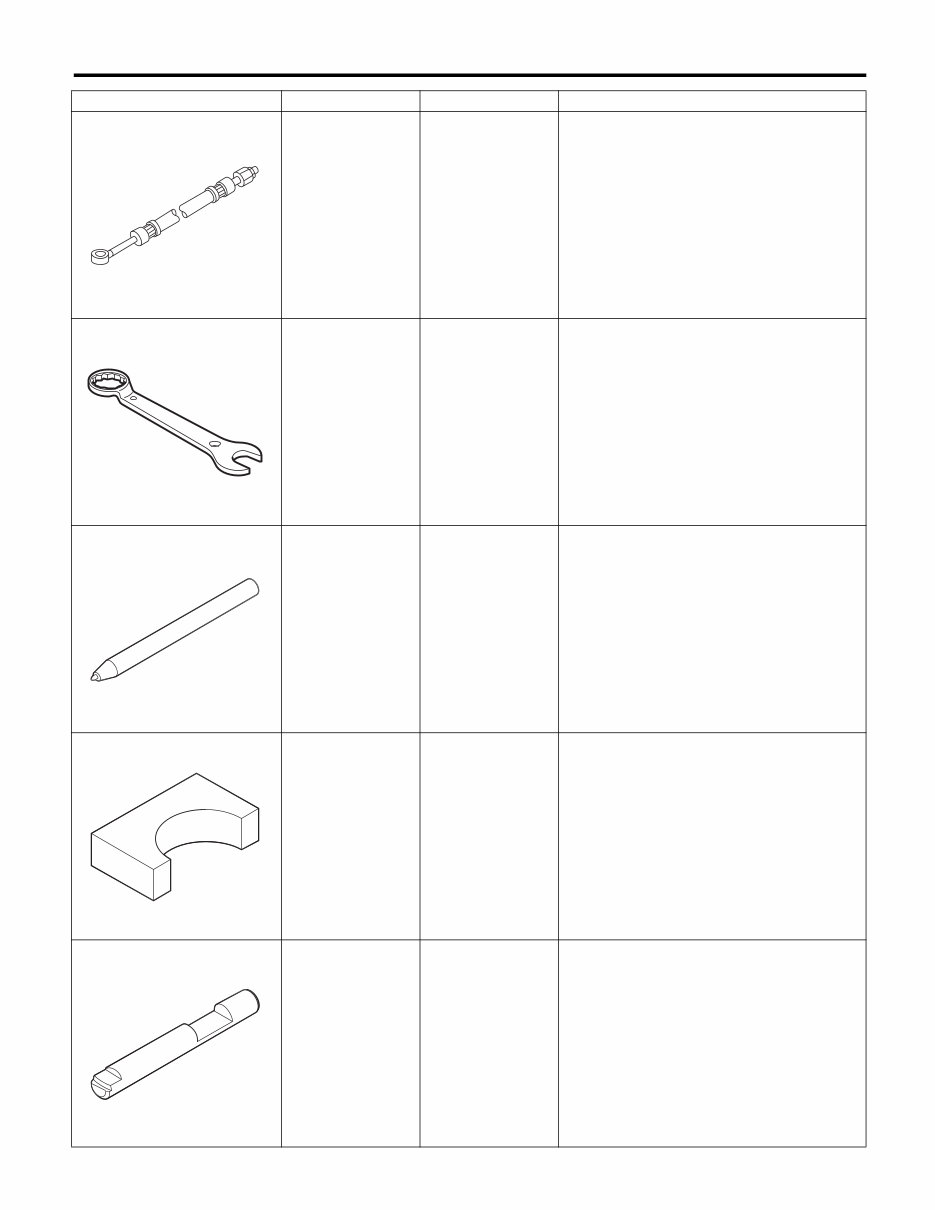

PS-11 General Description POWER ASSISTED SYSTEM (POWER STEERING) 34099AC020 ADAPTER HOSE B Used together with PRESSURE GAUGE (925711000). 34099PA100 SPANNER Used when measuring the rotational resistance of gearbox assembly. 34099FA060 PUNCH HOLDER Used for crimping. 34199FE020 BASE Used for crimping. 34099FA080 PUNCH Used for removing crimps. ILLUSTRATION TOOL NUMBER DESCRIPTION REMARKS ST34099AC020 ST34099PA100 ST34099FA060 ST34199FE020 ST34099FA080
