PS-2 POWER ASSISTED SYSTEM (POWER STEERING) General Description 1. General Description A: SPECIFICATION Model NON-TURBO TURBO 2.5i, OUTBACK WRX STI Whole system Minimum turning radius m (ft) 5.4 (17.7) 5.7 (18.7) Steering angle (Inside-Outside) 34.5° — 30.3° 32.9° — 28.5° Steering wheel diameter mm (in) 375 (14.76) 375 (14.76) Lock-to-lock speed (Turns lock to lock, Gear box) 3.0 2.7 2.6 Gearbox Type Rack and pinion, Integral Backlash 0 (Automatically adjustable) Valve (Power steering system) Rotary valve Pump (Power steering system) Type Vane pump Oil tank Installed on body Output cm 3 (cu in)/rev. 7.2 (0.439) 7.2 (0.439) Relief pressure kPa (kgf/cm 2 , psi) 6,700 — 7,400 (68 — 75, 972 — 1,073) 7,350 — 8,036 (75 — 82, 1,067 — 1,165) Hydraulic fluid control Dropping in response to increased engine revolutions Hydraulic fluid 2 (US qt, Imp qt) 1,000 rpm: 7 (7.4, 6.2) 3,000 rpm: 5 (5.3, 4.4) 7.5 (7.9, 6.6) Range of revolution rpm 700 — 9,000 Revolving direction Clockwise Working fluid (Power steering system) Name ATF DEXRON III Capacity Oil tank 0.3 (0.3, 0.3) 2 (US qt, Imp qt) Total 0.7 (0.7, 0.6)

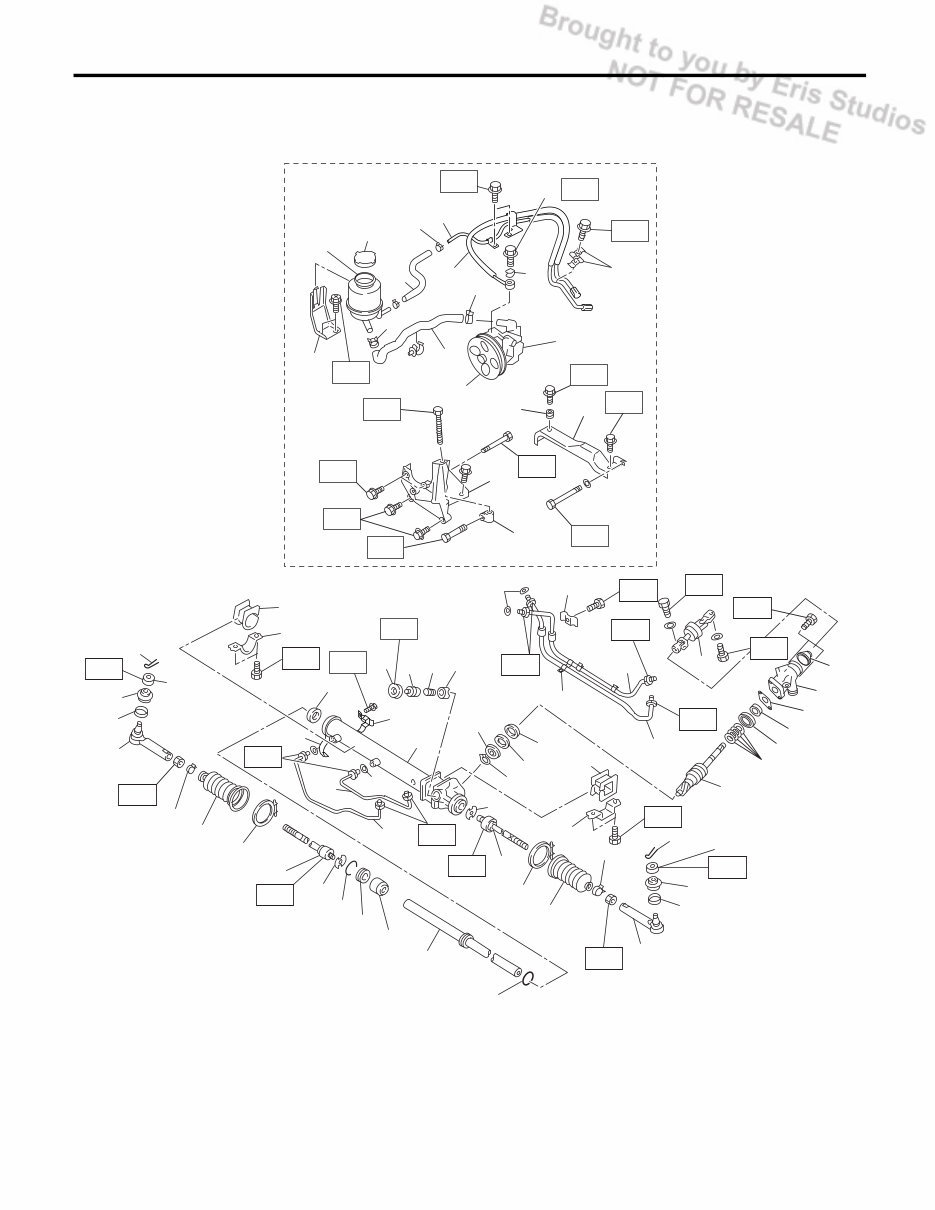

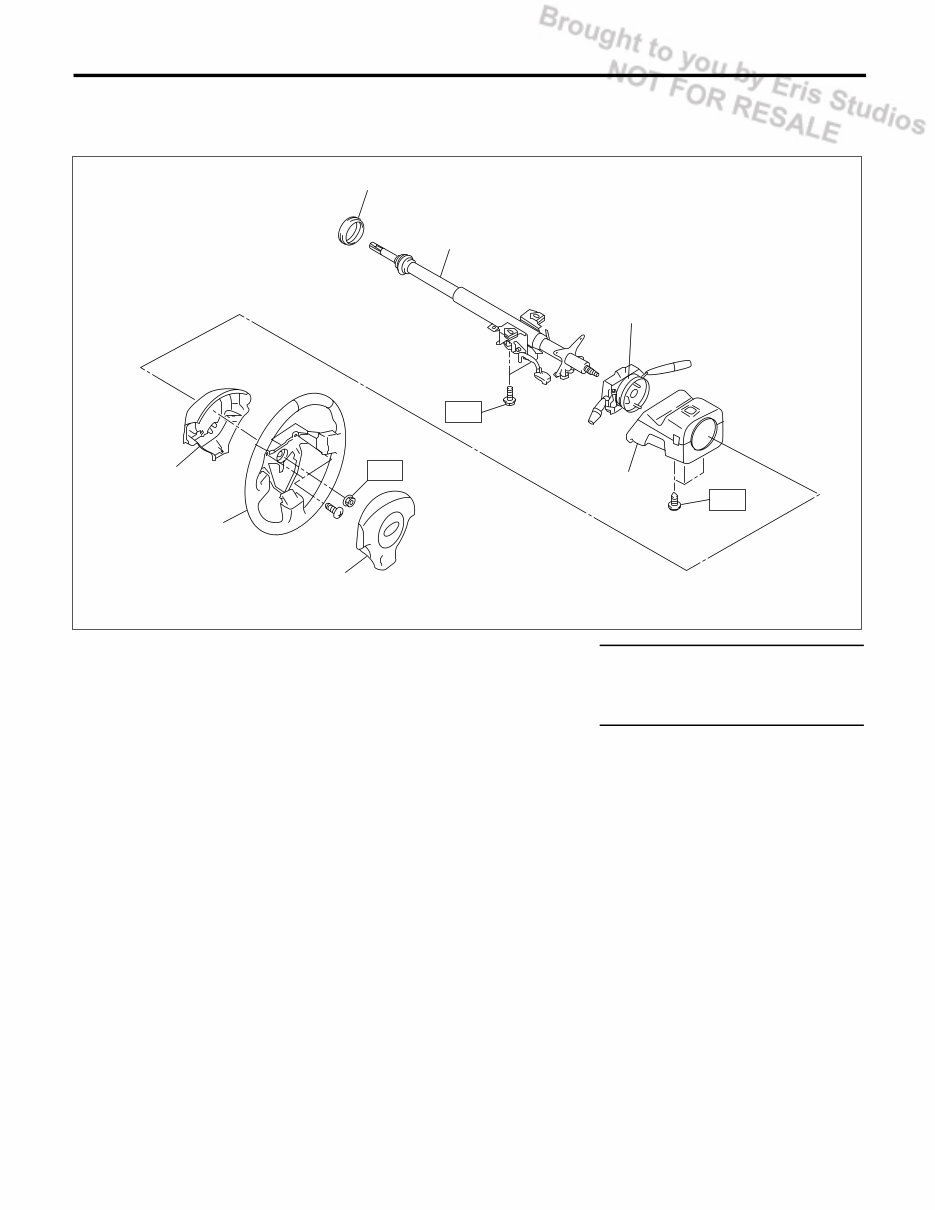

PS-3 POWER ASSISTED SYSTEM (POWER STEERING) General Description Steering wheel Free play mm (in) 17 (0.67) Turning angle Inner wheel 2.5i, OUTBACK, WRX 34.5°±1.5° STI 32.9°±1.5° Outer wheel 2.5i, OUTBACK, WRX 30.3°±1.5° STI 28.5°±1.5° Steering shaft Clearance between steering wheel and column cover mm (in) 4.0 (0.16) Steering gear- box (Power steer- ing system) Sliding resistance N (kgf, lbf) 400 (41, 90) or less Rack shaft play in radial direction Right-turn steering mm (in) 0.19 (0.0075) or less Left-turn steering mm (in) Horizontal movement: 0.15 (0.0059) or less Vertical movement: 0.3 (0.012) or less Input shaft play In radial direction mm (in) 0.18 (0.0071) or less In axial direction mm (in) 0.5 (0.020) or less Turning resistance N (kgf, lbf) Maximum allowable value: Less than 10.5 (1.1, 2.4) Difference between right and left sliding resistance: Less than 20% Oil pump (Power steer- ing system) Pulley shaft Radial play mm (in) 0.4 (0.016) or less Axial play mm (in) 0.9 (0.035) or less Pulley Ditch deflection mm (in) 1.0 (0.039) or less Resistance to rotation N (kgf, lbf) 9.22 (0.94, 2.07) or less Regular pressure (Unloaded) kPa (kgf/cm 2 , psi) 981 (10, 142) or less Steering wheel effort (Power steer- ing system) At standstill with engine idling on a concrete road N (kgf, lbf) 31.4 (3.2, 7.1) or less At standstill with engine stalled on a concrete road N (kgf, lbf) 294.2 (30, 66.2) or less Recommended power steering fluid Manufacturer ATF DEXRON III B.P. CALTEX CASTROL MOBIL SHELL TEXACO
This workshop service and repair manual is designed to provide comprehensive guidance and assistance for owners of the 2006 SUBARU IMPREZA Sti RS WRX CAR. Whether you are a professional mechanic or a passionate car enthusiast, this manual will serve as your trusted companion in maintaining and fixing your vehicle.
The 2006 SUBARU IMPREZA Sti RS WRX CAR Workshop Service/Repair Manual covers a wide range of models, including:
2006 SUBARU IMPREZA Sti
2006 SUBARU IMPREZA RS
2006 SUBARU IMPREZA WRX
With this manual, you will have access to detailed step-by-step instructions, diagrams, and illustrations that will assist you in performing various repairs, maintenance tasks, and troubleshooting procedures. From engine and transmission to electrical systems and suspension, this manual covers every aspect of your SUBARU IMPREZA Sti RS WRX CAR.
By following the guidance provided in this manual, you can save time and money by avoiding unnecessary trips to the mechanic. Learn how to accurately diagnose issues, understand the inner workings of your vehicle, and acquire the skills necessary to fix problems on your own.
Invest in this 2006 SUBARU IMPREZA Sti RS WRX CAR Workshop Service/Repair Manual and empower yourself with the knowledge and expertise needed to keep your car running smoothly for years to come.
