GENERAL DESCRIPTION
Automatic Transmission
1 . General Description 55,0.0,

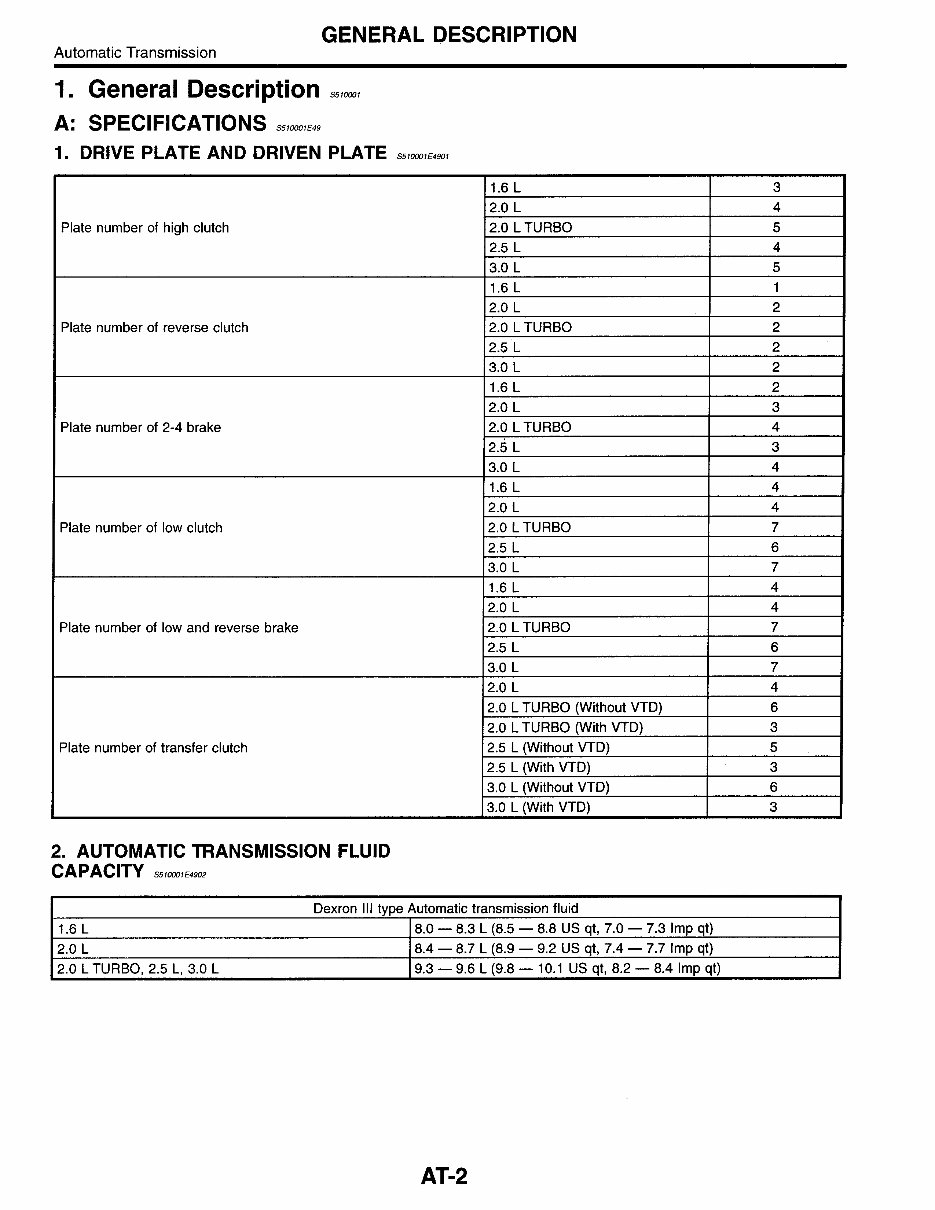

A : SPECIFICATIONS 5510007E49
1 . DRIVE PLATE AND DRIVEN PLATE S570007E4901
1 .6 L 3
2.0 L 4
Plate number of high clutch 2.0
L
TURBO 5
2
.5
L 4
3.0 L
5
1 .6 L
1
2.0 L
2
Plate number of reverse clutch 2.0 L TURBO
2
2.5 L 2
3.0 L 2
1 .6 L 2
2.0 L 3
Plate number of 2-4 brake 2.0 L TURBO 4
2.5 L 3
3.0 L 4
1
.6
L 4
2.0 L
4
Plate number of low clutch 2.0 L TURBO
7
2.5 L 6
3 .0 L 7
1 .6 L 4
2 .0 L 4
Plate number of low and reverse brake 2.0 L TURBO 7
2.5 L 6
3.0 L 7
2
.0
L 4
2.0 L TURBO (Without
VTD) 6
2.0 L TURBO (With VTD) 3
Plate number of transfer clutch 2.5 L (Without
VTD) 5
2.5 L (With VTD) 3
3.0 L (Without VTD) 6
3.0 L (With VTD) ~ 3
2 . AUTOMATIC TRANSMISSION FLUID
CAPACITY S510007E4902
Dexron III type Automatic transmission fluid
1 .6
L 8 .0-8 .3 L(8.5-8 .8 US qt, 7.0-7 .3Imp qt)
2.0 L 8
.4
- 8
.7
L (8 .9 - 9.2 US qt, 7.4 - 7.7 Imp qt)
2.0
L
TURBO,
2
.5
L,
3.0
L 9 .3 - 9.6 L (9 .8 - 10 .1 US qt, 8.2 - 8.4 Imp qt)
AT- 2
GENERAL
DESCRIPTION
Automatic
Transmission

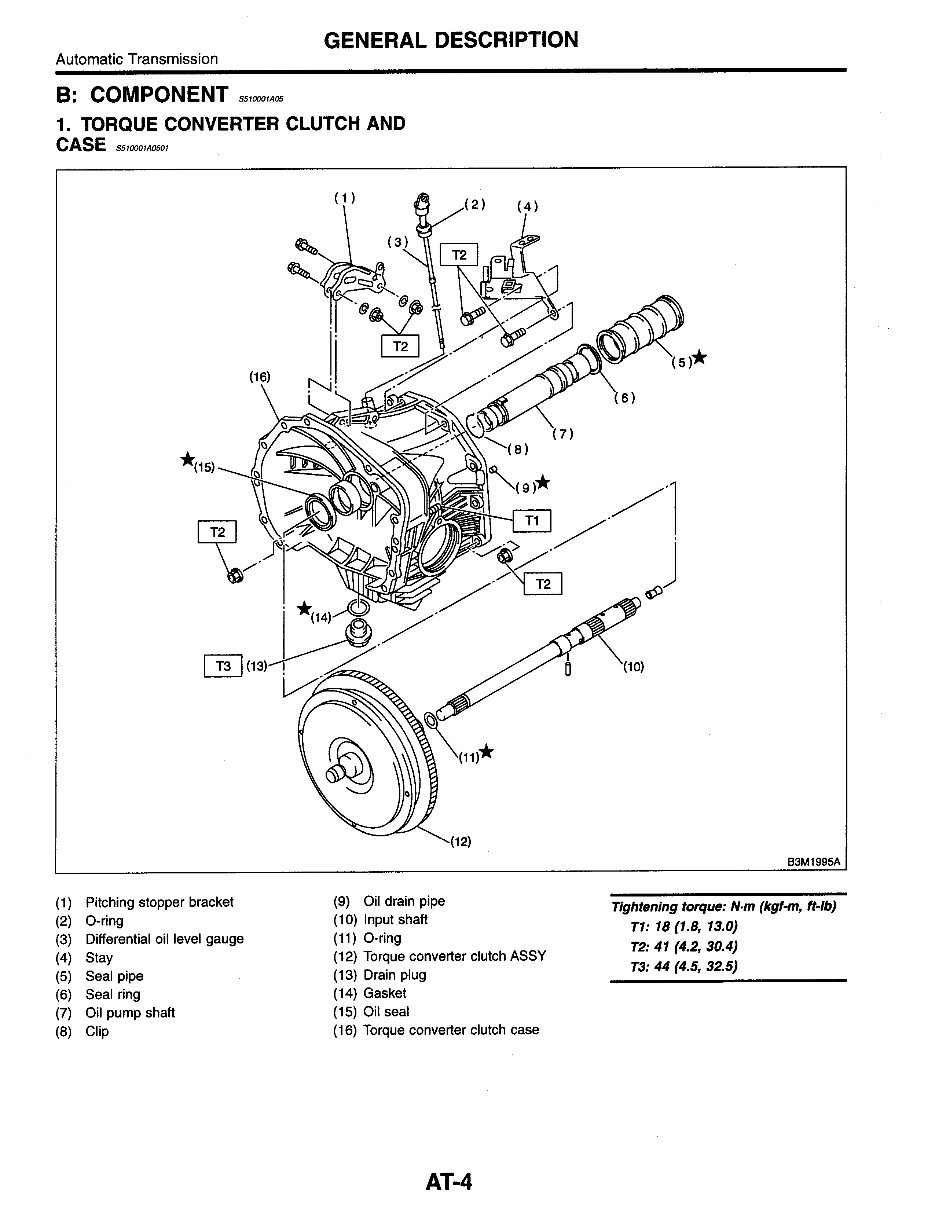

B : COMPONENT SSfODOtA05
1 . TORQUE CONVERTER CLUTCH
AND
CASE S51000fA0507
l1)
(2)
(4)
cs) _
T2 0
T2
(16) . I /
(7)
o o
o ~(
9
)*
o ~ o i
o T1
T2
J
' T2
*04)~
O
T3 (13) I ~I a
\(10)
o\
(11)*
0
(12)
83M1995A
(1) Pitching stopper bracket
(2) O-ring
(3) Differential oil level gauge
(4) Stay
(5) Seal pipe
(6) Seal ring
(7) Oil pump shaft
(8)
Clip
(9)
Oil drain pipe
(10) Input shaft
(11)
O-ring
(12) Torque
converter clutch ASSY
(13) Drain plug
(14) Gasket
(15) Oil seal
(16) Torque converter clutch
case
Tightening torque: N~m
(kgf-m, nIb)
T1 : 18 (1 .8, 13.0)
T2: 41 (4.2, 30.4)
T3: 44 (4.5, 32.5)
AT- 4
GENERAL DESCRIPTION
Automatic Transmission

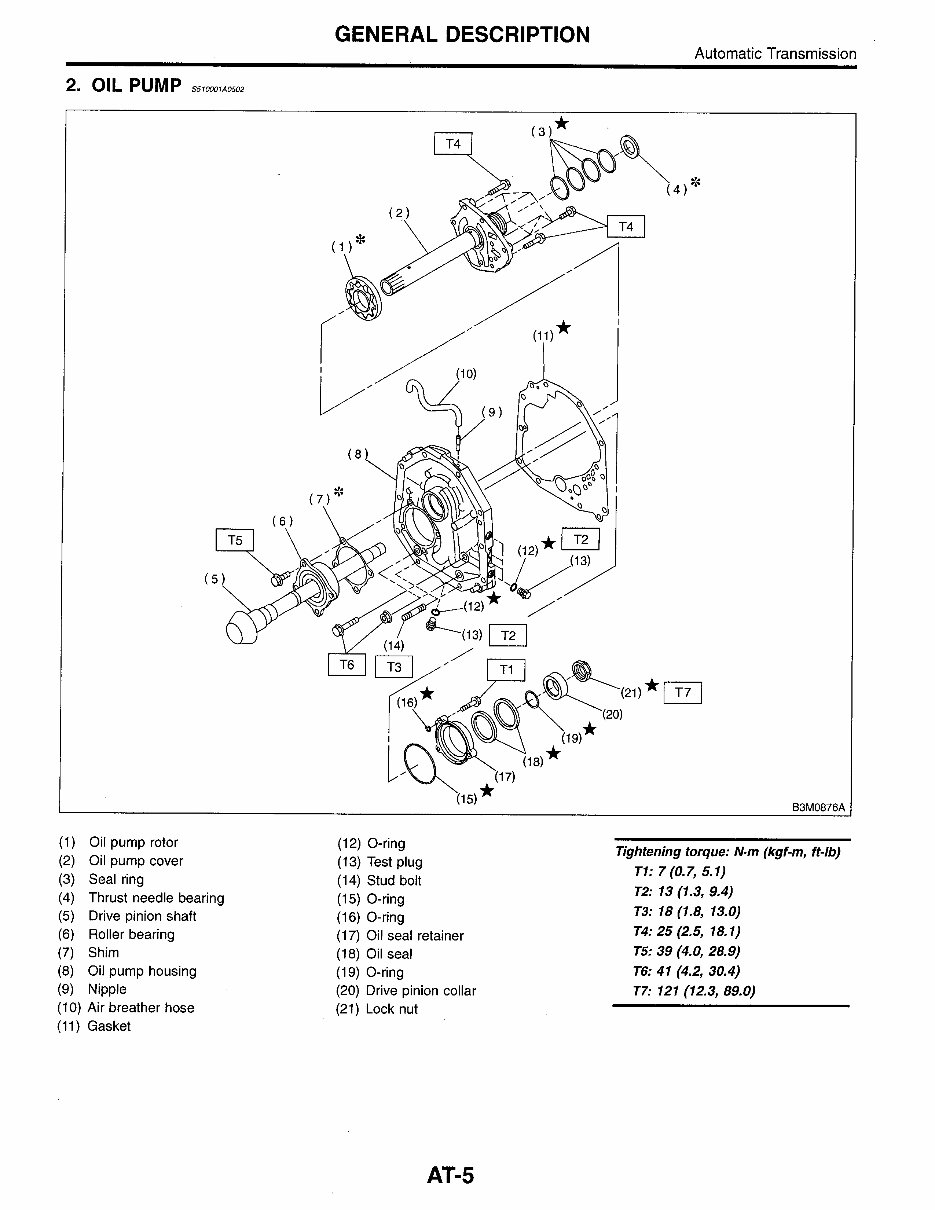

2 . OIL PUMP 5510001A0502
(7)
(6)
~,s>*
18) ~
(17)
5)
B3M0876A
(1) Oil
pump rotor (12) O-ring
(2) Oil pump cover
(13) Test plug
(3) Seal ring
(14) Stud bolt
(4) Thrust needle bearing
(15) O-ring
(5) Drive pinion shaft
(16) O-ring
(6) Roller bearing
(17) Oil seal retainer
(7) Shim
(18) Oil seal
(8) Oil pump housing
(19) O-ring
(9) Nipple
(20) Drive pinion collar
(10) Air breather hose
(21) Lock nut
(11) Gasket
(12)
*
T2
,(13)
~~_(12)
w
~`(13)
T2
T3
/
T1
(16)*
(~ .~
4)
1)* T7
Tightening torque : N~m (kgf-m, ft-Ib)
T1 : 7 (0.7, 5 .1)
T2: 13 (1 .3, 9 .4)
T3: 18 (1 .8, 13.0)
T4: 25 (2.5, 18.1)
T5: 39 (4.0, 28.9)
T6: 41 (4.2, 30 .4)
T7: 121 (12.3, 89.0)
AT - 5
GENERAL DESCRIPTION
Automatic Transmission

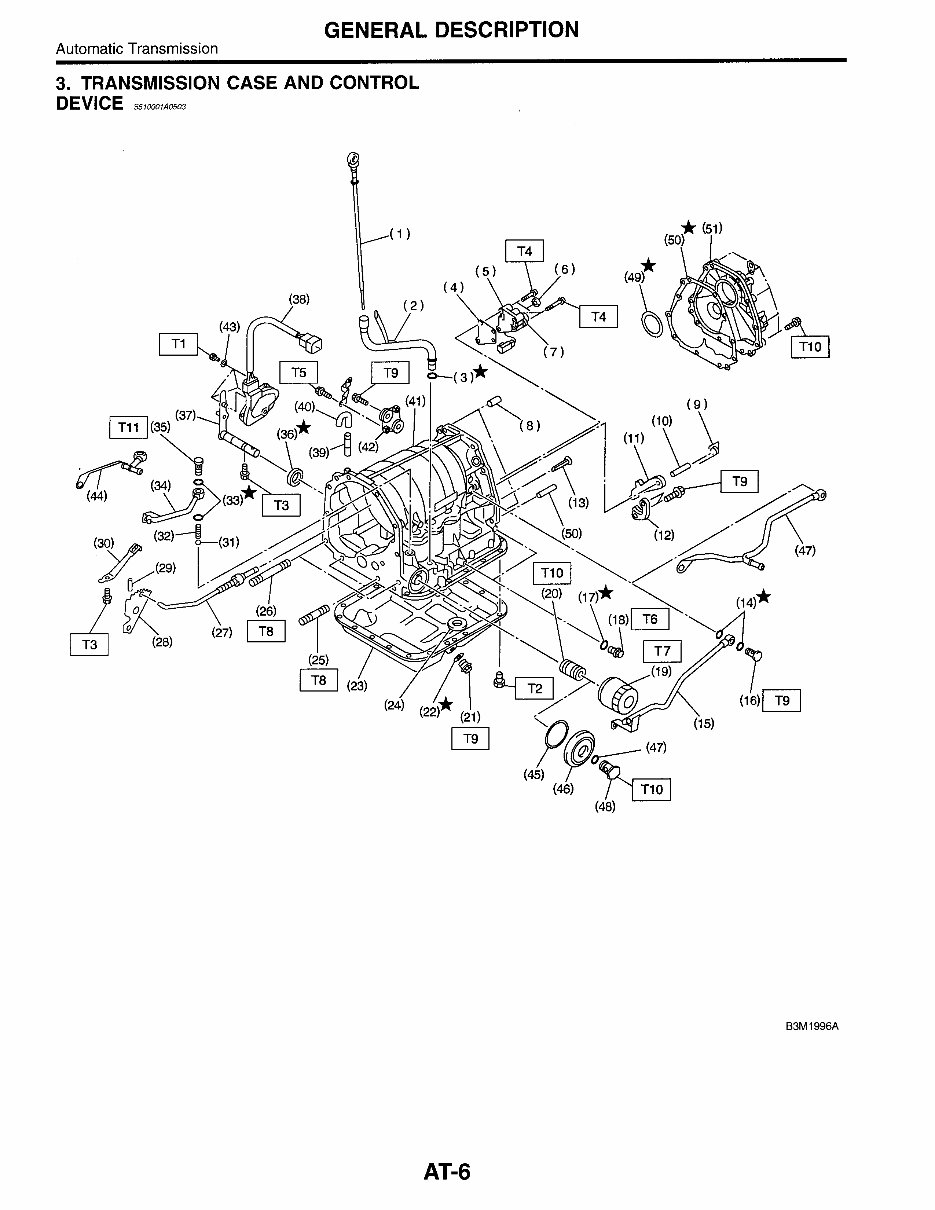

3 . TRANSMISSION CASE AND CONTROL
DEVICE 5570001A0503
T4
(5)
(4)
°--~ 3
)*\
(41)
(36)*
uU
1 (39A
T10`,\
i
\20)
(17)*
T2
~'
.
(22)* (21)
T9
(as) i
(9)
(10)
83M1996A
AT-6
GENERAL DESCRIPTION
Automatic Transmission

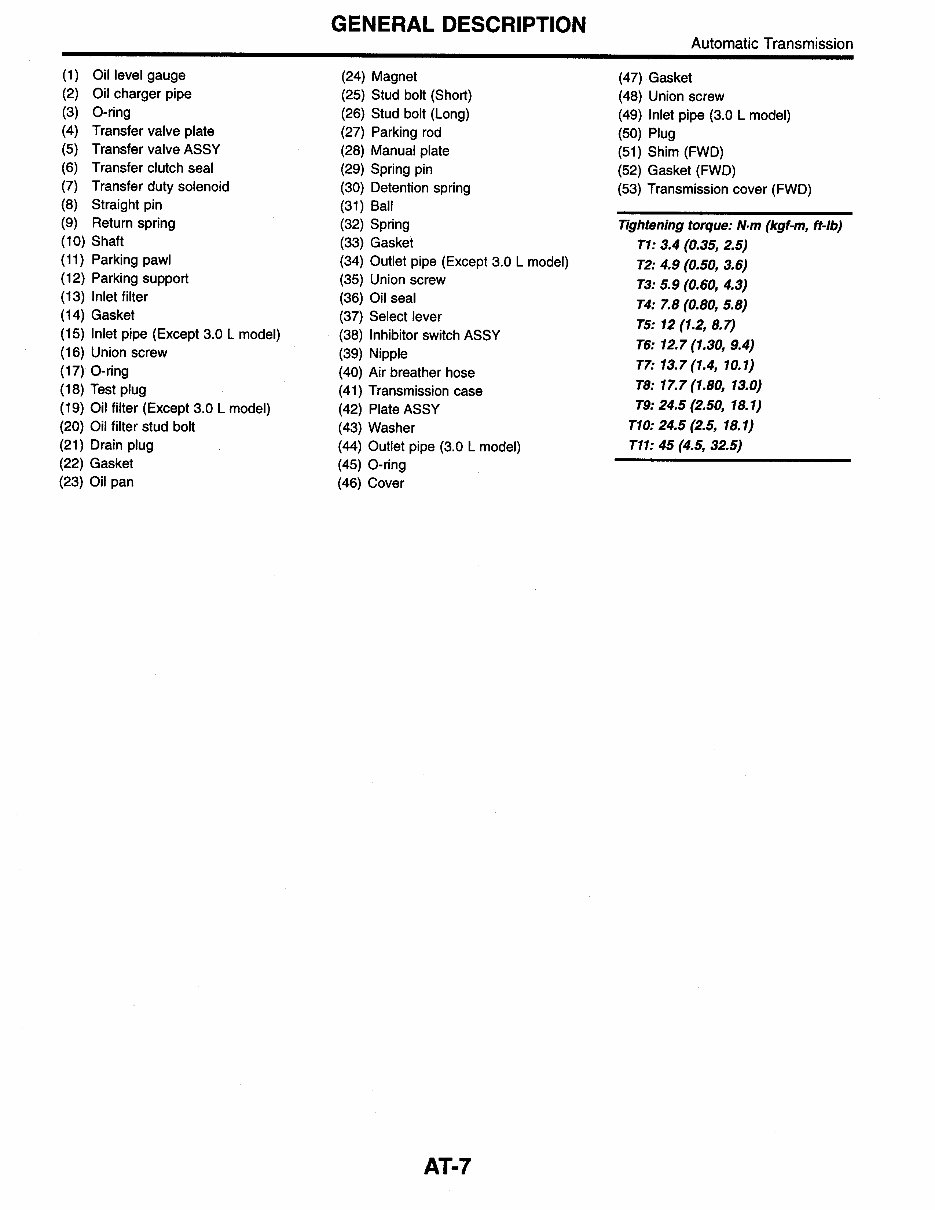

(1)
Oil level gauge
(2) Oil charger pipe
(3) O-ring
(4) Transfer valve plate
(5) Transfer valve ASSY
(6) Transfer clutch
seal
(7) Transfer
duty solenoid
(8) Straight
pin
(9) Return
spring
(10) Shaft
(11) Parking
pawl
(12)
Parking support
(13) Inlet filter
(14) Gasket
(15) Inlet pipe (Except 3 .0 L model)
(16) Union screw
(17) O-ring
(18) Test plug
(19) Oil filter
(Except 3.0 L model)
(20) Oil
filter stud bolt
(21) Drain plug
(22) Gasket
(23) Oil pan
(24)
Magnet
(25) Stud bolt (Short)
(26) Stud bolt (Long)
(27) Parking rod
(28) Manual plate
(29) Spring pin
(30) Detention spring
(31) Ball
(32) Spring
(33) Gasket
(34) Outlet
pipe (Except 3.0 L model)
(35) Union
screw
(36) Oil
seal
(37)
Select lever
(38) Inhibitor switch ASSY
(39) Nipple
(40) Air breather hose
(41) Transmission case
(42) Plate ASSY
(43) Washer
(44)
Outlet pipe (3 .0 L model)
(45)
O-ring
(46)
Cover
(47) Gasket
(48) Union
screw
(49) Inlet pipe (3.0 L model)
(50) Plug
(51) Shim (FWD)
(52) Gasket (FWD)
(53) Transmission cover (FWD)
Tightening torque: N~m (kgf-m, ftIb)
T1: 3 .4 (0 .35, 2 .5)
T2: 4 .9 (0.50, 3 .6)
T3: 5 .9 (0.60, 4 .3)
T4: 7 .8 (0.80, 5 .8)
T5: 12 (1.2, 8 .7)
T6: 12.7 (1.30, 9 .4)
T7: 13.7 (1 .4, 10.1)
T8: 17 .7 (1
.80, 13 .0)
T9: 24.5 (2 .50, 18 .1)
T10: 24.5 (2 .5, 18.1)
T11 : 45 (4 .5, 32.5)
AT -7
