2006 BRAKES ABS (Diagnostics) - Baja BASIC DIAGNOSTIC PROCEDURE PROCEDURE BASIC DIAGNOSTIC PROCEDURE CAUTION: Remove foreign matter (dust, water, etc.) from the ABSCM&H/U connector during removal and installation. NOTE:  To check harness for broken wires or short circuits, shake it while holding it or the connector.  Check list for interview. < Ref. to CHECK , Check List for Interview. > Step Check Yes No 1 CHECK PRE-INSPECTION. 1. Ask the customer when and how the trouble occurred using interview checklist. < Ref. to CHECK LIST FOR INTERVIEW . > 2. Before performing diagnosis, inspect unit which might influence the ABS problem. < Ref. to INSPECTION , General Description. > Is unit that might influence the ABS problem normal? Go to step 2. Repair or replace each unit. 2 CHECK INDICATION OF TROUBLE CODE DISPLAY. 1. Turn ignition switch to OFF. 2. Connect the SUBARU SELECT MONITOR to data link connector. 3. Turn ignition switch to ON and SUBARU SELECT MONITOR 2006 Subaru Baja 2006 BRAKES ABS (Diagnostics) - Baja 2006 Subaru Baja 2006 BRAKES ABS (Diagnostics) - Baja

to ON. 4. Read diagnostic trouble code (DTC). < Ref. to READ CURRENT DATA , OPERATION, Subaru Select Monitor. > 5. Record all diagnostic trouble codes (DTC) and frame data. NOTE: If the communication function of the select monitor cannot be executed normally, check the communication circuit. < Ref. to COMMUNICATION WITH SUBARU SELECT MONITOR IS IMPOSSIBLE , DIAGNOSTIC PROCEDURE WITH DIAGNOSTIC TROUBLE CODE (DTC). > Is the DTC displayed? Go to step 4. Go to step 3. 3 PERFORM THE GENERAL DIAGNOSTICS. 1. Inspect using "General Diagnostics Table". < Ref. to GENERAL DIAGNOSTICS TABLE . > 2. Perform the clear memory mode. < Ref. to CLEAR MEMORY MODE , OPERATION, Subaru Select Monitor. > 3. Perform the inspection mode. < Ref. to INSPECTION MODE . > 4. Calling up the diagnostic trouble code (DTC). < Ref. to READ DIAGNOSTIC TROUBLE CODE (DTC) , OPERATION, Subaru Select Monitors. > Confirm that no DTC is displayed. Does ABS warning light remain off? Complete the diagnosis. Go to step 4. 2006 Subaru Baja 2006 BRAKES ABS (Diagnostics) - Baja

CHECK LIST FOR INTERVIEW CHECK Check the following items about the vehicle's state. STATE OF ABS WARNING LIGHT 4 PERFORM THE DIAGNOSIS. 1. Inspect using "Diagnostics Chart with Subaru Select Monitor".< Ref. to DIAGNOSTIC PROCEDURE WITH DIAGNOSTIC TROUBLE CODE (DTC) . > 2. Repair trouble cause. 3. Perform the clear memory mode. < Ref. to CLEAR MEMORY MODE , OPERATION, Subaru Select Monitor. > 4. Perform the inspection mode. < Ref. to INSPECTION MODE . > 5. Calling up the diagnostic trouble code (DTC). < Ref. to READ DIAGNOSTIC TROUBLE CODE (DTC) , OPERATION, Subaru Select Monitors . > Confirm that no DTC is displayed. NOTE: For diagnostic trouble code (DTC) list, refer to "List of Diagnostics Trouble Code (DTC)". < Ref. to LIST , LIST OF DIAGNOSTICS TROUBLE CODE (DTC). > Does ABS warning light remain off? Complete the diagnosis. Inspect using "Diagnostics Chart with Subaru Select Monitor". < Ref. to DIAGNOSTIC PROCEDURE WITH DIAGNOSTIC TROUBLE CODE (DTC) . > 2006 Subaru Baja 2006 BRAKES ABS (Diagnostics) - Baja

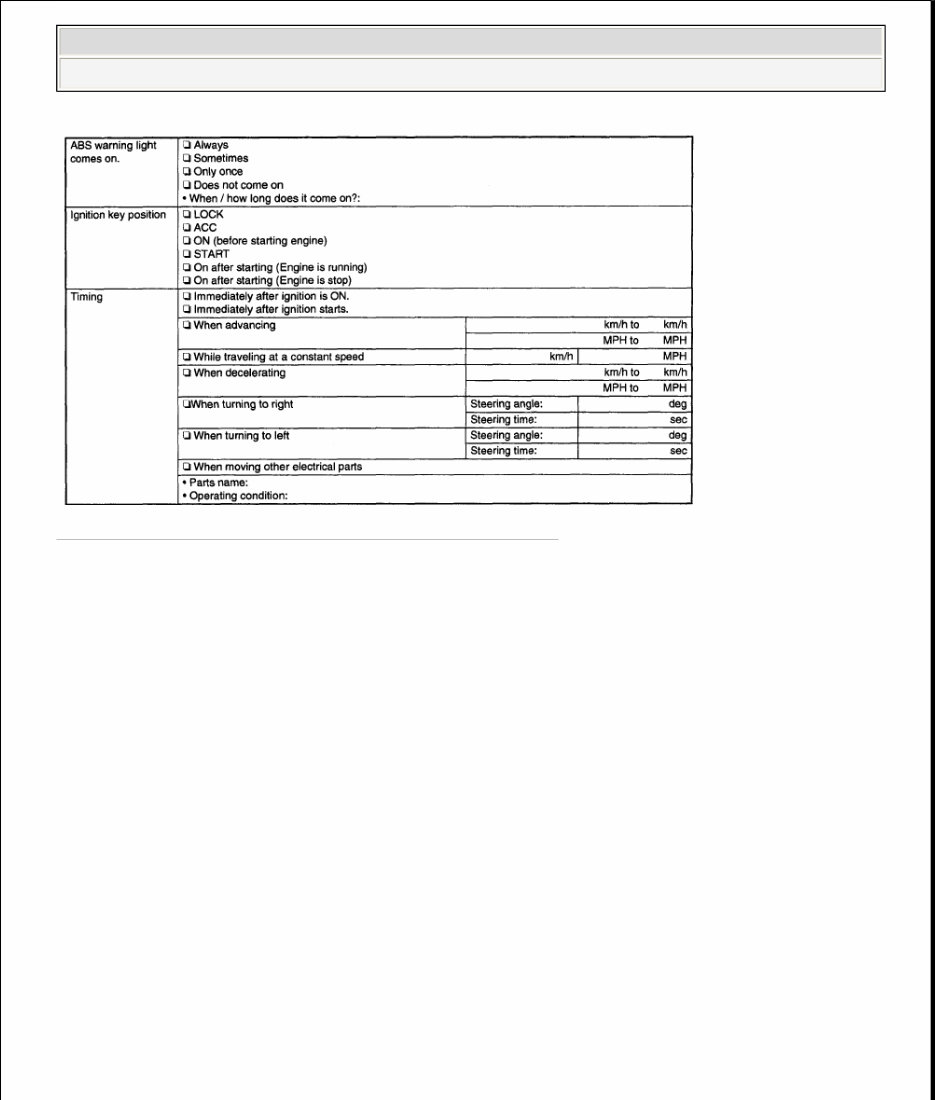

Fig. 1: Check List Sheet (State Of ABS Warning Light) Courtesy of SUBARU OF AMERICA, INC. SYMPTOMS 2006 Subaru Baja 2006 BRAKES ABS (Diagnostics) - Baja

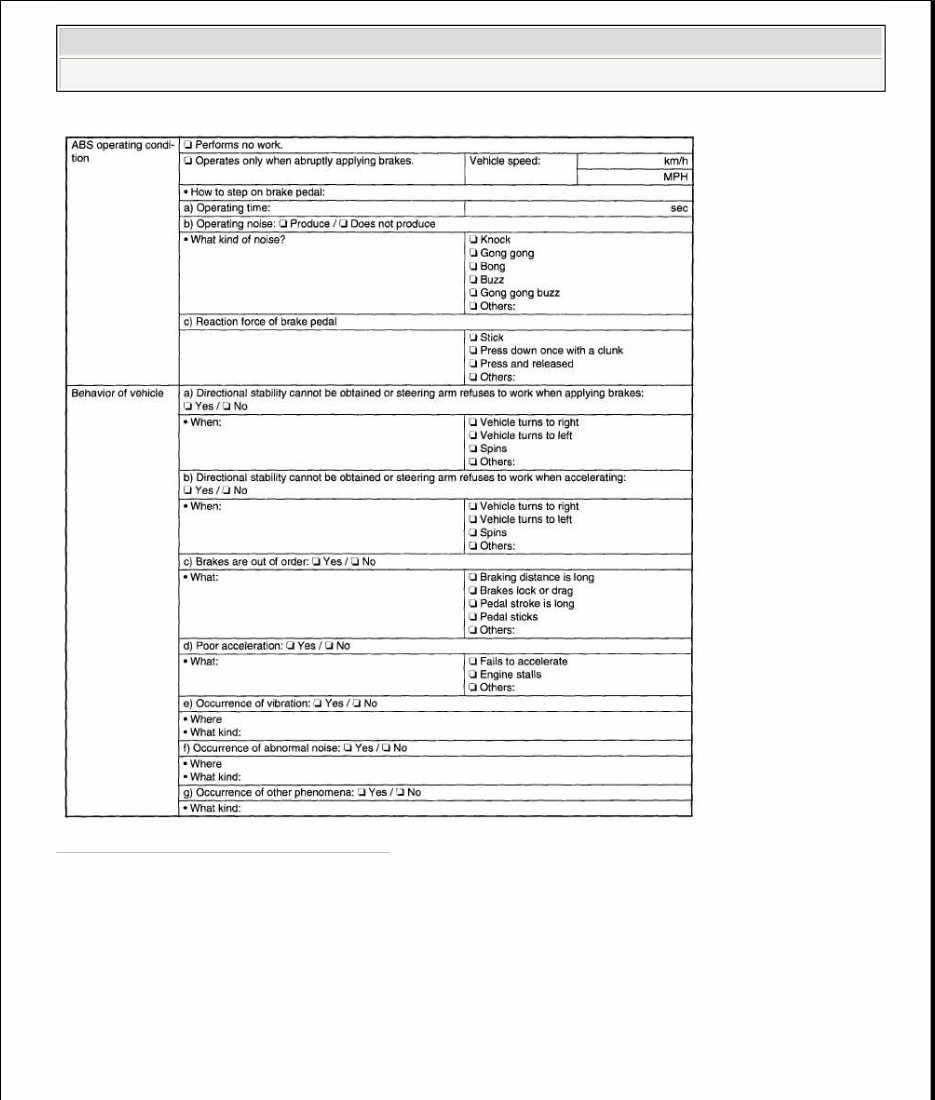

Fig. 2: Check List Sheet (Symptoms) Courtesy of SUBARU OF AMERICA, INC. CONDITIONS UNDER WHICH TROUBLE OCCURS 2006 Subaru Baja 2006 BRAKES ABS (Diagnostics) - Baja

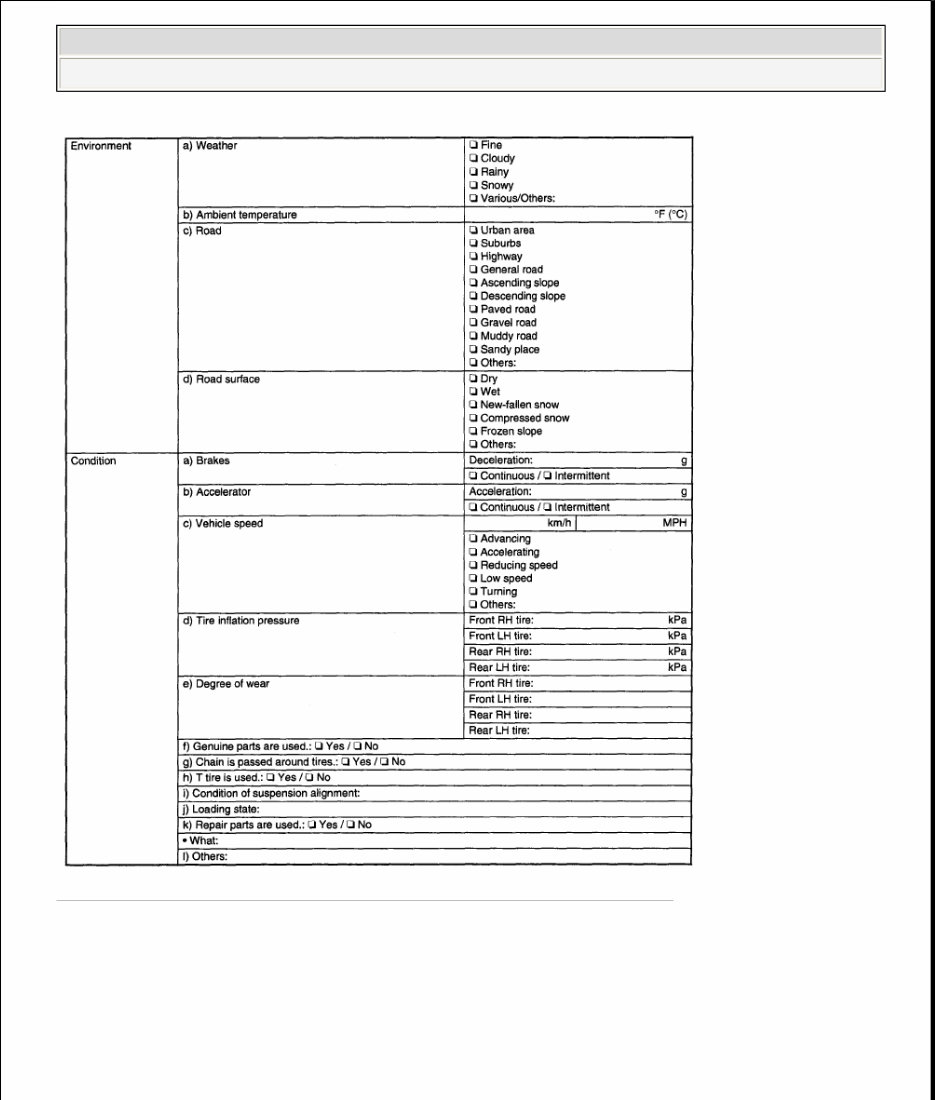

Fig. 3: Check List Sheet (Conditions Under Which Trouble Occurs) Courtesy of SUBARU OF AMERICA, INC. GENERAL DESCRIPTION CAUTION SUPPLEMENTAL RESTRAINT SYSTEM "AIRBAG" Airbag system wiring harness is routed near the ABS sensor, ABS control module and 2006 Subaru Baja 2006 BRAKES ABS (Diagnostics) - Baja

hydraulic control unit. INSPECTION Before performing diagnostics, check the following items which might affect ABS problems: BATTERY Measure battery voltage and specific gravity of electrolyte. Standard voltage: 12 V, or more Specific gravity: Above 1.260 GROUND Check ABS ground (F73) bolt for proper tightening. BRAKE FLUID 1. Check brake fluid level. 2. Check brake fluid leakage. HYDRAULIC UNIT Check the hydraulic unit.  With brake tester < Ref. to CHECKING THE HYDRAULIC UNIT ABS OPERATION WITH BRAKE TESTER , INSPECTION, ABS Control Module and Hydraulic Control Unit (ABSCM&H/U) >  Without brake tester < Ref. to CHECKING THE HYDRAULIC UNIT ABS OPERATION BY PRESSURE GAUGE , INSPECTION, ABS Control Module and Hydraulic Control Unit (ABSCM&H/U). > BRAKE DRAG CAUTION:  All airbag system wiring harness and connectors are colored yellow. Do not use electrical test equipment on these circuit.  Be careful not to damage airbag system wiring harness when servicing the ABS sensor, ABS control module and hydraulic control unit. 2006 Subaru Baja 2006 BRAKES ABS (Diagnostics) - Baja

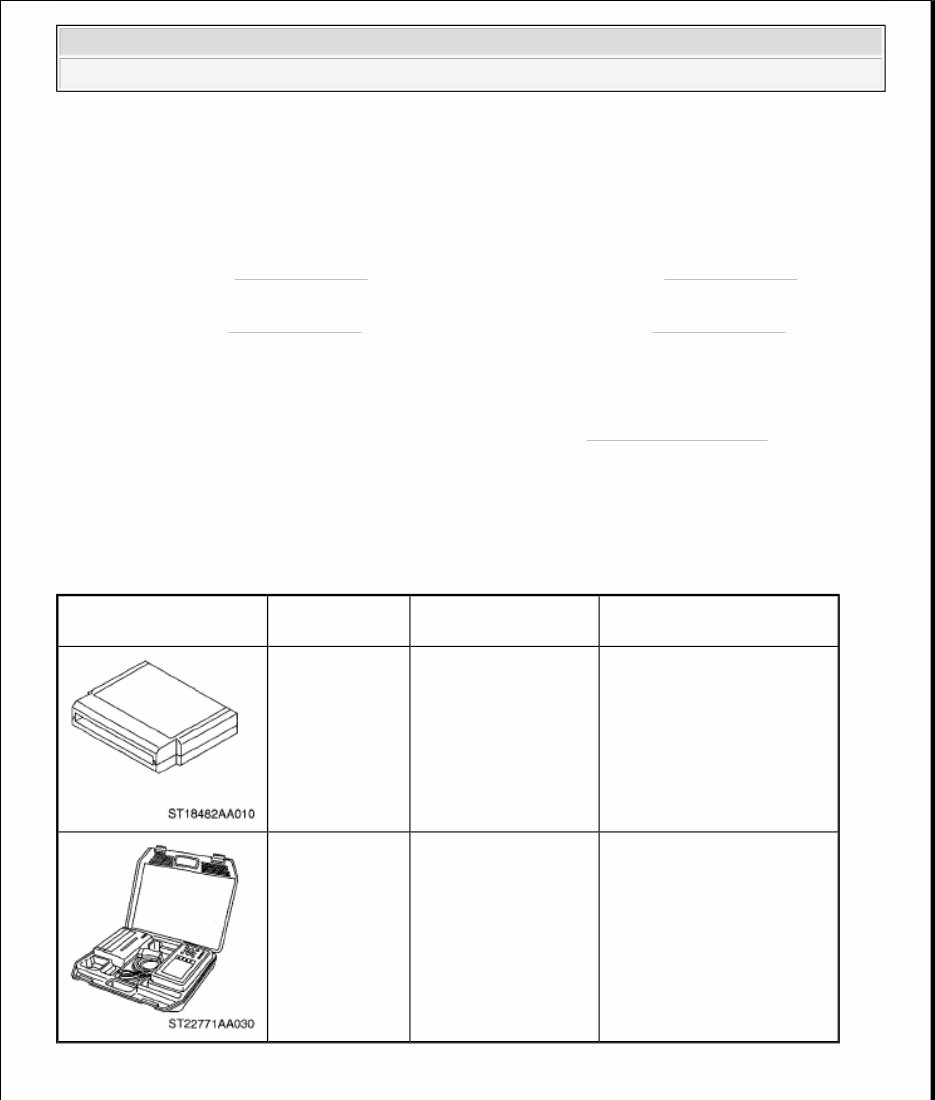

Check brake drag. BRAKE PAD AND ROTOR Check brake pad and rotor.  Front < Ref. to INSPECTION , Front Brake Pad > and < Ref. to INSPECTION , Front Disc Rotor . >  Rear < Ref. to INSPECTION , Rear Brake Pad > and < Ref. to INSPECTION , Rear Disc Rotor . > TIRE Check tire specifications, tire wear and air pressure. < Ref. to SPECIFICATIONS , GENERAL DESCRIPTION. > PREPARATION TOOL SPECIAL TOOLS SPECIAL TOOLS DESCRIPTION GENERAL PURPOSE TOOLS ILLUSTRATION TOOL NUMBER DESCRIPTION REMARKS 18482AA010 CARTRIDGE Troubleshooting for electrical systems. 22771AA030 SELECT MONITOR KIT Troubleshooting for electrical systems. 2006 Subaru Baja 2006 BRAKES ABS (Diagnostics) - Baja

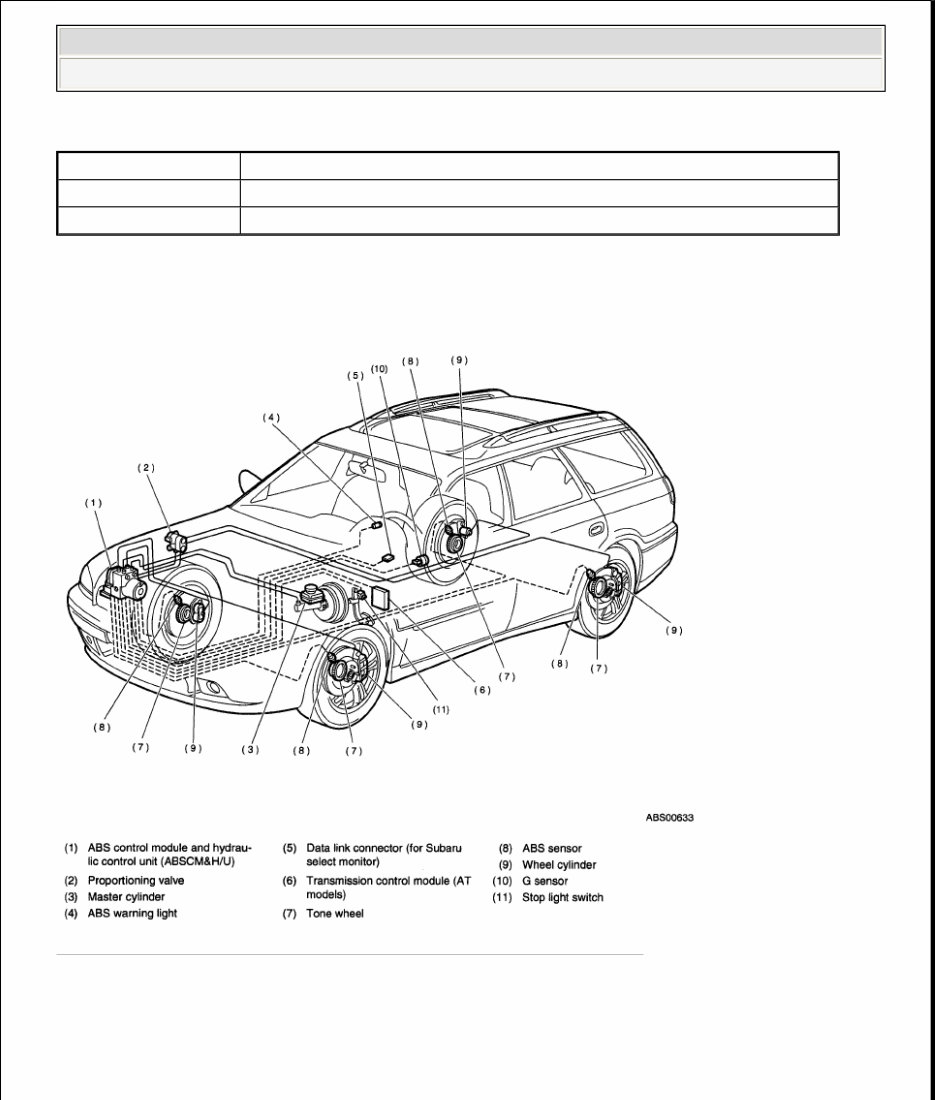

GENERAL PURPOSE TOOLS DESCRIPTION ELECTRICAL COMPONENTS LOCATION LOCATION Fig. 4: Identifying ABS Electrical Components Location (1 Of 2) Courtesy of SUBARU OF AMERICA, INC. TOOL NAME REMARKS Circuit Tester Used for measuring resistance, voltage and ampere. Oscilloscope Used for measuring sensor. 2006 Subaru Baja 2006 BRAKES ABS (Diagnostics) - Baja

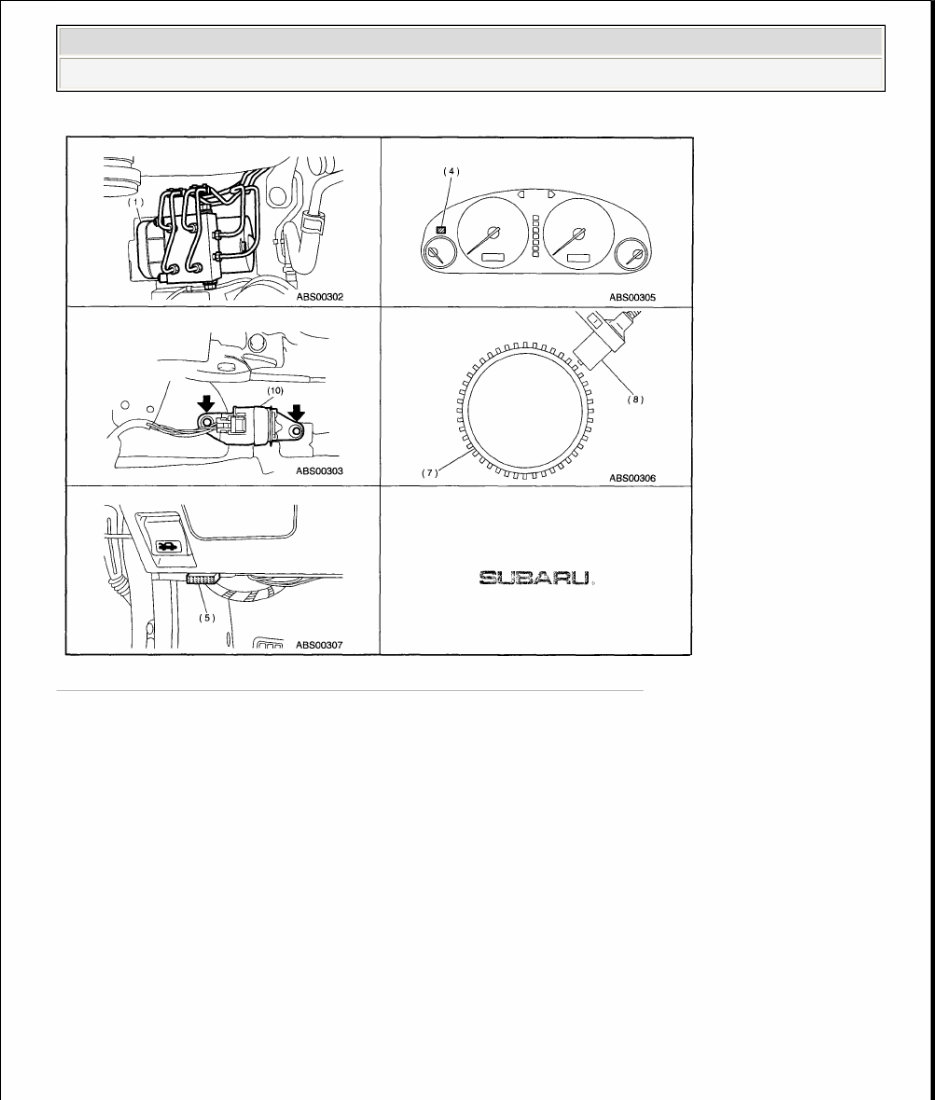

Fig. 5: Identifying ABS Electrical Components Location (2 Of 2) Courtesy of SUBARU OF AMERICA, INC. CONTROL MODULE I/O SIGNAL ELECTRICAL SPECIFICATION 2006 Subaru Baja 2006 BRAKES ABS (Diagnostics) - Baja
