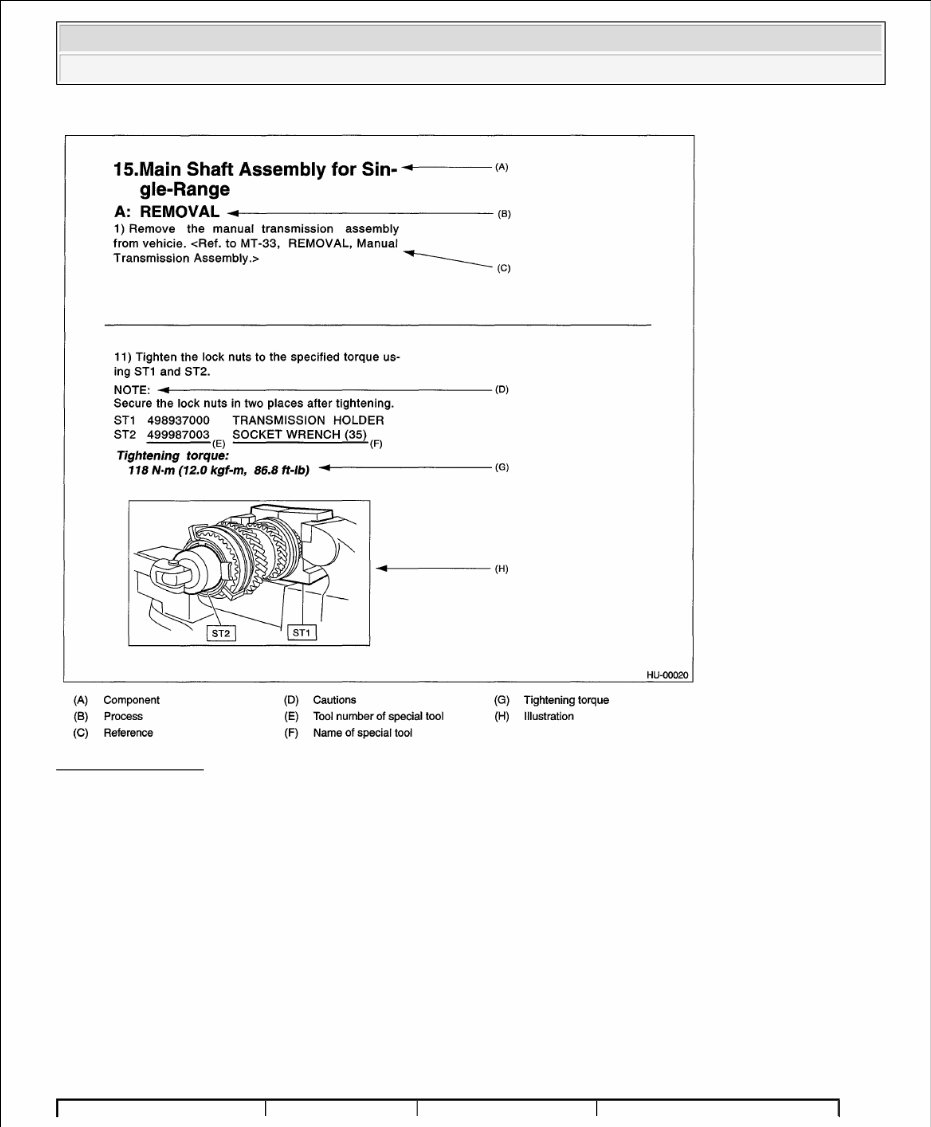

2009 GENERAL INFORMATION General Information - Tribeca HOW TO USE THIS INFORMATION HOW TO USE THIS INFORMATION SPECIFICATION If necessary, specifications are also included. INSPECTION Inspections to be carried out before and after maintenance are included. MAINTENANCE  Maintenance instructions for serviceable parts describe work area and detailed step with illustration. It also describes the use of special tool, tightening torque, caution for each procedure.  If many serviceable parts are included in one service procedure, appropriate reference is provided for each parts. Example: 2009 Subaru Tribeca 2009 GENERAL INFORMATION General Information - Tribeca 2009 Subaru Tribeca 2009 GENERAL INFORMATION General Information - Tribeca

Fig. 1: Main Chart Courtesy of SUBARU OF AMERICA, INC. DIAGNOSIS Tables showing a step-by-step process make it easy to conduct diagnosis. SI UNITS Measurements in these manuals are according to the SI units. Metric and yard/pound measurements are also included. Example: Tightening torque: 44 N.m (4.5 kgf-m, 33 ft-lb) SI UNITS REFERENCE 2009 Subaru Tribeca 2009 GENERAL INFORMATION General Information - Tribeca

The figure used in these manuals are described in the SI units and conventional units are described in ( ). EXPLANATION OF TERMINOLOGY AAI : Air Assist Injection A/B : Airbag ABS : Anti-lock Brake System A/C : Air Conditioner ACC : Accessory A/F : Air Fuel Ratio ALT : Generator ASSY : Assembly AT : Automatic Transmission ATF : Automatic Transmission Fluid AUX : Auxiliary AUX : Auxiliary Storage Unit AWD : All Wheel Drive BATT : Battery CAN : Controller Area Network Item SI units Conventional unit Remarks Force N (Newton) kgf 1 kgf = 9.80655 N Mass (Weight) kg, g kg, g Capacity l , m l or cm 3 l or cc 1 cc = 1 cm 3 = 1 m l Torque N.m kgf-m, kgf-cm 1 kgf-m = 9.80655 N.m Rotating speed rpm rpm Pressure kPa (kilopascal) kgf/cm 2 1 kgf/cm 2 = 98.0655 kPa mmHg 1 mmHg = 0.133322 kPa Power W PS 1 PS = 0.735499 kW Calorie W.h cal 1 kcal = 1.16279 W.h Fuel consumption rate g/kw.h g/PS.h 1 g/PS.h = 1.3596 g/kW.h 2009 Subaru Tribeca 2009 GENERAL INFORMATION General Information - Tribeca

CD : Compact Disc CPU : Central Processing Unit DOHC : Double Overhead Camshaft DOJ : Double Offset Joint DTC : Diagnostic Trouble Code DVD : Digital Versatile Disc EBJ : High-efficiency Compact Ball Fixed Joint ECM : Engine Control Module EDJ : High-efficiency Compact Double Offset Joint EGR : Exhaust Gas Recirculation EX : Exhaust F/B : Fuse & Joint Box Ft : Front FWD : Front Wheel Drive GPS : Global Positioning System HI : High HID : High Intensity Discharge H/L : Headlight H/U : Hydraulic Unit I/F : Interface I/O : Input/Output IG : Ignition INT : Intermittent ISC : Idle Speed Control 2009 Subaru Tribeca 2009 GENERAL INFORMATION General Information - Tribeca

LCD : Liquid Crystal Display LH : LH (Left Hand) LSD : Limited Slip Differential M/B : Main Fuse & Relay Box MFI : Multi Point Injection MT : Manual Transmission NA : Natural Aspiration OP : Option Parts P/W : Power Window PCV : Positive Crankcase Ventilation PTJ : Pillow Tripod Joint RH : RH (Right Hand) ROM : Read Only Memory Rr : Rear SOHC : Single Overhead Camshaft SRS : Supplemental Restraint System SSM : Subaru Select Monitor ST : Special Tool SW : Switch TCS : Traction Control System TCM : Transmission Control Module TPMS : Tire Pressure Monitoring System VDC : Vehicle Dynamics Control VTD : Variable Torque Distribution 2009 Subaru Tribeca 2009 GENERAL INFORMATION General Information - Tribeca

TRIBECA DIMENSION PART DIMENSION CHART ENGINE ENGINE SPECIFICATION ELECTRICAL IGNITION TIMING REFERENCE TRANSMISSION Overall length mm (in) 4,865 (191.5) Overall width mm (in) 1,878 (73.9) Overall height (at C.W.) mm (in) Models without roof rail: 1,686 (66.4) Models with roof rail: 1,720 (67.7) Compartment Length mm (in) 7 Seater model: 2,495 (98.2) 5 Seater model: 1,815 (71.5) Width mm (in) 1,476 (58.1) Height mm (in) 1,390 (54.7) Wheelbase mm (in) 2,749 (108.2) Tread Front mm (in) 1,580 (62.2) Rear mm (in) 1,578 (62.1) Minimum road clearance mm (in) 213 (8.4) Engine type Horizontally opposed, liquid cooled, 6-cylinder, 4- stroke gasoline engine Valve arrangement Overhead camshaft Bore x stroke mm (in) 92.0 x 91.0 (3.622 x 3.583) Displacement cm 3 (cu in) 3,630 (221.5) Compression ratio 10.5 Ignition order 1 - 6 - 3 - 2 - 5 - 4 Idle speed at Park or Neutral position rpm 700 Maximum output kW (HP)/rpm 191 (256)/6,000 Maximum torque N.m (kgf-m, ft- lb)/rpm 335 (34.2, 247)/4,400 Ignition timing (at idling) BTDC 15° Spark plug Type and manufacturer NGK: SILFR6A Generator 12 V - 130A Battery Type and capacity (5HR) 12V - 52AH (75D23L) 2009 Subaru Tribeca 2009 GENERAL INFORMATION General Information - Tribeca

TRANSMISSION CHART STEERING STEERING SPECIFICATION SUSPENSION SUSPENSION SPECIFICATION BRAKE BRAKE SPECIFICATION TIRE TIRE SPECIFICATION Transmission type 5AT Clutch type TCC Gear ratio 1st 3.540 2nd 2.264 3rd 1.471 4th 1.000 5th 0.834 Reverse 2.370 Reduction gear (Front) 1st reduction Type of gear Helical Gear ratio 1.000 Final reduction Type of gear Hypoid Gear ratio 3.583 Reduction gear (Rear) Final reduction Type of gear Hypoid Gear ratio 3.583 5AT: Electronically controlled fully-automatic, 5-forward speeds and 1-reverse TCC: Torque Converter Clutch Type Rack & pinion Turns, lock to lock 3.44 Minimum turning diameter m (ft) Curb to curb 11.4 (37.4) Wall to wall 12.2 (40.0) Front Macpherson strut type suspension Rear Double-wishbone type suspension Service brake system Dual circuit hydraulic with vacuum suspended power unit Front Ventilated disc brake Rear Ventilated disc brake Parking brake Mechanical on rear brakes 2009 Subaru Tribeca 2009 GENERAL INFORMATION General Information - Tribeca

CAPACITY ITEM CAPACITY CHART WEIGHT ITEM WEIGHT Wheel size 18 x 8JJ Tire size P255/55 R18 104H Type Tubeless, Steel belted radial Fuel tank l (US gal, lmp gal) 64 (16.9, 14.1) Engine oil Capacity (at overhaul) l (US qt, lmp qt) 7.8 (8.2, 6.9) Filling amount of engine oil l (US qt, lmp qt) When replacing engine oil and oil filter 6.5 (6.9, 5.7) When replacing engine oil only 6.3 (6.7, 5.5) ATF l (US qt, lmp qt) 9.8 (10.4, 8.6) Front differential gear oil l (US qt, lmp qt) 1.4 (1.5, 1.2) Rear differential gear oil l (US qt, lmp qt) 0.8 (0.8, 0.7) Power steering fluid l (US qt, lmp qt) 0.9 (0.95, 0.79) Engine coolant l (US qt, lmp qt) 7.6 (8.0, 6.7) Model 5ST Destination code C0 U4 C4 OP code CQ BP XX BA BM CT BT BS Curb weight (C.W.) Front kg (lb) 1,051 (2,317) 1,051 (2,317) 1,041 (2,296) 1,049 (2,314) 1,052 (2,320) 1,048 (2,311) 1,050 (2,315) 1,052 (2,320) Rear kg (lb) 841 (1,854) 847 (1,868) 831 (1,833) 847 (1,867) 849 (1,873) 842 (1,857) 847 (1,868) 850 (1,874) Total kg (lb) 1,892 (4,172) 1,898 (4,185) 1,873 (4,129) 1,897 (4,182) 1,902 (4,193) 1,891 (4,170) 1,897 (4,183) 1,902 (4,194) Gross axle weight ratio (G.A.W.) Front kg (lb) 1,368 (3,016) 1,368 (3,016) 1,368 (3,016) 1,368 (3,016) 1,368 (3,016) 1,368 (3,016) 1,368 (3,016) 1,368 (3,016) Rear kg (lb) 1,515 (3,340) 1,515 (3,340) 1,515 (3,340) 1,515 (3,340) 1,515 (3,340) 1,515 (3,340) 1,515 (3,340) 1,515 (3,340) Gross vehicle weight (G.V.W.) kg (lb) 2,586 (5,700) 2,586 (5,700) 2,586 (5,700) 2,586 (5,700) 2,586 (5,700) 2,586 (5,700) 2,586 (5,700) 2,586 (5,700) Leather seat - o - o o - o o Seat heater o o - o o o o o Sunroof o o - o o o o o Driver's memory seat - o - o o - o o 2009 Subaru Tribeca 2009 GENERAL INFORMATION General Information - Tribeca

ITEM WEIGHT Option Navigation system - - - - o - - - DVD - - - - - - - o Home link o o - o o - - - HID headlight o o - - - - - - Rear view camera - - - - o o o o XM+high grade audio - - - - o - - - High grade audio & speakers - - - - - o o o Satellite- compatible+high grade audio - o - o - - - - Model BASE Destination code C0 U4 C4 OP code AL BC BH XX BA BM BN BT BS Curb weight (C.W.) Front kg (lb) 1,041 (2,295) 1,051 (2,317) 1,054 (2,324) 1,038 (2,288) 1,047 (2,309) 1,050 (2,315) 1,052 (2,320) 1,048 (2,311) 1,051 (2,317) Rear kg (lb) 863 (1,903) 880 (1,940) 881 (1,943) 859 (1,894) 876 (1,932) 879 (1,938) 881 (1,943) 876 (1,932) 876 (1,932) Total kg (lb) 1,904 (4,198) 1,931 (4,258) 1,935 (4,267) 1,897 (4,182) 1,924 (4,242) 1,929 (4,253) 1,933 (4,263) 1,924 (4,242) 1,928 (4,251) Gross axle weight ratio (G.A.W.) Front kg (lb) 1,368 (3,016) 1,368 (3,016) 1,368 (3,016) 1,368 (3,016) 1,368 (3,016) 1,368 (3,016) 1,368 (3,016) 1,368 (3,016) 1,368 (3,016) Rear kg (lb) 1,515 (3,340) 1,515 (3,340) 1,515 (3,340) 1,515 (3,340) 1,515 (3,340) 1,515 (3,340) 1,515 (3,340) 1,515 (3,340) 1,515 (3,340) Gross vehicle weight (G.V.W.) kg (lb) 2,586 (5,700) 2,586 (5,700) 2,586 (5,700) 2,586 (5,700) 2,586 (5,700) 2,586 (5,700) 2,586 (5,700) 2,586 (5,700) 2,586 (5,700) Option Leather seat - o o - o o o o o Seat heater o o o - o o o o o Sunroof - o o - o o o o o Driver's memory seat - o o - o o o o o Navigation system - - o - - o o - - DVD - o o - - - o - o Home link o o o - o o o - - HID headlight - o o - - - - - - Rear view camera - o o - - o o o o XM+high grade audio - - o - - o o - - 2009 Subaru Tribeca 2009 GENERAL INFORMATION General Information - Tribeca

PRECAUTION CAUTION Please clearly understand and adhere to the following general precautions. They must be strictly followed to avoid any injury to the person doing the work or people in the area. VEHICLE DYNAMICS CONTROL (VDC) Handle the VDC as a total system. Do not disassemble or attempt to repair individual parts. Doing so could prevent the VDC system from operating when needed or cause it to operate incorrectly and result in injury. BRAKE FLUID If brake fluid gets in your eyes or on your skin, do the following:  Wash eyes and seek immediate medical attention.  Wash your skin with soap and then rinse thoroughly with water. Follow all government regulations concerning disposal of refuse when disposing. RADIATOR FAN The radiator fan may rotate without warning, even when the engine is not ON. Do not place your hand, cloth, tools or other items near the fan at any time. ROAD TEST Always conduct road tests in accordance with traffic rules and regulations to avoid bodily injury and interrupting traffic. AIRBAG To prevent bodily injury from unexpected deployment of airbags and unnecessary maintenance, follow the instructions in this manual when performing maintenance on or near the airbag components, around front of the vehicle (radiator panel, front wheel apron, front side frame, bumper, hood, front fender), around side of the vehicle (front door, rear door, center pillar, rear fender, side sill, rear wheel apron), and on or near the airbag wiring harnesses. To prevent unexpected deployment, turn the ignition switch to OFF and disconnect the ground cable from battery, then wait at least 20 seconds before starting work. AIRBAG AND SEAT BELT PRETENSIONER DISPOSAL High grade audio & speakers - - - - - - - o o Satellite- compatible+high grade audio - o - - o - - - - 2009 Subaru Tribeca 2009 GENERAL INFORMATION General Information - Tribeca
