TRANSMISSION
Automatic Transmission - Control System - Mechanism & Function
SELECT LEVER
The automatic transmission select lever can be moved to any of the 4 ranges and the transmission enters
sports mode when the lever is moved laterally from D range, and further switches to sports shift mode
(manual mode) when the lever is moved forward ("+" direction) or rearward ("-" direction).
The select lever makes shift direction (longitudinal) movements as well as select direction (lateral)
movements. The select lever is guided by a gate to make these movements.
In the sports shift mode, the transmission upshifts when the selector lever is moved forward ("+"
direction) and downshifts when the lever is moved rearward ("-" direction).
To transmit movements of the select lever to the transmission, a select cable is used.
The select lever mechanism has a detent spring. It ensures more precise positioning of the select lever.

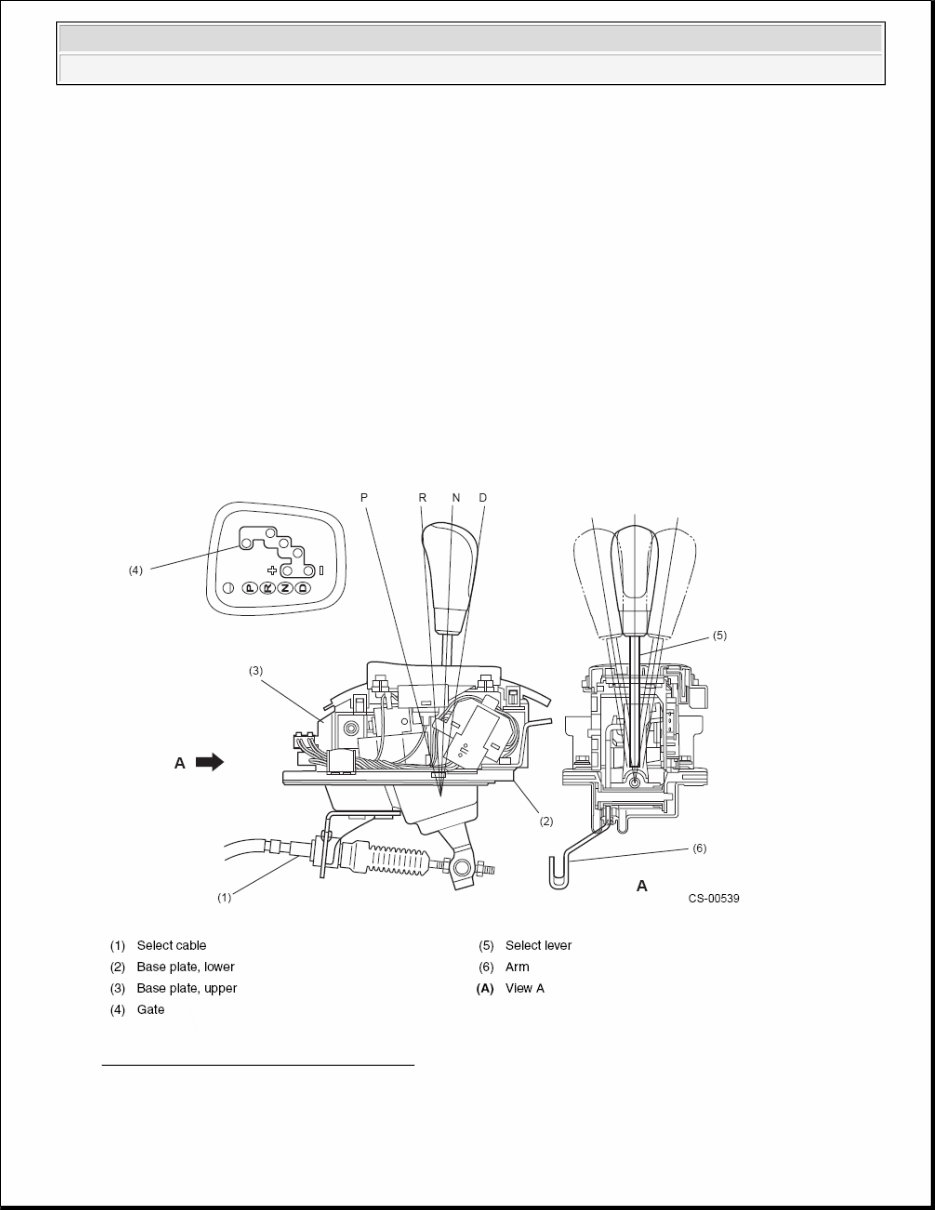

Fig. 1: Select Lever Shifting Mechanism
Courtesy of SUBARU OF AMERICA, INC.
2011 Subaru Tribeca Premium
TRANSMISSION Automatic Transmission - Control System - Mechanism & Function
2011 Subaru Tribeca Premium
TRANSMISSION Automatic Transmission - Control System - Mechanism & Function
SHIFT LOCK AND KEY INTERLOCK SYSTEM
GENERAL
To increase safety during standing start, the shift lock system prevents movement of the select lever from the
"P" position to any other position unless the brake pedal is depressed. This system is also provided with a key
interlock function which prevents removal of the ignition key from the key cylinder unless the selector lever is
placed in the "P" position.

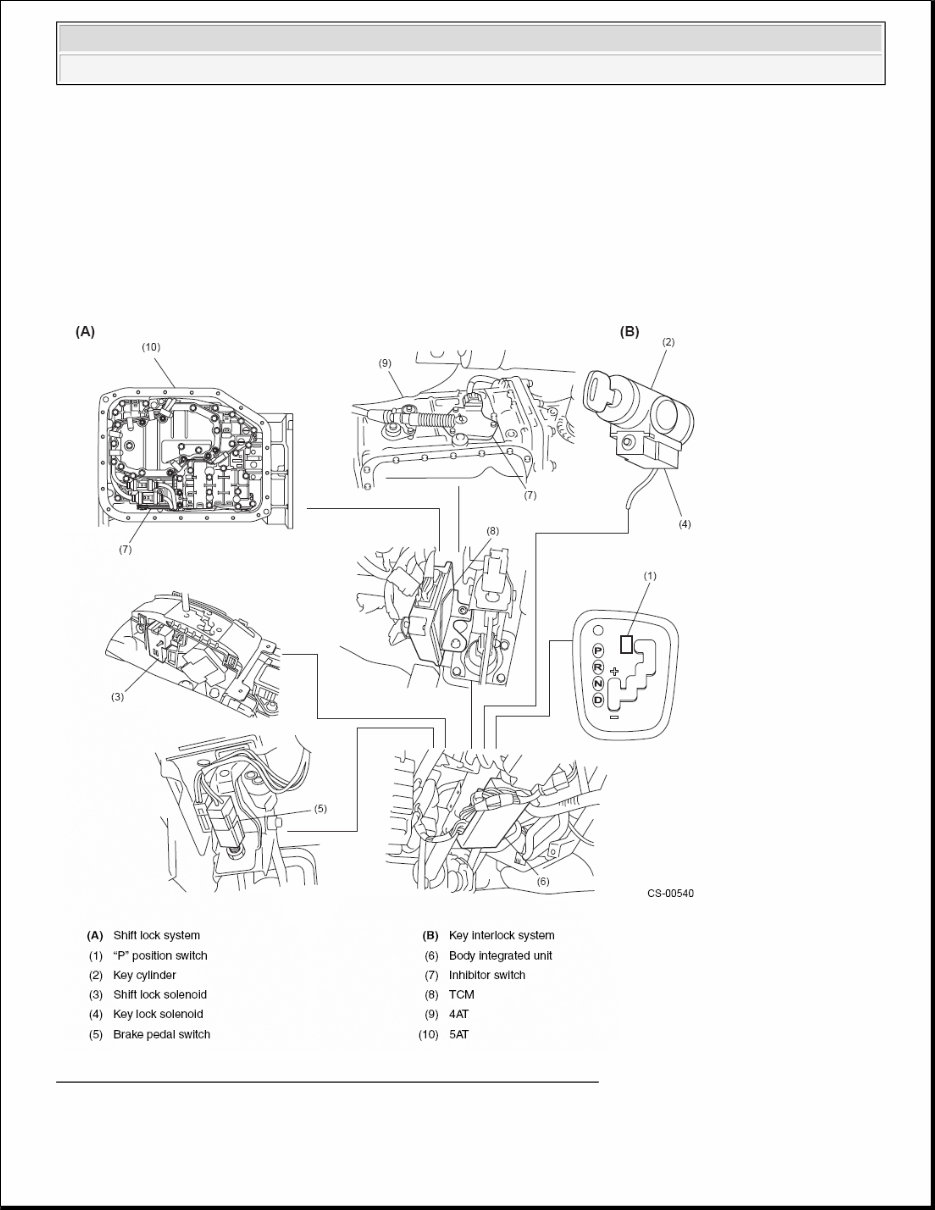

Fig. 2: Identifying Shift Lock And Key Interlock System Components
2011 Subaru Tribeca Premium
TRANSMISSION Automatic Transmission - Control System - Mechanism & Function
SHIFT LOCK SYSTEM OPERATION
The shift lock system has a solenoid-operated plunger (1). With the select lever in the P position, the plunger
remains extended, holding the lock arm (2) in its pushed out (locking) position. When the brake pedal is
depressed with the ignition switch in either the ON or START position, the solenoid is energized and the
plunger is retracted. This causes the lock arm to lift to the select lever release position. The select lever now can
be moved to any other position. The P position of the select lever is detected by the inhibitor switch (3).

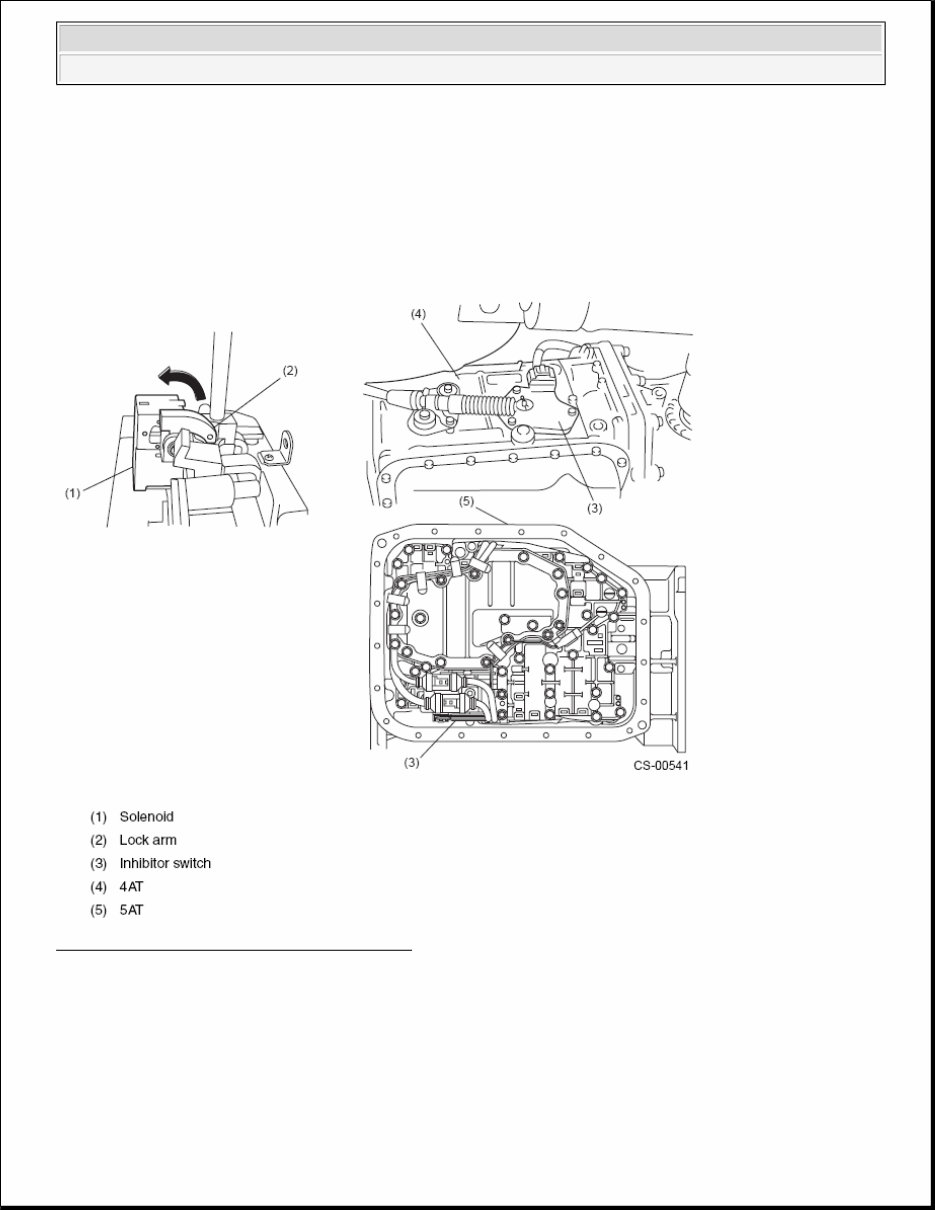

Fig. 3: Shift Lock System Operation Diagram
Courtesy of SUBARU OF AMERICA, INC.
KEY INTERLOCK FUNCTION
When the select lever is at any position other than P, the solenoid is energized and its guide pin extends to
hold the lock pin in its pushed out position. Held in its extended position, the lock pin interferes with the
stopper portion of the rotator which turns together with the ignition key. Thus, the ignition key cannot be
2011 Subaru Tribeca Premium
TRANSMISSION Automatic Transmission - Control System - Mechanism & Function
rotated to the "LOCK" position.

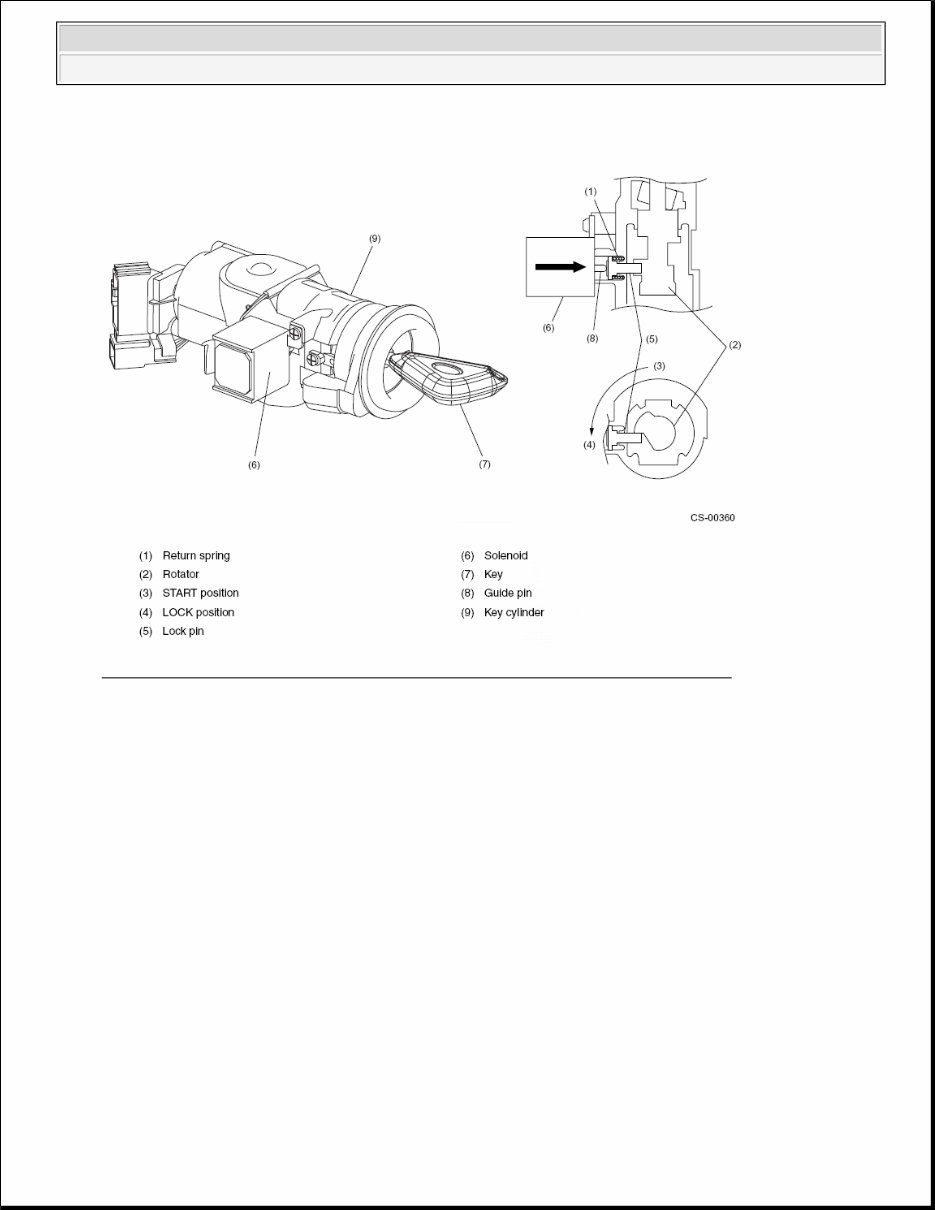

Fig. 4: Key Interlock Function Diagram (Select Lever At Other Than P Position)
Courtesy of SUBARU OF AMERICA, INC.
When the select lever is moved to "P", the "P" position switch in the select lever assembly operates,
deenergizing the solenoid. As the push force of the guide pin is removed, the return spring moves the lock
pin toward the solenoid and the lock pin becomes clear of the rotator stopper. Then the key can be rotated
to the LOCK position and removed from the ignition switch.
2011 Subaru Tribeca Premium
TRANSMISSION Automatic Transmission - Control System - Mechanism & Function

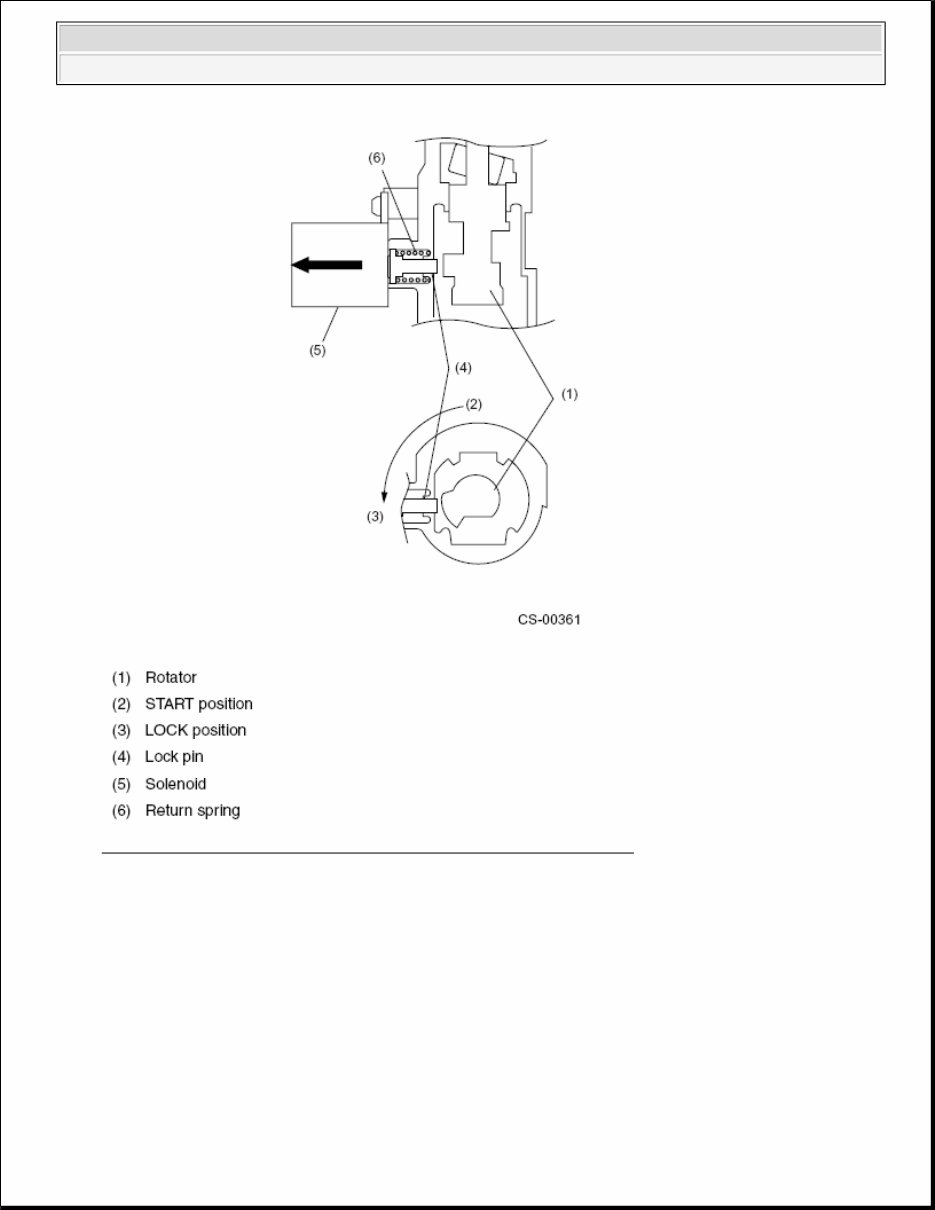

Fig. 5: Key Interlock Function Diagram (Select Lever At P Position)
Courtesy of SUBARU OF AMERICA, INC.
2011 Subaru Tribeca Premium
TRANSMISSION Automatic Transmission - Control System - Mechanism & Function
2011 TRANSMISSION
Automatic Transmission 5AT (Diagnostics) - Tribeca
BASIC DIAGNOSTIC PROCEDURE
PROCEDURE

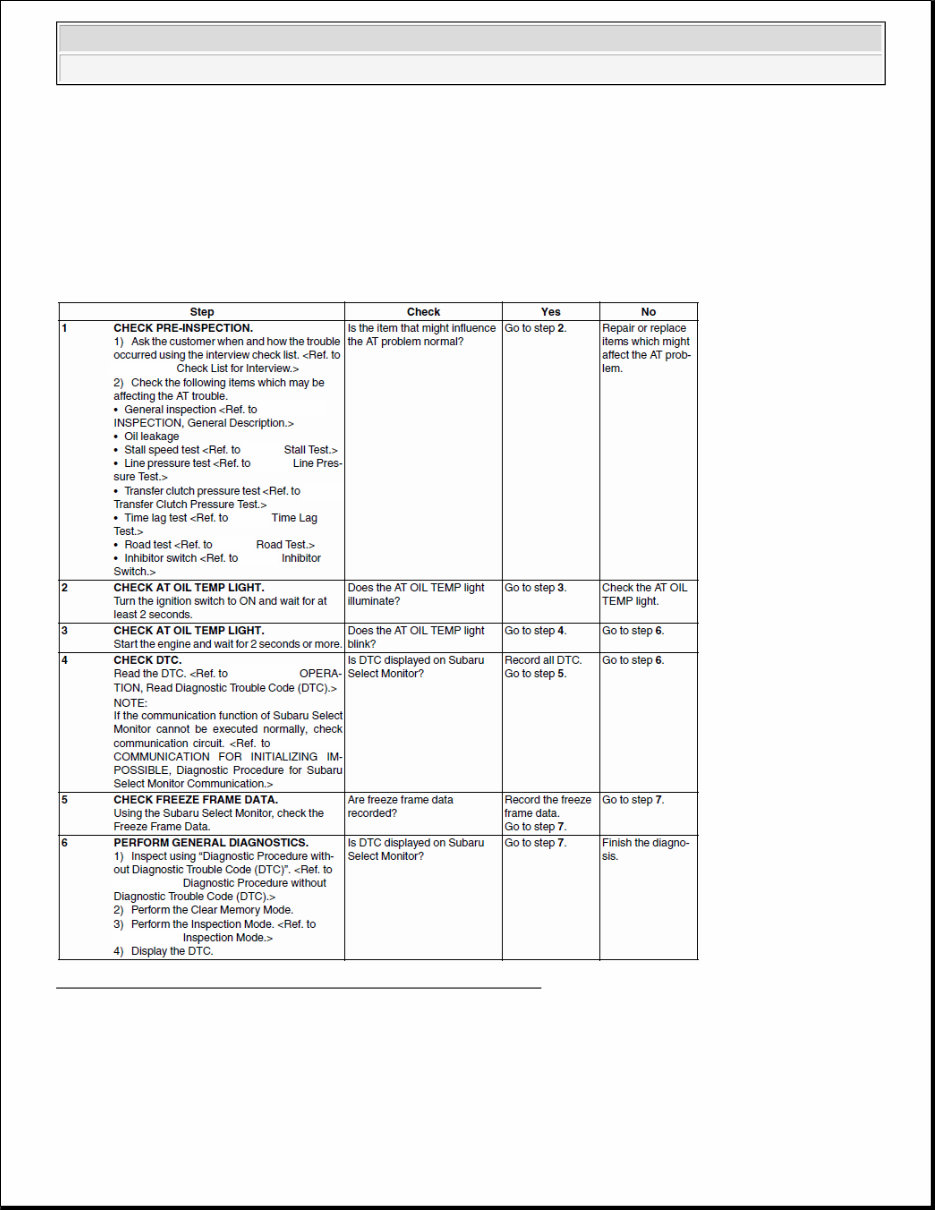

Fig. 1: Automatic Transmission Diagnostic Procedure (1 Of 2)
Courtesy of SUBARU OF AMERICA, INC.
2011 Subaru Tribeca Premium
2011 TRANSMISSION Automatic Transmission 5AT (Diagnostics) - Tribeca
2011 Subaru Tribeca Premium
2011 TRANSMISSION Automatic Transmission 5AT (Diagnostics) - Tribeca

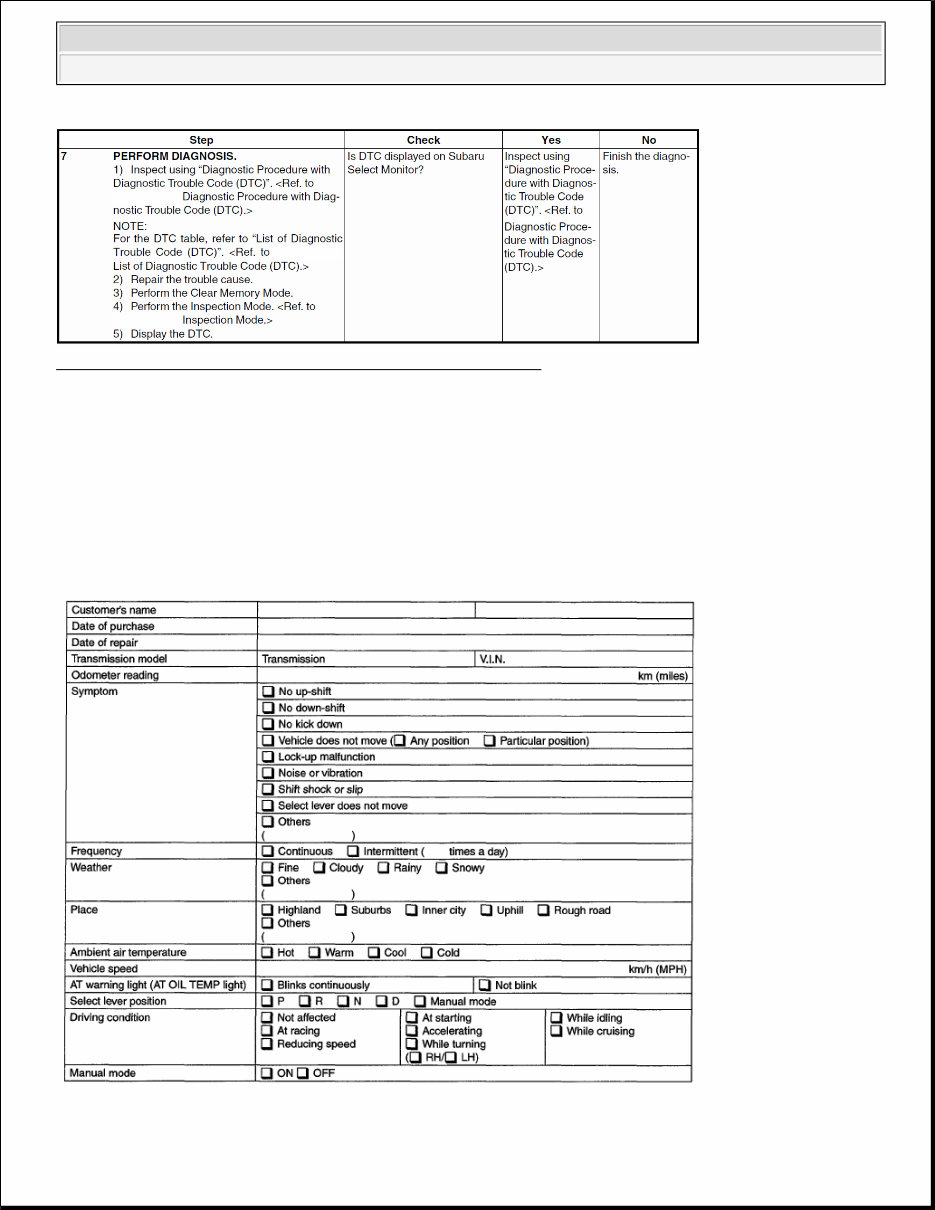

Fig. 2: Automatic Transmission Diagnostic Procedure (2 Of 2)
Courtesy of SUBARU OF AMERICA, INC.
CHECK LIST FOR INTERVIEW
CHECK
Check the following item when problem has occurred.
NOTE: Use copies of this illustration for interviewing customers.
2011 Subaru Tribeca Premium
2011 TRANSMISSION Automatic Transmission 5AT (Diagnostics) - Tribeca
Fig. 3: Check List For Interview
Courtesy of SUBARU OF AMERICA, INC.
GENERAL DESCRIPTION
CAUTION
SRS AIRBAG SYSTEM
The airbag system wiring harness is routed near the TCM.
MEASUREMENT
When measuring the voltage and resistance of the ECM, TCM or each sensor, use a tapered pin with a diameter
of less than 0.64 mm (0.025 in) in order to avoid poor contact. Do not insert a pin of more than 0.65 mm (0.026
in) diameter.
INSPECTION
BATTERY
Measure the battery voltage and specific gravity of electrolyte.
Standard voltage:
12 V or more
Specific gravity:
1.260 or more
TRANSMISSION GROUND
Make sure that the ground terminal bolt is tightened securely.
Tightening torque:
7 N.m (0.7 kgf-m, 5.2 ft-lb)
CAUTION:
All airbag system wiring harnesses and connectors are colored
yellow. Do not use an electric test equipment to check these circuits.
Be careful not to damage the airbag system wiring harness when
performing diagnostics or servicing the TCM.
2011 Subaru Tribeca Premium
2011 TRANSMISSION Automatic Transmission 5AT (Diagnostics) - Tribeca

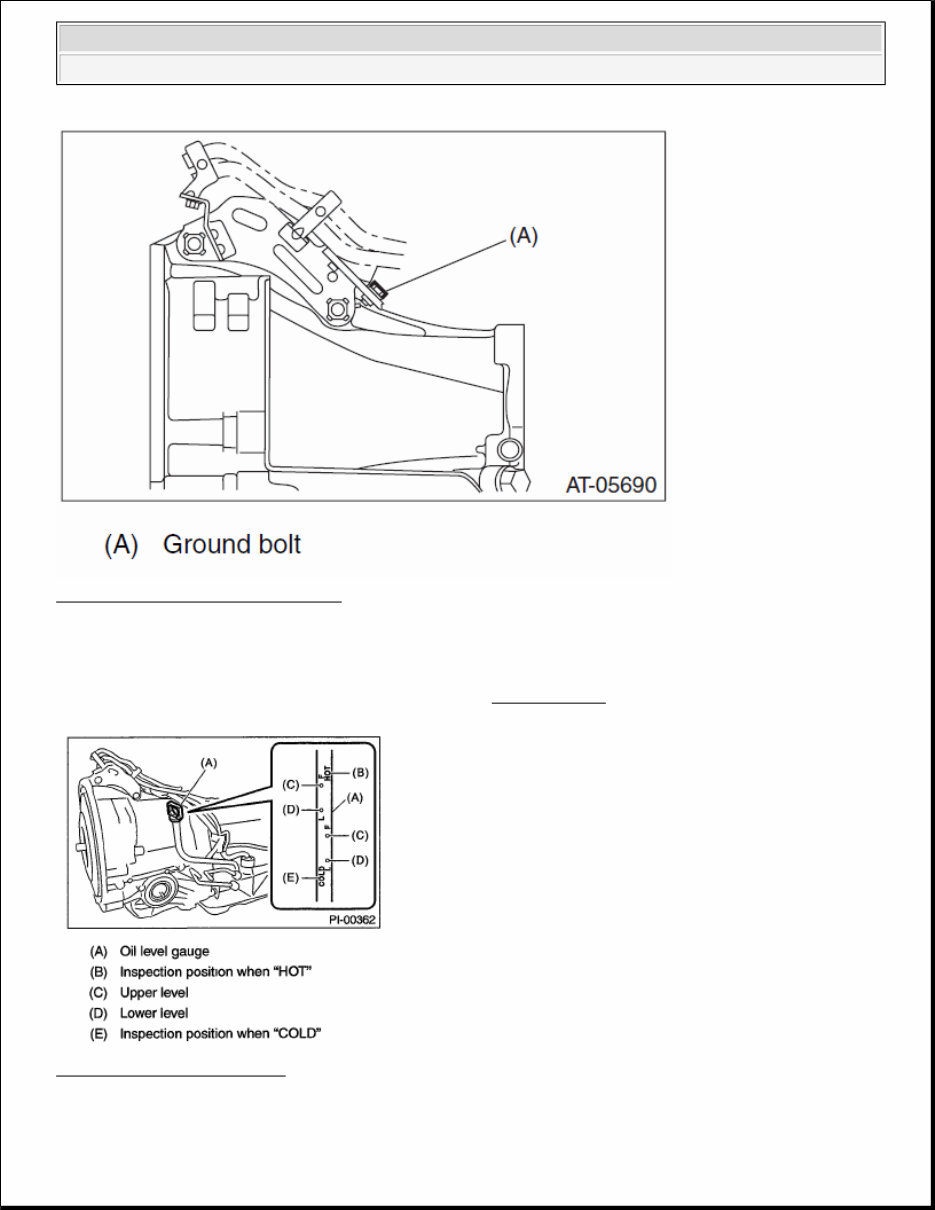

Fig. 4: Identifying Ground Terminal
Courtesy of SUBARU OF AMERICA, INC.
ATF LEVEL
Make sure that ATF level is the specified amount. Refer to INSPECTION , Automatic Transmission Fluid.
Fig. 5: Identifying ATF Level
Courtesy of SUBARU OF AMERICA, INC.
2011 Subaru Tribeca Premium
2011 TRANSMISSION Automatic Transmission 5AT (Diagnostics) - Tribeca
FRONT DIFFERENTIAL OIL LEVEL
Make sure the front differential oil level is the specified amount. Refer to INSPECTION , Differential Gear
Oil.
Fig. 6: Identifying Front Differential Oil Level
Courtesy of SUBARU OF AMERICA, INC.
OPERATION OF SHIFT SELECT LEVER
Make sure there is no noise, dragging or contact pattern in each select lever range.
PREPARATION TOOL
SPECIAL TOOL
PREPARATION TOOL SPECIFICATION
WARNING: Stop the engine while checking operation of the select lever.
ILLUSTRATION
TOOL
NUMBER DESCRIPTION REMARKS
1B022XU0 SUBARU SELECT
MONITOR III KIT
Used for
troubleshooting the
electrical system.
2011 Subaru Tribeca Premium
2011 TRANSMISSION Automatic Transmission 5AT (Diagnostics) - Tribeca
