2009 GENERAL INFORMATION
General Information - Tribeca
HOW TO USE THIS INFORMATION
HOW TO USE THIS INFORMATION
SPECIFICATION
If necessary, specifications are also included.
INSPECTION
Inspections to be carried out before and after maintenance are included.
MAINTENANCE
Maintenance instructions for serviceable parts describe work area and detailed step with illustration. It
also describes the use of special tool, tightening torque, caution for each procedure.
If many serviceable parts are included in one service procedure, appropriate reference is provided for
each parts.
Example:
2009 Subaru Tribeca
2009 GENERAL INFORMATION General Information - Tribeca

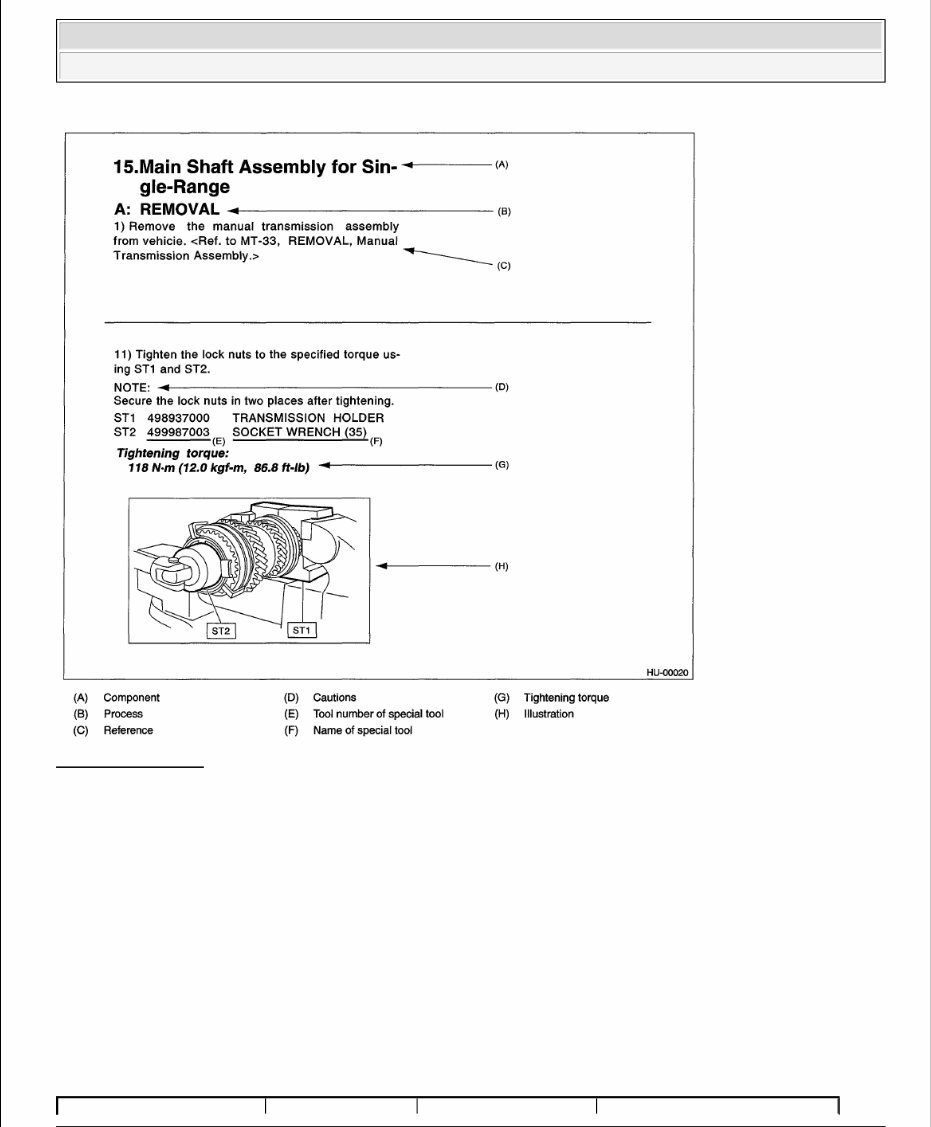

Fig. 1: Main Chart
Courtesy of SUBARU OF AMERICA, INC.
DIAGNOSIS
Tables showing a step-by-step process make it easy to conduct diagnosis.
SI UNITS
Measurements in these manuals are according to the SI units. Metric and yard/pound measurements are also
included.
Example:
Tightening torque: 44 N.m (4.5 kgf-m, 33 ft-lb)
SI UNITS REFERENCE
2009 Subaru Tribeca
2009 GENERAL INFORMATION General Information - Tribeca
The figure used in these manuals are described in the SI units and conventional units are described in ( ).
EXPLANATION OF TERMINOLOGY
AAI : Air Assist Injection
A/B : Airbag
ABS : Anti-lock Brake System
A/C : Air Conditioner
ACC : Accessory
A/F : Air Fuel Ratio
ALT : Generator
ASSY : Assembly
AT : Automatic Transmission
ATF : Automatic Transmission Fluid
AUX : Auxiliary
AUX : Auxiliary Storage Unit
AWD : All Wheel Drive
BATT : Battery
CAN : Controller Area Network
Item SI units Conventional unit Remarks
Force N (Newton) kgf 1 kgf = 9.80655 N
Mass (Weight) kg, g kg, g
Capacity
l , m l or cm
3
l or cc
1 cc = 1 cm
3
= 1 m l
Torque N.m kgf-m, kgf-cm 1 kgf-m = 9.80655 N.m
Rotating speed rpm rpm
Pressure kPa (kilopascal)
kgf/cm
2
1 kgf/cm
2
= 98.0655 kPa
mmHg 1 mmHg = 0.133322 kPa
Power W PS 1 PS = 0.735499 kW
Calorie W.h cal 1 kcal = 1.16279 W.h
Fuel consumption rate g/kw.h g/PS.h 1 g/PS.h = 1.3596 g/kW.h
2009 Subaru Tribeca
2009 GENERAL INFORMATION General Information - Tribeca
CD : Compact Disc
CPU : Central Processing Unit
DOHC : Double Overhead Camshaft
DOJ : Double Offset Joint
DTC : Diagnostic Trouble Code
DVD : Digital Versatile Disc
EBJ : High-efficiency Compact Ball Fixed Joint
ECM : Engine Control Module
EDJ : High-efficiency Compact Double Offset Joint
EGR : Exhaust Gas Recirculation
EX : Exhaust
F/B : Fuse & Joint Box
Ft : Front
FWD : Front Wheel Drive
GPS : Global Positioning System
HI : High
HID : High Intensity Discharge
H/L : Headlight
H/U : Hydraulic Unit
I/F : Interface
I/O : Input/Output
IG : Ignition
INT : Intermittent
ISC : Idle Speed Control
2009 Subaru Tribeca
2009 GENERAL INFORMATION General Information - Tribeca
LCD : Liquid Crystal Display
LH : LH (Left Hand)
LSD : Limited Slip Differential
M/B : Main Fuse & Relay Box
MFI : Multi Point Injection
MT : Manual Transmission
NA : Natural Aspiration
OP : Option Parts
P/W : Power Window
PCV : Positive Crankcase Ventilation
PTJ : Pillow Tripod Joint
RH : RH (Right Hand)
ROM : Read Only Memory
Rr : Rear
SOHC : Single Overhead Camshaft
SRS : Supplemental Restraint System
SSM : Subaru Select Monitor
ST : Special Tool
SW : Switch
TCS : Traction Control System
TCM : Transmission Control Module
TPMS : Tire Pressure Monitoring System
VDC : Vehicle Dynamics Control
VTD : Variable Torque Distribution
2009 Subaru Tribeca
2009 GENERAL INFORMATION General Information - Tribeca
TRIBECA
DIMENSION
PART DIMENSION CHART
ENGINE
ENGINE SPECIFICATION
ELECTRICAL
IGNITION TIMING REFERENCE
TRANSMISSION
Overall length mm (in) 4,865 (191.5)
Overall width mm (in) 1,878 (73.9)
Overall height (at C.W.) mm (in)
Models without roof rail: 1,686 (66.4)
Models with roof rail: 1,720 (67.7)
Compartment
Length mm (in)
7 Seater model: 2,495 (98.2)
5 Seater model: 1,815 (71.5)
Width mm (in) 1,476 (58.1)
Height mm (in) 1,390 (54.7)
Wheelbase mm (in) 2,749 (108.2)
Tread
Front mm (in) 1,580 (62.2)
Rear mm (in) 1,578 (62.1)
Minimum road clearance mm (in) 213 (8.4)
Engine type
Horizontally opposed, liquid cooled, 6-cylinder, 4-
stroke gasoline engine
Valve arrangement Overhead camshaft
Bore x stroke mm (in) 92.0 x 91.0 (3.622 x 3.583)
Displacement
cm
3
(cu in)
3,630 (221.5)
Compression ratio 10.5
Ignition order 1 - 6 - 3 - 2 - 5 - 4
Idle speed at Park or Neutral
position
rpm 700
Maximum output kW (HP)/rpm 191 (256)/6,000
Maximum torque
N.m (kgf-m, ft-
lb)/rpm
335 (34.2, 247)/4,400
Ignition timing (at idling) BTDC 15°
Spark plug Type and manufacturer NGK: SILFR6A
Generator 12 V - 130A
Battery Type and capacity (5HR) 12V - 52AH (75D23L)
2009 Subaru Tribeca
2009 GENERAL INFORMATION General Information - Tribeca
TRANSMISSION CHART
STEERING
STEERING SPECIFICATION
SUSPENSION
SUSPENSION SPECIFICATION
BRAKE
BRAKE SPECIFICATION
TIRE
TIRE SPECIFICATION
Transmission type 5AT
Clutch type TCC
Gear ratio
1st 3.540
2nd 2.264
3rd 1.471
4th 1.000
5th 0.834
Reverse 2.370
Reduction gear (Front)
1st reduction
Type of gear Helical
Gear ratio 1.000
Final reduction
Type of gear Hypoid
Gear ratio 3.583
Reduction gear (Rear) Final reduction
Type of gear Hypoid
Gear ratio 3.583
5AT: Electronically controlled fully-automatic, 5-forward speeds and 1-reverse
TCC: Torque Converter Clutch
Type Rack & pinion
Turns, lock to lock 3.44
Minimum turning diameter m (ft)
Curb to curb 11.4 (37.4)
Wall to wall 12.2 (40.0)
Front Macpherson strut type suspension
Rear Double-wishbone type suspension
Service brake system Dual circuit hydraulic with vacuum suspended power unit
Front Ventilated disc brake
Rear Ventilated disc brake
Parking brake Mechanical on rear brakes
2009 Subaru Tribeca
2009 GENERAL INFORMATION General Information - Tribeca
CAPACITY
ITEM CAPACITY CHART
WEIGHT
ITEM WEIGHT
Wheel size 18 x 8JJ
Tire size P255/55 R18 104H
Type Tubeless, Steel belted radial
Fuel tank l (US gal, lmp gal)
64 (16.9,
14.1)
Engine
oil
Capacity (at overhaul) l (US qt, lmp qt) 7.8 (8.2, 6.9)
Filling amount of engine oil l (US qt, lmp
qt)
When replacing engine oil and oil
filter
6.5 (6.9, 5.7)
When replacing engine oil only 6.3 (6.7, 5.5)
ATF l (US qt, lmp qt) 9.8 (10.4, 8.6)
Front differential gear oil l (US qt, lmp qt) 1.4 (1.5, 1.2)
Rear differential gear oil l (US qt, lmp qt) 0.8 (0.8, 0.7)
Power steering fluid l (US qt, lmp qt)
0.9 (0.95,
0.79)
Engine coolant l (US qt, lmp qt) 7.6 (8.0, 6.7)
Model 5ST
Destination code C0 U4 C4
OP code CQ BP XX BA BM CT BT BS
Curb
weight
(C.W.)
Front kg (lb) 1,051
(2,317)
1,051
(2,317)
1,041
(2,296)
1,049
(2,314)
1,052
(2,320)
1,048
(2,311)
1,050
(2,315)
1,052
(2,320)
Rear kg (lb) 841
(1,854)
847
(1,868)
831
(1,833)
847
(1,867)
849
(1,873)
842
(1,857)
847
(1,868)
850
(1,874)
Total kg (lb) 1,892
(4,172)
1,898
(4,185)
1,873
(4,129)
1,897
(4,182)
1,902
(4,193)
1,891
(4,170)
1,897
(4,183)
1,902
(4,194)
Gross axle
weight
ratio
(G.A.W.)
Front kg (lb) 1,368
(3,016)
1,368
(3,016)
1,368
(3,016)
1,368
(3,016)
1,368
(3,016)
1,368
(3,016)
1,368
(3,016)
1,368
(3,016)
Rear kg (lb) 1,515
(3,340)
1,515
(3,340)
1,515
(3,340)
1,515
(3,340)
1,515
(3,340)
1,515
(3,340)
1,515
(3,340)
1,515
(3,340)
Gross vehicle weight
(G.V.W.)
kg (lb) 2,586
(5,700)
2,586
(5,700)
2,586
(5,700)
2,586
(5,700)
2,586
(5,700)
2,586
(5,700)
2,586
(5,700)
2,586
(5,700)
Leather seat - o - o o - o o
Seat heater o o - o o o o o
Sunroof o o - o o o o o
Driver's memory
seat
- o - o o - o o
2009 Subaru Tribeca
2009 GENERAL INFORMATION General Information - Tribeca
ITEM WEIGHT
Option
Navigation system - - - - o - - -
DVD - - - - - - - o
Home link o o - o o - - -
HID headlight o o - - - - - -
Rear view camera - - - - o o o o
XM+high grade
audio
- - - - o - - -
High grade audio &
speakers
- - - - - o o o
Satellite-
compatible+high
grade audio
- o - o - - - -
Model BASE
Destination code C0 U4 C4
OP code AL BC BH XX BA BM BN BT BS
Curb
weight
(C.W.)
Front kg (lb) 1,041
(2,295)
1,051
(2,317)
1,054
(2,324)
1,038
(2,288)
1,047
(2,309)
1,050
(2,315)
1,052
(2,320)
1,048
(2,311)
1,051
(2,317)
Rear kg (lb) 863
(1,903)
880
(1,940)
881
(1,943)
859
(1,894)
876
(1,932)
879
(1,938)
881
(1,943)
876
(1,932)
876
(1,932)
Total kg (lb) 1,904
(4,198)
1,931
(4,258)
1,935
(4,267)
1,897
(4,182)
1,924
(4,242)
1,929
(4,253)
1,933
(4,263)
1,924
(4,242)
1,928
(4,251)
Gross
axle
weight
ratio
(G.A.W.)
Front kg (lb) 1,368
(3,016)
1,368
(3,016)
1,368
(3,016)
1,368
(3,016)
1,368
(3,016)
1,368
(3,016)
1,368
(3,016)
1,368
(3,016)
1,368
(3,016)
Rear kg (lb) 1,515
(3,340)
1,515
(3,340)
1,515
(3,340)
1,515
(3,340)
1,515
(3,340)
1,515
(3,340)
1,515
(3,340)
1,515
(3,340)
1,515
(3,340)
Gross vehicle
weight (G.V.W.)
kg (lb) 2,586
(5,700)
2,586
(5,700)
2,586
(5,700)
2,586
(5,700)
2,586
(5,700)
2,586
(5,700)
2,586
(5,700)
2,586
(5,700)
2,586
(5,700)
Option
Leather seat - o o - o o o o o
Seat heater o o o - o o o o o
Sunroof - o o - o o o o o
Driver's memory
seat
- o o - o o o o o
Navigation
system
- - o - - o o - -
DVD - o o - - - o - o
Home link o o o - o o o - -
HID headlight - o o - - - - - -
Rear view camera - o o - - o o o o
XM+high grade
audio
- - o - - o o - -
2009 Subaru Tribeca
2009 GENERAL INFORMATION General Information - Tribeca
PRECAUTION
CAUTION
Please clearly understand and adhere to the following general precautions. They must be strictly followed to
avoid any injury to the person doing the work or people in the area.
VEHICLE DYNAMICS CONTROL (VDC)
Handle the VDC as a total system. Do not disassemble or attempt to repair individual parts. Doing so could
prevent the VDC system from operating when needed or cause it to operate incorrectly and result in injury.
BRAKE FLUID
If brake fluid gets in your eyes or on your skin, do the following:
Wash eyes and seek immediate medical attention.
Wash your skin with soap and then rinse thoroughly with water.
Follow all government regulations concerning disposal of refuse when disposing.
RADIATOR FAN
The radiator fan may rotate without warning, even when the engine is not ON. Do not place your hand, cloth,
tools or other items near the fan at any time.
ROAD TEST
Always conduct road tests in accordance with traffic rules and regulations to avoid bodily injury and
interrupting traffic.
AIRBAG
To prevent bodily injury from unexpected deployment of airbags and unnecessary maintenance, follow the
instructions in this manual when performing maintenance on or near the airbag components, around front of the
vehicle (radiator panel, front wheel apron, front side frame, bumper, hood, front fender), around side of the
vehicle (front door, rear door, center pillar, rear fender, side sill, rear wheel apron), and on or near the airbag
wiring harnesses. To prevent unexpected deployment, turn the ignition switch to OFF and disconnect the
ground cable from battery, then wait at least 20 seconds before starting work.
AIRBAG AND SEAT BELT PRETENSIONER DISPOSAL
High grade audio
& speakers
- - - - - - - o o
Satellite-
compatible+high
grade audio
- o - - o - - - -
2009 Subaru Tribeca
2009 GENERAL INFORMATION General Information - Tribeca
You're Reading a Preview
What's Included?
Lifetime Access
Fast Download Speeds
Online & Offline Access
Access PDF Contents & Bookmarks
Full Search Facility
Print one or all pages of your manual
$37.99
2009 SUBARU TRIBECA Service and Repair Manual
Viewed 93 Times Today
What's Included?
Lifetime Access
Fast Download Speeds
Online & Offline Access
Access PDF Contents & Bookmarks
Full Search Facility
Print one or all pages of your manual
$37.99
Secure transaction
What's Included?
Lifetime Access
Fast Download Speeds
Online & Offline Access
Access PDF Contents & Bookmarks
Full Search Facility
Print one or all pages of your manual
Description
Get your hands on the 2009 Subaru Tribeca Service and Repair Manual, a comprehensive guide to fixing problems in your vehicle. Whether you're a professional mechanic or a DIY enthusiast, these auto repair manuals provide detailed instructions and procedures to help you maintain and repair your ride.
With customer support available over email, you can get the help you need to fix your car right the first time. The manual covers all models and repairs A-Z, providing you with the exact same information used by technicians at the dealerships.
These manuals are not generic; they are vehicle-specific, offering complete step-by-step instructions, diagrams, illustrations, wiring schematics, and specifications to make vehicle repair a breeze. You'll have access to maintenance details, engine information, control systems, mechanical insights, and much more.
Compatible with all versions of Windows and Mac, these manuals are printable and easy to use. You can print only the pages and diagrams you require, ensuring that you have the necessary information at your fingertips when working on your vehicle.
From engine mechanicals to electrical systems, these manuals cover a wide range of topics, making them an invaluable resource for anyone looking to enhance the performance and durability of their vehicle. Say goodbye to flipping through books and rely on these detailed repair manuals to save time and money.
Take advantage of the comprehensive details, technical data, diagrams, and a complete list of car parts and pictures included in these manuals. Whether you're dealing with engine issues, brake problems, steering column concerns, or electrical system troubleshooting, these manuals have you covered.
Experience the fun of do-it-yourself projects and save money by having a trusty repair manual at your disposal. With easy-to-follow step-by-step guides and illustrations, even the most novice car mechanic can tackle repair and maintenance tasks with confidence.
Don't let constant use deteriorate your vehicle without a solution in sight. Get your hands on the 2009 Subaru Tribeca Service and Repair Manual and take control of your car's maintenance and repair needs.
