2001-2006 Ssangyong Rexton DI Engine Service & Repair Manual

HOW TO USE ELECTRICAL WIRING DIAGRAM POSITION OF CONNECTORS AND GROUNDS WIRING DIAGRAM FOR POWER SUPPLIES USAGE AND CAPACITY OF FUSES IN FUSE BOX ELECTRICAL WIRING DIAGRAMS SECTION INDEX 1 2 3 4 5 (LHD) ELECTRICAL WIRING DIAGRAM PYUNGTAEK, KOREA SSANGYONG MOTOR CO., LTD.

SECTION 1 HOW TO USE ELECTRICAL WIRING DIAGRAM TABLE OF CONTENTS 1. HOW TO READ ELECTRICAL WIRING DIAGRAM ................................................... 1-2 2. CIRCUIT IDENTIFICATION SYMBOL ......................................................................... 1-4 3. FUNCTION OF POWER SUPPLY LINE (NUMBER) ................................................. 1-4 4. WIRING HARNESS COLOR IDENTIFICATION .......................................................... 1-4 5. HOW TO CHECK TERMINAL NUMBER OF CONNECTOR ................................... 1-5 6. PART LOCATION ACCORDING TO PART NUMBER .............................................. 1-6 7. ELECTRIC SYMBOLS .................................................................................................. 1-7 8. ABBREVIATIONS ........................................................................................................... 1-8

SSANGYONG REXTON XDi (LHD) 1-2 HOW TO USE ELECTRICAL WIRING DIAGRAM 1. HOW TO READ ELECTRICAL WIRING DIAGRAM

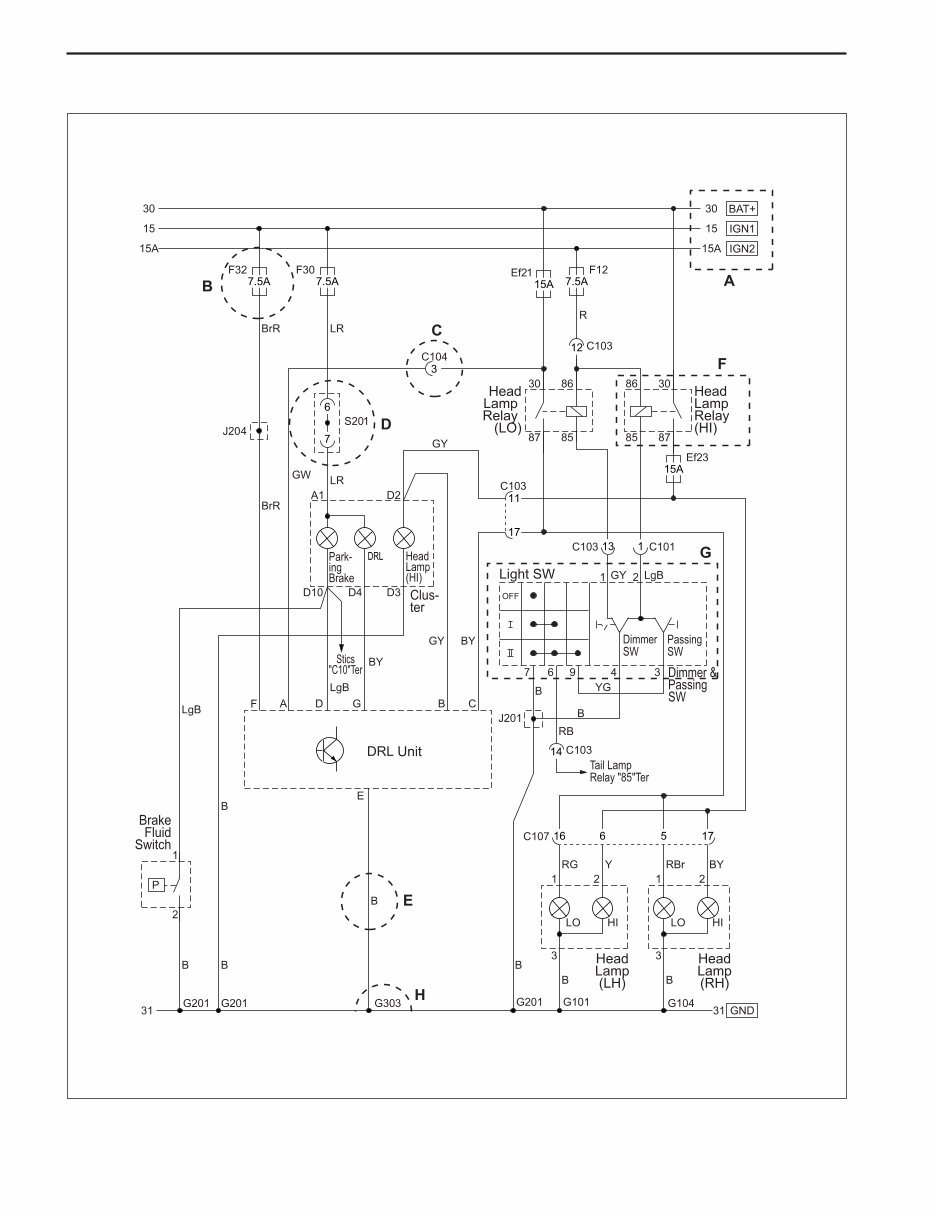

HOW TO USE ELECTRICAL WIRING DIAGRAM 1-3 SSANGYONG REXTON XDi (LHD) - Upper horizontal lines : Power supply lines - Power supply lines : 30, 15, 15A, 15C, 58 - Ef20 or F2 : Fuse Number • Ef20 : Fuse No #20 in engine room compartment • F2 : Fuse No #2 in passenger room compartment - Connector (C101 ~ C402) • Connector No C203 terminal No1 * Refer to Major Connector Position (Section 2) - S201 : Splice pack (S101 ~ S302) * Refer to Major Splice Pack Position (Section2) - Wiring Harness Color * Refer to Wiring Harness Color Abbreviation - Internal circuit of component (Relay) (Component Name and Terminal Number) - Internal circuit of component (Switch) (Component Name, Terminal Number and Connecting Wiring Circuit) - Lower horizontal line : Ground line • Ground position (G101 ~ G401) • B : Body Ground * Refer to Major Ground Position (Section2) A B C D E F G H 1) CONTENTS OF ELECTRICAL WIRING DIAGRAM (CIRCUIT) Position Explanation

SSANGYONG REXTON XDi (LHD) 1-4 HOW TO USE ELECTRICAL WIRING DIAGRAM Battery Voltage (B+) supply in Ignition Switch “ON” and “ST” (IGN 1) Battery Voltage (B+) supply in Ignition Switch “ON” (IGN 2) Battery Voltage (B+) supply in Ignition Switch “ON” and “ACC” Battery Voltage (B+) supply directly regardless of Ignition Switch Ground connected to battery (-) Battery Voltage (B+) supply in Head Lamp Switch 1st and 2nd step (Illumination circuit) Connector Diode Fuse in engine room fuse & relay box Fuse in passenger room fuse box Ground Splice pack (Junction connector) C D Ef F G S 2. CIRCUIT IDENTIFICATION SYMBOL 3. FUNCTION OF POWER SUPPLY LINE (NUMBER) Identification Symbol Meaning Power supply No. Power supply condition 15 15A 15C 30 31 58 Abbreviation Color Brown Green Violet Pink White Orange Light Green Br G V P W Or Lg Abbreviation Color Sky Blue Red Blue Yellow Gray Black Sb R L Y Gr B 4. WIRING HARNESS COLOR IDENTIFICATION
