03-3
6-SPEED M/T
korando 2010.10
3190-01

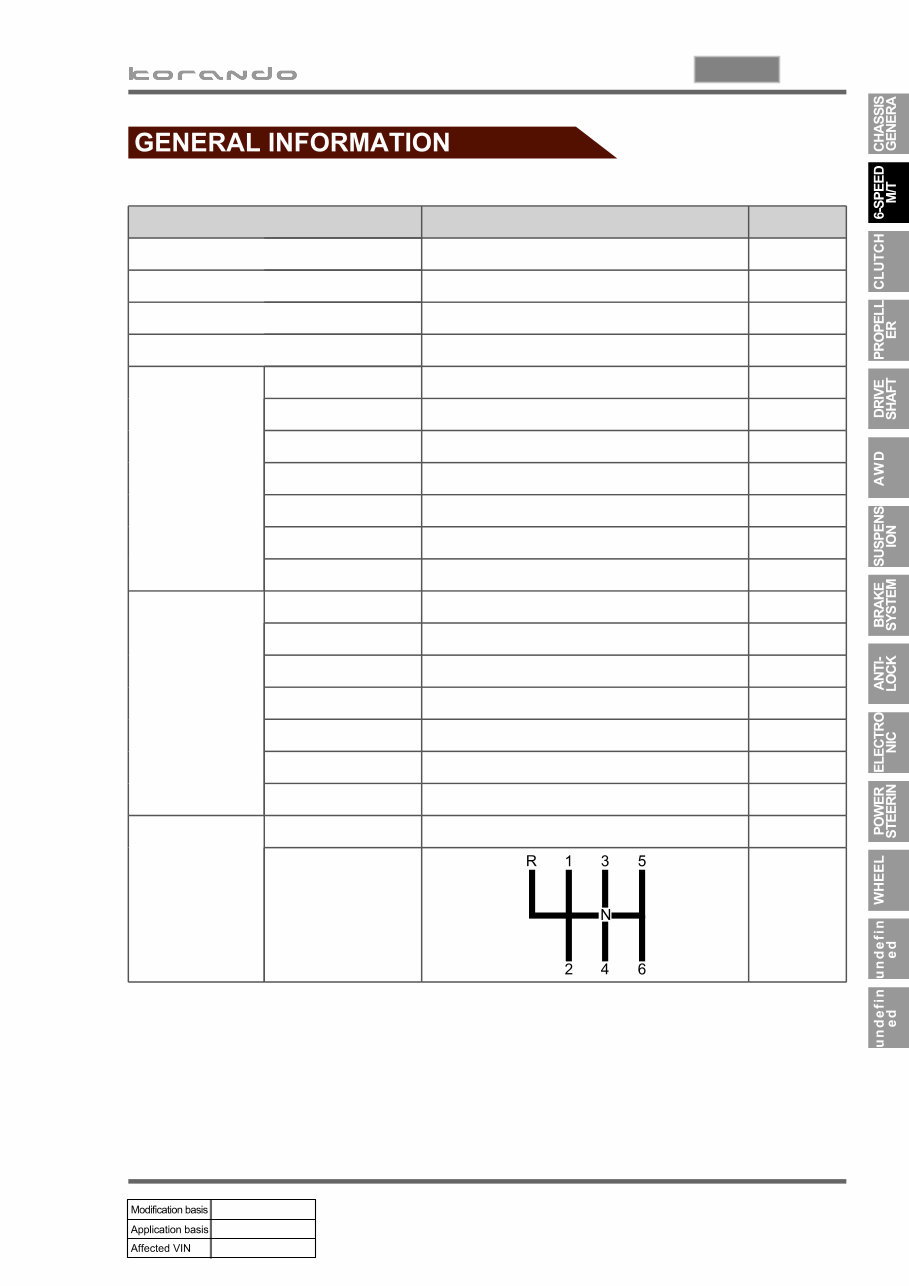

1. SPECIFICATION
Item Specification Remark
Model name WM6F1
Overall length 370 mm
Distance between shafts 205 mm / 70 mm
Weight (except transmission fluid) 62 kgf (2WD) / 63 kgf (4WD)
Gear ratio 1st 3.538
2nd 1.909
3rd 1.179
4th 0.814
5th 0.734
6th 0.628
Reverse 3.910
Synchronizer
ring type
1st T: Triple-cone
2nd T: Triple-cone
3rd T: Triple-cone
4th D: Double-cone
5th D: Double-cone
6th S: Single-cone
Reverse T: Triple-cone
Shifting Type Remote (Cable type)
Gear selector lever
position
Reversing:
Reverse
ring pull
type
03-4
korando 2010.10
0000-00
6-SPEED M/T
Item Specification Remark
Transmission
fluid
Transmission fluid SAE 75W / 85, API GL-4
Capacity 1.6 L
Replacement
interval
EU Inspect and replenish every 60000 km (or
3 years)
Normal driving condition: Fill for Life
(Severe driving condition: Change every
120000 km)
GEN Inspect and replenish every 60000 km (or
4 years)
Normal driving condition: Fill for Life
(Severe driving condition: Change every
120000 km)
03-5
6-SPEED M/T
korando 2010.10
3190-01

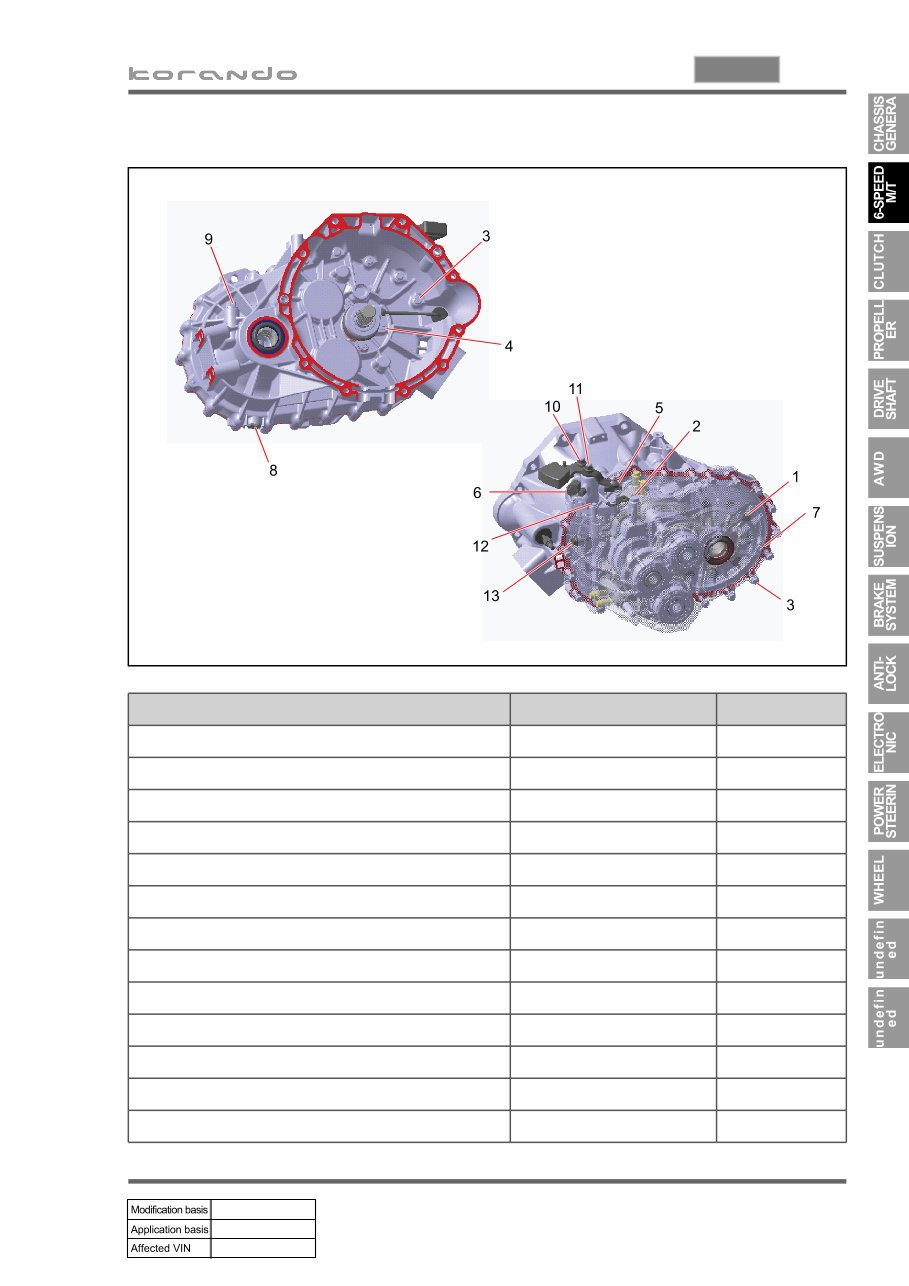

2. TIGHTENING TORQUE
Part name Tightening torque Remark
1. Drive gear mounting bolt of differential carrier 166.6 to 176.4 Nm 10 EA
2. Reverse shaft mounting bolt 74.5 to 89.2 Nm
3. Transmission case mounting bolt 19.6 to 26.5 Nm 22 EA
4. Concentric slave cylinder mounting bolt 11.8 to 14.7 Nm 3 EA
5. Backup lamp switch 29.4 to 34.3 Nm
6. Neutral switch 29.4 to 34.3 Nm
7. Oil filler plug 58.8 to 78.4 Nm
8. Oil drain plug 58.8 to 78.4 Nm
9. Oil plug 58.8 to 78.4 Nm
10. Shift lever mounting nut 42.2 to 53.9 Nm
11. Selector lever mounting nut 42.2 to 53.9 Nm
12. Control shaft assembly mounting bolt 9.8 to 11.8 Nm 7 EA
13. Guide bolt 42.2 to 53.9 Nm
03-6
korando 2010.10
3190-01
6-SPEED M/T
Front view Rear view

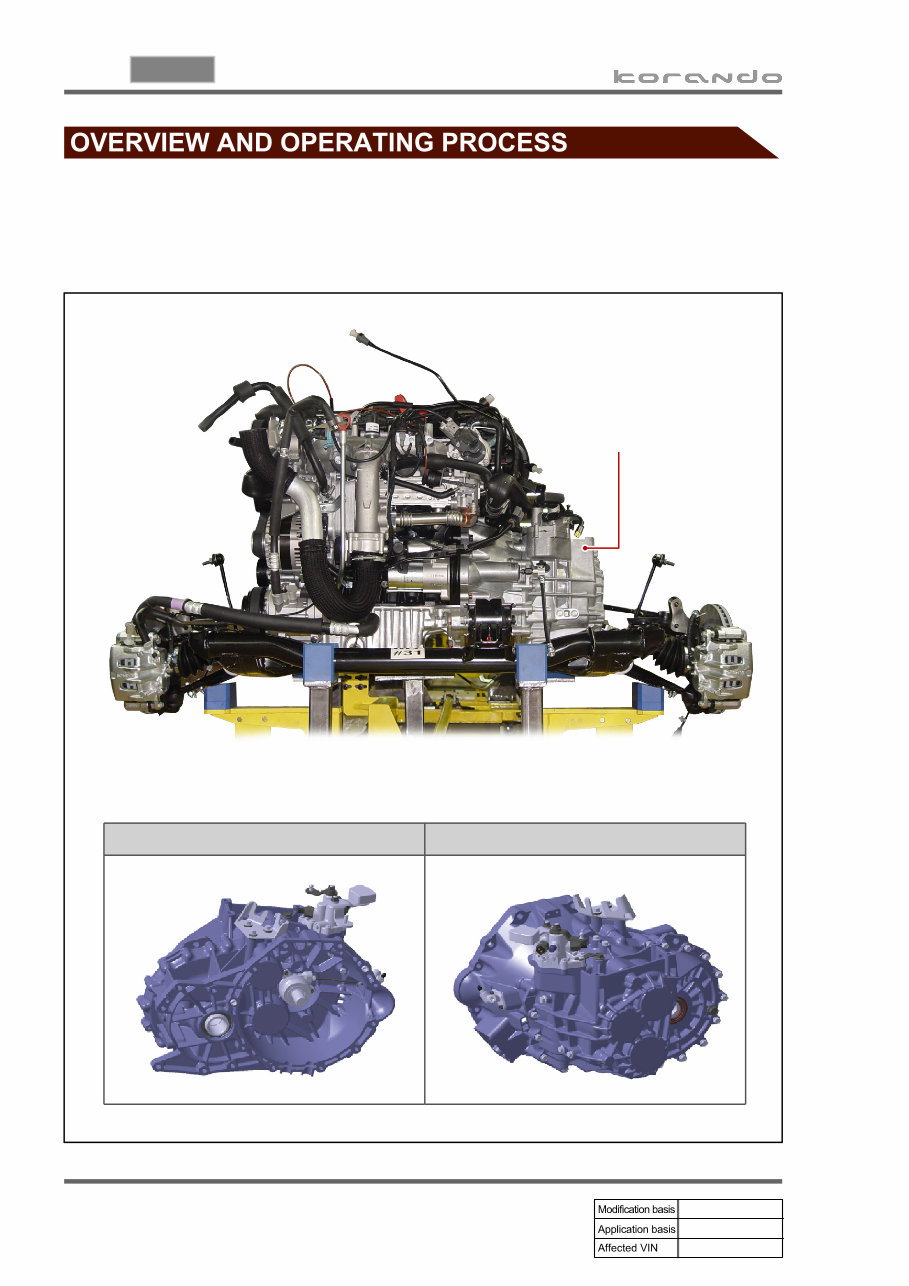

1. OVERVIEW
This vehicle is equipped with WM6F1 M/T (Manual Transmission). This transmission is
integrated with an axle and designed to maximize the driving performance by optimizing the gear
ratio according to the engine torque.
WM6F1 M/T assembly
03-7
6-SPEED M/T
korando 2010.10
3190-01

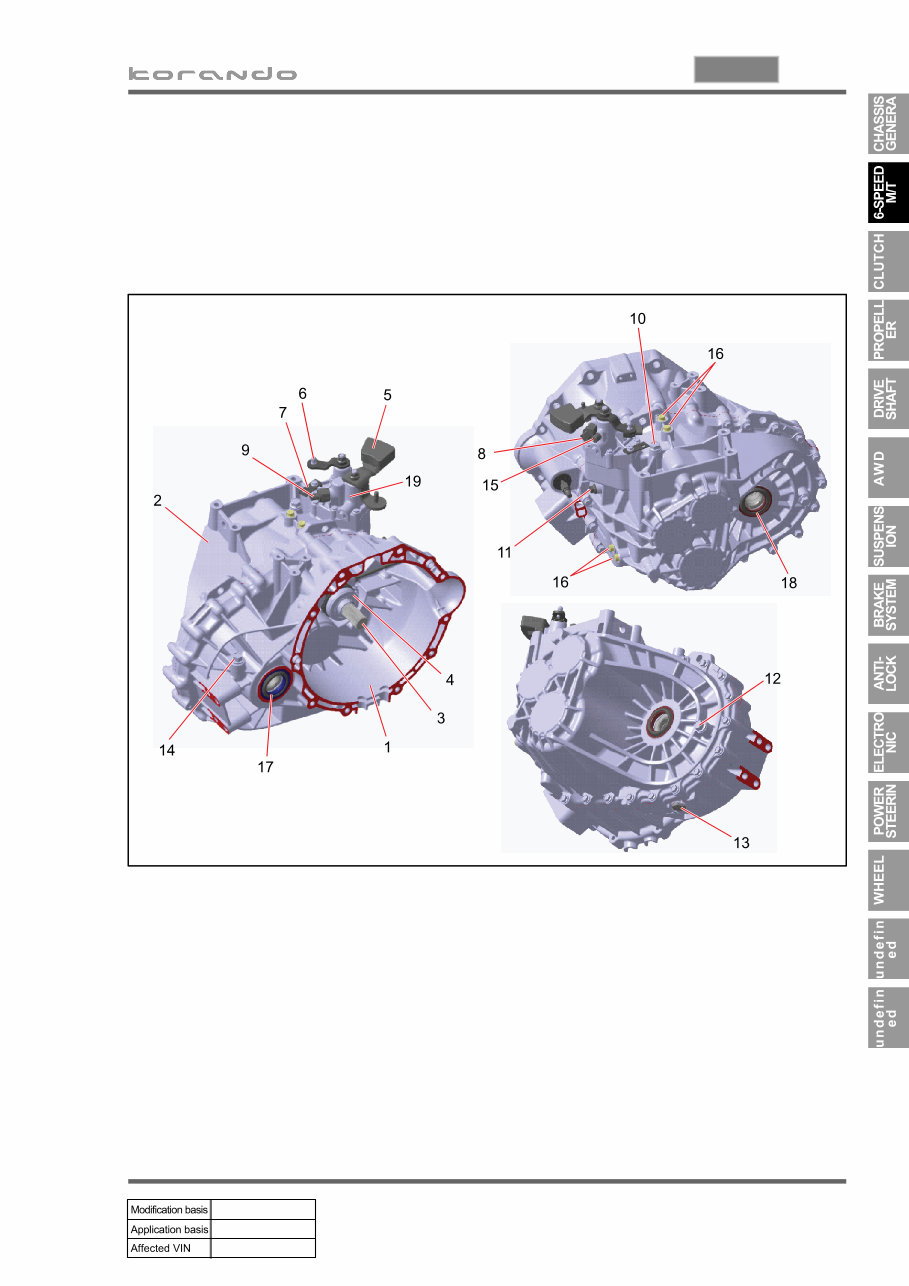

1) Characteristics of WM6F1 M/T
Both Forward and Reverse gears use the helical gear and are made of high-strength material.
Drives the clutch with a concentric slave cylinder mounting bolt.
Shifting the transmission gears is performed through the remote control cable.
A pull type clutch is used for Reverse gear shifting.
Features triple/double/single synchronization.
-
-
-
-
-
Clutch housing
Transmission case
Input shaft
Concentric slave cylinder
Shift lever
Selector lever
Wiring bracket
Neutral switch
Backup lamp switch
Reverse idle shaft mounting bolt
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
Control guide bolt
Oil filler plug (for servicing)
Oil drain plug
Oil filler plug (for manufacturing)
Air breather
Detent pin (for securing shift fork)
Oil seal (RH)
Oil seal (LH)
Control housing
11.
12.
13.
14.
15.
16.
17.
18.
19.
