2012-2013 SsangYong Actyon Sports II Service & Repair Manual

02-3 8710-01 1. PERFORMANCE AND SPECIFICATIONS 1) Rated Load & Input Signals Rated Load ▶ NO. Item Rated Load 1 Chime bell / Buzzer DC 12V 350 mA (Inductive load) 2 Front room lamp DC 12V 16W (Lamp load) 3 Rear room lamp DC 12V 8W (Lamp load) 4 Ignition key illumination DC 12V 1.2W (Lamp load) 5 Seat belt indicator DC 12V 1.2W (Lamp load) 6 Parking brake warning lamp DC 12V 1.2W (Lamp load) 7 Door ajar warning lamp DC 12V 1.2W (Lamp load) 8 Door lock relay DC 12V 200 mA (Inductive load) 9 Door unlock relay DC 12V 200 mA (Inductive load) 10 Horn relay DC 12V 260 mA 11 Tail lamp relay DC 12V 200 mA (Inductive load) 12 Hazard warning lamp relay DC 12V 200 mA (Inductive load) 13 Power window relay DC 12V 200 mA (Inductive load) 14 Rear defogger relay DC 12V 200 mA (Inductive load) 15 Wiper LOW relay DC 12V 200 mA (Inductive load) 16 Wiper HIGH relay DC 12V 200 mA (Inductive load) 17 Front washer motor DC 12V 1.5A 18 Head lamp relay DC 12V 750 mA (Inductive load) 19 Front defogger relay DC 12V 200 mA (Inductive load) 20 Mirror lock relay DC 12V 200 mA (Inductive load) 21 Mirror unlock relay DC 12V 200 mA (Inductive load)

02-4 Input Signals ▶ NO. Input Signal Name Logic Status 1 IGN1 ON = BAT (IGN ON or START) 2 IGN2 ON = BAT (IGN ON) 3 ALT_D ON = BAT (engine started) 4 Key reminder switch IN = BAT (key in) 5 Driver's door switch OPEN = GND, CLOSE = OPEN 6 Passenger's door switch OPEN = GND, CLOSE = OPEN 7 Rear door switch - OPEN (one of rear doors) = GND - CLOSE (all rear doors) = OPEN 8 Hood switch OPEN = GND, CLOSE = OPEN 9 Driver's door lock/unlock switch LOCK = OPEN, UNLOCK = GND 10 Passenger's door lock/unlock switch LOCK = OPEN, UNLOCK = GND 11 Rear door lock/unlock switch - UNLOCK (one of rear doors) = GND - LOCK (all rear doors) = OPEN 12 Tailgate lock/unlock switch LOCK = OPEN, UNLOCK = GND 13 Rear defogger switch ON = GND, OFF = OPEN 14 Seat belt switch Unfastened = GND, Fastened = OPEN 15 Sunroof open switch ON = GND, OFF = OPEN 16 Parking brake switch ON = GND, OFF = OPEN 17 Air bag collision sensor ON = 200 ms output (LOW), OFF = OPEN 18 Wiper motor (parking) switch STOP = BAT VOLTAGE, ROTATING = GND 19 Washer switch ON = BAT, OFF = OPEN 20 INT-AUTO switch ON = BAT, OFF = OPEN 21 Auto washer switch ON = BAT, OFF = OPEN 22 Intermittent resistance 0W ~ 51KW (for intermittent wiper) 23 Speed sensor ON = GND (PWM), OFF = OPEN 24 Mirror lock/unlock switch ON = GND, OFF = OPEN 25 Front defogger switch ON = GND, OFF = OPEN 26 Auto hazard switch ON = GND, OFF = OPEN

02-5 8710-01 NO. Input Signal Name Logic Status 27 Central door lock switch ON = GND, OFF = OPEN 28 Multifunction auto light switch ON = GND, OFF = OPEN 29 Turn signal lamp switch ON = BAT/GND, OFF = OPEN (approx. 5.1 V ~ 9.2 V) 30 Rain sensor ON = GND (DATA), OFF = BAT 31 Telematics ON = GND (DATA), OFF = BAT 32 Diagnosis ON = GND (DATA), OFF = BAT (KWP2000)

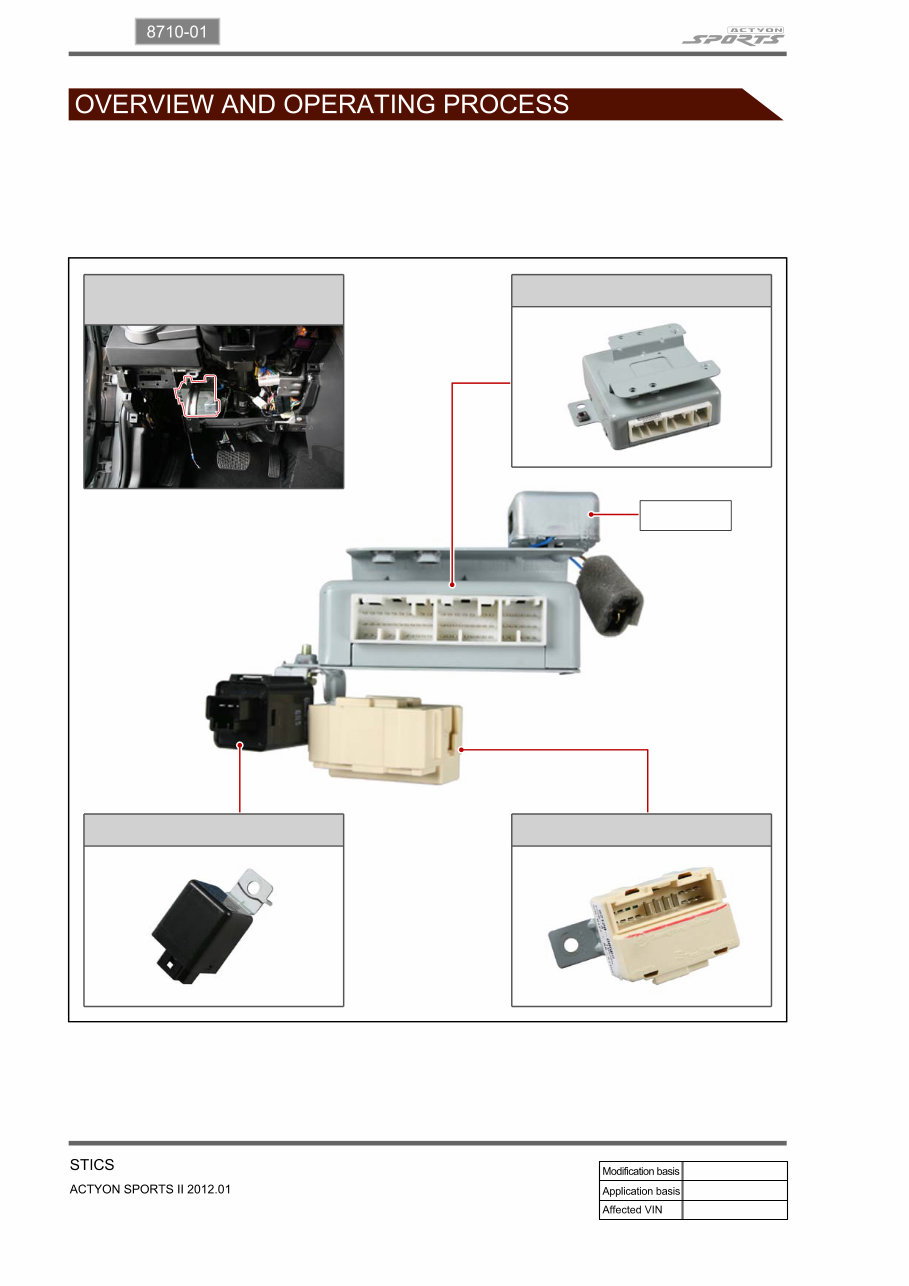

02-6 1. GENERAL STICS of KORANDO SPORTS, called as RKSTICS (REKES + STICS (Super Time & Integrated Control System)), is almost the same as that of ACTYON SPORTS in terms of its function and role. Chime STICS unit PAS buzzer ICM relay box Inside of Lower IP Cover on Drive Side

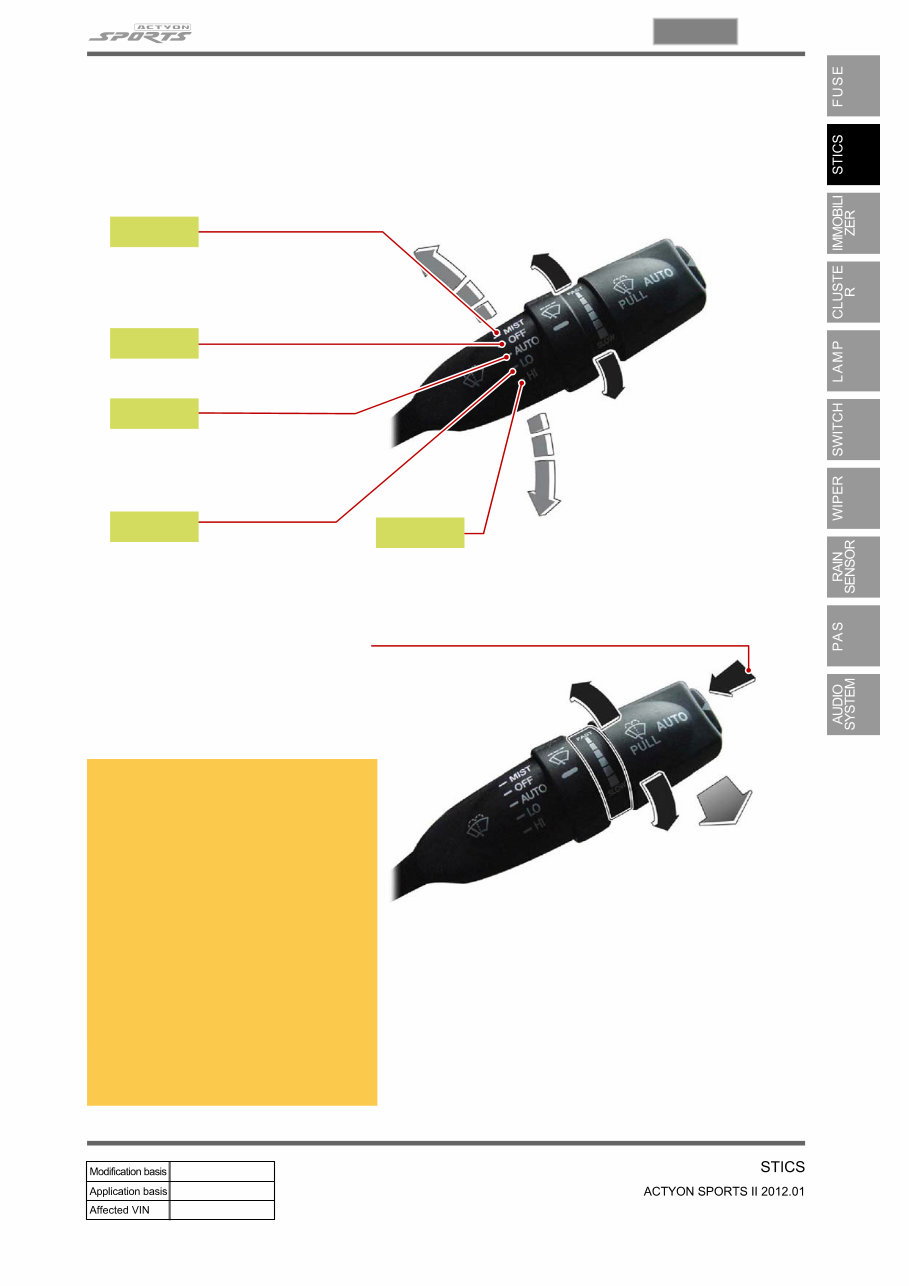

02-7 8710-01 1) Wiper and Washer Operations When pulling up the lever, the wiper operates once and the wiper lever returns to the "OFF" position. Stop the operation. Operates automatically according to the vehicle speed or the amount of rain. Continuous wipe, slow operation. Front Wiping Speed Control Switch FAST: Fast interval SLOW: Slow interval Continuous wipe, fast operation Front Wiper and Washer Coupled Operation Pull the lever briefly (below 0.6 seconds): One wiping cycle without washer spray Pull and hold the lever for more than 0.6 seconds: Three wiping cycles with washer spray Front Auto Washer Switch (AFW) When the front wiper switch is off and this switch is pressed, washer fluid will be sprayed and the wiper will automatically operate 4 times. Then, the fluid will be sprayed again and the wiper will automatically operate 3 times. MIST OFF AUTO LO HI Previous model Pressing the switch makes washer fluid to be sprayed for 2 sec. with four wiping, after having delay of 0.6 sec., washer fluid to be sprayed for 1.5 sec. with three wiping Pressing the switch makes washer fluid to be sprayed for 2 sec. with four wiping, and washer fluid to be sprayed for 1.5 sec. with three wiping, with no delay of time New model
