GENERAL INFORMATION 0000-00 GENERAL INFORMATION GENERAL INFORMATION 1. HOW TO READ ELECTRICAL WIRING DIAGRAM............................................... 2. ELECTRICAL SYSTEM LAY-OUT.......... 3 6

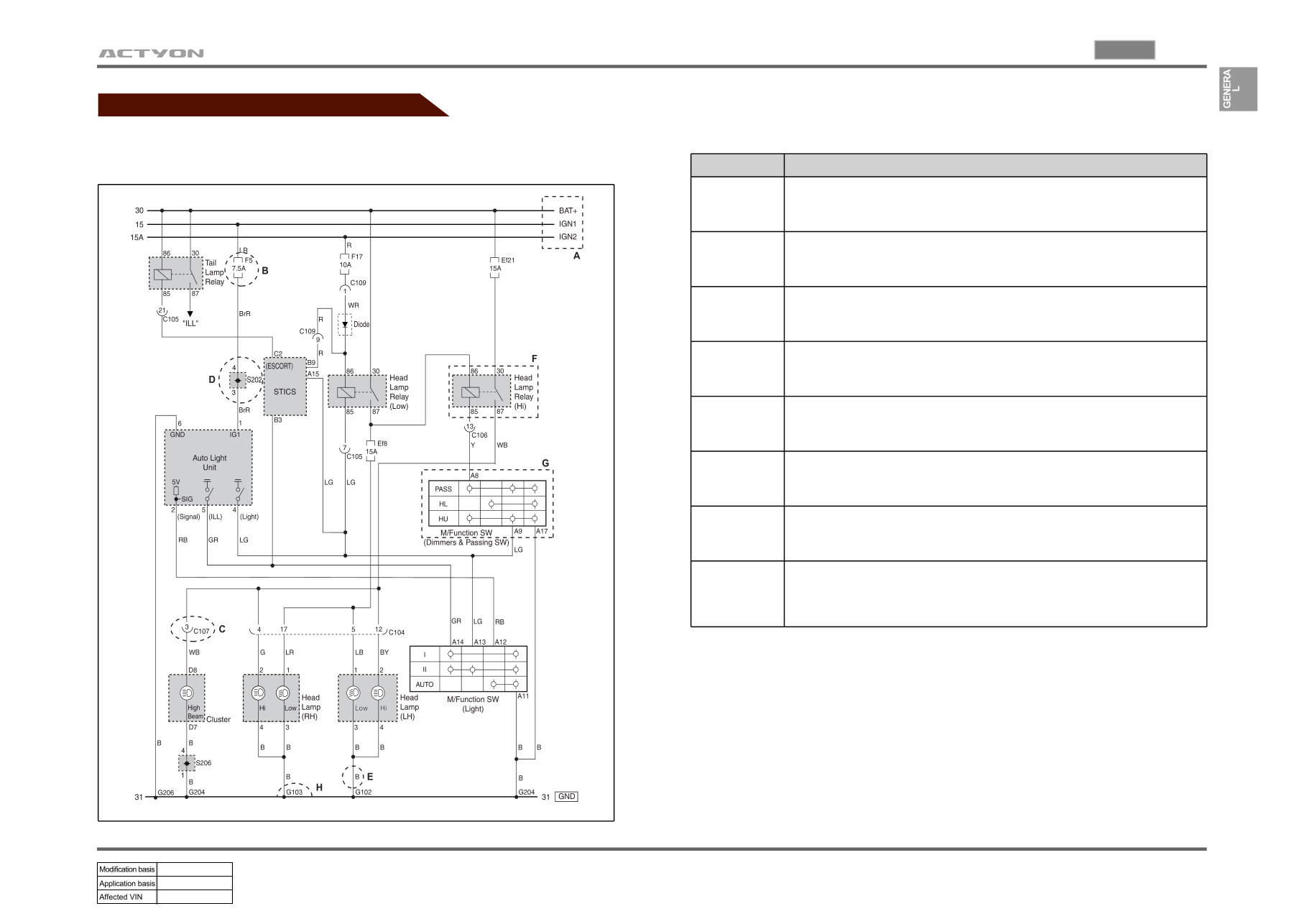

0-3 GENERAL INFORMATION ACTYON 2006.03 0000-00 GENERAL INFORMATION 1. HOW TO READ ELECTRICAL WIRING DIAGRAM Position Explanation A - Upper horizontal lines : Power supply lines - Power supply lines : 30, 15, 15A, 15C, 58 B - Ef20 or F2 : Fuse Number ·Ef20 : Fuse No #20 in engine room compartment ·F2 : Fuse No #2 in passenger room compartment C - Connector (C101 ~ C903) ·Connector No C203 terminal No1 ·Refer to Major Connector Position (Section 2) D - S201 : Splice pack (S201 ~ S207) ·Refer to Major Splice Pack Position (Section2) E - Wiring Harness Color ·Refer to Wiring Harness Color Abbreviation F - Internal circuit of component (Relay) (Component Name and Terminal Number) G - Internal circuit of component (Switch) (Component Name, Terminal Number and Connecting Wiring Circuit) H - Lower horizontal line : Ground line ·Ground position (G101 ~ G402) ·B : Body Ground ·Refer to Major Ground Position (Section2) 1) HOW TO READ ELECTRICAL WIRING DIAGRAM 2) CONTENTS OF ELECTRICAL WIRING DIAGRAM (CIRCUIT)

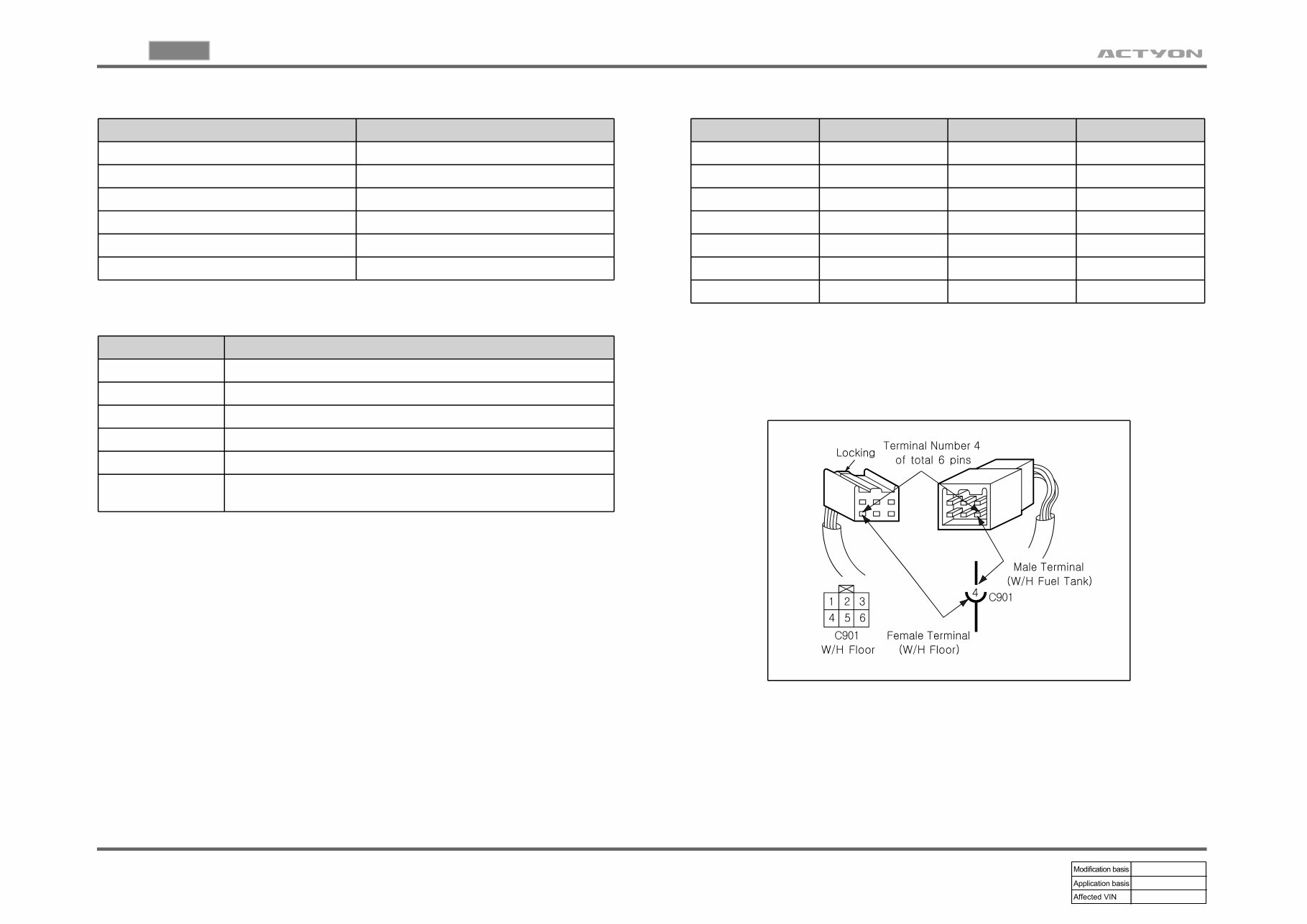

0-4 ACTYON 2006.03 0000-00 GENERAL INFORMATION 3) CIRCUIT IDENTIFICATION SYMBOL Identification Symbol Meaning C Connector D Diode Ef Fuse in engine room fuse & relay box F Fuse in passenger room fuse box G Ground S Splice pack (Junction connector) 5) WIRING HARNESS COLOR IDENTIFICATION Abbreviation Color Abbreviation Color Br Brown Sb Sky Blue G Green R Red V Violet L Blue P Pink Y Yellow W White Gr Gray Gr Orange B Black Lg Light Green 6) HOW TO CHECK TERMINAL NUMBER OF CONNECTOR Terminal number is given based on Female Terminal Male Connector ▶ ex) Terminal Number 4 of C901 connection - Power supply No. Power supply condition 15 Battery Voltage (B+) supply in Ignition Switch “ON” and “ST” (IGN 1) 15A Battery Voltage (B+) supply in Ignition Switch “ON” (IGN 2) 15C Battery Voltage (B+) supply in Ignition Switch “ON” and “ACC” 30 Battery Voltage (B+) supply directly regardless of Ignition Switch 31 Ground connected to battery (-) 58 Battery Voltage (B+) supply in Head Lamp Switch 1st and 2nd step (Illumination circuit) 4) FUNCTION OF POWER SUPPLY LINE (NUMBER)

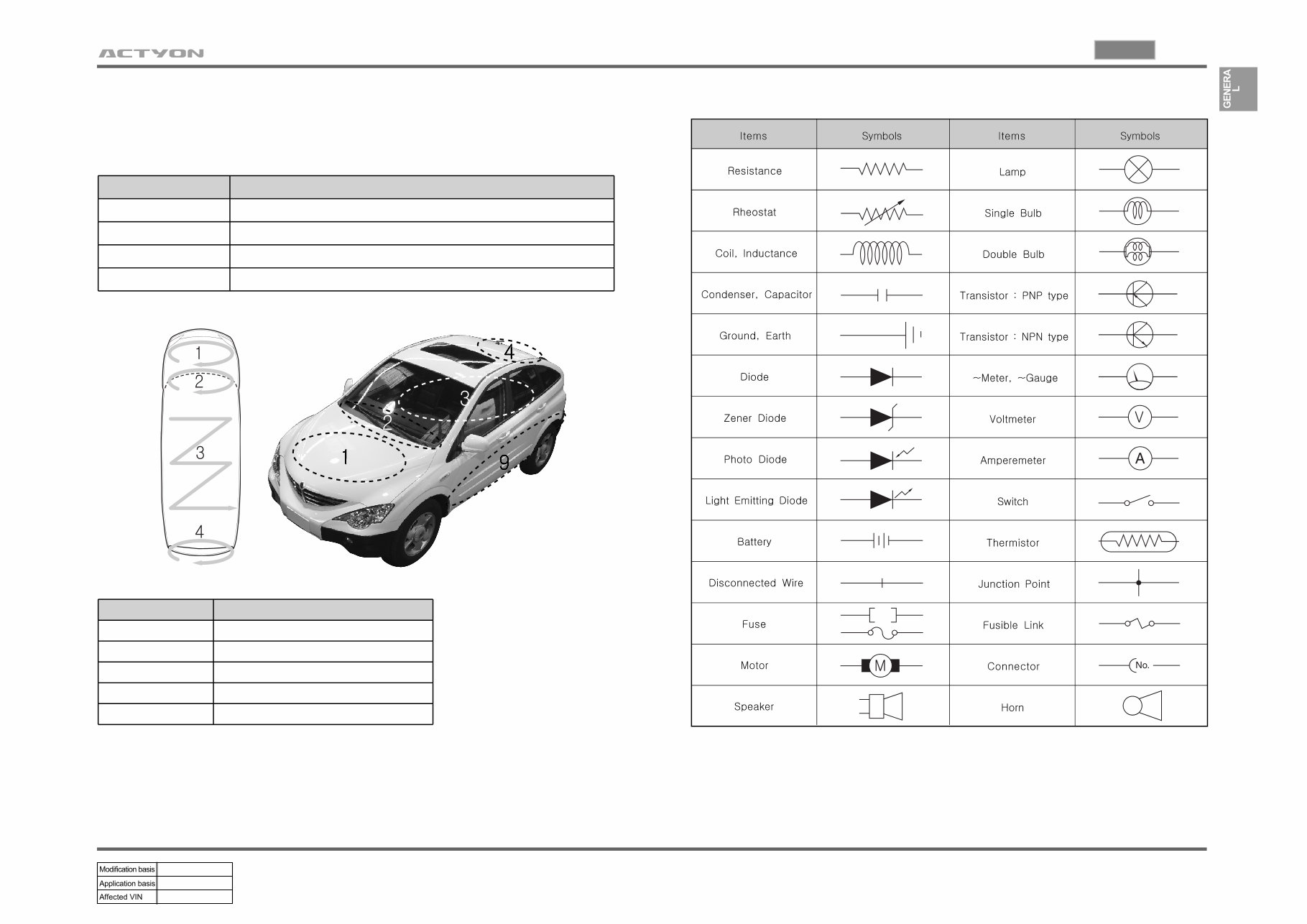

0-5 GENERAL INFORMATION ACTYON 2006.03 0000-00 7) PART LOCATION ACCORDING TO PART NUMBER Ex.) C 1 0 2 ▶ C : Symbol character for connector - Symbol Character Description C Connector (Connecting part that connects two wiring harness) D Diode G Ground S Splice pack (Joint connector that connects various wiring harness) 1 : Part location number - Part number according to locating section - Part Numbe Location □ 1□□ Engine compartment □ 2□□ Instrument panel □ 3□□ Passenger compartment □ 4□□ Tailgate □ 5□□ Underbody In the locating section, the assignment for part number startsfrom left bottom and proceeds clockwise. In the fuse and relay box or the instrument panel, the partnumber is assigned from left top to light bottom. - - 8) ELECTRIC SYMBOLS

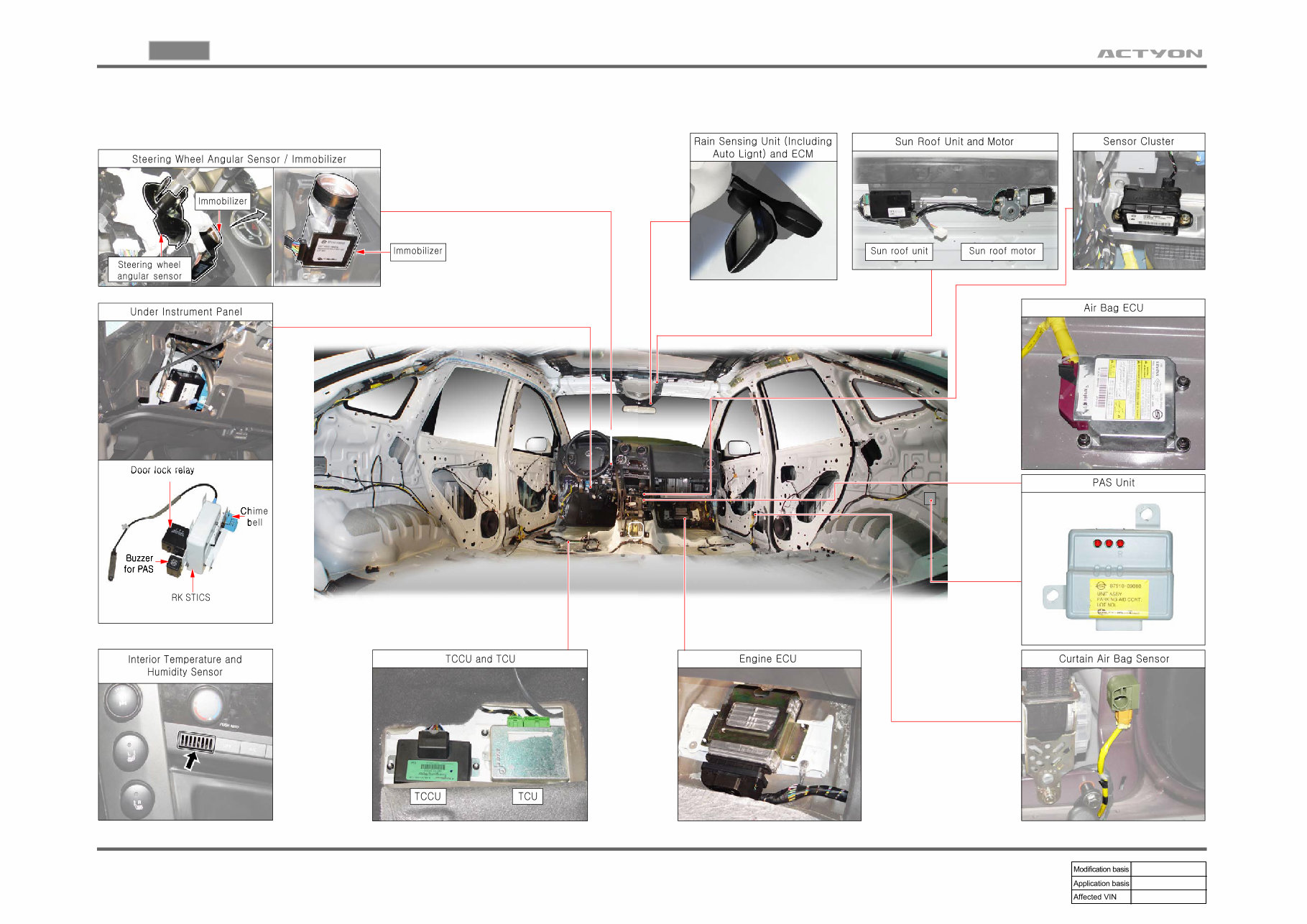

0-6 ACTYON 2006.03 0000-00 GENERAL INFORMATION 2. ELECTRICAL SYSTEM LAY-OUT 1) POSITION OF INTERIOR UNIT & SENSOR

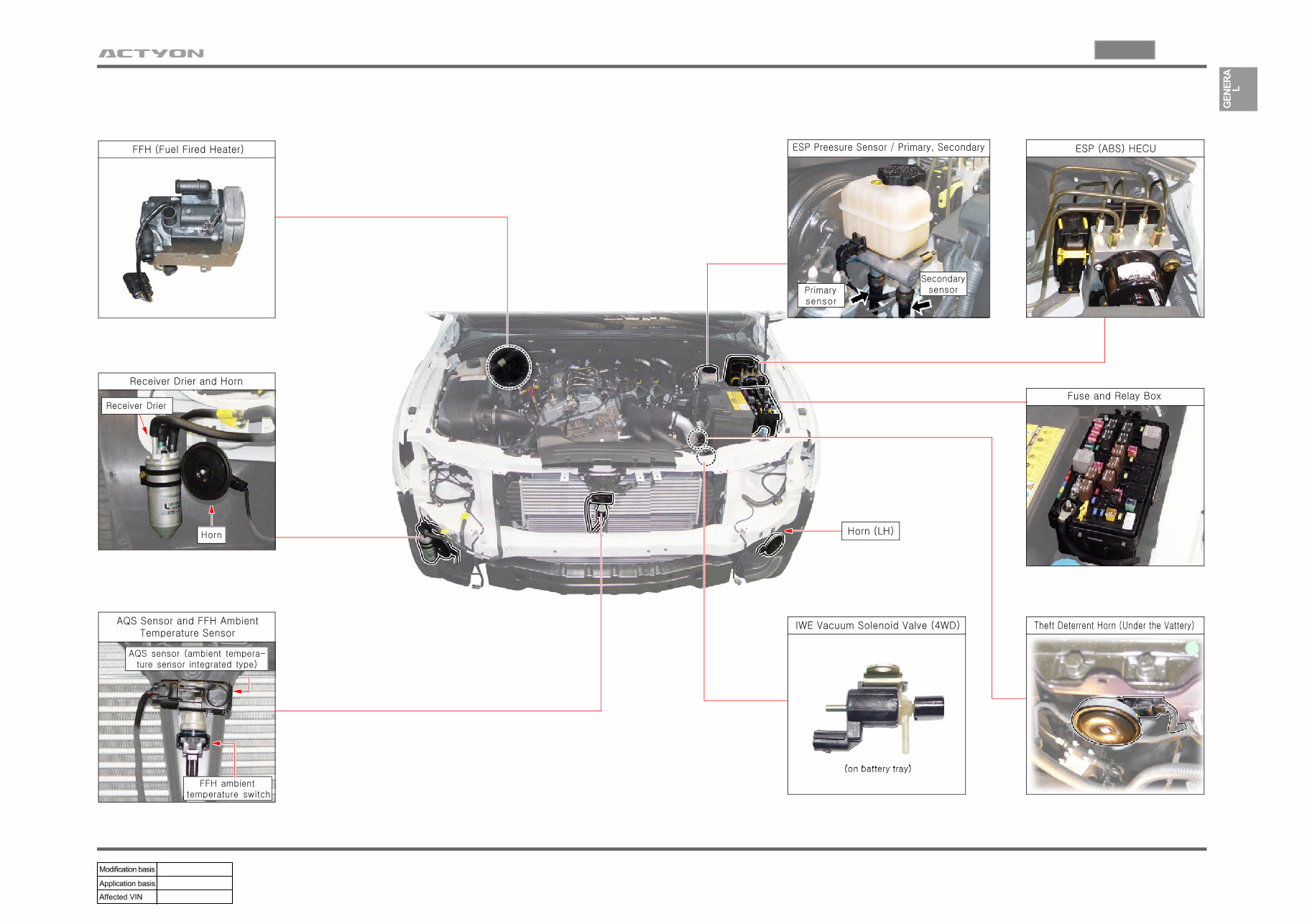

0-7 GENERAL INFORMATION ACTYON 2006.03 0000-00 2) ENGINE ROOM SWITCH / UNIT & SENSOR

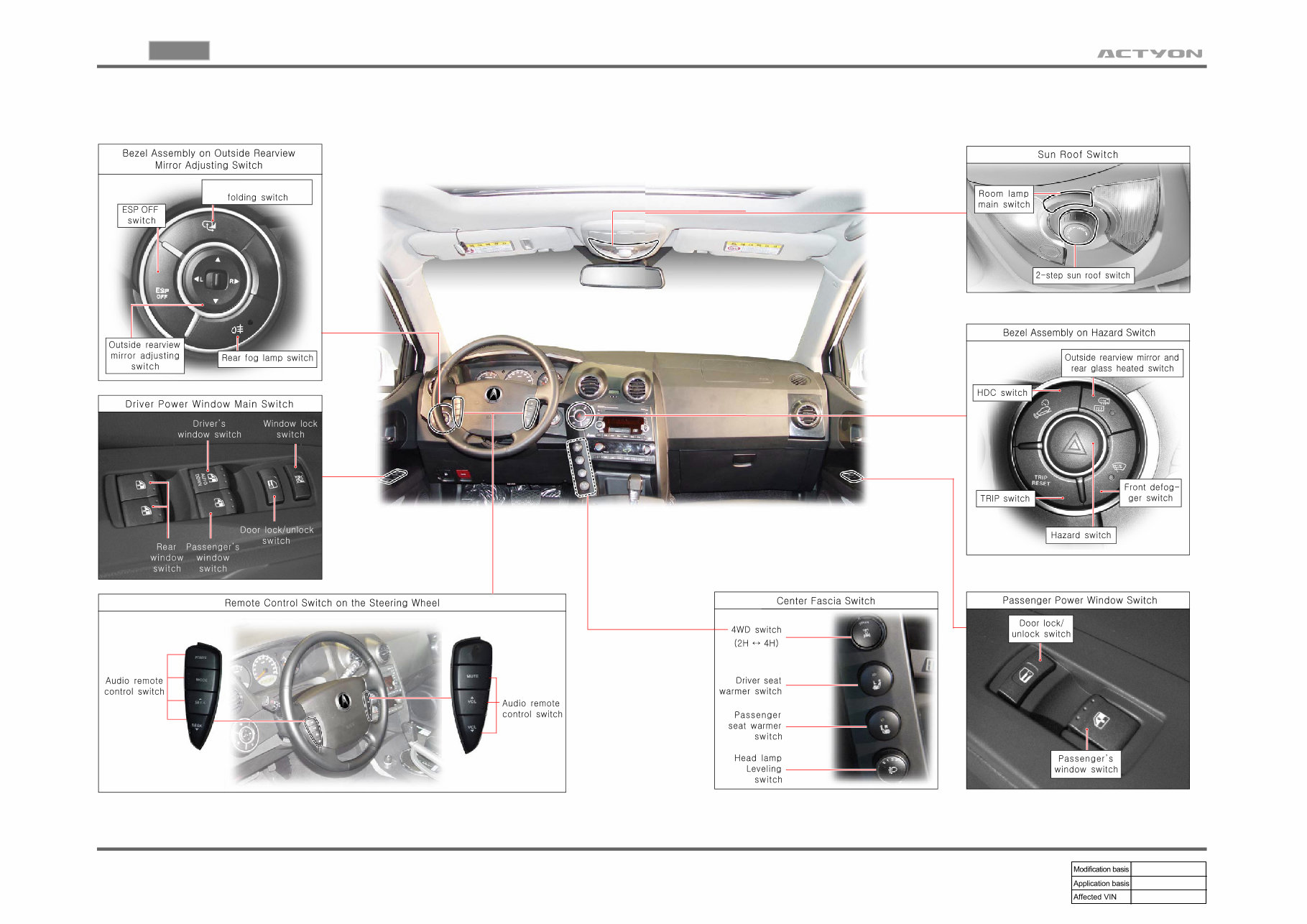

0-8 ACTYON 2006.03 0000-00 GENERAL INFORMATION 3) INTERIOR SWITCH

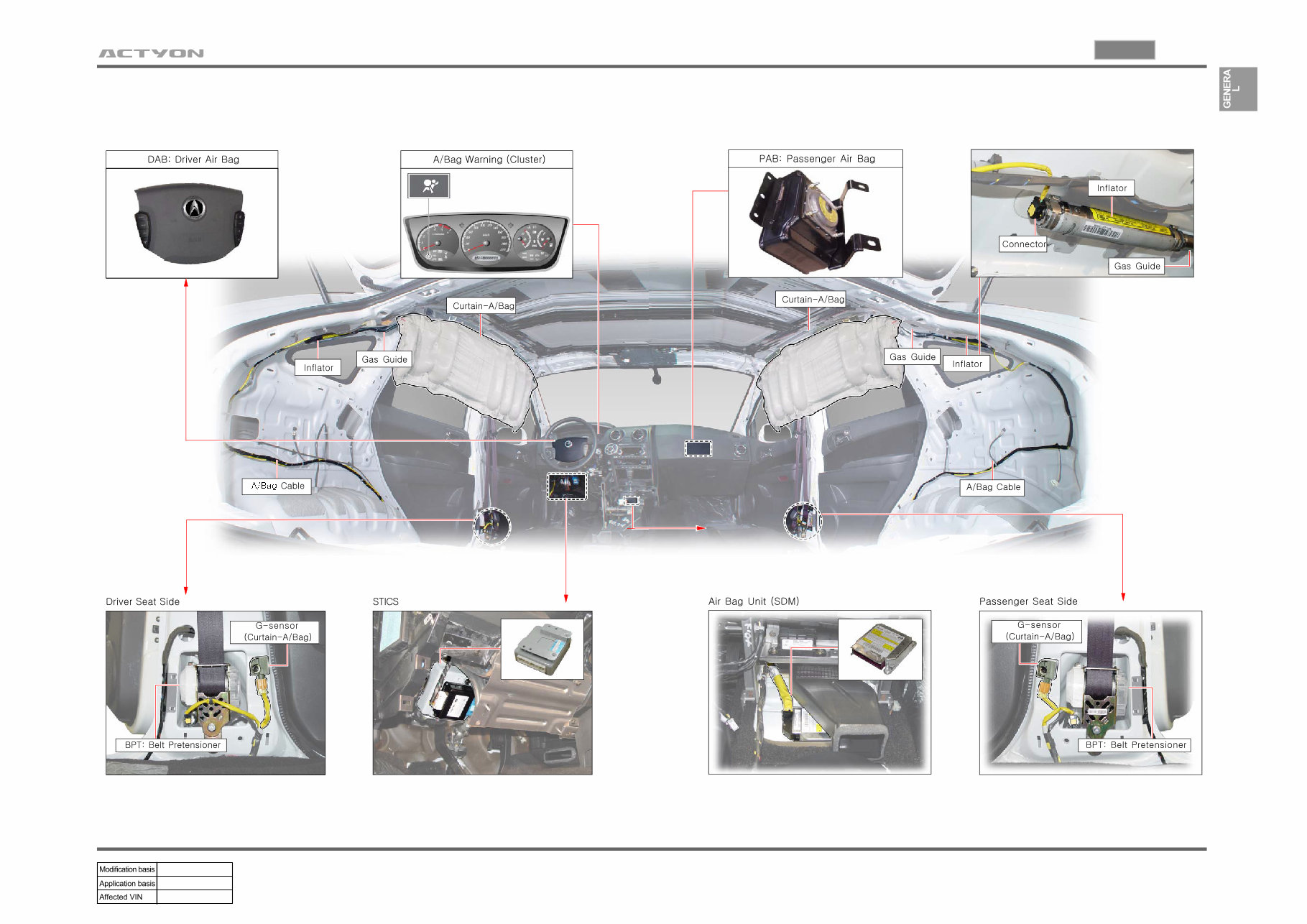

0-9 GENERAL INFORMATION ACTYON 2006.03 0000-00 4) AIR-BAG SYSTEM

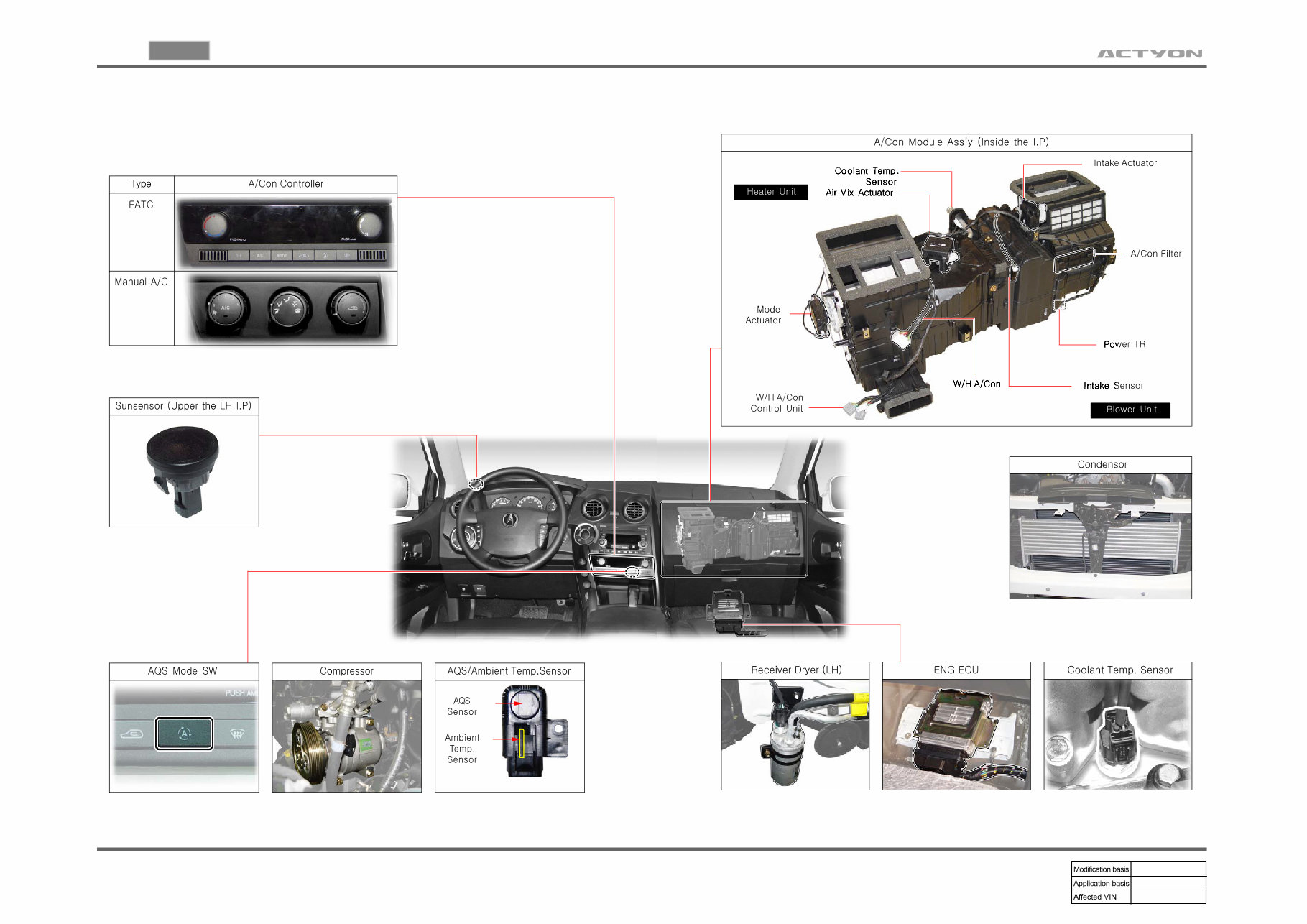

0-10 ACTYON 2006.03 0000-00 GENERAL INFORMATION 5) AIR-CONDITIONING SYSTEM
