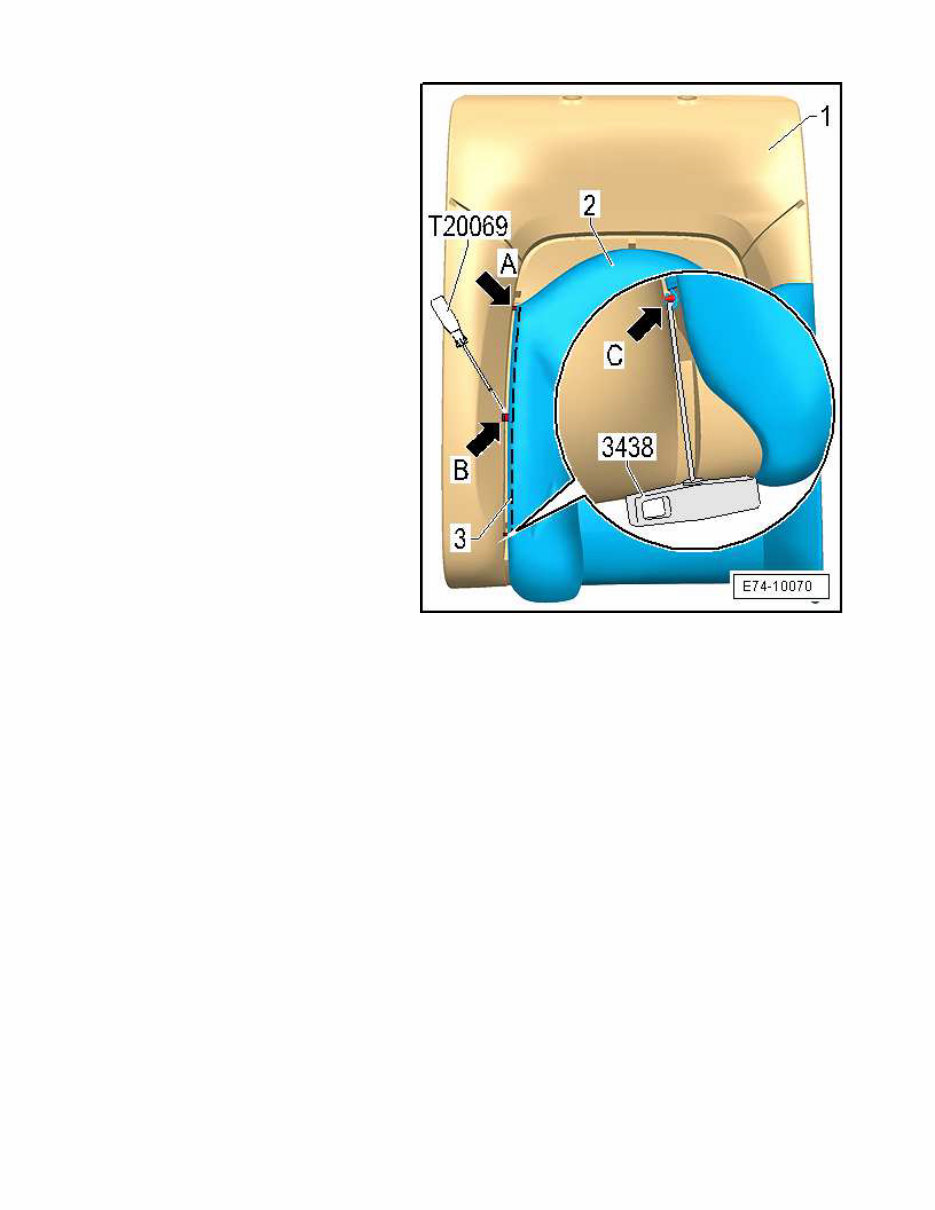

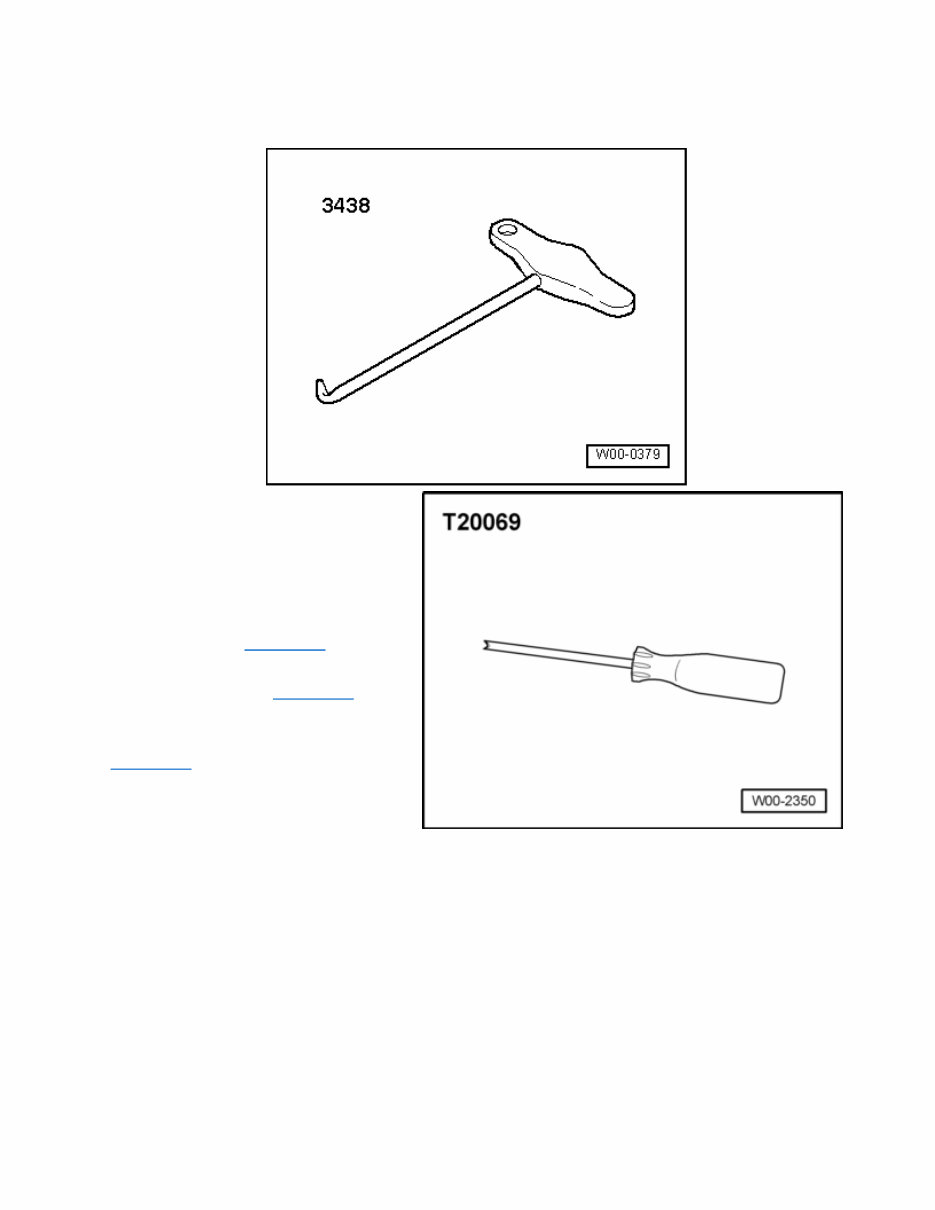

1/3 rear seat backrest cover, left-side: removing and installing, Exeo ST Special tools and workshop equipment required t Hooks -3438- t Thrust piece -T20069- Removal: – Remove the 1/3 section of rear seat backrest, left side → Chapter. – Remove the rear seat backrest head restraint 1/3, left-side → Chapter. – Remove the 1/3 section of rear seat backrest head restraints, left side → Chapter. – Remove the cover -1- from the padding - 2- until you can see the wire -3-. – Loosen the wire -3- from clamps -arrow A- and -arrow B- using the pressure tool -T20069-. – Remove the wire -3- from its mount - arrow C- and -arrow D-. Page 1 of 9 1/3 rear seat backrest cover, left-side: removing and installing, Exeo ST 4/13/2016 vw-wi://rl/S.en-GB.S01DGXX8X.60.wi::61965441.xml?xsl=3

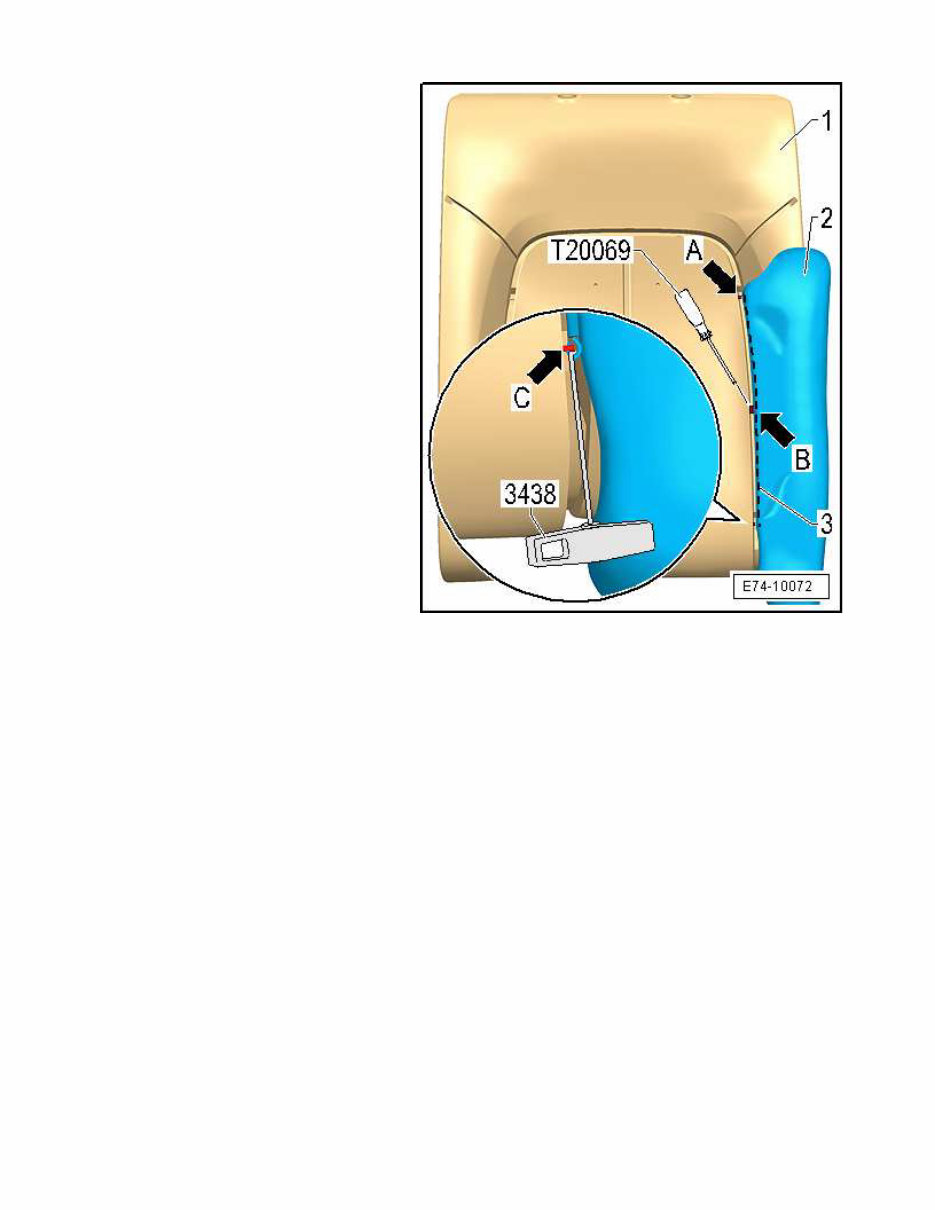

– Remove the cover -2- from the padding - 1- until you can see the wire -3-. – Loosen the wire -3- from the clamp - arrow B- using the pressure tool - T20069-. – Loosen the wire -3- from its mount - arrow C- using the hook -3438-. – Loosen the wire -3- from its mount - arrow A-. Page 2 of 9 1/3 rear seat backrest cover, left-side: removing and installing, Exeo ST 4/13/2016 vw-wi://rl/S.en-GB.S01DGXX8X.60.wi::61965441.xml?xsl=3

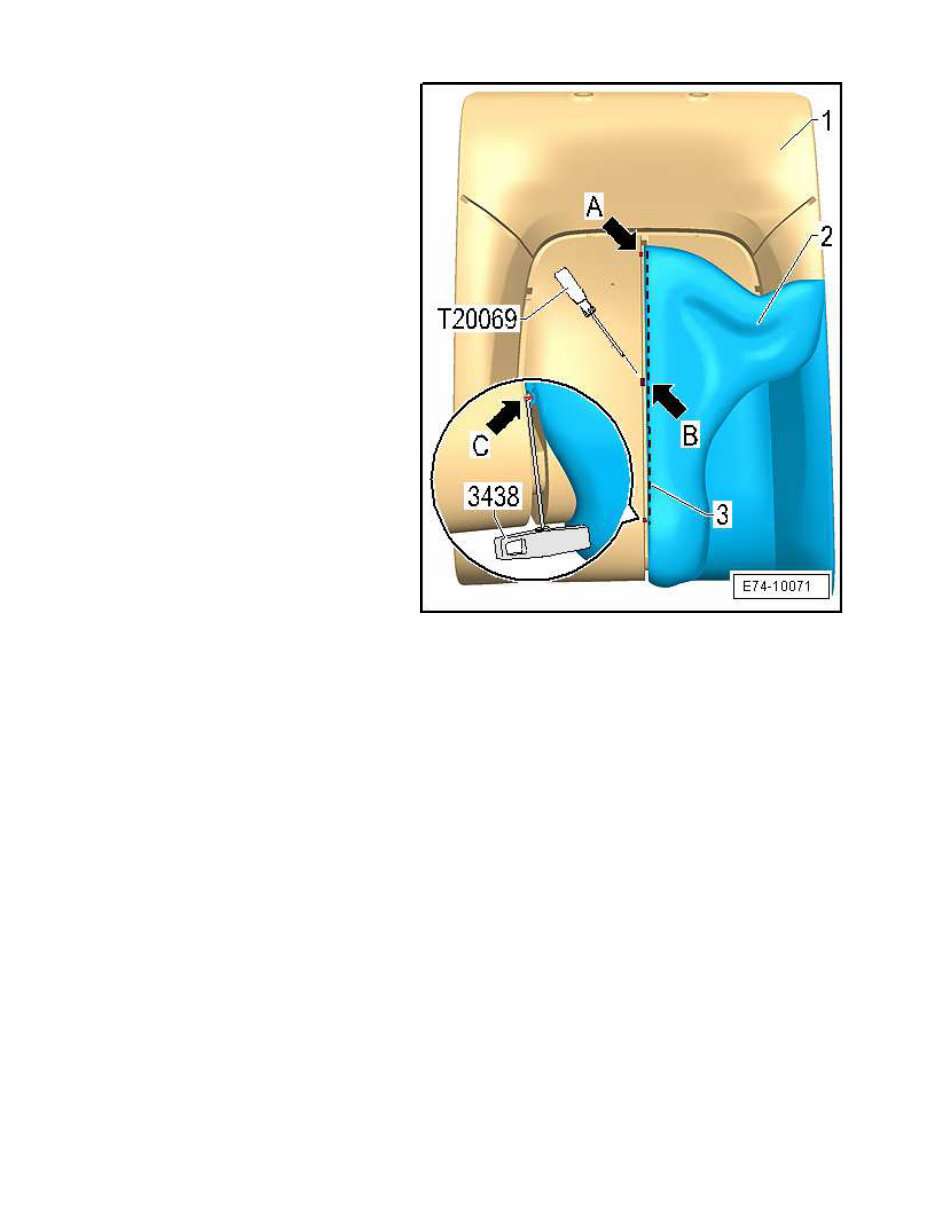

– Remove the cover -2- from the padding - 1- until you can see the wire -3-. – Loosen the wire -3- from the clamp - arrow B- using the pressure tool - T20069-. – Loosen the wire -3- from its mount - arrow C- using the hook -3438-. – Loosen the wire -3- from its mount - arrow A-. Page 3 of 9 1/3 rear seat backrest cover, left-side: removing and installing, Exeo ST 4/13/2016 vw-wi://rl/S.en-GB.S01DGXX8X.60.wi::61965441.xml?xsl=3

– Remove the cover -2- from the padding - 1- until you can see the wire -3-. – Loosen the wire -3- from the clamp - arrow B- using the pressure tool - T20069-. – Loosen the wire -3- from its mount - arrow C- using the hook -3438-. – Loosen the wire -3- from its mount - arrow A- and remove the cover -2-. Page 4 of 9 1/3 rear seat backrest cover, left-side: removing and installing, Exeo ST 4/13/2016 vw-wi://rl/S.en-GB.S01DGXX8X.60.wi::61965441.xml?xsl=3

Installation – Insert the wire -3- into its mount -arrow A-. – Fix the wire -3- to the clamp -arrow B- using the pressure tool -T20069-. – Fix the wire -3- to its mount -arrow C- using the hook -3438-. Page 5 of 9 1/3 rear seat backrest cover, left-side: removing and installing, Exeo ST 4/13/2016 vw-wi://rl/S.en-GB.S01DGXX8X.60.wi::61965441.xml?xsl=3

Insert the wire -3- into its mount -arrow A- . – Fix the wire -3- to the clamp -arrow B- using the pressure tool -T20069-. – Fix the wire -3- to its mount -arrow C- using the hook -3438-. Page 6 of 9 1/3 rear seat backrest cover, left-side: removing and installing, Exeo ST 4/13/2016 vw-wi://rl/S.en-GB.S01DGXX8X.60.wi::61965441.xml?xsl=3

– Insert the wire -3- into its mount -arrow A-. – Fix the wire -3- to the clamp -arrow B- using the pressure tool -T20069-. – Fix the wire -3- to its mount -arrow C- using the hook -3438-. Page 7 of 9 1/3 rear seat backrest cover, left-side: removing and installing, Exeo ST 4/13/2016 vw-wi://rl/S.en-GB.S01DGXX8X.60.wi::61965441.xml?xsl=3

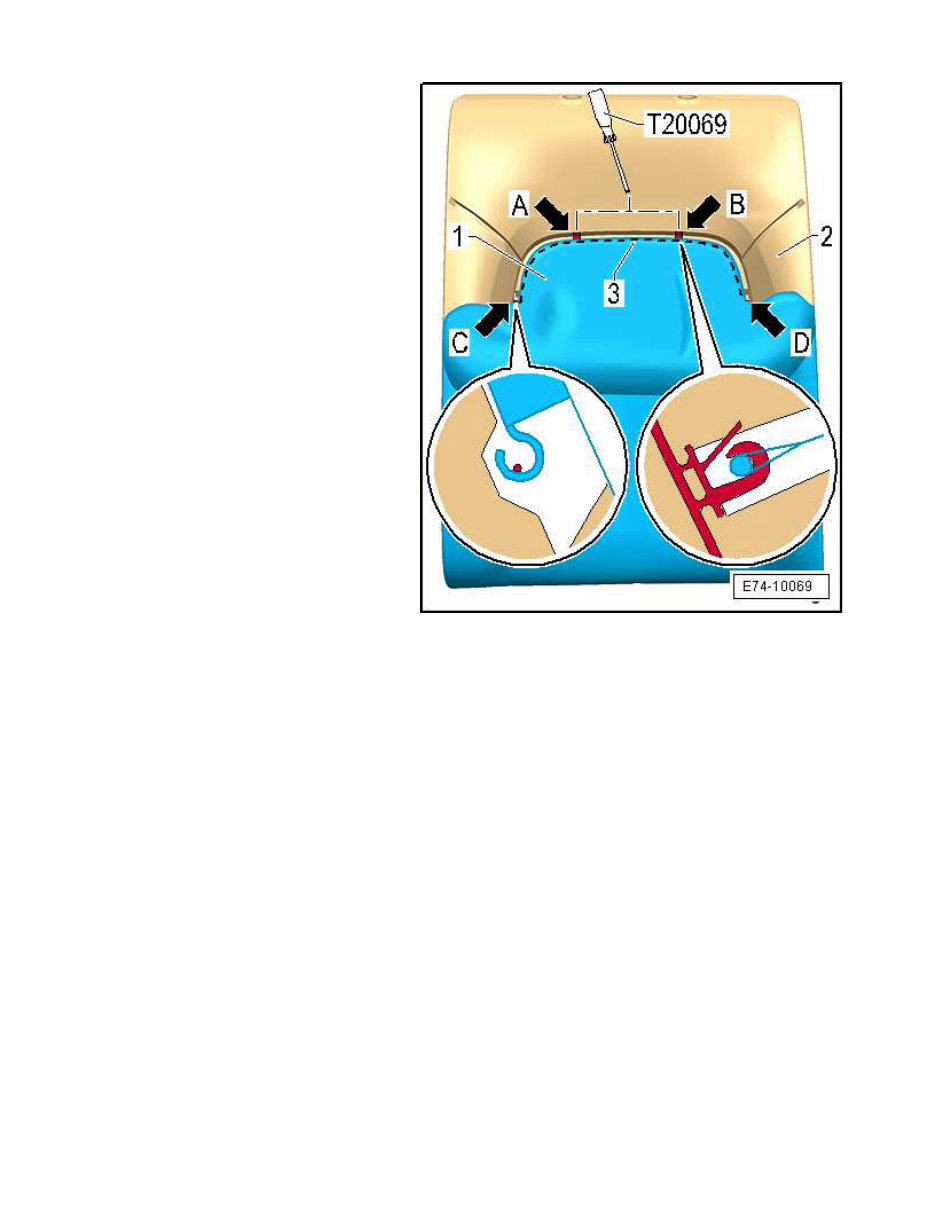

– Insert the wire -3- into its mounts -arrow C- and -arrow D-. – Fix the wire -3- into clamps -arrow A- and -arrow B- using the pressure tool - T20069-. – Mount the cover -1- onto the padding -2 -. – Install the rear seat backrest head restraint guides 1/3, left-side → Anchor. – Install the rear seat backrest 1/3, left- side → Anchor. – Install the rear seat backrest head restraint 1/3, left-side → Anchor. Page 8 of 9 1/3 rear seat backrest cover, left-side: removing and installing, Exeo ST 4/13/2016 vw-wi://rl/S.en-GB.S01DGXX8X.60.wi::61965441.xml?xsl=3
