2002 ACCESSORIES & BODY
Body Control System - "S" Series
SPECIFICATIONS
FASTENER TIGHTENING SPECIFICATIONS
Fastener Tightening Specifications
SCHEMATIC AND ROUTING DIAGRAMS
BODY CONTROL SYSTEM SCHEMATICS
Application
Specifications
Metric English
Seat Riser Knob Fastener 2.5 N.m 22 lb in
Seat Side Cover Fasteners 2.5 N.m 22 lb in
Upper Trim Panel-to-I/P Screws 6 N.m 53 lb in
2002 Saturn SC1
2002 ACCESSORIES & BODY Body Control System - "S" Series
2002 Saturn SC1
2002 ACCESSORIES & BODY Body Control System - "S" Series
Tuesday, January 31, 2017 5:40:54 AM Page 1 Tuesday, January 31, 2017 5:42:11 AM Page 1

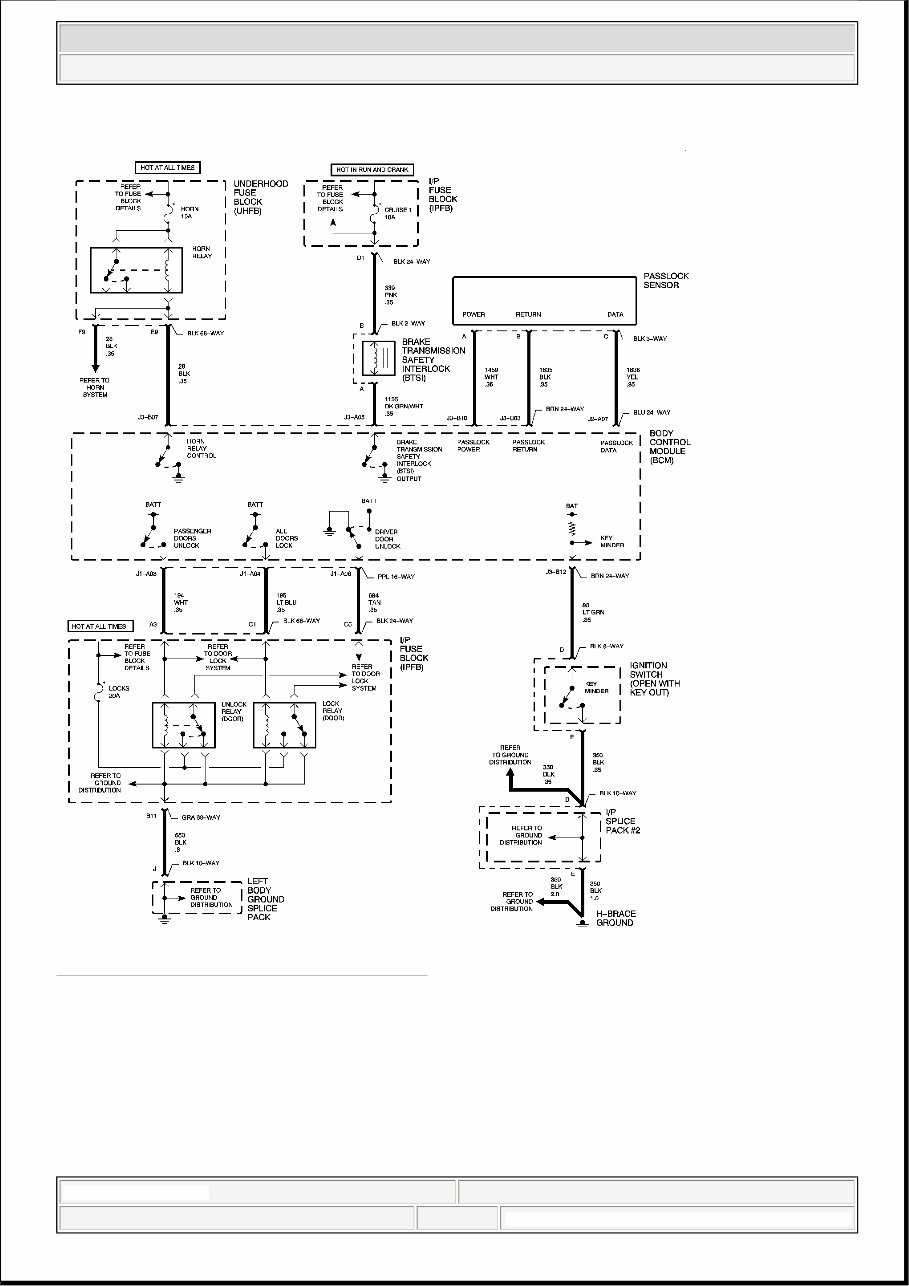

Fig. 1: Body Control System Schematic (1 Of 5)
Courtesy of GENERAL MOTORS CORP.
2002 Saturn SC1
2002 ACCESSORIES & BODY Body Control System - "S" Series
Tuesday, January 31, 2017 5:40:54 AM Page 2

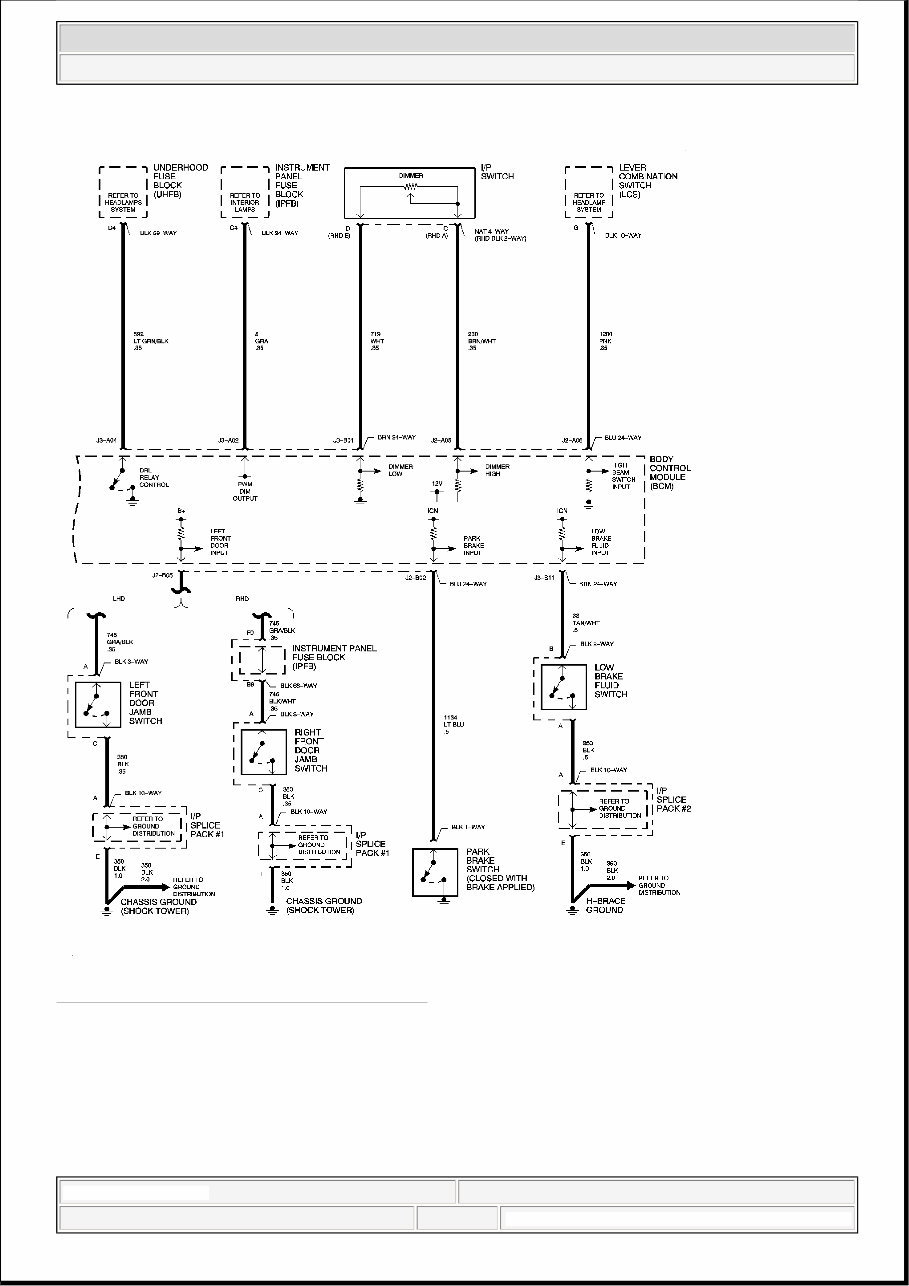

Fig. 2: Body Control System Schematic (2 Of 5)
Courtesy of GENERAL MOTORS CORP.
2002 Saturn SC1
2002 ACCESSORIES & BODY Body Control System - "S" Series
Tuesday, January 31, 2017 5:40:54 AM Page 3

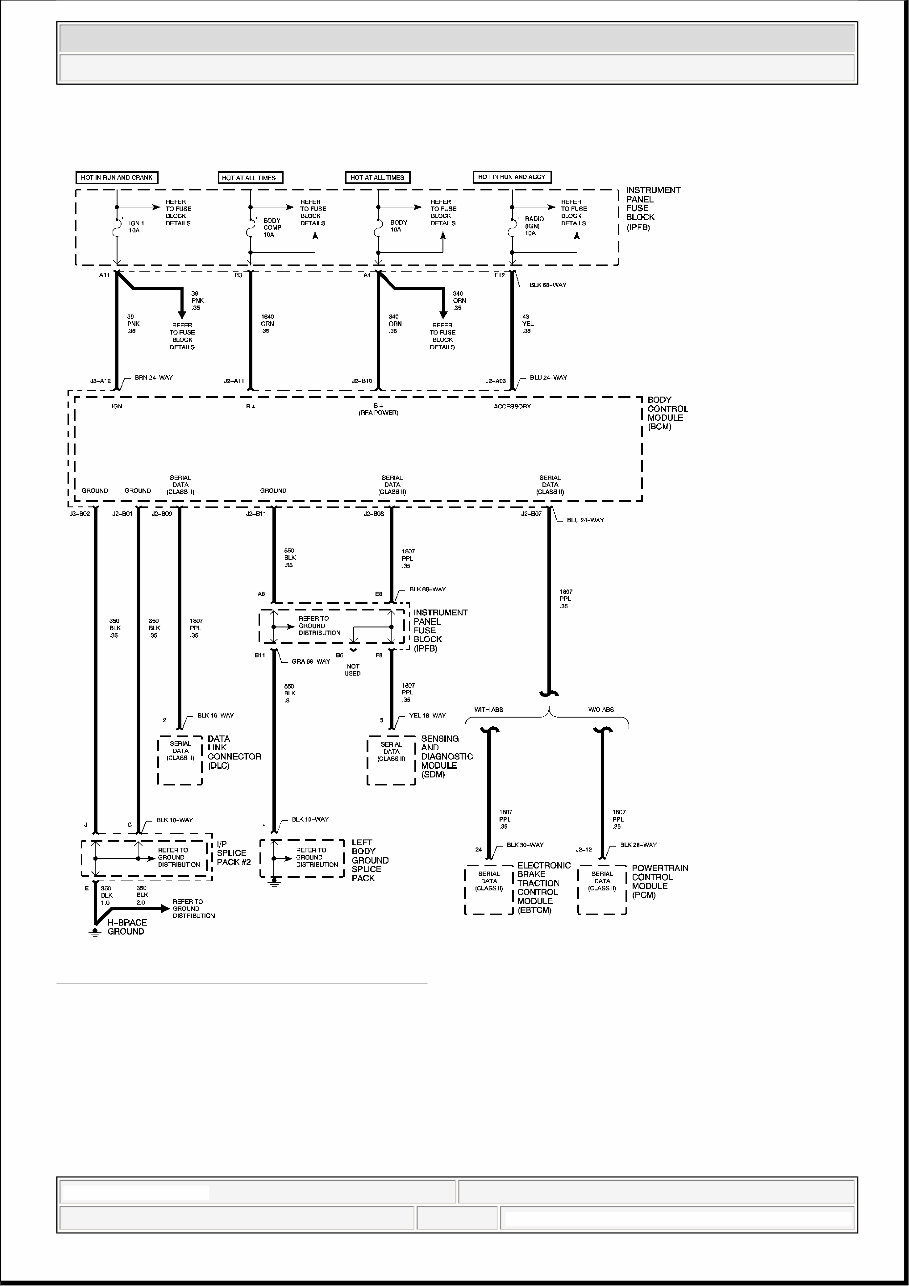

Fig. 3: Body Control System Schematic (3 Of 5)
Courtesy of GENERAL MOTORS CORP.
2002 Saturn SC1
2002 ACCESSORIES & BODY Body Control System - "S" Series
Tuesday, January 31, 2017 5:40:54 AM Page 4

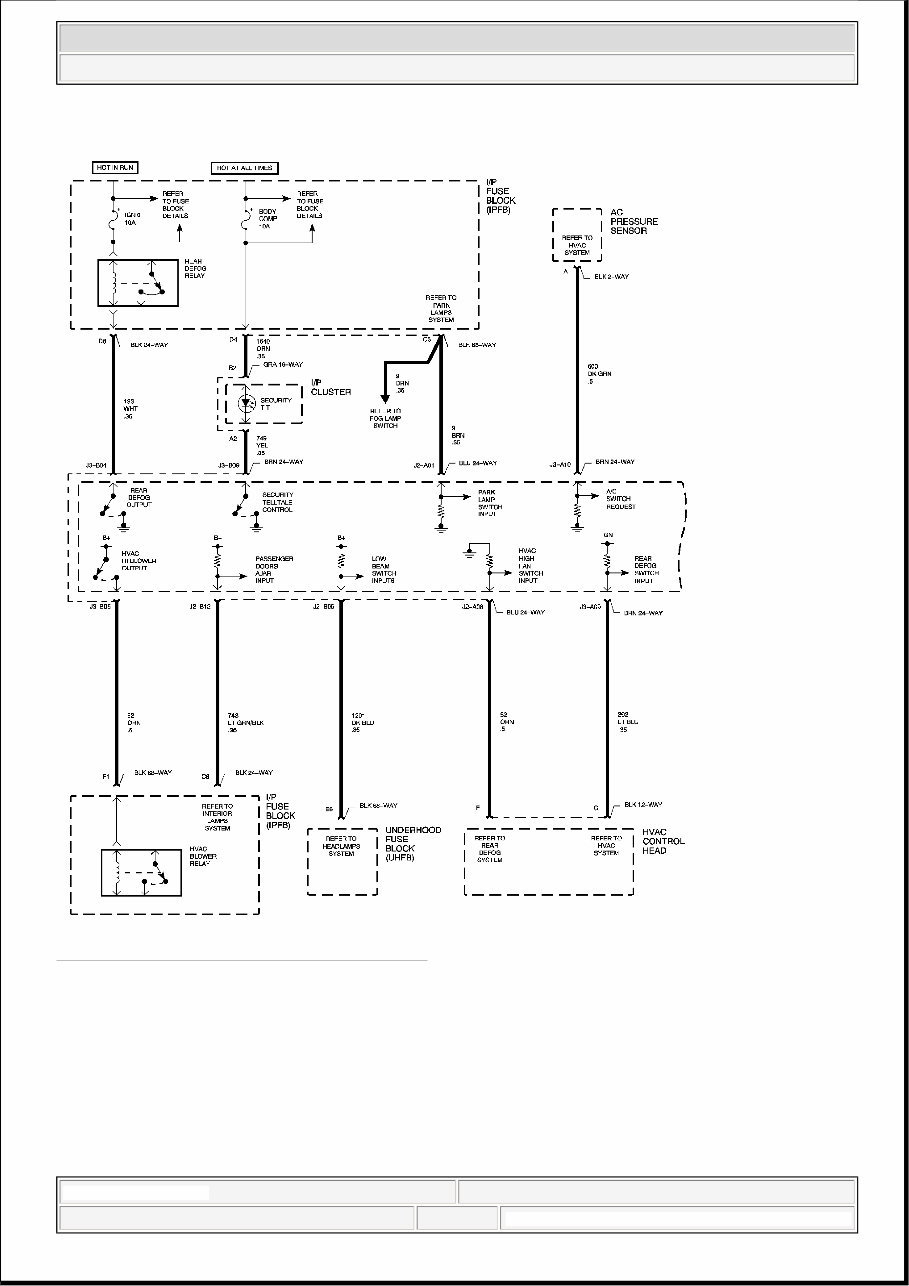

Fig. 4: Body Control System Schematic (4 Of 5)
Courtesy of GENERAL MOTORS CORP.
2002 Saturn SC1
2002 ACCESSORIES & BODY Body Control System - "S" Series
Tuesday, January 31, 2017 5:40:54 AM Page 5
