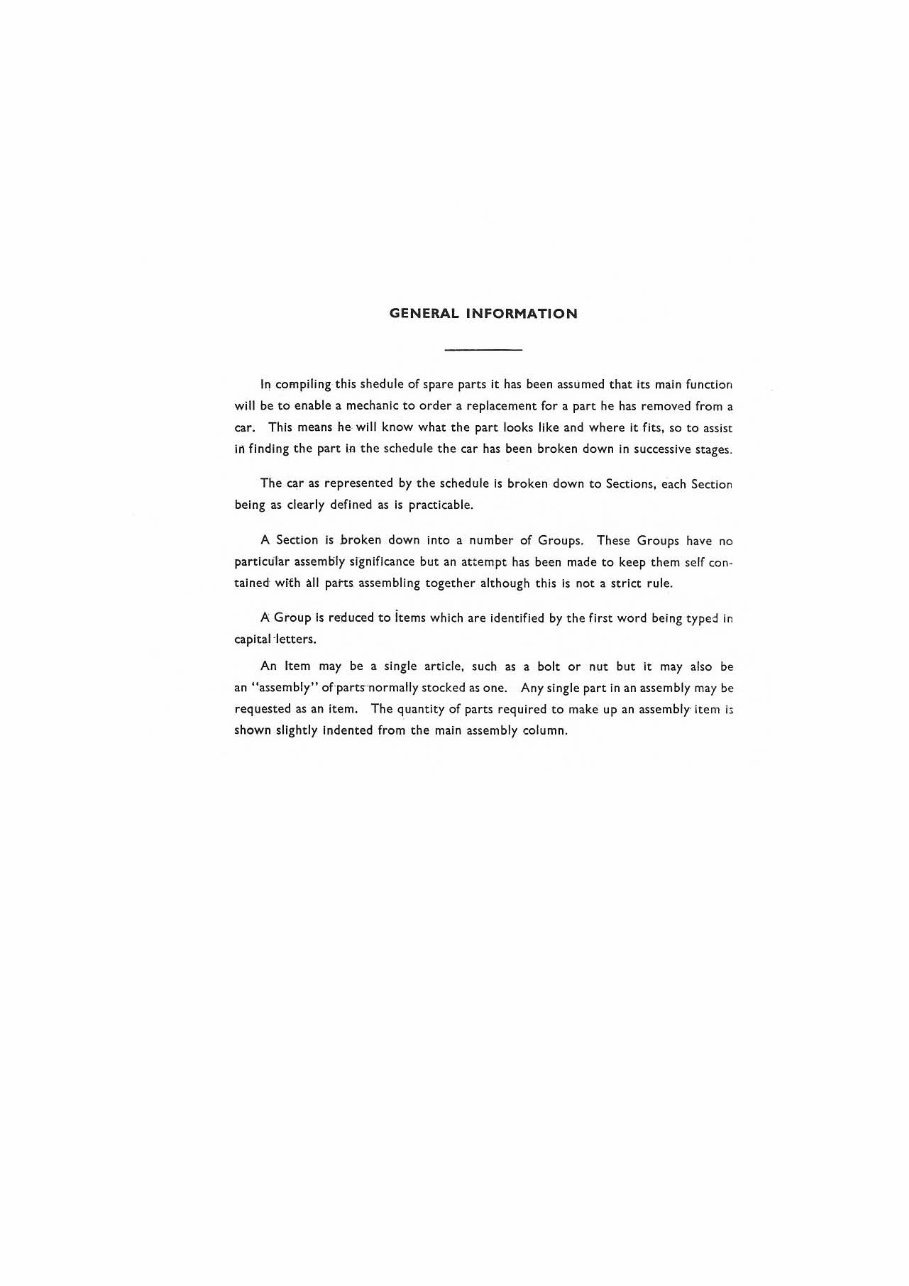

GENERAL INFORMATION
In compiling this shedule of spare parts it has been assumed that its main function
will be to enable a mechanic to order a replacement for a part he has removed from a
car. This means he-will know what the part looks like and where it fits, so to assist
In finding the part I.n the schedule the car has been broken down In successive stages.
The car as represented by the schedule is broken down to Sections, each Sectlo~
being as dearly defined as is practicable.
A Section is broken down into a number of Groups. These Groups have no
particular assembly significance but an attempt has been made to keep them self con-
tained with ::til parts assembling together although th is is not a strict rule.
A Group is red uced to items which are identified by the first word being typed In
capital-letters.
An Item may be a single article, such as a bolt or nut but it may also be
an "assembly" of-parts normally stocked as one. Any sing le part in an assembly may be
req uested as an Item. The quantity of parts required to make up an assembly Item i;
shown slightly Indented from the main assembly colum n.

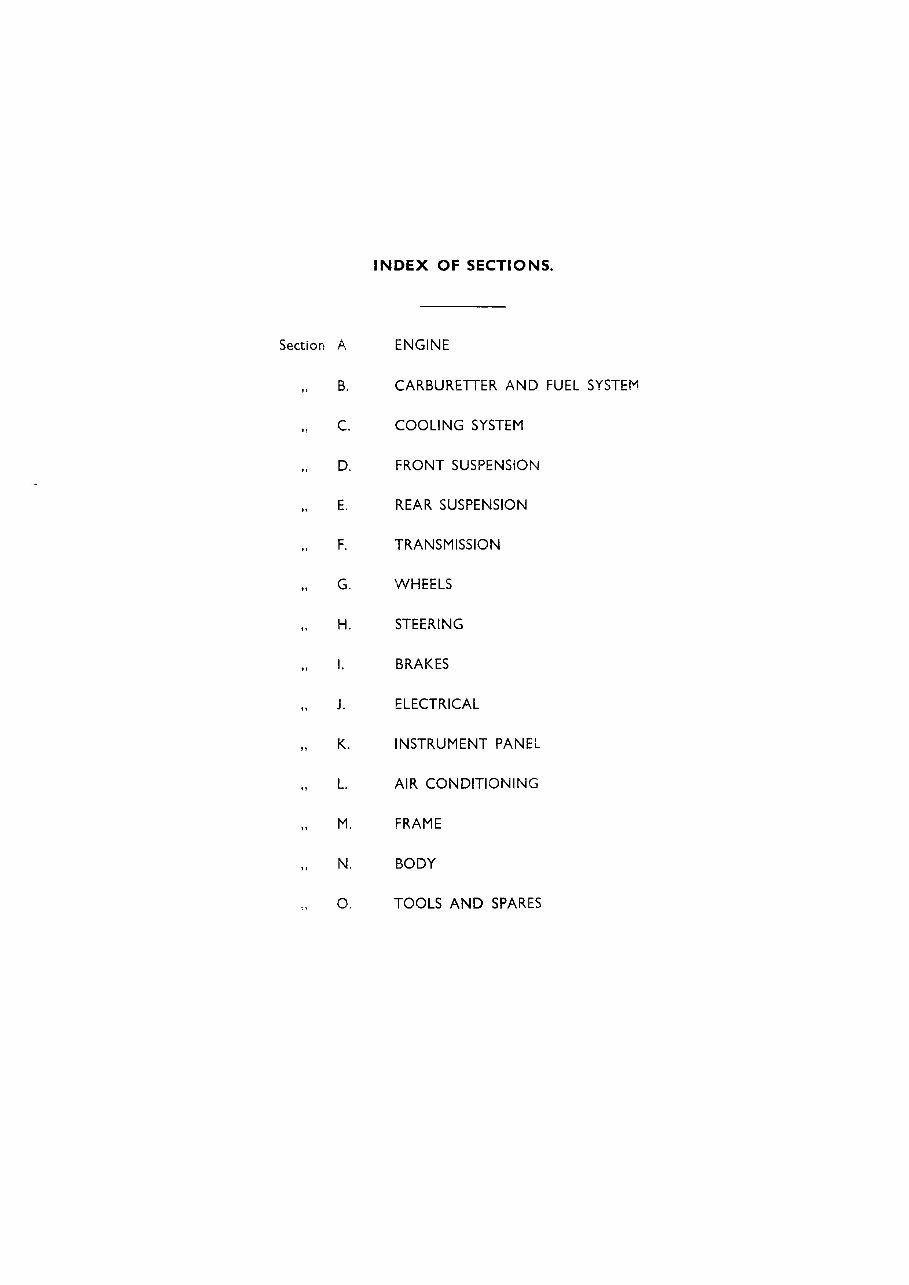

INDEX OF SECTIONS.
Section A ENGINE
B. CARBURETTER AND FUEL SYSTEM
C. COOLING SYSTEM
D. FRONT SUSPENSION
E. REAR SUSPENSION
F. TRANSMISSION
G. WHEELS
H. STEERING
I. BRAKES
J. ELECTRICAL
K. INSTRUMENT PANEL
L. AIR CONDITIONING
M. FRAME
N. BODY
O. TOOLS AND SPARES

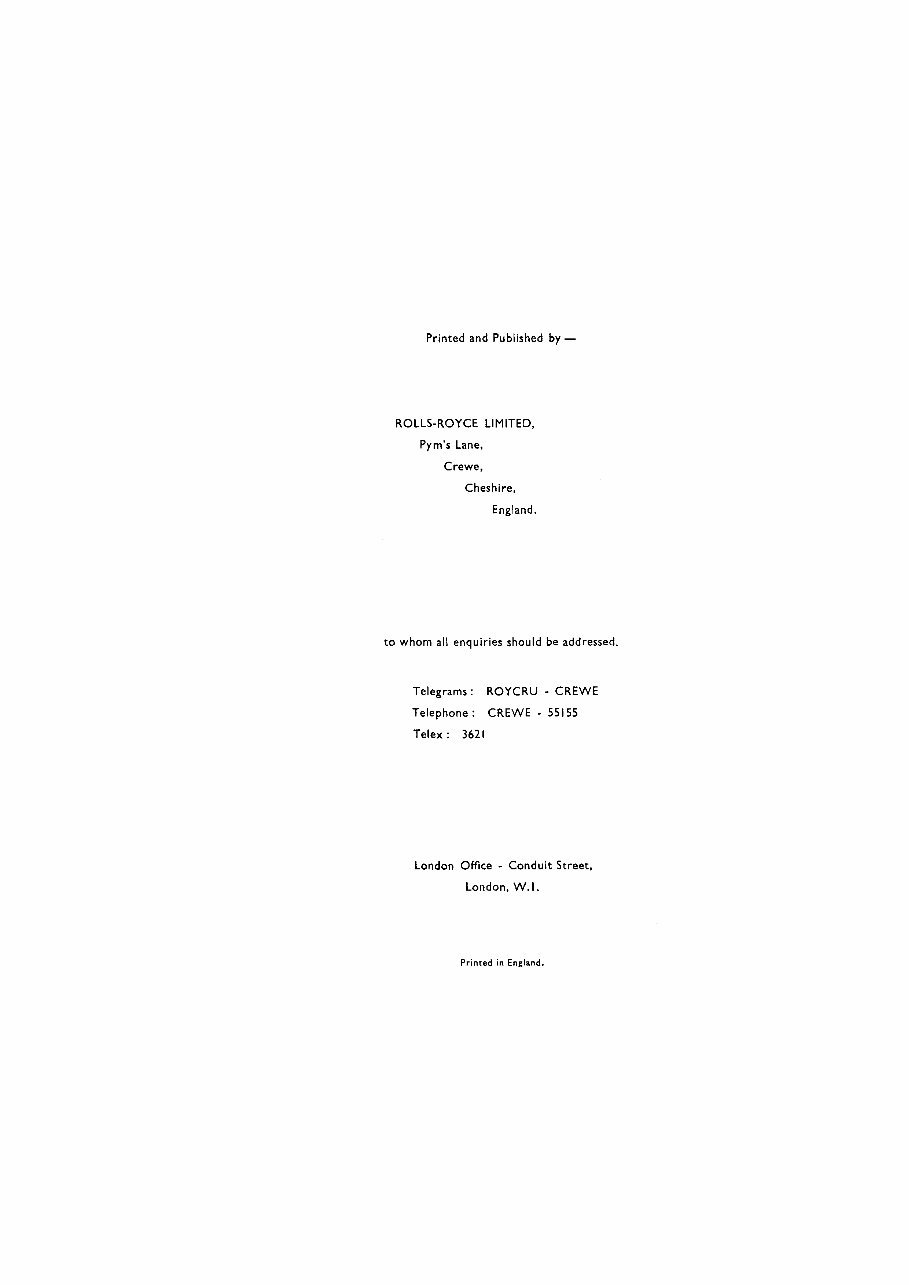

Printed and Published by-
ROLLS-ROYCE LIMITED,
Pym's Lane,
Crewe,
Cheshire,
England.
to whom all enquiries should be addressed.
Telegrams: ROYCRU - CREWE
Telephone: CREWE - 55155
Telex: 3621
London Office - Conduit Street,
London, W.I.
Printed in England.

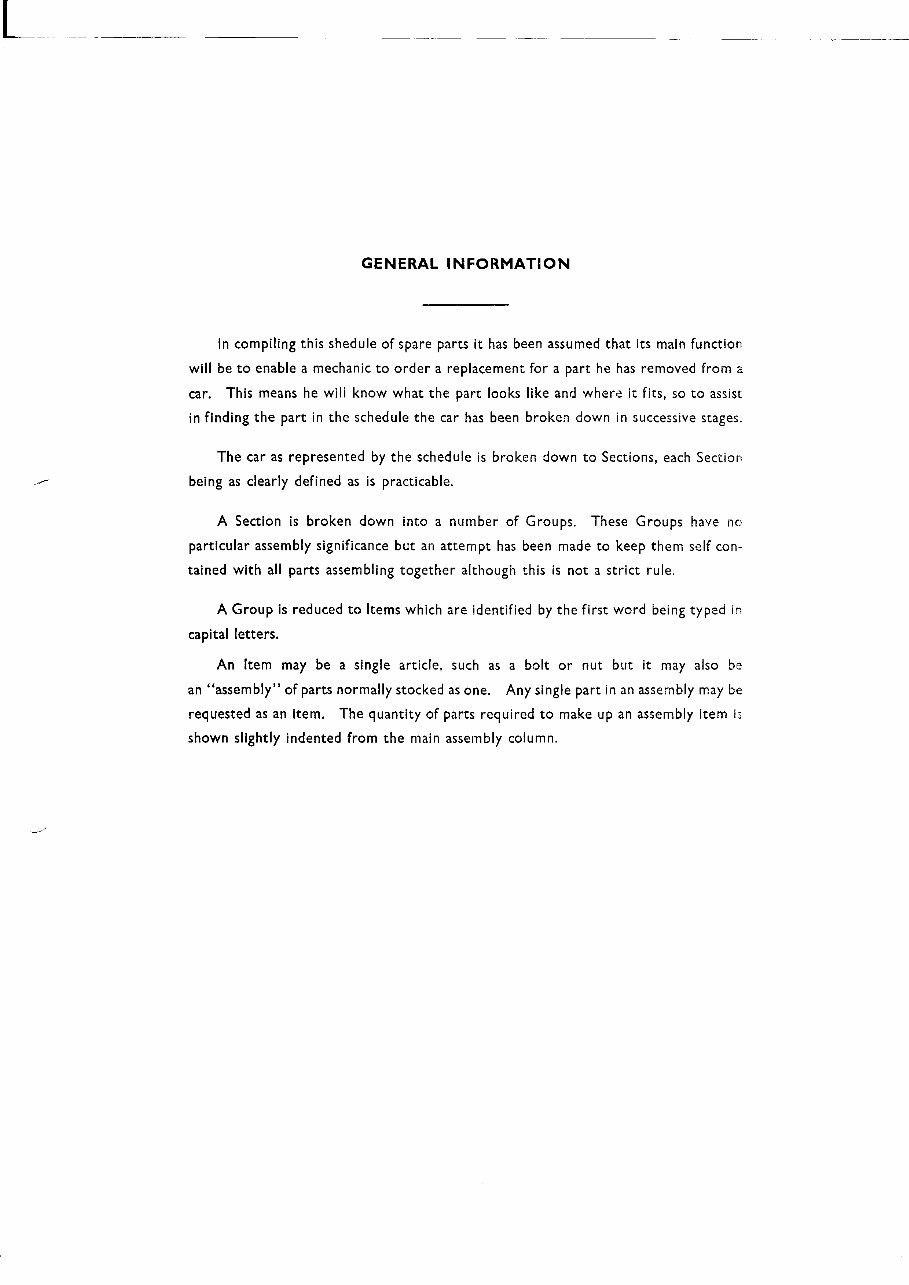

GENERAL INFORMATION
In compiling this shedule of spare parts it has been assumed that its main function
will be to enable a mechanic to order a replacement for a part he has removed from a
car. This means he will know what the part looks like and where it fits, so to assist
in finding the part in the schedule the car has been broken down in successive stages.
The car as represented by the schedule is broken down to Sections, each Section
being as clearly defined as is practicable.
A Section is broken down into a number of Groups. These Groups have no
particular assembly significance but an attempt has been made to keep them self con-
tained with all parts assembling together although this is not a strict rule.
A Group is reduced to Items which are identified by the first word being typed in
capital letters.
An Item may be a single article, such as a bolt or nut but it may also be
an "assembly" of parts normally stocked as one. Any single part in an assembly may be
requested as an item. The quantity of parts required to make up an assembly item is
shown slightly indented from the main assembly column.
r

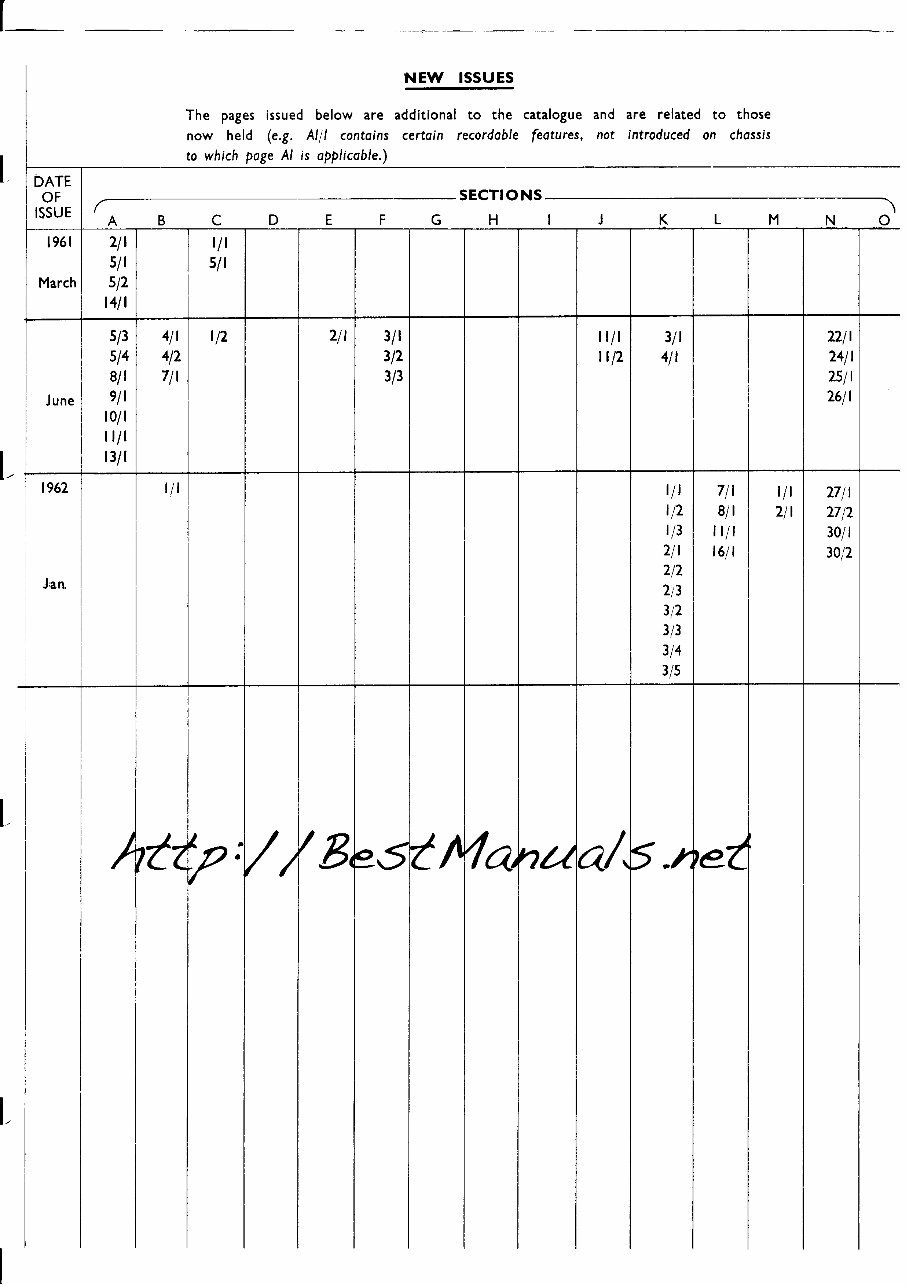

'NEW ISSUES
The pages issued below are additional to the catalogue and are related to those
now held (e.g. AI/I contains certain recordable features. not introduced on chassis
to which page AI is applicable.)
DATE
OF
SECTIONS
ISSUE
r
')
A B C D E F G H I J K L M N 0
1961 2/1
I
1/1
5/1 5/1
March 5/2
14/1
5/3 4/1 1/2 2/1 3/1 , 1/1
3/1 22/1
!
5/4 4/2 3/2 11/2 4/1 24/1
I 8/1 7/1 3/3 25/1
I
June
9/1 26/1
10/1
II/I
L
13/1
1962 1/1
1/1 7/1 1/1 27/1
I
1/2 8/1 2/1 27/2
1/3 II/I 30/1
2/1 16/1 30/2
Jan.
2/2
2/3
3/2
3/3
!
3/4
I 3/5
i
L
L
r __

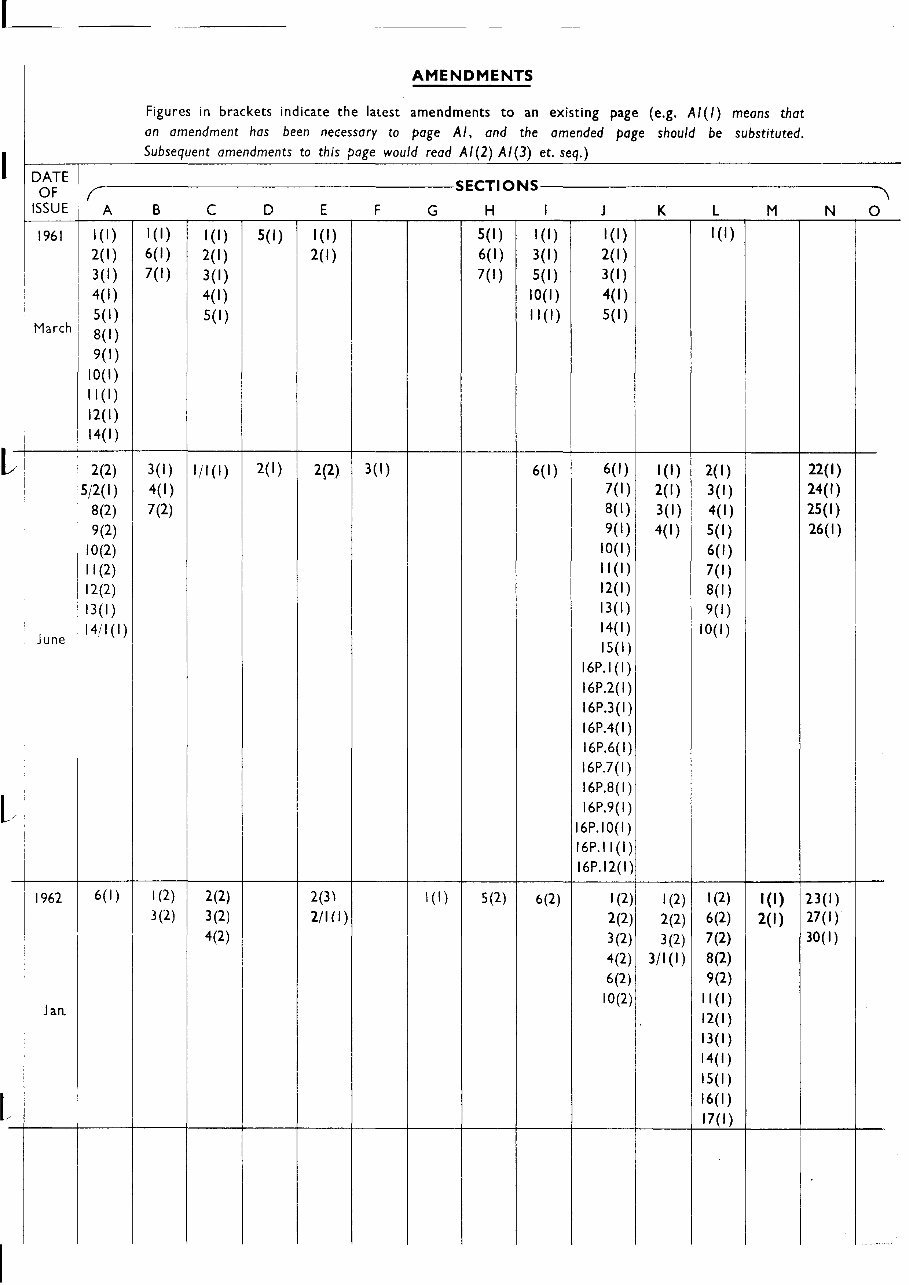

AMENDMENTS
Figures in brackets indicate the latest amendments to an existing page (e.g. AI(1) means that
an amendment has been necessary to page AI. and the amended page should be substituted.
I
Subsequent amendments to this page would read A/(2) A/(3) et. seq.)
DATE
SECTIONS
OF (
\
ISSUE
A B C D E F G H I J K L M N 0
1961 I (I) I (I)
1(1 ) 5(1 ) 1(1 ) 5(1 ) I (I) I (I) 1(1 )
2(1 ) 6(1 )
2(1 ) 2( I) 6(1 ) 3(1 ) 2(1 )
3(1 ) 7(1 )
3(1 ) 7(1 ) 5(1 ) 3( I)
4( I) 4(1 ) 10(1 ) 4(1 )
5( I) 5( I) II (I) 5(1 )
March
8(1 )
9( I)
10( I)
II (I)
12( I)
I
14( I)
I
I
2(2) 3( I)
,
1/1 (I)
2( I)
2(2). 3( I) 6( I) 6(1 ) 1(1 ) 2(1) 22(1)
i
5/2( I) 4( I) 7( I) 2(1 ) 3(1 ) 24(1 ) I
8(2) 7(2) 8( I) 3( I) 4(1) 25(1 )
9(2)
9( I) 4( I) 5(1) 26(1 )
10(2)
10( I)
6(1 )
II (2) II (I)
7(1 )
12(2) 12( I)
8(1 )
13( I)
13( I)
9( I)
June
14/1(1)
14( I)
10( I)
15( I)
16P.1 (I)
16P.2(1)
16P.3(1)
16P.4( I)
16P.6(1)
16P.7(I)
16P.8(1)
/'
16P.9(1)
I
16P.10(1)
16P.11 (I)
L
16P.12(1)
1962
6( I) 1(2) 2(2) 2(3) 1 ( 1 ) 5(2) 6(2) 1(2) 1(2)
1(2) 1(1) 23(1 )
3(2) 3(2) 2/1 (I)
2(2) 2(2) 6(2) 2(1)
27(1 )
4(2)
3(2) 3(2) 7(2) 30( I)
4(2) 3/1(1) 8(2)
6(2) 9(2)
Jan
10(2) II (I)
12( I)
13( I)
14( I)
15( I)
I
16( I)
/
17( I)
- ~ . ~"
1--,
1--

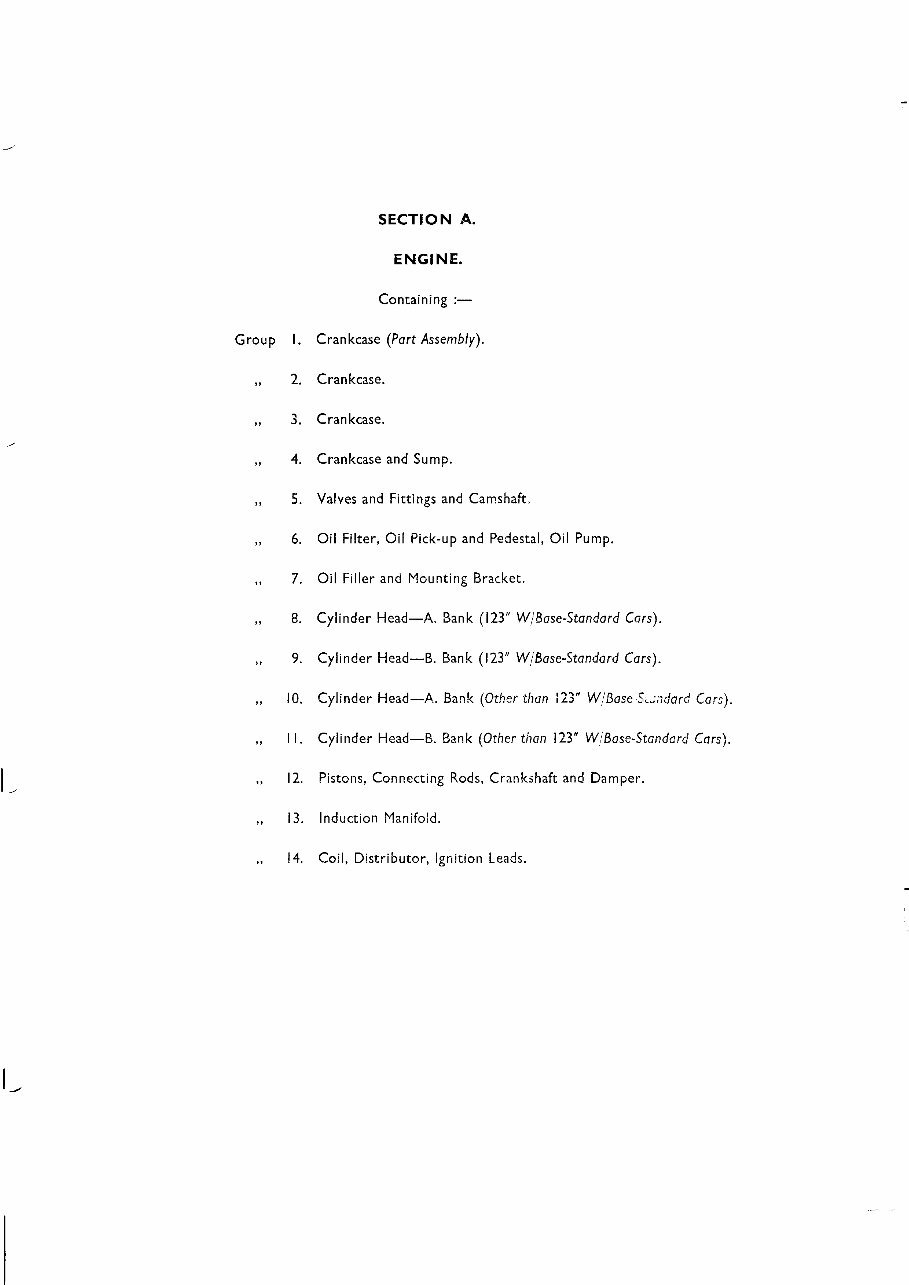

SECTION A.
ENGINE.
Containing :-
Group I. Crankcase (Part Assembly).
2. Crankcase.
3. Crankcase.
4. Crankcase and Sump.
5. Valves and Fitti ngs and Camshaft,
6. Oil Filter, Oil Pick-up and Pedestal, Oil Pump.
7. Oil Filler and Mounting Bracket.
8. Cylinder Head-A. Bank (123" WjBase-Standard Cars).
9. Cylinder Head-B. Bank (123" WjBase-Standard Cars).
10. Cylinder Head-A. Bank (Other than 123" WjBase,S~.Jndard Cars).
II. Cylinder Head-B. Bank (Other than 123" WjBase-Standard Cars).
12. Pistons, Connecting Rods, Crankshaft and Damper.
13. Induction Manifold.
14. Coil, Distributor, Ignition Leads.
I~
1/
1---

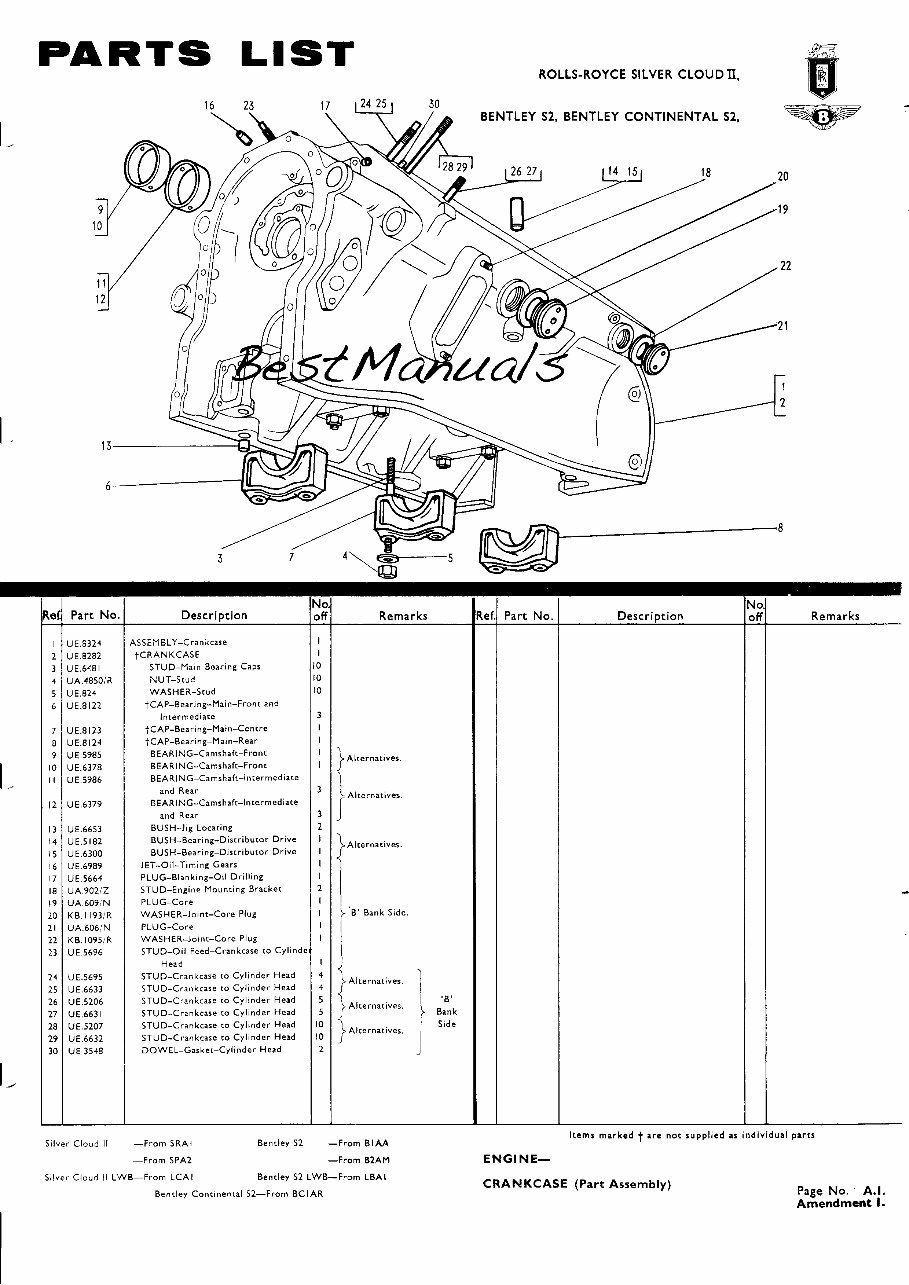

PARTS LIST
16
13--------------~~
6--------.
~~~~
3 7
No
Ref. Part No. Description off Remarks
I UE.S324 ASSEMBL Y-Crankcase I
2 UE.8282 tCRANKCASE I
3 UE.6'81
STUD-Main Bcaring Cat's 10
4 UA.4850/R NUT-Stud 10
5 UE.824 WASHER-Stud 10
6 UE.8122
tCAP-Bearing-Main-Front and
Intermediate 3
7 UE.8123
tCAP-Bearing-Main-Centre I
8 UE.8124 tCAP-Beari ng-Main-Rear I
9 UE.5985
BEARING-Camshaft-Front I
} Alternatives.
10 UE.6378
BEARING-Camshaft-Front I
II UE.5986
BEARING-Camshaft-Intermediate
I
and Rear 3
J Alternatives.
12 UE.6379
BEARING-Camshaft-Intermediate
and Rear 3
13 UE.6653
BUSH-jig Locating 2
14 UE.5182
BUSH-Searing-Distributor Drive I
} Alternatives.
IS UE.6300
BUSH-Searing-Distributor Drive I
16 UE.6989 JET -Oil-Timing Gears I
1
17 UE.5664 PLUG-Blanking-Oil Drilling I
18 UA.902/Z
STUD-Engine Mounting Bracket 2
19 UA.609/N PLUG-Core I
I,
20 KB.1193/R WASHER-joint-Core Plug I ~ B' Bank Side.
21 UA.606:N PLUG-Core I
I
22 KB.1095,R WASHER-joint-Core Plug I
I
23 UE.5696
STUD-Oil Feed-Crankcase to Cylinde
I
Head I j
24 UE.5695 STUD-Crankcase to Cylinder Head 4
} Alternatives.
25 UE.6633 STUD-Crankcase to Cylinder Head 4
26 UE.5206
STUD-Crankcase to Cylinder Head 5
} Alternatives.
27 UE.6631 STUD-Crankcase to Cylinder Head 5
28 UE.5207 STUD-Crankcase to Cylinder Head 10
} Alternatives.
29 UE.6632 STUD-Crankcase to Cylinder Head 10
30 UE 3548 DOWEL-Gasket-Cylinder Head 2
Silver Cloud 11 -From SRAI Bentley 52 -From BIAA
-From B2AM -From SPA2
Silver Cloud II LWB-From LCAI Bentley S2 L WB-From LBA I
Bentley Continental 52-From BelAR
'B'
Bank
Side
ROLLS-ROYCE SILVER CLOUD n,
BENTLEY 52, BENTLEY CONTINENTAL 52,
18
20
19
22
21
~----------------~8
No
Ref. Part No. Description off Remarks
Items marked t are not supplied as individual parts
ENGINE-
CRANKCASE (Part Assembly)
Page No .. A.!,
Amendment 1-
I~
I
L

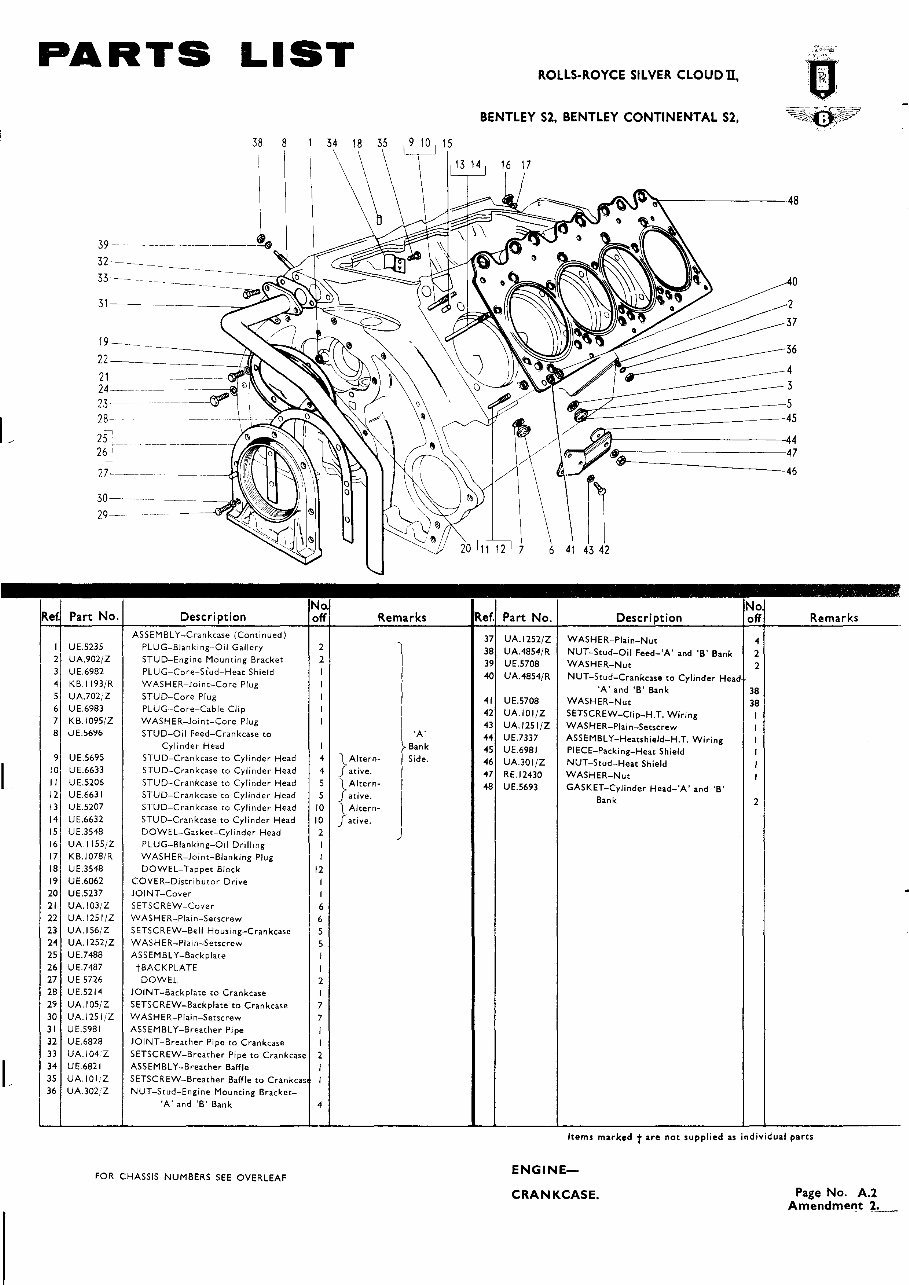

PARTS LIST
Ref.
I
2
3
4
5
6
7
8
9
10
II
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
38
l
39 ~--.-- .. -. ~-~-~--~
32--_~~ __
33---
2 7 ----~ --~ - --_.--
30-
29--
Part No.
UE.523S
UA.902/Z
UE.6982
KB.1193/R
UA702/Z
UE.6983
KB.1095jZ
LiE.!>69l:>
UE.569S
UE.6633
UE.5206
UE.6631
UE.5207
UE.6632
UE.3548
UA1155/Z
KB.1078/R
UE.3548
UE.6062
UE.5237
UAI03/Z
UA1251/Z
UAI56/Z
UA1252/Z
UE.7488
UE.7487
UE5726
UE.5214
UAIOSjZ
UA1251/Z
UE.5981
UE.6828
UAI04,Z
UE.6821
UAIOI/Z
UA302 'Z
Description
ASSEMBL Y-Crankcase (Continued)
PLUG-Blanking-Oil Gallery
STUD-Engine Mounting Bracket
PLUG-Core-Siud-Heat Shield
WASHER-Joint·-Core Plug
STUD-Core Plug
PLUG~Core-Cable Clip
WASHER-Joint-Core Plug
STUD-Oil Feed-Crankcase to
Cylinder Head
STUD-Crankcase to Cylinder Head
STUD-Crankcase to Cylinder Head
STUD-Crankcase to Cylinder Head
STUD-Crankcase to Cylinder Head
STUD-Crankcase to Cylinder Head
STUD-Crankcase to Cylinder Head
DOWEL-Gasket-Cylinder Head
PLUG-Blanking-Oil Drilling
WASH ER-Joi nt-Blanking Plug
DOWEL-Tappet Block
COVER-Distributor Drive
JOINT-Cover
SETSCREW-Cover
WASHER-Plain-Setscrew
SETSCREW-Bell Housing-Crankcase
WASHER-Plain-Setscrew
ASSEMBL Y-Backplate
tBACKPLATE
DOWEL
JOINT -Backplate to Crankcase
SETSCREW-Backplate to Crankcase
WASHER-Plain-Setscrew
ASSEMBL Y-Breather Pipe
JOINT -Breather Pipe to Crankcase
SETSCREW-Breather Pipe to Crankcase
ASSEMBLY-Breather Baffle
SETSCREW-Breather Baffle to Crankcas
NUT -Stud-Engine Mounting Bracket-
'A' and 'B' Bank
FOR CHASSIS NUMBERS SEE OVERLEAF
34 18
No
of( Remarks
2
'1
2
I
I
I
I
I
I
I
I
I
I
I
'A'
I (Bank
4 LAltern- I Side.
4 f ative.
I
5 L Altern-
I
5 f at;ve.
I
10 l Altern-
I
10 f ative.
2 )
I
I
12
I
I
6
6
5
5
I
I
2
I
7
7
I
I
2
I
I
4
ROLLS-ROYCE SILVER CLOUDll,
BENTLEY 52. BENTLEY CONTINENTAL 52.
Ref.
37
38
39
40
41
42
43
44
45
46
47
48
Part No.
UA.1252/Z
UA4854/R
UE.5708
UA.4854/R
UE.5708
UA.IOljZ
UAI251jZ
UE.7337
UE.6981
UA.30IjZ
RE.12430
UE.5693
~--------------48
o
5
=_-------45
~--------------------44
~------------~~----47
'------------- 46
No
Description of(
WASHER-Plain-Nut 4
NUT-Stud-Oil Feed-'A' and 'B' Bank 2
WASHER-Nut
2
NUT -Stud-Crankcase to Cylinder Head
'A' and 'B' Bank 38
WASHER-Nut
38
SETSCREW-Clip_H.T. Wiring I
WASHER-Plain-Setscrew I
ASSEMBLY-Heatshield-H.T. Wiring I
PIECE-Packing-Heat Shield I
NUT -Stud-Heat Shield I
WASHER-Nut
I
GASKET-Cylinder Head-'A' and 'B'
Bank
2
Remarks
ividual Items marked t are not supplied as Ind p arts
ENGINE-
CRANKCASE.
Page No. A.2
Amendment ~_._
You're Reading a Preview
What's Included?
Lifetime Access
Fast Download Speeds
Online & Offline Access
Access PDF Contents & Bookmarks
Full Search Facility
Print one or all pages of your manual
$44.99
Rolls Royce Silver Cloud II & Bentley S2 & Continental S2 Illustrated Parts Catalog Manual -
Viewed 11 Times Today
What's Included?
Lifetime Access
Fast Download Speeds
Online & Offline Access
Access PDF Contents & Bookmarks
Full Search Facility
Print one or all pages of your manual
$44.99
Secure transaction
What's Included?
Lifetime Access
Fast Download Speeds
Online & Offline Access
Access PDF Contents & Bookmarks
Full Search Facility
Print one or all pages of your manual
Description
This is a comprehensive factory manual for the Rolls Royce Silver Cloud II, Bentley S2, and Bentley Continental S2. It features detailed diagrams and illustrations with exploded views, providing a complete list of parts for your vehicle. This manual is an invaluable resource for both professional mechanics and DIY enthusiasts, offering information for reassembling your automobile.
The manual includes sections covering general information, new and amended pages, engine, carburetor and fuel system, cooling system, front and rear suspension, transmission, wheels, steering, brakes, electrical, instrument panel, air conditioning, frame, body, and tools and spares. Each section is complete with exploded views, diagrams, part numbers, and part descriptions, with parts grouped according to their location on the automobile.
With 379 pages, this manual is compatible with all versions of Windows and Mac, and it is searchable, bookmarked, and indexed for easy navigation. You can print out the entire manual or specific sections, and it is presented in an easy-to-read file format. The manual is completely searchable, allowing you to quickly find the information you need. It can be viewed on any computer, zoomed, and printed for convenience.
For immediate access to this manual, simply click the green and white button at the top right-hand side of this page. If you require any other manuals, feel free to email us for assistance. Please note that the documents may require the newest version of Acrobat Reader for optimal display.
